HTD 3M Closed-Loop Synchronous Timing Belt — 10mm & 15mm Width, Multiple Lengths

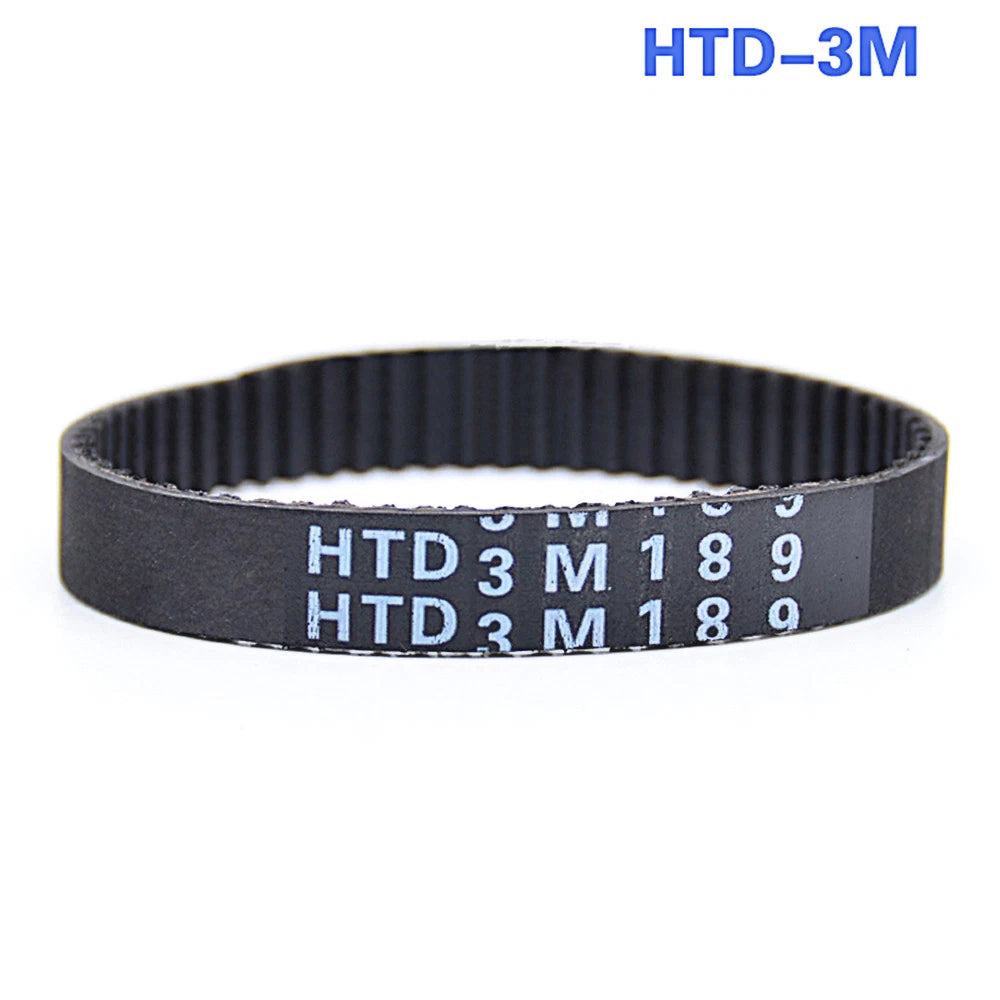

The number after "3M-" indicates the belt's inner circumference in millimeters. For example, 3M-234 means a 234mm (≈9.2") closed loop. To find your size, either measure your existing belt laid flat (circumference = 2 × measured length) or calculate: (center-to-center distance × 2) + (pulley pitch circumferences). When in doubt, consult your machine's documentation or contact us.

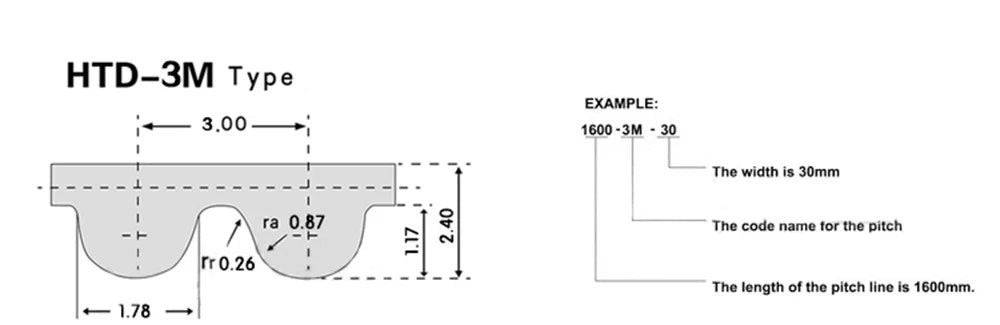

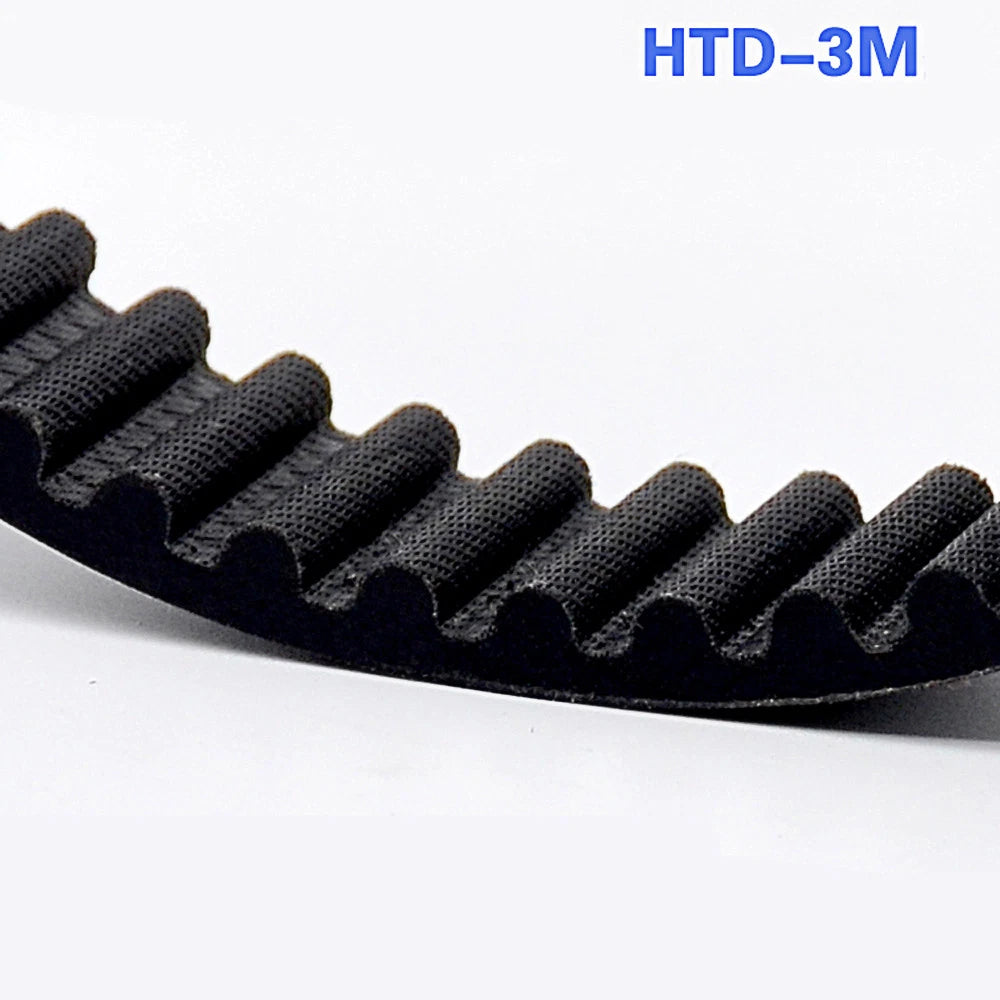

HTD stands for High Torque Drive. The 3M designation indicates a 3mm pitch (tooth-to-tooth spacing). HTD 3M belts use a curvilinear (rounded) tooth profile that generally provides better load distribution and reduced backlash compared to older trapezoidal tooth profiles — making them a common choice for 3D printer axis belts and precision CNC drives.

Width affects load capacity and lateral rigidity. A 10mm belt is typically sufficient for light-duty applications such as 3D printers and small CNC routers. A 15mm belt is generally preferred for higher-torque setups or where greater lateral stiffness matters, such as larger CNC machines and robotics. Always check that your pulley's belt groove width matches your chosen belt width.

HTD 3M belts typically use a fiberglass or steel cord tensile member embedded in neoprene or polyurethane. In most cases, the 10mm width handles light-to-medium loads and the 15mm width handles medium-to-heavy loads. Exact rated load values depend on the specific cord material and construction. Contact us to confirm specifications for your application.

HTD 3M belts are generally made from neoprene or polyurethane with a nylon tooth facing, which offers reasonable resistance to moisture and moderate temperatures. They are not typically rated for prolonged outdoor UV exposure or chemical immersion. For outdoor or harsh-environment use, verify material compatibility with your specific conditions before installing.

These belts require HTD 3M-profile pulleys (3mm pitch, curvilinear tooth form). They are not interchangeable with GT2, MXL, or trapezoidal T3 pulleys. Common tooth counts for 3D printer and CNC applications include 16T, 20T, and 36T pulleys — confirm your pulley profile and tooth count before purchasing.

Closed-loop belts are pre-joined and slip directly onto matching pulleys. Loosen the motor or idler mount to reduce center distance, route the belt over both pulleys, then re-tension by adjusting the mount until the belt has slight resistance without being overly tight. Avoid kinking or creasing the belt during installation, as this can damage the tensile cord.

In many cases, yes — HTD 3M is a common belt standard used in RepRap-derived and other open-frame 3D printers. However, some printers use GT2 (2mm pitch) belts instead, which are not compatible with HTD 3M pulleys. Check your printer's documentation or measure the tooth pitch on your existing belt before ordering.
