HTD 3M Closed Loop Timing Belt — Reliable Power Transmission for 3D Printers, CNC & Robotics

When a worn or incorrectly sized drive belt causes missed steps, layer shifts, or positioning errors, the entire machine suffers. Engineers, makers, and repair technicians who need a drop-in HTD 3M closed loop timing belt with consistent tooth geometry and predictable stretch characteristics will find this listing covers the most commonly required circumferences in one place.

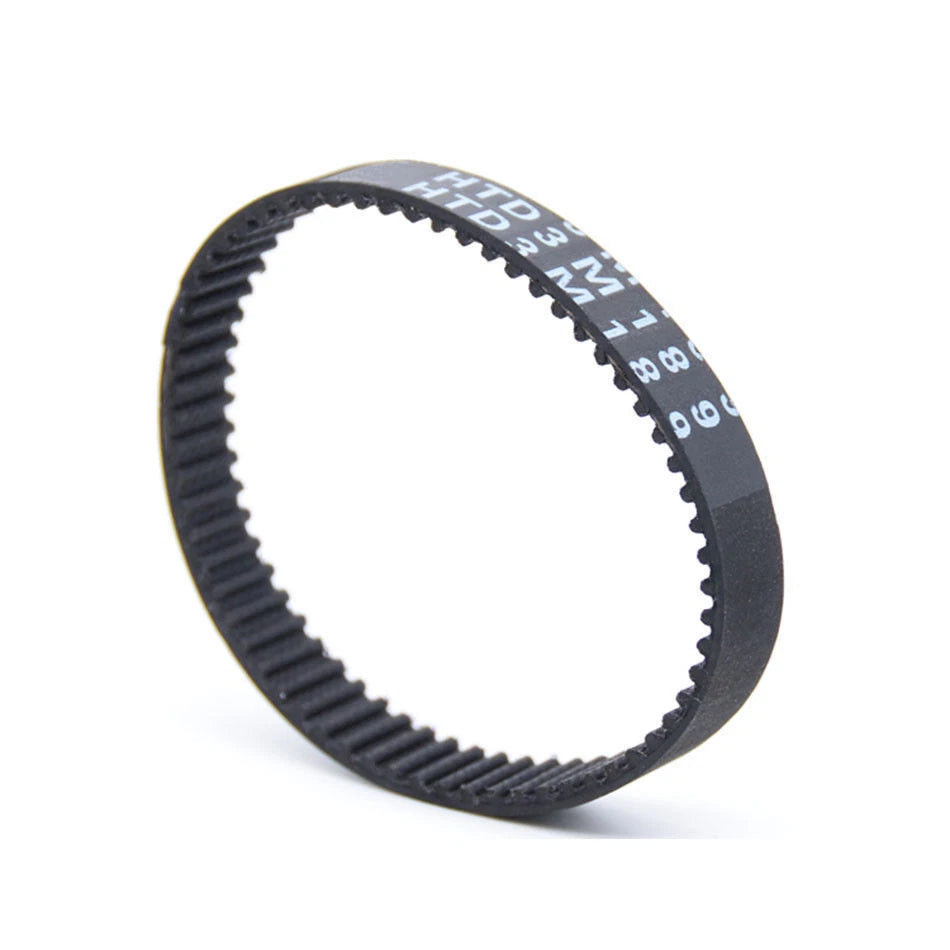

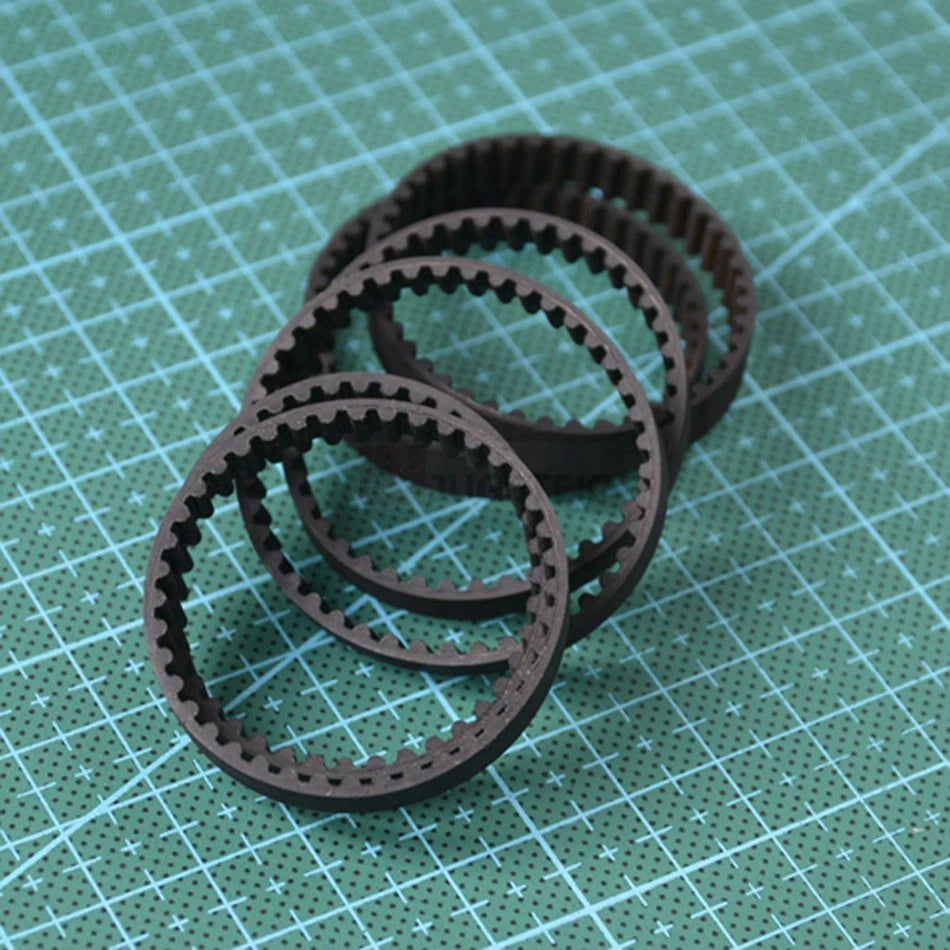

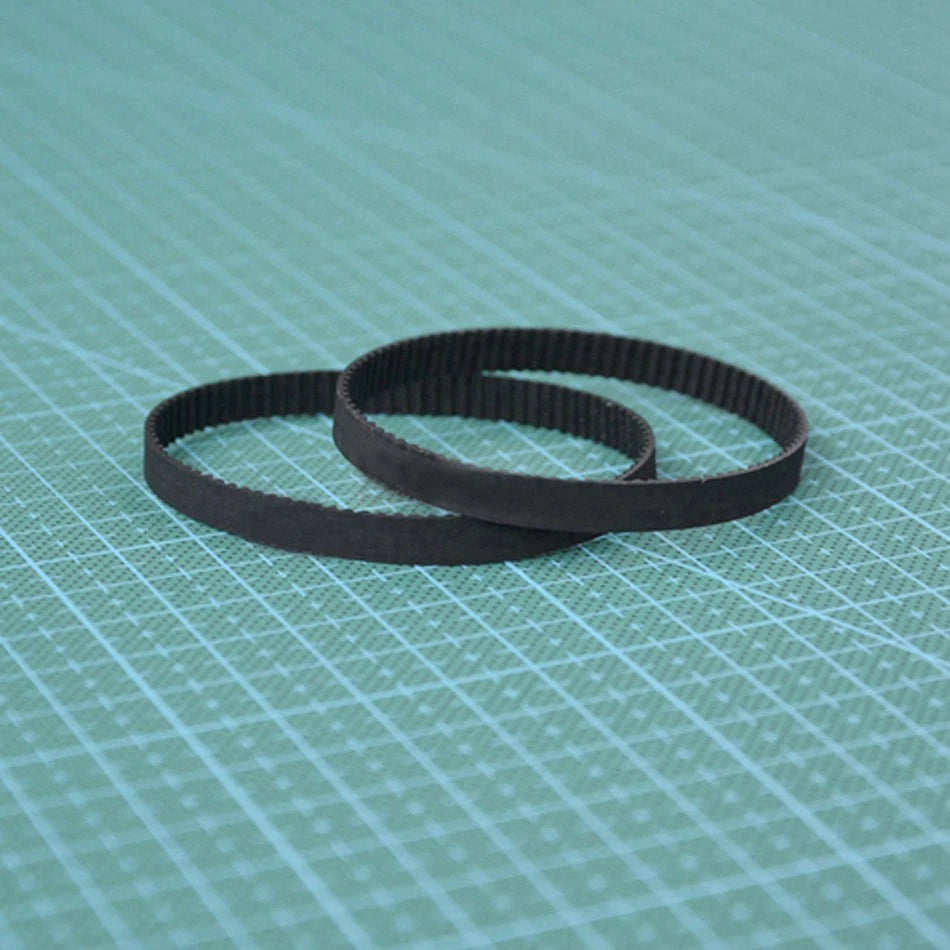

Each belt in this listing is a closed loop (endless) HTD 3M timing belt with a 3mm pitch and rounded HTD tooth profile. Available circumferences run from 384mm (≈15.1″) to 408mm (≈16.1″), covering seven specific sizes: 384mm, 390mm, 393mm, 399mm, 402mm, 405mm, and 408mm. Width options are 10mm (≈3/8″) and 15mm (≈19/32″). The belt body is constructed from rubber with fiberglass or steel cord reinforcement — contact us to confirm cord type for your specific variant.

Typical use cases include replacing drive belts on desktop FDM 3D printers (Z-axis and secondary loops), small CNC router axis drives, robotic arm joint actuators, and light-duty conveyor or indexing systems where precise, repeatable positioning is required.

ⓘ Compatibility: Fits any pulley manufactured to the HTD 3M standard (3mm pitch, rounded tooth profile). Verify your pulley tooth count and center-to-center distance before ordering to confirm the correct circumference.

✅ Key Features of These HTD 3M Closed Loop Timing Belts

  • 🔄HTD 3M Tooth Profile — The rounded HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque 3D printer and CNC drive applications.
  • 📏Seven Circumference Options in One Listing — Covers 384mm, 390mm, 393mm, 399mm, 402mm, 405mm, and 408mm so you can match the exact belt length your machine requires without ordering from multiple sources.
  • ↔Two Width Choices: 10mm & 15mm — The 10mm width suits lightweight axis drives; the 15mm width handles greater lateral loads and is preferred for wider carriage systems or higher-torque closed-loop drives.
  • 🔗Closed Loop (Endless) Construction — No mechanical joint or clip means zero backlash at the splice point, which is critical for repeatable positioning in CNC routing and robotic indexing applications.
  • ⚙Cord-Reinforced Backing — Internal tensile cords (fiberglass or steel — see variant details) limit elongation under load, keeping tooth pitch consistent across the belt's service life.
  • 📦Ships from US Warehouse — Stocked domestically for faster delivery to US addresses, reducing downtime when a belt replacement is urgent.

📐 Technical Specifications — HTD 3M Closed Loop Timing Belt

Belt Type HTD (High Torque Drive) Closed Loop / Endless

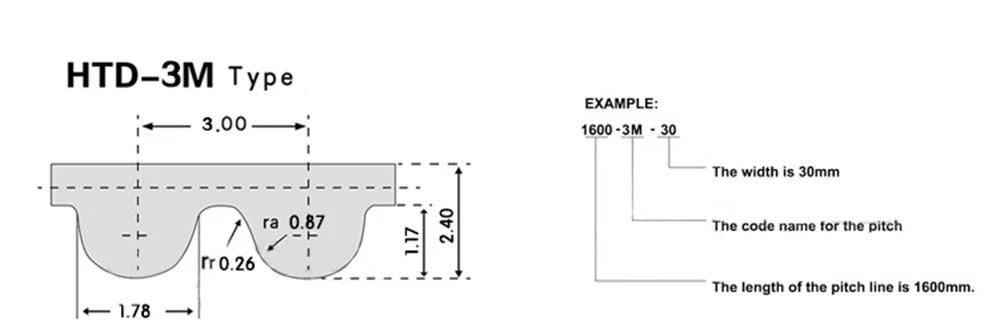

Pitch 3mm (HTD 3M standard)
Tooth Profile Rounded HTD
Available Circumferences 384mm (≈15.1″) / 390mm (≈15.4″) / 393mm (≈15.5″) / 399mm (≈15.7″) / 402mm (≈15.8″) / 405mm (≈15.9″) / 408mm (≈16.1″)
Available Widths 10mm (≈3/8″) / 15mm (≈19/32″)
Material Rubber with cord reinforcement (fiberglass or steel — see variant options)
Tensile Cord See variant options
Operating Temperature Generally −20°C to +80°C (−4°F to +176°F) — contact us to confirm
Suitable Drive Systems 3D printers, CNC routers, robotics, light conveyor / indexing
Pack Quantity 1 piece per pack (multi-pack options available — see variants)
⚠ Spec confirmation: If your application requires a specific tensile load rating, cord material, or operating temperature range, please contact us before ordering to confirm suitability.

❓ Frequently Asked Questions

How do I choose the right circumference for my HTD 3M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference: C = 2 × center distance + π × (D1 + D2) / 2. The circumferences in this listing range from 384mm (≈15.1″) to 408mm (≈16.1″). When in doubt, size up slightly — a belt that is too tight will wear faster and stress bearings. Many 3D printer manufacturers publish the exact belt part number in their BOM or service documentation.

What is the difference between the 10mm and 15mm width options?

Width directly affects tensile load capacity and lateral stability. The 10mm width is generally sufficient for light-duty applications such as 3D printer axes and small CNC routers. The 15mm width provides greater working tension capacity and is better suited for heavier carriages, wider drive systems, or applications where belt flex must be minimized. If your original belt is 15mm, always replace with 15mm — do not substitute a narrower belt.

How much load can an HTD 3M closed loop timing belt handle?

Tensile load capacity depends on width and cord material. Rubber HTD 3M belts typically handle 100–200 N of working tension for 10mm width and 150–300 N for 15mm width under normal operating conditions. These are general industry figures — for precise load ratings specific to this product, contact us to confirm.

Can these belts be used outdoors or in humid environments?

HTD 3M rubber timing belts are generally resistant to moderate moisture and humidity. However, prolonged exposure to UV radiation, petroleum-based oils, or harsh chemicals can degrade the rubber compound over time. For outdoor installations or chemically aggressive environments, a polyurethane (PU) belt variant is typically recommended. Contact us if you need to confirm suitability for a specific environment.

Are these belts compatible with standard HTD 3M pulleys?

Yes. These belts follow the HTD 3M tooth profile standard — 3mm pitch, rounded tooth form — and are compatible with any pulley manufactured to the same HTD 3M specification. Always verify the pulley tooth count and belt circumference match your drive geometry before installation. Mixing HTD and GT2/GT3 pulleys with this belt is not recommended, as the tooth profiles differ.

Which circumference should I choose for a 3D printer or CNC machine?

Most desktop FDM 3D printers and small CNC routers use HTD 3M belts in the 384–408mm range for Z-axis or secondary drive loops. Check your machine's bill of materials (BOM) or belt routing diagram for the exact circumference. If your machine specifies a belt length in inches, multiply by 25.4 to convert to millimeters — for example, 15.1″ × 25.4 = 384mm.

How do I install a closed loop timing belt without damaging it?

Loop the belt over both pulleys before tensioning. Never force the belt over a pulley flange — if it does not seat easily, the circumference may be too small. Apply tension gradually and evenly using your machine's tensioner or idler adjustment. Avoid kinking or bending the belt sharply during installation, as this can crack the tooth backing or damage the tensile cords.

🛒 Select your type (circumference) and width above, then add to cart — ships from our US warehouse.
