HTD 3M Closed Loop Timing Belt — Precision 3mm Pitch Drive for CNC, 3D Printers & Robotics

When a slipping or stretched belt throws off your CNC router's cut accuracy or causes layer shifts on your 3D printer, the root cause is almost always a worn or incorrectly sized drive belt. Makers, machine builders, and repair technicians who need a reliable drop-in replacement or upgrade for HTD 3M drive systems rely on a belt that holds its tooth geometry under load — not one that stretches out after a few hundred hours.

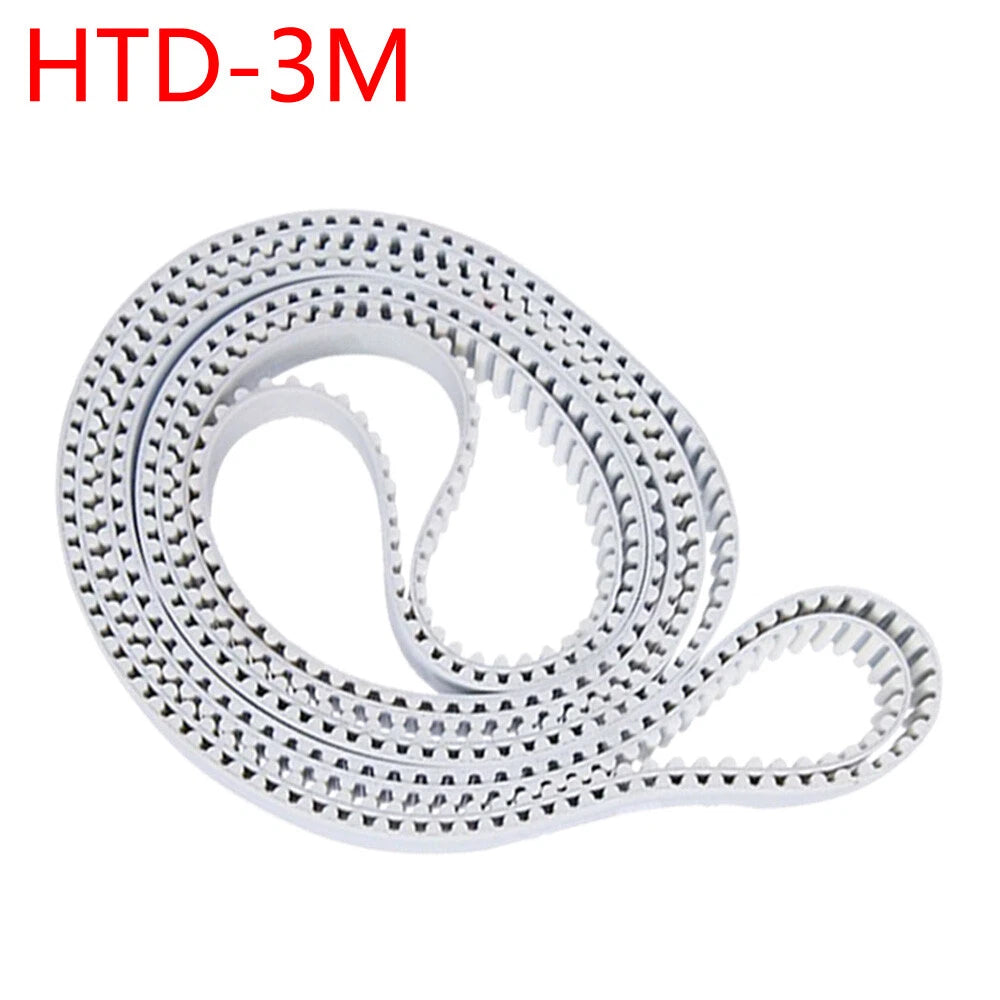

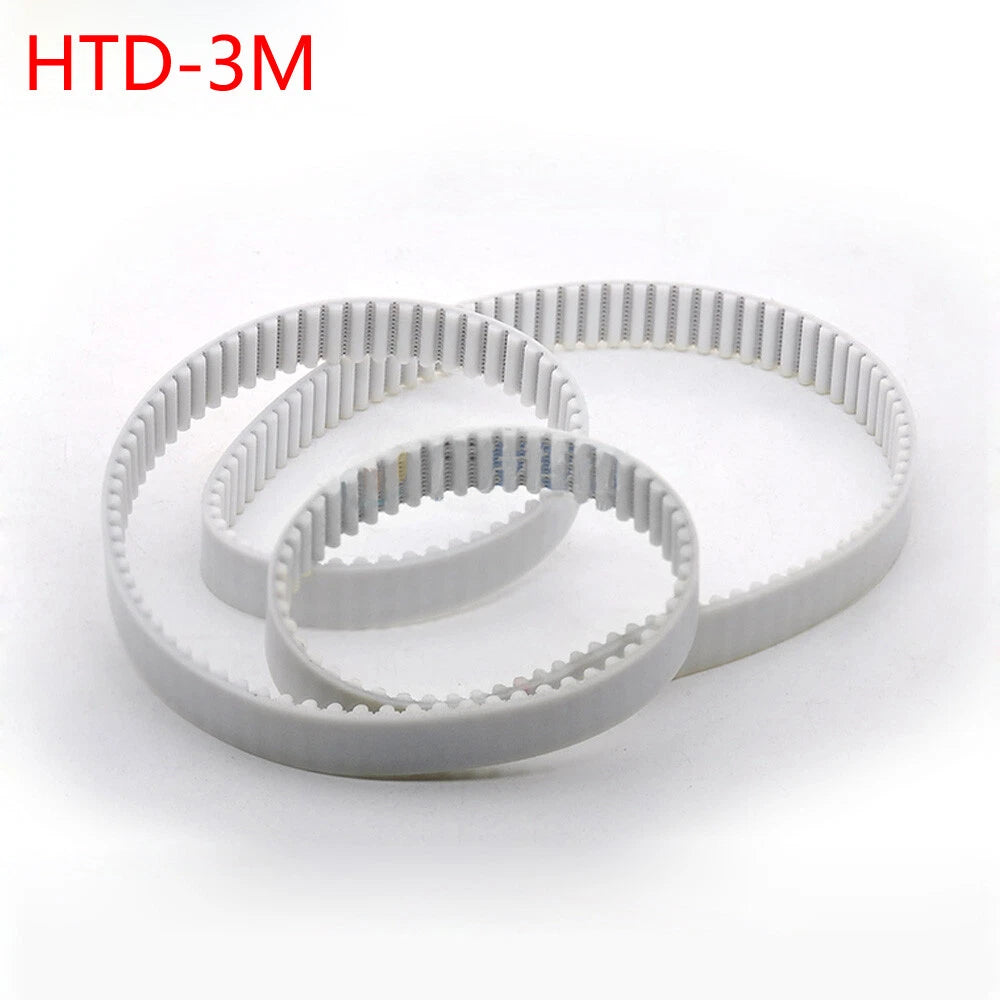

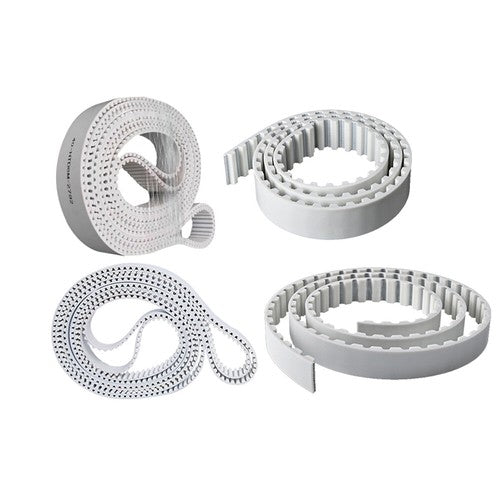

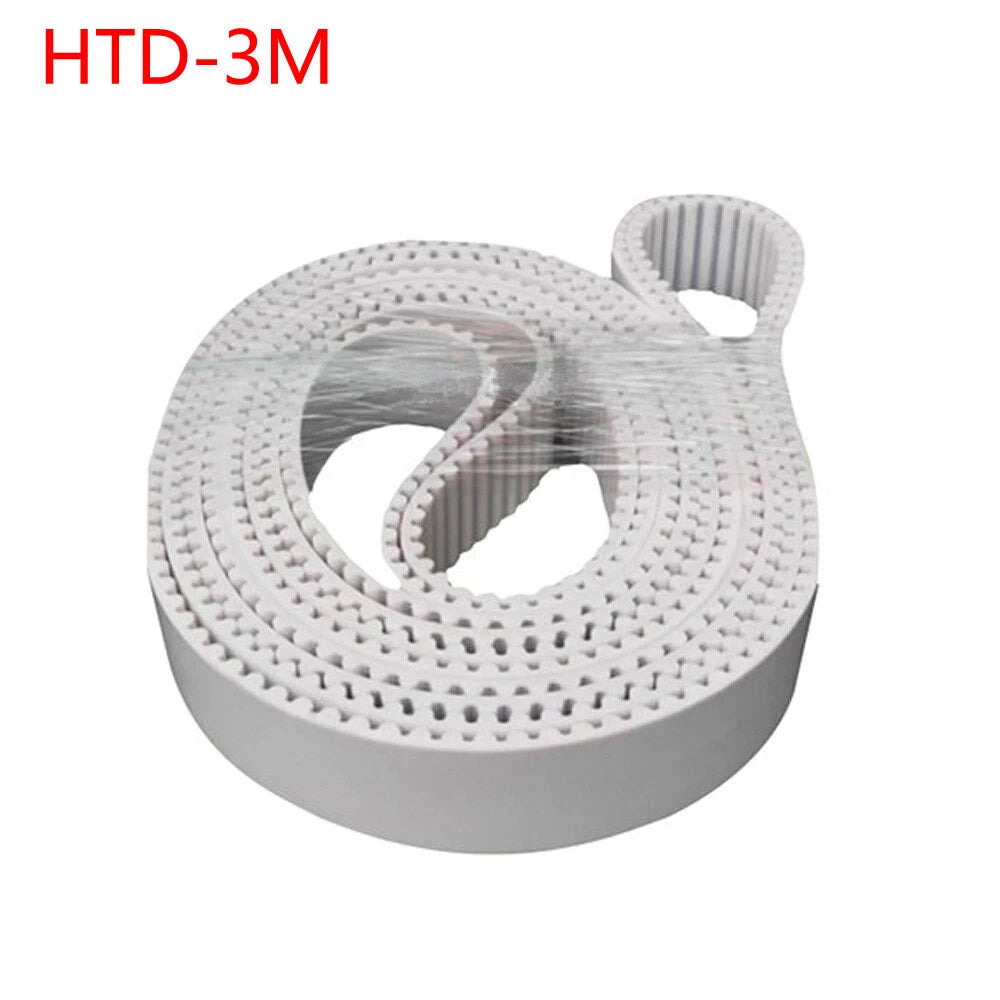

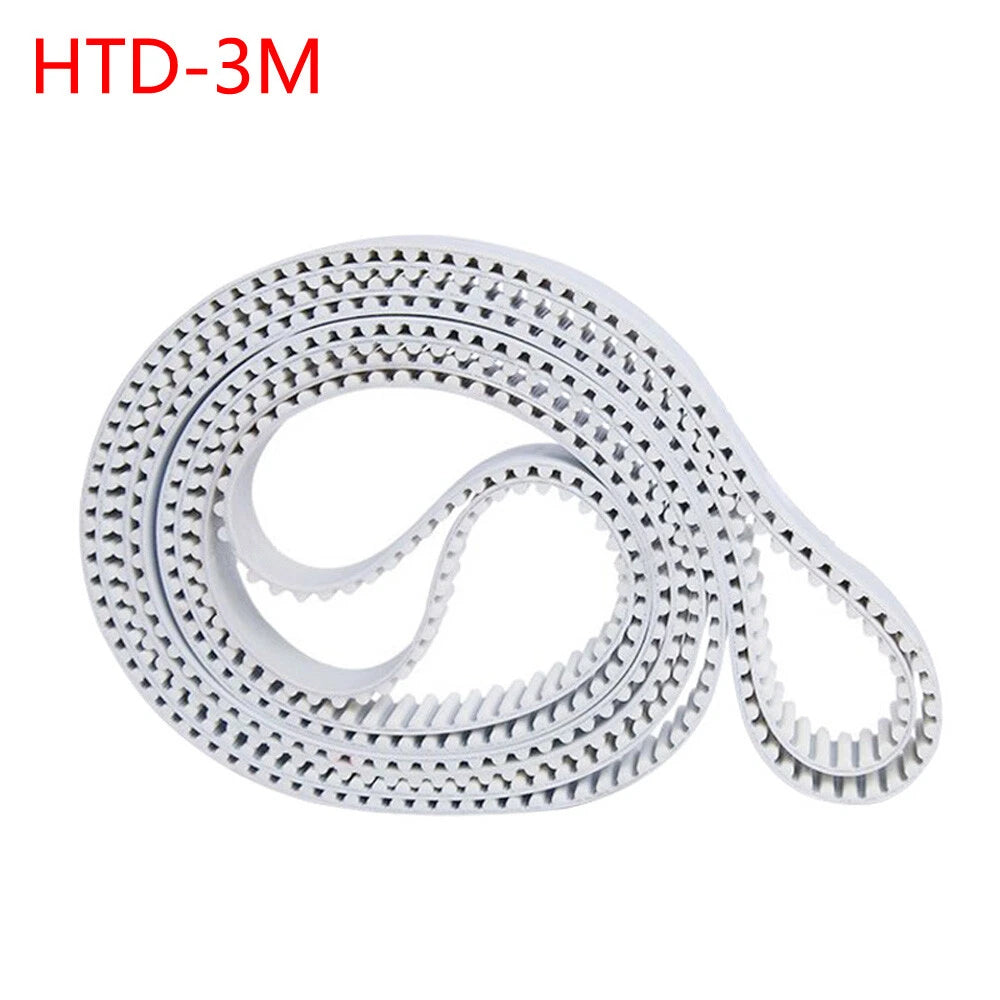

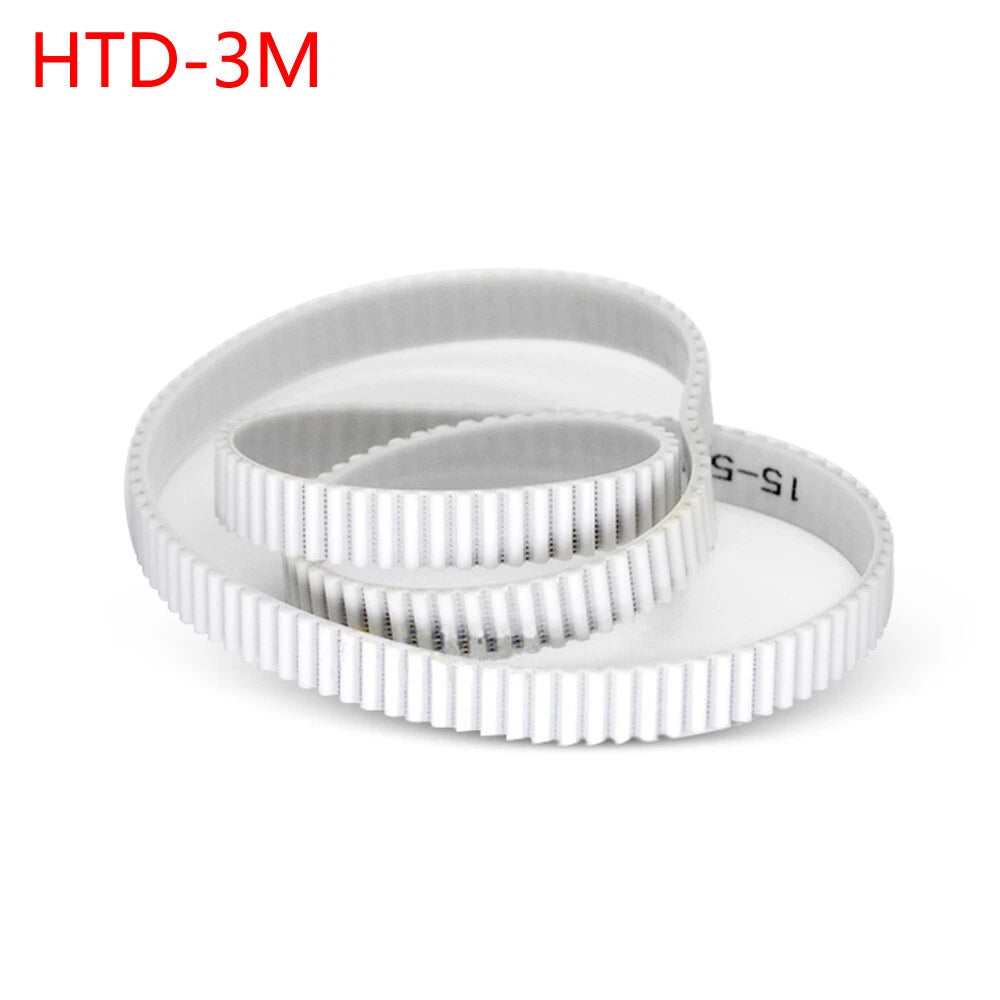

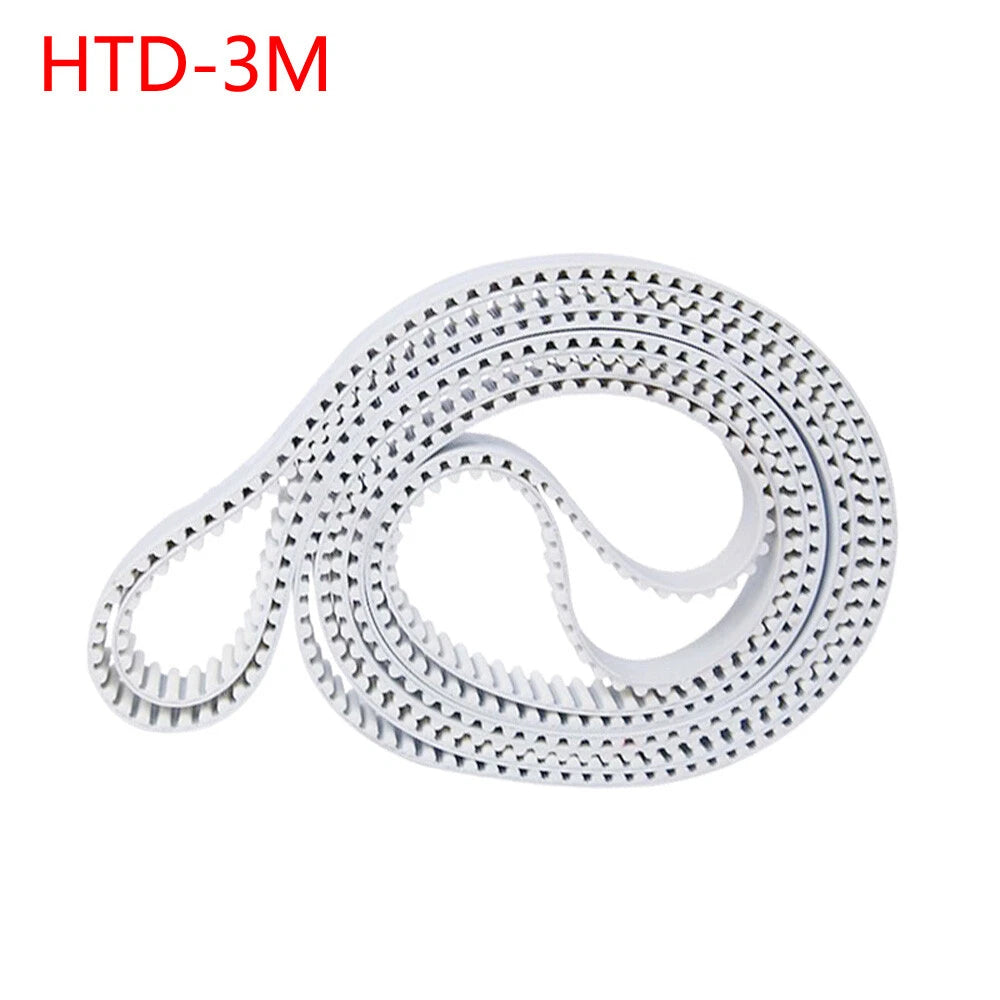

Each belt in this listing is a single closed-loop (endless) HTD 3M polyurethane timing belt, 15mm (≈0.59") wide, with a 3mm pitch. Perimeters range from 483mm (≈19.0") to 2181mm (≈85.9"), with tooth counts from 161 to 727 teeth — select your exact perimeter and corresponding tooth count from the variant dropdown. The polyurethane construction with steel tension cord reinforcement provides dimensional stability and resistance to oils and mild chemicals.

Typical applications include 3D printer X/Y/Z axis drives, CNC router spindle and gantry drives, laser engraver motion systems, conveyor belt drives in light automation, and robotic joint actuators — anywhere an HTD 3M closed-loop timing belt is specified.

⚙️ Compatibility: Designed for HTD 3M profile pulleys only (3mm pitch). Not compatible with GT2, MXL, T2.5, or other tooth profiles. Verify your pulley profile before ordering.
📏 Size tip: Select the perimeter that matches your machine's belt path length. The teeth count is listed alongside each perimeter to help cross-reference with OEM documentation. If unsure, measure your existing belt or consult your machine's service manual.

✅ Key Features of These HTD 3M Closed Loop Timing Belts

  • 🔁Closed-Loop Endless Construction — No joint or splice; the seamless loop eliminates the weak point found in cut-and-joined belts, making it suitable for continuous rotary drive applications in 3D printers and CNC machines.
  • 📐HTD 3M Tooth Profile, 3mm Pitch — The rounded HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in moderate-torque closed loop timing belt drive systems.
  • 🧪Polyurethane Body with Steel Cord Reinforcement — PU construction resists abrasion, oils, and mild chemicals better than standard neoprene, while the steel tension cord limits elongation under load for consistent positioning accuracy.
  • 📏Wide Size Range: 483mm–2181mm Perimeter — With 250 perimeter options in 3mm increments, you can find the exact belt length for your machine without resorting to custom orders or awkward tensioner adjustments.
  • 🔇Low-Noise, Smooth Engagement — The HTD profile and polyurethane material combination typically produces quieter operation than metal chain or cogged rubber belts in light-duty automation and desktop CNC router applications.
  • 🏭15mm Belt Width for Balanced Load Capacity — At 15mm wide, this belt strikes a practical balance between load-carrying ability and compact drive system packaging, fitting standard 15mm HTD 3M pulley flanges used in most desktop and benchtop machines.

📐 Technical Specifications — HTD 3M Polyurethane Closed Loop Timing Belt

Belt Profile HTD 3M (High Torque Drive, 3mm pitch)
Pitch 3mm (≈0.118")
Belt Width 15mm (≈0.59")
Perimeter Range 483mm (≈19.0") – 2181mm (≈85.9")
Teeth Count Range 161 Teeth – 727 Teeth (varies by perimeter)
Belt Type Closed Loop (Endless)
Body Material Polyurethane (PU)
Tension Member Steel cord (typically)
Tooth Profile HTD (rounded curvilinear)
Compatible Pulley Profile HTD 3M only
Quantity per Order 1 piece (1pcs)
Operating Temperature See variant options / Contact us to confirm
Color / Finish See variant options

❓ Frequently Asked Questions

How do I choose the right perimeter (belt length) for my machine?

Measure the center-to-center distance between your drive and driven pulleys, then calculate: Perimeter ≈ 2 × C-to-C + (π × pulley pitch diameter). For example, a 483mm perimeter belt spans roughly 19.0 inches; a 1200mm belt is approximately 47.2 inches. Always verify against your machine's spec sheet or existing belt markings before ordering. The teeth count listed in each variant can also help you cross-reference with OEM documentation.

What load can an HTD 3M polyurethane timing belt handle?

HTD 3M belts at 15mm width generally support moderate torque loads suitable for light-to-medium automation, 3D printers, CNC routers, and robotics. Exact load ratings depend on pulley diameter, speed, and operating temperature. Consult your drive system's engineering data for precise figures — we recommend contacting us to confirm if your application is near the design limits.

Can this belt be used outdoors or in wet environments?

Polyurethane (PU) timing belts are generally more resistant to oils, greases, and mild chemicals than standard neoprene belts. However, prolonged UV exposure or immersion in water is not recommended for most PU belts. For outdoor or washdown applications, contact us to confirm suitability before purchasing.

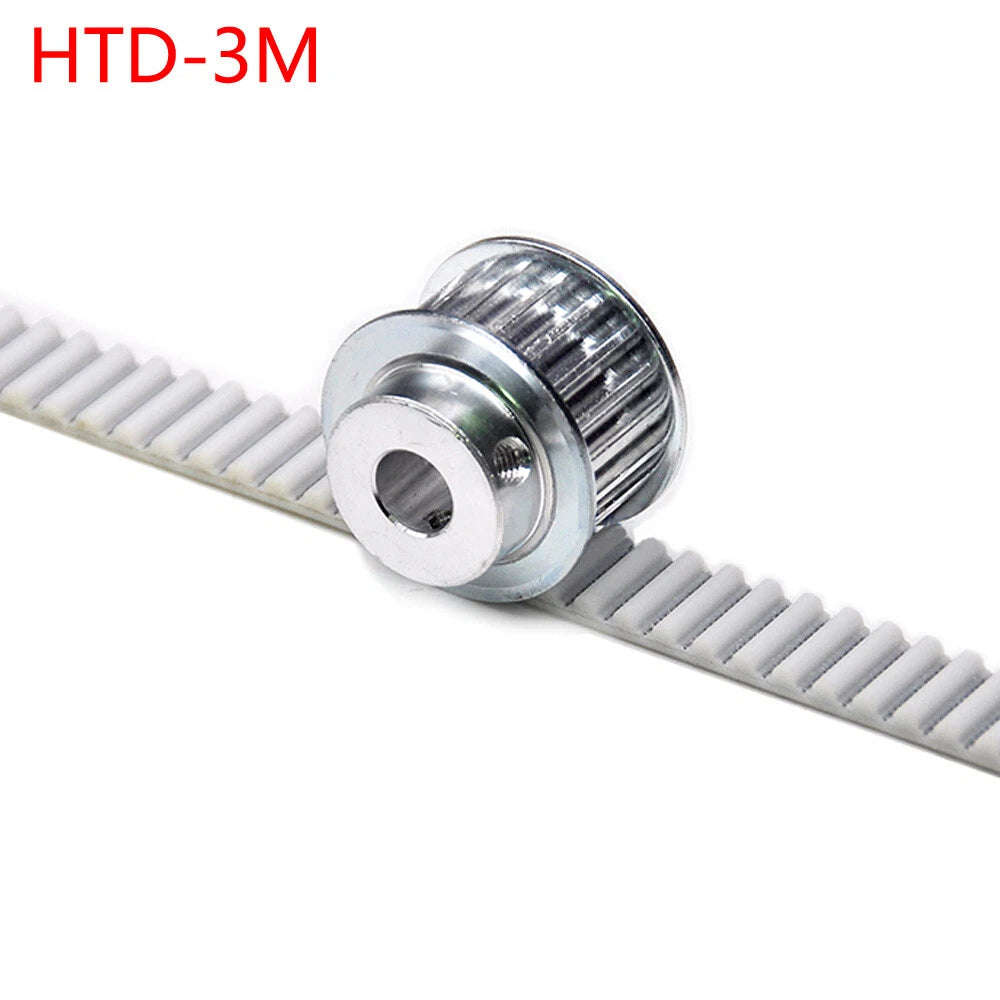

What pulleys are compatible with HTD 3M timing belts?

These belts are designed exclusively for HTD 3M profile pulleys with a 3mm pitch. They are not interchangeable with GT2, MXL, T2.5, XL, or other tooth profiles — even if the pitch appears similar. Ensure your pulley is specifically rated for HTD 3M to achieve proper tooth meshing and avoid premature wear or skipping.

How do I convert the perimeter from mm to inches?

Divide the perimeter in mm by 25.4. Quick reference examples:

  • 483mm ÷ 25.4 ≈ 19.0"
  • 600mm ÷ 25.4 ≈ 23.6"
  • 1200mm ÷ 25.4 ≈ 47.2"
  • 1800mm ÷ 25.4 ≈ 70.9"
  • 2181mm ÷ 25.4 ≈ 85.9"

The teeth count is also listed in each variant to help you cross-reference with your machine's documentation.

Is this a closed-loop (endless) belt or an open-ended belt?

This is a closed-loop (endless) timing belt — it forms a continuous loop with no seam or joint. This design is required for most rotary drive systems including 3D printer axes, CNC spindle drives, and conveyor systems. If you need an open-ended belt sold by the meter, please contact us separately.

Why choose polyurethane over rubber for a timing belt?

Polyurethane timing belts typically offer better abrasion resistance, dimensional stability, and resistance to oils and chemicals compared to standard rubber (neoprene) belts. They also tend to maintain tooth geometry more consistently over time, which is important for precision positioning applications like CNC routers and 3D printers. The tradeoff is that PU belts are generally less flexible at very low temperatures than rubber alternatives.

🛒 Select your perimeter size and teeth number above, then add to cart — ships from our US warehouse.
