HTD 3M Closed Loop Timing Belt — Precise Power Transmission for CNC, 3D Printers & Robotics

When a slipping or stretched belt throws off your CNC cuts, stalls your 3D printer mid-print, or causes positioning errors in your robotic arm, the root cause is often a belt that wasn't built for precision. Engineers, makers, and machine builders who need repeatable, low-backlash motion rely on HTD-3M closed loop timing belts to keep their drives synchronized and accurate.

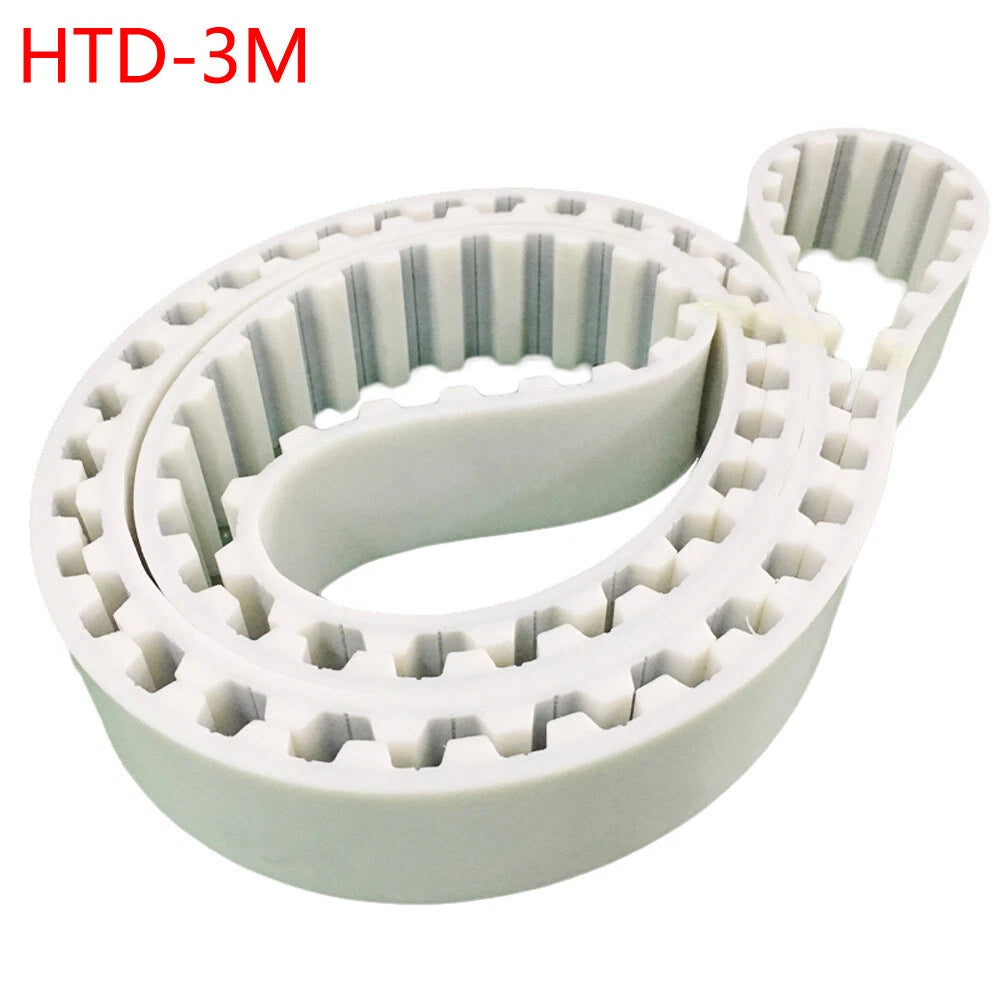

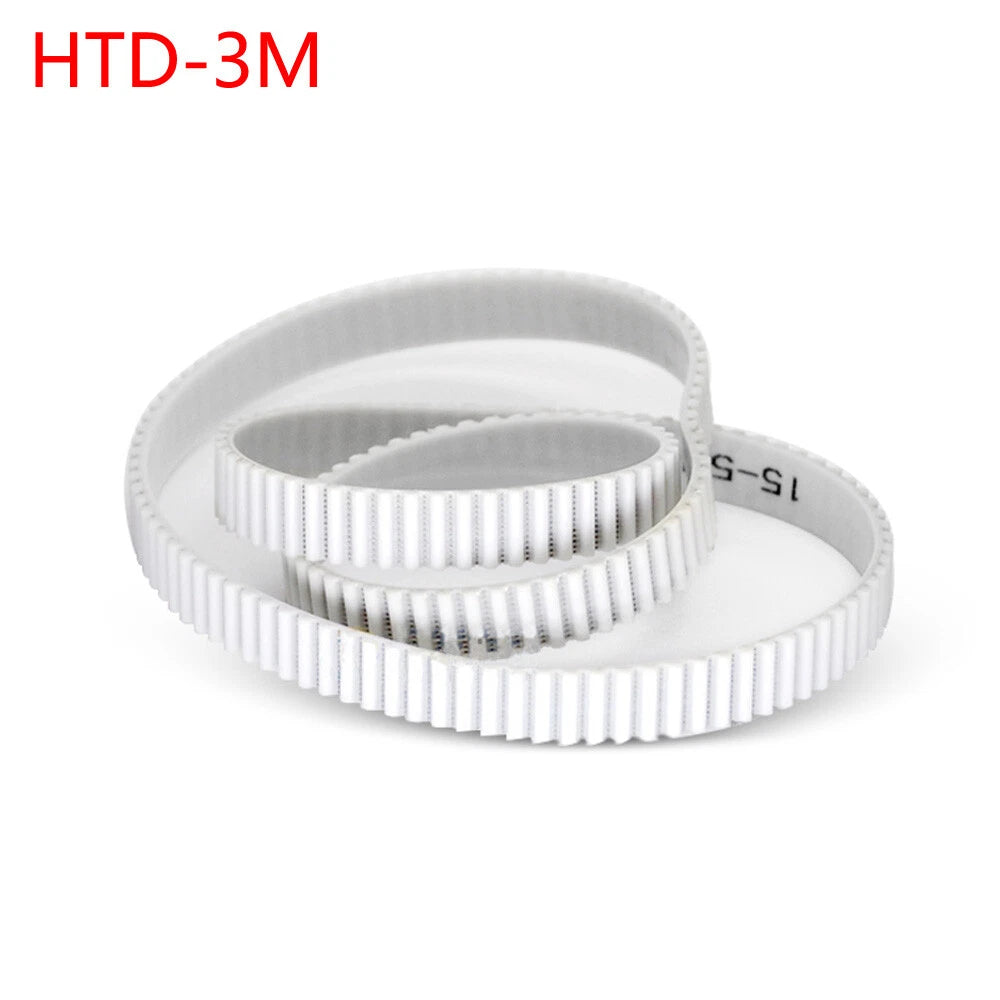

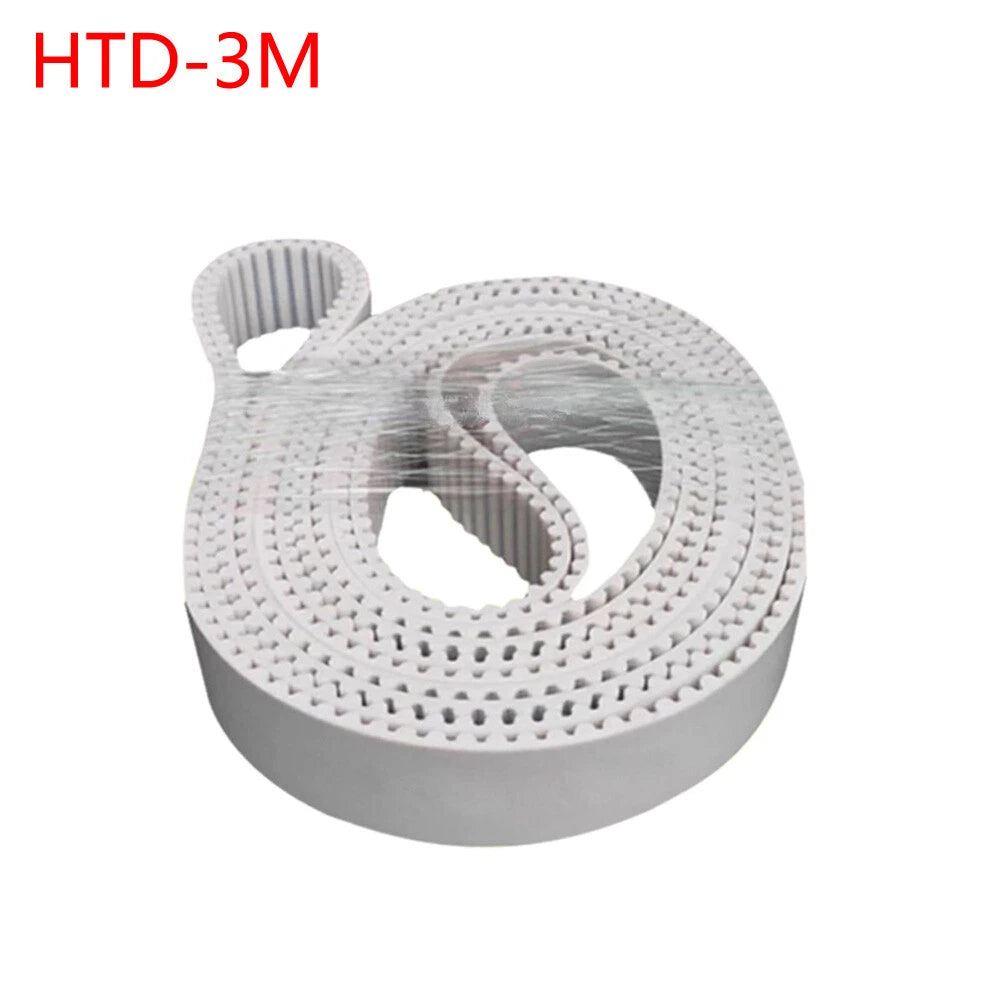

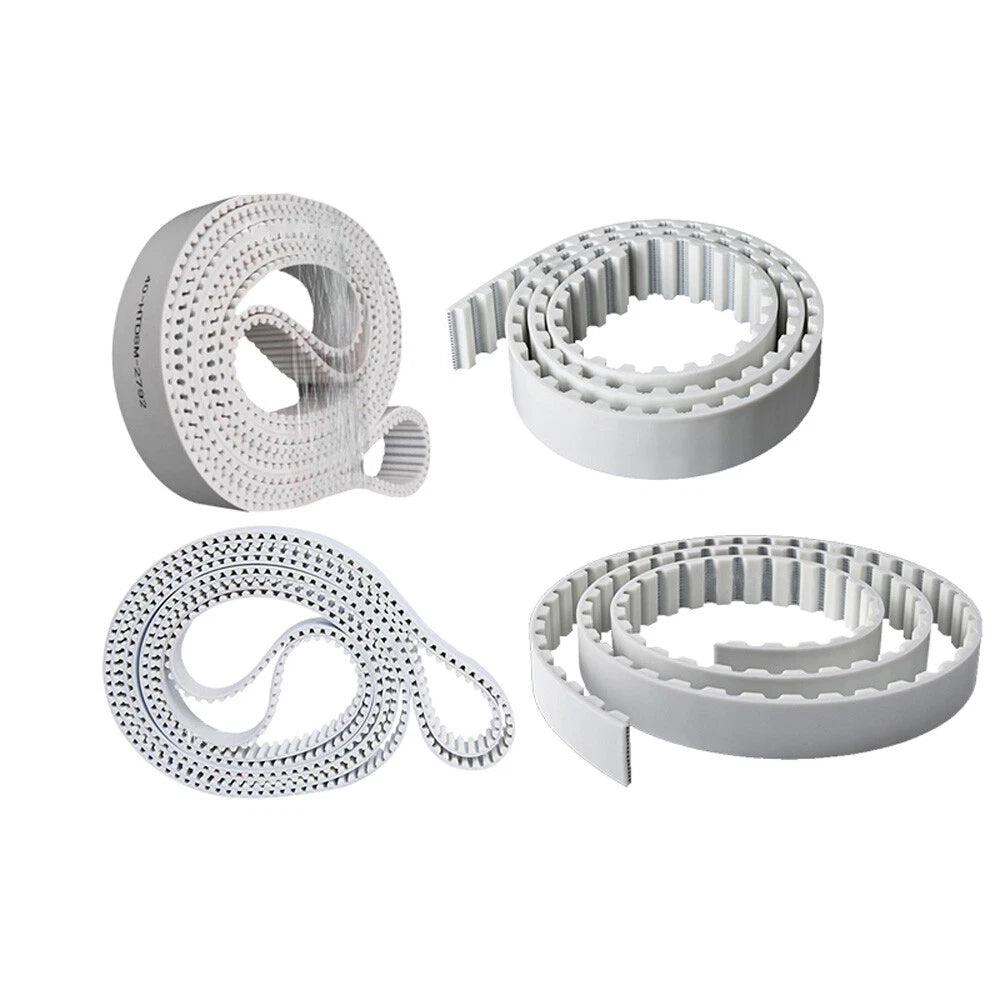

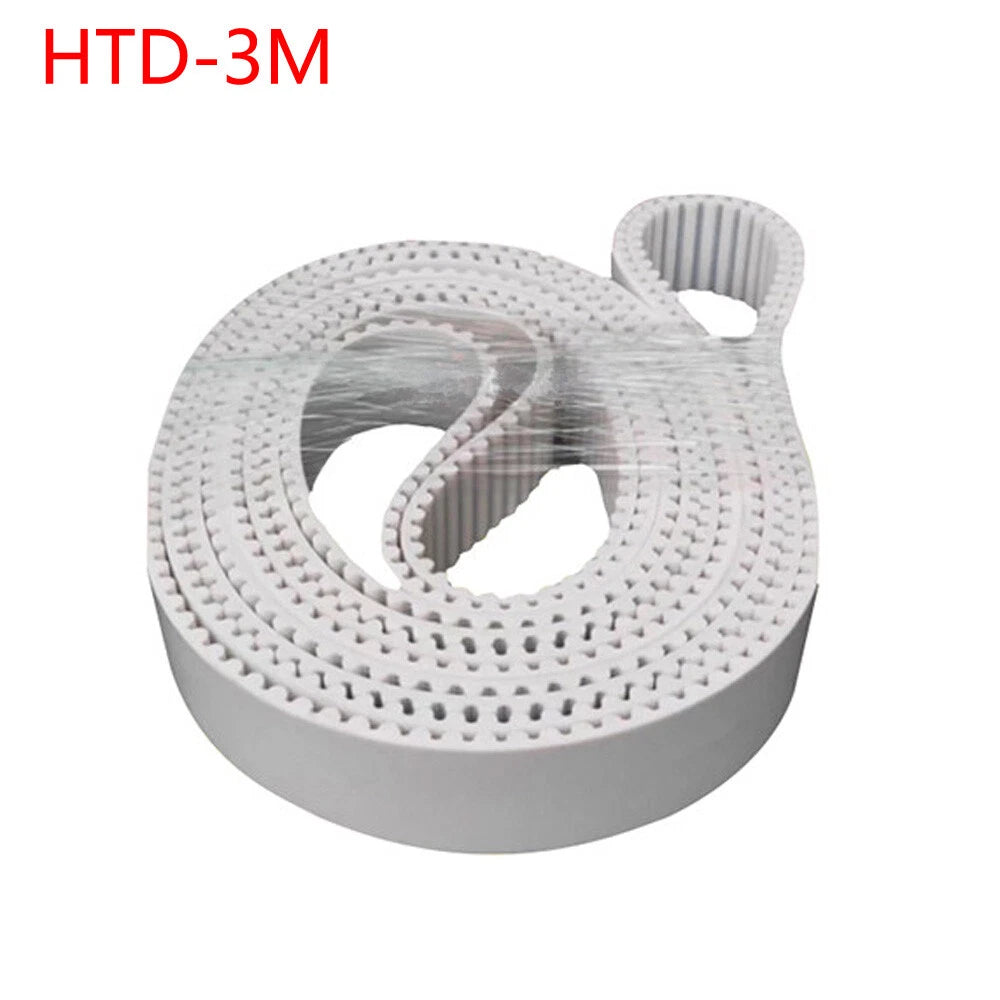

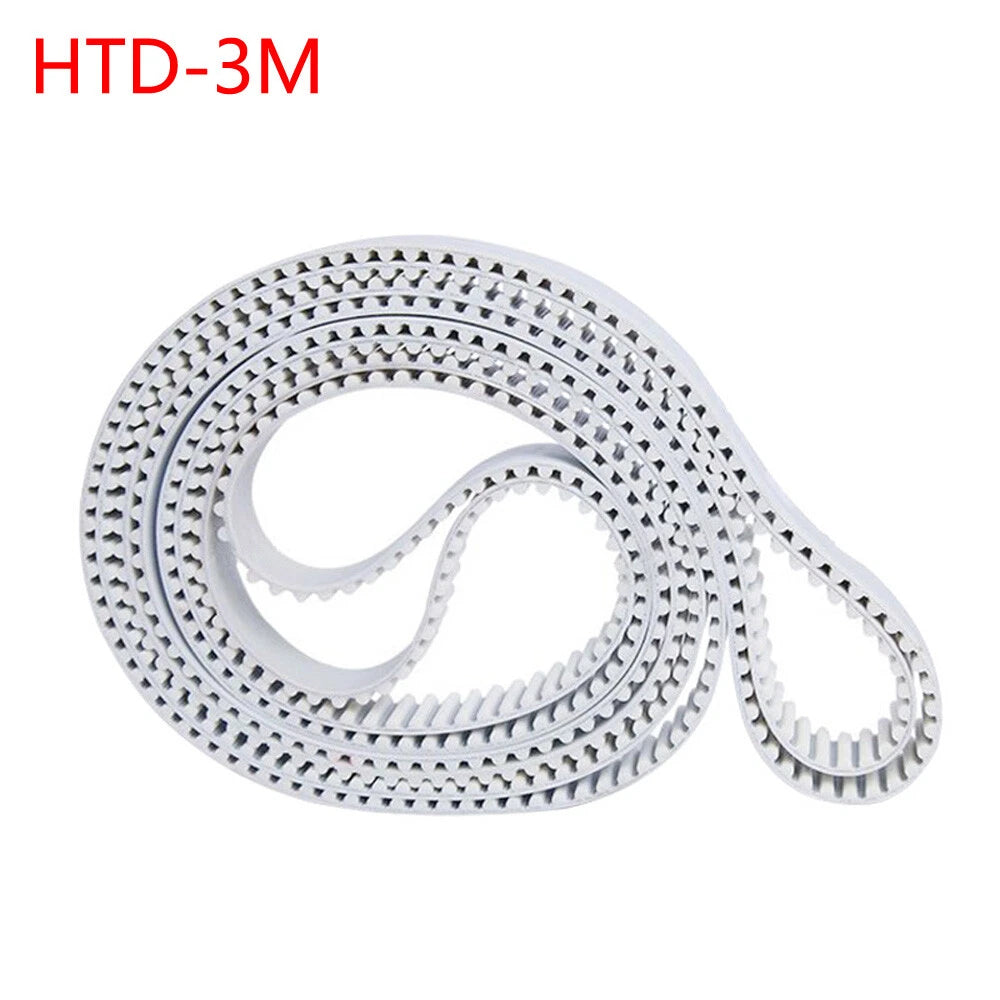

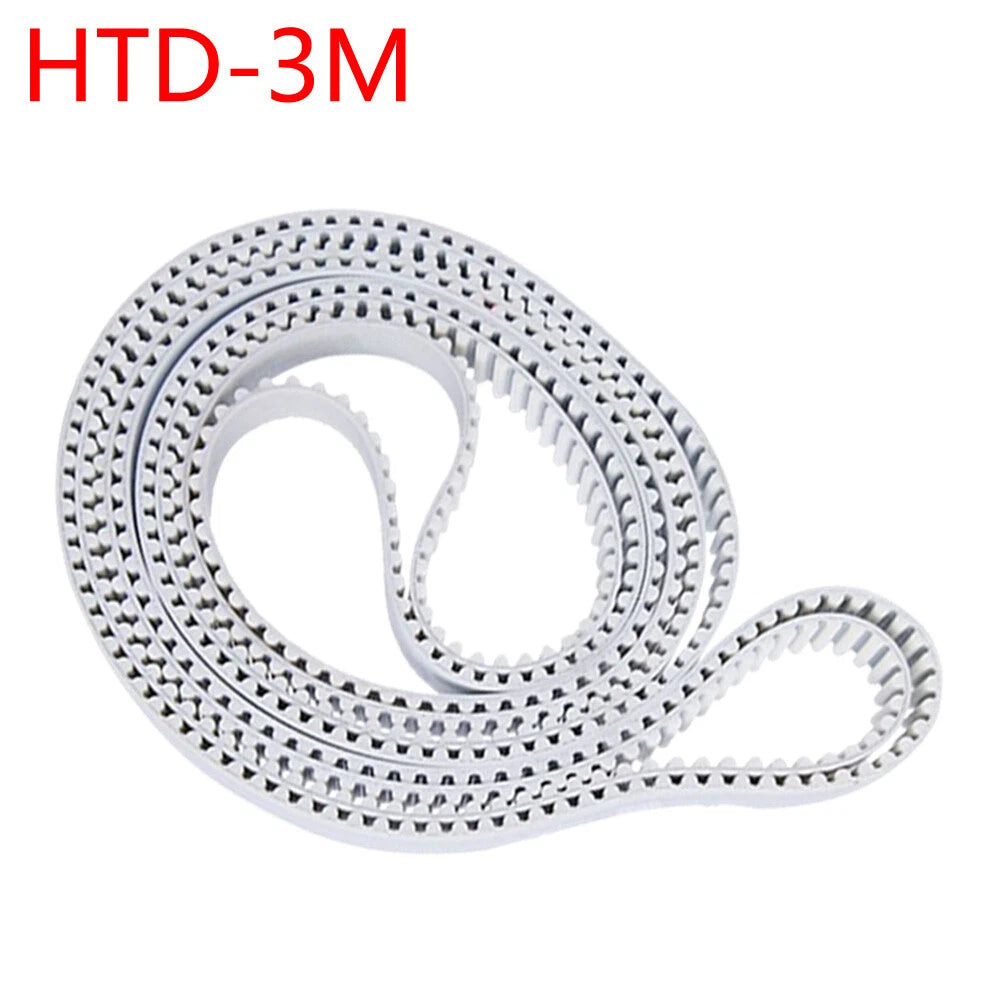

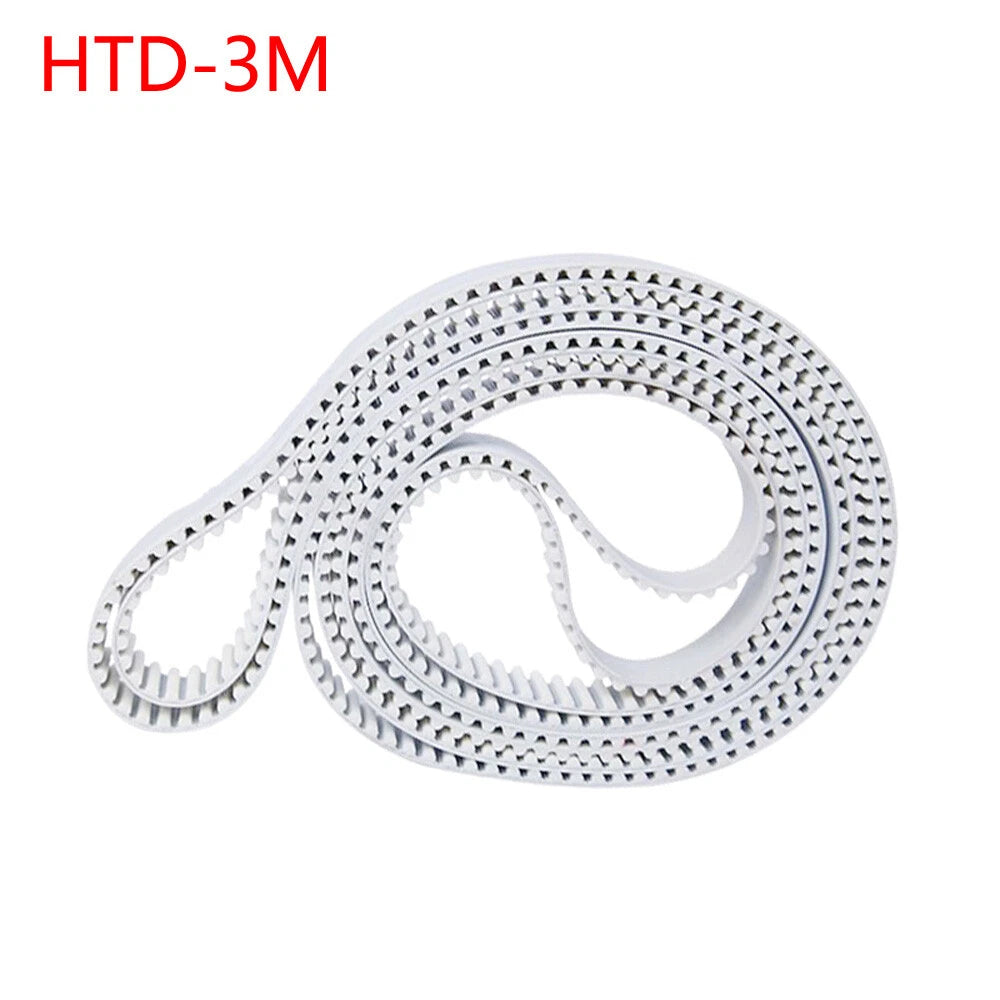

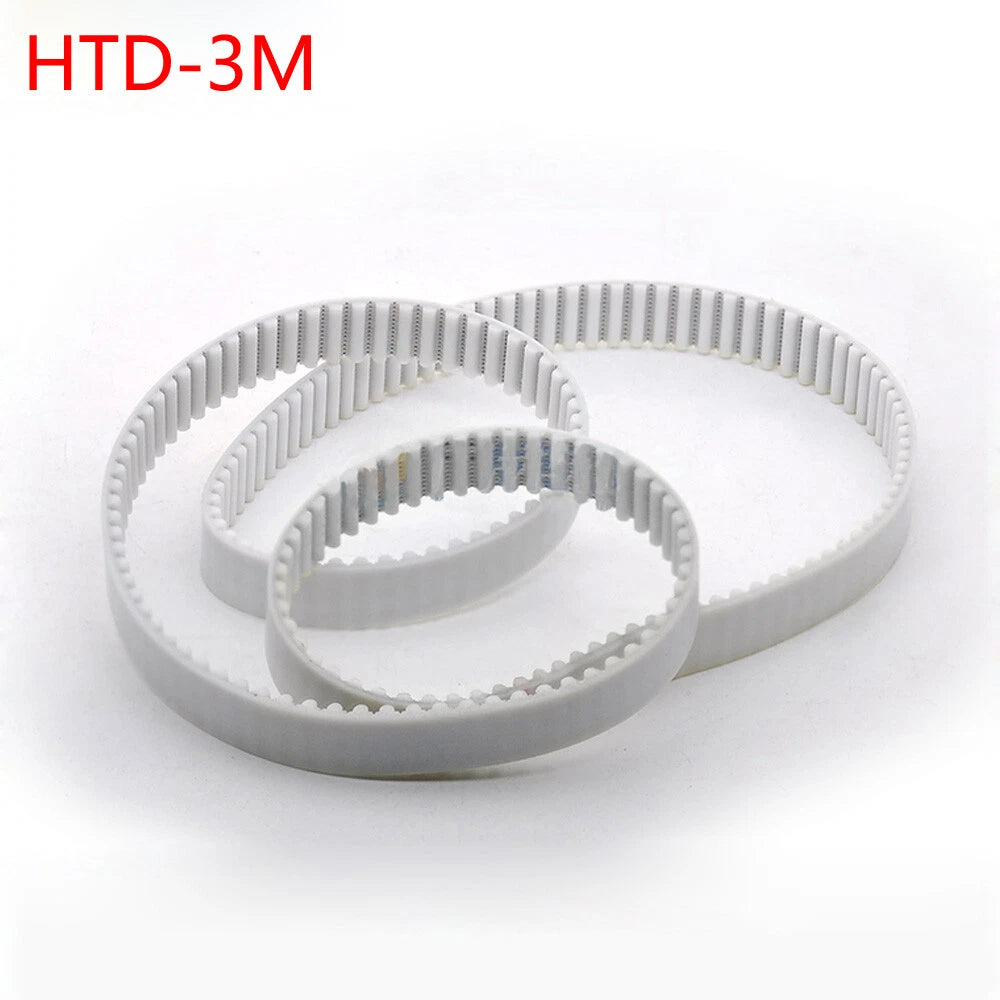

This listing covers a single HTD-3M closed loop timing belt made from polyurethane (PU) with steel cord reinforcement. The belt features a 3mm pitch (tooth-to-tooth spacing) and a 20mm width. Available perimeters range from 483mm (≈19.0") to 2181mm (≈85.9"), with over 250 size options — each variant lists both the perimeter in mm and the corresponding tooth count so you can match directly to your pulley specification.

Typical use cases include desktop CNC routers and laser engravers requiring tight positional accuracy, FDM 3D printers and CoreXY motion systems using HTD-3M pulleys, and light industrial conveyor or robotic arm drives where a closed loop timing belt with consistent pitch is essential.

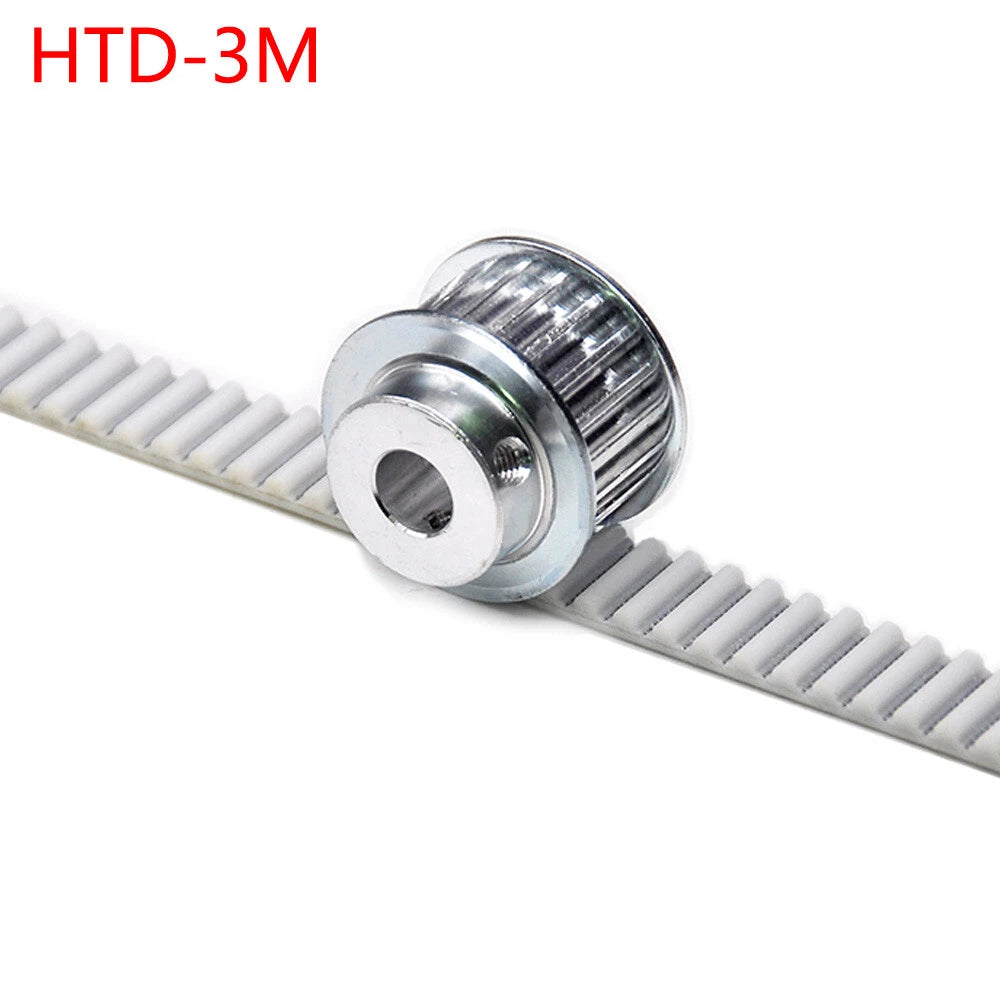

ℹ️ Compatibility Notice: This belt uses the HTD-3M profile (3mm pitch, rounded tooth). It is compatible with HTD-3M pulleys only — not GT2, MXL, T2.5, or other profiles. Confirm your pulley is labeled HTD-3M before ordering.

✅ Key Features of These HTD-3M Polyurethane Closed Loop Timing Belts

  • 🔁Closed Loop Design — Seamless construction with no joint or splice, eliminating the weak point found in cut-to-length belts and ensuring consistent tension around the full perimeter.
  • 📐3mm HTD Pitch Accuracy — The rounded HTD tooth profile distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in precision motion applications like CNC routers and 3D printer drives.
  • 🧱Polyurethane Body with Steel Cord — PU construction resists oils, mild chemicals, and abrasion better than standard neoprene, while the steel tension cord minimizes elongation under load for repeatable positioning.
  • 📏20mm Consistent Width — The uniform 20mm belt width provides a stable tracking surface on standard HTD-3M flanged pulleys, reducing the risk of belt walk in high-cycle applications.
  • 🔢250+ Perimeter Sizes Available — From 483mm (≈19.0") to 2181mm (≈85.9"), each variant lists the exact tooth count alongside the perimeter so you can cross-reference directly with your pulley and center-distance calculation.
  • 🚀Ships from US Warehouse — Stocked domestically for faster delivery to US customers, avoiding the extended lead times typical of overseas-only suppliers for replacement closed loop timing belts.

📐 Technical Specifications — HTD-3M Closed Loop Timing Belt

Belt Profile HTD-3M (High Torque Drive)
Pitch 3mm (0.118")
Belt Width 20mm (≈0.79")
Perimeter Range 483mm (≈19.0") – 2181mm (≈85.9")
Tooth Count Range 161 Teeth – 727 Teeth (see variant options)
Belt Type Closed Loop (Endless)
Body Material Polyurethane (PU)
Tension Member Steel cord (typically)
Tooth Profile HTD rounded (not interchangeable with GT2 or trapezoidal)
Compatible Pulleys HTD-3M pulleys only
Quantity per Order 1 piece (1pcs)
Finish / Color See variant options
Application CNC routers, 3D printers, laser engravers, robotics, light conveyor drives
⚠️ Size Selection Tip: Select your perimeter by matching the tooth count to your pulley and center-distance calculation. If you are unsure, contact us to confirm before ordering — belt returns due to incorrect size selection may not be accepted.

❓ Frequently Asked Questions

How do I choose the right perimeter size for my HTD-3M timing belt?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Belt Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are the pulley pitch diameters. For example, a 600mm (≈23.6") belt typically suits a setup with roughly 90mm center distance and two 30-tooth HTD-3M pulleys. Always round up to the nearest available size and verify with the tooth count listed in each variant.

What load capacity can this HTD-3M polyurethane timing belt handle?

HTD-3M belts are generally suited for light-to-medium loads. The polyurethane body with steel cord reinforcement typically supports tensile loads in the range of 100–300 N depending on belt length, speed, and pulley engagement. For heavy-duty industrial drives, contact us to confirm suitability for your specific application.

Is this timing belt suitable for outdoor or wet environments?

Polyurethane timing belts generally offer better resistance to oils, mild chemicals, and moisture compared to neoprene belts. However, prolonged UV exposure or standing water may reduce service life. For outdoor installations, periodic inspection is recommended. This belt is not rated for fully submerged use.

What pulley profile is compatible with this belt?

This belt uses the HTD-3M profile — a 3mm pitch with a rounded tooth shape. It is compatible with HTD-3M pulleys only. It is not interchangeable with GT2 (2mm pitch), MXL, T2.5, or T5 pulleys. Always verify your pulley is labeled HTD-3M before ordering.

How do I convert the perimeter from mm to inches?

Divide the mm value by 25.4. Quick reference examples:

  • 483mm ÷ 25.4 ≈ 19.0"
  • 600mm ÷ 25.4 ≈ 23.6"
  • 1200mm ÷ 25.4 ≈ 47.2"
  • 1800mm ÷ 25.4 ≈ 70.9"
  • 2181mm ÷ 25.4 ≈ 85.9"

The tooth count is also listed in each variant to help you cross-reference with your pulley specification.

Why choose polyurethane over rubber for a timing belt?

Polyurethane timing belts generally offer higher dimensional stability, better resistance to oils and abrasion, and lower stretch under load compared to standard rubber (neoprene) belts. This makes them a preferred choice for precision motion applications — such as CNC routers, 3D printers, and robotic arms — where positional accuracy and repeatability matter.

Can I use this belt on my 3D printer or CNC machine?

Yes — HTD-3M belts are widely used in desktop CNC routers, laser engravers, and 3D printer designs that use HTD-3M pulleys. Before purchasing, verify your machine's belt profile (HTD-3M vs GT2 vs T5) and the required perimeter. The tooth count listed in each variant helps you match to your specific pulley and axis travel requirements.

🛒 Select your perimeter size above, then add to cart — ships from our US warehouse.
