HTD 3M Closed Loop Timing Belt — Precise Drive for 3D Printers, CNC & Robotics

When a slipping or stretched drive belt throws off your print quality, ruins a CNC cut, or causes positioning errors in your automation system, the root cause is almost always a worn or incorrectly sized HTD 3M closed loop timing belt. Makers, engineers, and repair technicians who need a reliable drop-in replacement — or who are building a new machine from scratch — need a belt that holds its pitch under load without stretching out of spec.

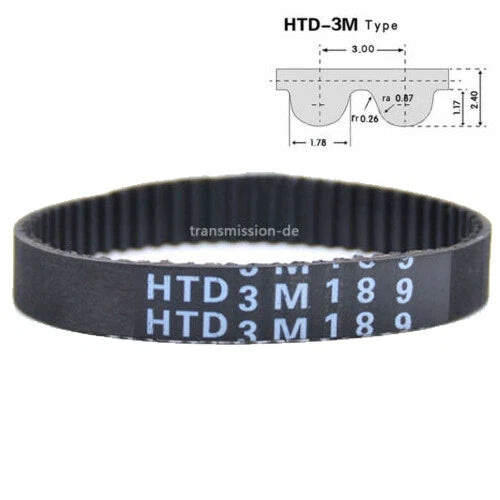

Each belt in this listing is a single closed-loop HTD 3M synchronous belt made from rubber with fiber cord reinforcement. The HTD (High Torque Drive) 3M profile features a 3mm tooth pitch and a rounded tooth form for smooth, low-noise engagement. Available circumferences range from 87mm (≈3.4") to 495mm (≈19.5"), and widths are offered in 10mm (≈3/8"), 15mm (≈19/32"), and 20mm (≈25/32") — select your model and width from the variant dropdowns above.

These belts are a go-to choice for 3D printer axis and extruder drives (compatible with popular HTD 3M pulley systems), desktop CNC router feed drives, laser engraver positioning systems, and light robotic arm joints where slip-free synchronous power transmission is essential.

🔗 Compatibility: Fits any standard HTD 3M pulley of matching width. Tooth pitch: 3mm. Number of teeth = circumference ÷ 3. Verify your pulley tooth count and flange width before ordering.

⚠️ Size tip: The model number (e.g., 3M-150) indicates the belt's pitch circumference in mm. Divide by 25.4 to convert to inches. If your machine specifies a belt by tooth count, multiply tooth count × 3mm to get the circumference.

✅ Key Features of These HTD 3M Closed Loop Timing Belts

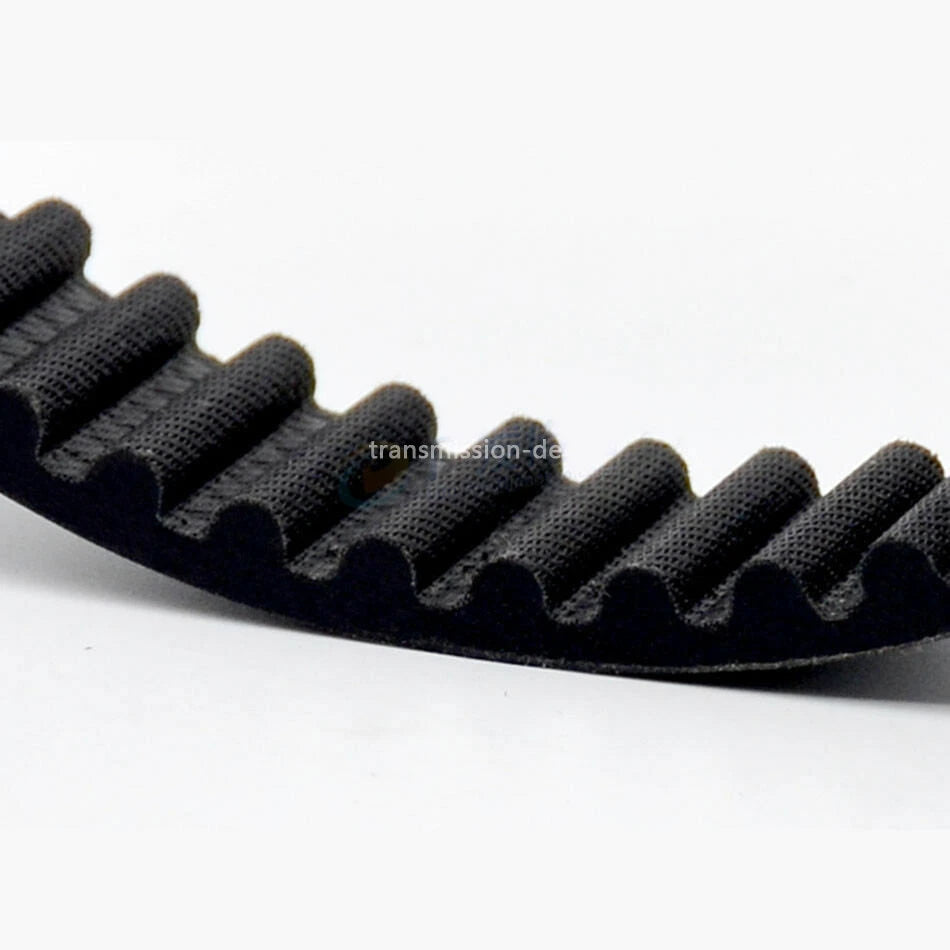

⚙️HTD 3M Tooth Profile — The rounded HTD tooth form provides smooth engagement with 3M pulleys, reducing noise and stress concentration compared to trapezoidal profiles — a key advantage in 3D printer timing belt applications.

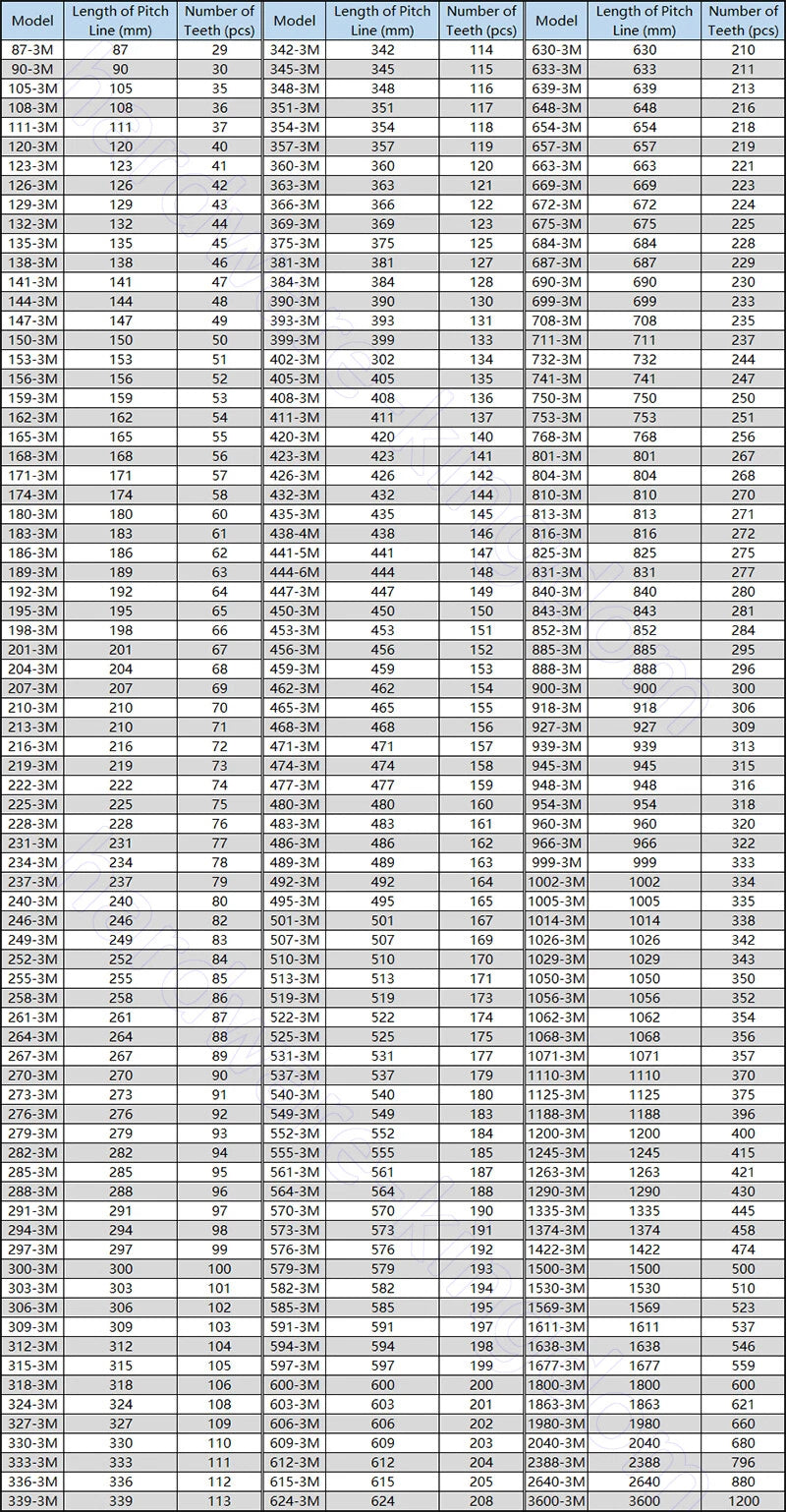

📏Wide Size Selection — Circumferences from 87mm to 495mm in 3mm increments cover the most common closed loop timing belt sizes used in desktop CNC, laser engravers, and robotic drives.
↔️Three Width Options — Choose 10mm, 15mm, or 20mm to match your pulley flange and torque requirements; wider belts handle higher loads in medium-duty synchronous drive systems.
🔄Closed Loop Construction — Seamless closed-loop design eliminates the splice point found in open-ended belts, providing consistent tension and reliable positioning accuracy for CNC and 3D printer axis drives.
🧵Fiber-Reinforced Rubber Body — The rubber compound with internal fiber cord reinforcement resists elongation under cyclic loading, helping maintain consistent pitch over extended use in automation equipment.
🔁Direct Replacement Fit — Conforms to the HTD 3M standard pitch, making these belts a straightforward replacement for worn drive belts in 3D printers, laser cutters, and light conveyor systems without pulley modification.

📐 Technical Specifications — HTD 3M Closed Loop Timing Belt

Belt Type	HTD Closed Loop Synchronous Timing Belt
Tooth Profile	HTD (High Torque Drive) — rounded tooth form
Pitch	3mm (3M)
Circumference Range	87mm (≈3.4") to 495mm (≈19.5") — see variant options
Width Options	10mm (≈3/8"), 15mm (≈19/32"), 20mm (≈25/32")
Tooth Count	Circumference ÷ 3mm (e.g., 3M-150 = 50 teeth)
Material	Rubber with fiber cord reinforcement
Color	Black
Operating Temperature	Contact us to confirm
Tensile Strength	See variant options
Compatible Pulleys	Standard HTD 3M pulleys (matching width)
Quantity per Order	1 belt per unit (select quantity at checkout)

❓ Frequently Asked Questions

How do I choose the right belt length for my machine?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference: C = 2 × center distance + (π × pulley pitch diameter). The model number tells you the pitch circumference in mm — for example, 3M-150 means 150mm (≈5.9"). If your machine documentation lists belt length in inches, multiply by 25.4 to convert to mm and select the closest available model.

What width should I choose — 10mm, 15mm, or 20mm?

Wider belts generally carry higher loads. For light-duty applications like 3D printer axes or small laser engravers, 10mm is typically sufficient. For higher-torque drives or wider pulleys, 15mm or 20mm is recommended. Always match the belt width to your pulley flange width to prevent the belt from riding off the pulley.

What is the load capacity of an HTD 3M timing belt?

HTD 3M belts are designed for light-to-medium power transmission. The specific load rating depends on belt width, number of teeth in mesh, and operating speed. Generally, a 10mm-wide HTD 3M belt can handle moderate torque suitable for 3D printers and small automation systems. For heavy industrial loads, a wider pitch (5M or 8M) is typically recommended.

Can these belts be used outdoors or in humid environments?

These belts are made from rubber with fiber reinforcement, which generally offers reasonable resistance to moisture and moderate temperature ranges. However, prolonged exposure to UV, oils, or extreme temperatures may reduce service life. For outdoor or harsh-environment applications, inspect the belt periodically and replace as needed.

Are these belts compatible with standard HTD 3M pulleys?

Yes. These belts follow the HTD 3M profile standard, with a 3mm pitch and rounded tooth profile. They are compatible with any standard HTD 3M pulley of the matching width. Always verify the pulley tooth count and pitch diameter match your required belt circumference before ordering.

How is the model number formatted, and what does it mean?

The model number follows the format 3M-[circumference in mm]. For example, 3M-150 indicates an HTD 3M belt with a 150mm pitch circumference. The number of teeth equals the circumference divided by the pitch (3mm), so 3M-150 has 50 teeth. Select the model that matches your pulley system's required loop length.

What machines commonly use HTD 3M closed loop timing belts?

HTD 3M closed loop belts are widely used in 3D printers (extruder and axis drives), desktop CNC machines, laser engravers, robotic arms, conveyor systems, and other light-to-medium automation equipment where precise, slip-free power transmission is required.

🛒 Select your model (circumference) and width above, then add to cart — ships from our US warehouse.
