HTD 3M Closed Loop Timing Belt — Synchronous Rubber Drive Belt for Precision Motion Control

When a slipping or misaligned drive belt causes your 3D printer to skip layers, your CNC router to lose position, or your automation system to fall out of sync, the fix starts with the right HTD 3M closed loop timing belt. Engineers, makers, and machine builders who need reliable synchronous power transmission rely on the HTD 3M tooth profile to keep axes moving accurately and repeatably.

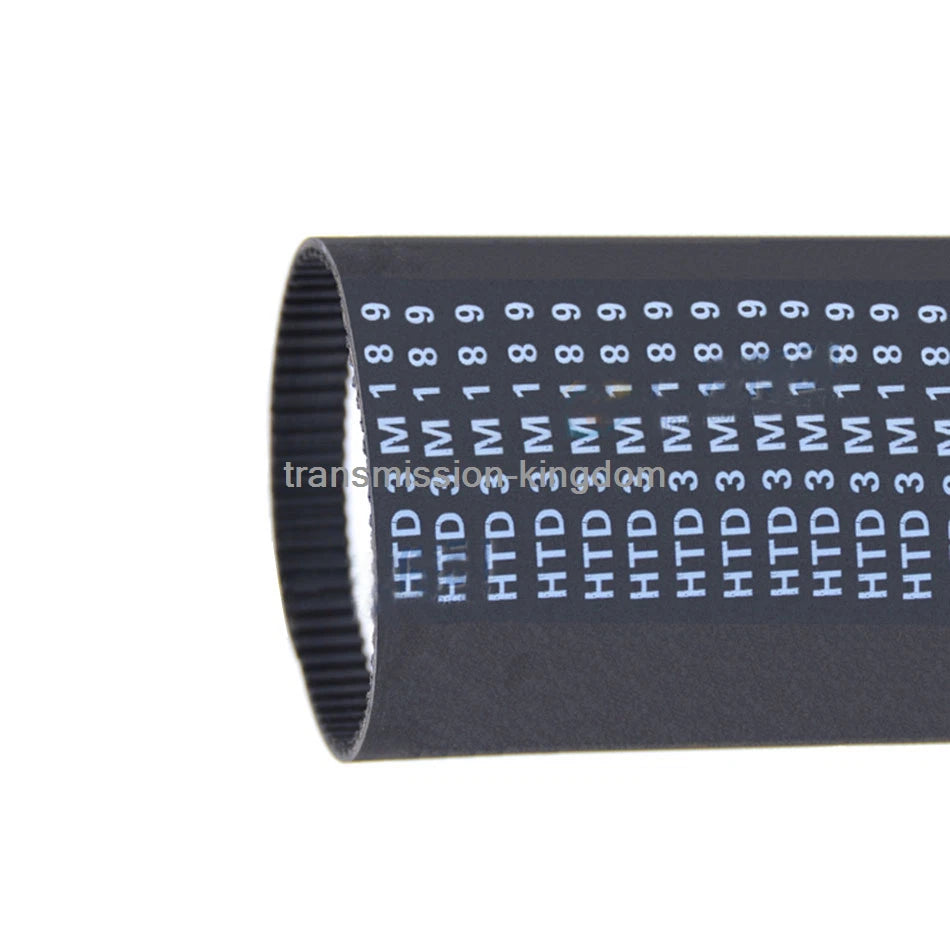

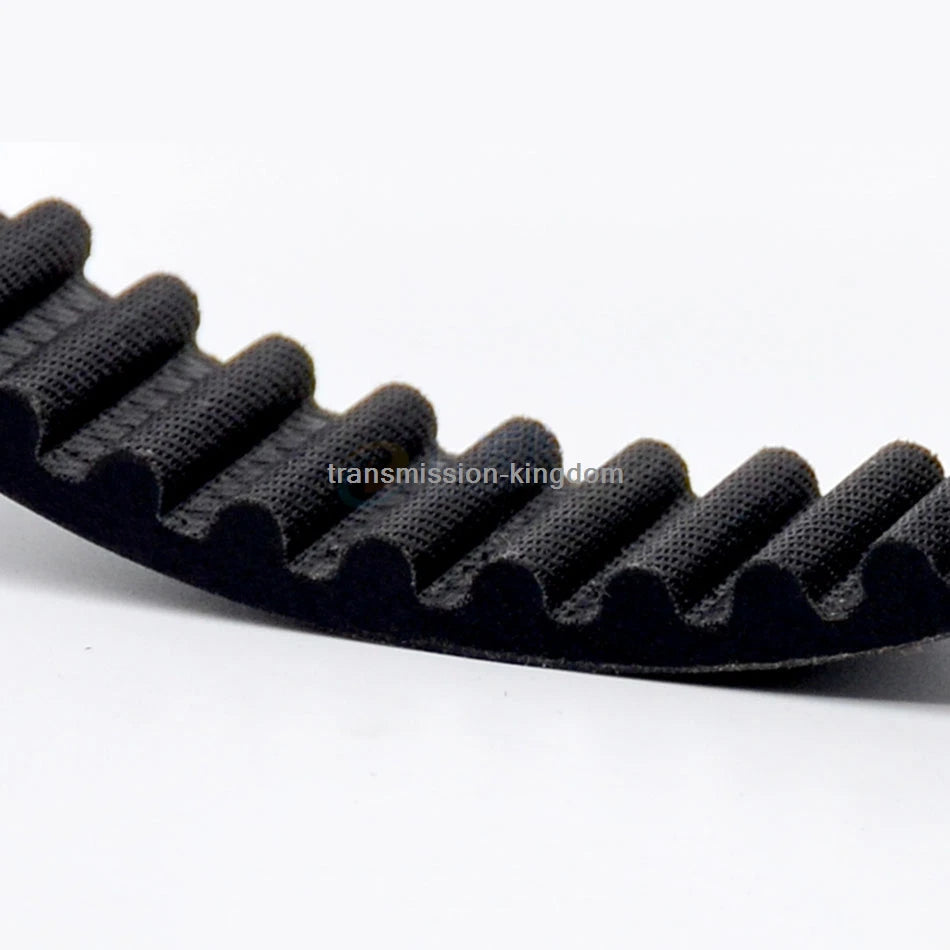

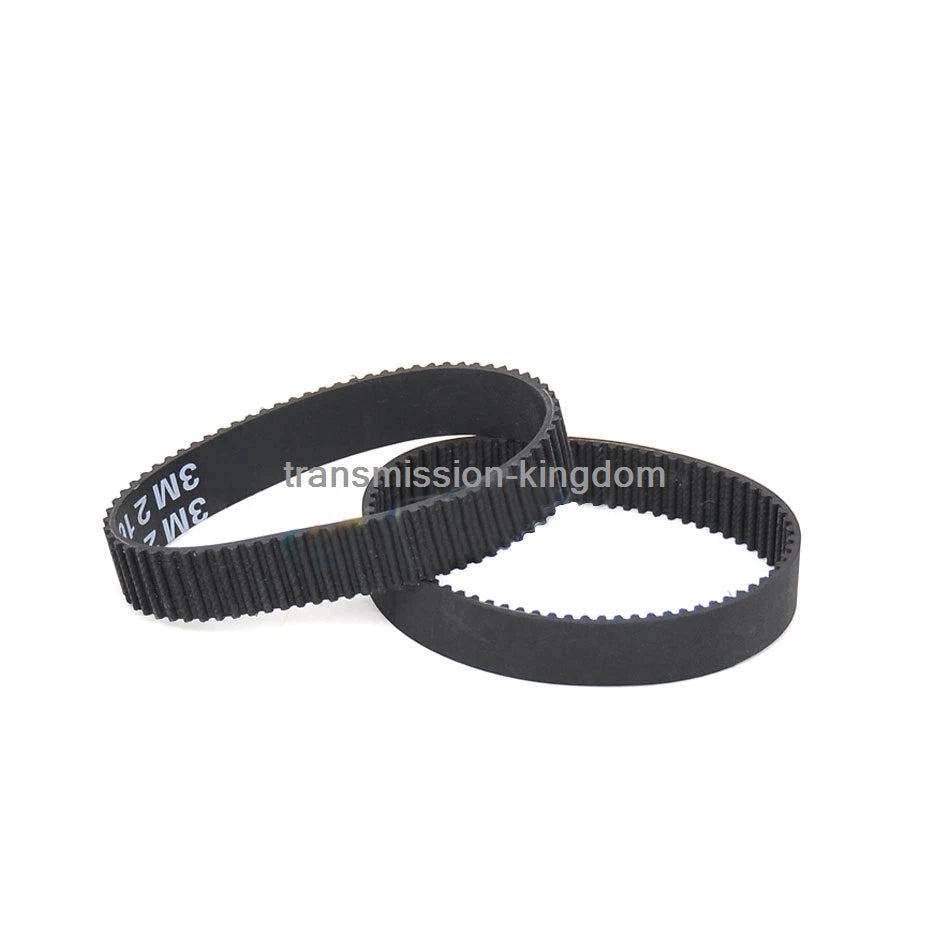

Each belt features the HTD (High Torque Drive) curvilinear tooth profile with a 3mm pitch, available in three widths — 10mm (≈3/8"), 15mm (≈19/32"), and 20mm (≈25/32") — and circumferences ranging from 87mm (≈3.4") to 489mm (≈19.3"). The closed-loop construction means no splicing or joining; the belt runs as a continuous loop for smooth, consistent engagement. Material is rubber with fiber reinforcement for dimensional stability under tension.

These HTD 3M rubber drive belts are widely used in 3D printer X/Y axis drives, CNC router gantry systems, stepper motor and servo motor power transmission, robotic arm joints, and light industrial conveyor applications where synchronous motion — no slip, no backlash — is essential.

ℹ️ Compatibility: Fits any standard HTD 3M pulley with matching belt width (10mm, 15mm, or 20mm groove). The variant label (e.g., 3M-150) indicates the belt circumference in millimeters. Verify pulley groove width and center distance before ordering.

⚠️ Size confirmation: Belt circumference is the total loop length, not the span between pulleys. If you are unsure which size fits your machine, measure your existing belt or calculate using your pulley center distance. Contact us to confirm before purchasing.

✅ Key Features of These HTD 3M Closed Loop Timing Belts

🔁Closed-Loop Construction — Continuous loop with no splice point means consistent tension distribution and smooth running on HTD 3M pulleys without weak spots.

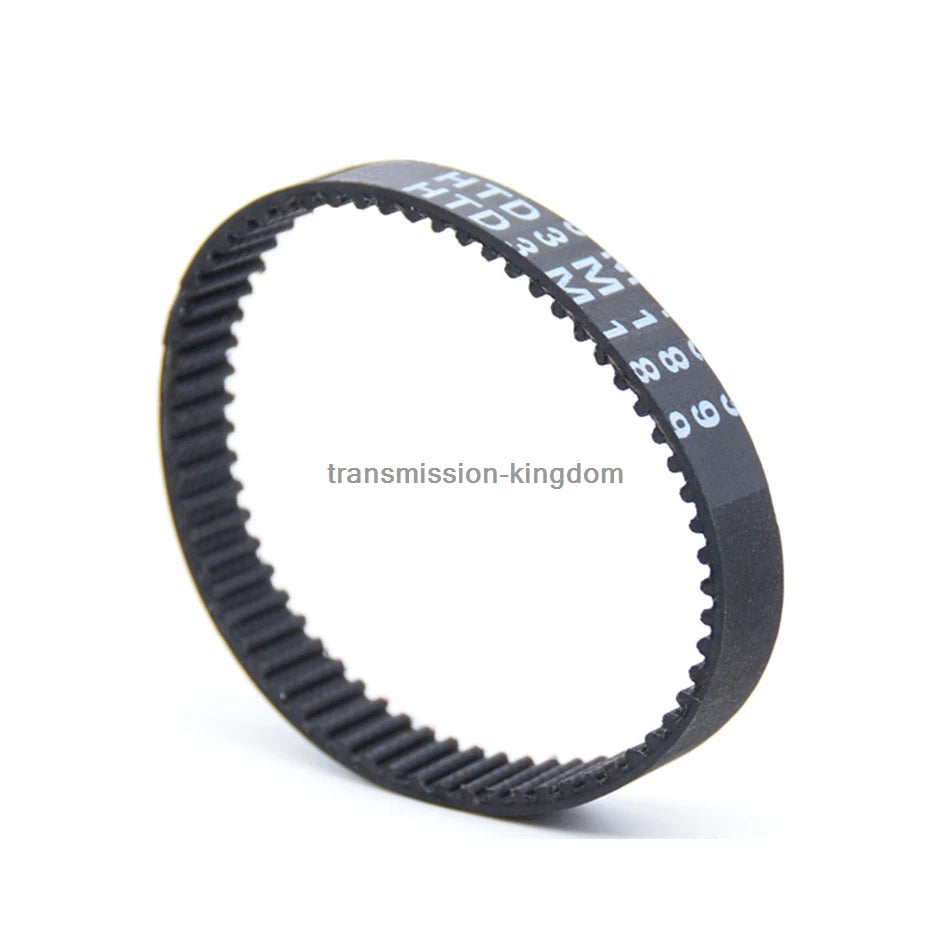

📐3mm HTD Tooth Pitch — The curvilinear HTD tooth profile engages pulleys with lower stress concentration than trapezoidal profiles, making it well-suited for stepper motor and servo drive applications.
📏Wide Size Selection — Available in circumferences from 87mm to 489mm and widths of 10mm, 15mm, and 20mm, covering a broad range of 3D printer timing belt replacements and CNC drive belt configurations.
🧱Fiber-Reinforced Rubber Body — Internal fiber cords resist elongation under load, helping maintain positional accuracy in closed-loop motion control systems over extended use.
⚙️Synchronous Drive — Zero Slip — Positive tooth engagement eliminates the speed variation and slip associated with friction-based drives, critical for CNC router gantry belts and robotic axis drives.

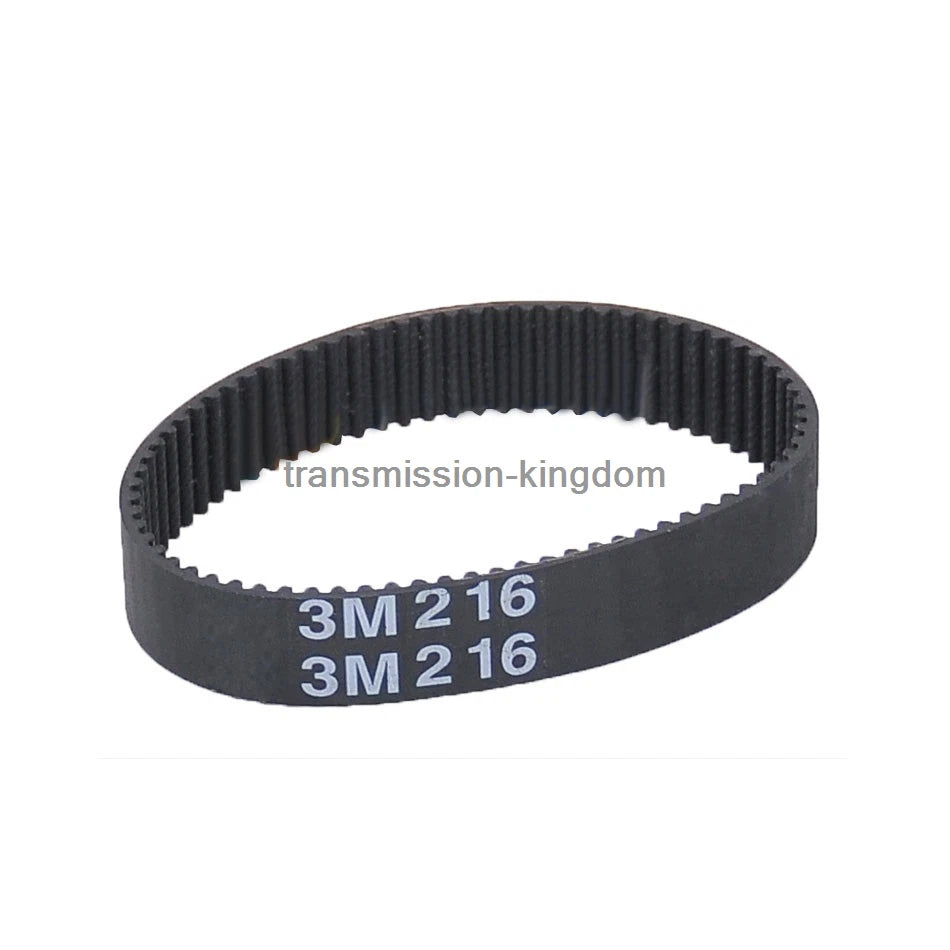

🔧Drop-In Replacement Sizing — Variant names follow the standard HTD 3M belt sizing convention (circumference in mm), making it straightforward to identify a direct replacement for worn or broken drive belts.

📐 Technical Specifications — HTD 3M Closed Loop Rubber Timing Belt

Belt Type	HTD Closed Loop Synchronous Timing Belt
Tooth Profile	HTD (High Torque Drive) — curvilinear
Pitch	3mm (3M)
Available Widths	10mm (≈3/8") / 15mm (≈19/32") / 20mm (≈25/32")
Circumference Range	87mm (≈3.4") to 489mm (≈19.3") — see variant options
Material	Rubber with fiber reinforcement
Loop Construction	Continuous closed loop (no splice)
Compatible Pulleys	Standard HTD 3M pulleys — matching groove width required
Typical Applications	3D printers, CNC routers, stepper/servo motor drives, robotics, conveyors
Color/Finish	See variant options
Country of Origin	Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right circumference for my HTD 3M timing belt?

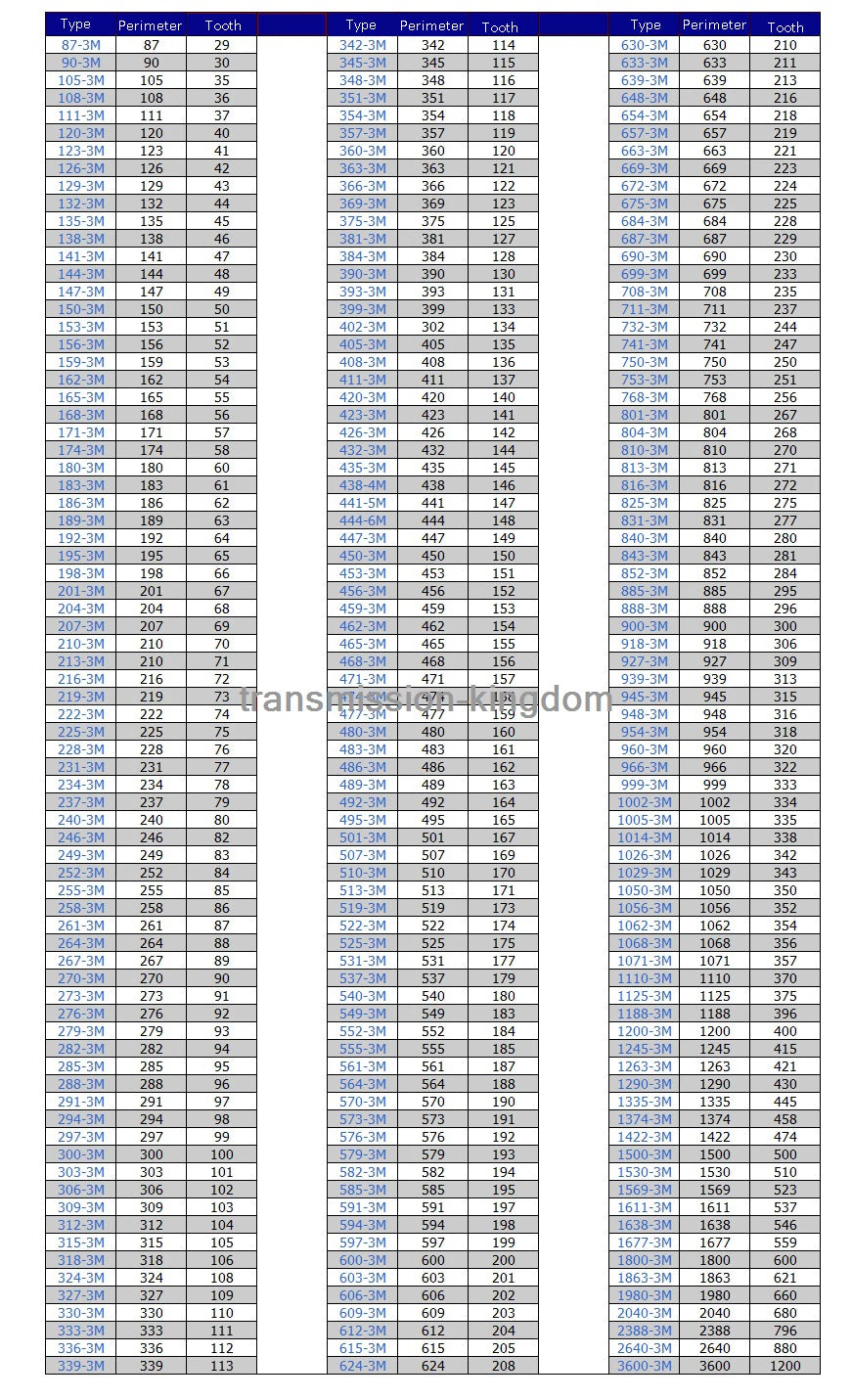

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference: C ≈ 2 × center distance + (π × pitch diameter of both pulleys / 2). The number after "3M-" in the variant name is the belt circumference in millimeters — for example, 3M-150 has a 150mm (≈5.9") circumference. When in doubt, size up slightly to allow for tensioner adjustment.

What width should I choose — 10mm, 15mm, or 20mm?

Width affects load capacity. For light-duty applications like 3D printers and small CNC routers, 10mm is typically sufficient. For higher torque or heavier loads — such as larger CNC machines or industrial conveyors — 15mm or 20mm generally provides greater power transmission capacity. Always check your pulley groove width before ordering to ensure a proper fit.

What is the HTD 3M tooth profile and how does it differ from MXL or GT2?

HTD stands for High Torque Drive. The "3M" designation means a 3mm tooth pitch. The HTD tooth profile is curvilinear (rounded), which distributes load more evenly than trapezoidal profiles (like MXL) and generally reduces tooth shear under higher torque. GT2 belts also use a curvilinear profile but with a different tooth geometry — HTD 3M and GT2 3mm pulleys are not interchangeable. Always match belt and pulley profiles.

Can these timing belts be used outdoors or in wet environments?

These belts are made from rubber and are generally suitable for light moisture exposure. Prolonged submersion or exposure to oils, solvents, or UV radiation may degrade the rubber over time. For harsh outdoor or chemical environments, confirm material compatibility with your specific conditions before use.

Are these belts compatible with standard HTD 3M pulleys?

Yes. These belts follow the HTD 3M standard tooth profile and 3mm pitch, so they are generally compatible with any HTD 3M pulley of the matching width. Verify that your pulley groove width matches your chosen belt width (10mm, 15mm, or 20mm) for proper tooth engagement and tracking.

How much torque or load can an HTD 3M belt handle?

Load capacity depends on belt width, number of teeth in mesh, and operating speed. Generally, a 10mm-wide HTD 3M belt handles light to moderate loads typical of 3D printers and small automation systems. Wider belts (15mm, 20mm) increase capacity proportionally. For precise torque ratings, consult drive system design guidelines for your specific application or contact us.

What are common applications for HTD 3M closed loop timing belts?

Common uses include 3D printer X/Y/Z axis drives, CNC router gantry systems, stepper motor and servo motor power transmission, robotic arm joints, and light industrial conveyor applications. Any system requiring synchronous (no-slip) motion with a 3mm pitch HTD pulley is a candidate for this belt.

🛒 Select your type (circumference) and width above, then add to cart — ships from our US warehouse.
