HTD 3M Closed PU Timing Belt — Precise, Low-Stretch Drive for 10mm-Wide Applications

When your CNC router loses steps or your 3D printer's axis drifts mid-print, the culprit is often a belt that stretches under load. Engineers, makers, and repair technicians who need repeatable positioning accuracy rely on the HTD 3M closed PU timing belt with steel wire reinforcement — a drop-in upgrade over rubber or fiberglass-cord alternatives.

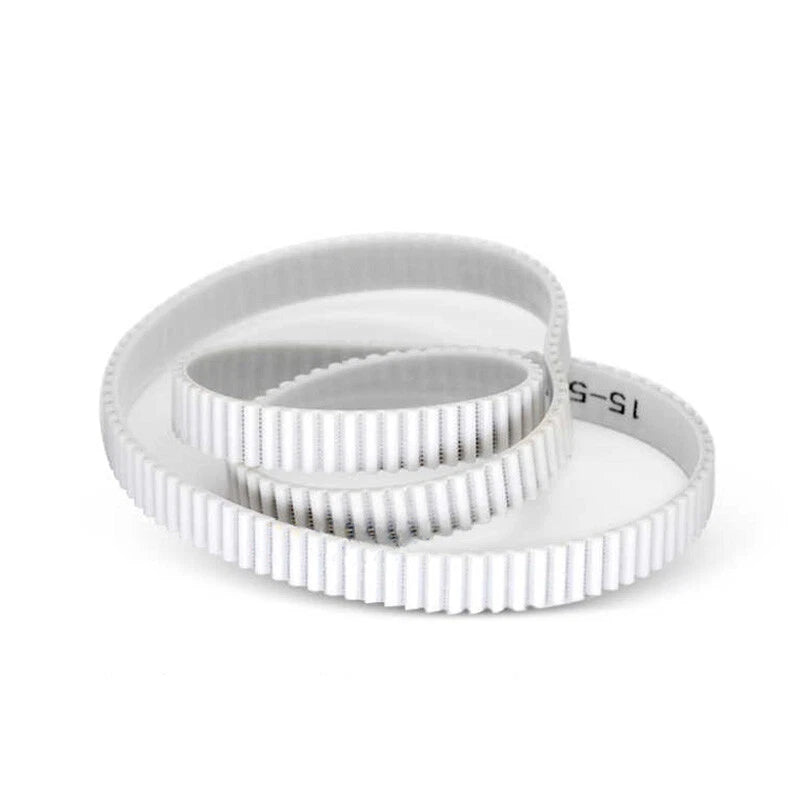

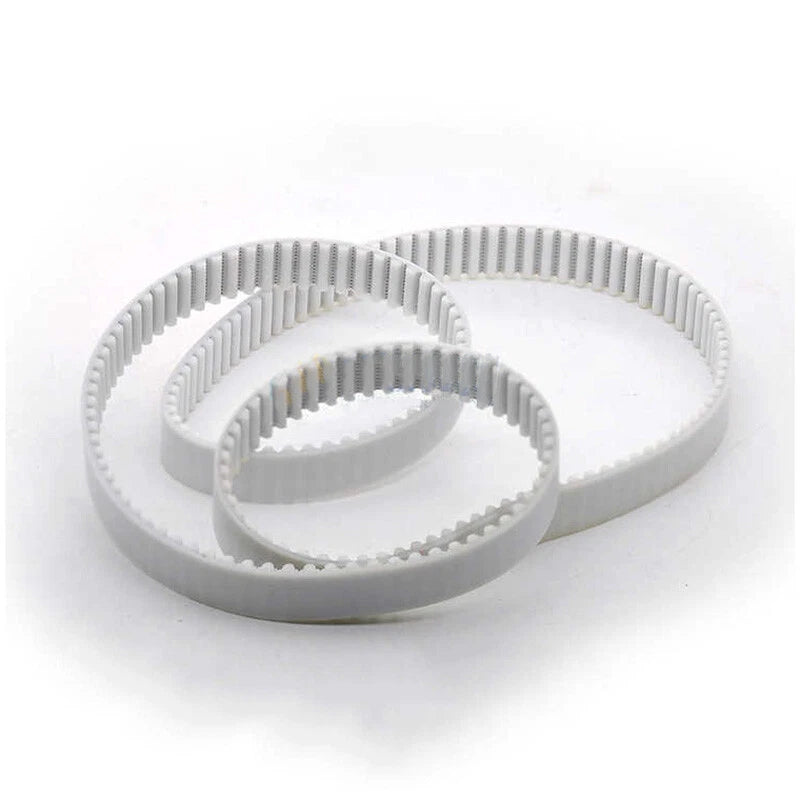

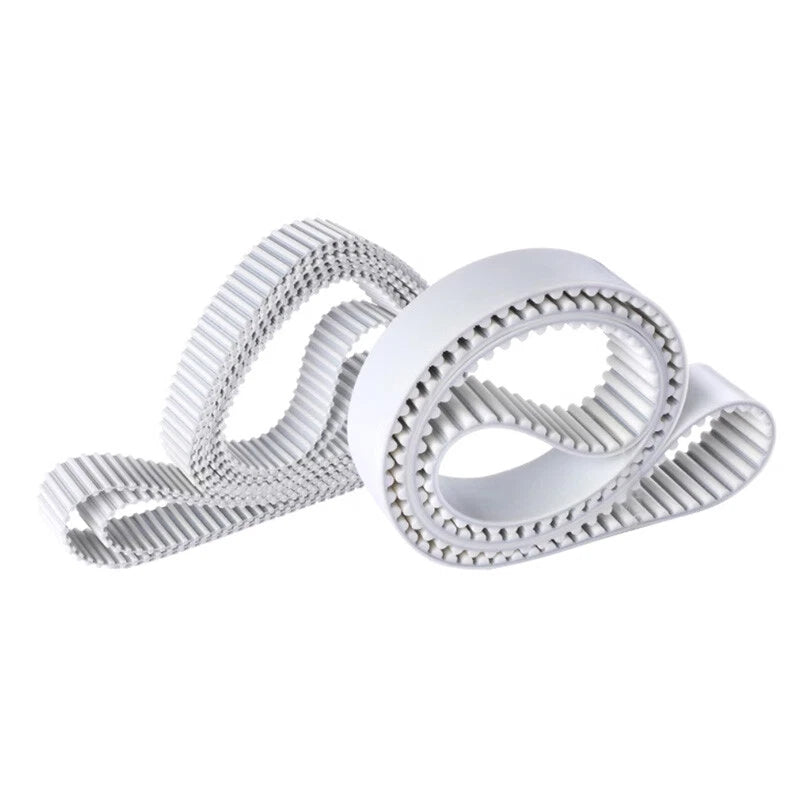

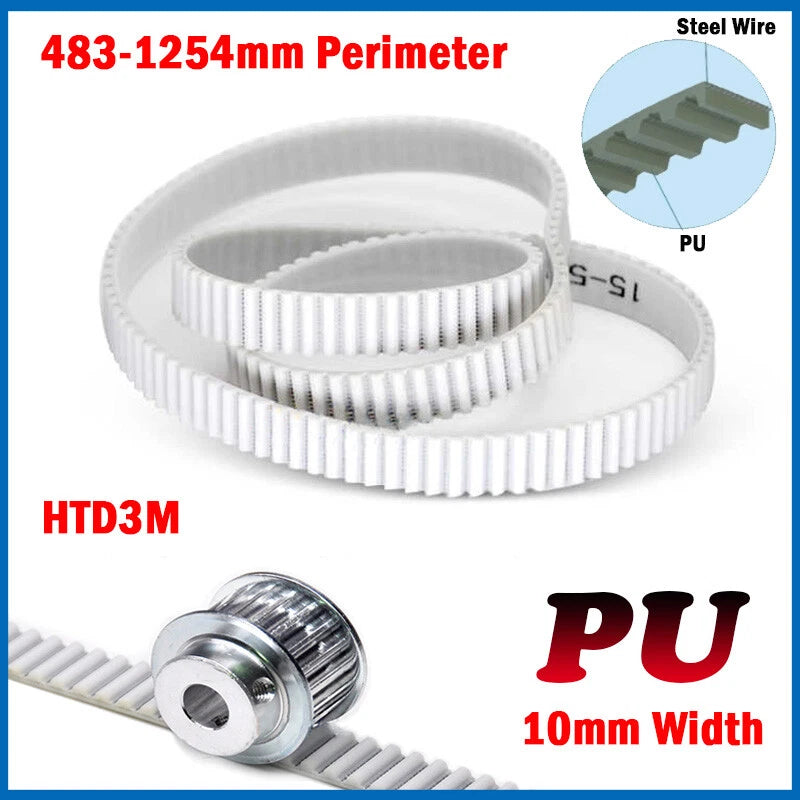

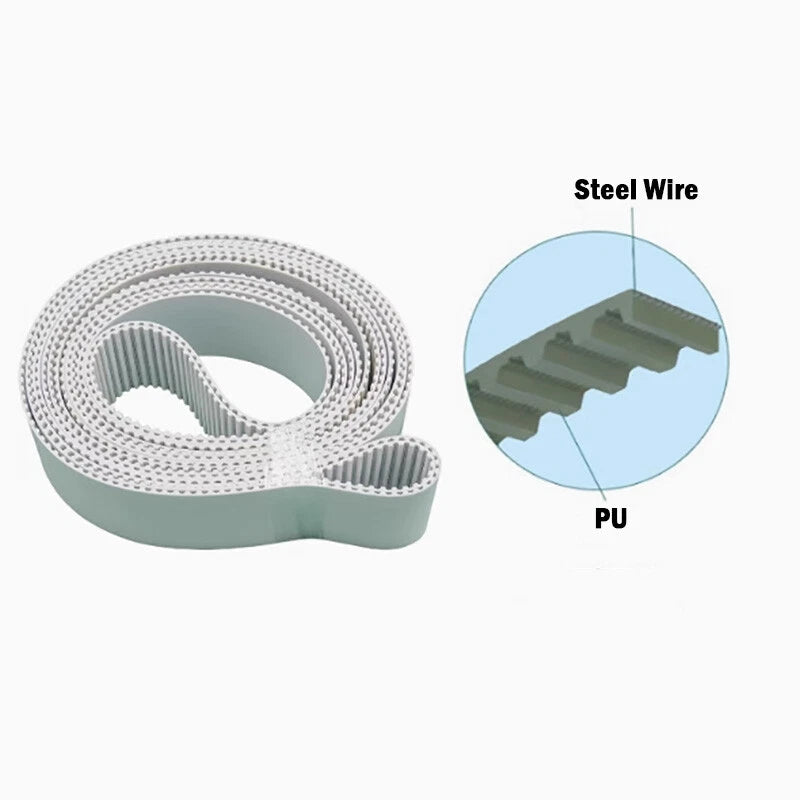

Each belt is a closed-loop (endless) design made from polyurethane (PU) with a steel wire tension cord running through the core. The tooth profile follows the HTD 3M standard: 3mm pitch, rounded tooth form. Belt width is 10mm. Available perimeters range from 483mm (≈19.0") to 1254mm (≈49.4"), selectable in 3mm increments — making it straightforward to match your existing drive system without custom fabrication.

Typical use cases include 3D printer X/Y axis drives, CNC router gantry belts, laser engraver motion systems, and light-duty conveyor or indexing applications where an HTD 3M closed-loop timing belt with steel cord is specified. The PU construction also resists oils and greases better than standard rubber belts, extending service life in workshop environments.

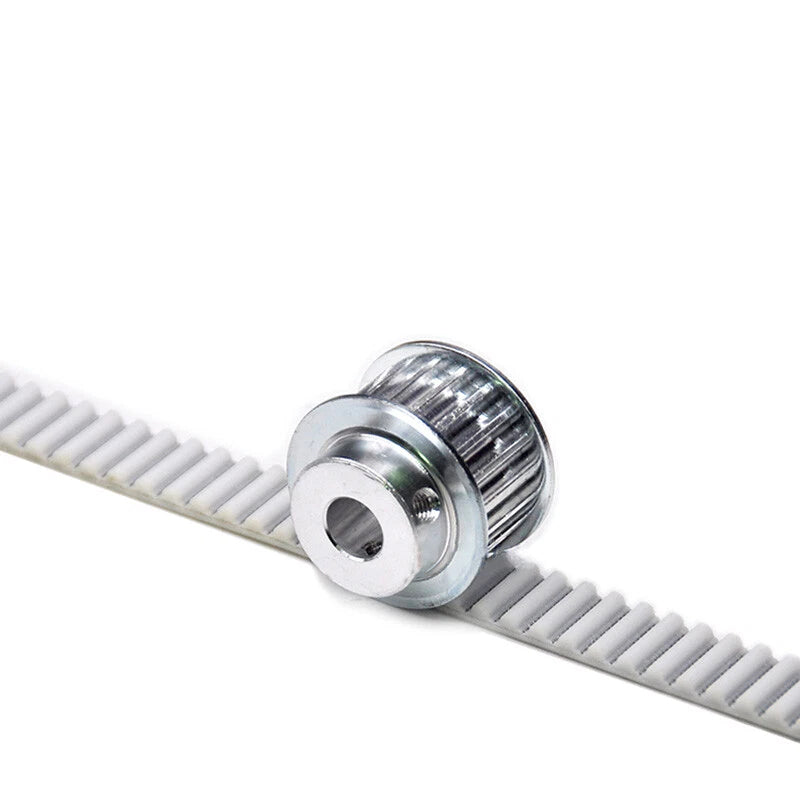

🔗 Compatibility: Fits any standard HTD 3M pulley (3mm pitch, rounded tooth). Use with pulleys ≥12 teeth and flange width ≥10mm. Verify your required perimeter before ordering — see FAQ below for measurement guidance.
⚠️ Size note: Perimeter is the total outer loop length. If you are replacing an existing belt, measure the old belt's perimeter or check your machine's documentation. When between sizes, size up.

✅ Key Features of These HTD 3M Closed PU Timing Belts

  • 🔩Steel Wire Tension Cord — Embedded steel wire core delivers lower elongation under load than fiberglass, maintaining positioning accuracy in CNC and 3D printer axis drives.
  • ⚙️HTD 3M Tooth Profile — 3mm pitch rounded tooth form engages cleanly with standard HTD 3M pulleys, reducing tooth jump risk under dynamic loads.
  • 🧪Polyurethane Construction — PU body resists oils, greases, and mild chemicals better than rubber, making this closed-loop timing belt suitable for workshop and light industrial environments.
  • 📏10mm Belt Width — Consistent 10mm width across all perimeter options; pairs with standard 10mm or wider HTD 3M pulleys without modification.
  • 🔄Closed-Loop (Endless) Design — Factory-joined endless loop eliminates splice points that can fail under cyclic loading, providing a more reliable drive than field-spliced open belts.
  • 📐Wide Perimeter Selection — 483mm to 1254mm in 3mm steps covers a broad range of machine configurations, from compact desktop 3D printers to larger CNC router gantry systems.

📐 Technical Specifications — HTD 3M Closed PU Timing Belt

Belt Profile HTD 3M (High Torque Drive, 3mm pitch)
Tooth Pitch 3mm (≈0.118")
Tooth Form Rounded (HTD profile)
Belt Width 10mm (≈3/8")
Perimeter Range 483mm (≈19.0") – 1254mm (≈49.4")
Perimeter Increment 3mm steps (select from variant options)
Belt Type Closed-loop (endless)
Body Material Polyurethane (PU)
Tension Cord Steel wire
Tensile Strength See variant options / Contact us to confirm
Min. Recommended Pulley Typically ≥12 teeth, HTD 3M
Operating Temperature Contact us to confirm
Quantity per Order 1 belt (sold individually)

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 3M timing belt?

Measure the center-to-center distance between your two pulleys, then use the formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2. For a quick field measurement, wrap a flexible tape around your existing belt path. Available sizes run from 483mm (≈19.0") to 1254mm (≈49.4") in 3mm increments. When between sizes, size up — a slightly longer belt can be tensioned; a short belt cannot be installed.

What tensile strength does this PU timing belt provide?

The steel wire core typically provides significantly higher tensile strength than fiberglass-reinforced belts of the same profile. PU timing belts with steel cord generally handle tensile loads in the range of several hundred Newtons, making them well-suited for CNC routers, 3D printer axes, and light conveyor applications. Confirm load requirements against your machine's specifications before ordering.

Can this timing belt be used outdoors or in wet environments?

Polyurethane (PU) is generally more resistant to oils, greases, and mild chemicals than rubber belts. However, prolonged outdoor UV exposure or immersion in water may degrade the material over time. For outdoor or washdown applications, confirm suitability with your specific environment before installation.

Is this belt compatible with standard HTD 3M pulleys?

Yes. This belt follows the HTD (High Torque Drive) 3M tooth profile — 3mm pitch, rounded tooth form — and is compatible with any standard HTD 3M pulley. The belt is 10mm wide, so use pulleys with a matching or wider flange width to prevent the belt from riding off the pulley.

How does a steel wire core compare to a fiberglass core in a timing belt?

Steel wire cores typically offer lower elongation under load compared to fiberglass, which translates to more consistent positioning accuracy — a key advantage for CNC and 3D printing applications. The trade-off is slightly less flexibility at very small pulley diameters. For most HTD 3M applications, steel cord is the preferred choice for precision motion control.

What is the minimum pulley size I should use with this belt?

For HTD 3M belts, a minimum of 12 teeth on the smallest pulley is generally recommended to avoid excessive bending stress on the steel cord. Smaller pulleys increase fatigue risk and reduce belt life. Most 3D printer and CNC designs use 20-tooth pulleys or larger, which are well within the safe operating range.

Can I cut this closed-loop belt to make an open-ended belt?

Technically yes — PU belts can be cut with a sharp blade. However, cutting a closed-loop belt removes the factory-joined end and may expose the steel wire cord. For open-ended belt applications, we recommend purchasing open-ended HTD 3M belt stock instead to ensure a clean, reliable cut end.
