HTD 3M Closed PU Timing Belt with Steel Wire Core — Precise Drive for CNC, 3D Printers & Automation

When your machine demands repeatable, slip-free motion — whether you're running a CNC router, a 3D printer gantry, or a light-duty conveyor — a stretched or imprecise belt is the first thing that kills accuracy. Engineers, makers, and automation technicians who need a reliable closed-loop drive solution turn to HTD 3M PU timing belts with steel wire reinforcement for consistent performance across demanding duty cycles.

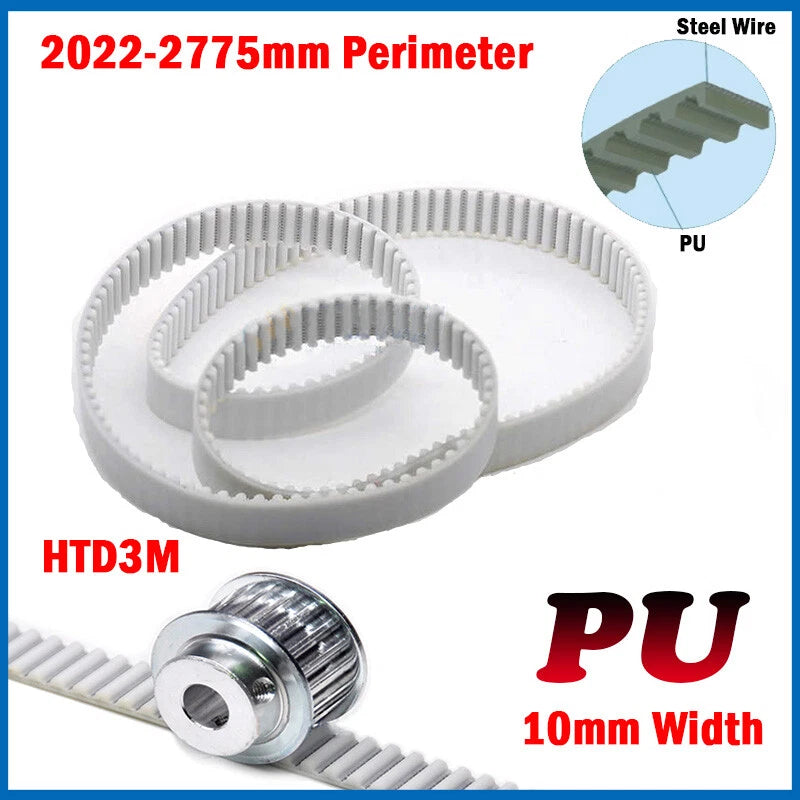

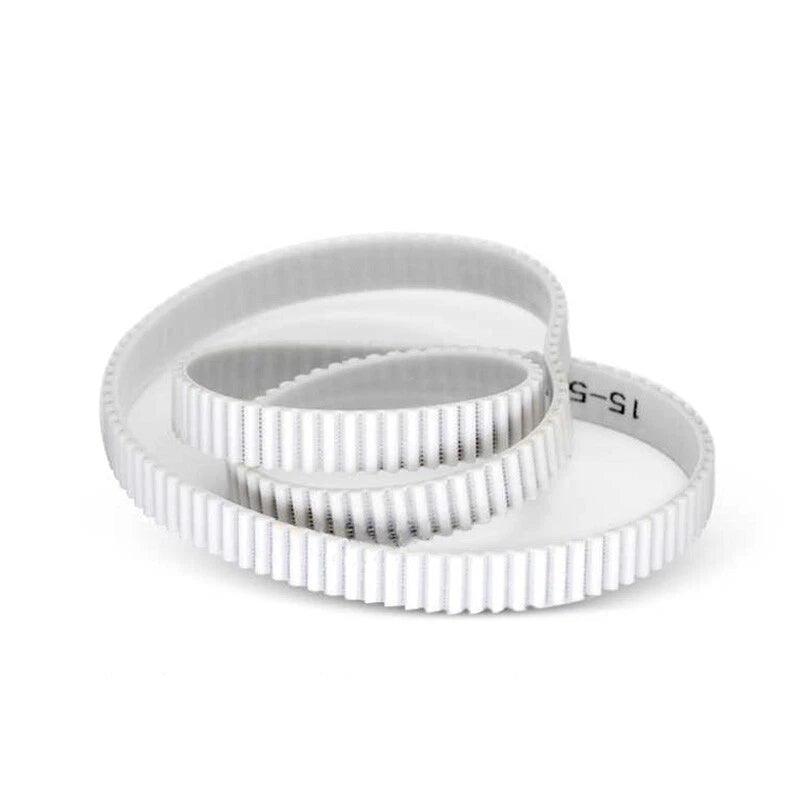

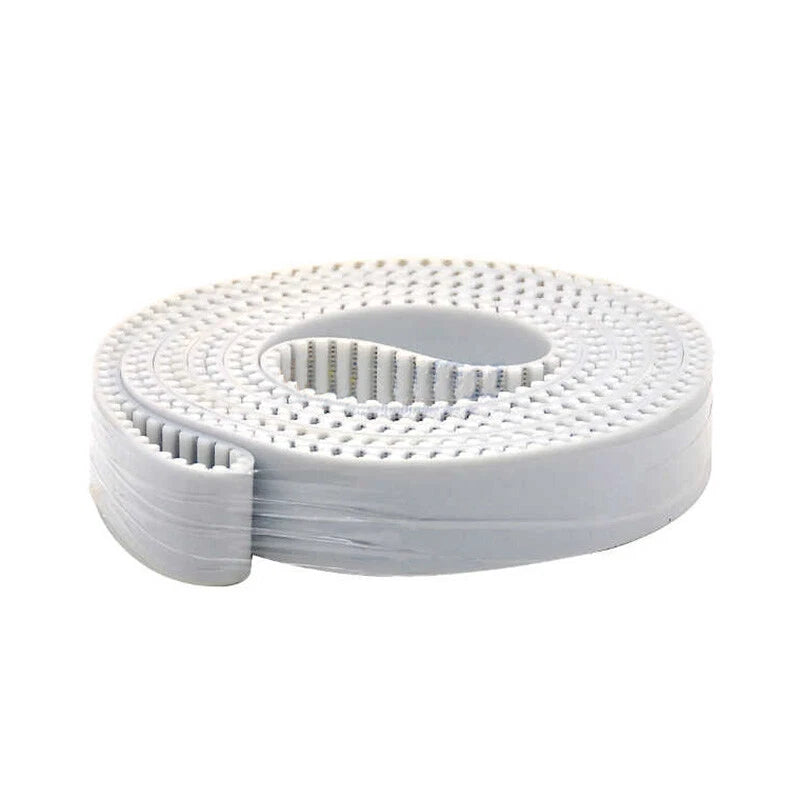

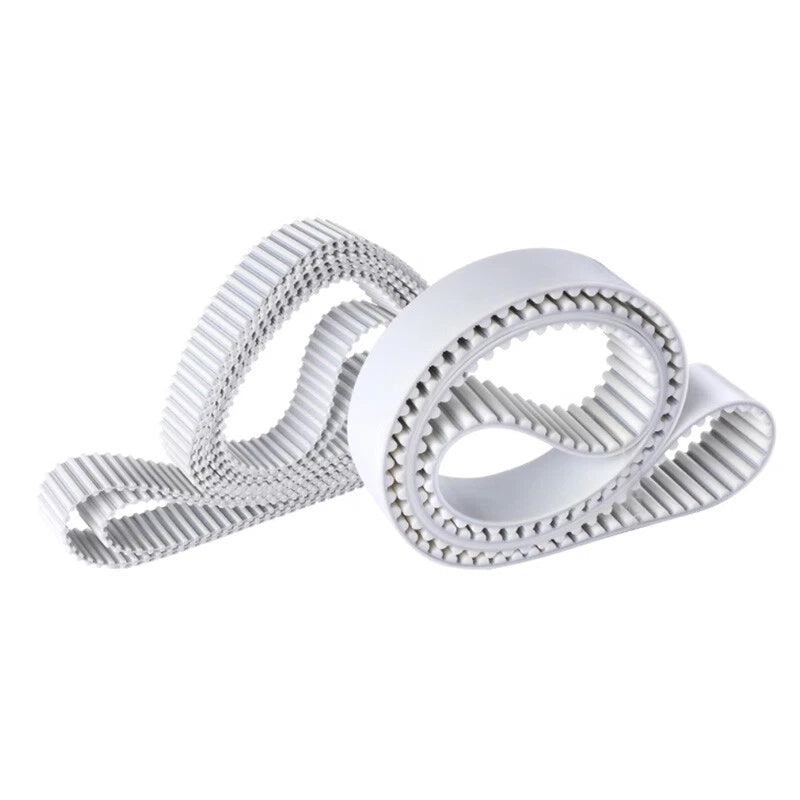

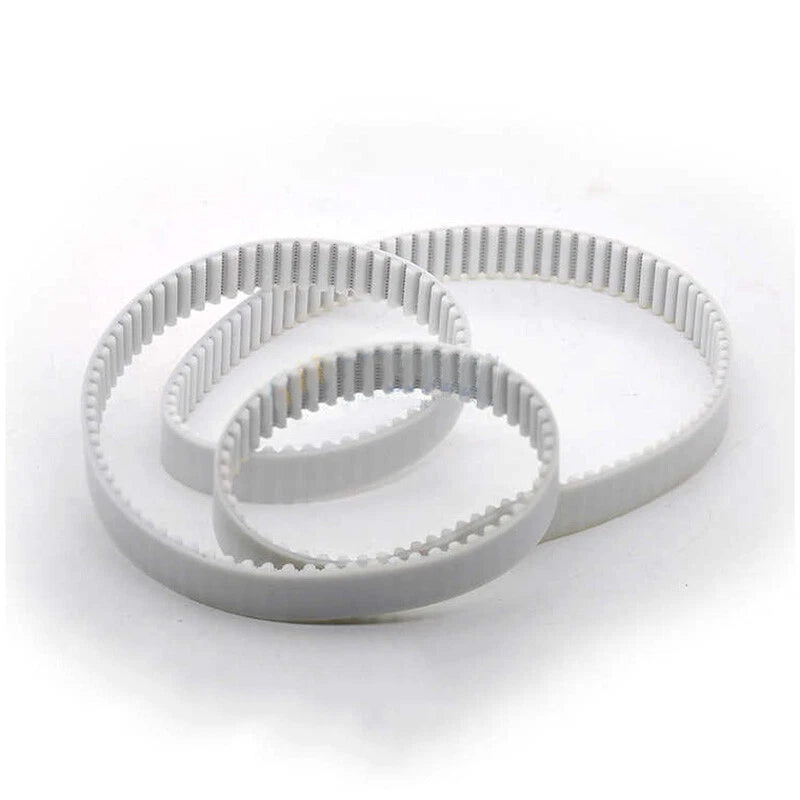

Each belt is a closed-loop (endless) design made from polyurethane (PU) with an embedded steel wire tensile cord. The tooth profile follows the HTD 3M standard — a 3mm pitch with rounded curvilinear teeth. Belt width is 10mm. Available perimeter sizes range from 2022mm (≈79.6") to 2775mm (≈109.3"), selectable by variant. Sold individually (1 piece per order).

Typical use cases include HTD 3M timing belt replacement for CNC gantry drives, 3D printer Z-axis or Y-axis belt loops, laser cutter carriage drives, and light industrial conveyor or indexing systems where precise tooth engagement and low elongation are critical.

ℹ️ Compatibility Notice: This belt uses the HTD 3M tooth profile (3mm pitch, rounded teeth). It is compatible only with HTD 3M pulleys. Not interchangeable with GT2, MXL, XL, or other profiles. Verify your pulley spec before ordering.
⚠️ Size Tip: Perimeter is the full closed-loop circumference — not the span between pulleys. Measure your existing belt or calculate from your pulley center distance. See FAQ below for the conversion formula.

✅ Key Features of These HTD 3M Closed PU Timing Belts

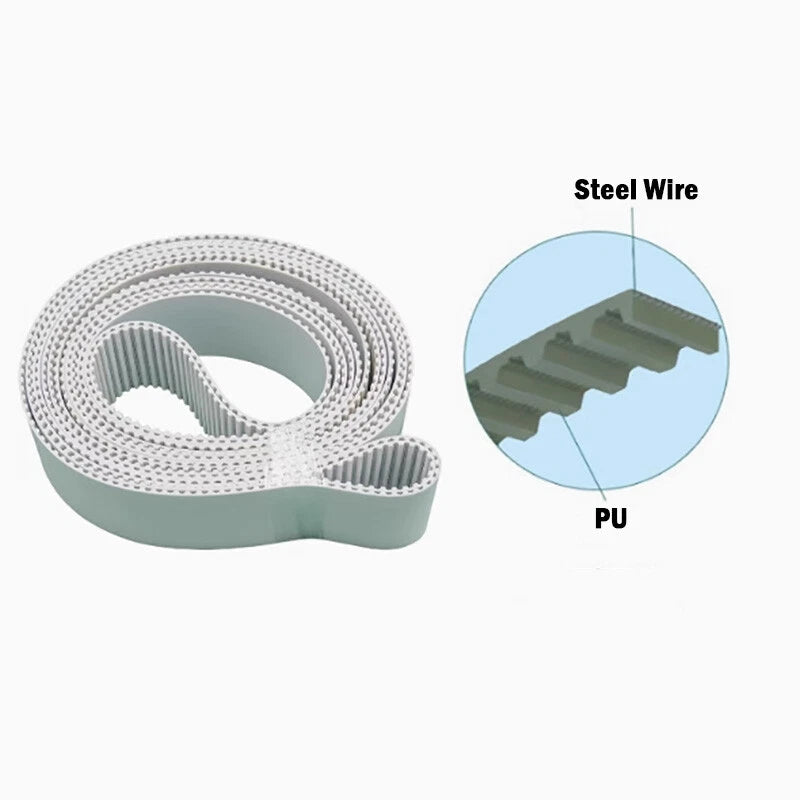

  • 🔩Steel Wire Tensile Core — Embedded steel wire cord provides low elongation under load, maintaining consistent tooth pitch and positioning accuracy in CNC timing belt and 3D printer drive applications.
  • 🦷HTD 3M Tooth Profile — Rounded curvilinear teeth with 3mm pitch deliver smooth, high-torque engagement with HTD 3M pulleys, reducing tooth jump risk compared to trapezoidal profiles.
  • 🧪Polyurethane (PU) Construction — PU material offers better resistance to oils, mild chemicals, and abrasion than standard neoprene, extending service life in workshop and light industrial environments.
  • 📏10mm Belt Width — A 10mm wide belt provides a practical balance of load capacity and compact footprint, commonly specified for HTD 3M closed-loop drive systems in automation and maker equipment.
  • 🔄Closed-Loop (Endless) Design — Factory-formed endless loop eliminates the splice point weakness of open-ended belts, ensuring uniform tension distribution around the full perimeter.
  • 📐Wide Perimeter Range — Available from 2022mm (≈79.6") to 2775mm (≈109.3") in 3mm increments, covering a broad range of machine configurations without custom fabrication.

📐 Technical Specifications — HTD 3M PU Timing Belt

Belt Type Closed-Loop (Endless) Timing Belt
Tooth Profile HTD 3M (High Torque Drive, 3mm pitch)
Belt Width 10mm (≈0.39")
Perimeter Range 2022mm (≈79.6") to 2775mm (≈109.3")
Pitch 3mm
Tensile Cord Steel Wire
Belt Material Polyurethane (PU)
Tooth Count per Belt See variant options (perimeter ÷ 3mm pitch)
Compatible Pulley Profile HTD 3M only
Quantity per Order 1 piece
Operating Temperature Contact us to confirm
Country of Origin Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 3M timing belt?

Measure the center-to-center distance between your pulleys, then use the formula: Perimeter ≈ 2 × center distance + (π × pitch diameter of both pulleys). For example, a 2100mm (≈82.7") belt typically suits medium-span CNC or conveyor setups. When in doubt, measure your existing belt around the outside loop, or consult your machine's belt routing diagram. Contact us if you need help selecting the right size.

How do I convert the perimeter from mm to inches?

Divide the mm value by 25.4. Quick reference examples:

  • 2022mm ÷ 25.4 ≈ 79.6"
  • 2100mm ÷ 25.4 ≈ 82.7"
  • 2400mm ÷ 25.4 ≈ 94.5"
  • 2700mm ÷ 25.4 ≈ 106.3"
  • 2775mm ÷ 25.4 ≈ 109.3"

All available sizes are listed in the perimeter variant selector above.

What tensile strength does the steel wire core provide?

The embedded steel wire tensile cord generally provides significantly lower elongation under load compared to fiberglass-reinforced belts, helping maintain consistent tooth pitch and positioning accuracy. This makes steel wire core HTD 3M belts well-suited for CNC drives and 3D printer axes where dimensional repeatability matters. Exact load ratings depend on your specific application — contact us to confirm suitability.

Can this PU timing belt be used outdoors or in wet environments?

Polyurethane (PU) is generally more resistant to oils, mild chemicals, and incidental moisture than standard neoprene rubber belts. However, prolonged exposure to standing water, UV radiation, or harsh outdoor conditions may affect service life. For outdoor or washdown environments, verify your specific operating conditions before ordering. Contact us if you have questions about a specific application.

What pulley profile is compatible with this belt?

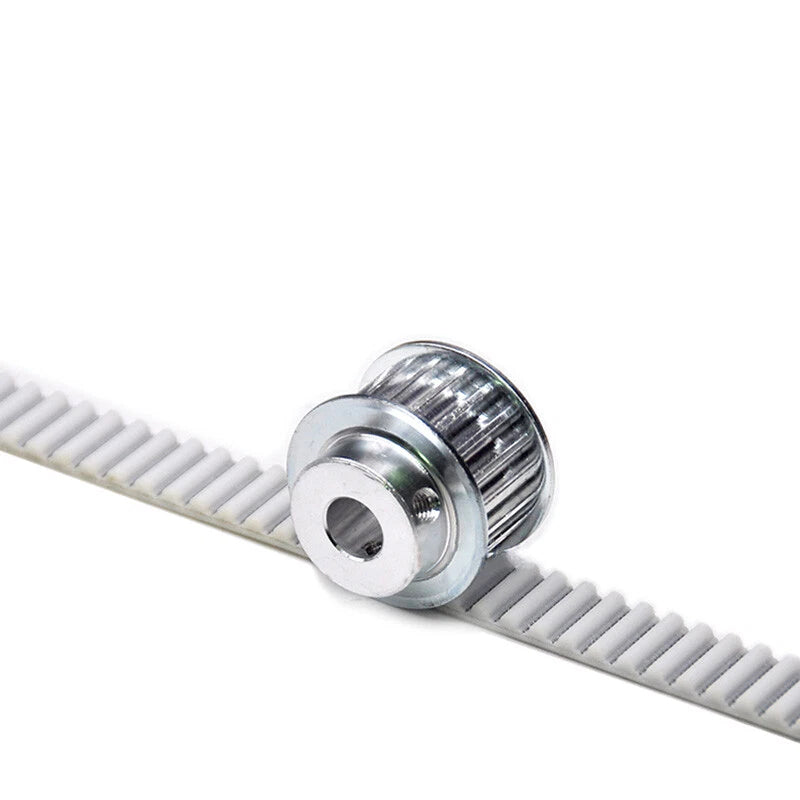

This belt uses the HTD 3M tooth profile — a rounded, curvilinear tooth shape with a 3mm pitch. It is compatible only with HTD 3M pulleys. It is not interchangeable with GT2, MXL, XL, T2.5, or other tooth profiles. Always verify your pulley's tooth profile and pitch before ordering.

Is this belt suitable for 3D printers, CNC routers, or conveyor systems?

Yes. HTD 3M closed-loop PU timing belts are commonly used in 3D printers (Z-axis, Y-axis belt loops), CNC routing machines, laser cutter carriage drives, and light industrial conveyor or indexing systems. The 10mm width and steel wire core make it well-suited for moderate-load drive applications where precise, repeatable positioning is required.

How do I know if I need to replace my timing belt?

Common signs that a timing belt needs replacement include visible cracking or surface wear on the teeth, skipping or slipping during operation, loss of positioning accuracy in CNC or 3D printing applications, unusual noise during belt travel, or visible elongation causing the belt to run loose on the pulleys. In most cases, replacing the belt before complete failure prevents damage to other drive components.

🛒 Select your perimeter size above, then add to cart — ships from our US warehouse.
