HTD 3M Closed PU Timing Belt — Precision Drive for CNC, 3D Printers & Conveyors
When your CNC router skips steps, your 3D printer loses position, or your conveyor drifts under load, the culprit is often a belt that stretches, slips, or wears unevenly. Engineers, makers, and machine builders who demand repeatable, low-backlash motion need a closed-loop timing belt built to tighter tolerances than standard rubber alternatives.

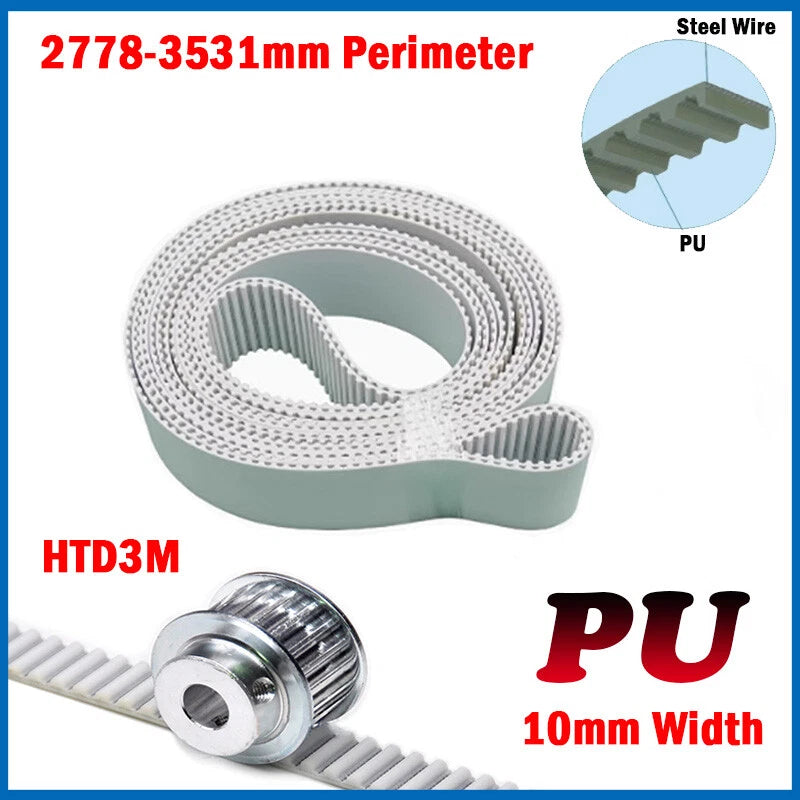

This HTD 3M closed PU timing belt features a polyurethane body reinforced with a steel wire tension core, available in a 10mm width with perimeter options ranging from 2778mm (≈109.4″) to 3531mm (≈139.0″) in 3mm increments. The HTD 3M tooth profile — 3mm pitch, rounded tooth form — mates precisely with standard HTD 3M pulleys and sprockets for smooth, low-noise power transmission.
Typical use cases include CNC router X/Y axes requiring low-stretch linear drive, FDM 3D printer motion systems where positional accuracy is critical, and light-to-medium duty conveyor or indexing systems in workshop and industrial settings. The steel wire core makes this HTD 3M timing belt a reliable upgrade over rubber belts in applications where elongation under tension causes positioning errors.
ℹ️ Compatibility: HTD 3M tooth profile only — 3mm pitch, rounded tooth. Compatible with HTD 3M pulleys and sprockets. Not interchangeable with GT2, MXL, T2.5, or other profiles. Verify your pulley spec before ordering.
✅ Key Features of These HTD 3M Closed PU Timing Belts
-

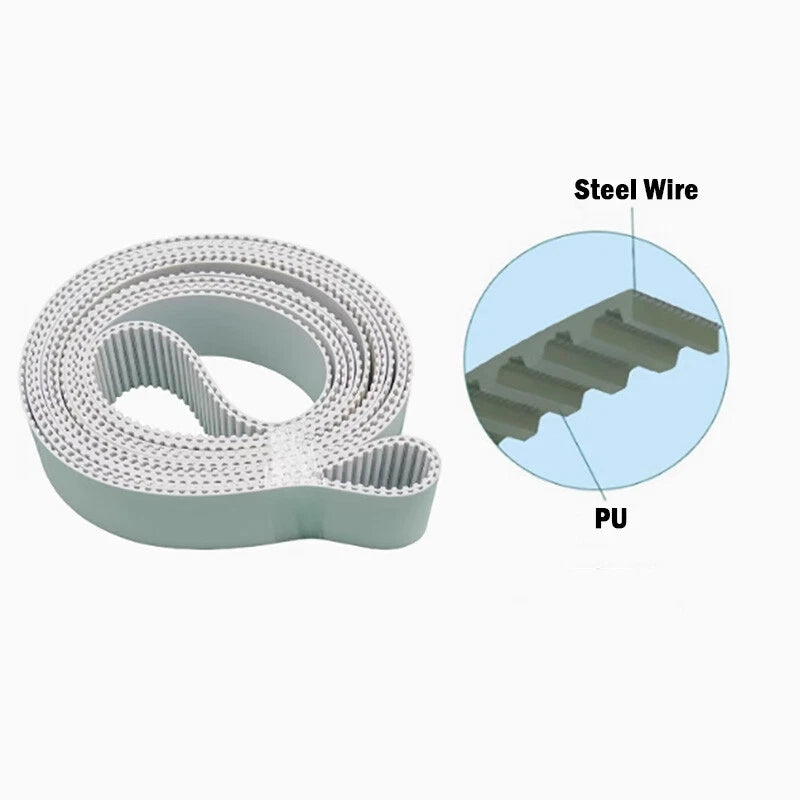

🔩Steel Wire Tension Core — Embedded steel wire cords minimize belt elongation under load, maintaining positional accuracy in CNC and 3D printer drive systems where rubber belts typically creep over time.
-
🧪Polyurethane Body — PU construction resists oils, ozone, and moderate moisture better than neoprene rubber, extending service life in workshop environments with coolant mist or lubricant exposure.
-
📐HTD 3M Tooth Profile — The 3mm pitch rounded tooth form distributes load across multiple teeth simultaneously, reducing tooth shear stress and enabling quieter operation compared to trapezoidal tooth profiles.
-
🔄Closed-Loop (Endless) Construction — Seamless loop eliminates the weak joint found in laced or stapled open belts, providing consistent tension and smooth rotation throughout the full perimeter.
-
📏Wide Perimeter Selection — Available from 2778mm to 3531mm in 3mm steps, covering a broad range of machine geometries without requiring custom fabrication or splicing.
-
⚙️10mm Belt Width — Sized for light-to-medium precision drives; wide enough for stable lateral tracking on standard HTD 3M flanged pulleys while keeping rotating mass low in high-speed motion systems.
📐 Technical Specifications — HTD 3M Closed PU Timing Belt
| Tooth Profile |
HTD 3M (High Torque Drive, 3mm pitch, rounded tooth) |
| Belt Width |
10mm (≈0.39″) |
| Perimeter Range |
2778mm (≈109.4″) to 3531mm (≈139.0″) |
| Pitch Increment |
3mm per variant step |
| Belt Material |
Polyurethane (PU) |
| Tension Member |
Steel wire cord |
| Belt Type |
Closed-loop (endless) |
| Compatible Pulleys |
HTD 3M pulleys and sprockets only |
| Tooth Pitch |
3mm |
| Operating Temperature |
See variant options / Contact us to confirm |
| Color/Finish |
See variant options |
| Quantity per Order |
1 piece (select QTY above for multi-piece pricing) |
⚠️ Sizing Note: Perimeter is the total closed-loop length, not the center-to-center span. Measure your belt path carefully or calculate using pulley geometry before selecting a variant. If unsure, contact us with your machine model or pulley specs.
❓ Frequently Asked Questions
How do I choose the right perimeter length for my HTD 3M timing belt?
Measure the center-to-center distance between your two pulleys, then calculate: Perimeter ≈ 2 × C + π × (D1 + D2) / 2. For example, a 3000mm (≈118.1″) belt typically suits a drive span of roughly 1400–1450mm with standard HTD 3M pulleys. Always verify against your machine's belt path before ordering. When in doubt, size up — a slightly longer belt with an adjustable tensioner is generally easier to work with than one that is too short.
What load can this PU timing belt handle?
The steel wire tension members generally provide tensile strength significantly higher than comparable rubber belts of the same pitch. Exact load ratings depend on pulley diameter, speed, and wrap angle. For precision motion applications such as CNC axes, the belt is generally rated for light-to-medium loads. Contact us to confirm suitability for heavy-duty industrial drives.
Is this timing belt suitable for outdoor or humid environments?
Polyurethane (PU) offers better resistance to oils, ozone, and moderate moisture compared to standard neoprene rubber belts. Prolonged immersion in water or exposure to strong solvents is not recommended. For outdoor workshop use or environments with coolant mist, PU is generally a solid choice. Confirm operating conditions with us if extreme environments are involved.

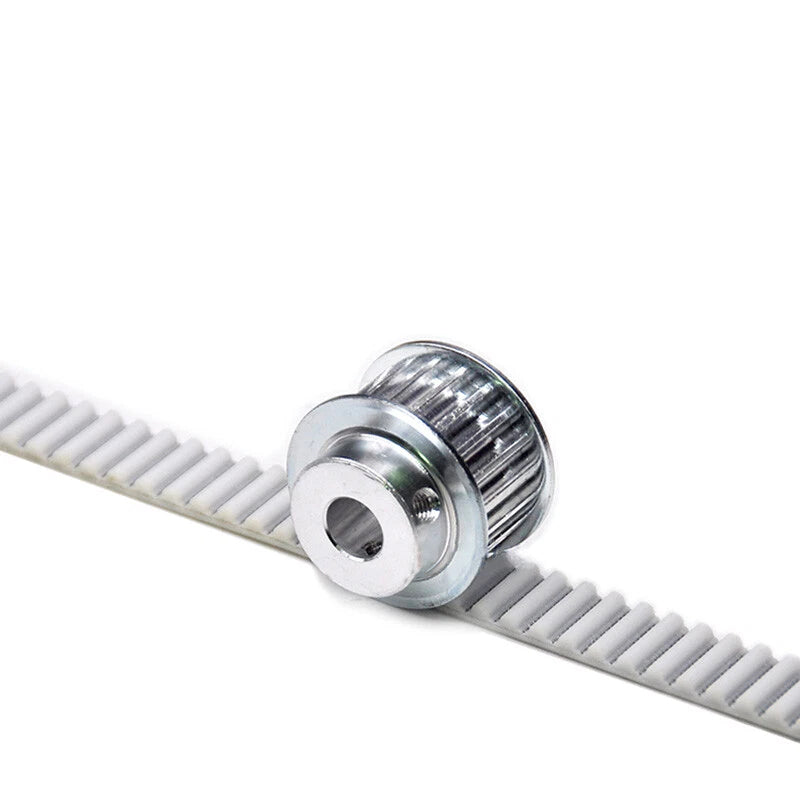

What pulleys are compatible with this HTD 3M belt?
This belt uses the HTD (High Torque Drive) 3M tooth profile — 3mm pitch, rounded tooth form. It is compatible with any HTD 3M pulley or sprocket. It is NOT interchangeable with MXL, GT2, GT3, or T2.5 pulleys. Always match both pitch and tooth profile when sourcing replacement pulleys.
Why choose a PU belt with steel wire over a rubber timing belt?
PU belts with steel wire cores typically offer lower elongation under load, better dimensional stability over time, and improved resistance to oils and chemicals compared to standard rubber belts. This makes them a preferred choice for CNC routers, 3D printers, and precision conveyor systems where positional accuracy matters and belt stretch causes cumulative error.
Can I cut this belt to a shorter length?
No. This is a closed-loop (endless) belt — it cannot be cut and rejoined without specialized equipment. Please select the perimeter that matches your application from the variant options above. If you need an open-ended belt that can be cut to length, contact us for alternatives.
What does the 10mm width mean for my application?
Belt width directly affects load capacity and lateral stability. A 10mm wide HTD 3M belt is generally suited for light-to-medium precision drives. If your application requires higher torque transmission, consider a wider belt (e.g., 15mm or 20mm). Contact us if you need a different width in the same perimeter range.
🛒 Select your perimeter size above, then add to cart — ships from our US warehouse.
