HTD 3M Closed PU Timing Belt with Steel Wire Core — Precision Drive for CNC, 3D Printers & Linear Systems

When a slipping or stretching drive belt throws off your CNC router's positioning, ruins a 3D print mid-job, or causes backlash in a linear actuator, the root cause is almost always an undersized or low-quality belt. Engineers, makers, and machine builders who need repeatable, low-backlash motion rely on the HTD 3M closed PU timing belt with steel wire core to keep their drives locked in sync.

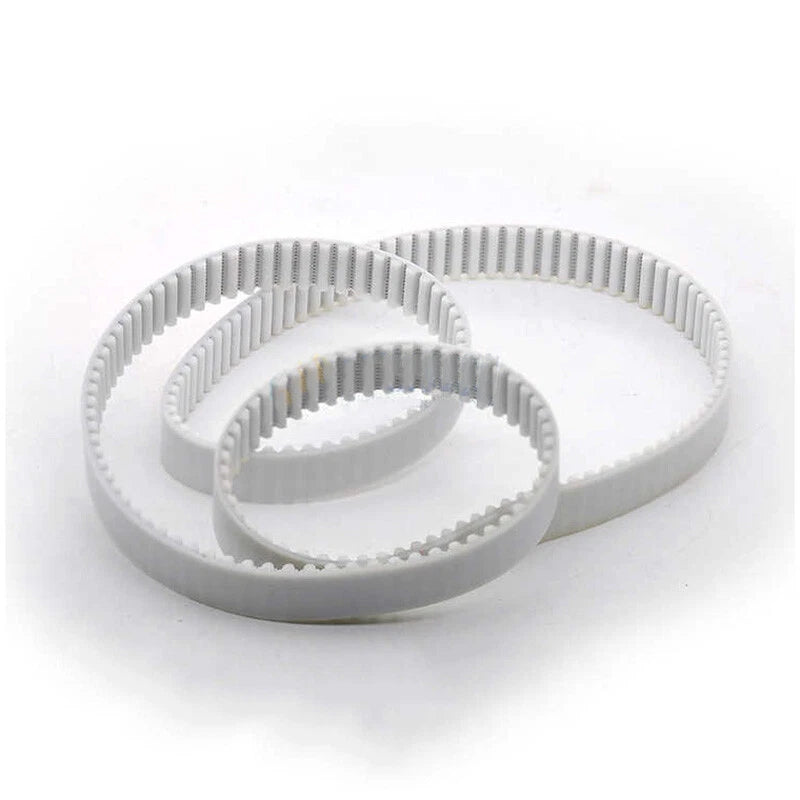

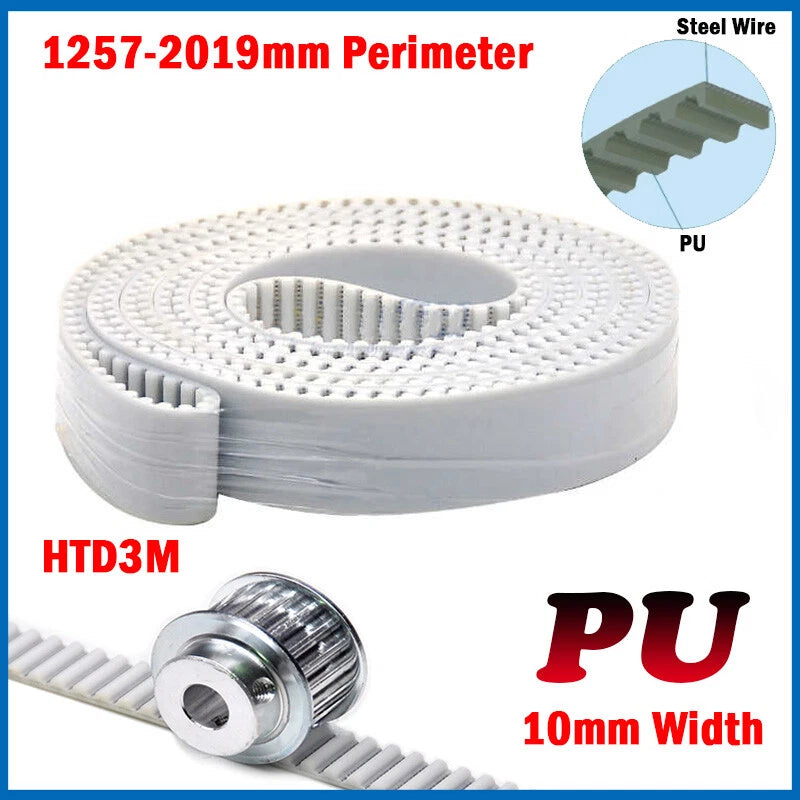

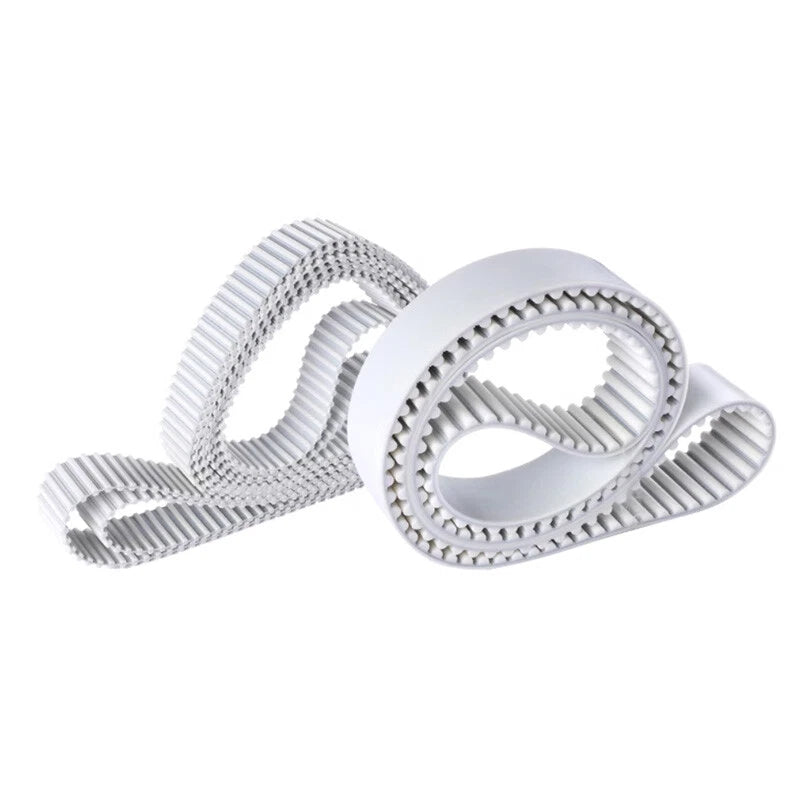

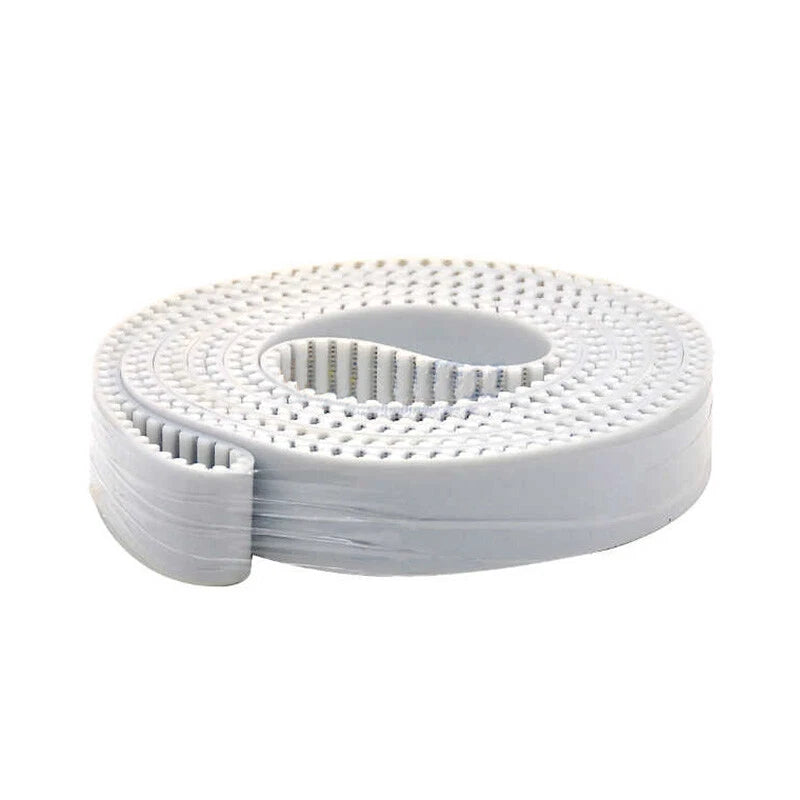

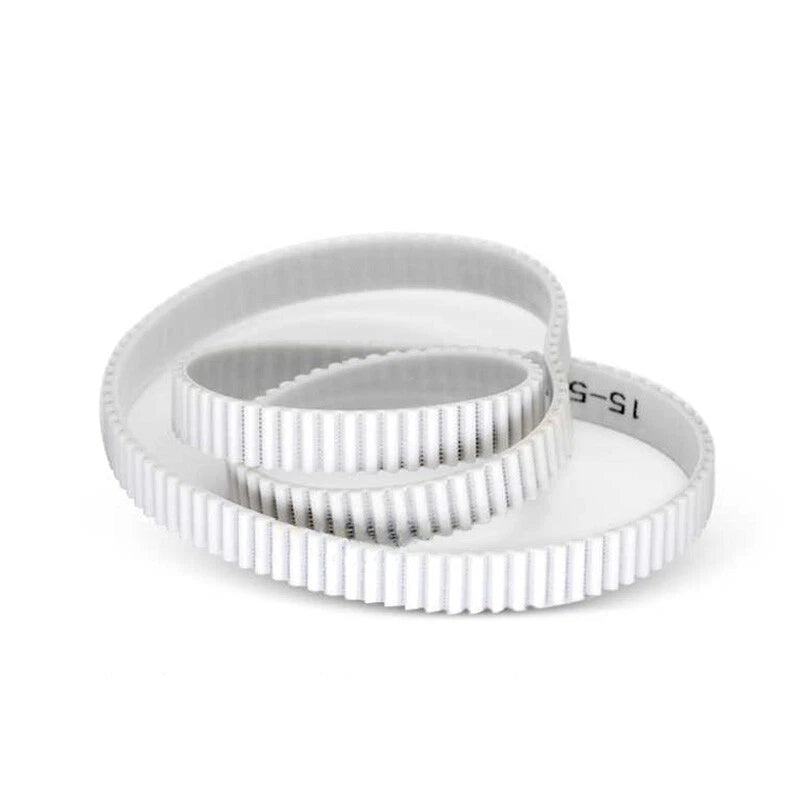

Each belt is a closed-loop (endless) polyurethane belt reinforced with a steel wire tensile cord. The HTD 3M tooth profile has a 3mm pitch and a rounded curvilinear tooth shape. Belt width is 10mm (≈3/8"). Available perimeters range from 1257mm (≈49.5") to 2019mm (≈79.5"), in 3mm increments across the range, giving you a precise fit for a wide variety of drive configurations. Select your exact perimeter from the variant dropdown above.

Typical use cases include CNC router X/Y axis drives, 3D printer bed and gantry belts, linear actuator return loops, conveyor indexing systems, and light-duty robotic joint drives — anywhere a synchronous HTD 3M timing belt with minimal stretch is required.

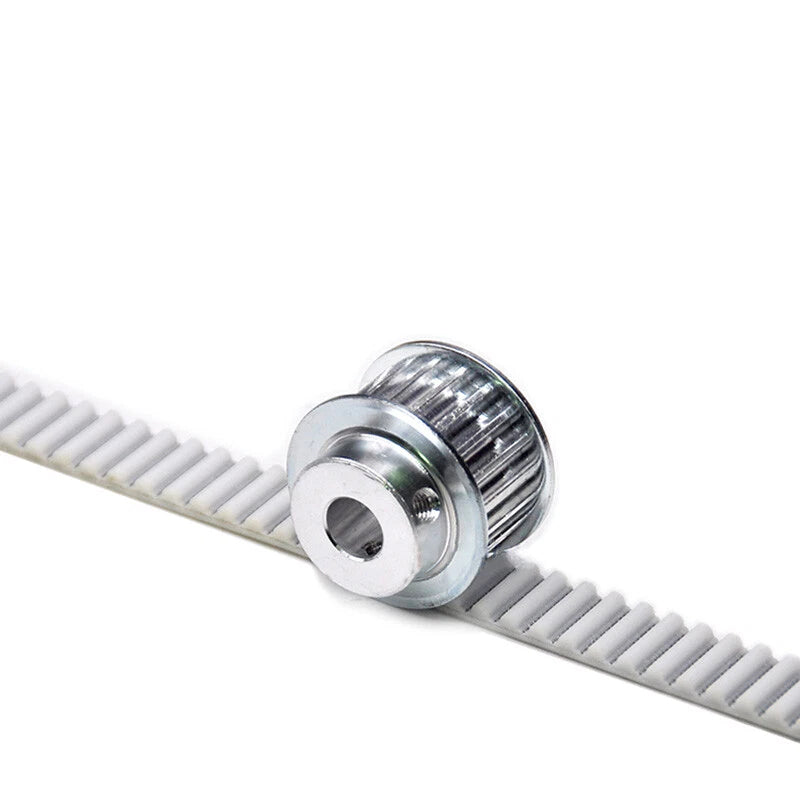

🔗 Compatibility: Fits all standard HTD 3M pulleys with a groove width of ≥10mm. Verify pulley flange clearance before ordering. Belt pitch: 3mm | Width: 10mm | Profile: HTD (rounded curvilinear).
⚠️ Size tip: Perimeter = the full outer loop length of the belt. Measure your drive path carefully or use the formula: Perimeter ≈ 2C + π(D1+D2)/2. If your exact size is not listed, contact us to confirm availability.

✅ Key Features of These HTD 3M Closed PU Timing Belts

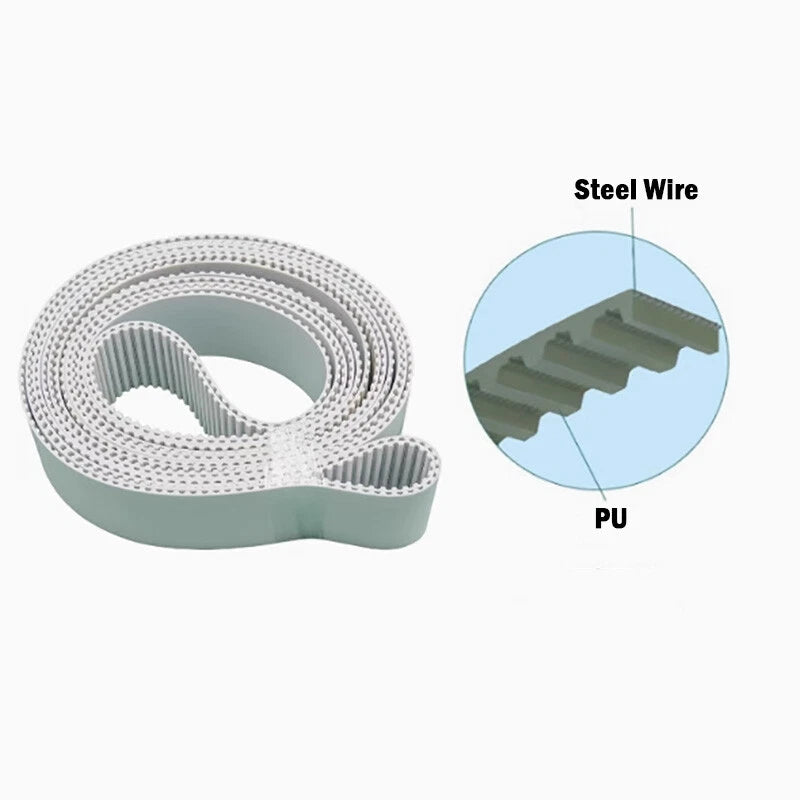

  • 🔩Steel Wire Tensile Cord — Embedded steel wire reinforcement delivers significantly lower elongation under load compared to fiberglass-cord belts, making this HTD 3M timing belt with steel wire core ideal for precision positioning drives.
  • 🧱Polyurethane Body — PU construction resists oils, greases, and mild solvents better than standard neoprene rubber, extending service life in machine tool and automation environments.
  • 📐HTD 3M Rounded Tooth Profile — The 3mm pitch curvilinear tooth distributes load across a larger contact area, reducing tooth shear stress and enabling smooth, quiet synchronous drive operation.
  • 🔄Closed-Loop (Endless) Construction — No joint or splice means uniform stiffness around the full perimeter, eliminating the vibration and wear points common in laced or jointed belts.
  • 📏Wide Perimeter Selection — Available from 1257mm (≈49.5") to 2019mm (≈79.5") in fine increments, covering a broad range of CNC, 3D printer, and linear actuator drive configurations without custom cutting.
  • 🏭10mm Consistent Belt Width — Uniform 10mm width across all perimeter variants ensures compatibility with standard HTD 3M pulley groove widths and simplifies replacement sourcing.

📐 Technical Specifications — HTD 3M Closed PU Timing Belt

Belt Profile HTD 3M (High Torque Drive, rounded curvilinear tooth)
Tooth Pitch 3mm (0.118")
Belt Width 10mm (≈3/8")
Perimeter Range 1257mm (≈49.5") to 2019mm (≈79.5")
Belt Type Closed-loop (endless)
Body Material Polyurethane (PU)
Tensile Cord Steel wire
Tooth Count (per variant) See variant options (Perimeter ÷ 3mm pitch)
Compatible Pulley Profile HTD 3M standard pulleys
Minimum Pulley Groove Width ≥10mm
Operating Temperature Contact us to confirm
Color / Finish Typically black PU body with silver steel cord (confirm with product images)
Country of Origin See variant options

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 3M timing belt?

Measure the center-to-center distance between your two pulleys, then use the formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where D1 and D2 are the pitch diameters of your pulleys. Round up to the nearest available size. For example, a 1500mm (≈59.1") belt suits a mid-range drive with pulleys roughly 50–80mm apart. When in doubt, size up — a slightly longer belt can be tensioned; a too-short belt cannot be installed.

What load or torque can this HTD 3M PU timing belt handle?

HTD 3M belts are generally rated for light-to-medium duty applications. The steel wire tensile cord significantly increases the belt's tensile strength compared to fiberglass-cord versions. Exact load ratings depend on pulley diameter, speed, and wrap angle. Contact us to confirm suitability for high-torque applications.

Can this timing belt be used outdoors or in wet environments?

Polyurethane (PU) belts generally offer better resistance to oils, greases, and mild moisture compared to neoprene belts. However, prolonged exposure to standing water, UV radiation, or harsh chemicals may reduce service life. For outdoor or washdown environments, confirm operating conditions before purchase.

Is this belt compatible with standard HTD 3M pulleys?

Yes. This belt follows the HTD (High Torque Drive) 3M profile standard — 3mm pitch, rounded tooth profile — and is compatible with any standard HTD 3M pulley. The 10mm belt width requires a pulley groove width of at least 10mm. Always verify pulley flange clearance before installation.

Why choose a PU belt with steel wire over a rubber timing belt?

Polyurethane belts with steel wire cores typically offer lower elongation under load, better dimensional stability, and longer service life in precision positioning applications such as 3D printers, CNC machines, and linear actuators. Rubber belts may be preferred where flexibility at low temperatures is critical.

What is the tooth pitch and profile of this belt?

This belt uses the HTD 3M profile: 3mm pitch (tooth-to-tooth distance), with a rounded, curvilinear tooth shape designed to distribute load across a larger contact area compared to trapezoidal (MXL/XL) profiles. This reduces tooth shear stress and is well-suited for servo and stepper motor drives.

How do I install this closed-loop timing belt on my machine?

Closed-loop belts require that at least one pulley or idler be removable or adjustable to allow the belt to be slipped over the pulleys. Loosen your tensioner or idler, route the belt over both pulleys, then re-tension until the belt deflects approximately 1–2mm under light finger pressure at the midspan. Avoid over-tensioning, which accelerates bearing and belt wear.

🛒 Select your perimeter size above, then add to cart — ships from our US warehouse.
