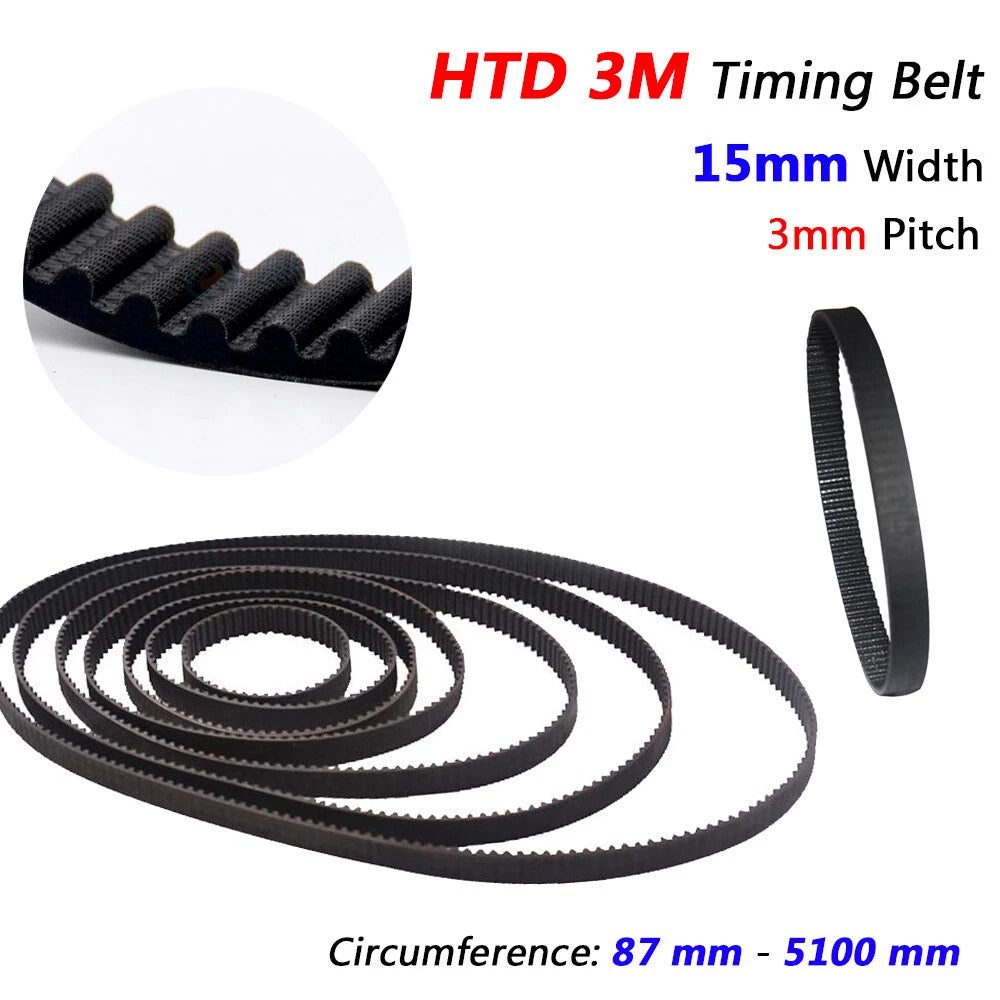

HTD 3M Timing Belt 15mm Wide — Closed Loop Rubber Drive Belt for CNC & 3D Printer

Measure the center-to-center distance between your two pulleys, then use the formula: Circumference ≈ 2 × C-to-C distance + (π × pulley pitch diameter). For example, a 150mm center distance with two 30-tooth HTD 3M pulleys (pitch diameter ≈ 28.6mm) typically requires a circumference around 390–420mm. Always verify against your machine's actual belt path before ordering. If you're replacing an existing belt, measure the old belt's inner perimeter directly.

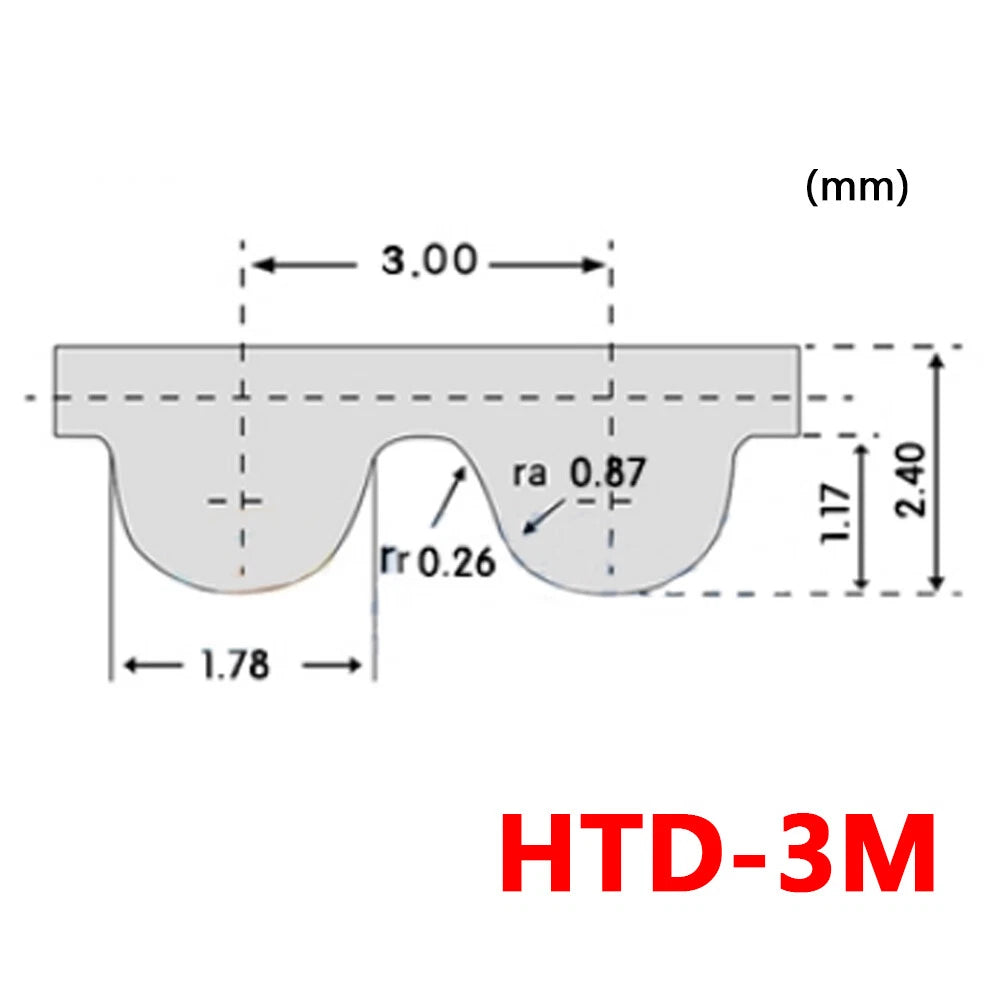

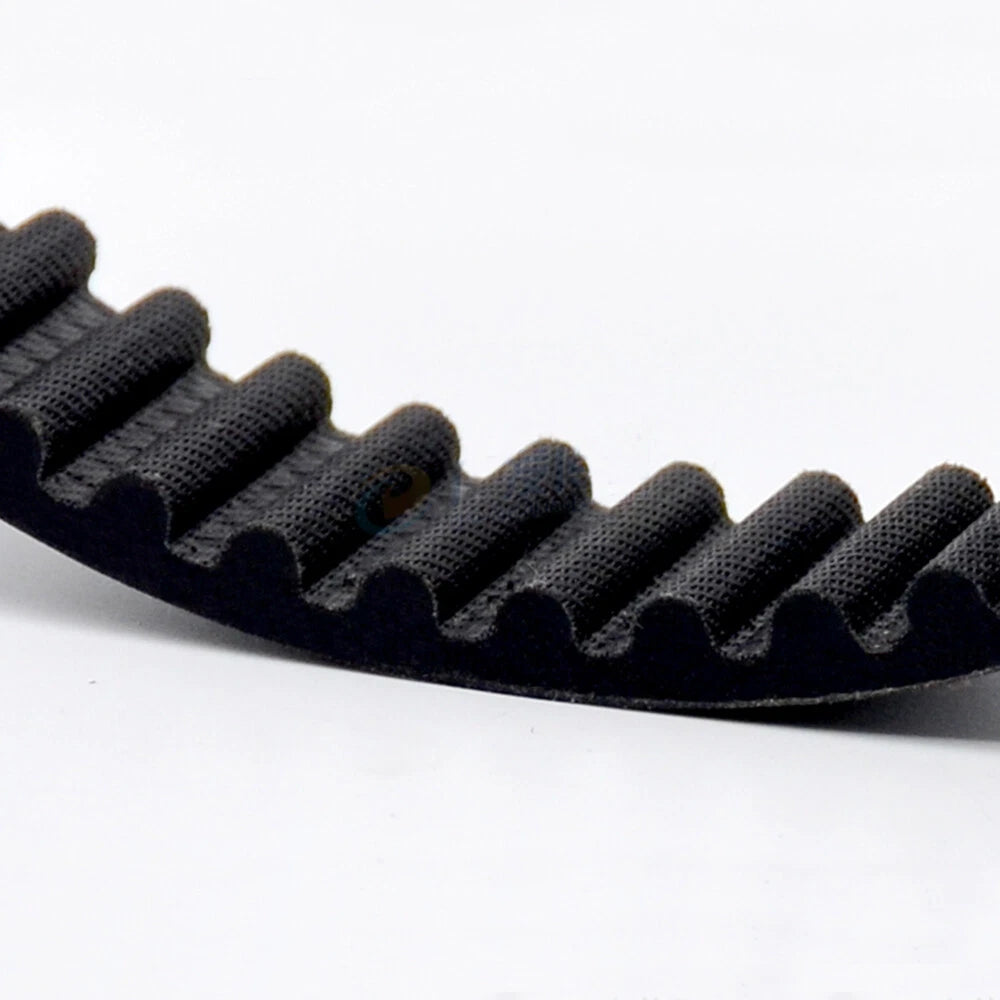

HTD stands for High Torque Drive. The "3M" designates a 3mm tooth pitch with a curved (round) tooth profile. This profile is not interchangeable with GT2 (2mm pitch), T2.5, T5, or MXL belts — even if the pitch appears similar. Always confirm your pulley is labeled HTD 3M before ordering. HTD 3M pulleys are widely used in CNC routers, 3D printers, and automation equipment.

The 15mm width generally provides higher torque capacity than narrower 6mm or 9mm HTD 3M belts. Working tension is typically in the range of 100–200 N depending on speed, pulley diameter, and wrap angle. For precise load ratings specific to your application, contact us to confirm — actual capacity varies with operating conditions.

Rubber HTD 3M belts generally offer moderate resistance to moisture and incidental oil contact. They are suitable for indoor CNC and 3D printing environments. For continuous outdoor exposure, submersion, or heavy oil environments, a polyurethane (PU) timing belt is typically a better choice. If your application involves occasional humidity or light splashing, this belt will generally perform well.

The belt tooth count equals the loop circumference divided by the pitch: Teeth = Circumference (mm) ÷ 3. For example, a 90mm belt has 30 teeth. Your drive pulley tooth count should be significantly less than the belt tooth count to ensure adequate wrap angle (generally at least 6 teeth in mesh on the smaller pulley). This is automatically satisfied in most standard two-pulley drive setups.

The 15mm width is wider than the 6mm belts used on most consumer desktop 3D printers (Ender, Prusa, etc.). It is more commonly found on larger-format machines, industrial-grade CoreXY builds, or custom motion systems where higher belt tension is needed. Verify your printer's belt width specification before ordering. If your machine uses 6mm or 9mm HTD 3M belts, select the appropriate width variant instead.

For a closed-loop (endless) belt, the loop circumference is the total inner perimeter — the measurement that determines fit on your drive system. It is equivalent to what some manufacturers call "pitch length." This is the value you calculate from your pulley center distance. Select the circumference that matches your drive geometry calculation, or measure your existing belt's inner perimeter directly.
