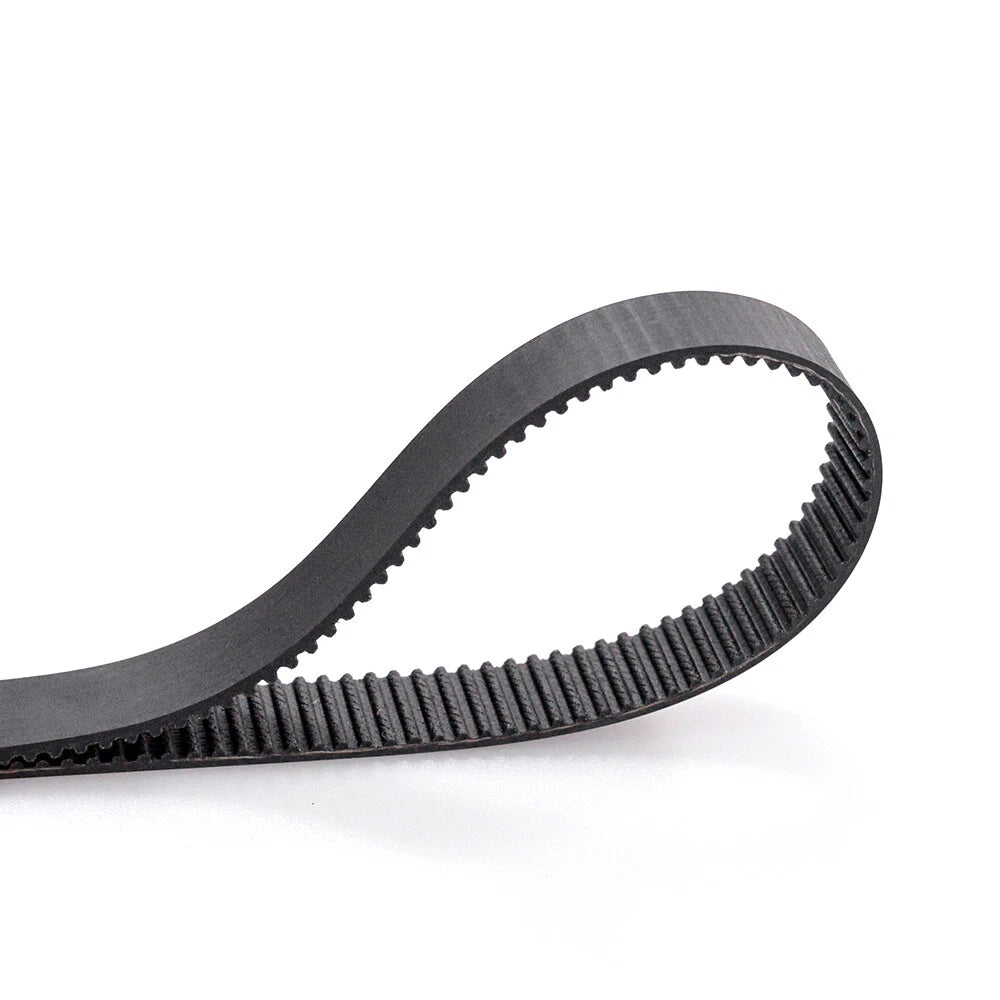

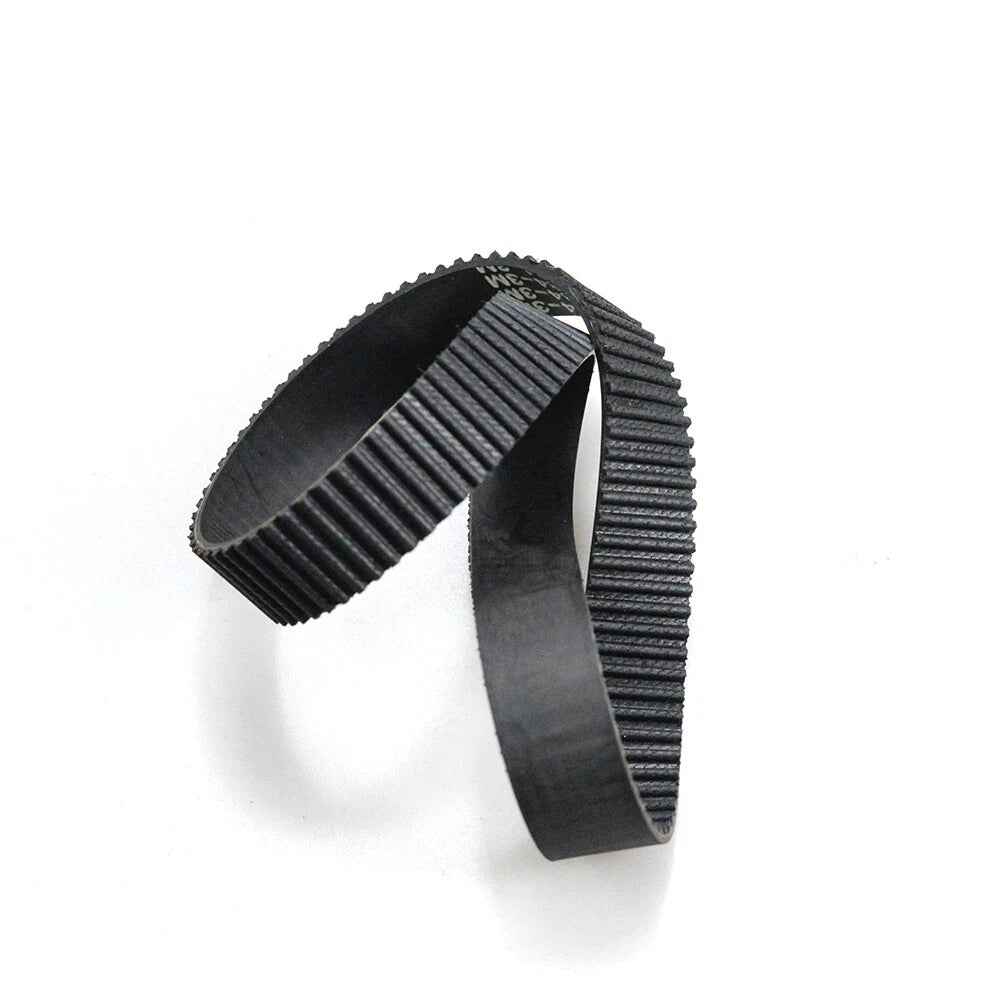

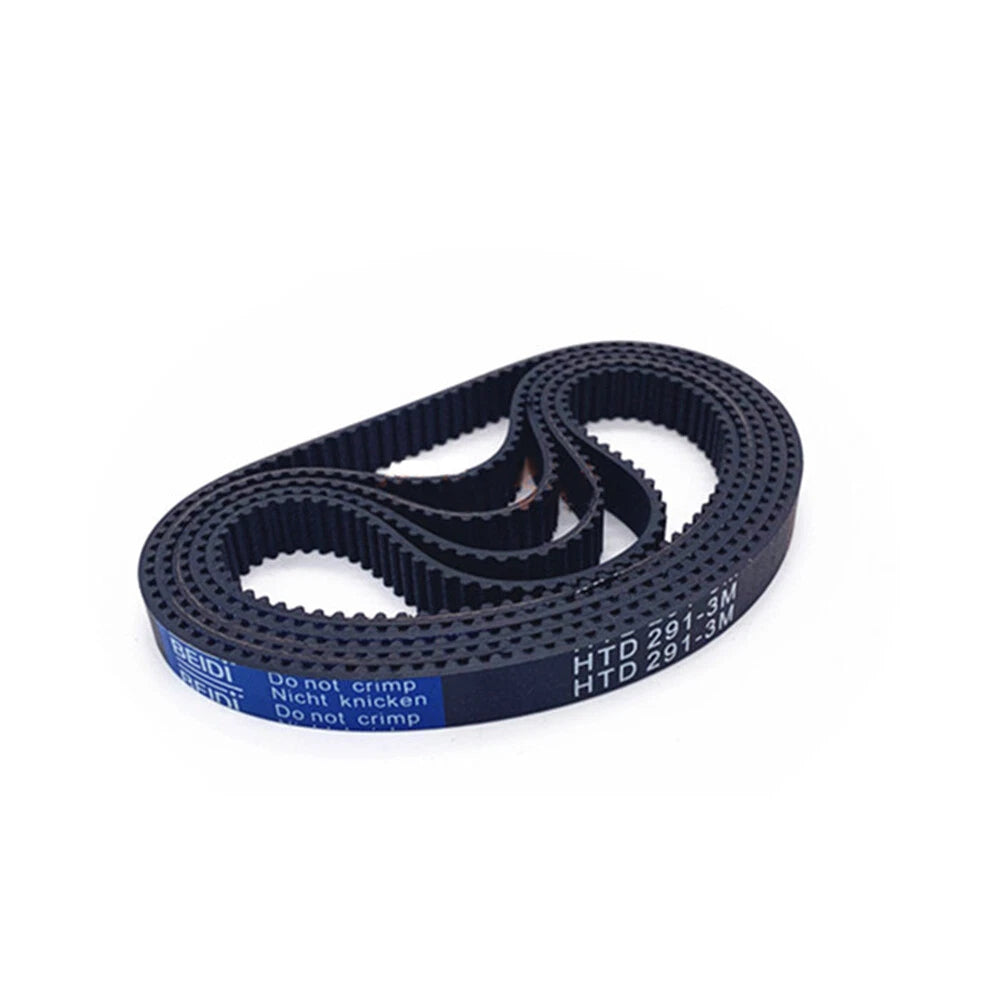

HTD 3M Closed-Loop Timing Belt 15mm Wide — Reliable Drive for CNC & 3D Printers

When a slipping or stretched drive belt throws off your CNC router's positioning or causes layer shifts in your 3D prints, the entire project is compromised. Machinists, makers, and motion-system builders who need a dependable closed-loop HTD 3M timing belt with consistent tooth engagement will find this 15mm-wide belt a straightforward, no-guesswork replacement or upgrade.

Each listing is for one (1) closed-loop HTD 3M timing belt with a 15mm (≈0.59") width and a 3mm (≈0.118") pitch. Circumference options range from 90mm (≈3.5") up to 3600mm (≈141.7"), available in multiple sizes — select your required loop length from the variant dropdown. The belt body is constructed from rubber compound with an internal tensile cord for dimensional stability under load.

Typical use cases include delta-style 3D printer arm drives (Reprap Rostock, Kossel), CNC router axis drives requiring a closed-loop HTD 3M belt, and rotary indexing or conveyor systems in light automation where a 3mm-pitch timing belt with 15mm width is specified.

ℹ️ Compatibility: Designed for HTD 3M pulleys only. Tooth profile is NOT interchangeable with GT2 (2mm pitch), GT3, or MXL belts. Verify your pulley tooth count and pitch before ordering.

✅ Key Features of These HTD 3M Closed-Loop Timing Belts

  • 🔁Closed-Loop Construction — Factory-joined endless loop eliminates the splice failures common with open-ended belts cut to length, giving you consistent tension around the full circumference.
  • 📐3mm HTD Tooth Pitch — The rounded HTD tooth profile distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in higher-torque CNC and 3D printer drive applications.
  • 📏15mm Belt Width — Wider than standard 6mm or 9mm belts, the 15mm width increases the load-bearing surface, making it suitable for heavier carriages or drives where lateral belt stability matters.
  • 🧵Internal Tensile Cord — An embedded tensile cord (typically fiberglass) resists elongation under cyclic loading, helping maintain positional accuracy in CNC router axis drives over extended run times.

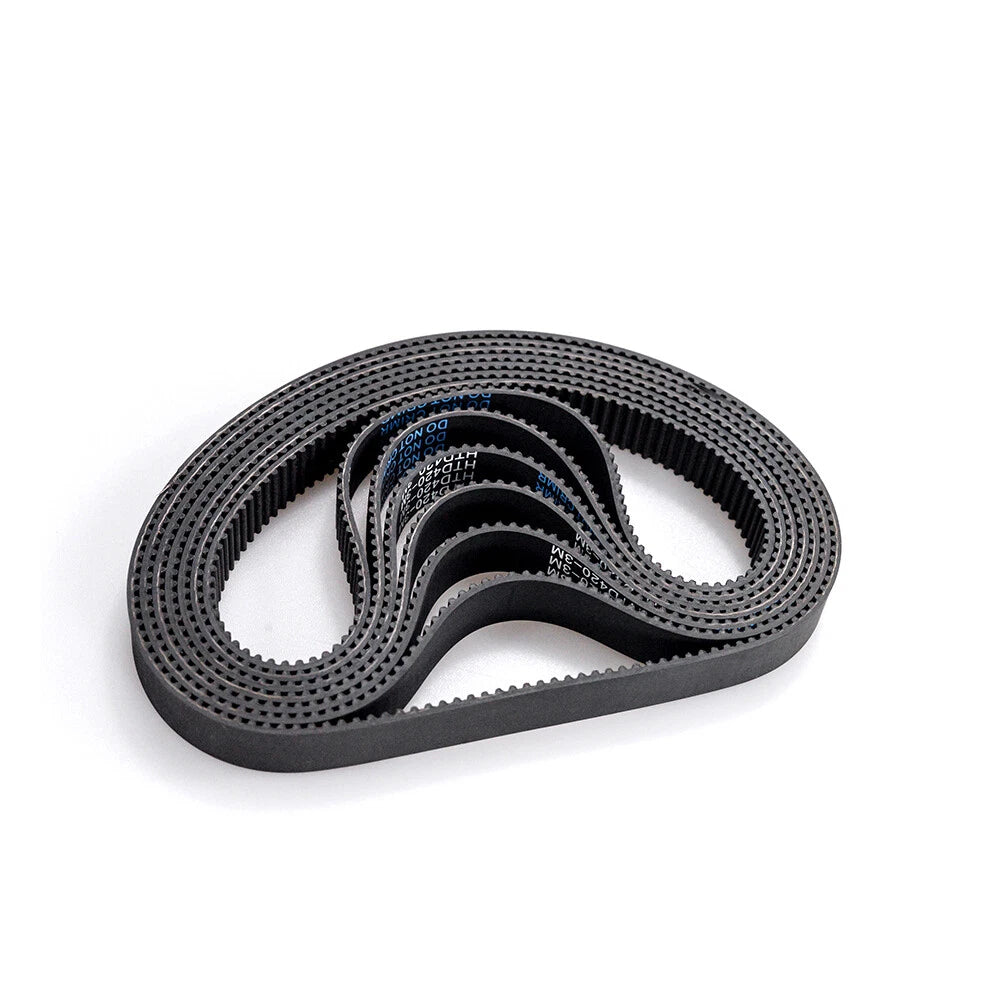

  • 📦Wide Size Selection — Available in circumferences from 90mm to 3600mm in 3mm increments, covering the most common closed-loop HTD 3M belt sizes used in Reprap, delta printer, and light CNC builds.
  • 🔧Drop-In Replacement Fit — Dimensioned to standard HTD 3M specifications, so this belt fits existing HTD 3M pulleys without modification — useful for maintenance replacements on Rostock-style delta printers and similar machines.

📐 Technical Specifications — HTD 3M Closed-Loop Timing Belt

Belt Type HTD (High Torque Drive) Closed Loop

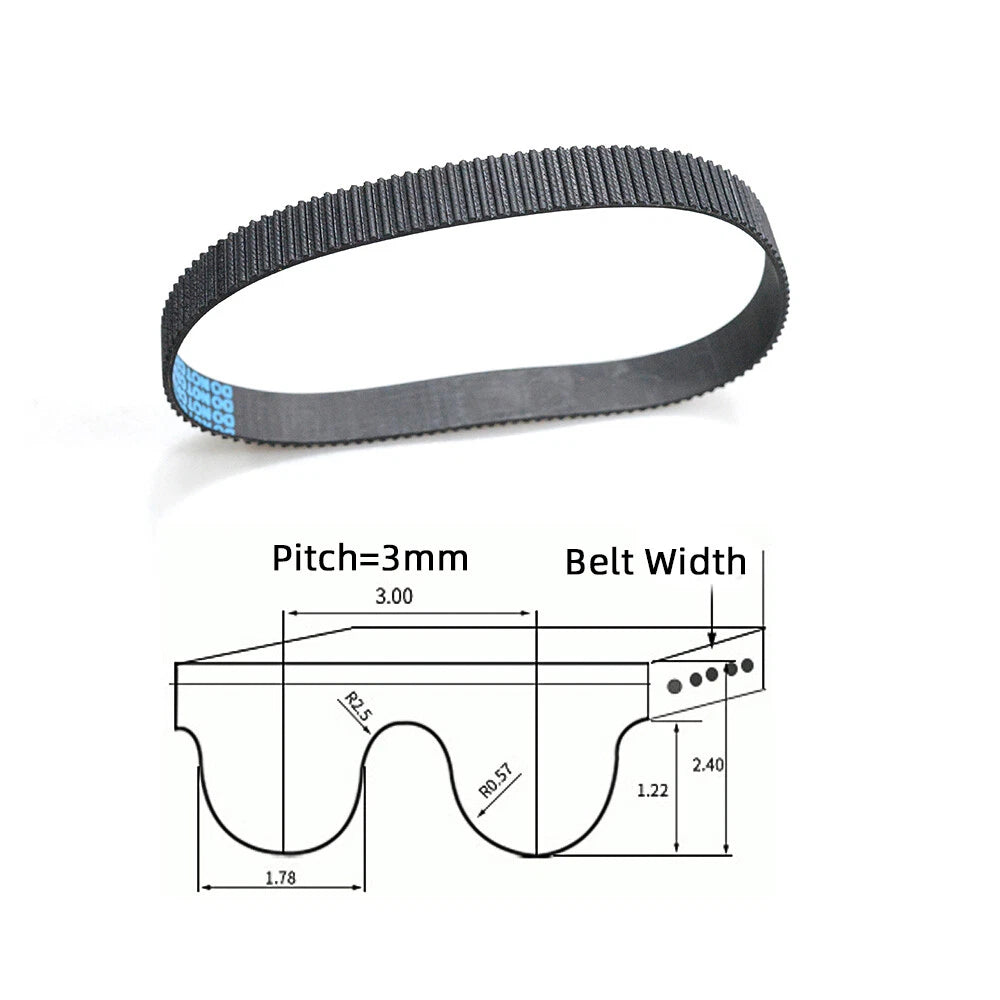

Pitch 3mm (≈0.118")
Belt Width 15mm (≈0.59")
Circumference Range 90mm (≈3.5") to 3600mm (≈141.7") — see variant options
Tooth Profile HTD (rounded curvilinear)
Body Material See variant options / Contact us to confirm
Tensile Cord See variant options / Contact us to confirm
Working Load Contact us to confirm for your specific size

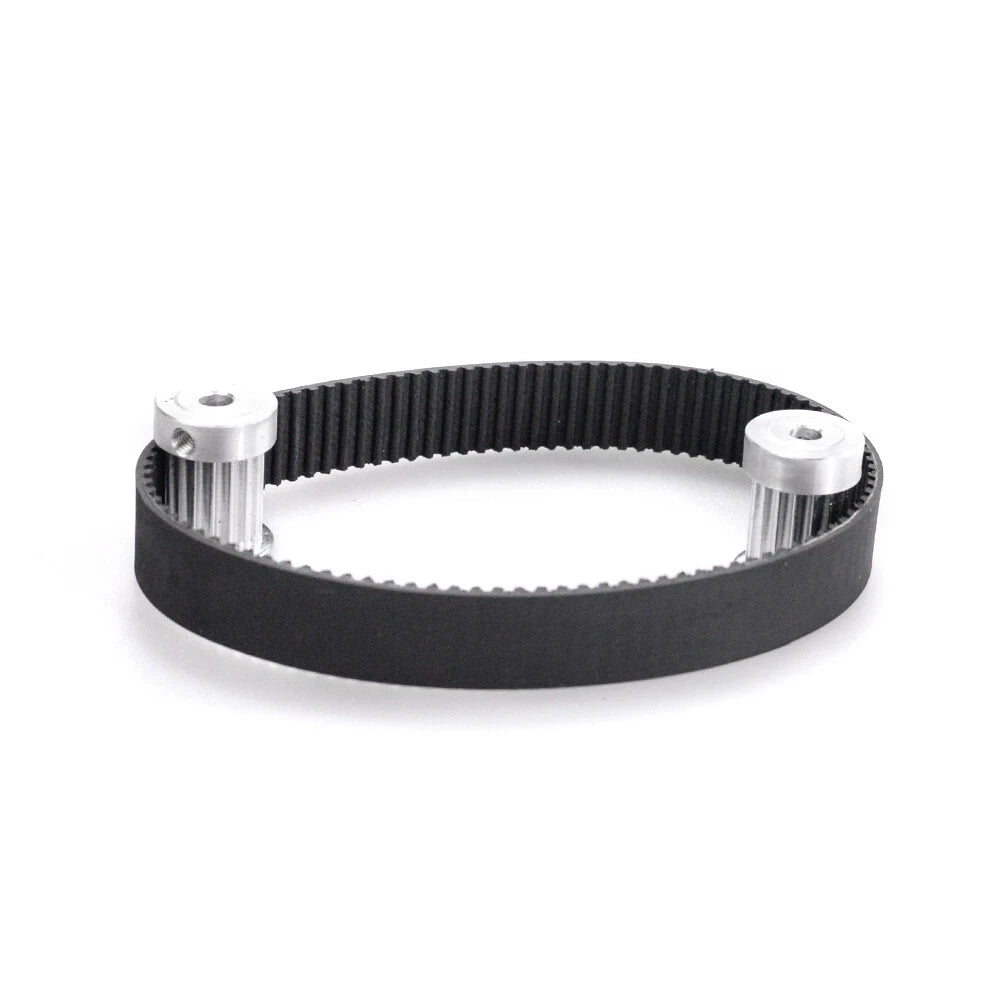

Compatible Pulleys HTD 3M pulleys only
Quantity per Order 1 PCS (per variant selected)
Typical Applications CNC router axis drive, 3D printer (Reprap, Rostock, Kossel), light automation
⚠️ Sizing note: Belt circumference is the total loop length, not the center-to-center pulley distance. If you are unsure which size to order, measure your existing belt or calculate using your pulley geometry. Contact us before ordering if you need help confirming the correct circumference.

❓ Frequently Asked Questions

How do I choose the right belt circumference for my machine?

Measure the center-to-center distance between your two pulleys, then calculate: circumference ≈ 2 × center distance + (π × pulley pitch diameter). For example, a 150mm center distance with two 20-tooth HTD 3M pulleys (≈19.1mm pitch diameter) typically requires a belt around 360–390mm. Always round up to the nearest available size and verify with a dry-fit before final assembly. If you are replacing an existing belt, simply measure the old belt's outer circumference.

What tensile strength can I expect from this belt?

HTD 3M belts generally have a tensile cord rated for moderate loads. For 15mm-wide belts, the working load is typically in the range of 100–200 N depending on cord material and manufacturer. Contact us to confirm the exact rating for your specific circumference and application before use in safety-critical systems.

Can this belt be used outdoors or in humid environments?

HTD 3M belts are generally made from neoprene or polyurethane rubber, which offers moderate resistance to moisture and mild chemicals. They are not rated for continuous outdoor UV exposure or submersion. For outdoor CNC or laser cutter builds, consider adding a protective cover or choosing a belt with a UV-stabilized jacket. Contact us if you need to confirm suitability for a specific environment.

What pulley tooth profile is compatible with this belt?

This belt uses the HTD (High Torque Drive) 3M tooth profile — a rounded, curvilinear tooth shape with a 3mm pitch. It is not interchangeable with GT2 (2mm pitch), GT3, or MXL profiles. Use only HTD 3M pulleys for correct meshing. Mismatched profiles will cause accelerated wear and potential skipping under load.

Is this belt suitable for Reprap and delta-style 3D printers like the Rostock?

Yes. HTD 3M closed-loop belts are widely used in Reprap-style 3D printers, delta robots (Rostock, Kossel), and similar machines where a fixed-length closed-loop drive is needed for the arm or carriage. The 15mm width provides more surface contact than narrower belts, making it suitable for higher-torque axis drives. Verify the circumference matches your specific printer's arm geometry before ordering.

How do I know if I need a 15mm-wide belt vs. a narrower option?

Belt width affects load capacity and lateral stability. A 15mm-wide HTD 3M belt is generally chosen when the drive system requires higher torque transmission, when the pulley is designed for 15mm belts, or when the application involves heavier carriages. Check your pulley flange width — it should match or exceed the belt width. If your pulley is designed for a 6mm or 9mm belt, a 15mm belt will not seat correctly.

Can I use this belt on a CNC router for the X or Y axis?

Yes, closed-loop HTD 3M belts are commonly used on CNC router axis drives where the belt wraps around a drive pulley and an idler in a fixed-length loop. Ensure your CNC's axis travel and pulley geometry match the belt circumference you select. For open-ended belt runs (where the belt is clamped to a carriage), you would need an open-length belt instead — this listing is for closed-loop belts only.

🛒 Select your circumference size above, then add to cart — ships from our US warehouse.
