HTD 3M Timing Belt 30mm Wide — Closed Loop for Reliable Synchronous Drive

When a slipping or stretching drive belt causes positioning errors in your CNC router, laser cutter, or conveyor system, the entire machine loses accuracy. This HTD 3M closed-loop timing belt is built for engineers, machine builders, and serious DIYers who need a consistent, low-stretch synchronous drive they can count on shift after shift.

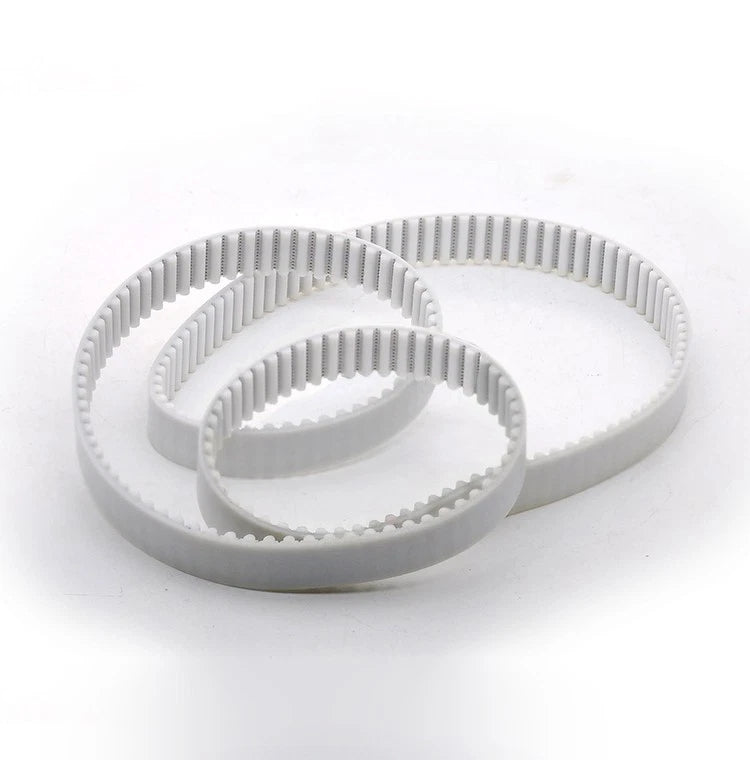

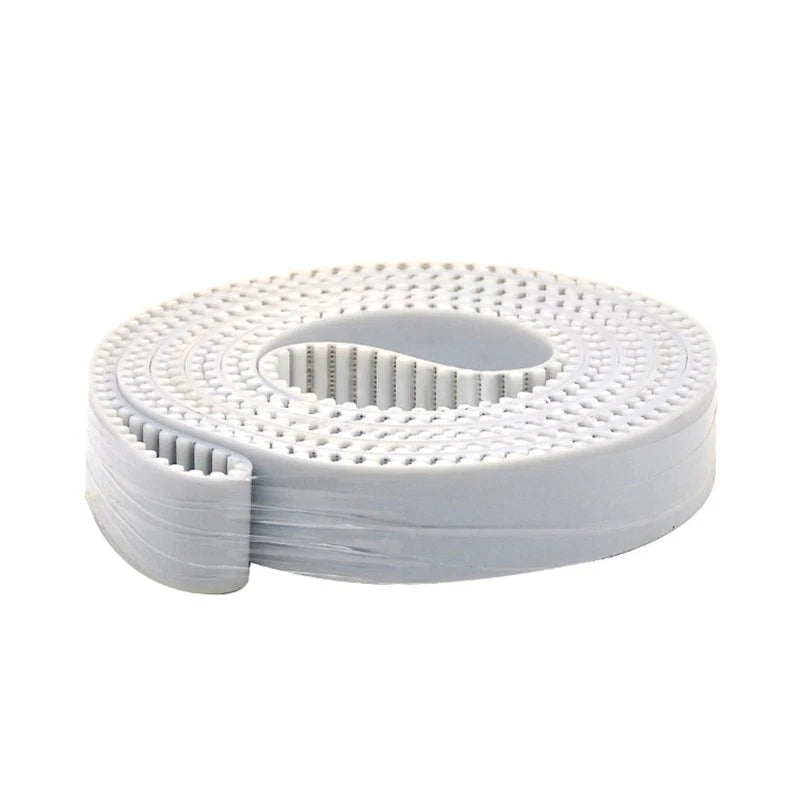

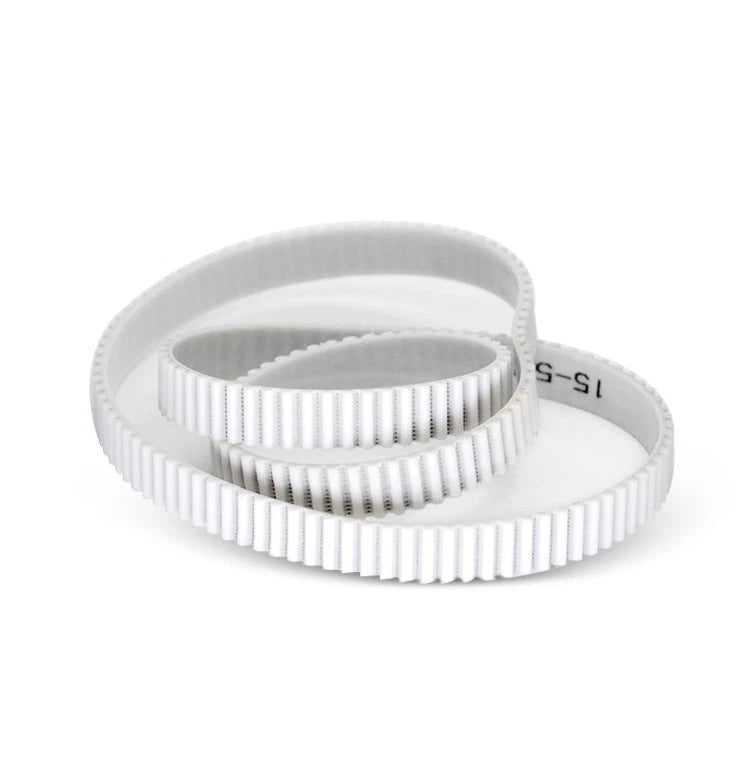

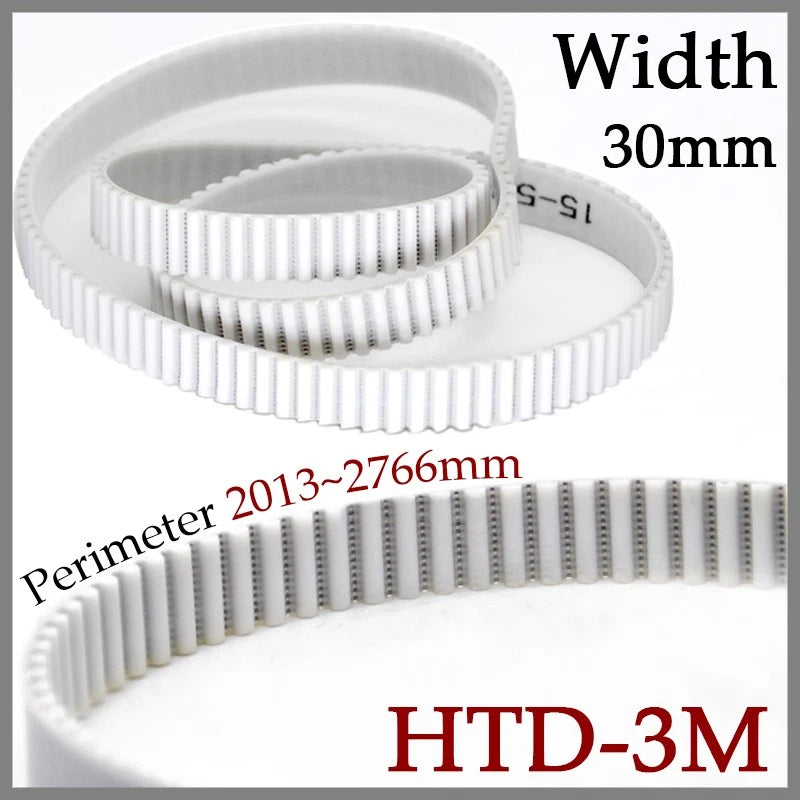

Each belt is a single closed loop — no joints, no splices — constructed from a polyurethane (PU) body with a steel wire tension cord running the full circumference. The belt is 30mm (1-3/16") wide and follows the HTD 3M tooth profile (3mm pitch, rounded tooth form). Available lengths run from 2013mm (≈79.3") to 2766mm (≈108.9") in 3mm increments, giving you precise sizing for long-span drives.

Typical applications include CNC router X/Y axes, laser engraver gantry drives, automated conveyor indexing systems, and industrial pick-and-place equipment — anywhere a synchronous HTD 3M timing belt with 30mm width is required for accurate, repeatable motion.

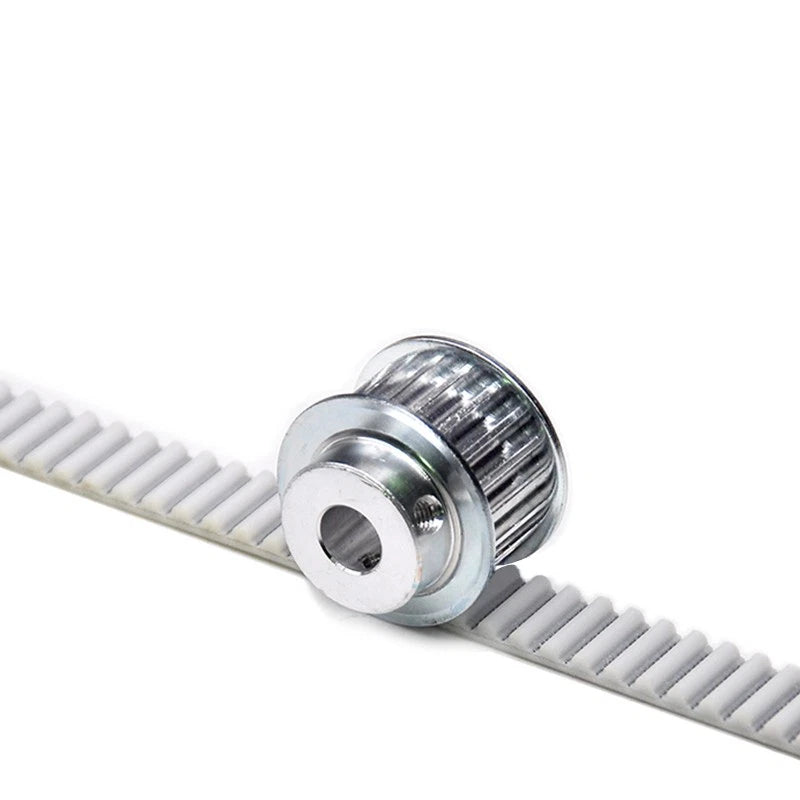

ℹ️ Compatibility: Fits any standard HTD 3M pulley (3mm pitch, rounded tooth profile) with a 30mm or wider groove. Not compatible with GT2, T3, MXL, or other belt profiles — verify your pulley spec before ordering.

✅ Key Features of These HTD 3M Closed-Loop Timing Belts

  • 🔩Steel Wire Tension Cord — Embedded steel wire core minimizes elongation under load, maintaining accurate tooth pitch and consistent positioning in synchronous drive systems.
  • 🧱Polyurethane Body — PU construction resists oils, mild solvents, and moisture better than standard neoprene, extending service life in light industrial and workshop environments.
  • 📏Wide 30mm Belt Width — Greater face width distributes load across more tooth contact area, making this HTD 3M 30mm timing belt suitable for higher-torque or wider-span drives than narrower variants.
  • 🔄Seamless Closed Loop — No joint or splice means uniform stiffness around the full circumference, eliminating the vibration and wear points common in laced or welded belts.
  • 🎯HTD 3M Tooth Profile — Rounded tooth form engages pulleys smoothly, reducing noise and tooth jump risk compared to trapezoidal profiles at equivalent loads.
  • 📐250+ Length Options — Available in 3mm increments from 2013mm to 2766mm, so you can match the exact circumference your drive geometry requires without custom fabrication.

📐 Technical Specifications — HTD 3M Synchronous Timing Belt

Belt Type HTD (High Torque Drive) Synchronous Timing Belt
Tooth Pitch 3mm (HTD 3M profile)
Tooth Profile Rounded (HTD standard)
Belt Width 30mm (1-3/16")
Belt Form Closed loop (seamless)
Body Material Polyurethane (PU)
Tension Member Steel wire cord
Available Lengths 2013mm (≈79.3") to 2766mm (≈108.9"), in 3mm increments
Number of Teeth Varies by length (length ÷ 3mm pitch); e.g., 2400mm = 800 teeth
Compatible Pulleys HTD 3M pulleys, 30mm groove width or wider
Operating Temperature See variant options (contact us to confirm for extreme environments)
Color Black
Country of Origin Contact us to confirm
⚠️ Sizing note: Belt circumference (listed length) is the pitch length measured at the tooth pitch line — not the outer or inner circumference. Match this value to your pulley center-distance calculation for correct fit.

❓ Frequently Asked Questions

How do I choose the right belt length for my application?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula:

Belt Length ≈ 2 × C + π × (D1 + D2) / 2

where C = center distance, D1 and D2 = pulley pitch diameters. For example, a 2400mm (≈94.5") belt typically suits a drive with roughly 750mm center distance using standard HTD 3M pulleys. When in doubt, size up — a slightly longer belt can be tensioned; a short belt cannot be installed.

What load or torque can this belt handle?

HTD 3M belts are generally rated for light-to-medium duty applications. The 30mm width provides greater load capacity than narrower variants of the same pitch. Actual torque capacity depends on the number of teeth in mesh, pulley diameter, and operating speed. Contact us to confirm suitability for your specific drive requirements.

Can this belt be used outdoors or in wet environments?

The polyurethane (PU) body offers better resistance to oils, mild chemicals, and moisture compared to neoprene belts. However, prolonged exposure to UV radiation or standing water may reduce service life. For outdoor or washdown environments, we recommend periodic inspection and replacement as part of a maintenance schedule.

Is this belt compatible with standard HTD 3M pulleys?

Yes. This belt follows the HTD (High Torque Drive) 3M profile standard — 3mm pitch, rounded tooth profile — and is compatible with any HTD 3M pulley of matching width (30mm) or wider. It is not interchangeable with GT2, MXL, T3, or other profiles even if the pitch number appears similar.

How do I convert the belt length from mm to inches?

Divide the mm value by 25.4. Quick reference examples:

  • 2013mm ÷ 25.4 ≈ 79.3"
  • 2100mm ÷ 25.4 ≈ 82.7"
  • 2400mm ÷ 25.4 ≈ 94.5"
  • 2700mm ÷ 25.4 ≈ 106.3"
  • 2766mm ÷ 25.4 ≈ 108.9"

All variants are available in 3mm increments across this range.

What is the difference between PU and neoprene timing belts?

Polyurethane (PU) belts with steel wire cores typically offer lower elongation under load, better chemical resistance, and longer service life in clean environments compared to neoprene/fiberglass belts. They are generally quieter at high speeds. Neoprene belts may be preferred in high-temperature environments (above approximately 80°C) where PU can soften.

Can I use this belt on a 3D printer or CNC router?

HTD 3M belts are commonly used in CNC routers, laser cutters, and larger-format automation equipment. For most desktop 3D printers — which typically use GT2 2mm-pitch belts — this belt is not a direct fit. Confirm your machine's belt pitch and width specification before ordering.

🛒 Select your model (belt length) above, then add to cart — ships from our US warehouse.
