3M HTD Closed-Loop PU Timing Belt — Precise Drive for CNC Machines & 3D Printers

When a slipping or stretched belt throws off your CNC cut or causes layer shifts on your 3D print, the root cause is almost always a belt that wasn't built for the job. Makers, machine builders, and automation engineers who need repeatable, zero-backlash motion depend on a closed-loop timing belt that holds its pitch under load — every single cycle.

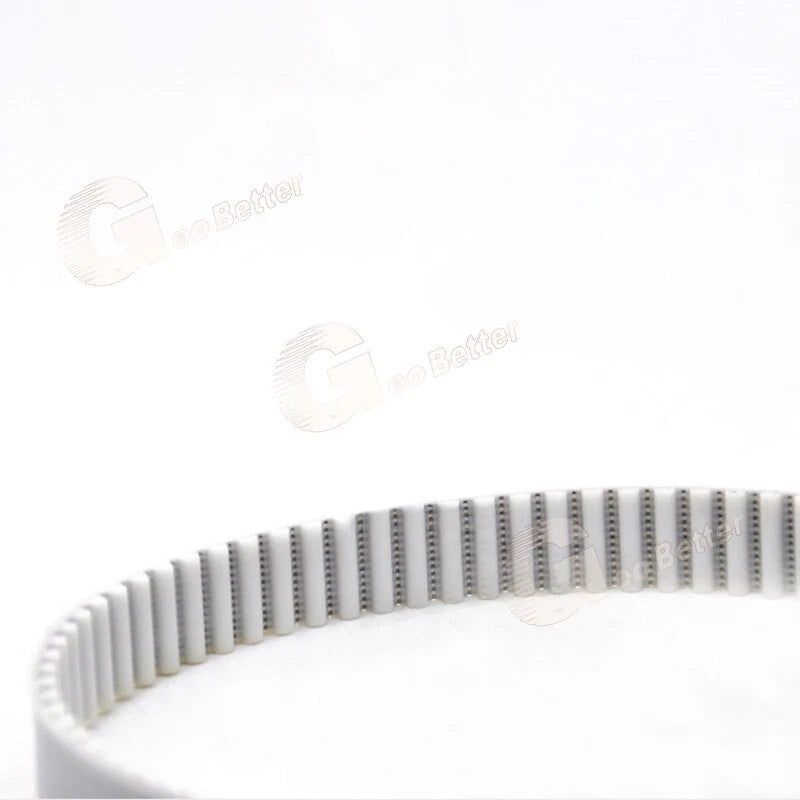

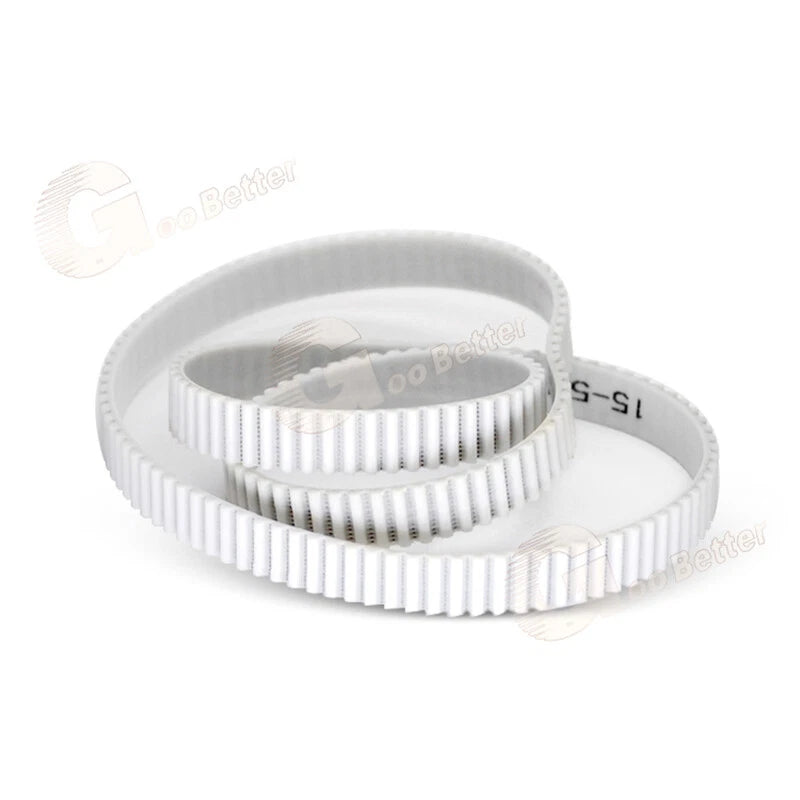

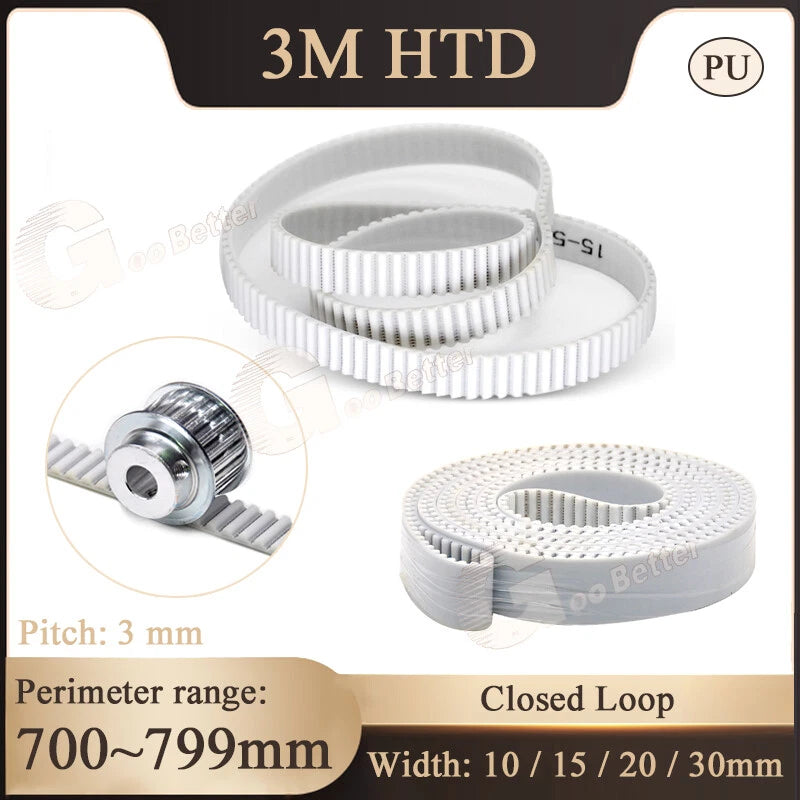

This 3M HTD synchronous timing belt is made from polyurethane (PU) with a steel cord tension member, formed as a seamless closed loop. Available in perimeters from 702mm (≈27.6") to 798mm (≈31.4") in 3mm increments, and in widths of 10mm, 15mm, 20mm, and 30mm. The HTD 3M tooth profile features a 3mm pitch with a rounded tooth form designed to distribute load evenly across the pulley groove.

Typical applications include CNC router axis drives, 3D printer Z-axis or rotary table drives, laser engraver feed systems, and light industrial conveyor loops — anywhere a fixed center-distance closed-loop belt with accurate pitch is required.

ℹ️ Compatibility Notice: This belt uses the HTD 3M tooth profile (3mm pitch, rounded tooth). It is not compatible with GT2, T5, T2.5, or other profiles. Confirm your pulleys are labeled HTD 3M before ordering.
⚠️ Size Tip: Perimeter = total outer loop length. Measure your pulley center distance and calculate before selecting. If unsure, contact us to confirm the right size for your setup.

✅ Key Features of These 3M HTD Closed-Loop Timing Belts

  • 🔁Seamless Closed-Loop Construction — No joint, no splice, no weak point. The belt runs as a continuous loop for smooth, vibration-free motion in fixed center-distance pulley systems.
  • 🦷HTD 3M Tooth Profile — The 3mm pitch rounded tooth form engages HTD pulleys with low noise and even load distribution, reducing stress concentration compared to trapezoidal profiles.
  • 🧲Steel Cord Tension Member — Embedded steel cords resist elongation under dynamic loads, maintaining consistent pitch for accurate positioning in CNC router drives and closed-loop automation.
  • 🧪Polyurethane Body — PU construction offers better oil and chemical resistance than neoprene, making it suitable for light-duty environments where occasional fluid exposure occurs.
  • 📐Wide Size Selection — Perimeters from 702mm to 798mm (3mm steps) and widths of 10mm, 15mm, 20mm, and 30mm cover a broad range of 3D printer and CNC machine configurations.
  • ⚙️Drop-In Replacement Fit — Manufactured to HTD 3M dimensional standards, these belts are generally interchangeable with OEM closed-loop HTD 3M belts on compatible machines without modification.

📐 Technical Specifications — HTD 3M Closed-Loop PU Timing Belt

Belt Profile HTD 3M (High Torque Drive, 3mm pitch)
Tooth Form Rounded (HTD), not trapezoidal
Pitch 3mm
Perimeter Range 702mm (≈27.6") – 798mm (≈31.4"), available in 3mm increments
Width Options 10mm, 15mm, 20mm, 30mm
Belt Type Closed loop (seamless, no joint)
Body Material Polyurethane (PU)
Tension Member Steel cord
Compatible Pulley Profile HTD 3M only
Typical Applications CNC routers, 3D printers, laser engravers, rotary tables, light conveyor systems
Operating Temperature See variant options / Contact us to confirm
Color Typically black (PU body)
Quantity per Order 1 belt per unit

❓ Frequently Asked Questions

How do I choose the right perimeter size for my machine?

Measure the center-to-center distance between your two pulleys, then calculate: Perimeter ≈ 2 × center distance + (π × pulley pitch diameter). For example, a 702mm (≈27.6") belt typically suits a center distance of around 300–320mm with standard HTD 3M pulleys. When in doubt, consult your machine's belt routing diagram or contact us to confirm the right size.

What load or torque can this timing belt handle?

HTD 3M polyurethane timing belts generally handle moderate torque loads suitable for CNC routers, 3D printer axes, and light automation. Wider belts (20mm, 30mm) carry proportionally higher loads than narrower ones (10mm, 15mm). For heavy-duty industrial applications, please contact us to confirm suitability for your specific load requirements.

Is this belt suitable for outdoor or wet environments?

Polyurethane (PU) construction offers better resistance to oils, mild chemicals, and humidity compared to neoprene belts. However, prolonged exposure to standing water or direct UV radiation is generally not recommended. For outdoor installations, consider adding a protective enclosure or cover over the belt drive.

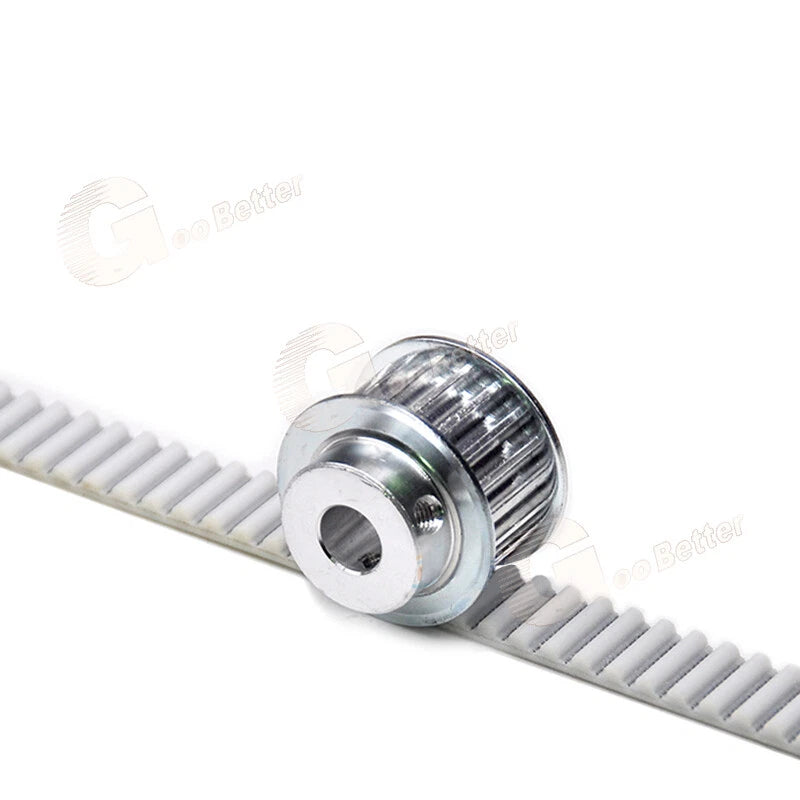

What pulley profile is compatible with this belt?

This belt uses the HTD 3M tooth profile — 3mm pitch with a rounded tooth form. It is compatible with HTD 3M pulleys only. It is not interchangeable with GT2 (2mm pitch), T5 (5mm pitch), T2.5, MXL, or other profiles. Always verify your pulley is labeled HTD 3M before ordering.

How do I select the correct belt width?

Match the belt width to your pulley face width. Common pairings: 10mm for lightweight 3D printer axes or small CNC setups; 15–20mm for standard CNC router drives; 30mm for higher-torque or wider-span applications. In most cases, the belt width should equal or be slightly narrower than the pulley face width to ensure proper tracking.

Can I use this belt on a RepRap or Voron 3D printer?

Most RepRap-style and Voron printers use GT2 open-loop belts, not HTD 3M closed-loop belts. This closed-loop HTD 3M belt is typically used on machines with a fixed center-distance pulley setup (such as rotary tables or specific CNC axis configurations). Check your printer's belt specification carefully before purchasing.

Does the steel cord reinforcement affect the belt's flexibility?

The steel cord core provides dimensional stability and prevents elongation under dynamic loads, while the PU body maintains the flexibility needed for smooth pulley engagement. In most cases, the belt remains flexible enough for standard pulley diameters used in HTD 3M drive systems. Avoid bending the belt around very small-diameter pulleys (generally below the minimum recommended for HTD 3M profile).

🛒 Select your perimeter and width above, then add to cart — ships from our US warehouse.
