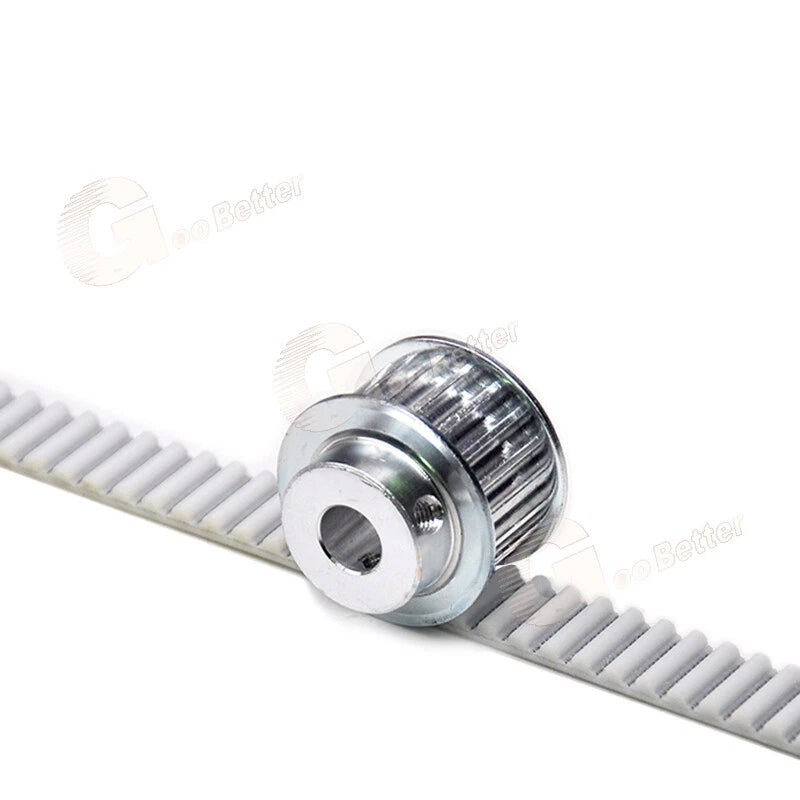

HTD 3M Timing Belt Closed Loop — PU Synchronous Drive Belt for CNC & 3D Printer Pulley

Zum Zoomen über das Bild scrollen Klicke zum Zoomen auf das Bild

HTD 3M Timing Belt Closed Loop — PU Synchronous Drive Belt for CNC & 3D Printer Pulley

Name: HTD 3M Timing Belt Closed Loop — PU Synchronous Drive Belt for CNC & 3D Printer Pulley
Brand: HomeDIYer
Price: 27.95 USD
Availability: InStock

HomeDIYer

Keine Bewertungen

By HomeDIYer®

Perimeter: 1302mm

Width: 10mm

Preis:

$27.95 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

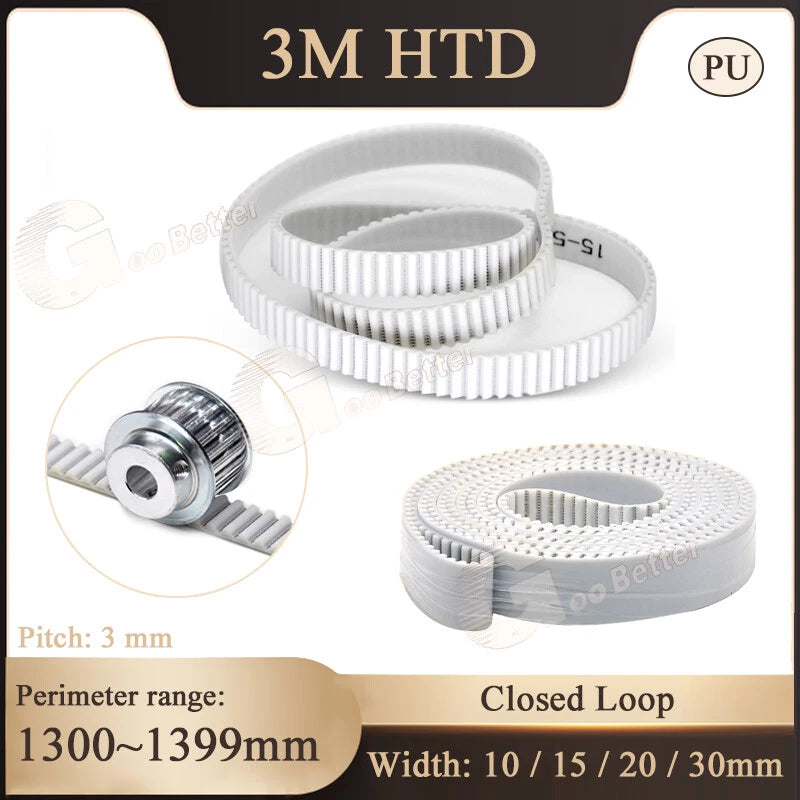

HTD 3M Closed-Loop PU Timing Belt — Precise Synchronous Drive for CNC, 3D Printers & Automation

When a slipping or stretching drive belt throws off your CNC router's cut accuracy or causes layer shifts in your 3D prints, the root cause is almost always a belt that can't hold its pitch under load. Engineers, makers, and machine builders who depend on repeatable positioning need a closed-loop timing belt with a steel-reinforced core and a tooth profile that meshes cleanly with every revolution.

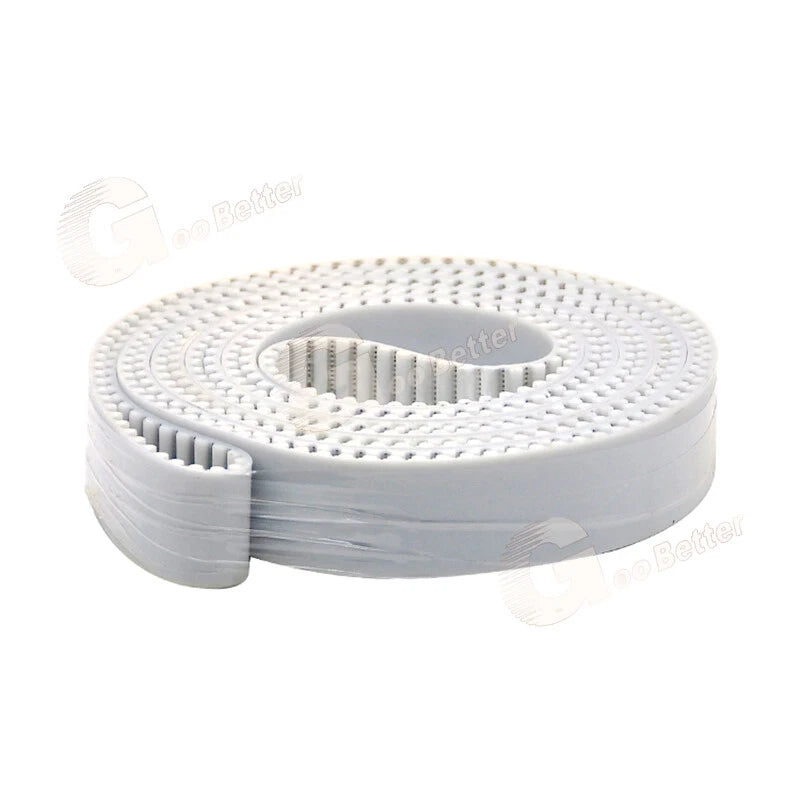

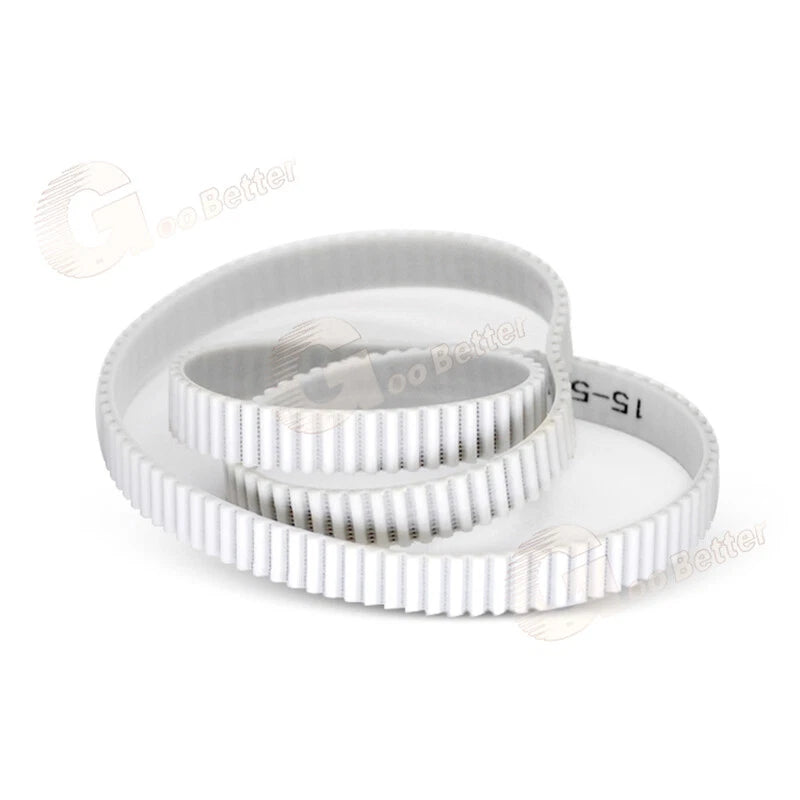

Each belt in this listing is a factory-welded closed-loop HTD 3M synchronous belt made from polyurethane (PU) with a steel cord tensile layer. The HTD 3M tooth profile has a 3mm pitch and a rounded tooth form. Available perimeters run from 1302mm (≈51.3") to 1398mm (≈55.0") in 3mm increments, and widths are offered in 10mm, 15mm, 20mm, and 30mm to match a range of pulley flange sizes.

Typical applications include CNC router X/Y axis drives where positional repeatability is critical, FDM 3D printer gantry and extruder carriage systems that require low-stretch belt tension, and light industrial conveyor or indexing automation where synchronous motion must be maintained across multiple cycles.

ℹ️ Compatibility: Designed for standard HTD 3M pulleys (3mm pitch, rounded tooth profile). Not interchangeable with GT2, T2.5, or T5 pulleys. Confirm your pulley tooth profile before ordering.

✅ Key Features of These HTD 3M Closed-Loop Timing Belts

🔩HTD 3M Tooth Profile — 3mm pitch rounded tooth geometry meshes with standard HTD 3M pulleys for smooth, low-noise synchronous power transmission in CNC and 3D printer drive systems.

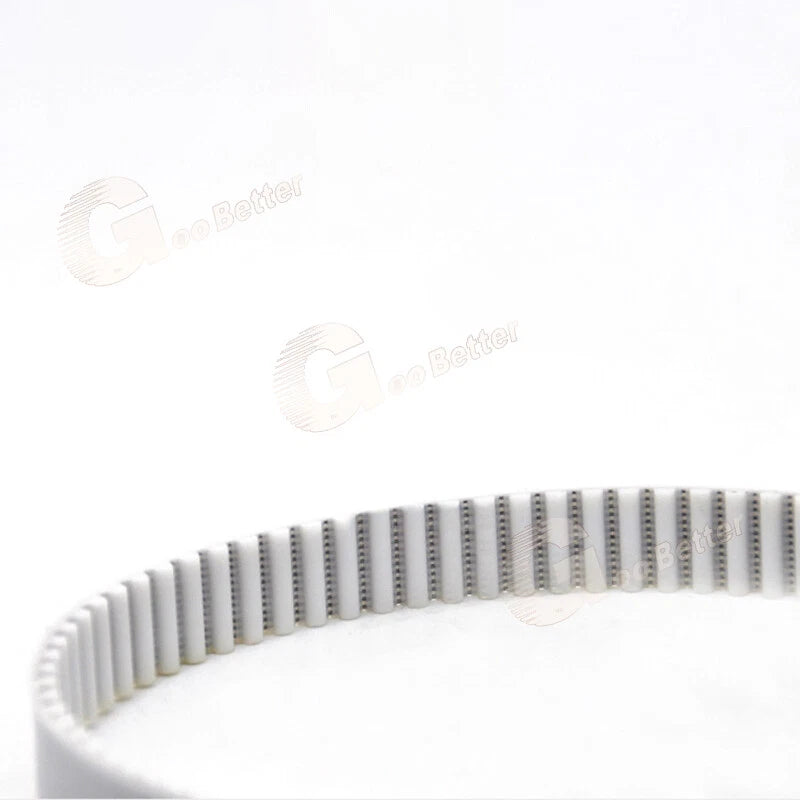

🧲Steel Cord Tensile Core — Embedded steel cord reinforcement delivers very low elongation under load, maintaining consistent pitch length and positional accuracy over extended service cycles.
🧪Polyurethane (PU) Body — PU construction resists oils, mild chemicals, and moderate humidity better than standard neoprene belts, making it suitable for workshop and light industrial environments.
📏Multiple Width Options — Choose from 10mm, 15mm, 20mm, or 30mm to match your pulley flange and torque requirements, from lightweight 3D printer carriages to heavier CNC gantry drives.
🔄Factory-Welded Closed Loop — Seamless closed-loop construction eliminates the weak joint found in cut-and-joined belts, providing uniform stiffness and tooth spacing around the full perimeter.

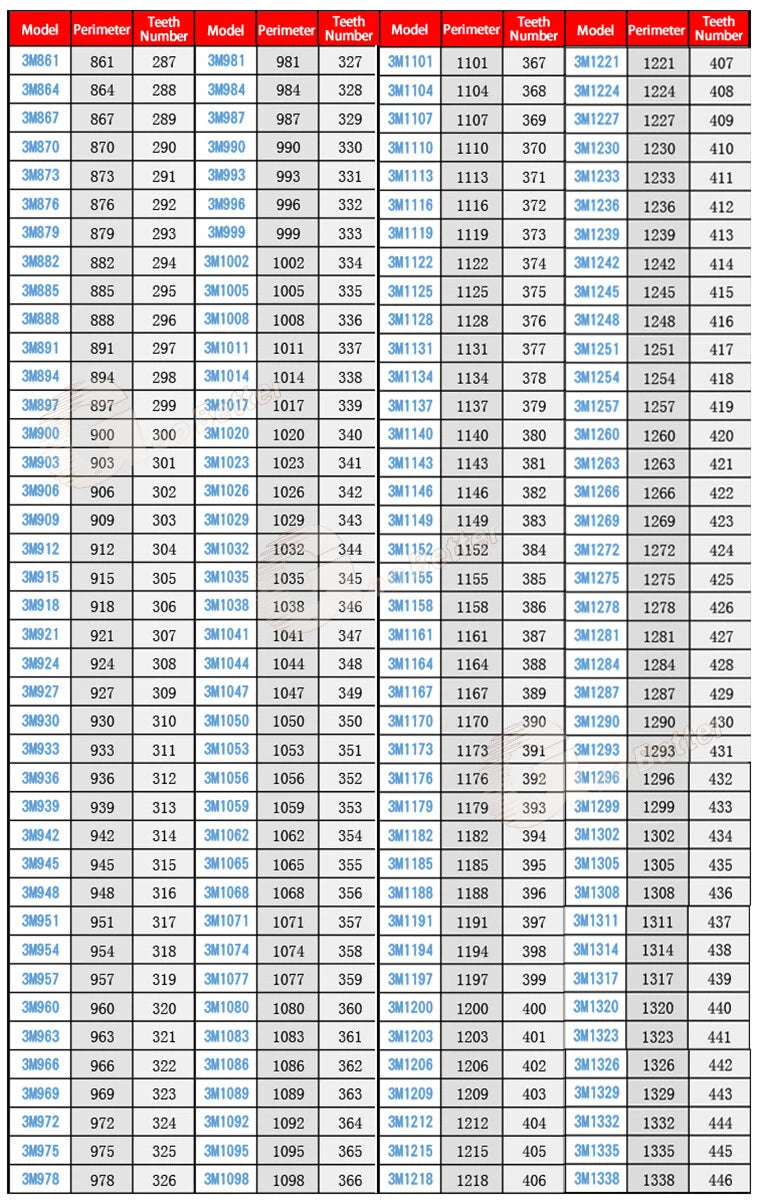

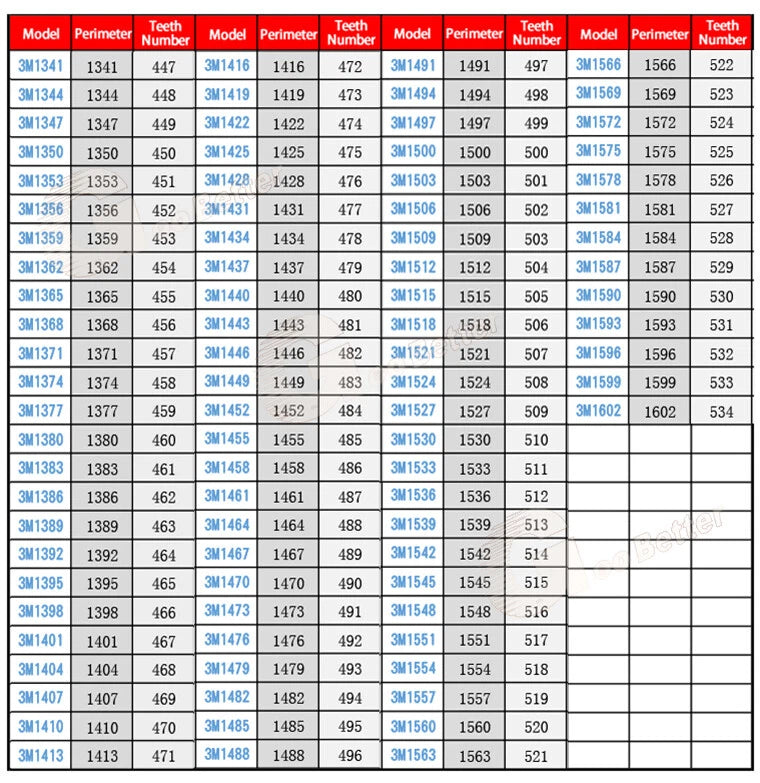

📐Precise Perimeter Selection — Available in 33 perimeter sizes from 1302mm to 1398mm in 3mm steps, allowing close matching to your calculated center-distance requirement without excessive slack or over-tension.

📐 Technical Specifications — HTD 3M Synchronous PU Timing Belt

Belt Type	HTD (High Torque Drive) Synchronous Closed-Loop
Tooth Pitch	3mm (HTD 3M profile)
Tooth Profile	Rounded HTD — not interchangeable with GT2 or trapezoidal profiles
Body Material	Polyurethane (PU)
Tensile Member	Steel cord
Available Perimeters	1302mm (≈51.3") to 1398mm (≈55.0"), in 3mm increments
Available Widths	10mm / 15mm / 20mm / 30mm
Loop Construction	Factory-welded closed loop
Color	See variant options
Operating Temperature	Contact us to confirm
Compatible Pulley Standard	HTD 3M (3mm pitch, rounded tooth)
Typical Applications	CNC routers, 3D printers, light automation, indexing drives

⚠️ Sizing note: Perimeter values are the full closed-loop circumference, not the belt length between pulleys. Calculate your required perimeter using your center-to-center distance and pulley pitch diameters before selecting a variant.

❓ Frequently Asked Questions

How do I choose the right perimeter size for my HTD 3M timing belt?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where C is the center distance and D1/D2 are the pulley pitch diameters. For example, a 1320mm belt (≈51.97" circumference) is generally suited to mid-span CNC axis drives. Always round up to the nearest available 3mm increment and verify against your pulley tooth count.

What load can an HTD 3M PU timing belt handle?

HTD 3M belts are designed for light-to-medium power transmission. Wider belts (20mm, 30mm) carry proportionally higher loads than narrower ones (10mm, 15mm). Actual capacity depends on pulley diameter, operating speed, and wrap angle. For precise torque ratings, refer to your drive system's engineering requirements or contact us to confirm suitability.

Can this timing belt be used outdoors or in humid environments?

Polyurethane (PU) timing belts generally offer better resistance to oils, mild chemicals, and moderate humidity compared to neoprene belts. However, prolonged UV exposure or water immersion is not recommended. For outdoor installations, shielding the belt from direct sunlight will typically extend service life.

Is this belt compatible with standard HTD 3M pulleys?

Yes. This belt follows the HTD 3M tooth profile standard — 3mm pitch, rounded tooth form — and is compatible with any HTD 3M pulley of matching width. It is not interchangeable with GT2, T2.5, T5, or other trapezoidal-tooth pulleys. Confirm your pulley's tooth profile is HTD 3M before ordering.

How do I decide between 10mm, 15mm, 20mm, and 30mm width?

Wider belts transmit more torque and resist lateral flex better. For lightweight 3D printer carriages and small CNC routers, 10mm or 15mm is typically sufficient. For heavier gantry systems or higher-torque servo drives, 20mm or 30mm is generally recommended. Always match the belt width to your pulley's flange width to prevent the belt from riding off the pulley.

What is the steel cord core, and why does it matter for CNC and 3D printing?

The steel cord tensile member embedded in the PU body provides very low elongation under load — a critical property for positional accuracy in CNC routing and 3D printing. It maintains consistent pitch length over the belt's service life, reducing the frequency of re-tensioning and helping prevent axis drift or layer-shift artifacts.

Can I cut this closed-loop belt to a custom length?

No. This is a factory-welded closed-loop belt. Cutting and re-joining requires specialized ultrasonic or thermal welding equipment and is not practical in a typical workshop setting. Select the perimeter size closest to your calculated requirement from the available variants listed above.

How do I convert the perimeter from mm to inches?

Divide the perimeter in mm by 25.4 to get inches. Quick reference: 1302mm ≈ 51.3", 1320mm ≈ 51.97", 1350mm ≈ 53.15", 1380mm ≈ 54.33", 1398mm ≈ 55.04". Use these values when cross-referencing with imperial-unit drive system specifications.

🛒 Select your perimeter and width above, then add to cart — ships from our US warehouse.
