HTD 3M Closed-Loop Timing Belt — Precision Drive for CNC, Robotics & Automation

When a slipping or stretching drive belt causes positioning errors in your CNC router, 3D printer, or automated conveyor, the root cause is usually a belt that lacks dimensional stability under load. Engineers, makers, and machine builders who need repeatable, slip-free motion transmission rely on HTD 3M closed-loop timing belts with a steel wire tension cord to maintain accurate pitch spacing across thousands of operating cycles.

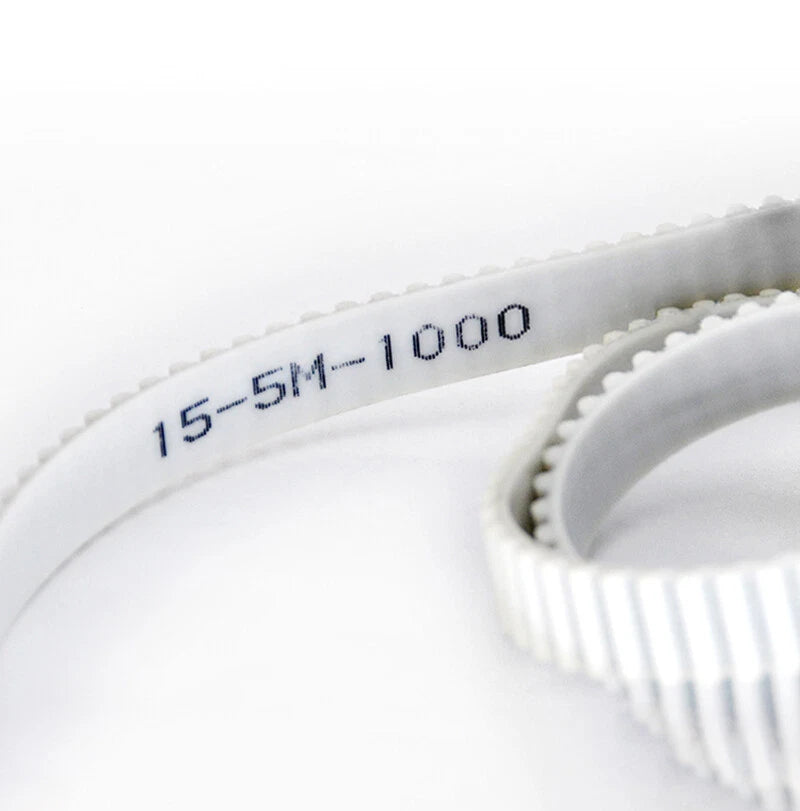

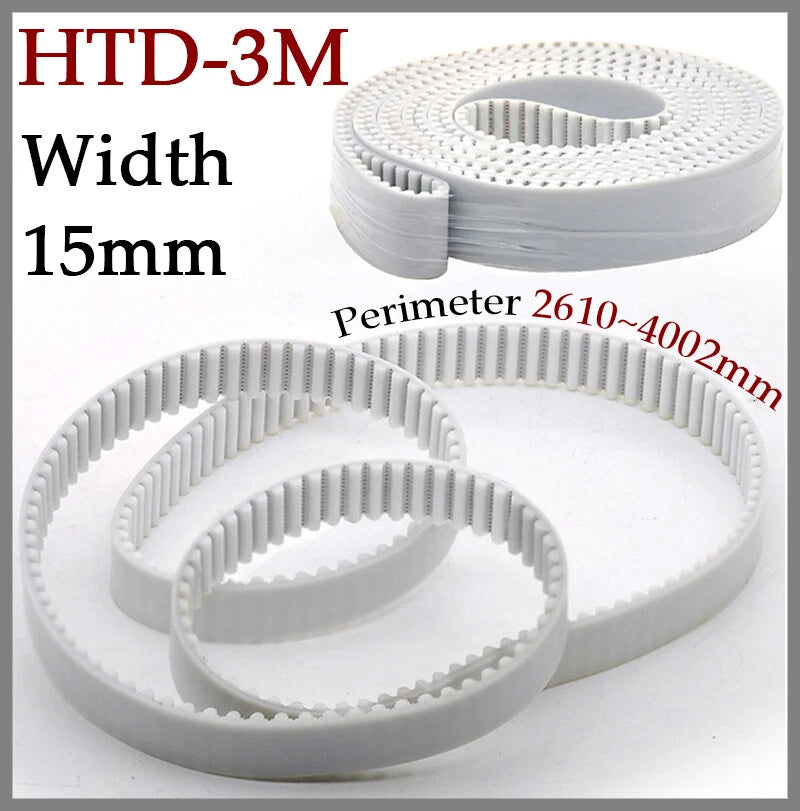

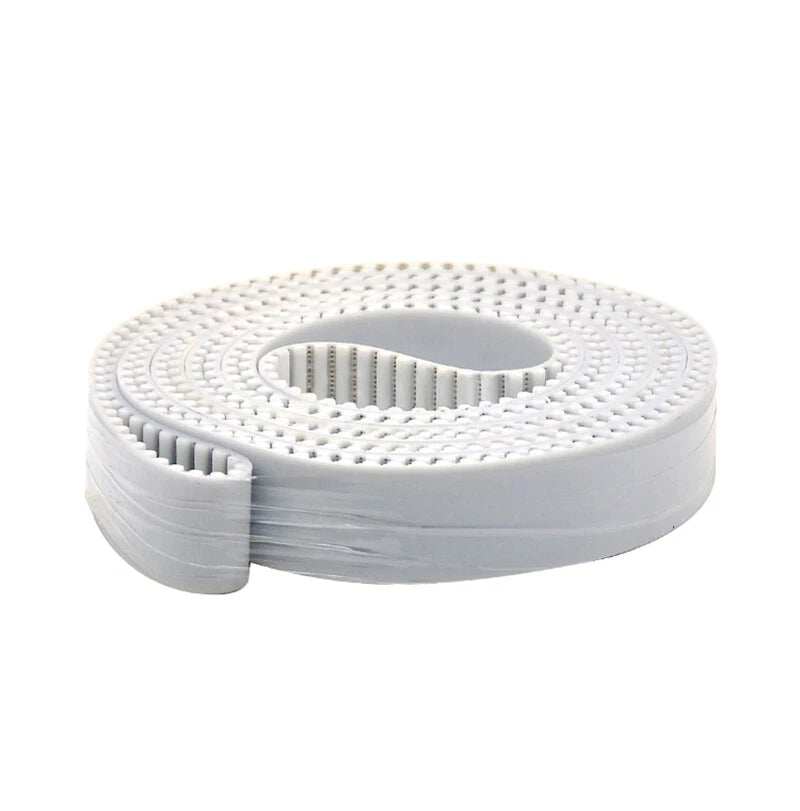

Each belt is a continuous closed loop constructed with a polyurethane (PU) body and embedded steel wire tension cords. The HTD 3M tooth profile has a 3mm pitch with a rounded curvilinear tooth shape. Belt width is 15mm throughout the full range. Available circumferences span from 3399mm (≈133.8") to 3993mm (≈157.2"), offered in 136 individual length options in 3mm increments — so you can match your exact center-distance requirement without compromise.

Typical applications include CNC gantry drives requiring low-backlash linear motion, robotic arm joint actuators where positional accuracy is critical, and industrial conveyor or indexing systems that demand consistent tooth engagement. The HTD 3M closed-loop timing belt is also widely used in 3D printer axis drives and laser cutter motion systems where belt stretch would directly degrade print or cut quality.

ℹ️ Compatibility: Designed for standard HTD 3M pulleys with a 3mm pitch and a minimum groove width of 15mm. Verify your pulley's pitch profile and flange width before ordering. Belt circumference must match your drive geometry — use the variant selector to choose your exact length.

✅ Key Features of These HTD 3M Closed-Loop Timing Belts

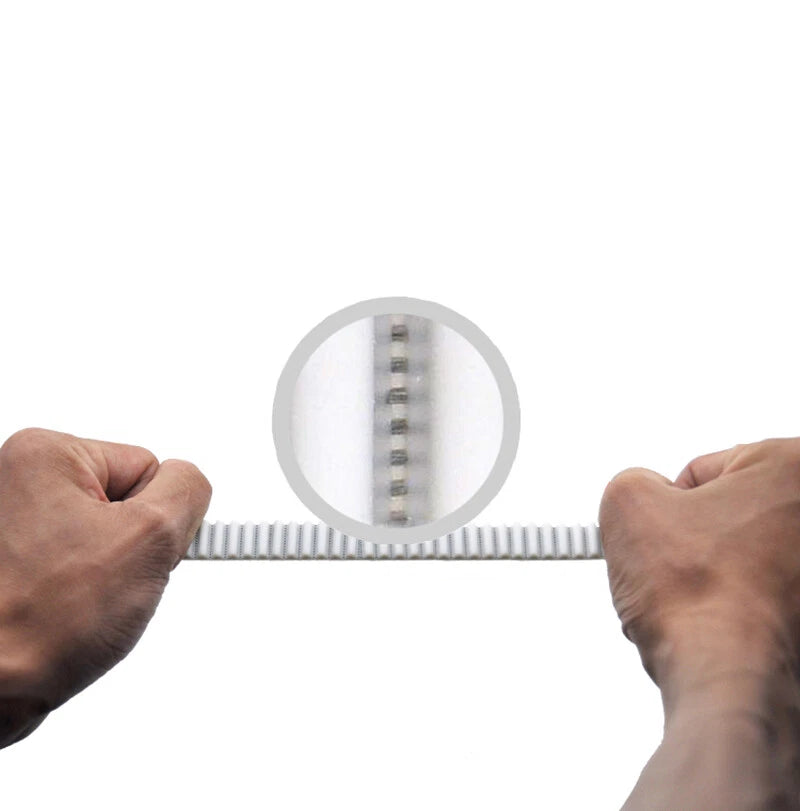

  • 🔩Steel Wire Tension Cord — Embedded steel wire provides low elongation under load, maintaining consistent pitch spacing for precision linear motion and positioning applications.
  • 🧱Polyurethane (PU) Body — PU construction offers better resistance to oils, mild chemicals, and abrasion compared to standard neoprene, extending service life in demanding environments.

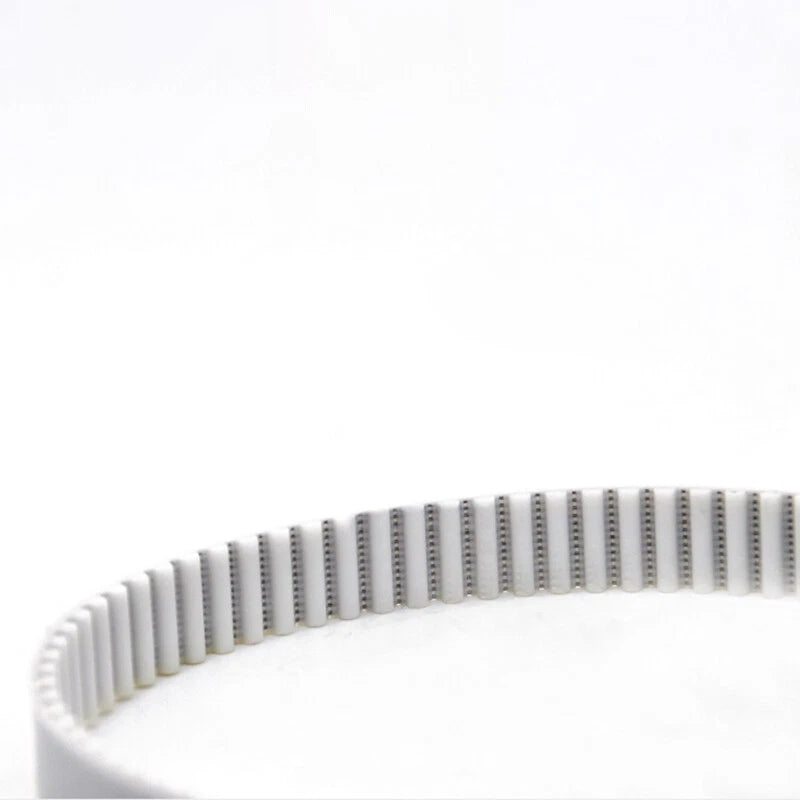

  • ⚙️HTD 3M Curvilinear Tooth Profile — The rounded HTD tooth shape distributes load across a larger contact area, reducing tooth root stress and improving engagement with HTD 3M pulleys.
  • 📏136 Length Options in 3mm Increments — Circumferences from 3399mm to 3993mm let you match your exact center-distance requirement without resorting to custom fabrication or belt splicing.

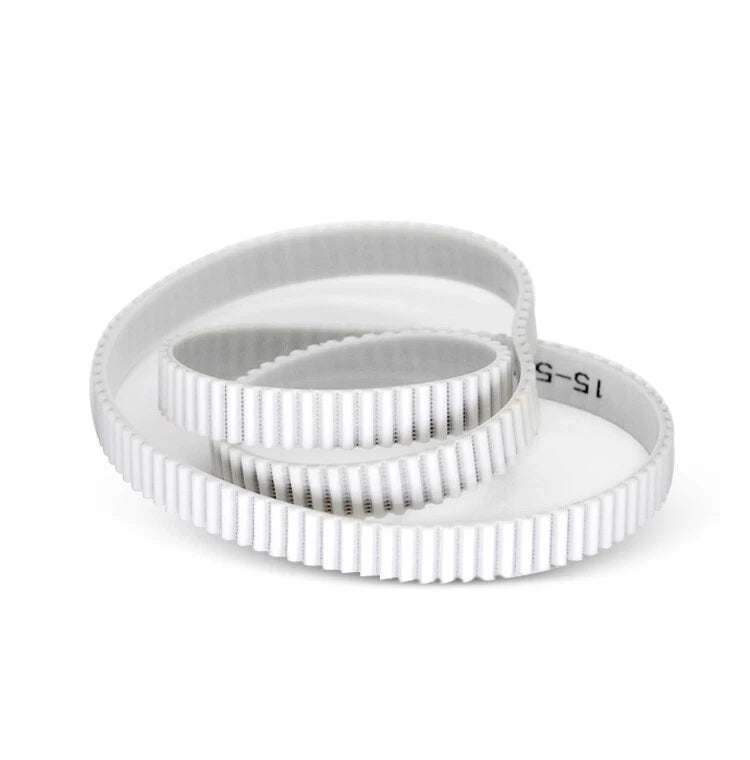

  • 🔄Closed-Loop Construction — Seamless endless loop eliminates the splice joint weakness found in cut-to-length belts, delivering uniform stiffness and smooth running at all operating speeds.
  • 📐Consistent 15mm Width — Uniform 15mm belt width across all length variants simplifies pulley selection and ensures predictable lateral tracking on standard HTD 3M flanged pulleys.

📐 Technical Specifications — HTD 3M Timing Belt

Belt Profile HTD 3M (High Torque Drive, curvilinear tooth)
Tooth Pitch 3mm
Belt Width 15mm
Belt Type Closed loop (endless)
Body Material Polyurethane (PU)
Tension Member Steel wire cord
Available Circumferences 3399mm (≈133.8") to 3993mm (≈157.2") — 136 options in 3mm steps
Tooth Count (range) 1133 teeth (3399mm) to 1331 teeth (3993mm)

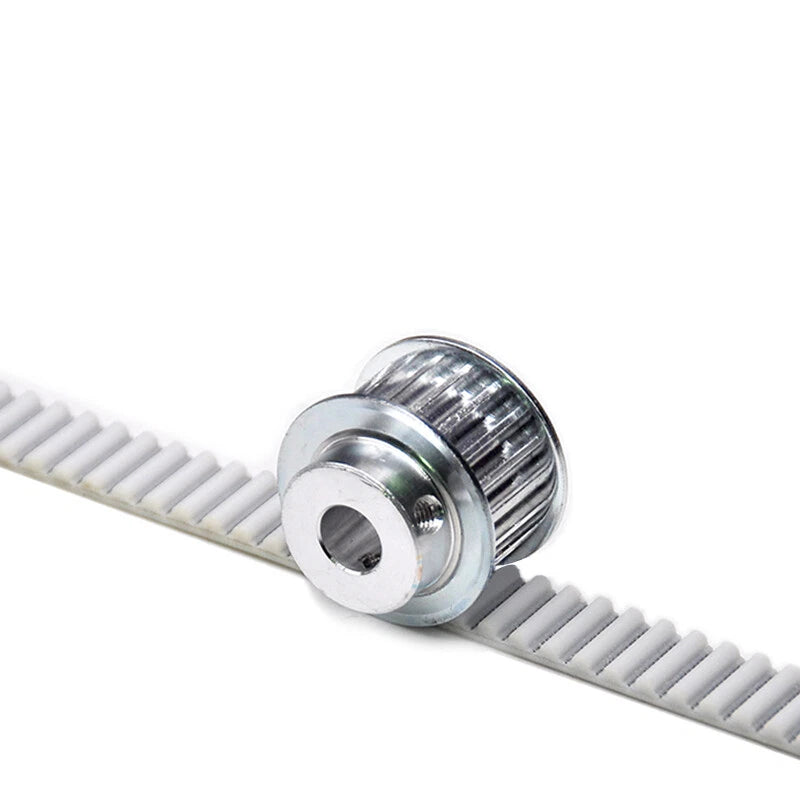

Compatible Pulley Profile HTD 3M (3mm pitch, curvilinear groove)
Minimum Pulley Groove Width ≥ 15mm
Operating Temperature See variant options / Contact us to confirm
Color See variant options
Country of Origin See variant options
⚠️ Sizing note: Belt circumference is the total loop length measured along the pitch line. This is not the same as center-to-center distance. Use your drive geometry to calculate the required circumference before selecting a variant. If you are unsure, contact us with your pulley sizes and center distance.

❓ Frequently Asked Questions

How do I choose the right belt length for my application?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference using the standard formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2, where C is the center distance and D1/D2 are the pulley pitch diameters. For example, a 3600mm belt is approximately 141.7" in circumference. When in doubt, size up slightly to allow for tensioner adjustment. All 136 variants are listed in the Model selector above in millimeters.

What load or torque can this HTD 3M belt handle?

HTD 3M belts are generally suited for light-to-medium duty power transmission. The steel wire tension cord provides good tensile strength for the 3M pitch class. Exact load ratings depend on pulley diameter, operating speed, and wrap angle — consult your drive design specifications or contact us to confirm suitability for your specific application.

Can this belt be used outdoors or in wet/oily environments?

Polyurethane (PU) timing belts are generally more resistant to oils, mild chemicals, and moisture than standard neoprene belts. However, prolonged exposure to UV radiation or standing water may reduce service life. For outdoor or washdown environments, verify your specific operating conditions before installation.

Is this belt compatible with standard HTD 3M pulleys?

Yes. This belt uses the HTD 3M tooth profile with a 3mm pitch, which is compatible with standard HTD 3M pulleys. The 15mm belt width requires a pulley groove width of at least 15mm. Always verify your pulley's pitch profile and groove width before ordering to ensure proper tooth engagement.

How does a PU steel wire belt compare to a neoprene fiberglass belt?

PU belts with steel wire cores typically offer higher dimensional stability, lower elongation under load, and better resistance to oils compared to neoprene/fiberglass belts. They are a good choice for precision positioning applications such as CNC machines, 3D printers, and robotics where belt stretch would degrade accuracy. Neoprene belts may be preferred where flexibility at low temperatures is critical.

What is the HTD tooth profile and how does it differ from trapezoidal (MXL/XL) belts?

HTD stands for High Torque Drive. The HTD tooth profile is a rounded curvilinear shape, as opposed to the flat-sided trapezoidal profile used on MXL, XL, or L series belts. The rounded profile distributes load more evenly across the tooth root, reducing stress concentration and improving engagement — particularly at higher torque levels. HTD and trapezoidal belts are not interchangeable; always match belt and pulley profiles.

How many teeth does a specific belt length have?

The tooth count equals the belt circumference divided by the pitch (3mm). For example: a 3399mm belt has 1133 teeth, a 3600mm belt has 1200 teeth, and a 3993mm belt has 1331 teeth. If your application requires a specific tooth count, divide that number by 3mm to find the required circumference, then select the matching variant.

🛒 Select your model (circumference) above, then add to cart — ships from our US warehouse.
