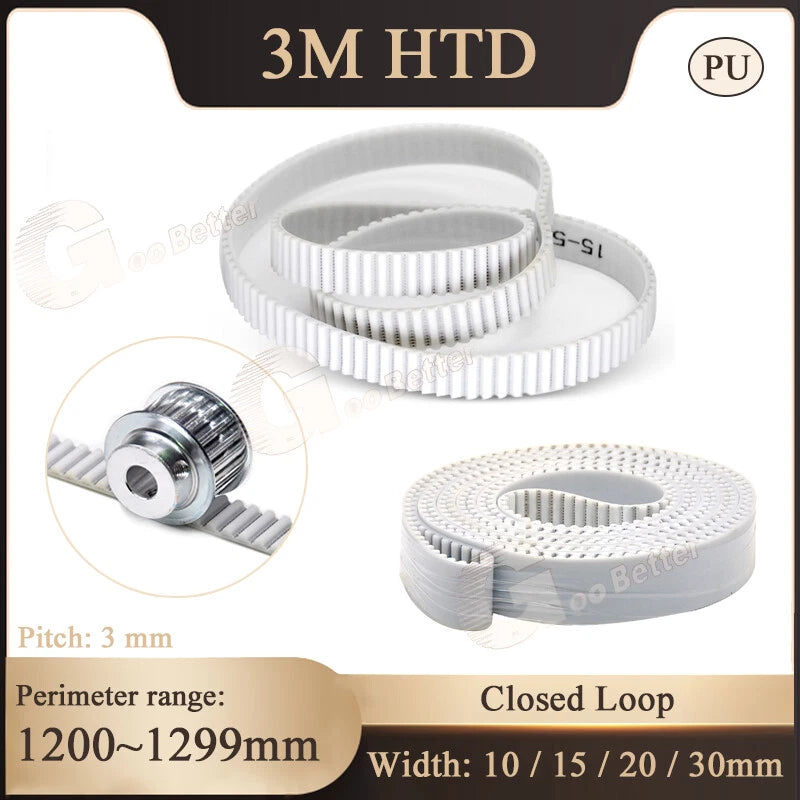

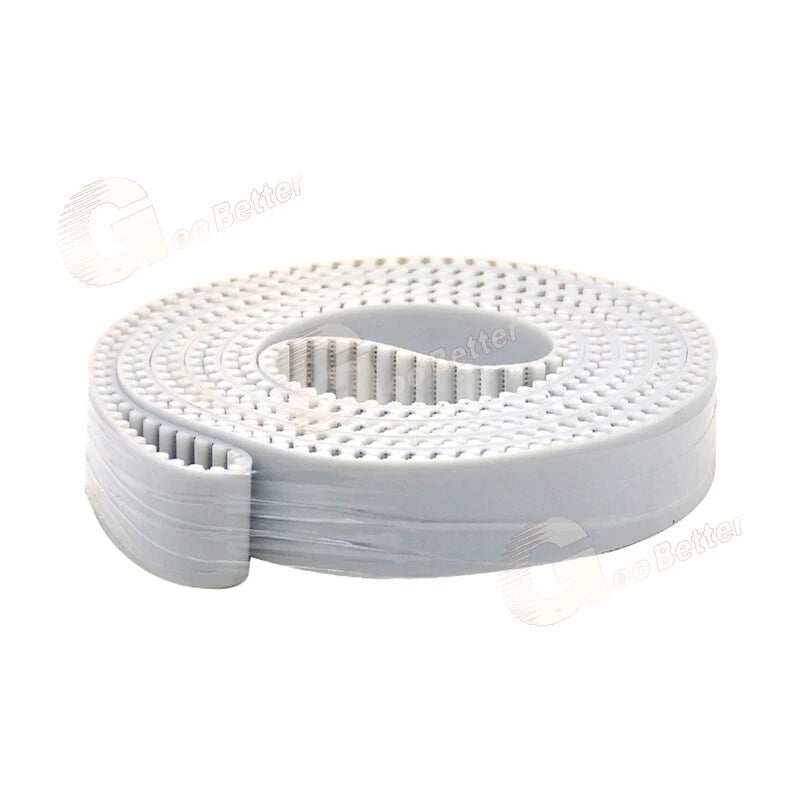

HTD 3M Timing Belt Closed Loop – PU Synchronous Drive Belt for CNC, 3D Printer & Pulley Systems

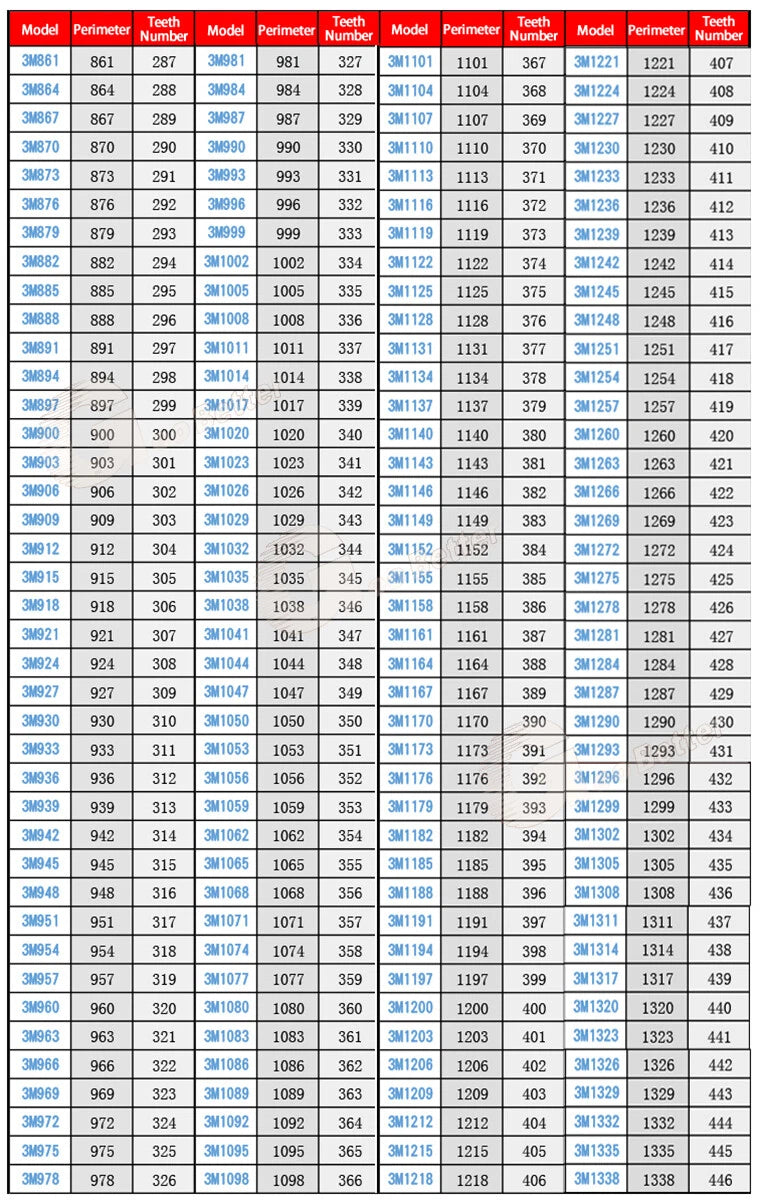

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are the pulley pitch diameters. For quick reference: 1200mm ≈ 47.2", 1250mm ≈ 49.2", 1299mm ≈ 51.1". Always confirm against your machine's actual belt path length. When in doubt, select the next size up and adjust tensioner position.

Width selection generally depends on torque load and pulley flange width. Lighter-duty applications like desktop 3D printers typically use 10mm or 15mm belts. CNC routers and heavier synchronous drive systems generally benefit from 20mm or 30mm widths for increased load capacity. Always verify your pulley's usable flange width matches or exceeds the belt width you select.

HTD 3M polyurethane timing belts with steel tension cords are generally rated for moderate to medium torque applications. Exact load ratings vary by width — wider belts carry higher loads. For critical load calculations, consult your machine's engineering documentation or contact us to confirm the specific tensile rating for your selected width.

Polyurethane (PU) timing belts are generally more resistant to oils, mild chemicals, and moisture than standard neoprene belts, making them suitable for workshop environments. However, prolonged outdoor UV exposure or continuous water immersion is not typically recommended. For outdoor or harsh-environment use, verify suitability with your specific application requirements before ordering.

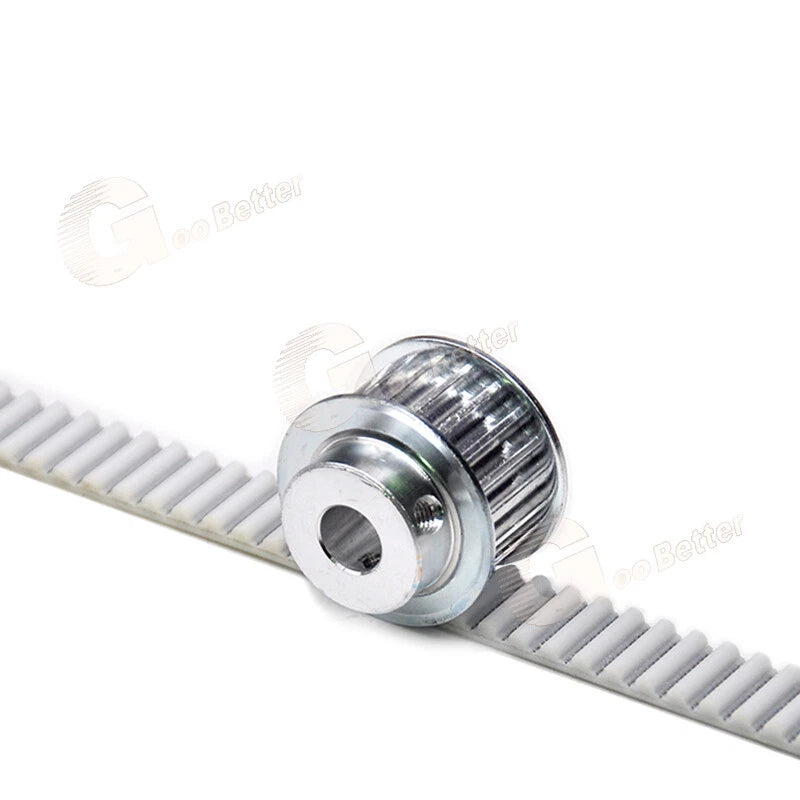

Yes. This belt follows the HTD 3M tooth profile standard — 3mm pitch, rounded tooth form — and is compatible with any standard HTD 3M pulley. Confirm your pulley's tooth profile and flange width match your selected belt width before ordering. This belt is not interchangeable with GT2, GT3, T5, MXL, or other tooth profiles.

Closed-loop (endless) belts are used in fixed center-distance drive systems where the belt loops continuously around two or more pulleys — common in 3D printers, CNC axis drives, and conveyor systems. Open-end belts are cut to length for applications where the drive path is not a closed loop. Most CNC and 3D printer motion systems require closed-loop belts like this one.

HTD (High Torque Drive) belts have a rounded, deeper tooth profile optimized for higher torque transmission with positive engagement. GT2/GT3 belts use a modified curvilinear tooth profile designed for lower backlash and higher positional accuracy at lighter loads. For most desktop 3D printer motion systems, GT2 is common; HTD 3M is preferred where higher torque capacity is the priority. Always match the belt profile to your pulley profile — they are not interchangeable.
