HTD 5M Close Loop Timing Belt — Precise Synchronous Drive for Makers and Builders

When a slipping or mismatched drive belt derails your 3D printer mid-print or throws off your CNC router's axis, the frustration is real. Hobbyists, desktop-CNC builders, and iterative-hardware makers need a closed-loop HTD 5M timing belt they can trust to stay in sync lap after lap — without stretching, skipping, or degrading under repeated load cycles.

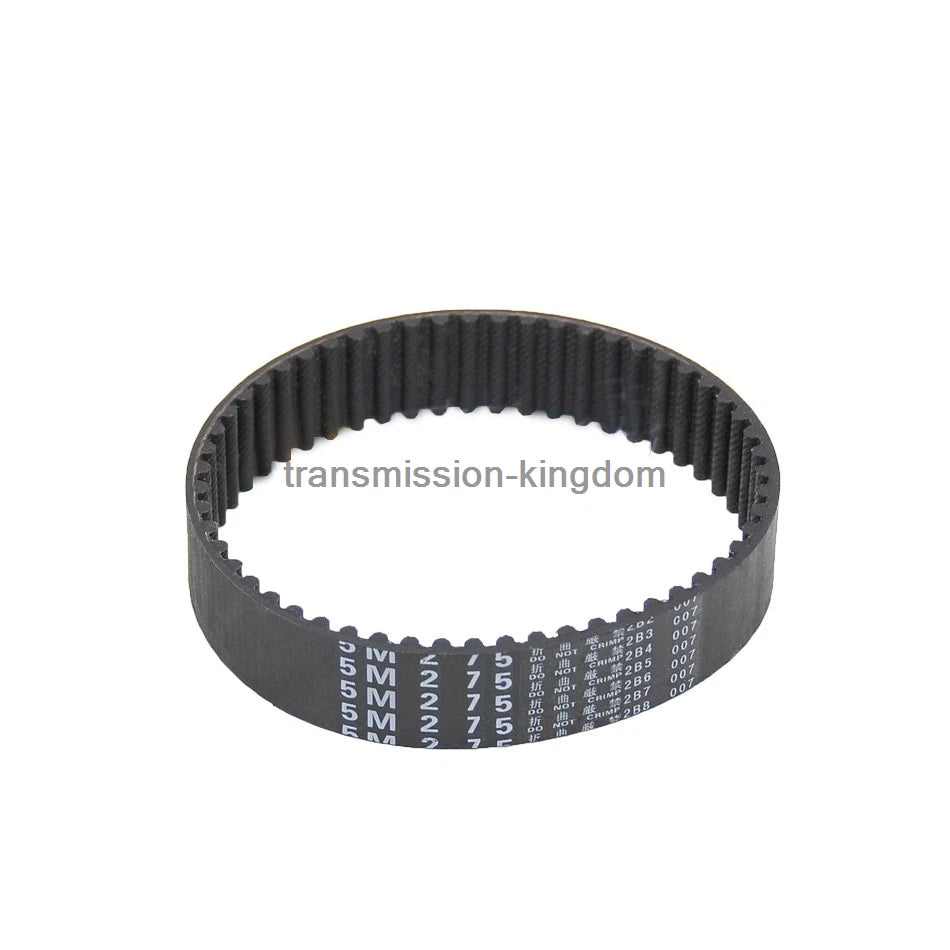

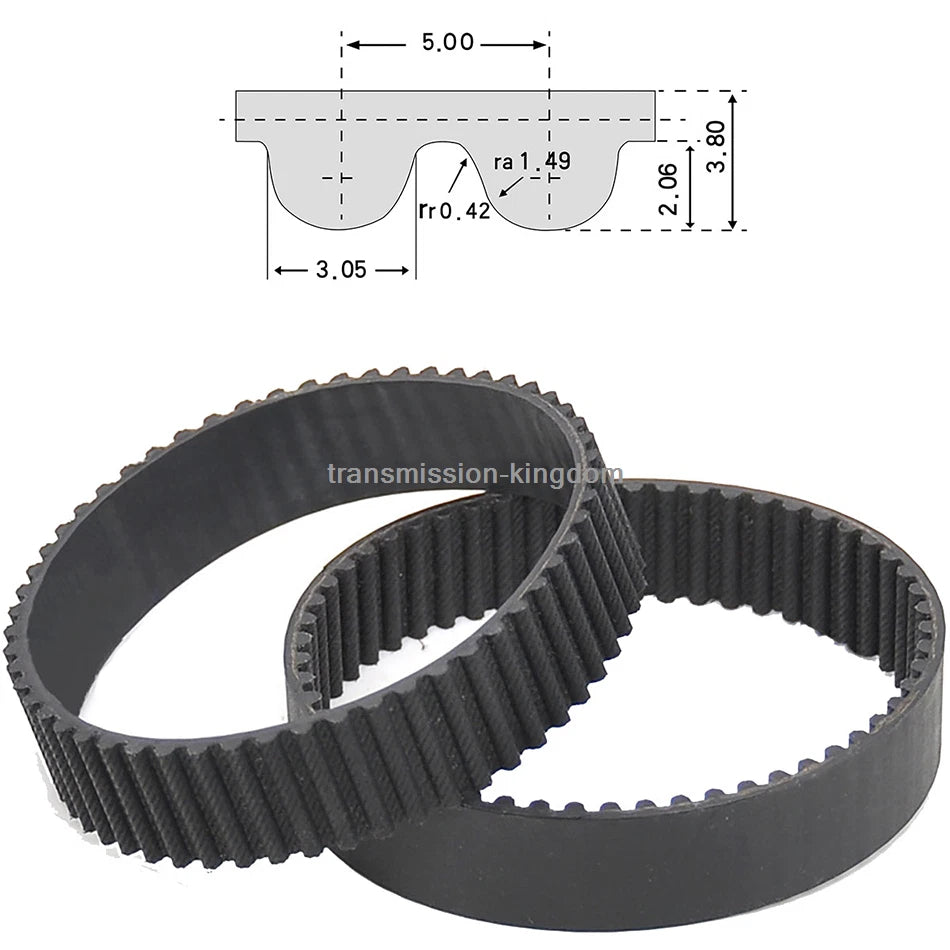

These HTD 5M close loop timing belts are made from rubber with a fiberglass-reinforced cord core, delivering low elongation and consistent tooth engagement. Available in widths of 10 mm (0.39 in), 15 mm (0.59 in), 20 mm (0.79 in), 25 mm (0.98 in), 30 mm (1.18 in), and 35 mm (1.38 in), with loop circumferences ranging from 560 mm (22.0 in) to 945 mm (37.2 in). The HTD 5M tooth profile features a 5 mm pitch, 2.06 mm tooth height, and a rounded tooth form designed for smooth, low-noise power transmission.

Typical use cases include desktop 3D printer X/Y axis drives, small CNC router lead-screw alternatives, laser engraver gantry systems, and custom motorized enclosure or panel-access mechanisms — anywhere a closed-loop synchronous belt for DIY builds is needed for repeatable, tool-free positioning.

⚙️ Compatibility: Designed for HTD 5M pulleys with a 5 mm pitch. Verify your pulley tooth count and belt loop length before ordering. Width must match or be narrower than your pulley face width.

✅ Key Features of These HTD 5M Closed-Loop Timing Belts

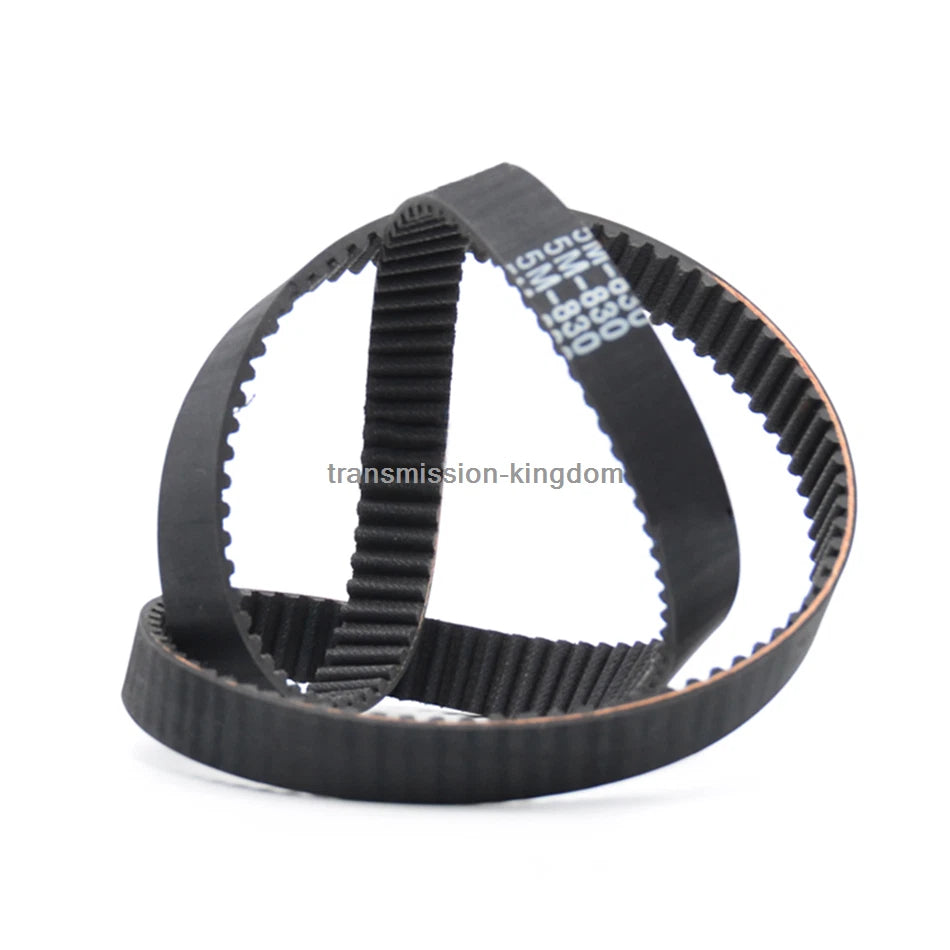

🔁 True Closed Loop

Seamless endless construction — no joint, no splice, no weak point. The belt runs continuously for consistent tension and zero backlash at the join.

📐 HTD 5M Tooth Profile

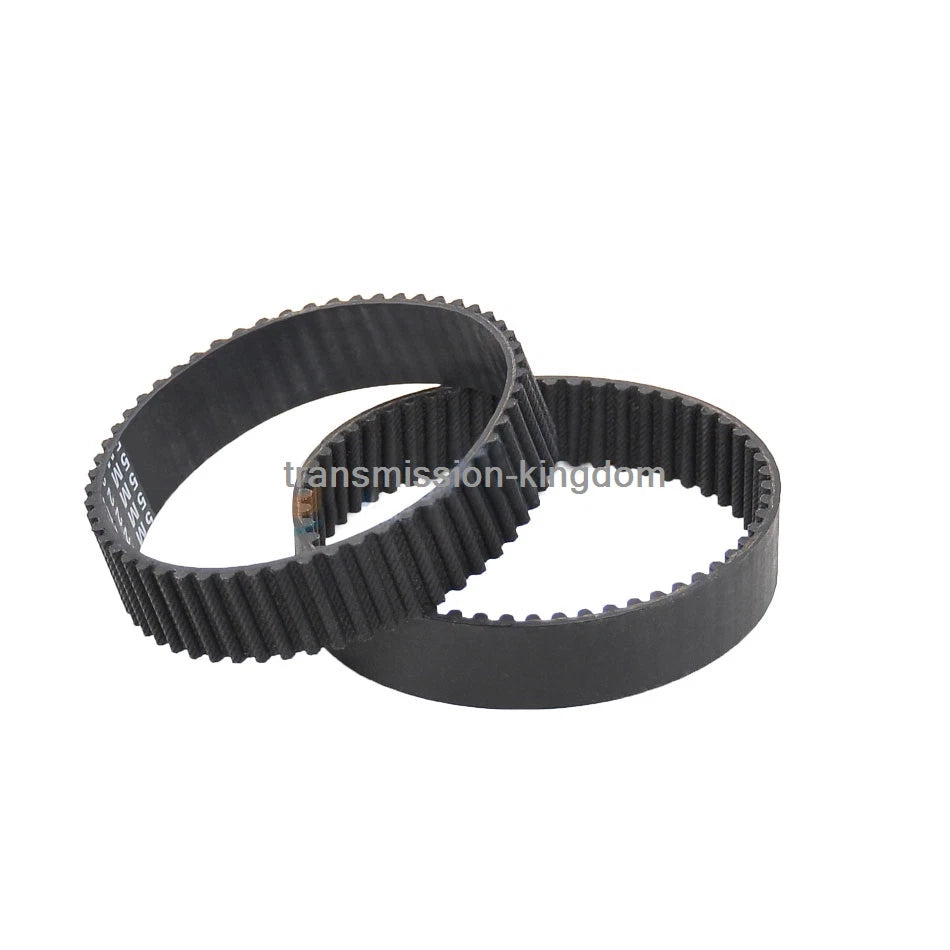

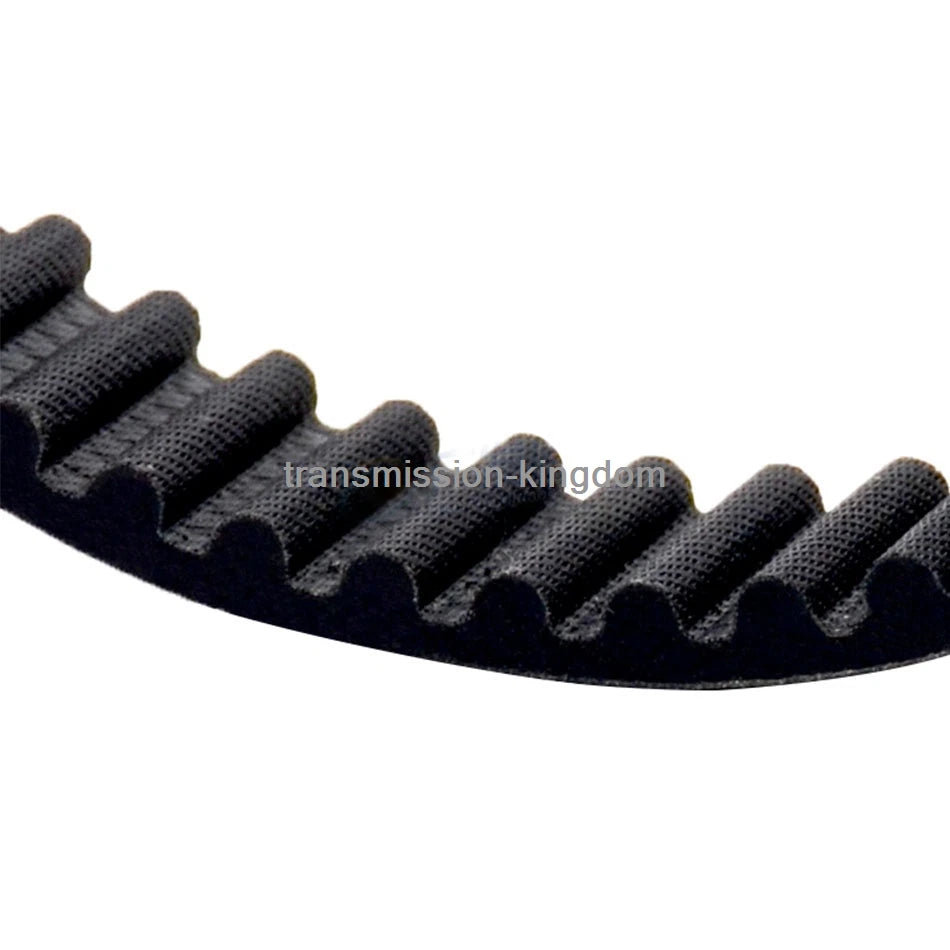

5 mm pitch with a rounded curvilinear tooth form. Distributes load across multiple teeth simultaneously, reducing tooth shear stress versus trapezoidal profiles.

🧵 Fiberglass-Reinforced Cord Core

Embedded tensile cords resist elongation under dynamic loads, keeping your axis calibration stable across hundreds of print or cutting cycles.

🔇 Low-Noise Rubber Construction

Rubber body absorbs vibration and runs quietly — a meaningful difference in workshop environments where multiple machines operate simultaneously.

📏 Wide Size Matrix

Widths from 10 mm to 35 mm and loop lengths from 560 mm to 945 mm in 5 mm increments give you precise fitment without cutting or splicing.

🔧 Drop-In Replacement Ready

Standard HTD 5M dimensions mean these belts are interchangeable with OEM belts on most desktop CNC, 3D printer, and laser engraver platforms without modification.

📐 Technical Specifications — HTD 5M Closed-Loop Timing Belt

Belt Type HTD 5M Closed Loop (Endless)
Tooth Pitch 5 mm (0.197 in)
Tooth Profile HTD (High Torque Drive) — rounded curvilinear
Tooth Height Typically 2.06 mm
Belt Material Rubber with fiberglass tensile cord

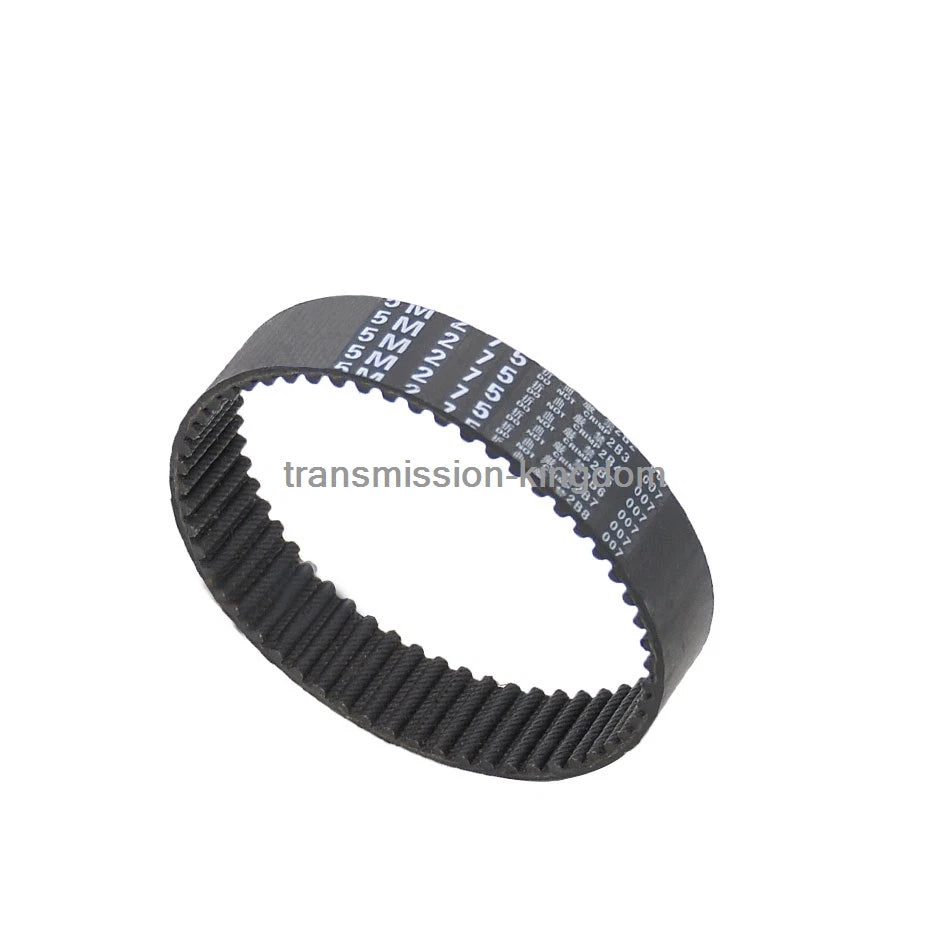

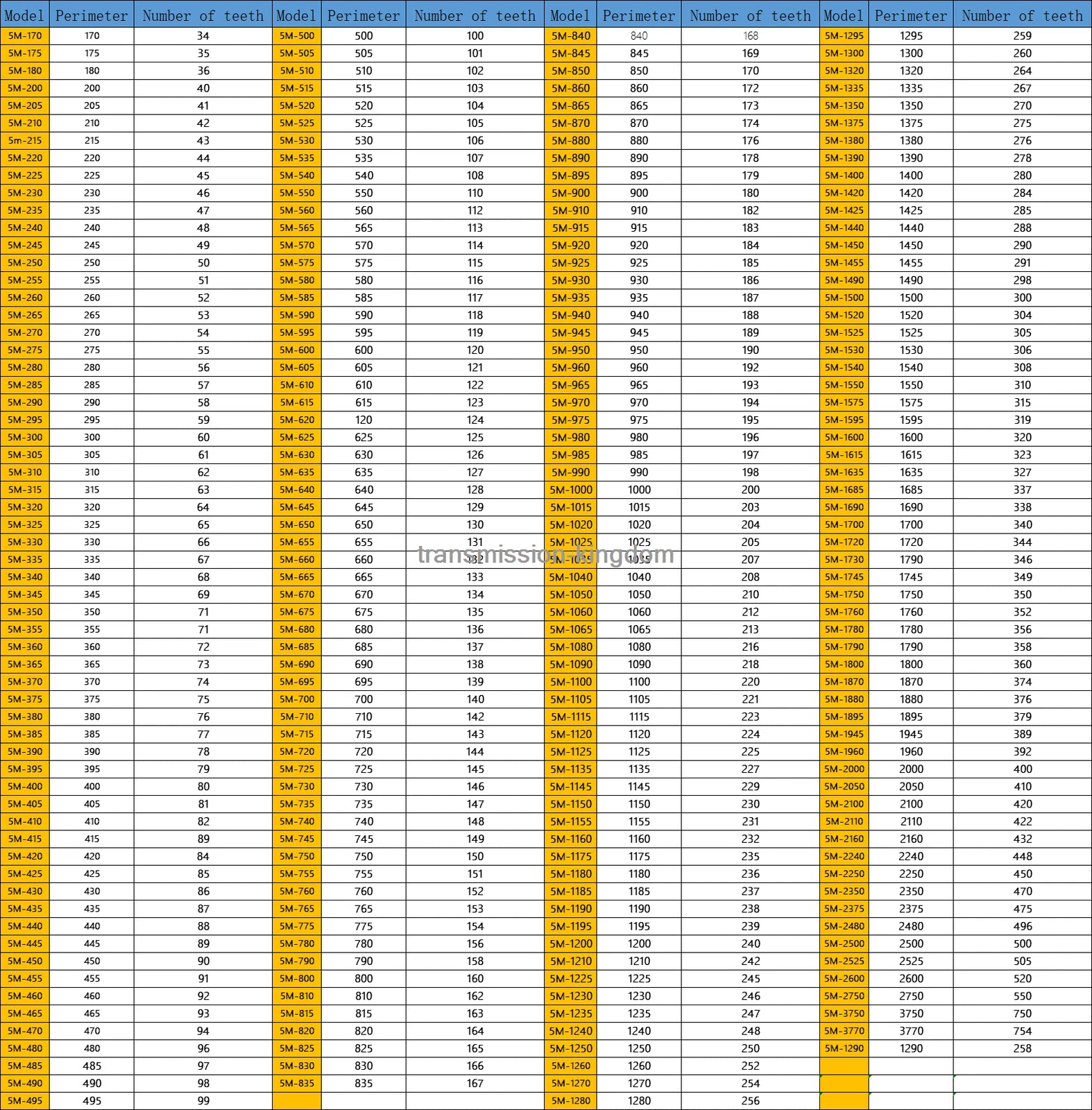

Available Widths 10 mm, 12 mm, 15 mm, 20 mm, 25 mm, 30 mm, 35 mm

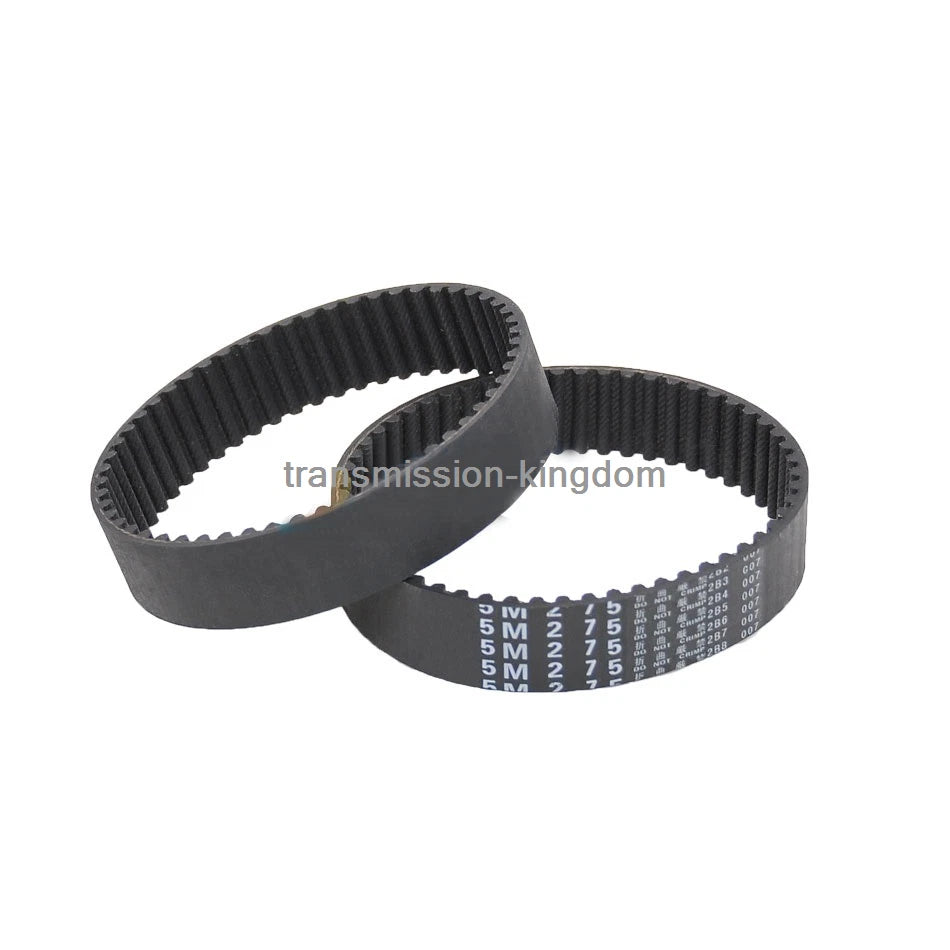

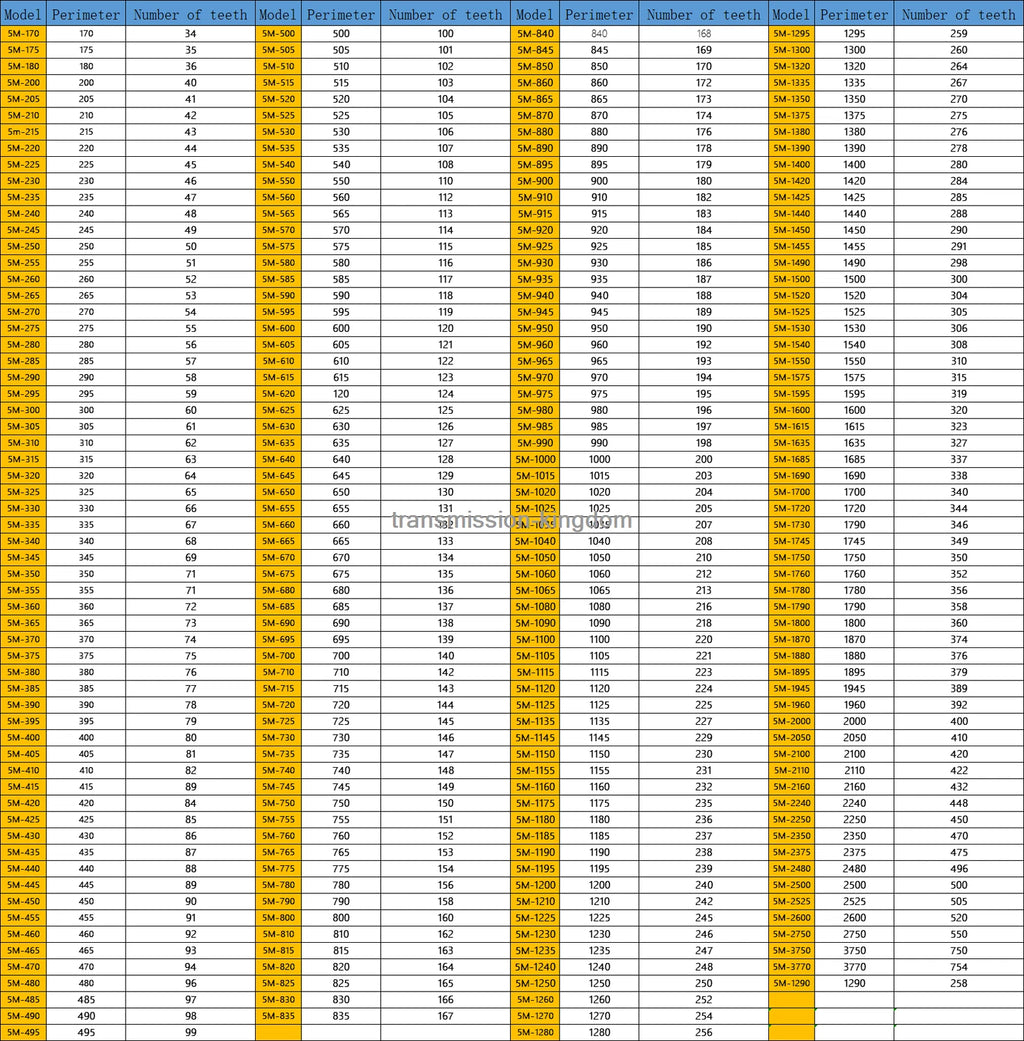

Available Loop Lengths 560 mm – 945 mm (see variant options)
Loop Length Increments See variant options
Construction Seamless endless (no joint)
Compatible Pulley Pitch HTD 5M (5 mm pitch)
Typical Applications 3D printers, CNC routers, laser engravers, custom drive systems
Color Black

❓ Frequently Asked Questions

How do I choose the right loop length for my machine?

Measure the center-to-center distance between your two pulleys, then calculate the required belt length using the formula: Belt Length ≈ 2 × Center Distance + (π × Pulley Pitch Diameter). Round up to the nearest available size in our variant list. If your machine specifies a belt by tooth count, multiply tooth count by 5 mm to get the loop circumference.

What width should I select for my application?

Match the belt width to your pulley face width or go slightly narrower — never wider. For light-duty 3D printer axes, 10–15 mm is typically sufficient. For higher-torque CNC or laser gantry applications carrying heavier loads, 20–25 mm provides greater load capacity. Check your pulley's specified maximum belt width before ordering.

Are these belts compatible with standard HTD 5M pulleys?

Yes. These belts use the standard HTD 5M tooth profile with a 5 mm pitch, which is compatible with any HTD 5M pulley regardless of tooth count. Confirm your pulley is labeled HTD 5M (not GT2, T5, or MXL) to ensure correct tooth engagement.

How strong are these belts — will they skip under load?

The fiberglass tensile cord core provides low elongation and resists tooth skipping under normal operating loads for desktop-scale machines. Tooth skipping typically occurs when belt tension is too low, the pulley tooth count is too small for the load, or the belt is undersized in width. Ensure proper tensioning and appropriate pulley selection for your torque requirements.

Are these belts resistant to oil, heat, or moisture?

Rubber HTD belts offer moderate resistance to light oil mist and humidity typical of workshop environments. They are not rated for continuous immersion or high-temperature applications above approximately 80°C (176°F). For environments with heavy oil exposure or elevated temperatures, consult us to confirm suitability before ordering.

Can I use these as a direct replacement for my 3D printer's stock belt?

In most cases, yes. Many desktop FDM printers use HTD 5M closed-loop belts on their Z or lead-screw axes. Verify the loop length (circumference) and width match your existing belt's markings — these are usually printed on the belt's inner surface. If your printer uses GT2 open-loop belt on X/Y, this closed-loop HTD 5M is a different product and not a direct substitute for those axes.

How do I install and tension a closed-loop timing belt correctly?

Loop the belt over both pulleys before mounting the motor or idler. Adjust the motor or tensioner position until the belt deflects approximately 2–5 mm under light finger pressure at the midpoint of the longest span. Over-tensioning accelerates bearing wear; under-tensioning causes tooth skipping. Re-check tension after the first 10–20 hours of operation as new belts may seat slightly.

🛒 Select your belt type (loop length) and width above, then add to cart.
