HTD 5M Closed Loop Timing Belt — Precision Drive for CNC, 3D Printers & Robotics

When a worn or incorrectly sized drive belt causes your CNC router to skip steps, your 3D printer to layer-shift, or your conveyor to slip under load, the entire project stalls. Engineers, makers, and machine builders who need a reliable HTD 5M closed loop timing belt in an exact perimeter size — without waiting weeks for a custom order — know how frustrating limited size availability can be.

Each belt in this listing is a single closed-loop rubber HTD 5M timing belt with a 5mm tooth pitch and rounded HTD tooth profile. Perimeter options span from 175mm (≈6.9") up to 1240mm (≈48.8"), and belt widths are available in 10mm, 12mm, 15mm, 20mm, 25mm, 30mm, 35mm, and 40mm. The rubber construction (typically neoprene-based with fiberglass or aramid tension cord) provides flexibility, grip, and dimensional stability across a wide operating temperature range.

These HTD 5M belts are widely used as replacement drive belts for desktop CNC machines and laser cutters, as axis drive belts in CoreXY and Cartesian 3D printers, and as power transmission belts in light conveyor systems, robotics joints, and automated equipment. Whether you need a 5M-850mm belt for a Voron build or a 5M-1200mm belt for a custom gantry, this range covers the most common sizes in one place.

🔗 Compatibility: Fits all standard HTD 5M pulleys (5mm pitch, rounded tooth profile). Belt width must be ≤ pulley flange width. Verify your perimeter by measuring center-to-center distance between pulleys before ordering.
⚠️ Size Tip: The perimeter listed (e.g., "5M-850 mm") is the full inner circumference of the closed loop — not the length of one straight run. If you are unsure of your required size, contact us to confirm before ordering.

✅ Key Features of These HTD 5M Closed Loop Timing Belts

  • ⚙️HTD 5M Tooth Profile — The rounded High Torque Drive tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in moderate-torque CNC and robotics drive systems.
  • 🔄Closed Loop (Endless) Construction — No splice, no joint, no weak point. The seamless loop maintains consistent tension throughout the belt's circumference, which is critical for repeatable positioning in 3D printer axis drives and CNC motion systems.
  • 📏Wide Size Range — 175mm to 1240mm Perimeter — With over 60 perimeter options and 8 width choices (10–40mm), this listing covers replacement belt sizes for a broad range of machines without requiring custom fabrication.
  • 🧱Rubber Body with Reinforced Tension Cord — The rubber outer body provides flexibility and grip on pulley teeth, while the internal tension cord (typically fiberglass or aramid) resists elongation under load, helping maintain accurate positioning over time.
  • 🌡️Moderate Temperature & Chemical Resistance — Suitable for typical indoor workshop and light industrial environments. The rubber compound generally handles temperatures from approximately −20°C to +80°C (−4°F to 176°F), covering most CNC enclosure and conveyor operating conditions.
  • 🔧Drop-In Replacement for Common Machines — Matches the HTD 5M standard used by many popular open-source CNC platforms, desktop laser cutters, and FDM 3D printer designs. No modification to pulleys or tensioners required when replacing a worn belt of the same size.

📐 Technical Specifications — HTD 5M Closed Loop Timing Belt

Belt Type HTD (High Torque Drive) Closed Loop
Pitch 5 mm

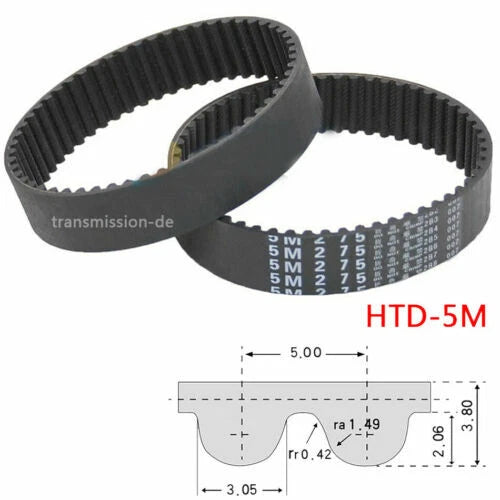

Tooth Profile Rounded HTD (curvilinear)
Perimeter Range 175 mm (≈6.9") — 1240 mm (≈48.8")
Belt Width Options 10 mm, 12 mm, 15 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm
Belt Body Material Rubber (typically neoprene-based compound)
Tension Cord Fiberglass or aramid (see variant options)
Operating Temperature Typically −20°C to +80°C (−4°F to 176°F)
Quantity per Order 1 piece
Compatible Pulleys All standard HTD 5M pulleys
Tooth Count Perimeter (mm) ÷ 5 (e.g., 850mm ÷ 5 = 170 teeth)
Color Black

❓ Frequently Asked Questions

How do I measure the correct perimeter size for my HTD 5M timing belt?

Measure the center-to-center distance between your two pulleys, then use the formula: Perimeter ≈ 2 × center distance + (π × pitch diameter of each pulley / 2). The perimeter values listed (e.g., 850mm ≈ 33.5") represent the full inner circumference of the closed loop. When in doubt, size up slightly — a belt that is too short cannot be installed without damaging the pulleys or tensioner.

What load capacity can an HTD 5M belt handle?

HTD 5M belts are generally rated for moderate power transmission. Wider belts (30–40mm) carry significantly more load than narrower ones (10–15mm). For light-duty CNC and 3D printer axes, a 15–20mm width is typically sufficient. For conveyor or higher-torque applications, 25mm or wider is generally recommended. Always verify load requirements against your specific drive system specifications.

Can I use this timing belt outdoors or in wet environments?

These belts are made from rubber (typically neoprene or EPDM-based compounds) and are generally resistant to light moisture and moderate temperature ranges. However, prolonged exposure to UV, oils, or standing water can degrade rubber over time. For outdoor or harsh-environment applications, inspect the belt periodically and consider a protective enclosure around the drive system.

Are these belts compatible with standard HTD 5M pulleys?

Yes. These belts follow the HTD 5M profile standard: 5mm pitch, rounded tooth profile. They are compatible with any HTD 5M pulley regardless of brand, as long as the belt width matches or is narrower than the pulley flange width. Common pulley tooth counts for this pitch range from approximately 15T to 60T.

How do I choose between HTD 5M and other belt pitches like 3M or 8M?

The pitch determines torque capacity and speed range. HTD 3M suits light-duty, high-speed applications (e.g., small 3D printers). HTD 5M is the most versatile — it handles moderate torque at medium speeds, making it ideal for CNC machines, robotics, and mid-size 3D printers. HTD 8M is for heavy-duty, high-torque industrial drives. Always match the pitch to your existing pulleys — pitches are not interchangeable.

What belt width should I choose for my application?

Width directly affects load capacity. For 3D printer axes and light CNC use, 15mm is generally sufficient. For dual-drive or higher-load CNC gantries, 20–25mm provides more margin. Conveyor systems and servo-driven stages typically benefit from 30mm or wider. Always match the belt width to your pulley's usable face width — the belt should not be wider than the pulley flange.

Is this a closed loop belt or an open-ended belt?

This is a closed loop (endless) belt — it forms a continuous ring with no splice or joint. This design provides consistent tension and eliminates the weak point of a mechanical splice, making it the preferred choice for precision motion control applications such as 3D printer axes and CNC drive systems.

🛒 Select your perimeter and belt width above, then add to cart — ships from our US warehouse.
