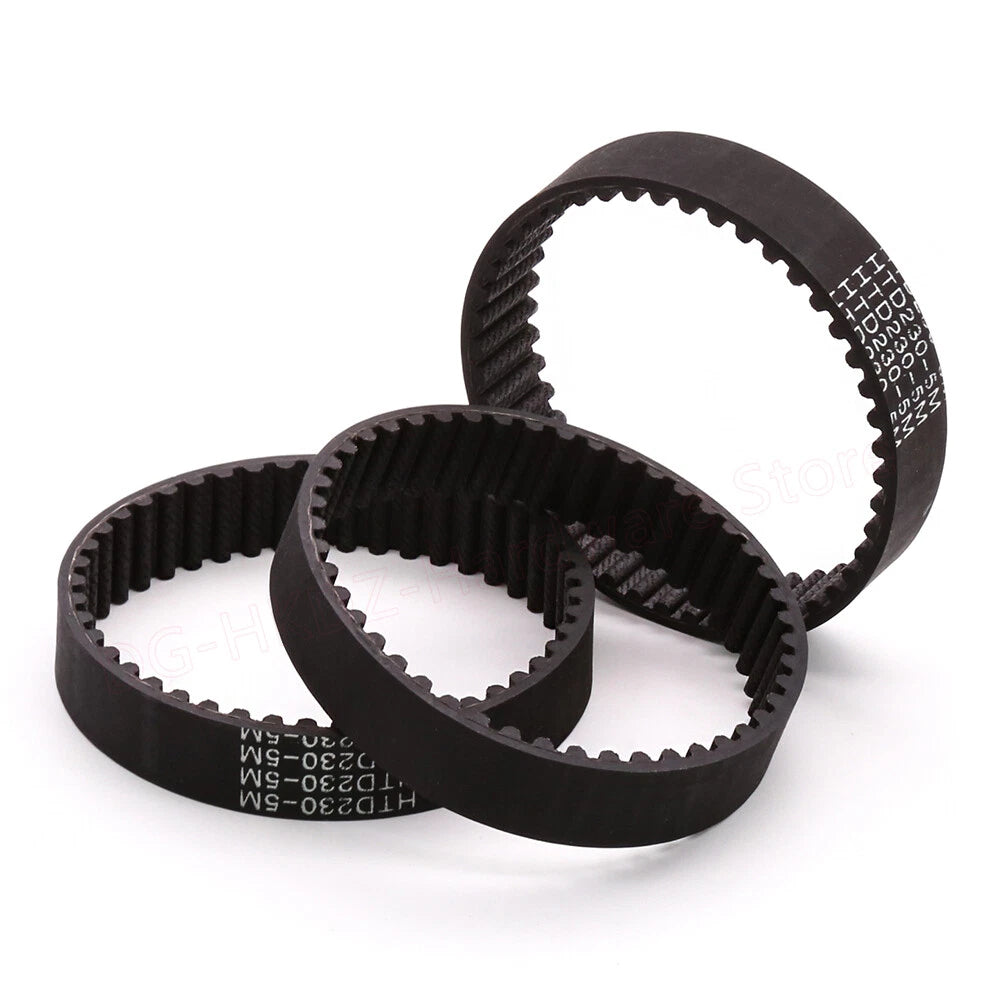

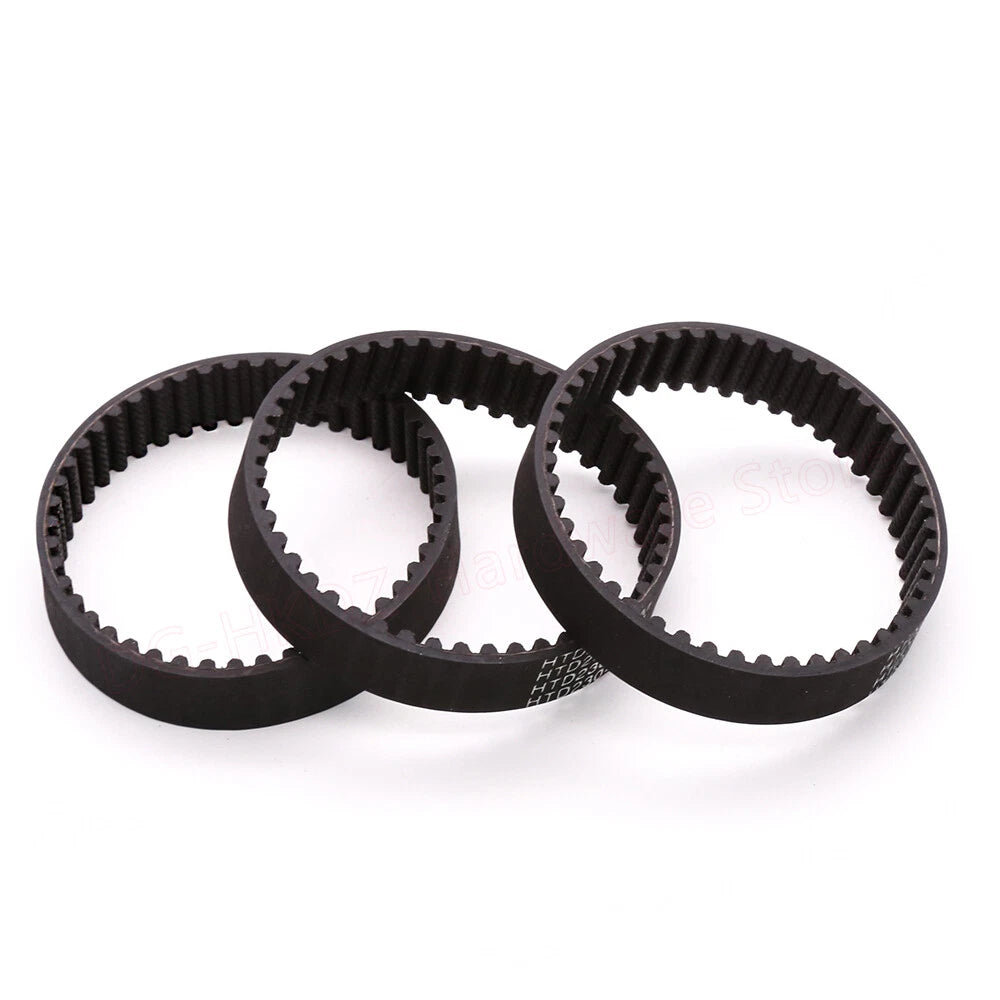

HTD 5M Closed Loop Timing Belt — Precise, Slip-Free Power Transmission for 3D Printers & CNC Machines

If your 3D printer is skipping steps, your CNC axis is losing position, or your DIY robot joint is slipping under load, the culprit is often a worn or incorrectly sized drive belt. Engineers, makers, and repair technicians who need a reliable HTD 5M closed loop timing belt in a specific loop length will find exactly what they need here — 25 sizes from 180mm to 315mm, all in one listing.

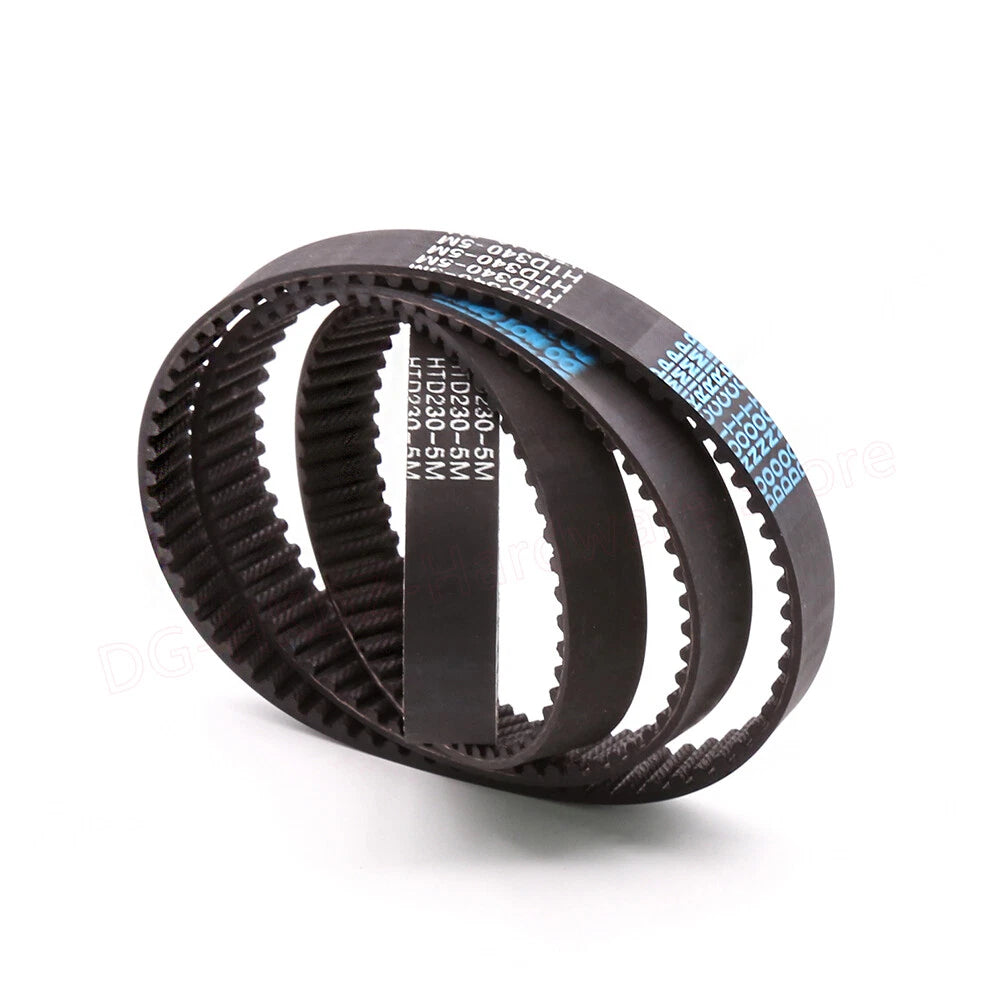

Each belt features an HTD 5M tooth profile (5mm pitch, rounded trapezoidal teeth) with a 15mm (≈0.59") width. The body is molded from a durable rubber compound reinforced with a fiberglass tension cord, giving the belt low stretch and consistent tooth engagement across the full loop. Loop lengths range from 180mm (≈7.1") to 315mm (≈12.4") in 5mm increments, and you can order 1, 2, 3, 5, or 10 pieces per transaction.

These belts are widely used as 3D printer Z-axis and extruder drive belts, CNC router axis drive belts, small conveyor and pick-and-place robot timing belts, and DIY automation project drive components. The closed-loop construction eliminates the weak splice point found in cut-to-length belts, making them a dependable choice for continuous-duty applications.

🔗 Compatibility: Designed for use with HTD 5M pulleys and sprockets only. Not compatible with GT2, T5, MXL, or other tooth profiles. Verify your pulley is labeled HTD 5M before ordering.

✅ Key Features of These HTD 5M Closed Loop Timing Belts

  • ⚙️HTD 5M Tooth Profile — The rounded trapezoidal tooth design distributes load across a larger contact area than older trapezoidal profiles, reducing tooth shear stress in moderate-torque 3D printer and CNC drive applications.
  • 📏25 Loop Lengths in One Listing — Available from 180mm (≈7.1") to 315mm (≈12.4") in 5mm steps, so you can match the exact center distance of your pulleys without cutting or splicing.
  • 🧵Fiberglass Tension Cord Core — The embedded fiberglass cords resist elongation under load, maintaining consistent tooth pitch and reducing the re-tensioning intervals common with all-rubber belts.
  • 🔄Seamless Closed-Loop Construction — No splice, no clip, no weak point. The continuous loop runs smoothly over pulleys, which is especially important for closed-loop motion control in CNC and robotic joint applications.
  • 📦Flexible Quantity Options — Order 1 belt for a single repair or up to 10 at a time to stock spares for a fleet of machines or a production run of DIY builds.

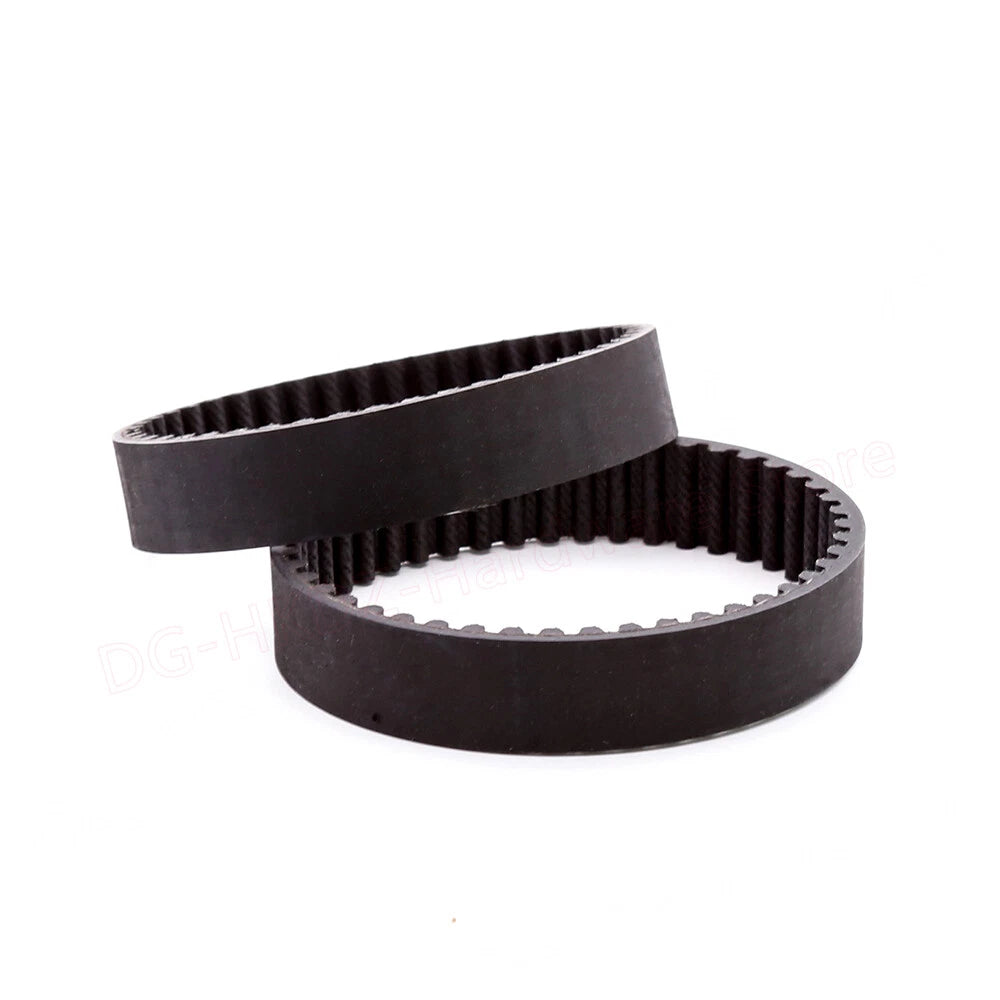

  • 🏭15mm Working Width — Wider than the common 6mm and 9mm variants, the 15mm width provides greater lateral stability and higher torque capacity, making it suitable for heavier-duty axis drives and conveyor timing applications.

📐 Technical Specifications — HTD 5M Closed Loop Rubber Timing Belt

Belt Profile HTD 5M (High Torque Drive, 5mm pitch)
Tooth Pitch 5mm (0.197")
Belt Width 15mm (≈0.59")
Loop Length Range 180mm (≈7.1") – 315mm (≈12.4"), in 5mm increments

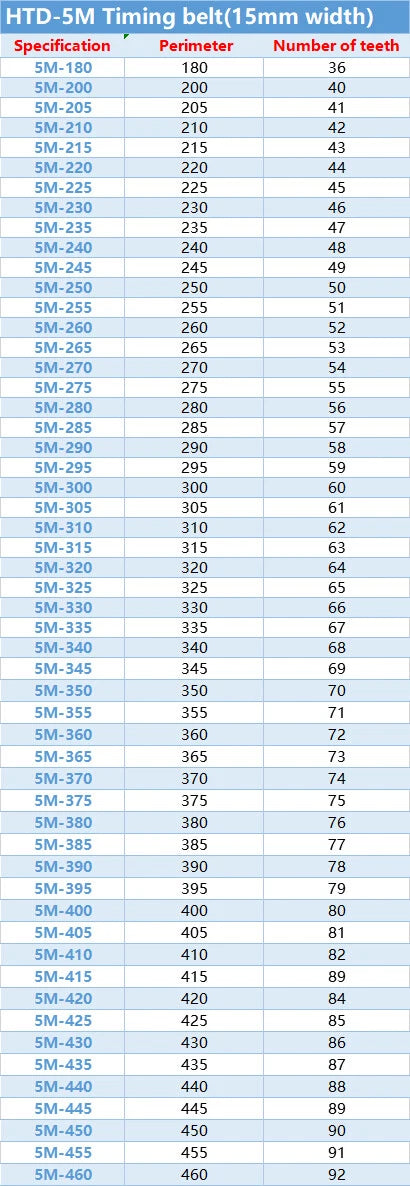

Number of Teeth 36 teeth (180mm) – 63 teeth (315mm), varies by loop length
Belt Material Rubber (neoprene-type compound)
Tension Member Fiberglass cord
Tooth Profile Shape Rounded trapezoidal (HTD)
Compatible Pulleys HTD 5M pulleys only
Quantity per Order See variant options (1 / 2 / 3 / 5 / 10 pcs)
Operating Temperature Contact us to confirm for specific environments
Color Black
⚠️ Size Tip: If you are between two lengths, choose the longer option. A belt that is slightly long can be tensioned; one that is too short cannot be installed without forcing the pulleys, which risks damaging bearings or the belt itself.

❓ Frequently Asked Questions

How do I choose the right loop length for my machine?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference: Belt Length ≈ 2 × Center Distance + π × Pulley Diameter. This listing covers 180mm (≈7.1") to 315mm (≈12.4") in 5mm steps. When in doubt, size up — a slightly longer belt can be tensioned; a belt that is too short cannot be installed safely.

What pitch and width does this timing belt use?

This belt uses the HTD 5M profile: 5mm tooth pitch with a rounded trapezoidal tooth shape. The width is 15mm. It is designed to pair with HTD 5M pulleys and sprockets of the same pitch. Do not mix with GT2, T5, or other profiles.

What load or torque can this belt handle?

HTD 5M belts at 15mm width generally handle moderate torque loads — typically sufficient for 3D printer drive axes, light CNC routing, and small robotic joints. Exact ratings depend on pulley diameter, RPM, and ambient temperature. For high-cycle industrial applications, consult a mechanical engineer to verify the load margin.

Can this belt be used outdoors or in wet conditions?

The rubber compound is generally resistant to light moisture and dust, making it suitable for semi-protected workshop environments. Prolonged exposure to standing water, direct UV sunlight, or aggressive chemicals can degrade the rubber over time. For fully outdoor or washdown-duty applications, a polyurethane belt variant is typically a better choice.

Is this belt compatible with GT2 or T5 pulleys?

No. This is an HTD 5M profile belt and requires HTD 5M pulleys. The tooth geometry is not interchangeable with GT2 (2mm pitch), T5 (5mm trapezoidal), MXL, or XL profiles. Always confirm your pulley is labeled HTD 5M before ordering.

How do I install a closed loop timing belt?

Relax the tensioner or slide one pulley toward the other to create slack. Slip the belt over both pulleys, ensuring the teeth mesh fully with the pulley grooves. Re-tension to the manufacturer's specification. No cutting, joining, or special tools are required — the closed loop is ready to install as shipped.

How many belts come in each order, and is there a bulk discount?

Use the Quantity(pcs) selector above to choose 1, 2, 3, 5, or 10 belts per order. Larger quantities are priced at a lower per-unit rate, making it cost-effective to stock spares for ongoing maintenance or a batch build of multiple machines.

🛒 Select your model (loop length) and quantity above, then add to cart — ships from our US warehouse.
