HTD-5M Closed Loop Timing Belt — Reliable Drive for Precision Motion Systems

When a slipping or mismatched drive belt causes positioning errors in your 3D printer, CNC router, or conveyor system, the entire project stalls. Engineers, makers, and machine builders who need repeatable, zero-slip power transmission rely on the HTD-5M closed loop timing belt — a drop-in solution that keeps every axis moving exactly where it should.

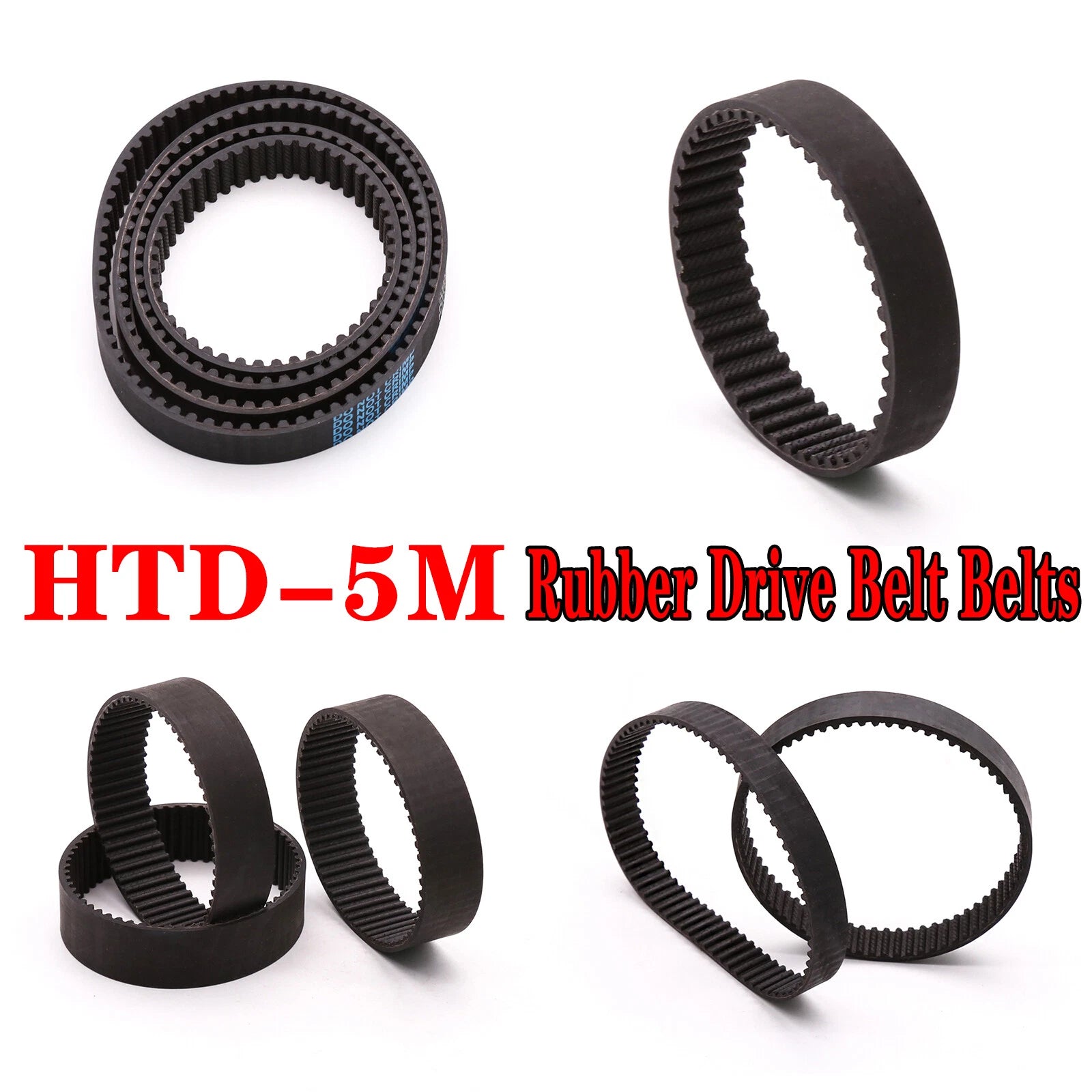

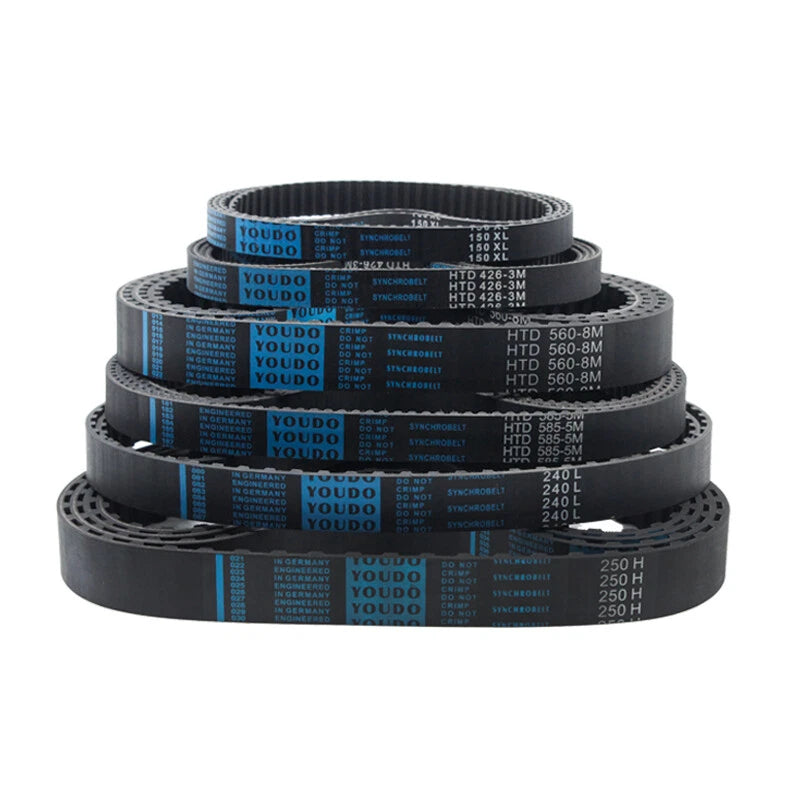

Each belt is a single closed loop of rubber with internal fiber cord reinforcement, featuring the HTD-5M curvilinear tooth profile (5mm pitch). Available in two widths — 15mm and 20mm — and in lengths ranging from 175mm (≈6.9") to 3770mm (≈148.4"), this listing covers an extensive range of machine configurations. Select the exact length and width your application requires from the variant options above.

Typical use cases include 3D printer X/Y axis drives, CNC router gantry belts, laser cutter carriage drives, conveyor belt replacement, and light industrial automation — anywhere a synchronous closed loop timing belt with 5mm pitch is specified.

🔗 Compatibility: Fits any standard HTD-5M pulley (5mm pitch, curvilinear tooth). Not compatible with GT2, T5, MXL, or trapezoidal tooth pulleys. Match belt width to your pulley width for best performance.
⚠️ Size confirmation: Belt length is the full closed-loop circumference (not center-to-center distance). Measure your existing belt or calculate from your pulley spacing before ordering. See FAQ below for guidance.

✅ Key Features of These HTD-5M Closed Loop Timing Belts

  • ⚙️ HTD-5M Curvilinear Tooth Profile — The rounded tooth geometry provides positive engagement with HTD-5M pulleys, reducing backlash and tooth jump compared to trapezoidal profiles in synchronous drive applications.
  • 📏 Wide Length Selection — Available from 175mm (≈6.9") to 3770mm (≈148.4") in a single listing, covering short-span 3D printer axes through long-travel CNC gantry and conveyor belt replacements.

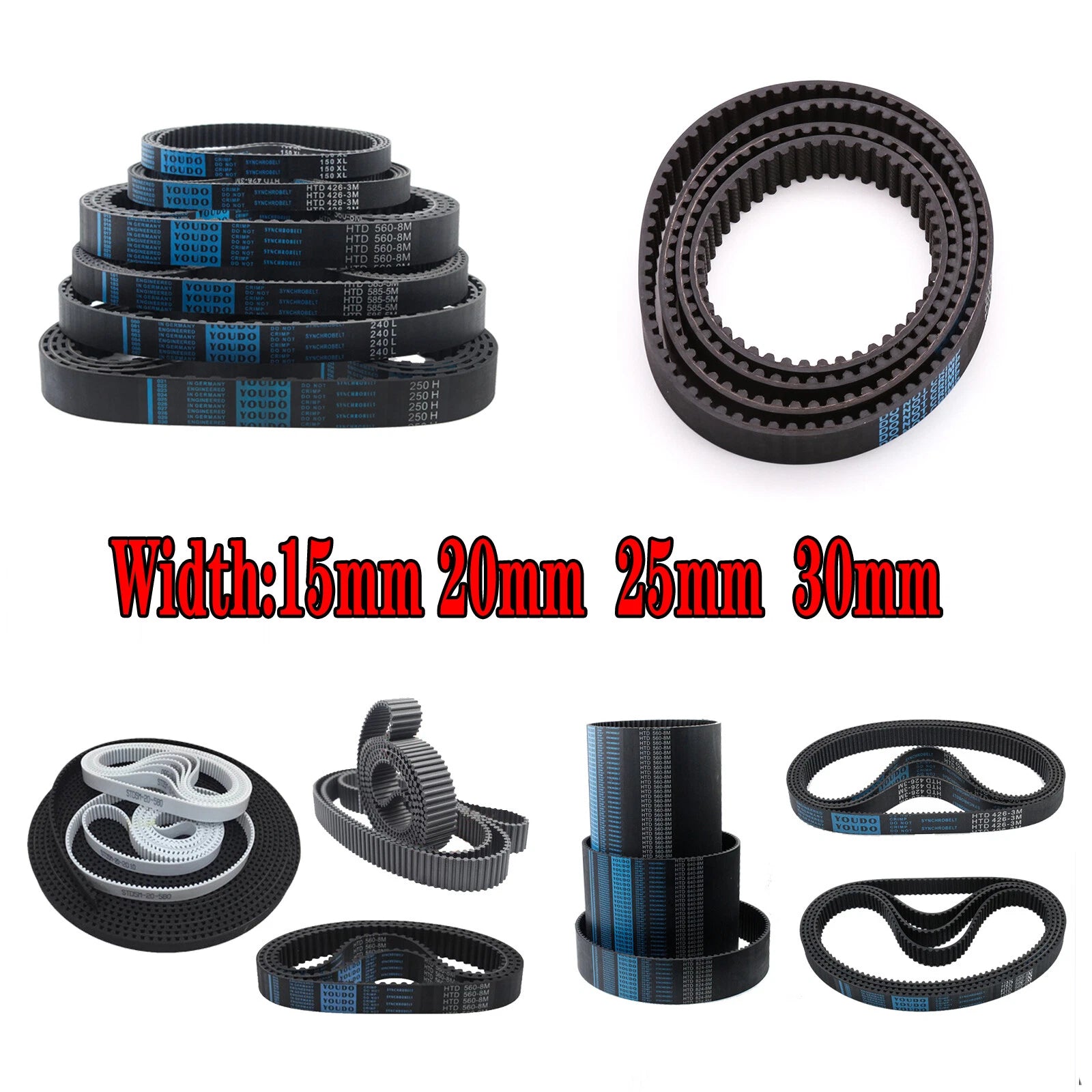

  • ↔️ Two Width Options: 15mm and 20mm — The 15mm width suits lighter-duty motion axes; the 20mm width handles higher torque loads in conveyor drives and larger automation equipment.
  • 🔩 Fiber Cord Reinforcement — Internal cord construction resists elongation under tension, maintaining consistent belt length and tooth pitch over extended operation cycles.
  • 🔄 Closed Loop Construction — Seamless loop design eliminates the splice point found in cut-to-length belts, providing uniform stiffness and smooth running at all positions around the drive circuit.
  • 🏭 Broad Application Compatibility — Used in 3D printers, laser cutters, CNC routers, pick-and-place machines, and light conveyor systems wherever an HTD-5M synchronous drive belt is specified.

📐 Technical Specifications — HTD-5M Rubber Timing Belt

Belt Type HTD-5M Closed Loop Synchronous Timing Belt
Tooth Profile HTD (High Torque Drive) curvilinear, 5mm pitch
Tooth Pitch 5mm (≈0.197")
Available Widths 15mm (≈0.59") / 20mm (≈0.79")

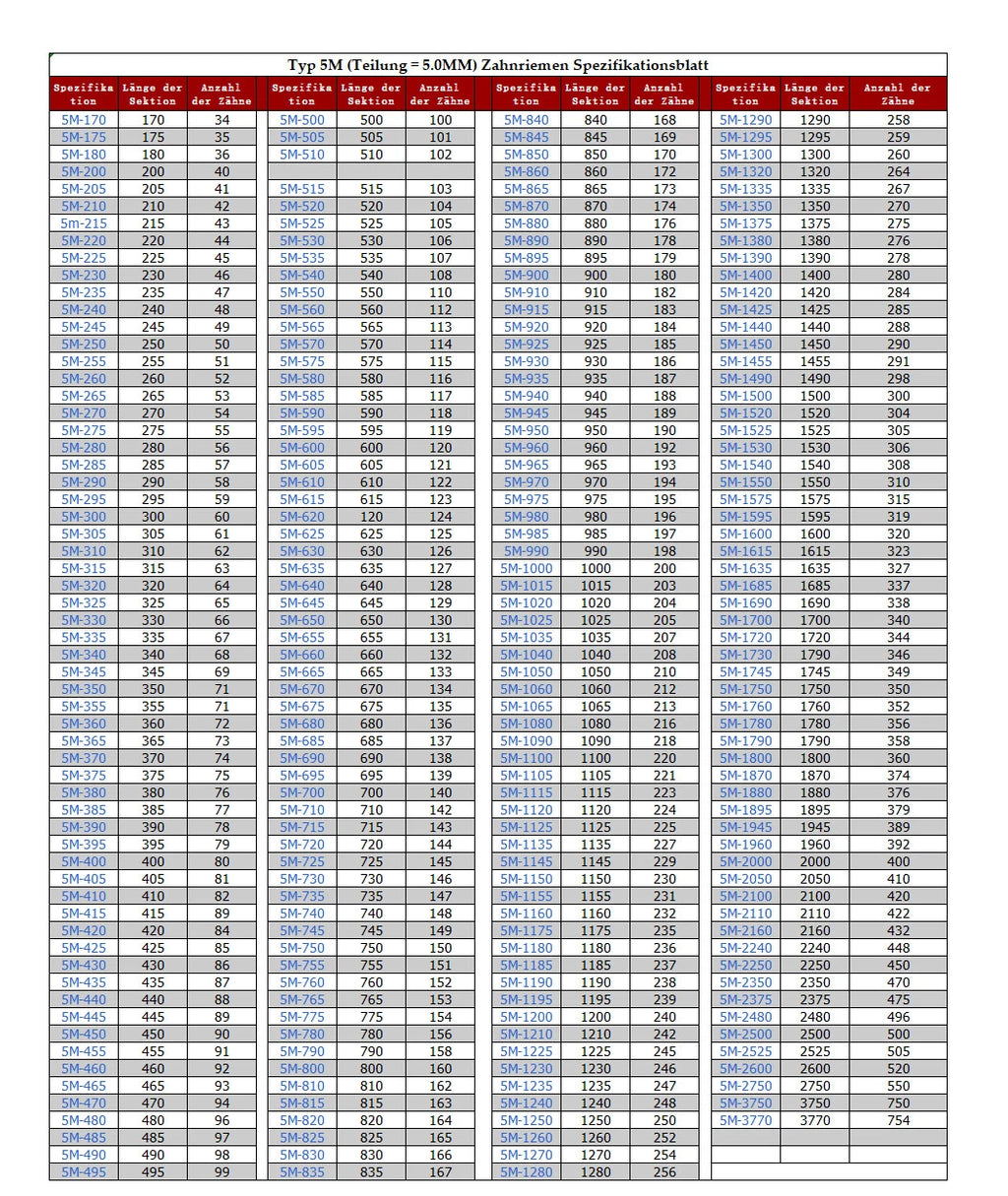

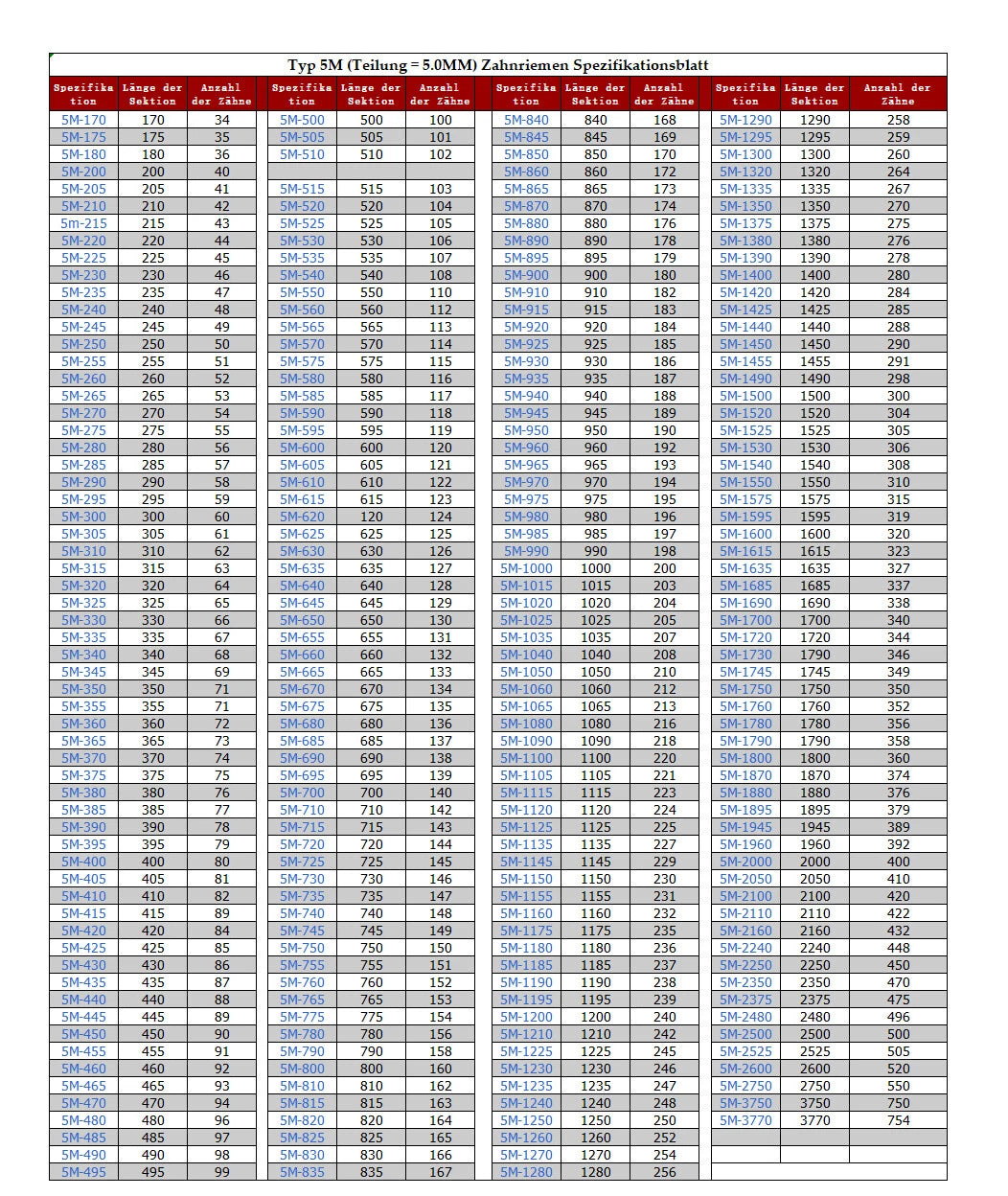

Available Lengths 175mm (≈6.9") – 3770mm (≈148.4"); see variant options
Belt Material Rubber with fiber cord reinforcement
Loop Type Closed loop (seamless)
Compatible Pulley Standard HTD-5M (5mm pitch, curvilinear tooth)
Typical Applications 3D printers, CNC routers, laser cutters, conveyors, automation
Operating Temperature See variant options / Contact us to confirm
Quantity per Order 1 belt per unit
Country of Origin See variant options

❓ Frequently Asked Questions

How do I choose the right belt length for my machine?

Measure the full circumference of your existing belt, or calculate using the formula: L = 2C + π(D1+D2)/2, where C is the center-to-center pulley distance and D1/D2 are the pulley pitch diameters. For example, a 500mm (≈19.7") belt typically suits a center distance of roughly 220–230mm with standard HTD-5M pulleys. When in doubt, size up — a slightly longer belt can be tensioned; a short one cannot be installed.

What tooth pitch does the HTD-5M belt use, and is it the same as GT2?

HTD-5M belts have a 5mm pitch with a curvilinear (rounded) tooth profile. GT2 belts also use a curvilinear profile but have a 2mm pitch — they are not interchangeable. Always match the belt pitch and tooth profile to your pulley specification.

What load or torque can this belt handle?

Load capacity depends on belt width, length, pulley diameter, and operating speed. Generally, the 15mm width handles moderate torque suitable for 3D printer axes and light CNC applications, while the 20mm width supports higher torque for conveyor drives and heavier automation. For specific torque ratings, contact us with your application details.

Can this belt be used outdoors or in wet/oily environments?

The rubber construction generally offers reasonable resistance to moisture and moderate temperature ranges. However, prolonged exposure to UV radiation, petroleum-based oils, or extreme temperatures may reduce service life. For outdoor or chemically exposed environments, confirm suitability before ordering.

Is this belt compatible with my existing HTD-5M pulleys?

Yes — this belt is compatible with any standard HTD-5M pulley of matching width (15mm belt → 15mm pulley; 20mm belt → 20mm pulley). It is not compatible with GT2, T5, MXL, XL, or trapezoidal tooth pulleys, even if the pitch appears similar visually.

Which width should I choose — 15mm or 20mm?

Choose 15mm for lighter-duty applications: 3D printer X/Y axes, small laser cutters, robotics, and compact CNC machines where space is limited. Choose 20mm when you need higher torque transmission: conveyor systems, larger CNC gantries, or industrial automation equipment. When in doubt, the wider belt provides more load margin.

What is the belt made of, and does it stretch over time?

The belt body is rubber with internal fiber cord reinforcement (typically fiberglass or aramid-type cords). The cord reinforcement resists elongation under normal operating loads, maintaining consistent tooth pitch over time. Like all rubber belts, some minor initial seating may occur; re-tension after the first few hours of operation if your system requires precise positioning.

🛒 Select your model, length, and width above, then add to cart — ships from our US warehouse.
