HTD 5M Closed-Loop Rubber Timing Belt — Precise, Slip-Free Power Transmission

When a skipped tooth or a slipping belt means a failed print, a ruined CNC cut, or a misaligned axis, you need a timing belt you can count on. Makers, machine builders, and automation engineers rely on the HTD 5M closed-loop synchronous belt for repeatable, backlash-free motion in demanding applications.

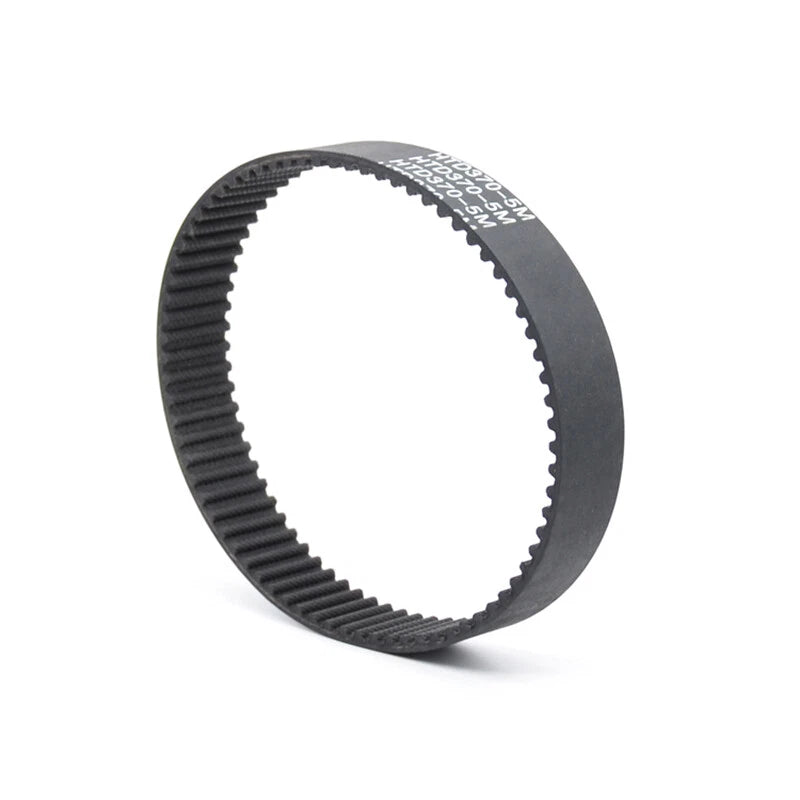

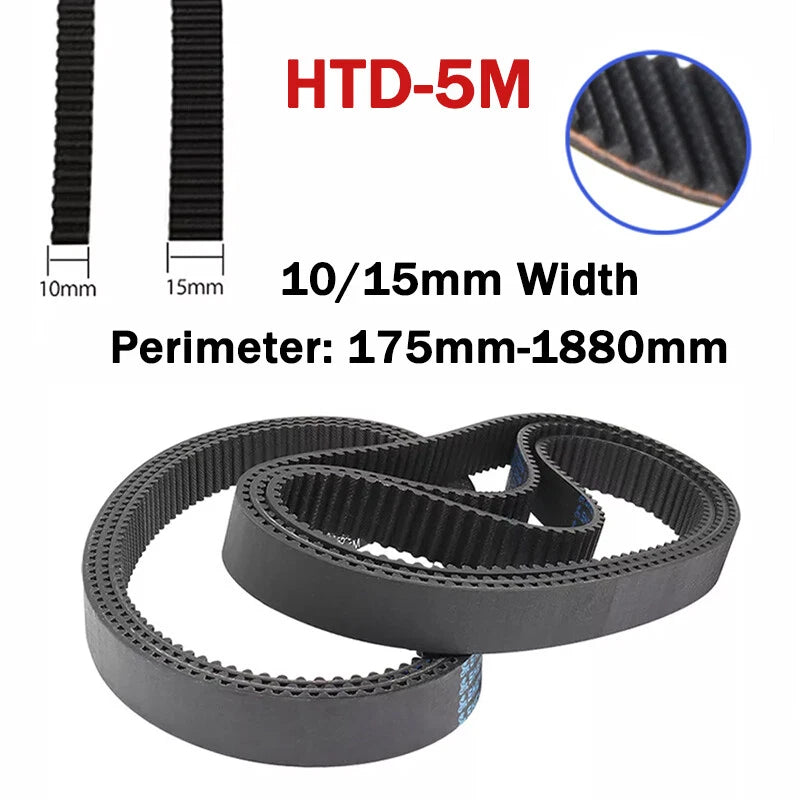

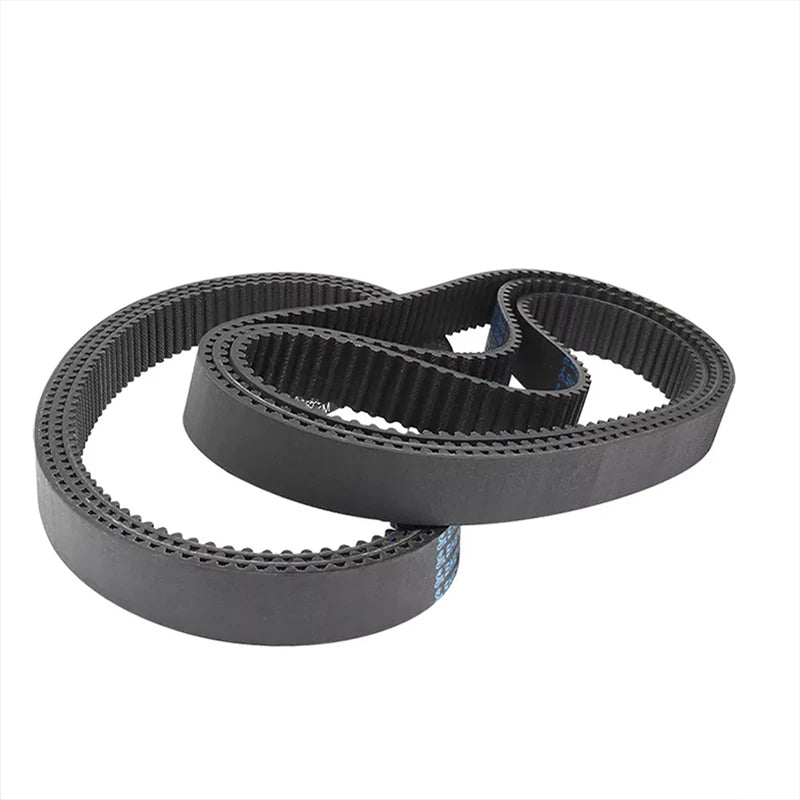

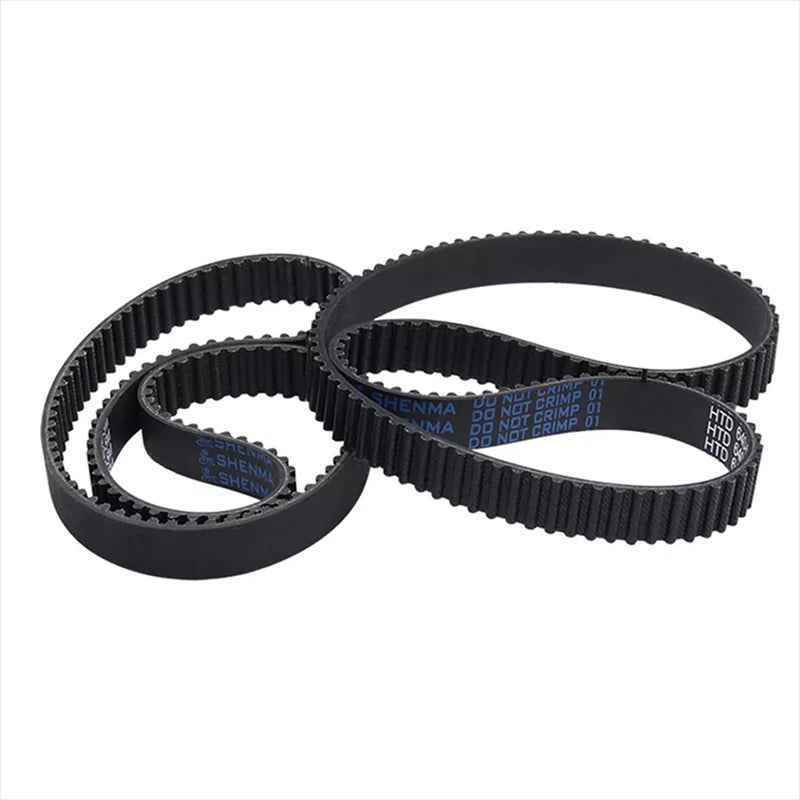

Each belt is a single closed loop of rubber with a reinforced tensile cord layer, available in 10mm width and 15mm width, with loop circumferences ranging from 175mm (≈6.9") to 1880mm (≈74.0"). The HTD 5M tooth profile features a 5mm pitch with a rounded, high-torque tooth form designed to distribute load evenly across multiple teeth simultaneously.

Typical use cases include CoreXY and bed-slinger 3D printer timing belt replacements, desktop CNC router drive belt setups, laser engraver axis drives, pick-and-place conveyor systems, and any application requiring a closed loop synchronous belt for precise positioning.

ℹ️ Compatibility: Designed for use with standard HTD 5M pulleys (5mm pitch, rounded tooth profile). Verify your pulley specification before ordering. Not compatible with GT2, T5, or other pitch profiles.
⚠️ Size selection tip: Loop length = total belt circumference, not center-to-center distance. Measure your drive path carefully. If your exact size is not listed, contact us — we may be able to source it.

✅ Key Features of These HTD 5M Closed-Loop Timing Belts

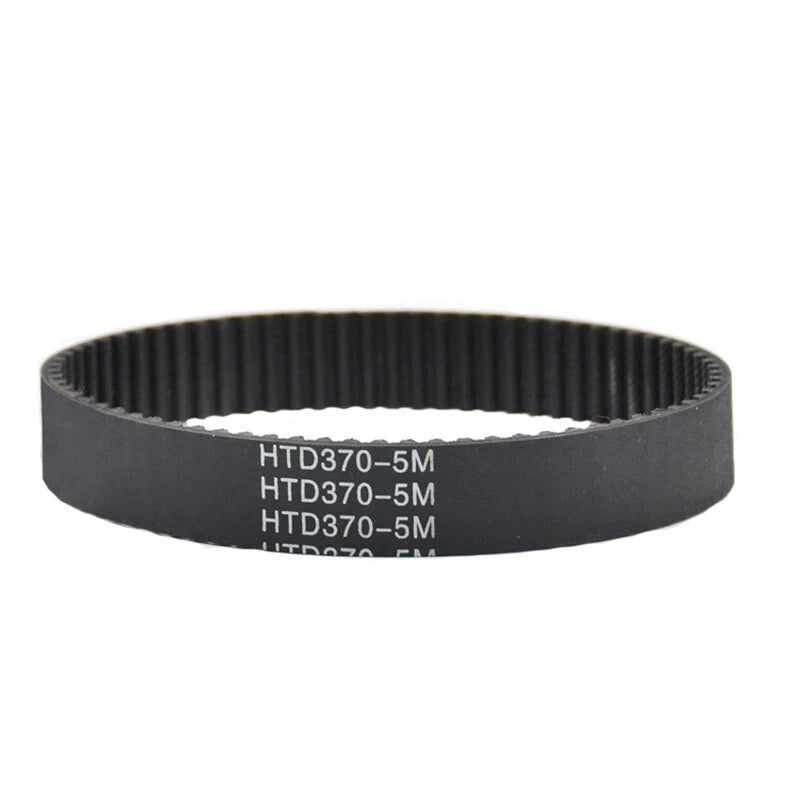

  • ⚙️HTD 5M Tooth Profile — 5mm pitch, rounded high-torque tooth form distributes load across multiple teeth for smooth, slip-free power transmission in CNC and 3D printer drive systems.

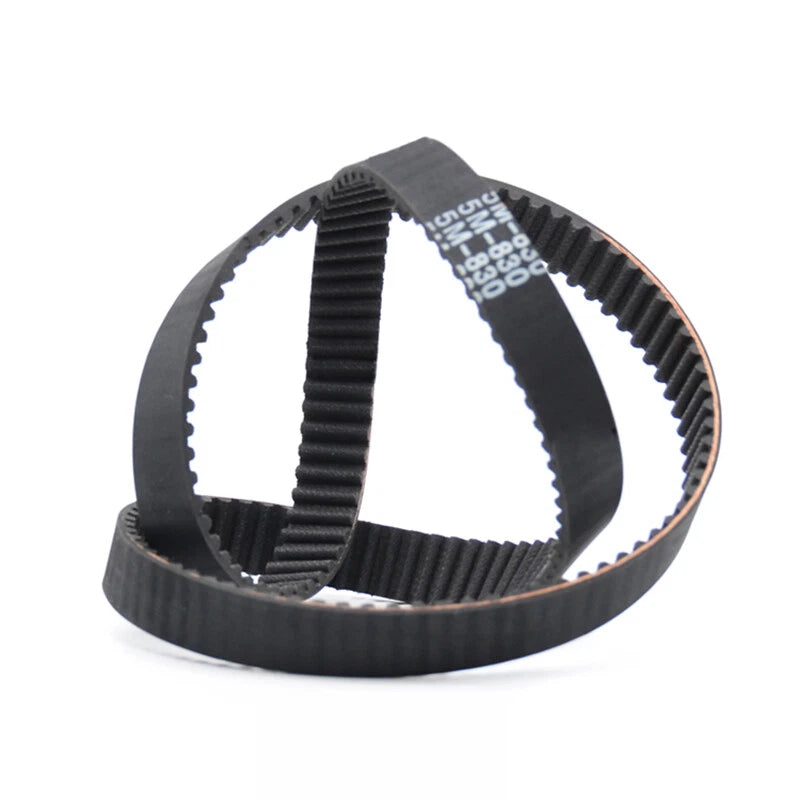

  • 🔄Closed-Loop Construction — Seamless single-loop design eliminates splice points, reducing the risk of failure at joints and ensuring consistent tension throughout the belt's circumference.
  • 📏Wide Size Range — Available in loop lengths from 175mm (≈6.9") to 1880mm (≈74.0"), covering a broad range of machine footprints from compact desktop 3D printers to larger CNC router closed-loop belt drives.
  • ↔️Two Width Options — Choose 10mm width for light-duty motion control or 15mm width for higher torque capacity in heavier-duty synchronous belt drive applications.

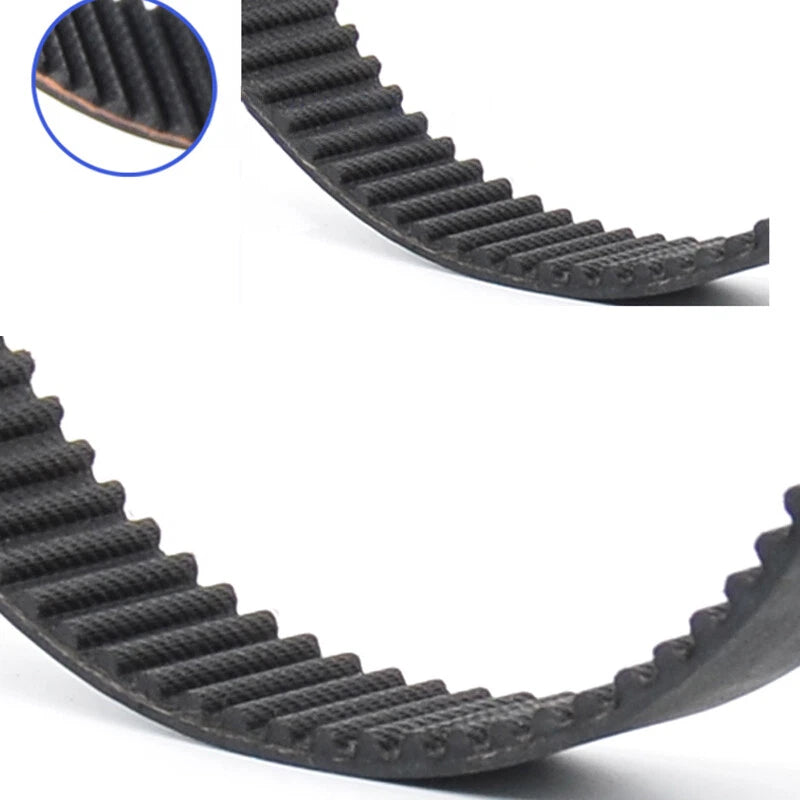

  • 🧱Reinforced Rubber Body — Rubber construction with an internal tensile cord layer provides flexibility, durability, and resistance to stretching under normal operating loads.
  • 🔧Drop-In Replacement Fit — Manufactured to HTD 5M standard dimensions, making these belts direct replacements for worn or broken timing belts in compatible machines without modification.

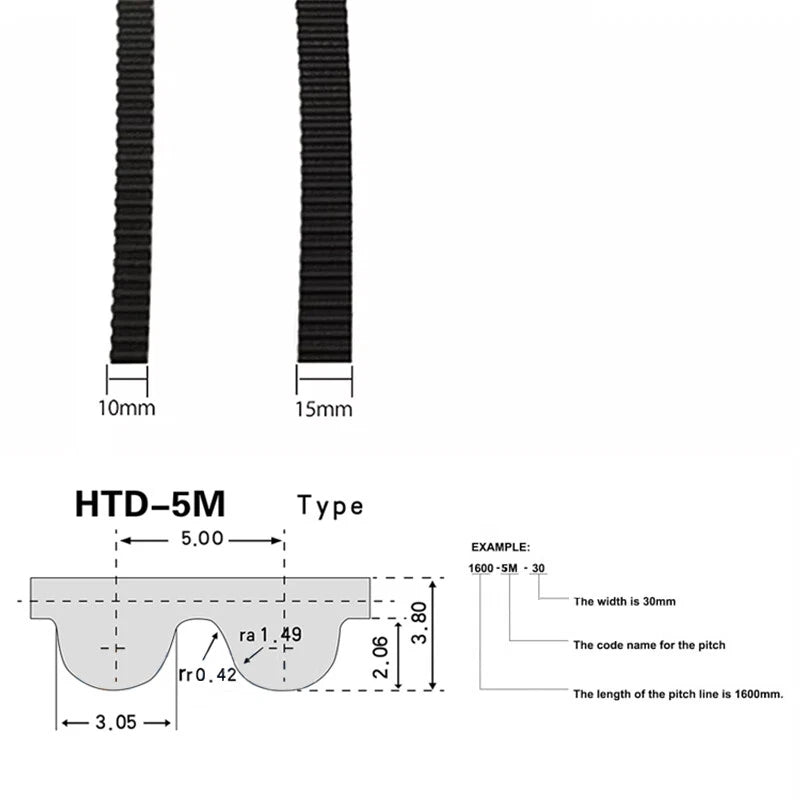

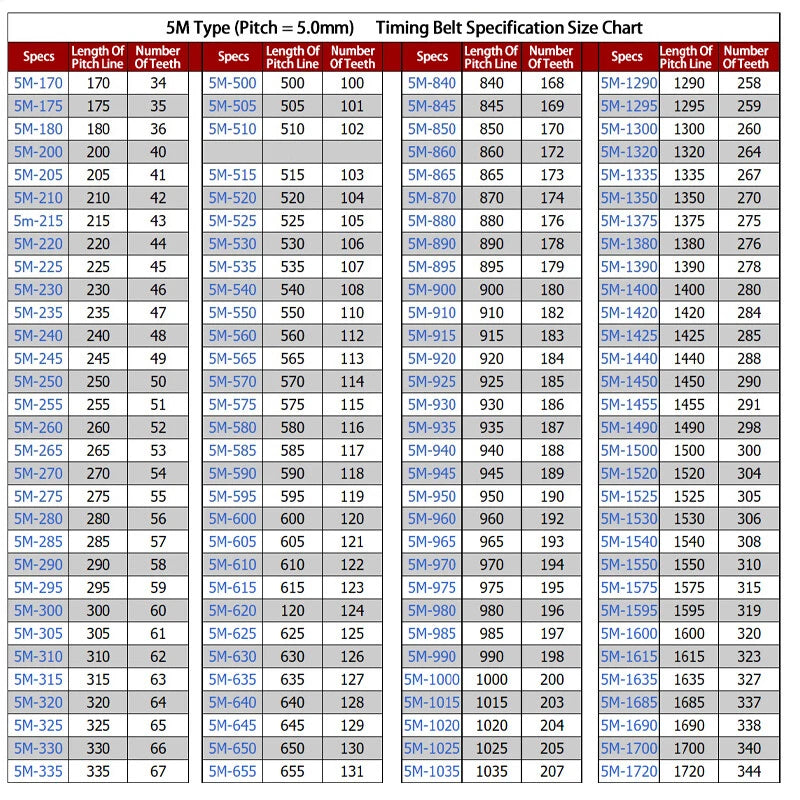

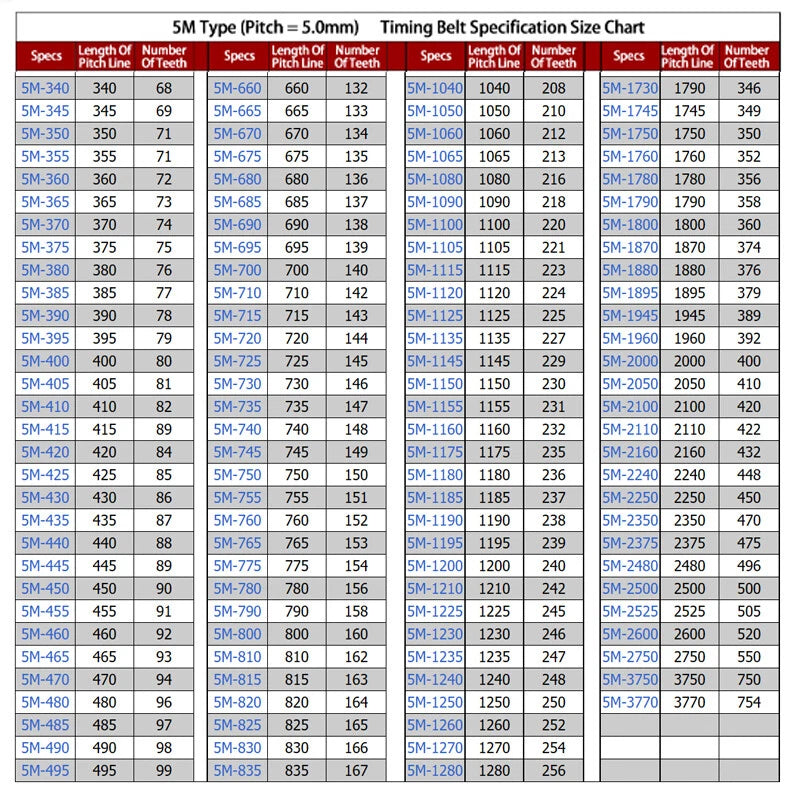

📐 Technical Specifications — HTD 5M Closed-Loop Synchronous Belt

Belt Profile HTD 5M (High Torque Drive, 5mm pitch)
Tooth Form Rounded curvilinear (HTD standard)
Pitch 5mm
Width Options 10mm / 15mm
Loop Length Range 175mm (≈6.9") – 1880mm (≈74.0")
Construction Type Closed loop (seamless)
Material Rubber with reinforced tensile cord layer
Tensile Strength See variant options / Contact us to confirm
Compatible Pulley Standard HTD 5M (5mm pitch, rounded tooth)
Quantity per Order 1 piece
Country of Origin Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right loop length for my HTD 5M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the belt length using the formula: Belt Length ≈ 2 × Center Distance + (π × Pulley Pitch Diameter). For example, a 300mm loop (≈11.8" circumference) is generally suitable for setups with roughly 90–100mm center-to-center spacing on standard HTD 5M pulleys. When in doubt, size up — a slightly longer belt can typically be tensioned; a belt that is too short cannot be installed.

What width should I choose — 10mm or 15mm?

Width affects load capacity. The 10mm width is generally sufficient for light-duty applications such as 3D printers, small CNC routers, and hobby robotics. The 15mm width provides greater torque transmission capacity and is typically preferred for heavier-duty CNC machines, conveyor systems, and industrial automation where higher lateral forces are present.

What is the tensile strength and load capacity of this timing belt?

HTD 5M belts typically feature a fiberglass or steel cord tensile layer embedded in the rubber body, providing good tensile strength for their size class. Exact load ratings vary by width and loop length. For precise load capacity data, please contact us to confirm specifications for your specific variant.

Can this timing belt be used outdoors or in wet environments?

This belt is made from rubber (generally neoprene or EPDM-based compound), which offers moderate resistance to moisture, oils, and mild temperature variation. It is generally suitable for light outdoor or damp indoor use. For prolonged UV exposure, chemical contact, or extreme temperatures, please contact us to confirm suitability for your specific environment.

Is this belt compatible with standard HTD 5M pulleys?

Yes. This belt follows the HTD (High Torque Drive) 5M profile standard — 5mm pitch, rounded tooth profile. It is compatible with any pulley manufactured to the HTD 5M specification. Always verify your pulley's tooth profile and pitch before ordering. This belt is not compatible with GT2, T5, MXL, or other pitch profiles.

How do I install a closed-loop timing belt without a tensioner?

Closed-loop belts are installed by sliding them over both pulleys before fully mounting one pulley shaft, then adjusting the center distance to achieve proper tension. In most cases, a slight deflection of 1–2% of the belt span under moderate finger pressure indicates correct tension. Avoid over-tensioning, which can accelerate bearing and belt wear.

What machines or applications is this belt commonly used in?

HTD 5M closed-loop timing belts are widely used in 3D printers (CoreXY, bed-slinger designs), desktop CNC routers, laser engravers, pick-and-place machines, conveyor systems, and general-purpose power transmission setups requiring precise, slip-free motion.

🛒 Select your width and loop length above, then add to cart — ships from our US warehouse.
