HTD-5M Closed Loop Timing Belt — Reliable Synchronous Drive for CNC, Robotics & Automation

When your CNC router skips steps, your 3D printer loses position, or your automation drive slips under load, the culprit is often an undersized or worn timing belt. Engineers, makers, and machine builders who need a dependable HTD-5M closed loop timing belt with a wide selection of lengths will find exactly what they need here — without waiting on custom fabrication.

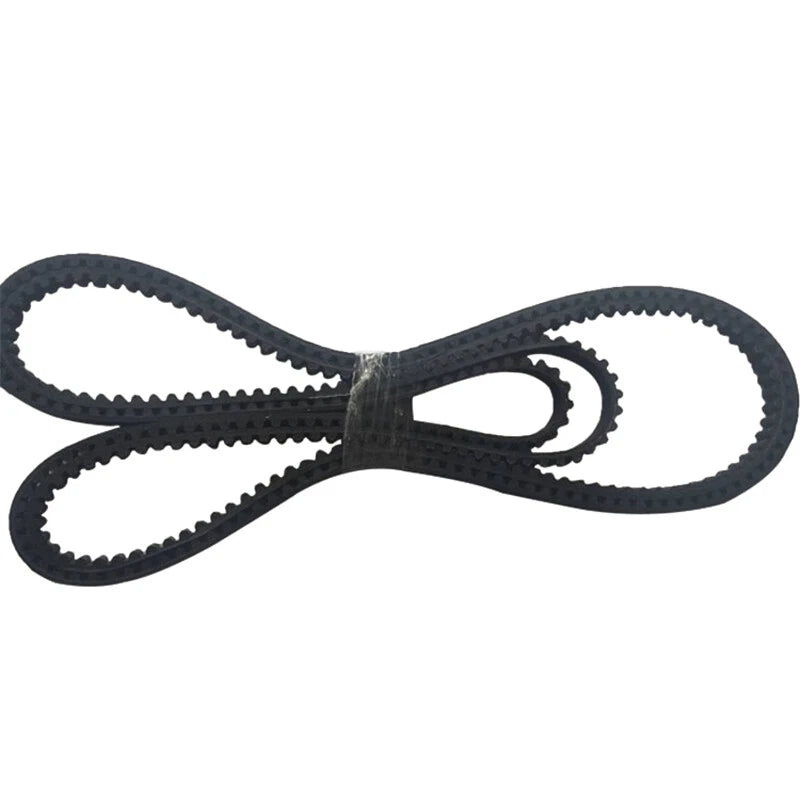

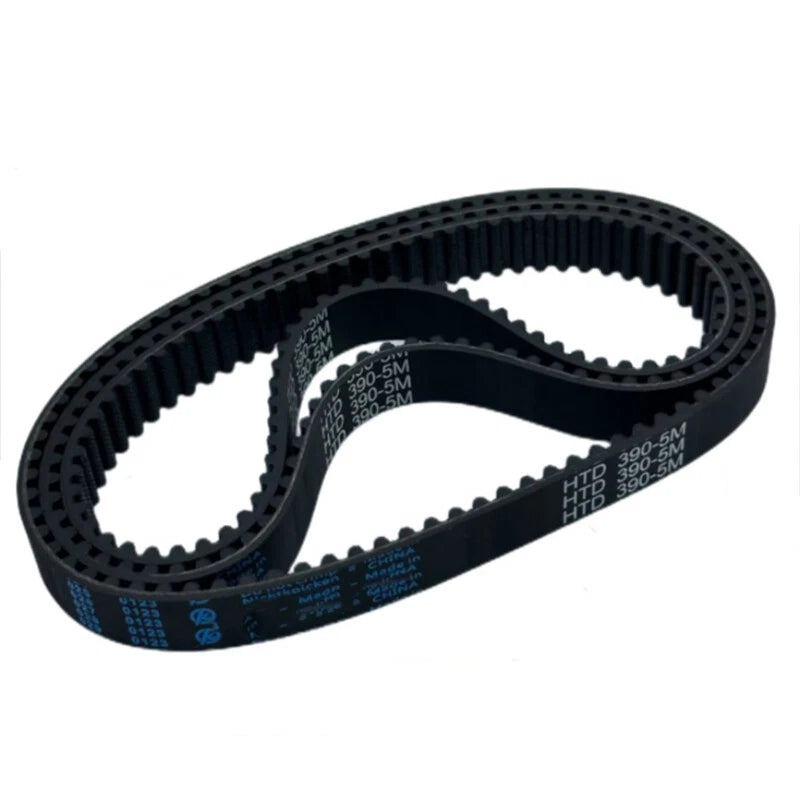

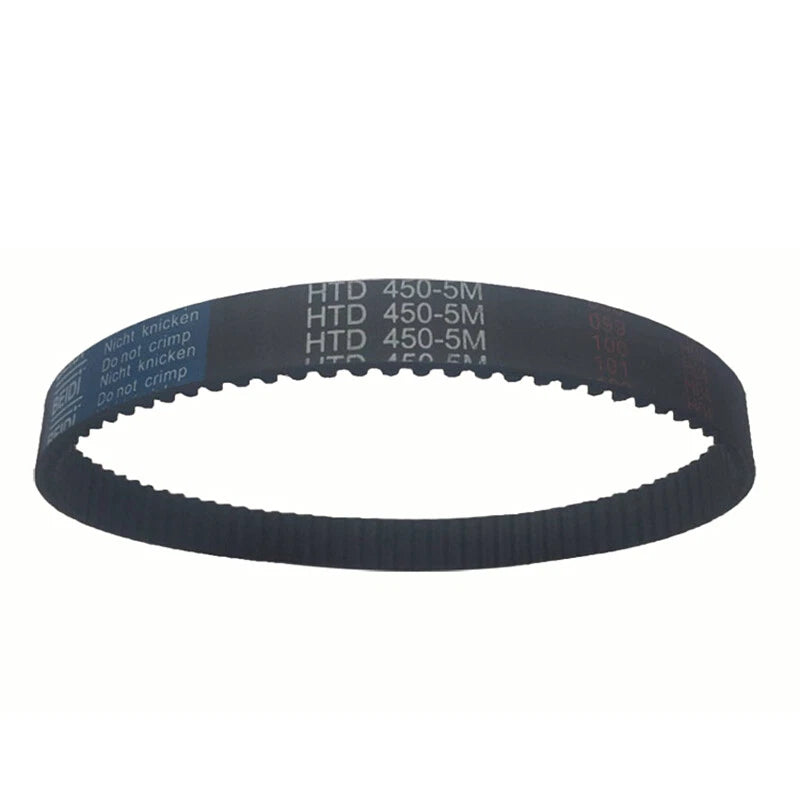

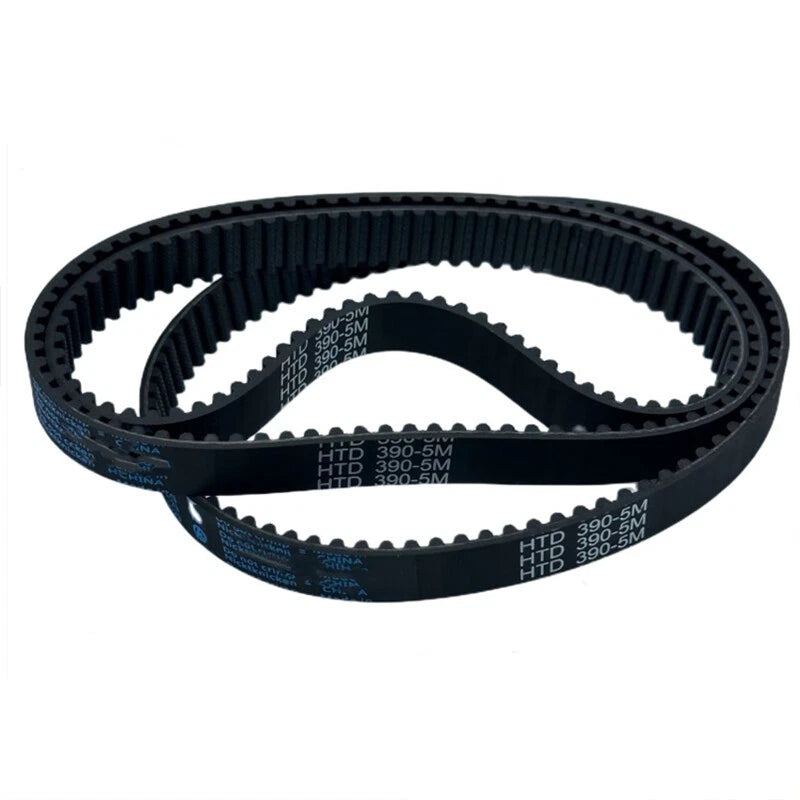

Each belt in this listing is a single closed-loop (endless) HTD-5M synchronous belt with a 5mm pitch and 10mm width, available in lengths from 1000mm (≈39.4") to 4260mm (≈167.7") across 119 size options. The belt body is constructed from neoprene (chloroprene rubber) reinforced with fiberglass tension cords, providing dimensional stability and resistance to stretch under dynamic loads.

Typical use cases include large-format 3D printer axis drives, CNC router gantry systems, laser cutter motion stages, robotic arm joints, and light industrial conveyor or indexing drives — anywhere a synchronous HTD-5M timing belt replacement or upgrade is needed for precise, slip-free power transmission.

🔗 Compatibility Notice: These belts require HTD-5M profile pulleys (5mm pitch, curved tooth form). They are not compatible with GT2, MXL, XL, or T5 pulleys. Verify your pulley is labeled HTD-5M or 5M before ordering.

✅ Key Features of These HTD-5M Closed Loop Timing Belts

  • ⚙️HTD Curved Tooth Profile — The rounded HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress and extending service life in moderate-to-high torque synchronous drives.
  • 📏119 Lengths in One Listing — From 1000mm (≈39.4") to 4260mm (≈167.7"), this listing covers an exceptionally wide range of closed loop HTD-5M belt sizes, eliminating the need to source from multiple suppliers for different machine builds.
  • 🔩Fiberglass Tension Cord Core — Embedded fiberglass cords resist elongation under dynamic tension, maintaining consistent tooth pitch and positional accuracy — critical for CNC router and laser cutter motion systems.
  • 🌡️Neoprene Rubber Construction — The neoprene belt body generally withstands temperatures from –30°C to +80°C (–22°F to +176°F) and resists moisture and mild oils, making it suitable for workshop and light industrial environments.
  • 🔄Endless Closed-Loop Design — No splice, no joint, no weak point. The seamless loop construction delivers uniform tension distribution and eliminates the vibration and wear associated with mechanically joined open belts.
  • 🚀Drop-In HTD-5M Timing Belt Replacement — Dimensioned to standard HTD-5M specifications, these belts are a direct replacement for OEM belts in compatible machines — select your tooth count and length from the variant dropdown above.
⚠️ Sizing Tip: Each variant lists both tooth count and belt length (e.g., "200 Teeth 1000mm"). Verify your required length in mm or calculate from your pulley center distance before selecting. If you are unsure, contact us to confirm the correct size for your application.

📐 Technical Specifications — HTD-5M Synchronous Timing Belt

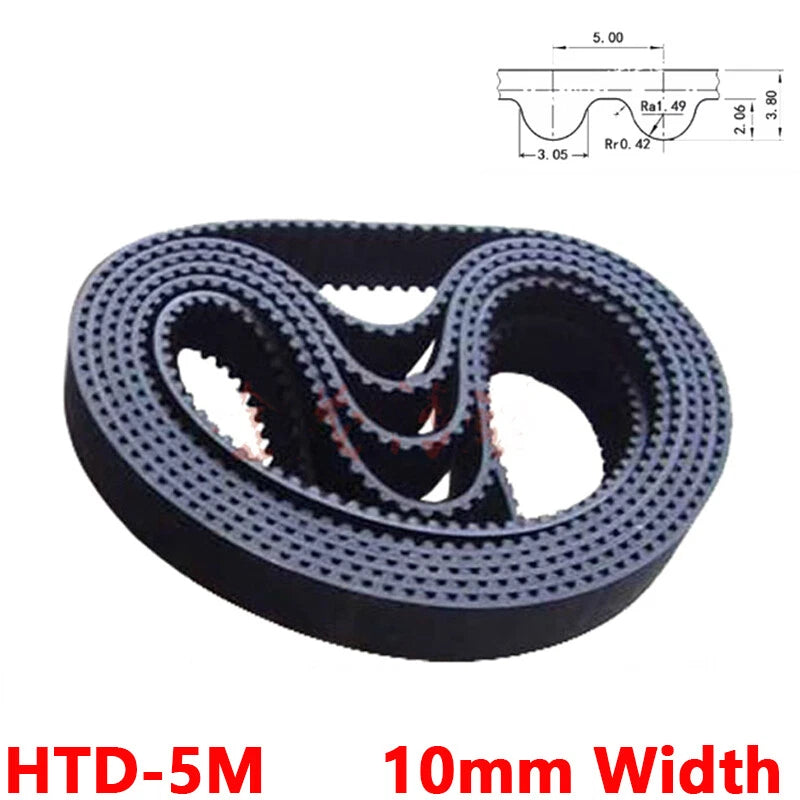

Belt Profile HTD-5M (High Torque Drive, 5mm pitch)
Pitch 5mm (0.197")
Belt Width 10mm (≈3/8")
Belt Type Closed Loop (Endless / Synchronous)
Length Range 1000mm (≈39.4") – 4260mm (≈167.7")
Tooth Count Range 200 Teeth – 852 Teeth (see variant options)
Belt Body Material Neoprene (Chloroprene Rubber)
Tension Member Fiberglass Cord
Tooth Profile HTD Curved (not interchangeable with GT2 / XL / T5)
Operating Temperature Typically –30°C to +80°C (–22°F to +176°F)
Compatible Pulleys HTD-5M profile pulleys only
Quantity per Order 1 belt per unit
Country of Origin Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right belt length for my machine?

Measure the center-to-center distance between your two pulleys, then use the formula: L ≈ 2C + π(D1+D2)/2, where C is the center distance and D1/D2 are the pulley pitch diameters. For HTD-5M belts, the length must be a multiple of 5mm. Alternatively, if you know your pulley tooth count, multiply by 5mm to get the pitch circumference. Each variant in this listing shows both tooth count and total belt length — for example, "200 Teeth" = 1000mm (≈39.4"). When in doubt, size up slightly; a belt that is too short cannot be installed.

What width is this belt, and is a wider version available?

This listing covers the 10mm wide version of the HTD-5M belt. Wider variants (typically 15mm, 20mm, or 25mm) are generally available for higher-torque applications. Contact us to confirm availability for your required width and length combination.

How much torque or load can this belt handle?

At 10mm width, HTD-5M belts typically handle continuous tangential loads in the range of 100–300 N, depending on operating speed, pulley diameter, wrap angle, and service conditions. For precision load ratings specific to your drive design, consult your machine's engineering documentation or contact us to confirm suitability.

Can this belt be used outdoors or in wet/oily environments?

Neoprene HTD-5M belts generally offer good resistance to moisture, mild oils, and moderate temperature ranges (typically –30°C to +80°C / –22°F to +176°F). They are not rated for continuous submersion or exposure to harsh solvents and chemicals. For outdoor installations, shielding the belt from direct UV exposure is recommended to extend service life.

What pulleys are compatible with HTD-5M belts?

HTD-5M belts require HTD-5M profile pulleys with a 5mm pitch curved tooth form. This profile is not interchangeable with GT2, MXL, XL, T5, or other timing belt standards — the tooth geometry differs and mixing profiles will cause premature wear or belt skipping. Confirm your pulley is labeled HTD-5M or 5M before ordering.

Is this a closed-loop belt or an open-ended belt?

This is a closed-loop (endless) synchronous belt — it forms a continuous loop with no joint or splice. This construction provides consistent tension distribution and eliminates the weak point of a mechanical joint, making it well-suited for precision motion control in CNC, robotics, and automation applications.

What machines and applications commonly use HTD-5M timing belts?

HTD-5M closed loop timing belts are widely used in large-format 3D printers, CNC routers, laser cutters, robotic arm joints, conveyor indexing systems, and general industrial automation equipment. The 5mm pitch offers a practical balance between tooth strength and positional accuracy for medium-speed, moderate-torque synchronous drives.

How do I convert belt length between mm and inches?

Divide millimeters by 25.4 to convert to inches. Quick reference examples from this listing: 1000mm ≈ 39.4", 1500mm ≈ 59.1", 2000mm ≈ 78.7", 2500mm ≈ 98.4", 3000mm ≈ 118.1", 4260mm ≈ 167.7". All variant names in this listing include both the tooth count and the length in mm for easy identification.

🛒 Select your size above, then add to cart — ships from our US warehouse.
