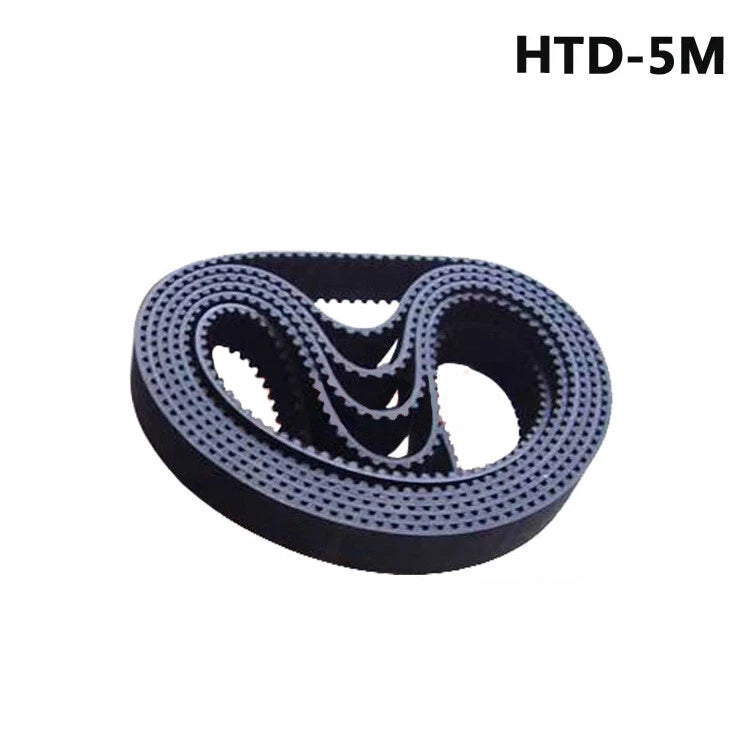

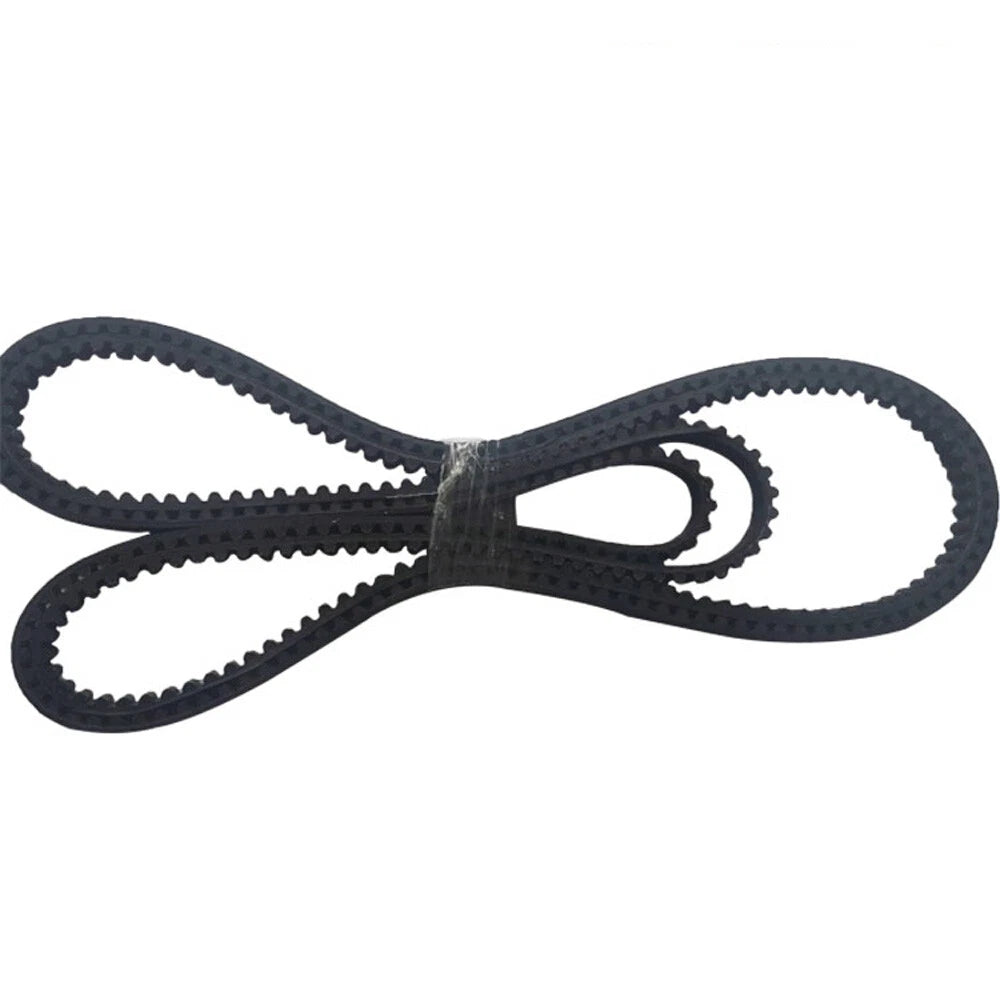

HTD 5M Timing Belt — Reliable Close-Loop Drive for 3D Printers, CNC & DIY Builds

When a slipping or stretched drive belt throws off your 3D printer's layer alignment or causes your CNC router to lose steps mid-cut, the fix starts with the right replacement. This HTD 5M close loop rubber timing belt is built for makers, machine builders, and repair technicians who need a dimensionally accurate, drop-in drive belt without the guesswork.

Each belt features the HTD 5M tooth profile — 5mm pitch (tooth-to-tooth spacing) — with a 10mm (≈3/8") width and a fiber-reinforced rubber construction. Circumference options run from 175mm (≈6.9") up to 2100mm (≈82.7"), covering the vast majority of desktop and benchtop machine formats. Select your exact loop length from the variant dropdown above.

Typical applications include CoreXY and Cartesian 3D printer axes, CNC router gantry drives, laser engraver carriages, DIY electric scooter secondary drives, and light-duty robotic joint actuators — anywhere an HTD 5M close loop rubber timing belt with 10mm width is specified.

🔗 Compatibility: Fits all standard HTD 5M pulleys with a groove width of 10mm or wider. Verify your pulley pitch is 5mm before ordering.
⚠️ Size tip: Belt sizes are listed as circumference in mm (e.g., "500-5M" = 500mm loop, 5M profile). Measure your existing belt's outer circumference or calculate from your pulley center distance before selecting a variant.

✅ Key Features of These HTD 5M Close Loop Rubber Timing Belts

  • ⚙️HTD 5M Tooth Profile — The curved HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque 3D printer and CNC router drive systems.
  • 📏Wide Size Range — Available in circumferences from 175mm (≈6.9") to 2100mm (≈82.7"), covering most desktop 3D printers, laser engravers, and DIY CNC gantry belt replacements without custom cutting.

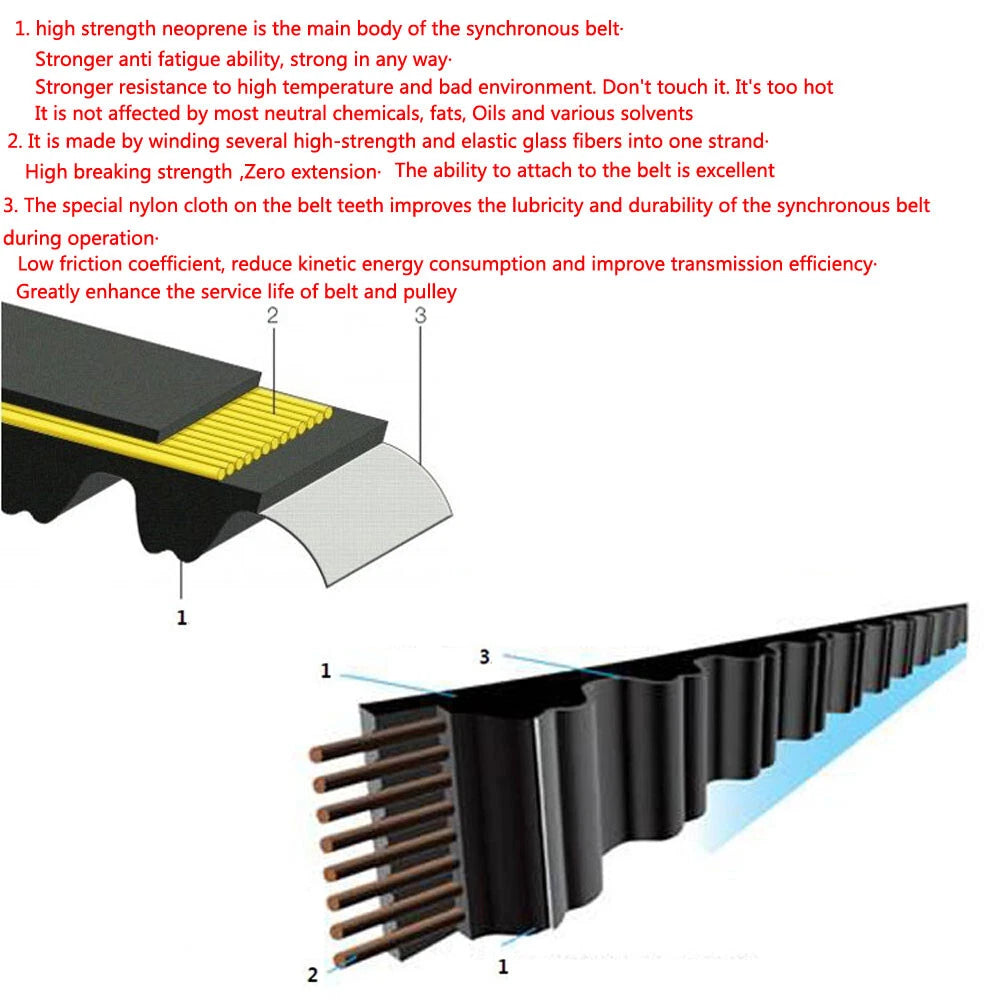

  • 🔩Fiber-Reinforced Rubber Construction — Internal tensile cords resist elongation under cyclic loading, helping maintain consistent positioning accuracy over extended print or cutting sessions.
  • 📐10mm Width, Standardized Fit — The 10mm (≈3/8") belt width matches the most common HTD 5M pulley groove specification used in open-source 3D printer frames and CNC kits.
  • 🔄Close Loop (Endless) Design — No splice or join point means uniform stiffness around the full loop, eliminating the vibration and positional error that spliced belts can introduce in precision motion systems.
  • 🛠️Direct Replacement Fit — Dimensionally compatible with HTD 5M belts used in Voron, RatRig, Creality, and similar open-frame printer designs, as well as generic CNC router and laser engraver kits that specify a 5mm pitch rubber timing belt.

📐 Technical Specifications — HTD 5M Rubber Timing Belt

Belt Profile HTD 5M (High Torque Drive, 5mm pitch)
Pitch 5mm (0.197")
Width 10mm (≈3/8")
Circumference Range 175mm (≈6.9") – 2100mm (≈82.7")
Belt Type Close loop (endless)
Material Rubber with fiber tensile cord reinforcement
Tooth Form HTD (curvilinear / rounded)
Compatible Pulleys HTD 5M pulleys, 10mm groove width or wider
Typical Operating Temp. Generally –20°C to +80°C (–4°F to +176°F)
Color Black
Quantity per Order 1 piece (select size above)

❓ Frequently Asked Questions

How do I choose the right belt length for my machine?

Measure the center-to-center distance between your two pulleys, then use the standard belt-length formula: Belt Length ≈ 2C + π(D1+D2)/2, where C is center distance and D1/D2 are pulley pitch diameters. For example, a 500mm (≈19.7") belt typically suits a center distance of roughly 200–220mm with common HTD 5M pulleys. When in doubt, size up — a slightly longer belt can be tensioned; a short one cannot be installed. You can also remove your existing belt and measure its outer circumference directly.

What does "5M" mean in the belt designation?

"5M" refers to the HTD (High Torque Drive) tooth profile with a 5mm pitch — the distance from one tooth center to the next. The "HTD" prefix indicates the curvilinear (rounded) tooth form, which generally provides better load distribution than older trapezoidal (MXL, XL, L) profiles. This belt is not interchangeable with GT2 or other pitch belts even if the width is the same.

How much load or torque can this belt handle?

HTD 5M belts are generally suited for light-to-medium power transmission. Typical tangential force capacity is in the range of 50–200 N depending on belt circumference, number of teeth in mesh, and operating speed. For high-torque or continuous-duty industrial applications, consult the drive system manufacturer's load tables and apply an appropriate service factor.

Can I use this belt outdoors or in a wet/dusty environment?

The rubber compound used in HTD timing belts is generally resistant to light moisture and moderate temperatures (typically –20°C to +80°C / –4°F to +176°F). For prolonged outdoor UV exposure, chemical splash, or oil-mist environments, a neoprene or polyurethane belt variant is generally recommended. Contact us to confirm suitability for your specific operating conditions.

Is this belt compatible with my existing HTD 5M pulleys?

Yes — HTD 5M is a standardized tooth profile. This belt is compatible with any HTD 5M pulley with a groove width of 10mm or wider. Verify that your pulley's pitch matches 5mm and that the belt width does not exceed the pulley flange width. It is not compatible with GT2, T5, or other pitch pulleys.

What machines commonly use HTD 5M timing belts?

HTD 5M timing belts are widely used in: 3D printers (CoreXY designs like Voron, RatRig; Cartesian designs like Ender series), CNC routers and laser engravers, robotics and servo-driven joints, electric scooter secondary drives, and general DIY automation and conveyor projects. The 5mm pitch strikes a balance between tooth strength and compact pulley diameter.

How do I install and tension the belt correctly?

Route the belt over both pulleys and adjust the center distance (or idler position) until the belt deflects approximately 1–2mm under light finger pressure at the midpoint of the longest free span. Over-tensioning accelerates bearing wear and tooth fatigue; under-tensioning causes tooth skipping under load. A belt tension gauge is recommended for precision CNC or 3D printing applications where positional accuracy matters.

🛒 Select your belt length above, then add to cart — ships from our US warehouse.
