HTD 5M Closed-Loop Timing Belt — 15mm Wide, 5mm Pitch for CNC and Power Transmission
When a slipping or mismatched belt causes positioning errors on your CNC router, 3D printer, or conveyor drive, the entire project stalls. Machinists, makers, and automation engineers who rely on precise, repeatable motion need a belt that stays in sync under load — without stretching, skipping, or wearing out prematurely.

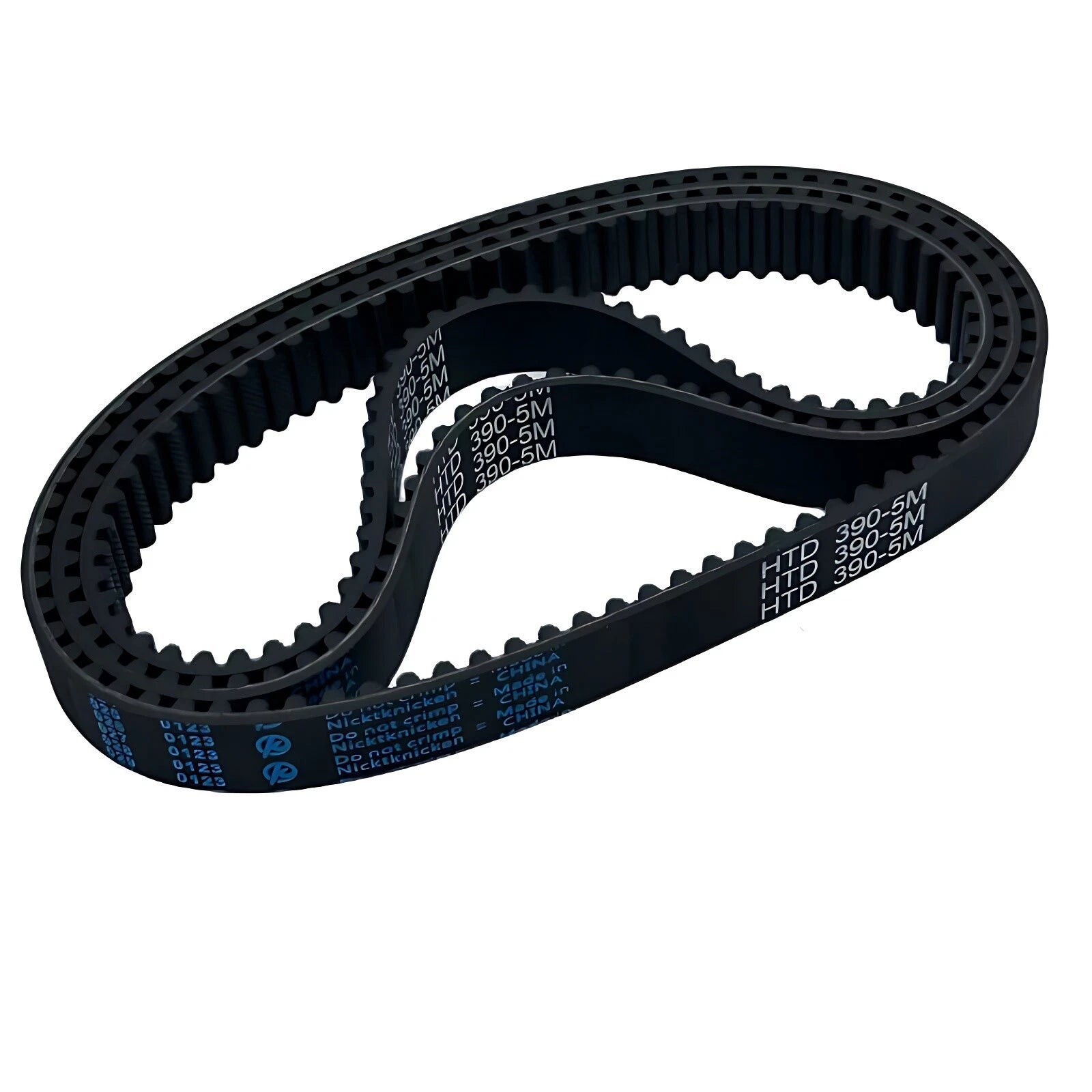

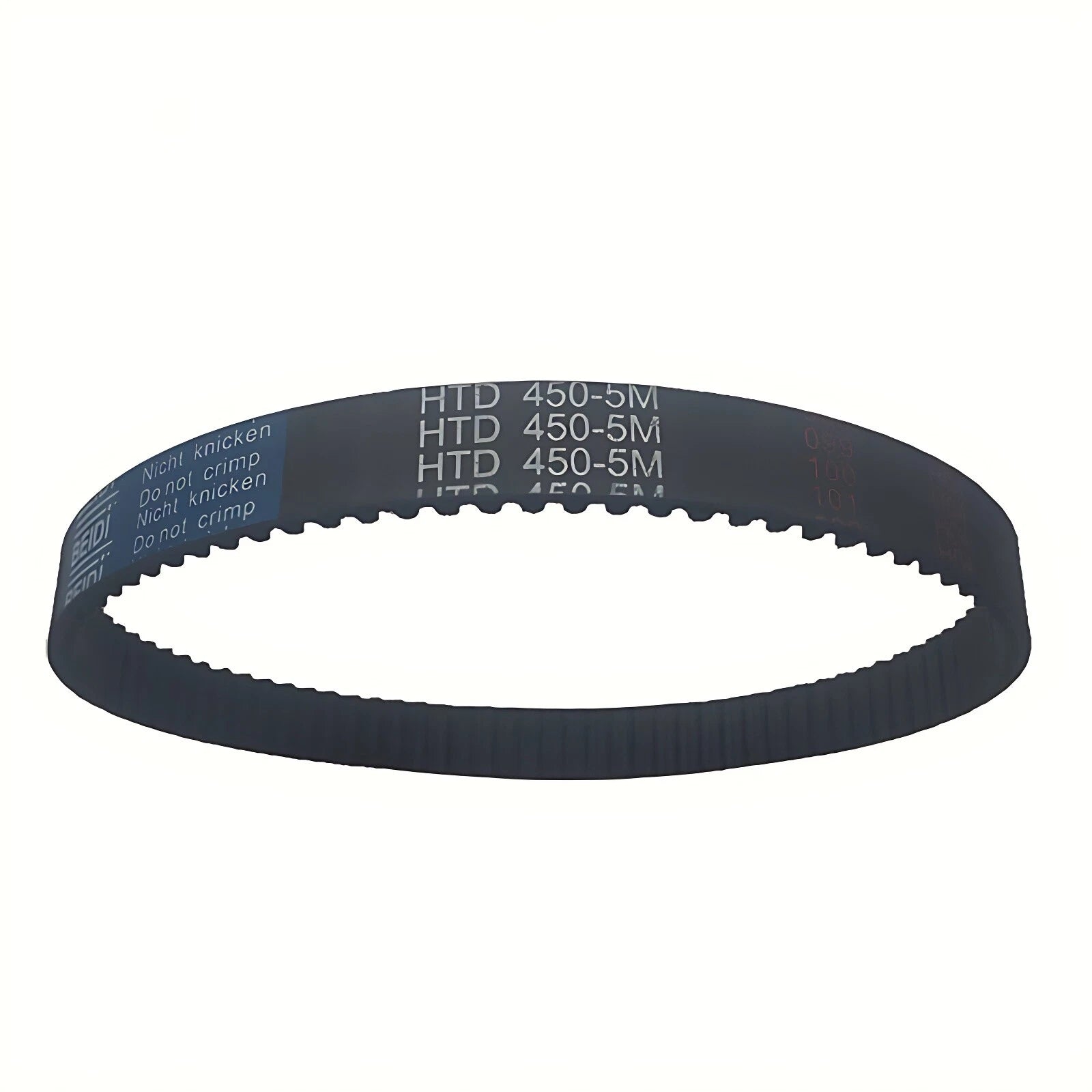

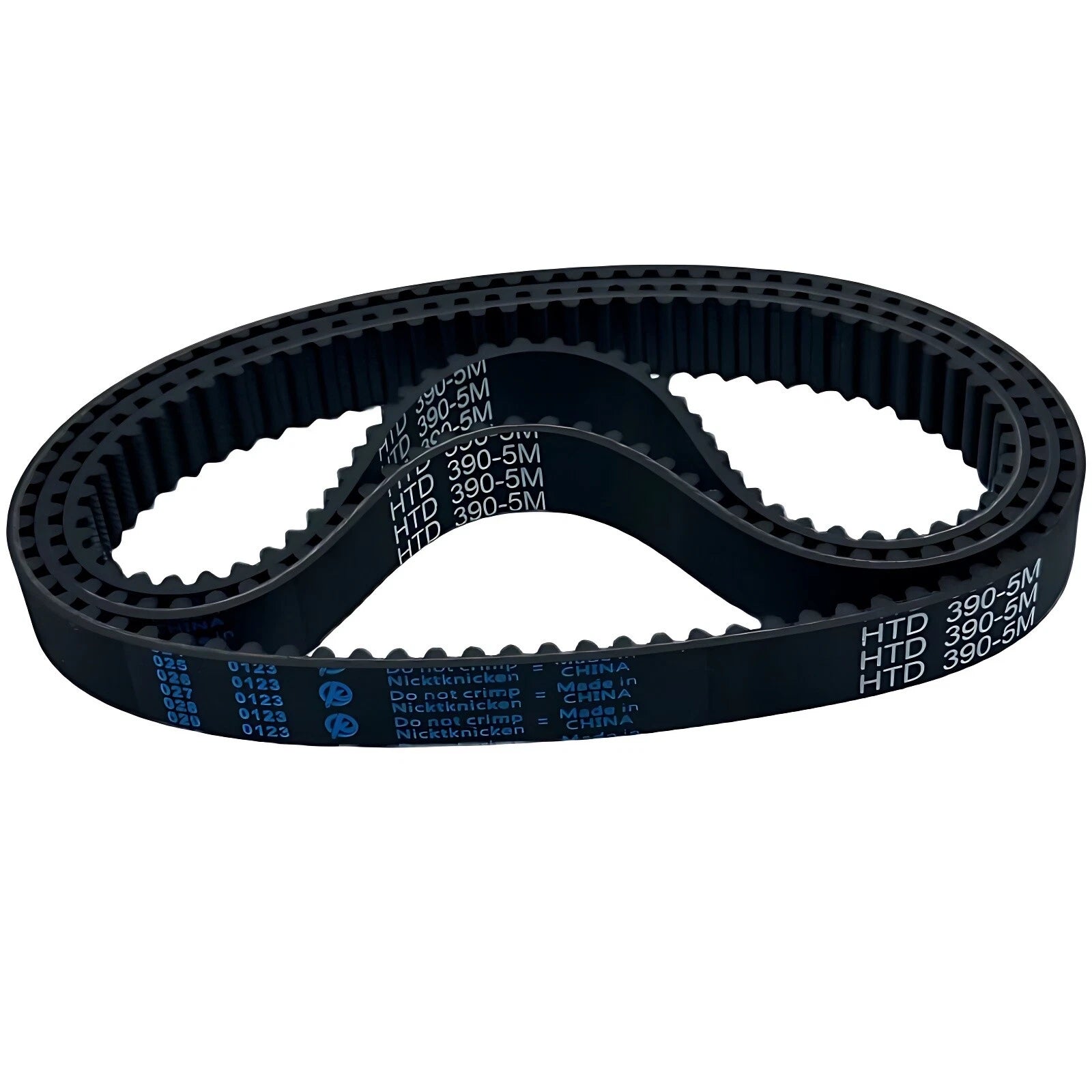

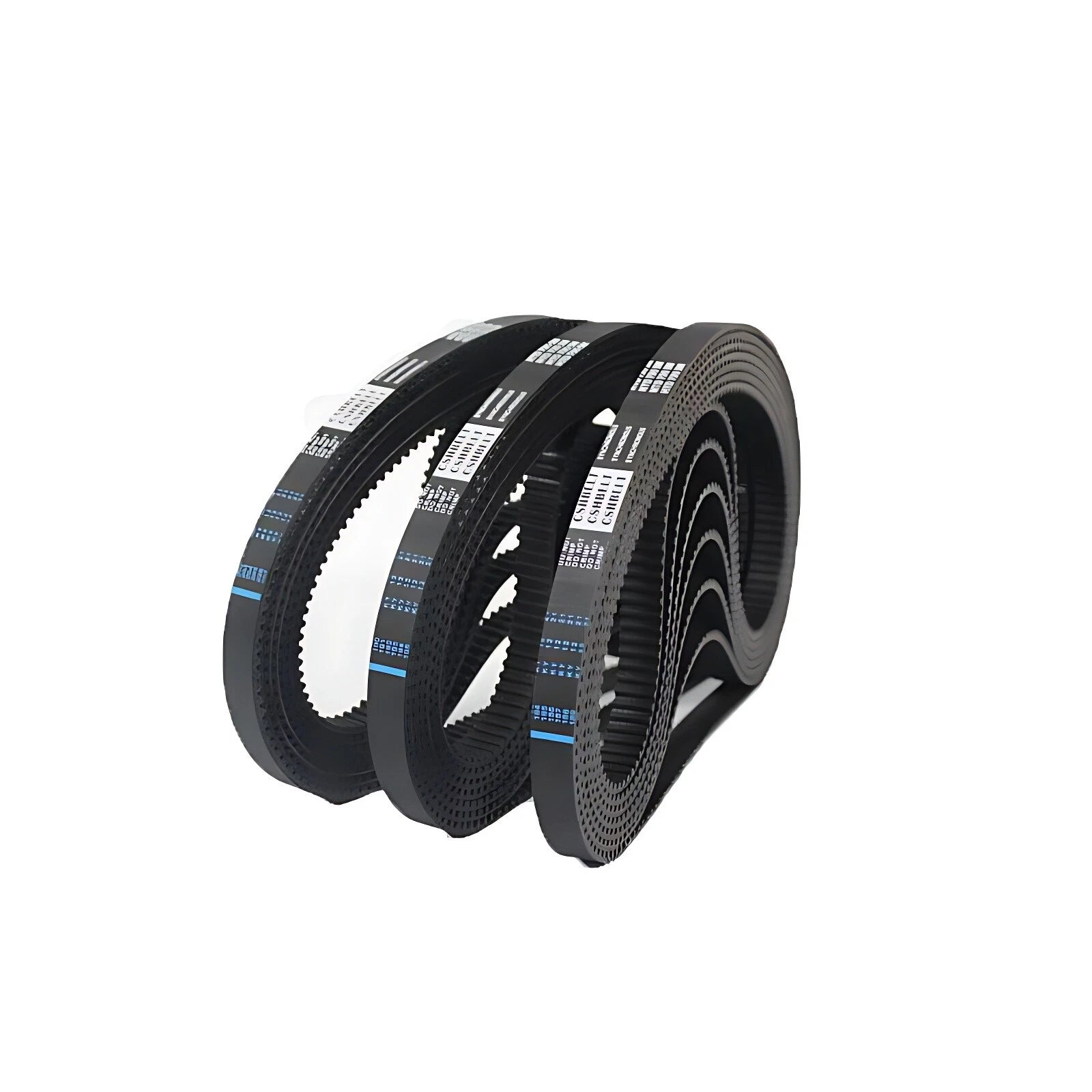

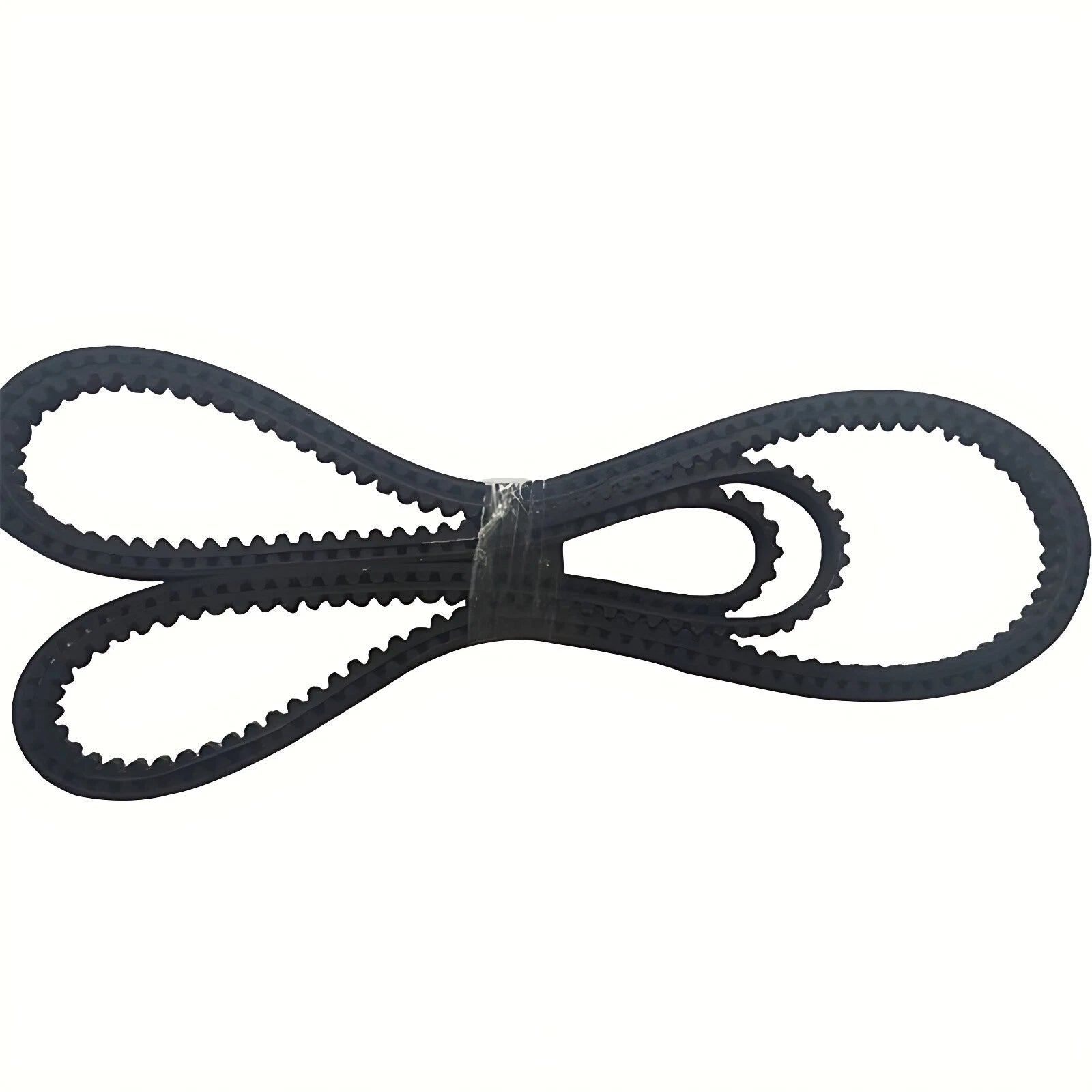

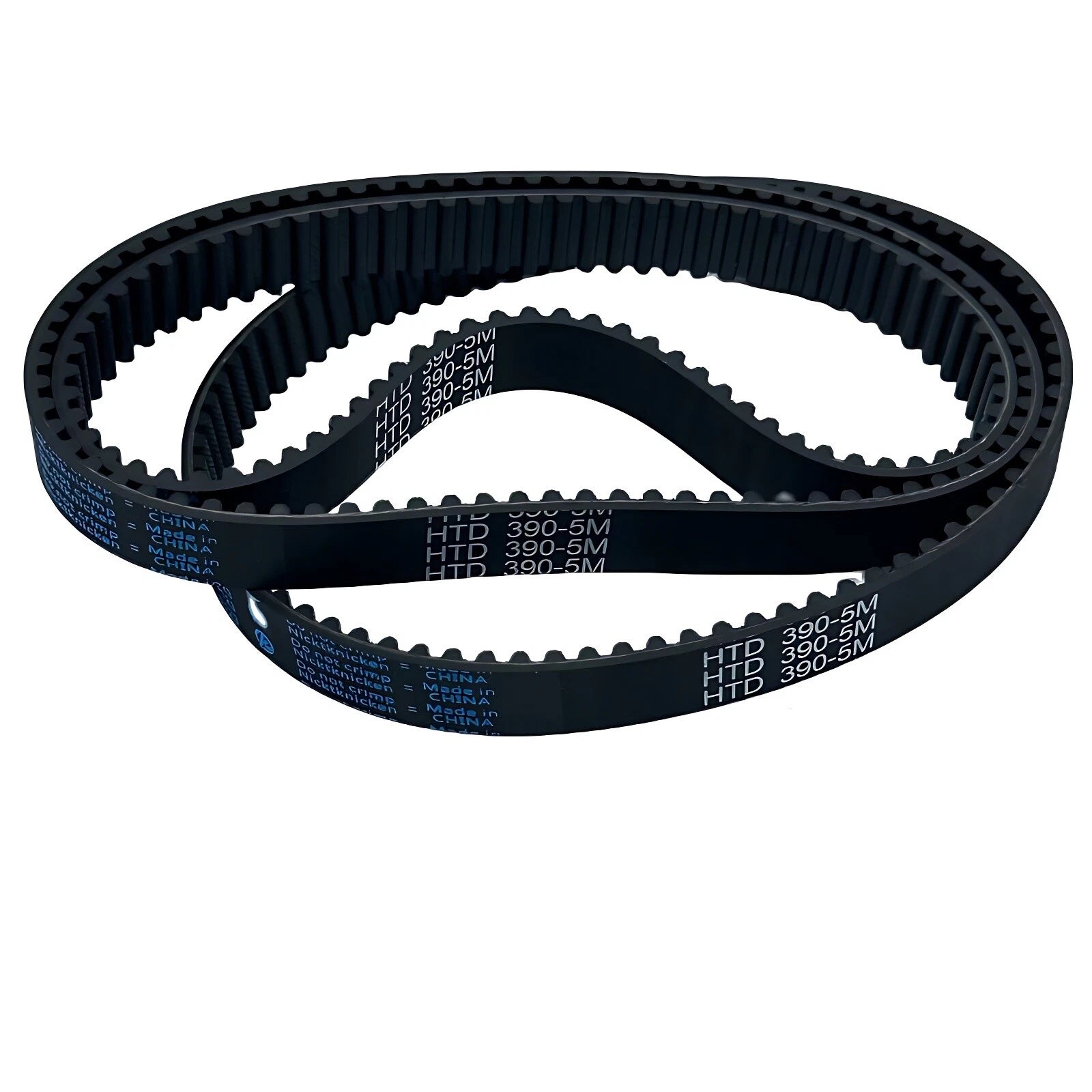

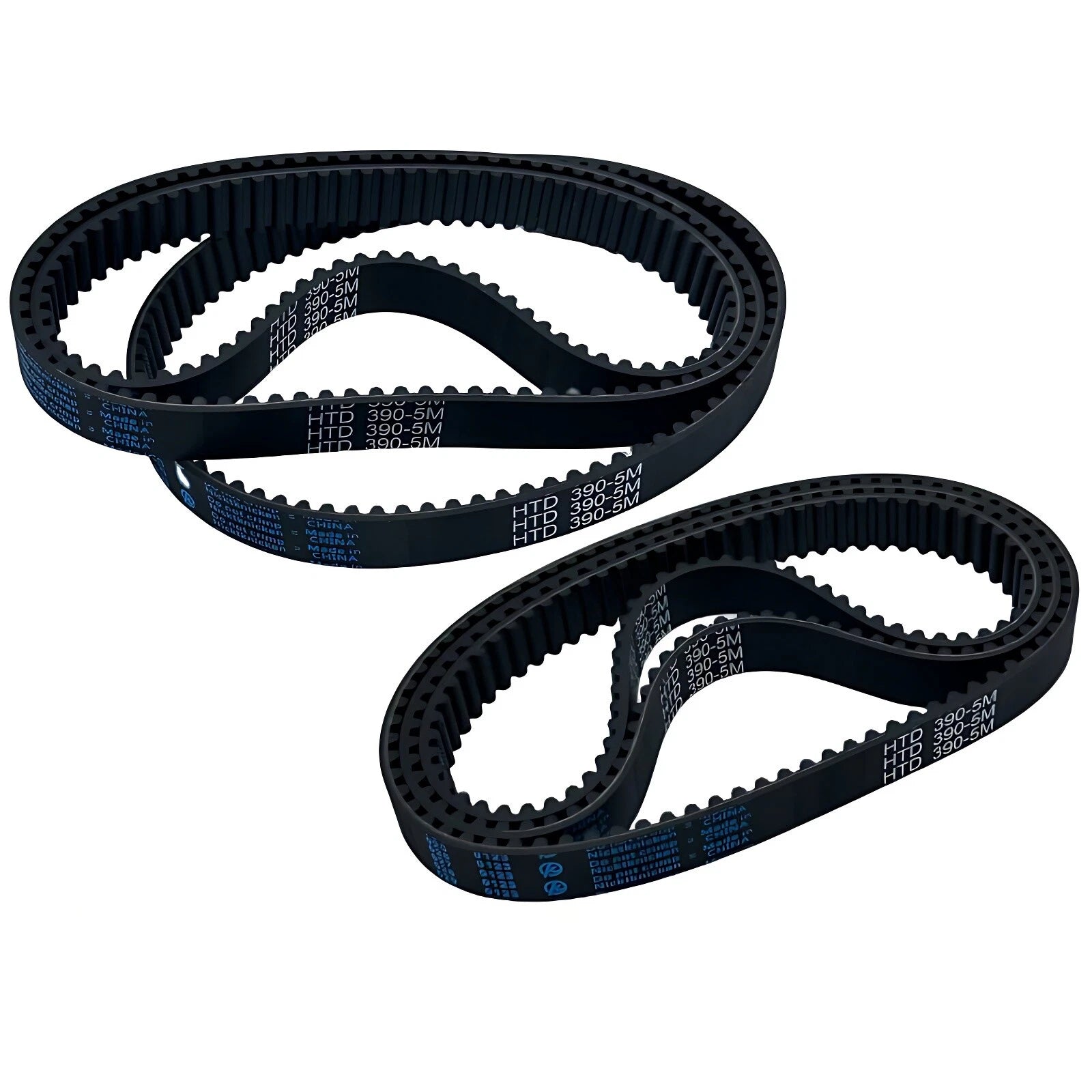

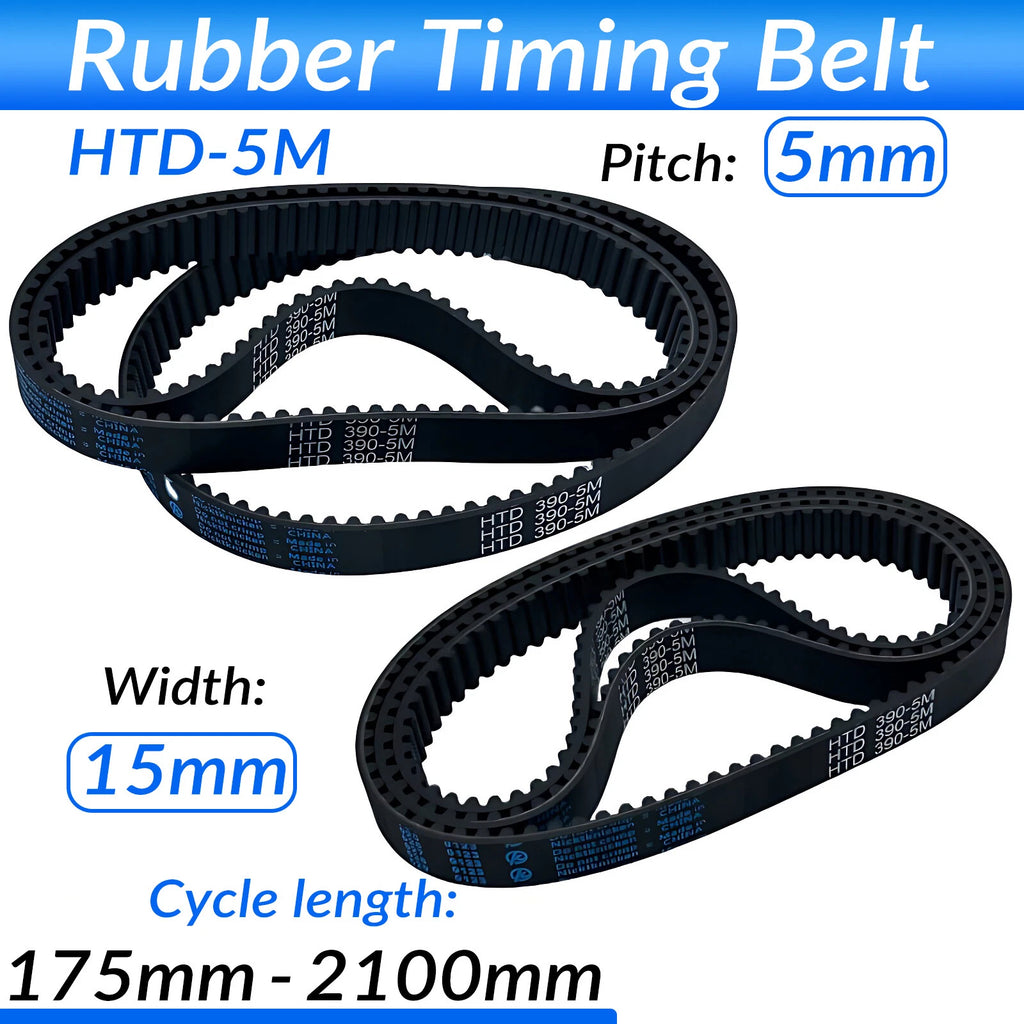

Each listing is for one (1) HTD 5M closed-loop synchronous belt with a 5mm pitch and 15mm (≈0.59") width. The rubber body is reinforced with fiberglass or steel cord tensile members (construction may vary by size), giving the belt dimensional stability under tension. Available circumferences range from 175mm (≈6.9") to 2100mm (≈82.7") — select your exact loop length from the variant dropdown above.
Typical applications include CNC router X/Y axis drives, laser cutter gantry systems, 3D printer motion platforms, and light industrial conveyor or indexing drives where an HTD 5M closed-loop timing belt replacement is needed.
🔗 Compatibility: Fits HTD 5M pulleys only (5mm pitch, curvilinear tooth profile). Not compatible with GT2, T5, MXL, or XL pulleys. Confirm your pulley flange width accommodates a 15mm belt before ordering.
✅ Key Features of These HTD 5M Closed-Loop Timing Belts
-
⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in moderate-torque CNC synchronous belt applications.
-

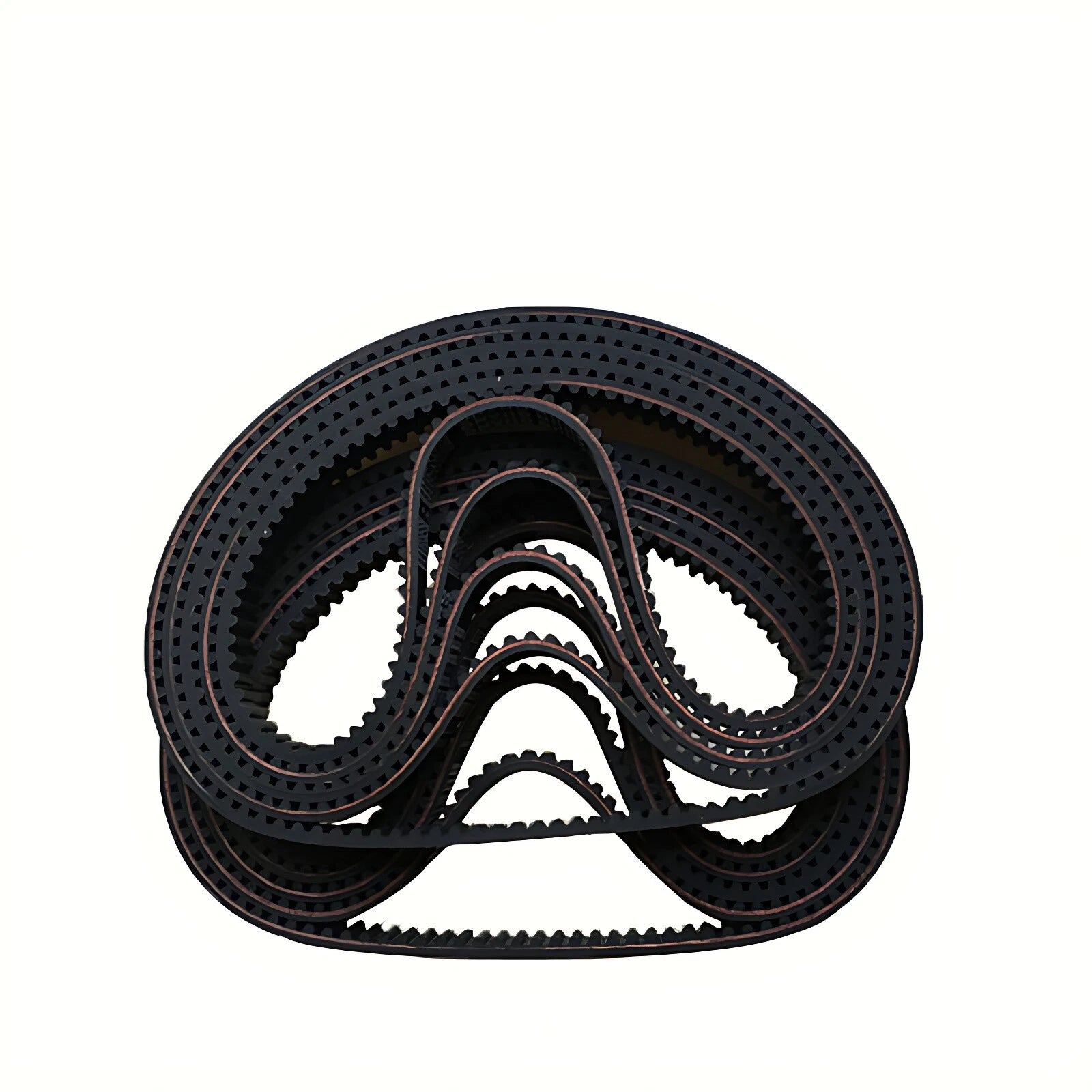

📏Wide Size Selection (175mm–2100mm) — Over 250 circumference options in 5mm increments let you find an exact closed-loop timing belt replacement without custom cutting or splicing.
-
🔩15mm Belt Width — Wider than standard 6mm or 9mm variants, the 15mm width increases lateral rigidity and torque capacity, making it well-suited for gantry-style CNC router drives and conveyor indexing systems.
-
🧵Reinforced Tensile Core — Internal cord reinforcement (typically fiberglass or steel) resists elongation under sustained tension, helping maintain positional accuracy over extended run cycles.
-
🔄Closed-Loop Construction — Seamless loop design eliminates the splice point that can cause vibration or failure in cut-and-joined belts, providing smoother motion in precision drive systems.
-
🏭Broad Application Fit — Used in CNC routers, laser engravers, 3D printer motion systems, and light industrial automation where a 5mm pitch HTD synchronous belt is specified by the machine manufacturer.
📐 Technical Specifications — HTD 5M Timing Belt
| Belt Profile |
HTD (High Torque Drive), curvilinear tooth |
| Pitch |
5mm |
| Belt Width |
15mm (≈0.59") |
| Circumference Range |
175mm (≈6.9") – 2100mm (≈82.7"); see variant options |
| Loop Type |
Closed loop (seamless) |

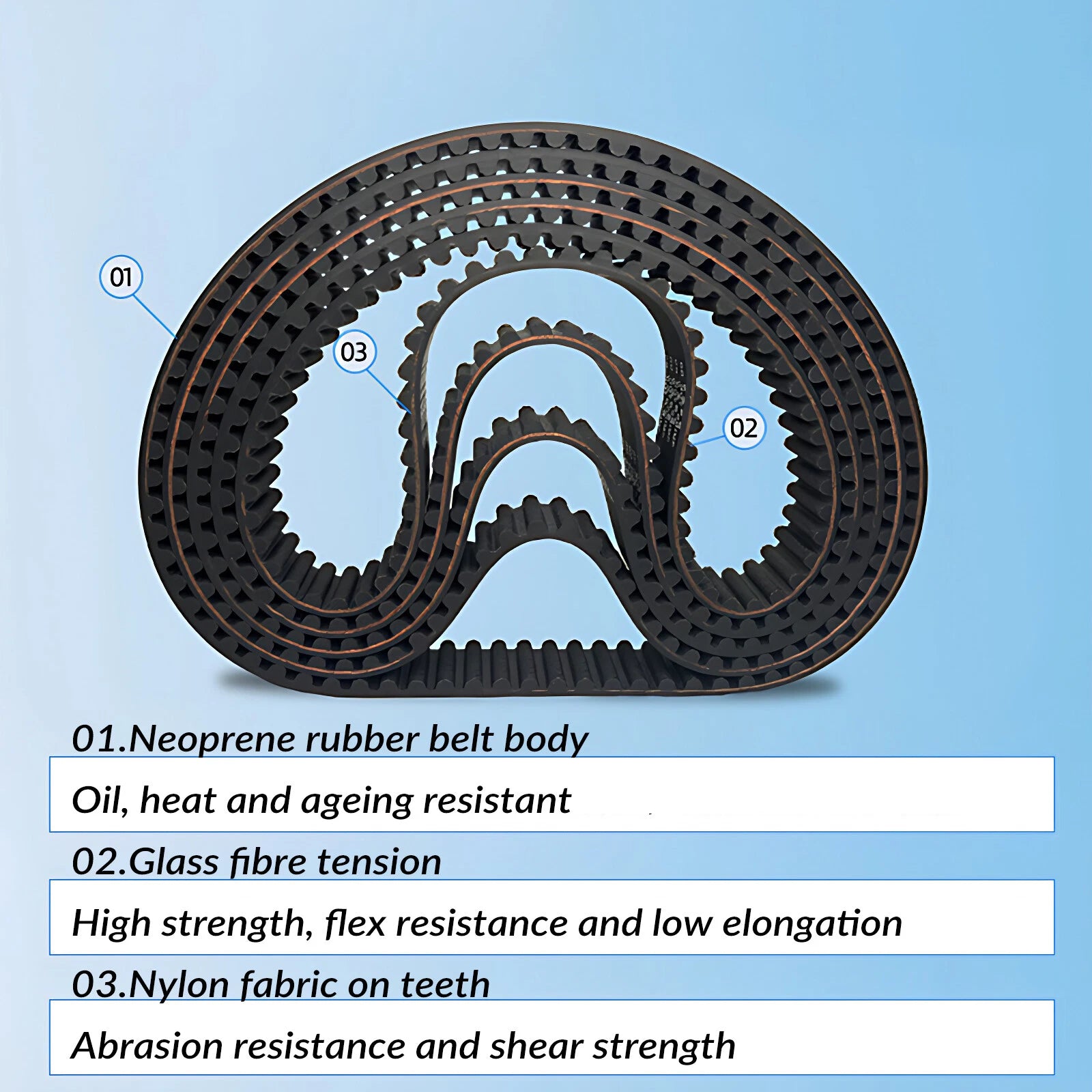

| Body Material |
Rubber (neoprene or EPDM compound; see variant options) |
| Tensile Member |
Fiberglass or steel cord reinforcement (typically) |
| Tooth Facing |
Nylon fabric (typically) |
| Compatible Pulley Profile |
HTD 5M only |
| Operating Temperature |
Contact us to confirm |
| Quantity per Order |
1 piece (select quantity variant for multi-packs) |
| Country of Origin |
See variant options |

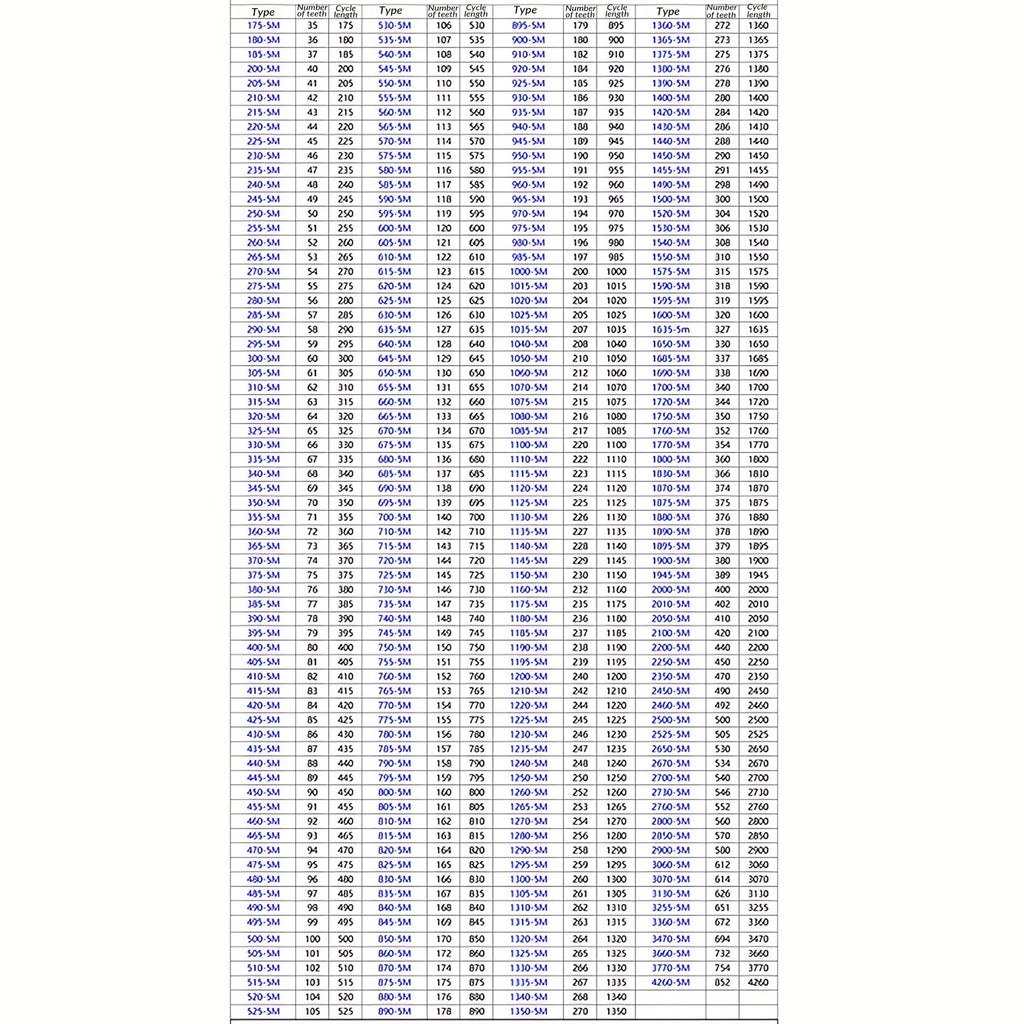

⚠️ Sizing Note: The variant name (e.g., "500-5M-15MM") indicates the belt circumference in mm — not the center-to-center distance. Measure your existing belt or calculate the required loop length before selecting a size.
❓ Frequently Asked Questions
How do I choose the right belt circumference?
Measure the center-to-center distance between your two pulleys, then use the formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2. For example, a 500mm (≈19.7") belt typically suits a ~200mm center distance with standard pulleys. Always verify against your pulley specs before ordering. When in doubt, size up — you can adjust tension with an idler.
What load can an HTD 5M belt handle?
HTD 5M belts generally handle moderate power transmission loads. The 15mm width typically supports higher torque than narrower 6mm or 9mm variants of the same pitch. Actual capacity depends on pulley diameter, RPM, and pre-tension — consult your drive system's engineering specs to confirm suitability for your application.
Can this belt be used outdoors or in wet environments?
HTD rubber timing belts are generally not recommended for prolonged outdoor UV exposure or continuous immersion in water or chemicals. In most cases they perform well in enclosed, dry-to-slightly-humid environments. For outdoor or washdown applications, a polyurethane (PU) belt variant is typically a better choice.
What pulleys are compatible with this belt?
This belt uses the HTD (High Torque Drive) tooth profile with a 5mm pitch. It is compatible with HTD 5M pulleys only — not interchangeable with GT2, MXL, T5, or XL pulleys. Also confirm your pulley's flange width is rated for a 15mm belt to prevent the belt from walking off under load.
How do I convert belt circumference from mm to inches?
Divide the mm value by 25.4. Quick reference examples:
- 500mm ÷ 25.4 ≈ 19.7"
- 750mm ÷ 25.4 ≈ 29.5"
- 1000mm ÷ 25.4 ≈ 39.4"
- 1500mm ÷ 25.4 ≈ 59.1"
- 2000mm ÷ 25.4 ≈ 78.7"
All variant sizes listed are the outer circumference of the closed loop.
Is this belt suitable for 3D printers and CNC routers?
Yes. HTD 5M belts are commonly used in CNC routers, laser cutters, and larger-format 3D printers where GT2 belts are too small for the required torque or span. The 15mm width provides additional lateral stability for gantry-style motion systems. Verify your machine's belt specification before ordering.
What is the difference between HTD 5M and GT2 or T5 belts?
HTD 5M has a rounded, curvilinear tooth profile designed for higher torque and reduced backlash compared to trapezoidal profiles like T5. GT2 uses a different curvilinear profile with a 2mm pitch — much smaller and not interchangeable. These profiles require matching pulleys and are not cross-compatible.
