Can this belt be used outdoors or in wet environments?

The rubber compound used in HTD 5M belts is generally resistant to light moisture and dust, making them suitable for semi-protected environments. However, prolonged exposure to UV, oils, or standing water can degrade the belt over time. For outdoor or harsh-environment applications, we recommend periodic inspection.

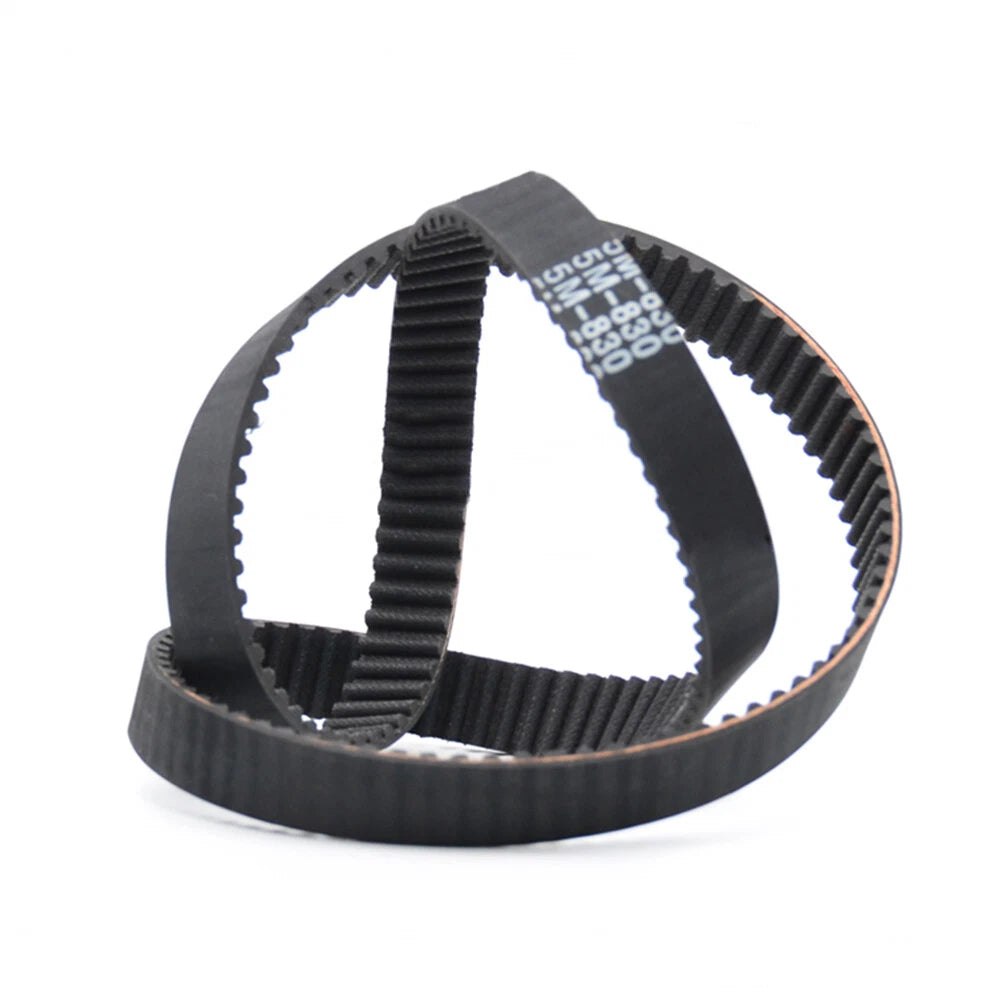

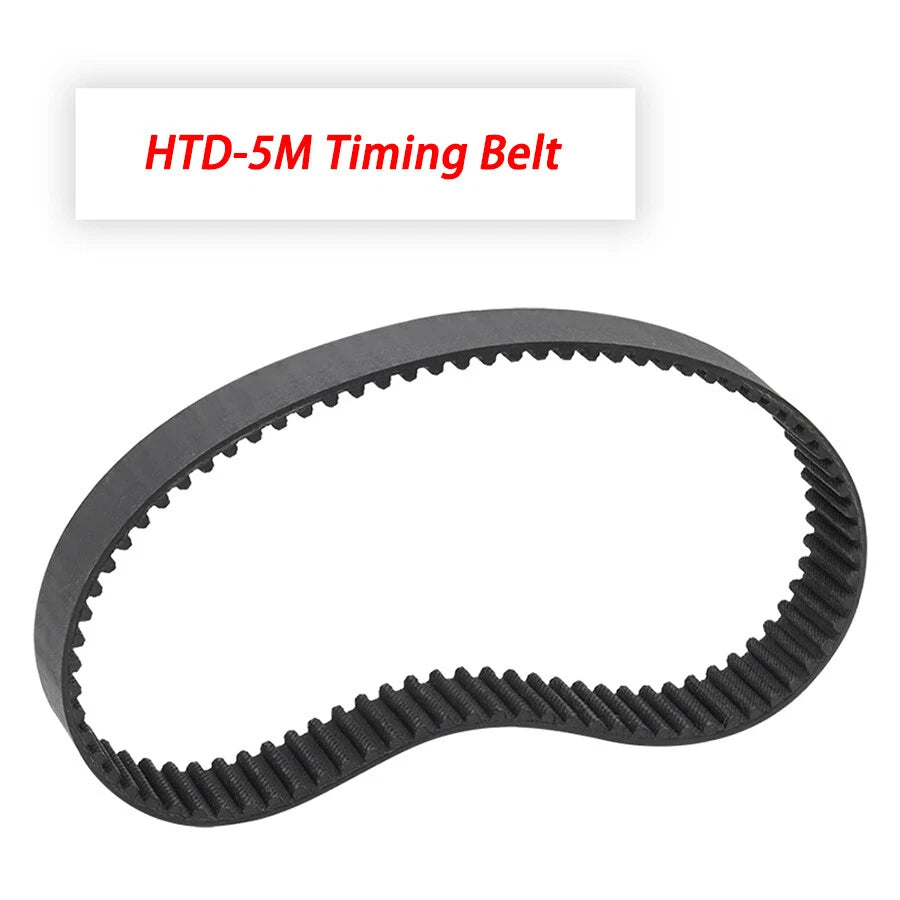

HTD 5M Timing Belt 20mm Wide Closed Loop — 175mm to 3770mm | Rubber Drive Belt for CNC, 3D Printer & Pulley Systems

Zum Zoomen über das Bild scrollen Klicke zum Zoomen auf das Bild

HTD 5M Timing Belt 20mm Wide Closed Loop — 175mm to 3770mm | Rubber Drive Belt for CNC, 3D Printer & Pulley Systems

HomeDIYer

Keine Bewertungen

By HomeDIYer®

Timing Belt Model: HTD 5M (5mm Pitch)

Belt Width: 20mm

Loop Circumference & Number Of Teeth: 175mm & 35T

Preis:

$13.60 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

HTD 5M Timing Belt 20mm Wide — Closed Loop Drive Belt for CNC, 3D Printers & Automation

When a slipping or undersized drive belt causes positioning errors on your CNC router, laser cutter, or automation rig, the entire project stalls. Engineers, makers, and machine builders who need a reliable closed-loop HTD 5M timing belt in a wider 20mm profile — without waiting weeks for a custom order — will find exactly what they need here.

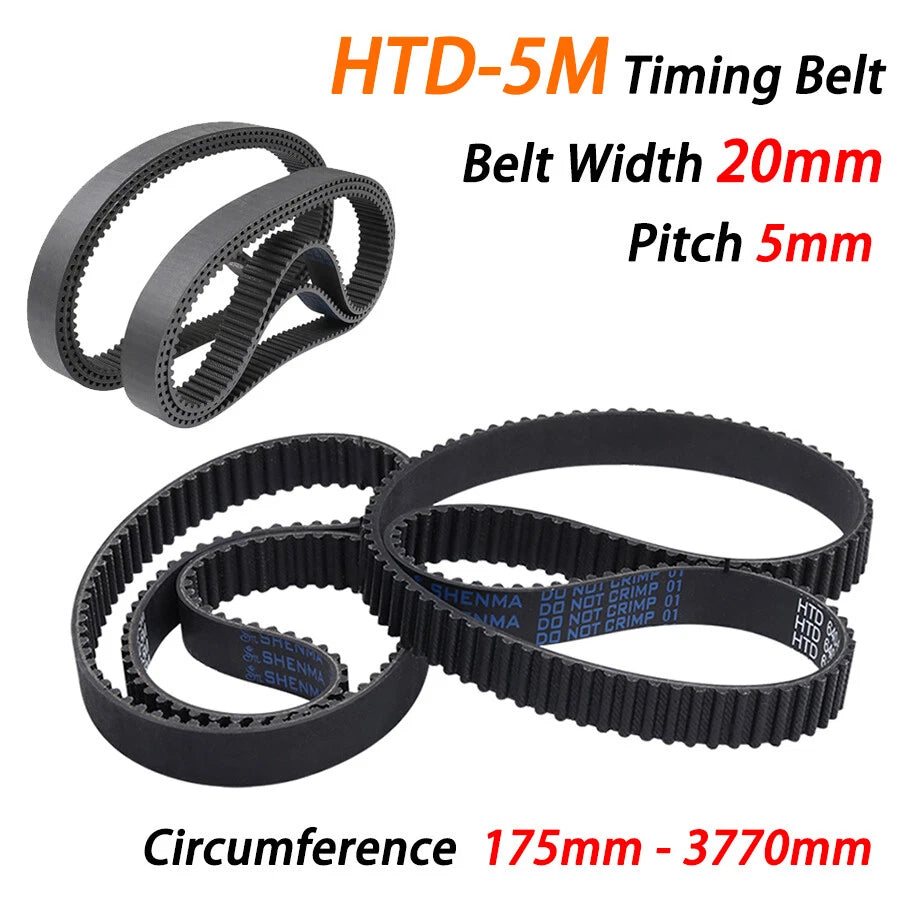

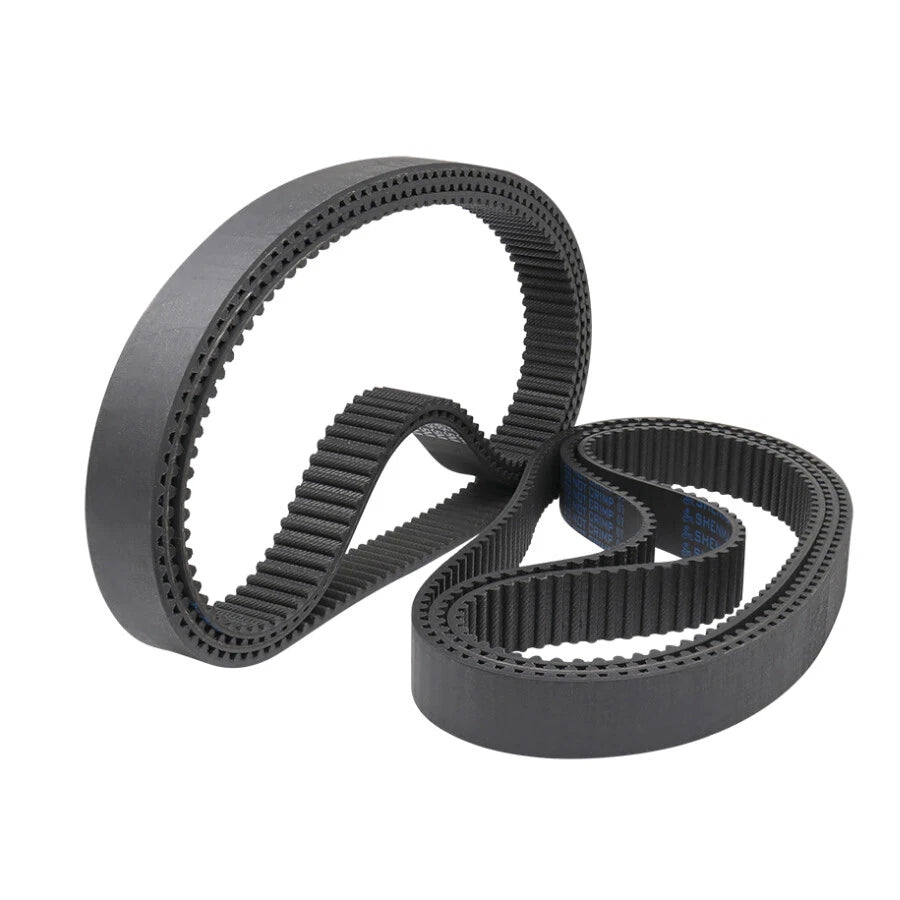

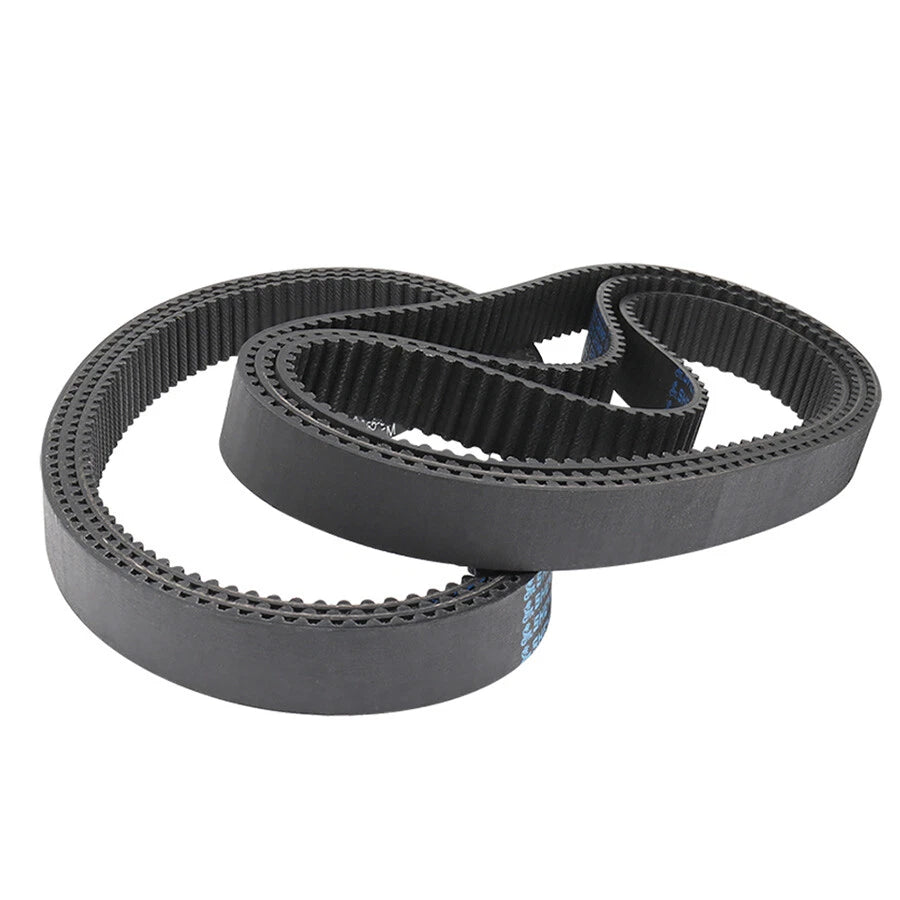

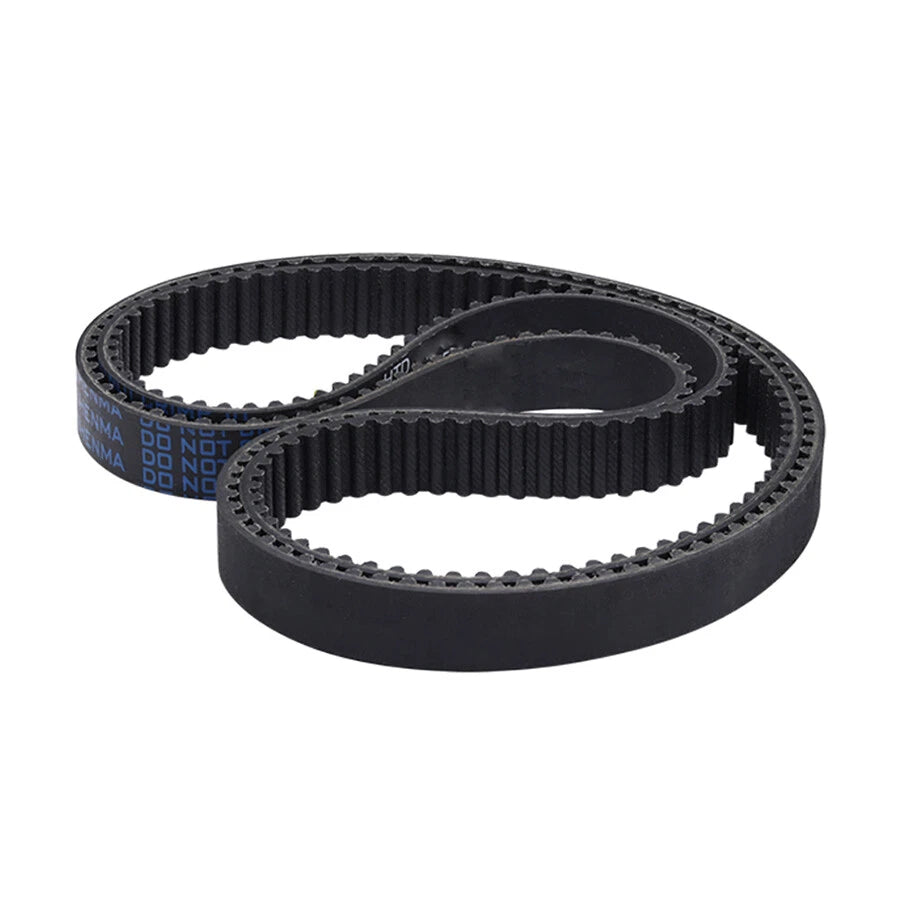

Each belt is a single closed-loop rubber timing belt with a 5mm pitch (HTD 5M profile) and a fixed 20mm (≈ 13/16") width. Loop circumferences range from 175mm (≈ 6.9") to 3770mm (≈ 148.4"), with tooth counts from 35T to 754T — available in multiple sizes to match your specific drive geometry. The rubber compound is reinforced with internal tensile cords for dimensional stability under load.

Typical use cases include CNC gantry drives where a wider belt reduces flex under cutting loads, closed-loop conveyor systems in light industrial automation, and large-format 3D printer axis drives that require the torque capacity of an HTD 5M closed-loop rubber belt rather than a narrower GT2 profile.

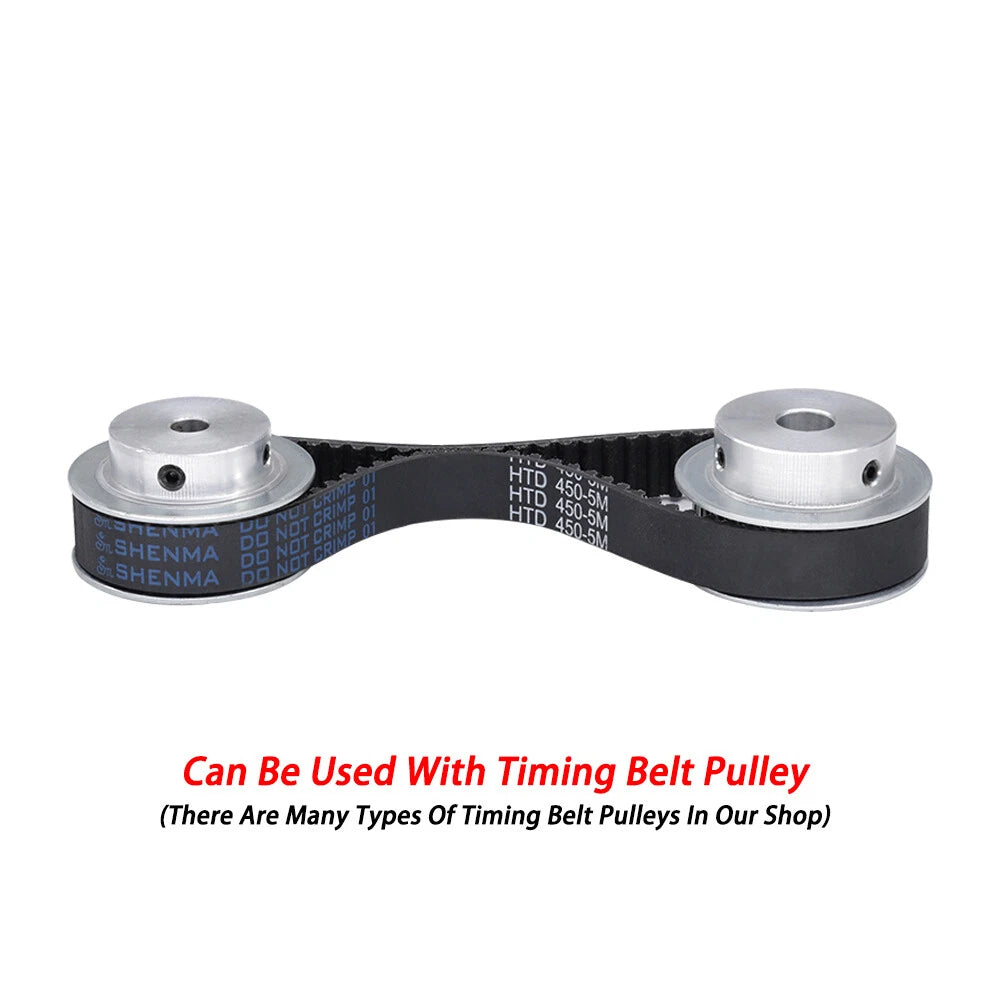

ℹ️ Compatibility: Fits standard HTD 5M pulleys (5mm pitch, rounded tooth profile). Not compatible with GT2, T5, MXL, or XL pulleys. Verify your pulley is labeled HTD 5M before ordering.

⚠️ Size confirmation: Loop circumference and tooth count are listed in the variant selector above. If your required size is not listed, please contact us to confirm availability before purchasing.

✅ Key Features of These HTD 5M Closed-Loop Timing Belts

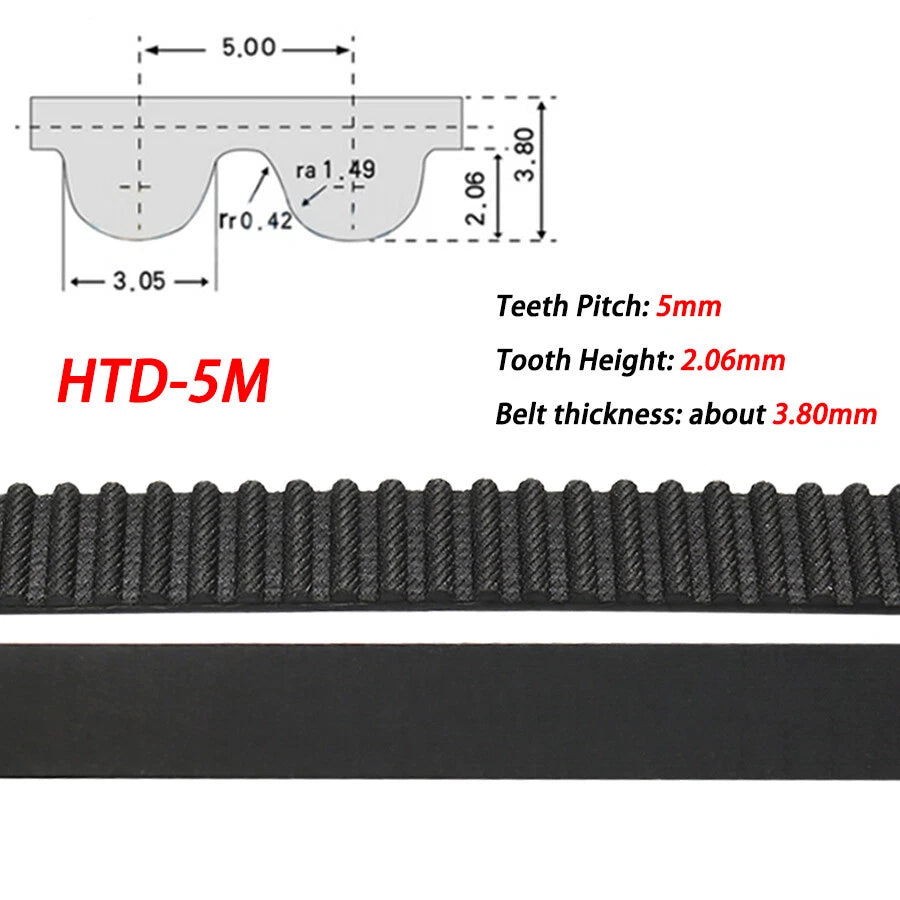

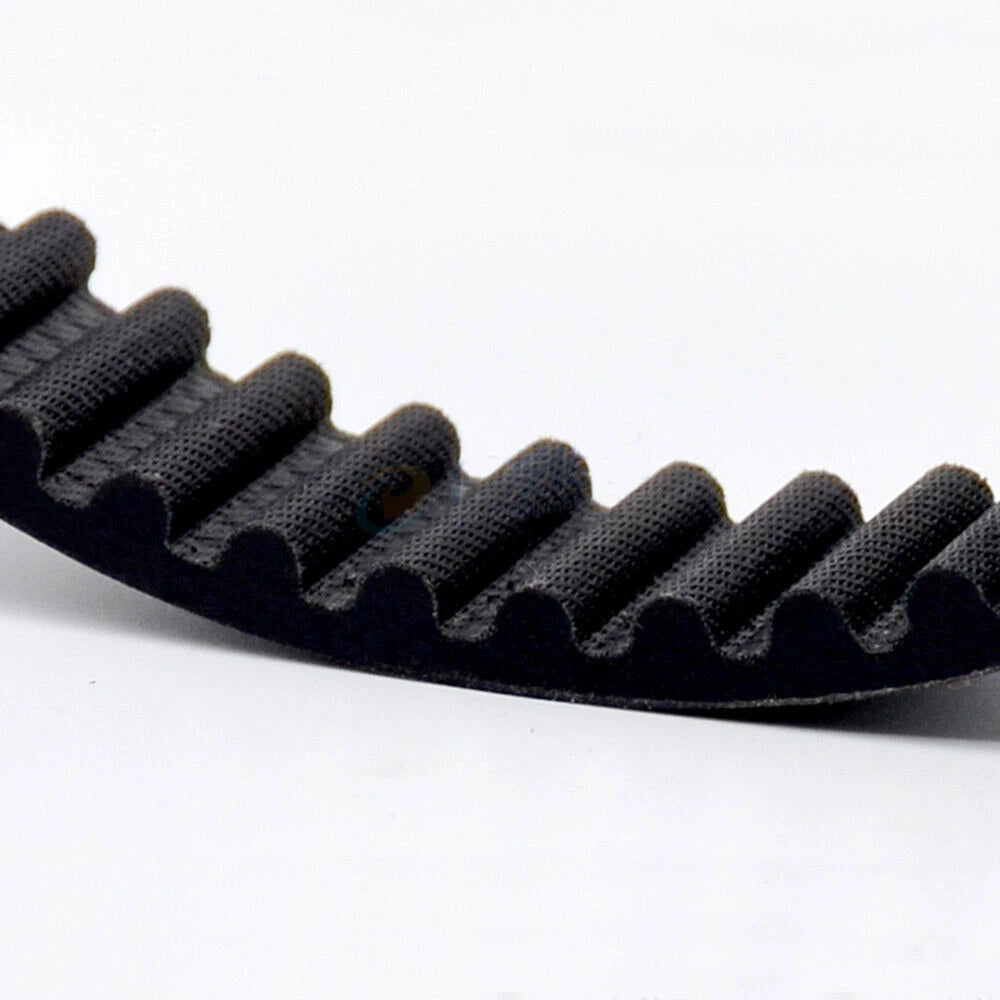

⚙️ HTD 5M Tooth Profile — The rounded curvilinear tooth design distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque closed-loop drive applications.

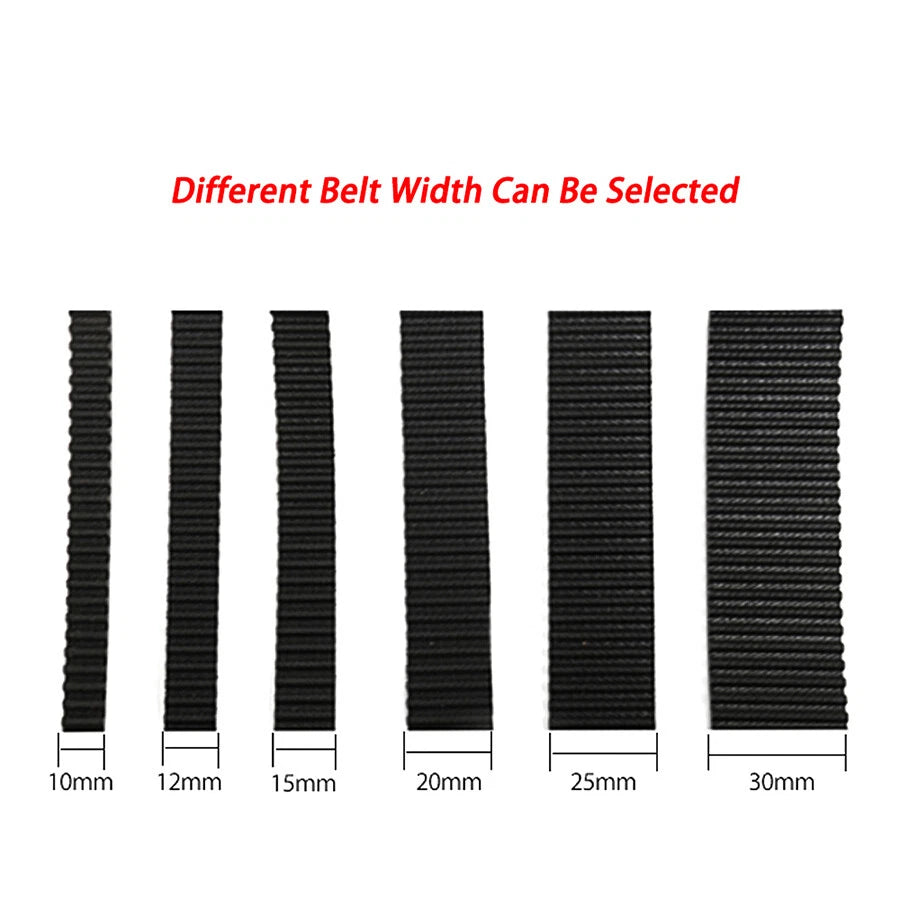

📏 20mm Belt Width — Wider than standard 9mm or 15mm HTD belts, the 20mm (≈ 13/16") width increases power capacity and lateral rigidity — useful for CNC router gantries and heavier automation axes.
🔁 Closed-Loop Construction — Factory-joined endless loop eliminates the splice point weakness of open-ended belts, providing consistent tension and repeatable positioning in CNC and 3D printer drive systems.
🧵 Internal Tensile Cord Reinforcement — Embedded load-carrying cords resist elongation under tension, maintaining pitch accuracy over extended use in rubber timing belt drive systems.

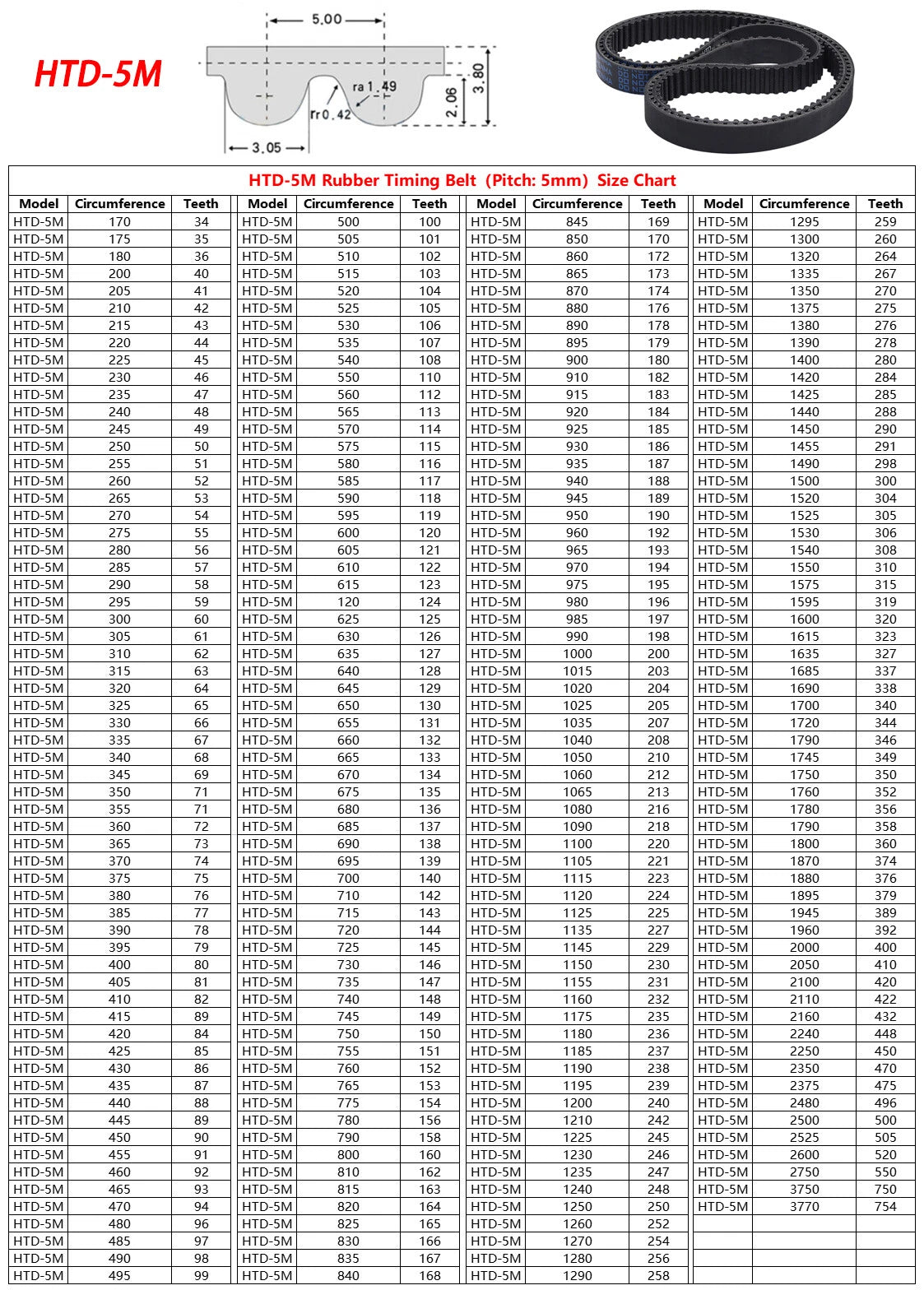

📐 Wide Size Selection — Over 240 circumference options from 175mm to 3770mm (35T–754T) let you match the exact loop length your machine requires without custom fabrication lead times.

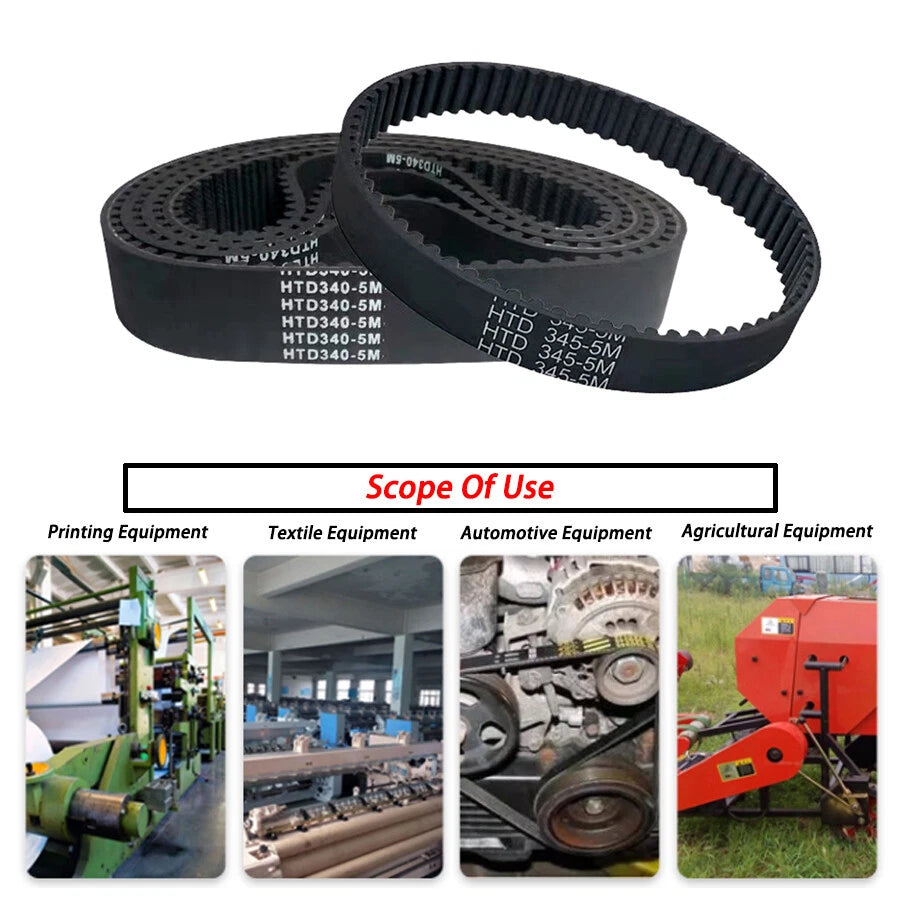

🏭 Broad Application Range — Suited for CNC routers, laser engravers, conveyor drives, rotary indexers, and any machine that uses an HTD 5M pulley system requiring a 20mm wide closed-loop belt.

📐 Technical Specifications — HTD 5M Closed-Loop Rubber Timing Belt

Belt Profile	HTD 5M (High Torque Drive, 5mm pitch)
Tooth Profile	Rounded curvilinear (HTD standard)
Belt Width	20mm (≈ 13/16")
Pitch	5mm (0.197")
Loop Circumference Range	175mm (≈ 6.9") to 3770mm (≈ 148.4")
Tooth Count Range	35T to 754T (see variant options)
Belt Type	Closed loop (endless)
Material	Rubber with internal tensile cord reinforcement
Compatible Pulley Standard	HTD 5M only (5mm pitch, rounded tooth)
Quantity per Order	1 belt per variant selected
Weight	See variant options
Color/Finish	Black

❓ Frequently Asked Questions

How do I choose the right loop circumference for my machine?

Measure the center-to-center distance between your two pulleys, then calculate: circumference ≈ 2 × center distance + (π × pulley pitch diameter). For example, a 300mm (≈ 11.8") loop with 60 teeth suits many compact CNC gantry setups. When in doubt, size up — a slightly longer belt can be tensioned; a short one cannot be installed. The tooth count equals circumference (mm) ÷ 5.

What load or torque can an HTD 5M belt handle at 20mm width?

HTD 5M belts at 20mm width generally handle moderate-to-medium power transmission loads — typically in the range of 1–3 kW depending on speed, pulley diameter, and wrap angle. For exact load ratings specific to your drive system, consult your machine's engineering documentation or contact us to confirm suitability.

Can this belt be used outdoors or in wet/dusty environments?

The rubber compound is generally resistant to light moisture and dust, making it suitable for semi-protected environments. Prolonged exposure to UV radiation, petroleum-based oils, or standing water can degrade the belt over time. For outdoor or harsh-environment applications, periodic inspection is recommended. Contact us to confirm if your specific environment is suitable.

What pulley standard is compatible with this belt?

This belt uses the HTD 5M profile — 5mm pitch with a rounded tooth. It is compatible with pulleys labeled HTD 5M or 5M. It is not interchangeable with GT2 (2mm pitch), T5 (5mm trapezoidal), MXL, or XL pulleys. Always verify your pulley is labeled HTD 5M before ordering.

How do I convert the circumference from mm to inches?

Divide the mm value by 25.4. Quick reference examples:

300mm ÷ 25.4 ≈ 11.8"
500mm ÷ 25.4 ≈ 19.7"
1000mm ÷ 25.4 ≈ 39.4"
2000mm ÷ 25.4 ≈ 78.7"

The number of teeth always equals circumference (mm) ÷ 5 for an HTD 5M belt.

Is this belt suitable for 3D printers and CNC routers?

Yes. HTD 5M belts are widely used in CNC routers, laser cutters, and larger-format 3D printers where GT2 belts are too narrow or lack sufficient torque capacity. The 20mm width provides extra rigidity for heavier gantry systems. Confirm your machine's pulley pitch is 5mm (HTD 5M) before purchasing — most desktop 3D printers use GT2 (2mm pitch), not HTD 5M.

What is the difference between HTD 5M and GT2 timing belts?

HTD 5M has a 5mm pitch with a rounded (curvilinear) tooth profile designed for higher torque transmission. GT2 has a 2mm pitch and is optimized for precision positioning at lower loads. They are not interchangeable — different tooth shape, different pitch, different pulleys. HTD 5M is the better choice for heavier drives and wider belts; GT2 is standard for most desktop 3D printers.

🛒 Select your loop circumference and tooth count above, then add to cart — ships from our US warehouse.
