HTD-5M Timing Belt — Reliable Closed-Loop Drive for Precision Motion Systems

When a slipping or stretched drive belt throws off your CNC router, 3D printer, or automation rig, every job suffers. Engineers, makers, and repair technicians who depend on repeatable positioning need a closed-loop synchronous belt that holds tension and tooth engagement across thousands of cycles. This HTD-5M timing belt is built for exactly those demands.

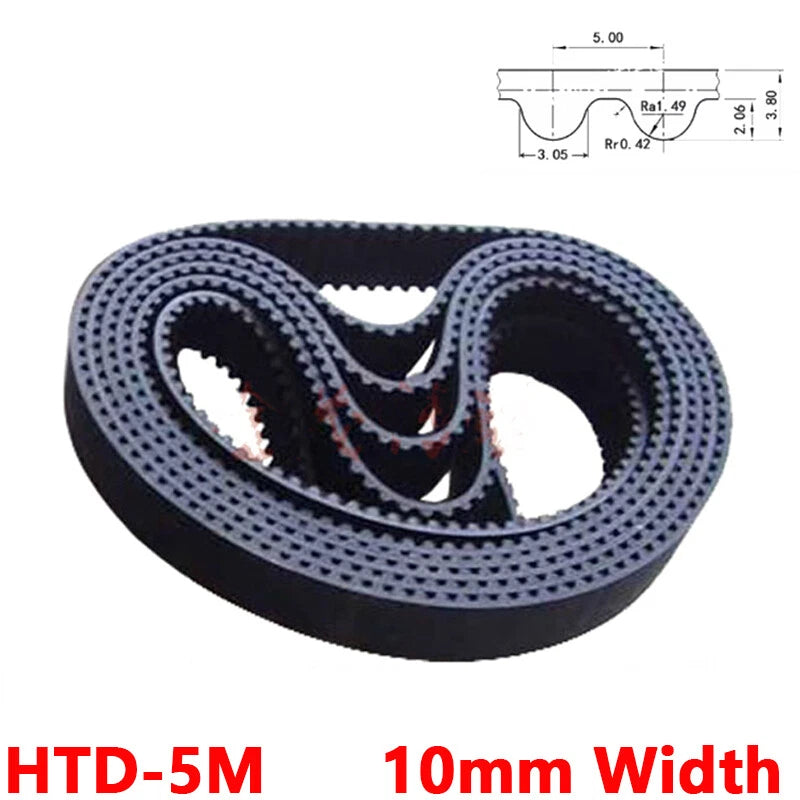

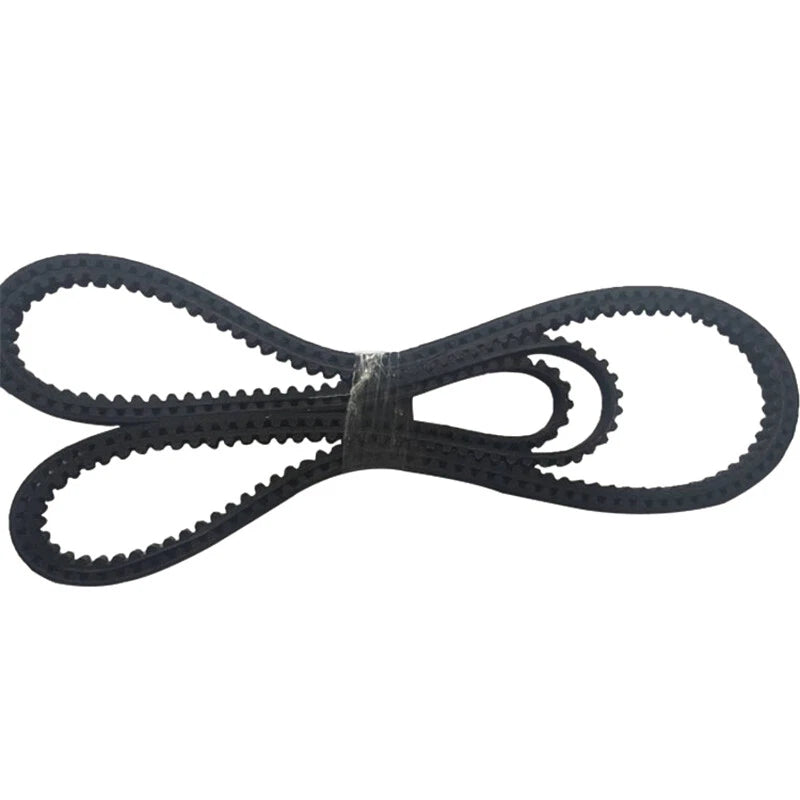

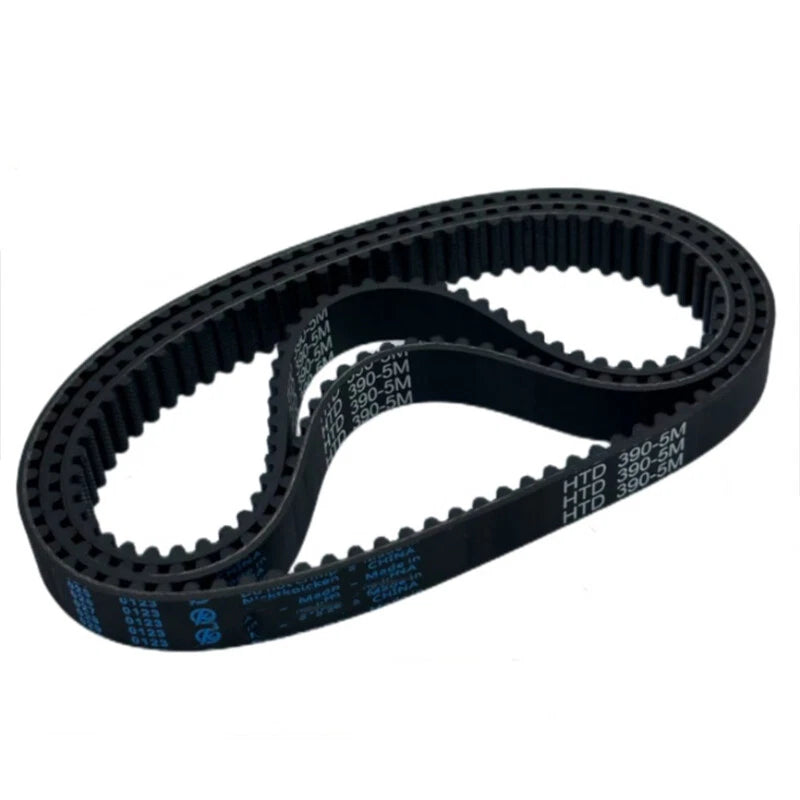

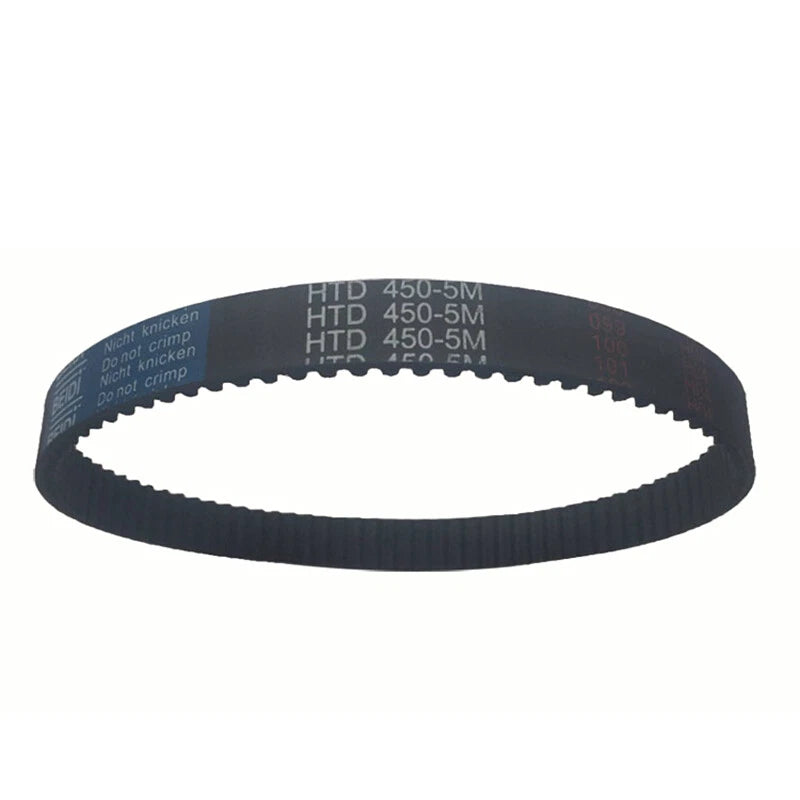

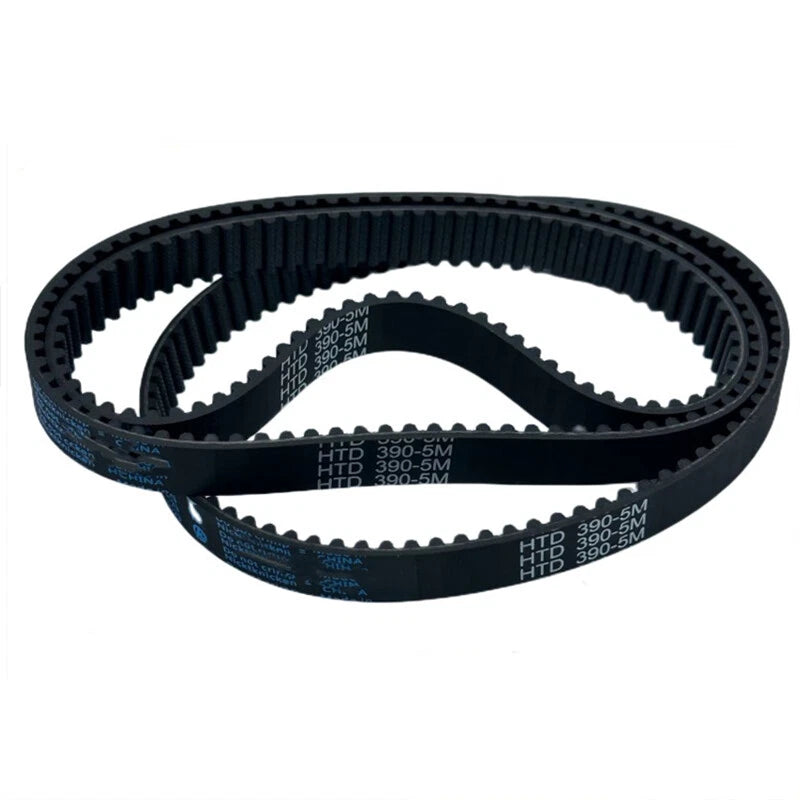

Each belt is a single closed loop with an HTD curvilinear tooth profile, 5mm pitch, and 10mm (≈3/8") width. Available in 155 size options spanning 175mm (≈6.9") to 985mm (≈38.8") circumference — from 35 teeth up to 197 teeth — so you can match your exact center-to-center distance without custom cutting. The body is rubber-compound construction with an internal tensile cord layer for low elongation under load.

Typical use cases include CoreXY and Cartesian 3D printer axes, CNC router gantry drives, laser engraver carriages, light-duty conveyor systems, and robotics joint actuators — anywhere an HTD-5M closed loop synchronous belt is specified for medium-duty motion control.

ℹ️ Compatibility: Fits any standard HTD-5M pulley (5mm pitch, curvilinear tooth profile). Belt width is 10mm — confirm your pulley flange accommodates 10mm belts. Select your circumference (teeth × 5mm) from the variant dropdown above.

✅ Key Features of These HTD-5M Closed Loop Timing Belts

  • ⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in medium-torque synchronous belt drive applications.
  • 📏5mm Pitch Precision — Consistent 5mm tooth spacing delivers accurate linear positioning per pulley revolution, making this belt a reliable choice for 3D printer axis drives and CNC router gantry systems.
  • 🔁Closed Loop Construction — Seamless loop eliminates splice points that can cause vibration or failure, maintaining uniform tension throughout the belt's circumference during continuous operation.
  • 🧵Internal Tensile Cord Layer — The embedded cord resists elongation under dynamic loads, helping maintain positional accuracy in closed-loop synchronous drive systems over extended run times.
  • 📐155 Size Options in One Listing — Circumferences from 175mm (≈6.9") to 985mm (≈38.8") cover a wide range of pulley center distances, reducing the need to source custom-length HTD timing belts.
  • 🏭10mm Uniform Belt Width — Standardized 10mm width is compatible with the most common HTD-5M pulley flanges used in desktop CNC, laser engraver, and robotics drive systems.

📐 Technical Specifications — HTD-5M Synchronous Timing Belt

Belt Standard HTD-5M (High Torque Drive)
Tooth Profile Curvilinear (HTD)
Pitch 5mm (0.197")
Belt Width 10mm (≈3/8")
Circumference Range 175mm (≈6.9") — 985mm (≈38.8")
Tooth Count Range 35 teeth — 197 teeth
Belt Type Closed loop (endless)
Body Material Rubber compound (typically neoprene or EPDM blend)
Tensile Layer Internal cord (fiberglass or steel — see variant options)
Tooth Facing Nylon fabric (typically)
Compatible Pulley Standard HTD-5M, 10mm width or wider
Quantity per Order 1 belt
Country of Origin Contact us to confirm
⚠️ Size selection tip: The circumference shown in each variant name (e.g., "250mm") is the inner loop length. Verify your required belt length before ordering. If you are between sizes, select the next size up and adjust pulley center distance accordingly.

❓ Frequently Asked Questions

How do I choose the right HTD-5M belt length?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference: L ≈ 2C + π(D1+D2)/2, where C is center distance and D1/D2 are pulley pitch diameters. The circumference listed in each variant (e.g., 250mm) is the inner loop length. To convert to inches, divide by 25.4 — for example, 250mm ÷ 25.4 ≈ 9.84". When in doubt, size up by one increment and adjust your tensioner.

What tooth profile does this belt use, and how does it differ from XL or GT2?

This belt uses the HTD curvilinear tooth profile with 5mm pitch. HTD profiles generally provide better load distribution and higher torque capacity than trapezoidal profiles (MXL, XL) of similar pitch. GT2/GT3 belts also use a curvilinear profile but with a different tooth geometry — HTD-5M and GT2-5M pulleys are not interchangeable. Always confirm your pulley is rated for HTD-5M.

What is the tensile strength and load capacity of this belt?

HTD-5M belts typically feature a fiberglass or steel cord tensile layer that provides good resistance to elongation under dynamic load. Exact load ratings depend on pulley diameter, operating speed, wrap angle, and ambient temperature. For safety-critical or high-cycle applications, consult your drive system's engineering specifications and apply an appropriate service factor.

Can this belt be used outdoors or in wet/oily environments?

The rubber compound used in HTD-5M belts is generally resistant to moderate moisture and temperature variation. However, prolonged exposure to UV radiation, petroleum-based oils, or aggressive chemicals can degrade the belt compound over time. For outdoor or chemically exposed environments, inspect the belt periodically for cracking, glazing, or edge fraying, and replace proactively.

Is this belt compatible with standard HTD-5M pulleys from other brands?

Yes. This belt conforms to the HTD-5M standard — 5mm pitch, curvilinear tooth profile — and is compatible with any HTD-5M pulley regardless of brand. The belt width is 10mm, so use pulleys with flanges rated for 10mm or wider belts. Confirm your pulley's tooth count and bore size separately to ensure your drive ratio and shaft fit are correct.

Which machines and applications commonly use HTD-5M timing belts?

HTD-5M closed loop synchronous belts are widely used in: 3D printers (CoreXY, Cartesian, delta axis drives), CNC routers (gantry and carriage drives), laser engravers, robotics (joint actuators, arm drives), conveyor systems, and general light industrial automation. The 5mm pitch offers a practical balance of torque capacity and positioning resolution for medium-duty motion control.

How do I know when to replace my timing belt?

Replace the belt if you notice: visible cracking or checking on the belt back or tooth faces, fraying or cord exposure at the edges, missing or visibly worn teeth, or if your machine begins losing positional accuracy or skipping steps. In high-cycle applications, periodic replacement as part of preventive maintenance is generally recommended even before visible wear appears.

🛒 Select your size (teeth count and circumference) above, then add to cart — ships from our US warehouse.
