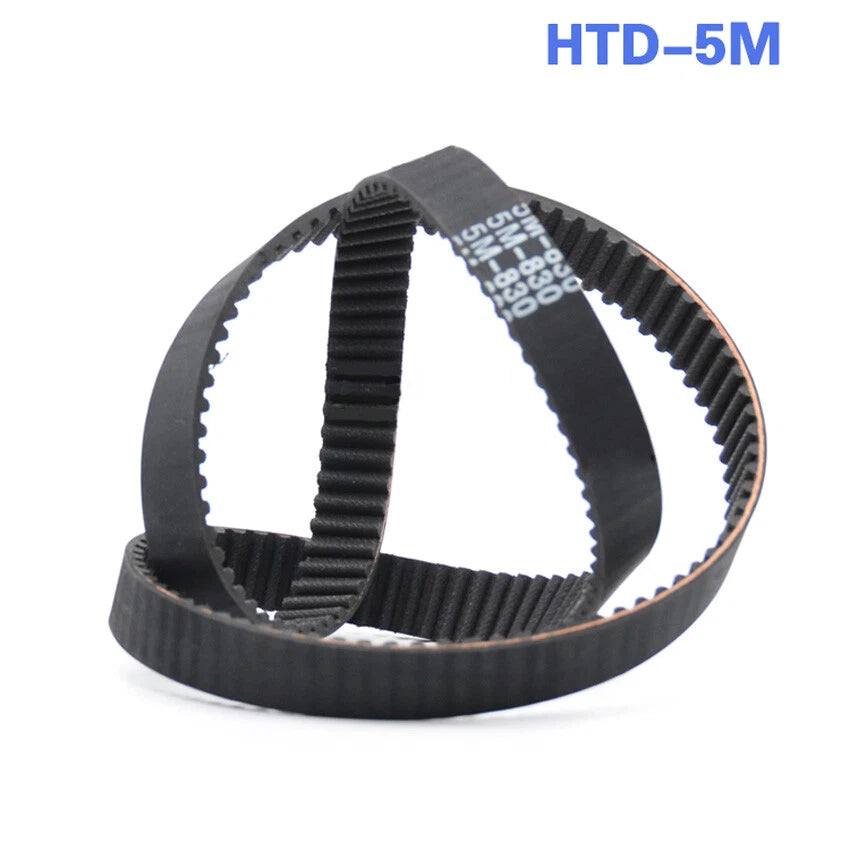

HTD 5M Timing Belt – 5mm Pitch Closed Loop Rubber Drive Belt, 170–515mm

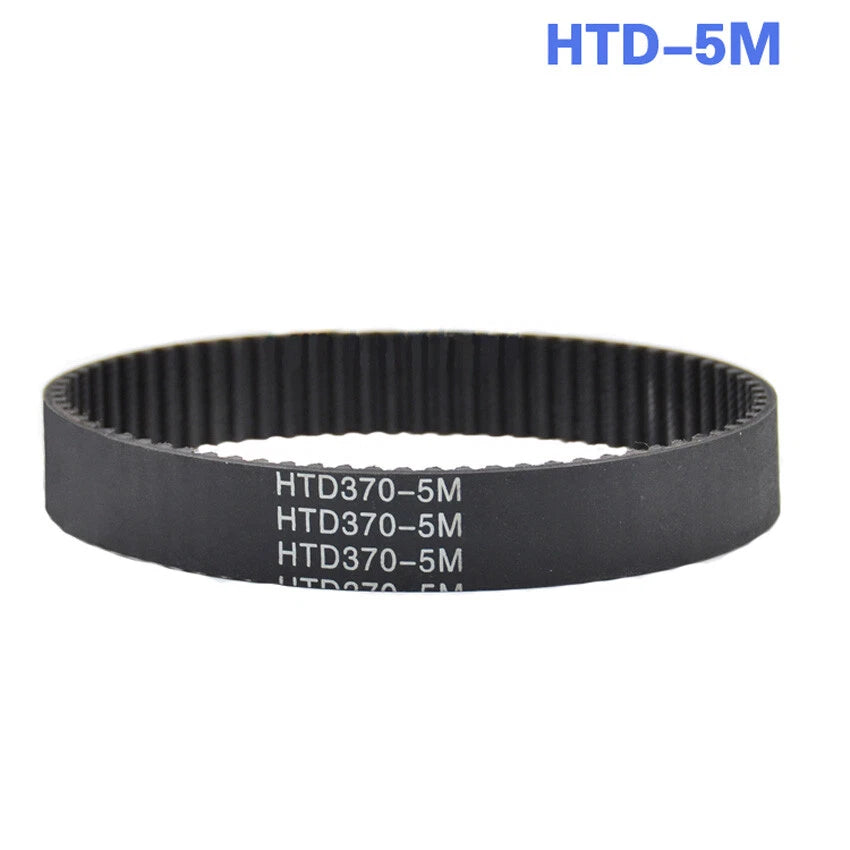

Measure the center-to-center distance between your two pulleys, then calculate the required belt perimeter: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where C is the center distance and D1/D2 are the pulley pitch diameters. For example, a 300mm (≈11.8") belt typically suits a center distance of roughly 120–130mm with standard HTD pulleys. When in doubt, size up — a slightly longer belt is easier to tension than one that's too short. You can also check your existing belt for a size code on the inner surface (e.g., 300-5M-15 = 300mm perimeter, 5mm pitch, 15mm wide).

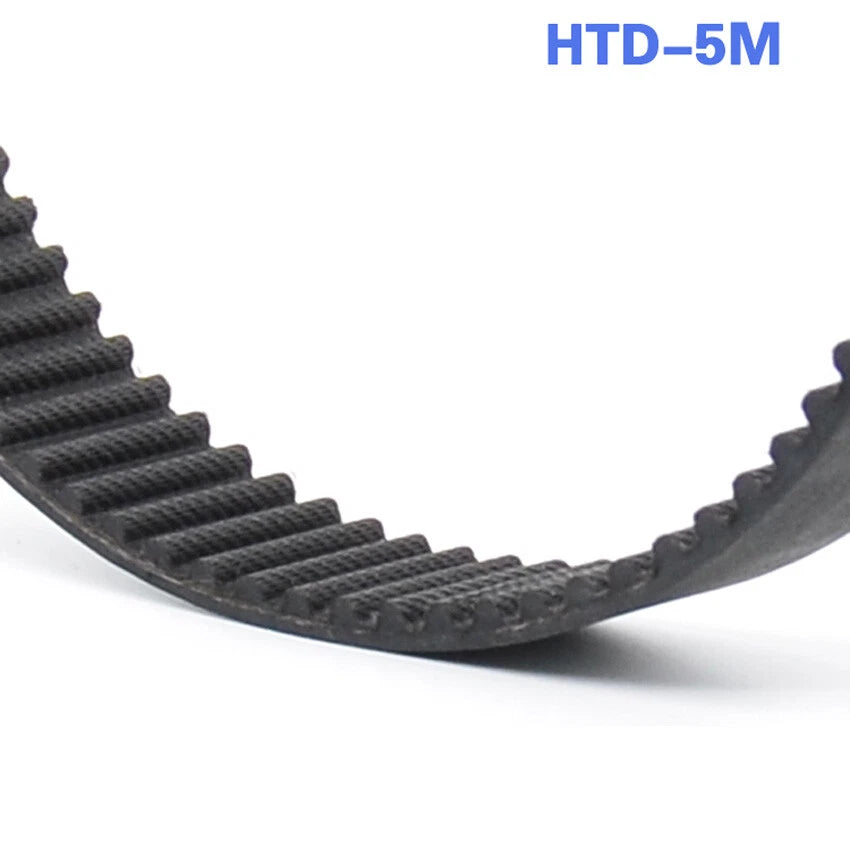

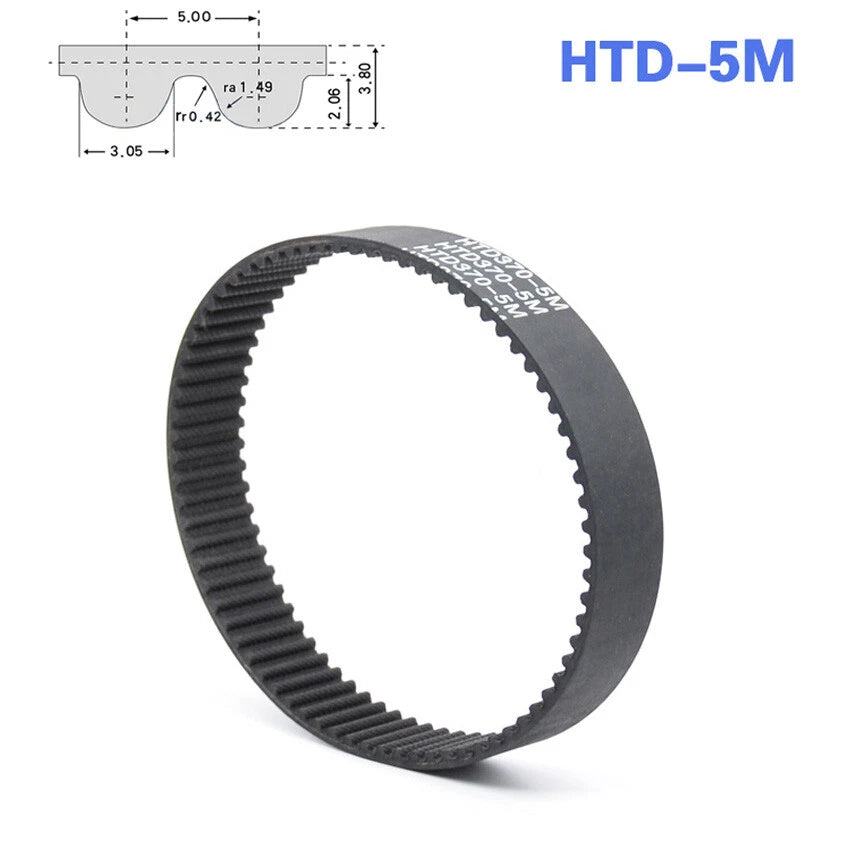

'5M' refers to the pitch — the distance between the centers of adjacent teeth, which is 5mm. HTD (High Torque Drive) is the tooth profile standard, featuring a rounded, curvilinear tooth shape that distributes load more evenly than trapezoidal profiles, generally resulting in quieter operation and reduced tooth wear under load.

Wider belts carry higher torque loads. For light-duty applications like 3D printers and small CNC routers, 10–15mm widths are typically sufficient. For robotics joints, conveyor systems, or higher-torque servo drives, 20–25mm or wider is generally recommended. Always match the belt width to your pulley's flange width — a belt wider than the pulley flange will ride off-track under load.

Yes. These belts follow the HTD 5M tooth profile standard (5mm pitch, rounded tooth form) and are compatible with any HTD 5M pulley of the matching width. They are not interchangeable with GT2, MXL, T5, or trapezoidal-tooth pulleys — the tooth geometry is different and mixing profiles will cause skipping or accelerated wear. Always verify the tooth profile before ordering.

These belts are made from neoprene rubber with fiberglass cord reinforcement, which generally offers moderate resistance to moisture, oil mist, and mild temperature variation — typical of enclosed workshop or machine enclosure conditions. They are not rated for continuous outdoor UV exposure or chemical immersion. For harsh outdoor or chemical environments, contact us to confirm suitability before ordering.

Load capacity depends on belt width, operating speed, and pulley diameter. As a general guideline, a 15mm-wide HTD 5M belt can typically handle continuous tangential loads in the range of 100–300N depending on operating conditions; wider belts scale proportionally. For precise load calculations, refer to your drive system's engineering specifications or contact us with your application details.

Measure the distance across 10 consecutive teeth on your old belt — if it equals approximately 50mm, the pitch is 5mm. Then check the tooth shape: HTD teeth are rounded (curvilinear), not flat-topped or trapezoidal. You can also look for markings on the belt's inner surface such as 5M, HTD5M, or a size code like 300-5M-15 (perimeter–pitch–width). If you're unsure, send us a photo and we'll help confirm the match.
