HTD 5M Timing Belt — Precision Closed-Loop Rubber Drive Belt for 3D Printers, CNC Machines & DIY Drives

When a slipping or mismatched drive belt causes your 3D printer to skip layers, your CNC router to lose position, or your DIY conveyor to stall mid-run, the fix starts with the right synchronous belt. Makers, engineers, and repair technicians who need a reliable HTD 5M closed-loop timing belt in an exact perimeter and width will find a broad selection here — no cutting, no splicing, no guesswork.

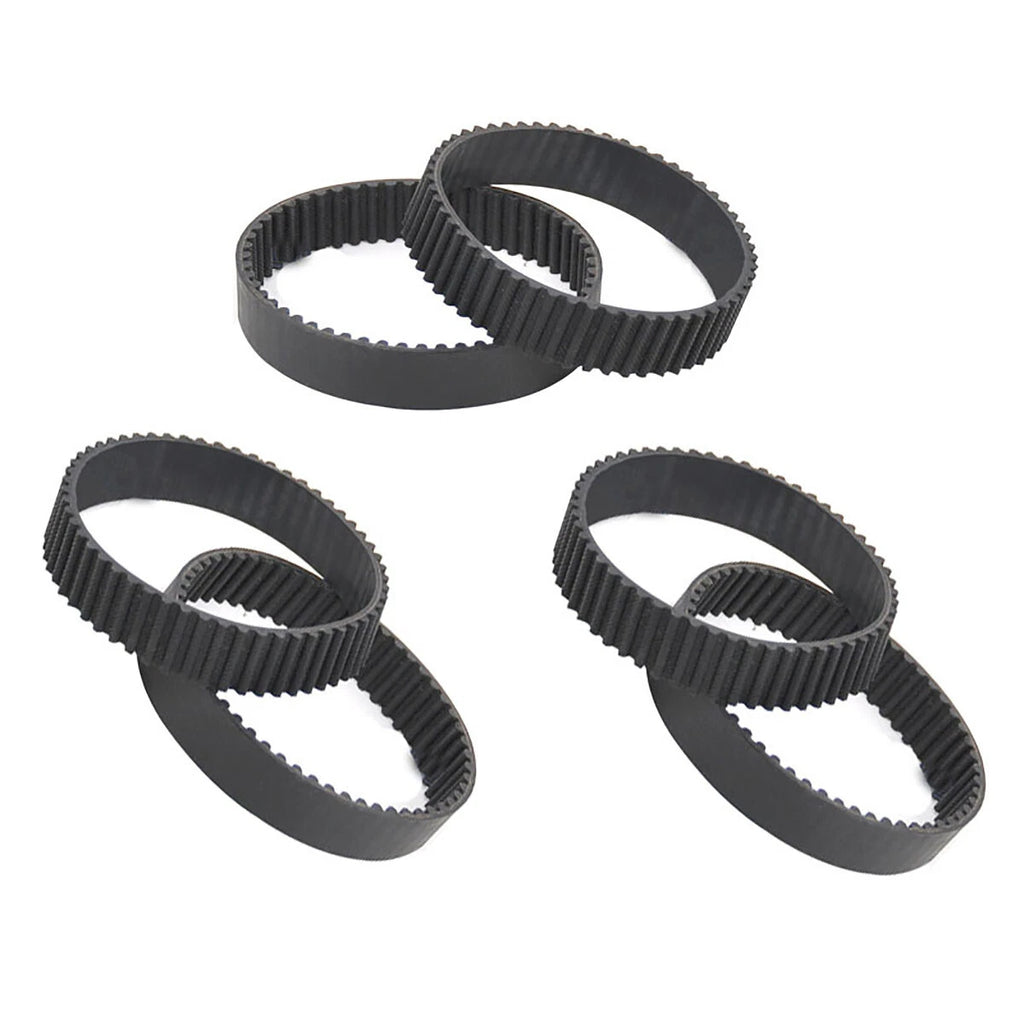

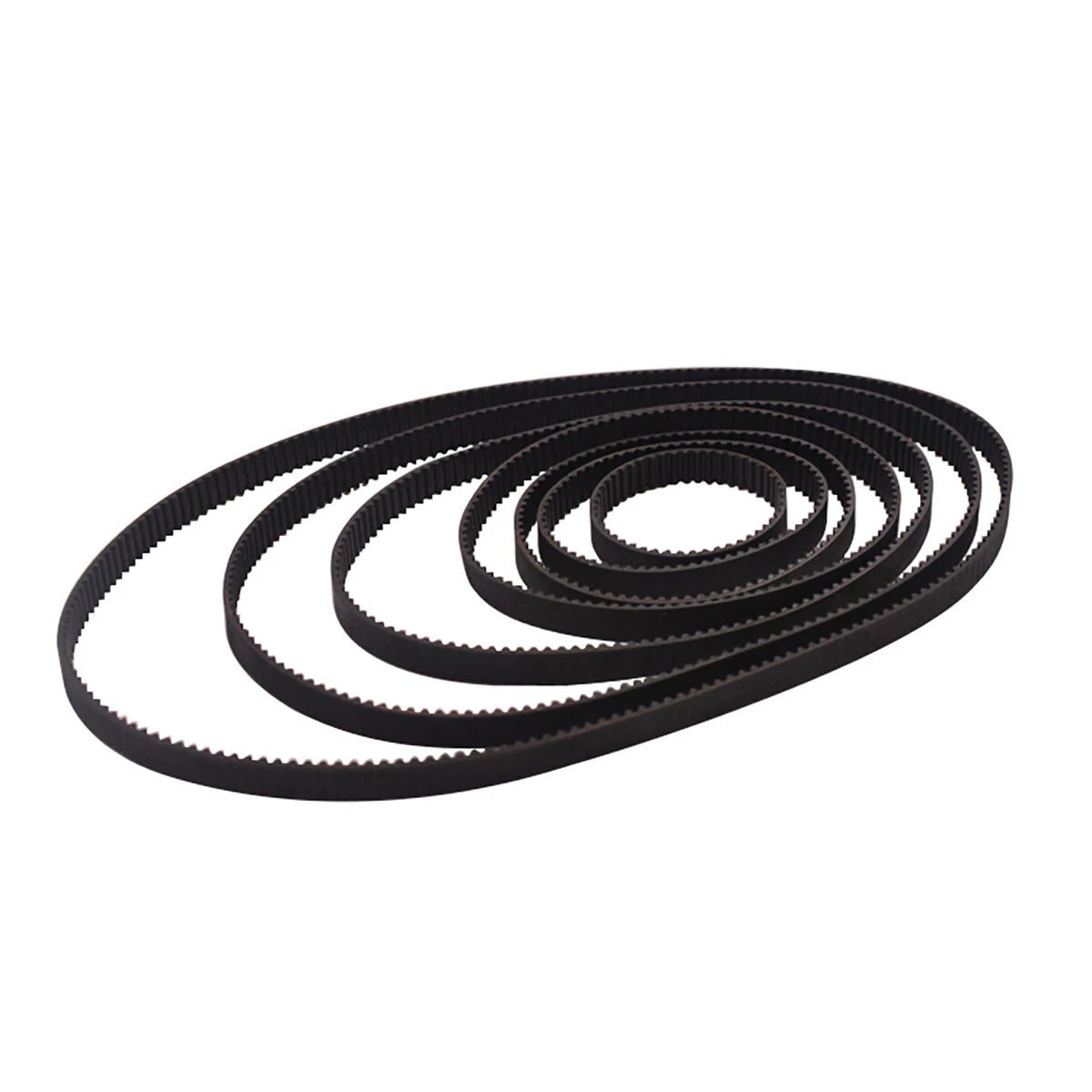

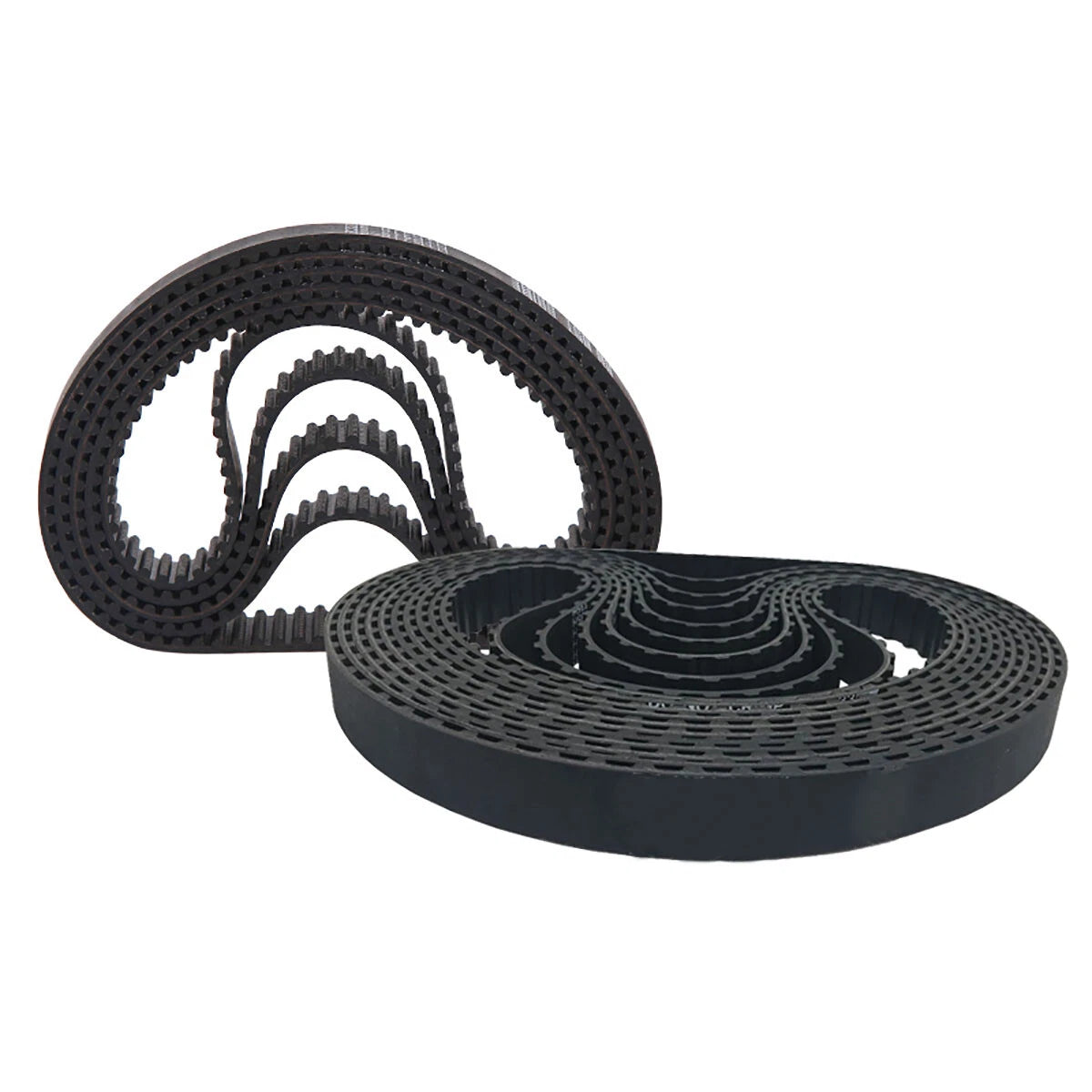

Each belt is a seamless closed-loop ring made from rubber (neoprene or EPDM compound) with internal fiber cord reinforcement for dimensional stability under load. Available perimeters run from 175mm (≈6.9″) to 495mm (≈19.5″) in 5mm increments, and widths from 10mm (≈3/8″) to 35mm (≈1-3/8″). The HTD 5M tooth profile features a 5mm pitch with a rounded curvilinear tooth shape designed for smooth, high-torque power transmission.

Typical applications include FDM 3D printer axis drives (X/Y gantry belts), desktop CNC router spindle feeds, small conveyor belt systems, robotic arm joints, and general-purpose synchronous drive replacements where an HTD 5M closed-loop rubber belt is specified.

ℹ️ Compatibility: Fits any HTD 5M-profile pulley (5mm pitch, rounded tooth). Match belt width to pulley groove width. Perimeter = total closed-loop circumference — measure your existing belt or calculate from pulley center distance before ordering.

✅ Key Features of These HTD 5M Closed-Loop Rubber Timing Belts

  • ⚙️HTD 5M Tooth Profile — 5mm pitch, rounded curvilinear teeth distribute load evenly across the pulley, reducing tooth shear stress compared to trapezoidal profiles in high-torque synchronous drive applications.
  • 🔄Seamless Closed-Loop Construction — Endless ring format with no joint or splice point, eliminating the failure mode common in cut-and-joined belts used in 3D printer and CNC drive systems.
  • 🧵Fiber Cord Reinforcement — Internal tensile cord (typically fiberglass or steel) maintains belt length under cyclic loading, keeping axis positioning repeatable in CNC router and printer gantry applications.
  • 📐Wide Size Matrix — Perimeters from 175mm to 495mm paired with widths from 10mm to 35mm cover a broad range of DIY drive belt replacement and custom build scenarios without custom fabrication.
  • 🌡️Rubber Compound Durability — Neoprene/EPDM-based rubber body resists moisture, mild oils, and operating temperatures generally ranging from –20°C to +80°C (–4°F to +176°F), suitable for workshop and light industrial environments.
  • 🔧Drop-In Replacement Fit — Tooth geometry and pitch conform to the HTD 5M standard, making these belts direct replacements for OEM drive belts on Creality, Ender, Voron, and similar 3D printer platforms as well as generic CNC timing belt drives.

📐 Technical Specifications — HTD 5M Closed-Loop Rubber Timing Belt

Belt Standard HTD 5M (High Torque Drive, 5mm pitch)

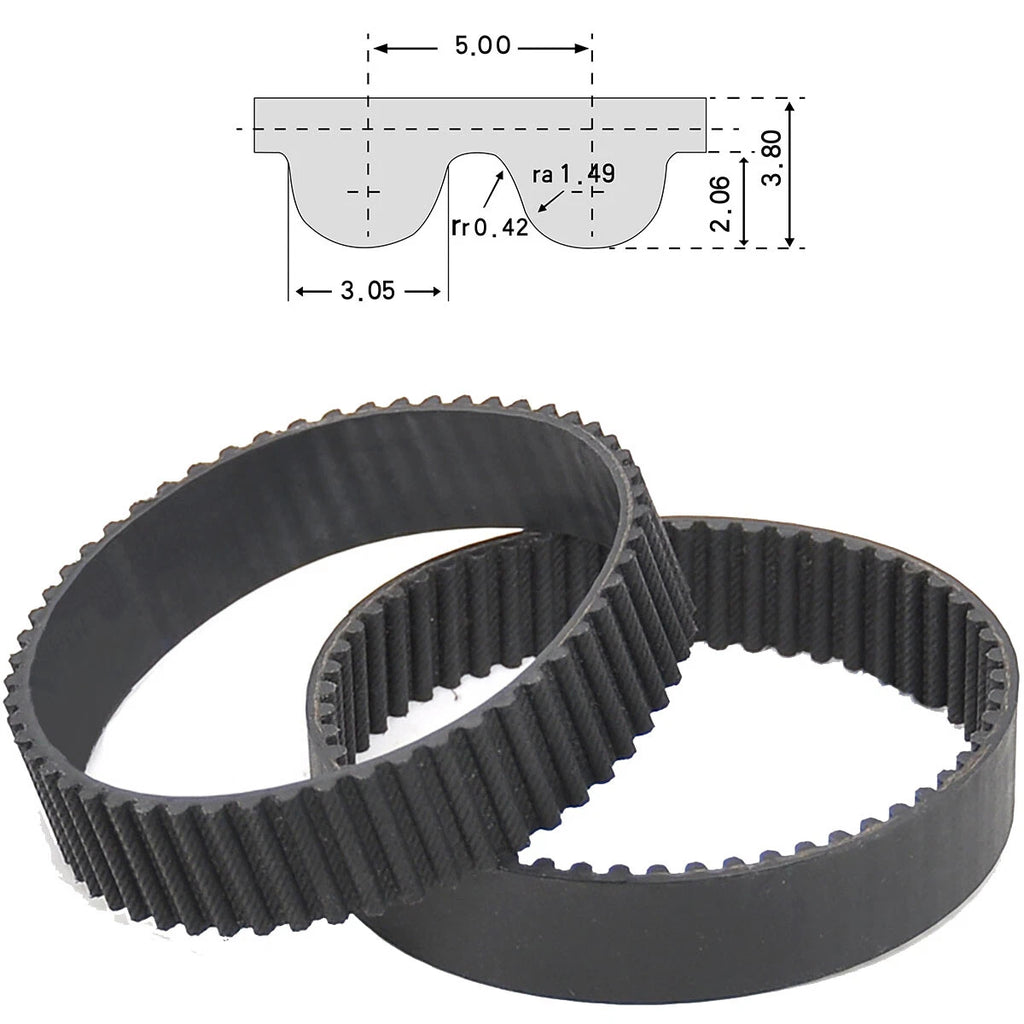

Tooth Profile Rounded curvilinear (HTD)
Pitch 5mm (0.197″)
Perimeter Range 175mm (≈6.9″) to 495mm (≈19.5″)
Width Options 10mm (≈3/8″), 15mm (≈19/32″), 20mm (≈25/32″), 25mm (≈1″), 28mm (≈1-1/8″), 30mm (≈1-3/16″), 35mm (≈1-3/8″)
Belt Type Closed-loop (endless ring)
Body Material Rubber (neoprene/EPDM compound)
Reinforcement Internal fiber cord (fiberglass or steel — see variant options)
Operating Temperature Typically –20°C to +80°C (–4°F to +176°F)
Tensile Load Capacity See variant options — varies by width
Compatible Pulleys HTD 5M profile pulleys; groove width must match belt width
Tooth Count Perimeter ÷ 5mm (e.g., 200mm belt = 40 teeth)
Color Black
Country of Origin Contact us to confirm
⚠️ Sizing note: The perimeter listed is the total inner circumference of the closed loop — not the length of one straight run. Verify your required belt perimeter before ordering. If you are replacing an existing belt, measure the old belt's circumference or count its teeth and multiply by 5mm.

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 5M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the belt path length. For a two-pulley system, the approximate formula is: Belt Length ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. When in doubt, go slightly longer — most systems allow minor tensioner adjustment. Available perimeters run from 175mm (≈6.9″) to 495mm (≈19.5″) in 5mm increments.

What width should I choose — 10mm, 15mm, 20mm, 25mm, or wider?

Width determines load capacity. Narrower belts (10–15mm) are generally suited for light-duty applications such as 3D printers and small CNC routers. Wider belts (20–35mm) are typically used in higher-torque drives, conveyor systems, and industrial automation. Match the belt width to your pulley groove width for proper tracking and engagement.

What is the HTD 5M tooth profile and what makes it different from GT2 or trapezoidal belts?

HTD stands for High Torque Drive. The 5M designation means a 5mm pitch (tooth-to-tooth distance). The HTD tooth profile is a rounded, curvilinear shape that distributes load more evenly than trapezoidal (MXL, XL) profiles, making it well-suited for moderate-to-high torque synchronous drive applications. GT2 belts use a modified curvilinear profile optimized for low backlash at lighter loads — HTD 5M is generally preferred when torque capacity is the priority.

How much load can this timing belt handle?

Tensile strength varies by width. Generally, HTD 5M rubber belts with fiber cord reinforcement can handle tangential loads ranging from approximately 100N for 10mm-wide belts to over 500N for 30–35mm-wide belts. Actual capacity depends on pulley diameter, operating speed, and temperature. Contact us to confirm load ratings for your specific application.

Can this belt be used outdoors or in humid environments?

These belts are made from neoprene or EPDM-based rubber compounds that generally offer good resistance to moisture, mild oils, and moderate temperature ranges (typically –20°C to +80°C / –4°F to +176°F). They are not rated for continuous submersion or exposure to harsh solvents. For outdoor use, shield the belt from direct UV exposure when possible to extend service life.

What pulleys are compatible with HTD 5M timing belts?

These belts are compatible with any HTD 5M-profile pulley with a matching groove width. Common tooth counts include 12T, 16T, 20T, 24T, 30T, and 36T pulleys. Ensure the pulley groove width matches or slightly exceeds the belt width for proper engagement and lateral tracking. Do not use with GT2, T5, or trapezoidal pulleys — the tooth profiles are not interchangeable.

Is this a closed-loop (endless) belt or an open-ended belt?

This is a closed-loop (endless ring) belt — it has no seam or joint. The perimeter listed is the total circumference of the belt loop. This design eliminates the weak point of a joined belt and is the standard format for synchronous drive applications including 3D printer axis drives and CNC router feed systems.

🛒 Select your perimeter and width above, then add to cart — ships from our US warehouse.
