How do I decide between different belt lengths in the variant list?

The first number in each variant name (e.g., '264', '400', '800') is the belt's inner circumference in millimeters. Divide by 25.4 to convert to inches — for example, 400mm ÷ 25.4 ≈ 15.7 inches. Match this to your machine's required belt loop size. If you're replacing an existing belt, check the markings on the old belt or measure its inner circumference directly.

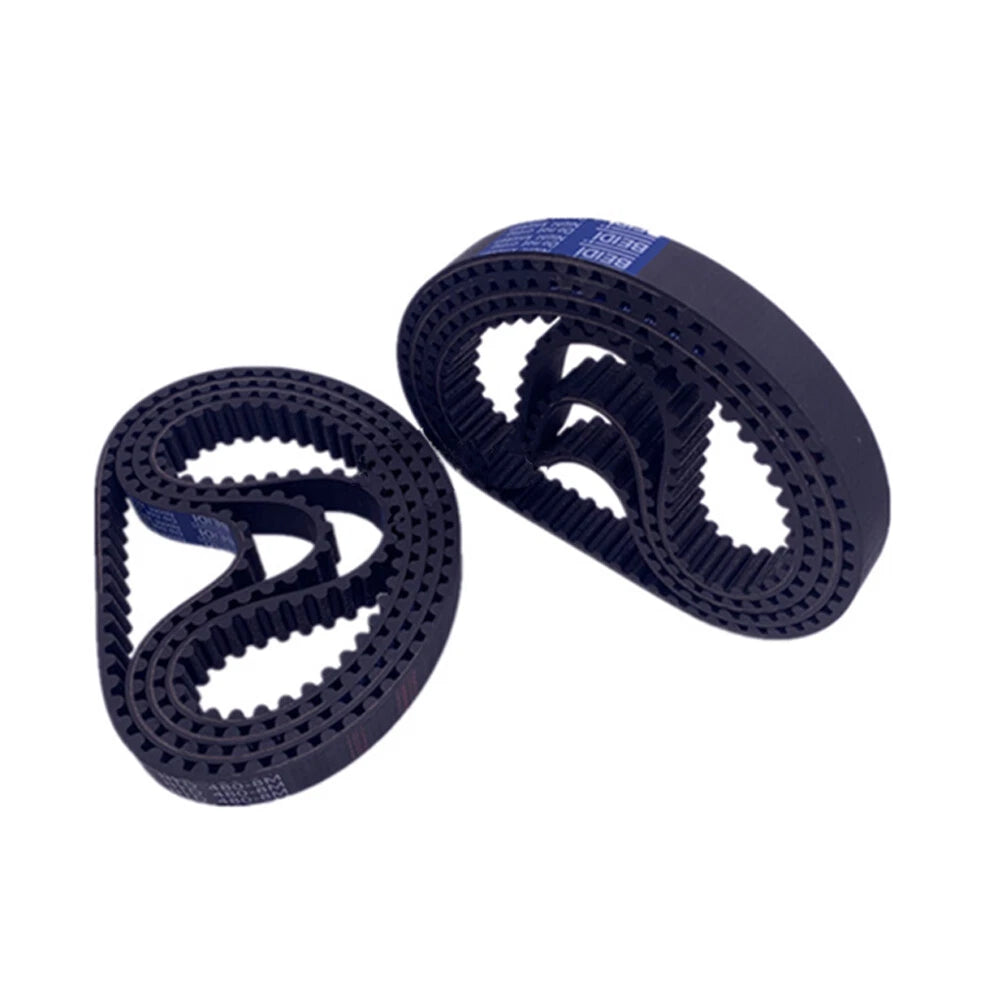

HTD 8M Closed Loop Timing Belt – 8mm Pitch, 15mm Wide, 264–1344mm for CNC & 3D Printer

Zum Zoomen über das Bild scrollen Klicke zum Zoomen auf das Bild

HTD 8M Closed Loop Timing Belt – 8mm Pitch, 15mm Wide, 264–1344mm for CNC & 3D Printer

HomeDIYer

Keine Bewertungen

By HomeDIYer®

Types: 264-8M-15mm Width

Amount: 1PCS

Preis:

$4.20 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

HTD 8M Closed Loop Timing Belt — Precise 8mm Pitch Drive for CNC & 3D Printers

When a slipping or stretched drive belt throws off your CNC axis or causes layer shifts in your 3D prints, the root cause is almost always a belt that wasn't designed for the job. Makers, machine builders, and repair technicians who run Reprap Rostock delta printers, DIY CNC routers, or custom motion-control rigs need a closed-loop timing belt that holds its pitch under load — not one that stretches after a few hours of use.

This HTD 8M closed loop timing belt features an 8mm tooth pitch and a 15mm belt width, with inner circumference options ranging from 264mm (≈10.4") to 1344mm (≈52.9"). Each belt ships as a single closed loop — no joining clips or splicing required. The HTD (High Torque Drive) tooth profile provides a larger tooth cross-section than standard trapezoidal belts, distributing load more evenly across engaged teeth. The reinforced tension cord (typically fiberglass or steel) resists elongation during operation.

Typical use cases include replacing worn drive belts on Reprap Rostock delta 3D printers, building or upgrading DIY CNC router axis drives, and retrofitting closed-loop belt systems on laser engravers and custom automation rigs where an 8M pitch HTD timing belt is specified.

ℹ️ Compatibility Note: This belt uses the HTD 8M tooth profile with a 15mm width. It fits any HTD 8M pulley rated for 15mm or wider belts. Verify your machine's required inner circumference before selecting a variant — the leading number in each variant name (e.g., "400") is the inner circumference in millimeters.

✅ Key Features of These HTD 8M Closed Loop Timing Belts

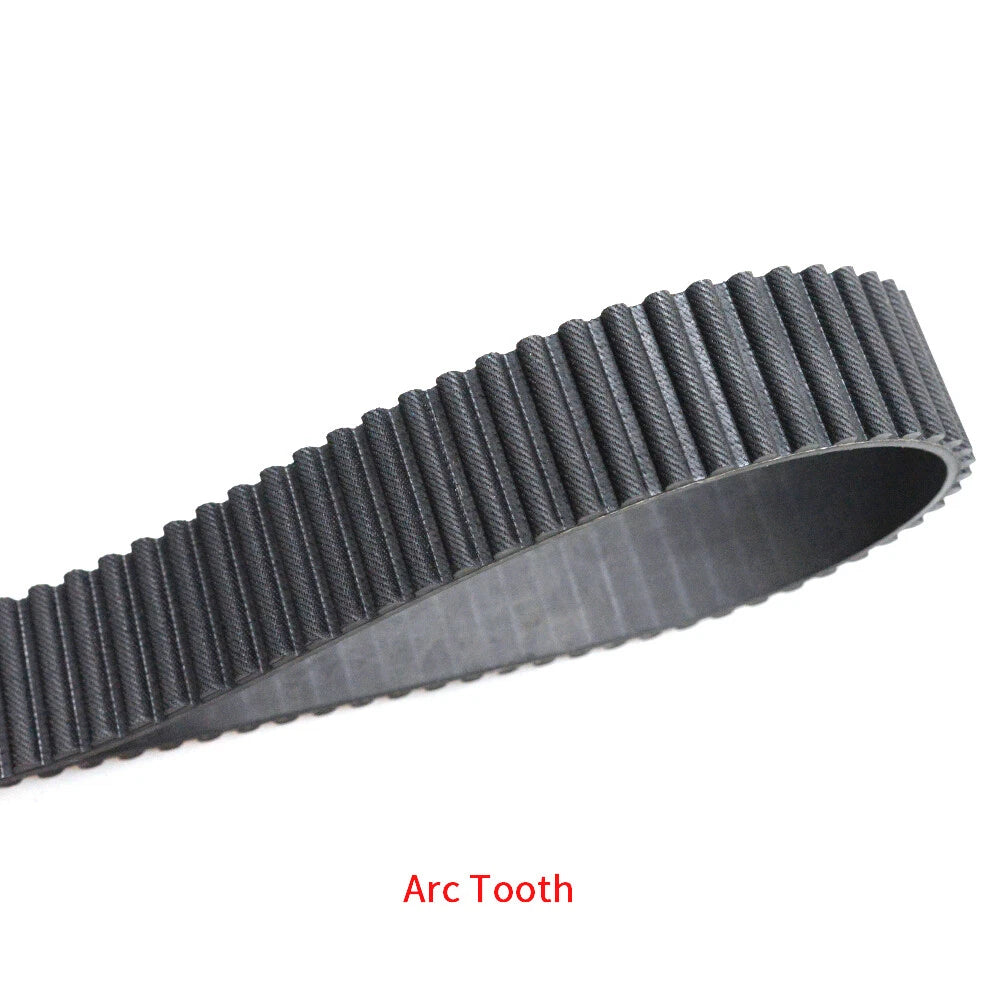

⚙️ HTD 8M Tooth Profile — The curved HTD tooth geometry increases contact area with the pulley, reducing tooth shear stress and improving torque transfer in CNC router axis drives and delta printer carriages.
🔒 Closed-Loop Construction — Factory-formed as a continuous loop with no seam or splice point, eliminating the weak spot that joined open-end belts introduce into high-cycle drive systems.
📏 Wide Length Selection — Available in 129 inner circumference sizes from 264mm (≈10.4") to 1344mm (≈52.9") in 8mm increments, covering a broad range of machine configurations without custom cutting.
🧵 Reinforced Tension Cord — The embedded load-carrying cord resists elongation under repeated tensioning cycles, helping maintain consistent belt pitch and positional accuracy in closed-loop motion systems.
🌡️ Rubber Belt Body — The neoprene or polyurethane belt body provides flexibility across a range of operating temperatures typically encountered in indoor workshop and maker-space environments.
🔄 Direct Drop-In Replacement — Follows the ISO/DIN HTD 8M standard tooth profile, making it a straightforward replacement for OEM belts in Reprap Rostock 3D printers and compatible CNC drive systems.

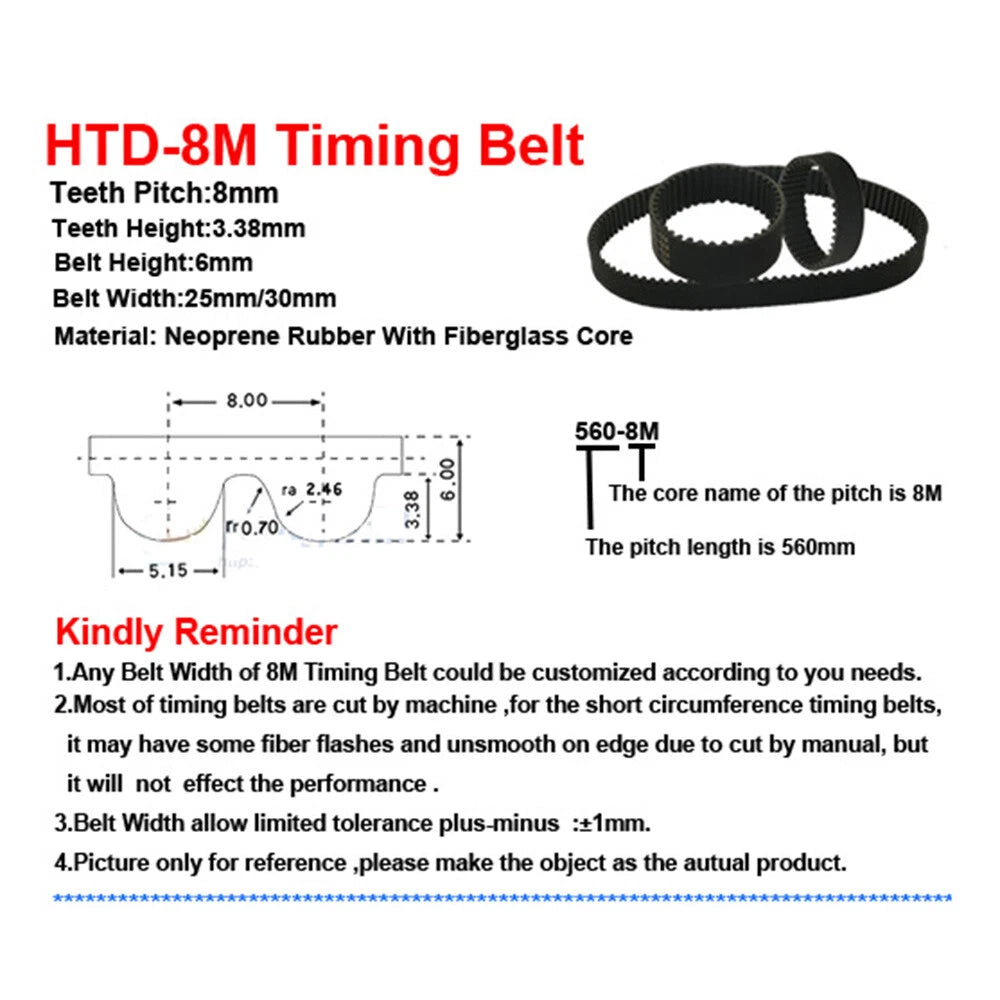

📐 Technical Specifications — HTD 8M Closed Loop Timing Belt

Belt Type	HTD Closed Loop Timing Belt
Tooth Profile	HTD (High Torque Drive), curved tooth
Pitch	8mm (8M)
Belt Width	15mm (≈0.59")
Inner Circumference Range	264mm (≈10.4") – 1344mm (≈52.9")
Circumference Increment	8mm per step
Number of Variants	129 sizes
Belt Body Material	Neoprene or polyurethane rubber (see variant options)
Tension Cord	Fiberglass or steel reinforced (see variant options)
Loop Type	Closed loop (no splice)
Compatible Pulley Standard	HTD 8M, 15mm width or wider
Typical Applications	CNC router axis drives, Reprap Rostock 3D printers, laser engravers, custom automation
Country of Origin	Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right belt length for my machine?

Measure the center-to-center distance between your two pulleys, then calculate: Belt Length ≈ 2 × C + π × (D1 + D2) / 2. For closed-loop belts, the listed number (e.g., 264) is the inner circumference in millimeters. For example, 264mm ÷ 25.4 ≈ 10.4 inches. Always verify against your machine's spec sheet or existing belt markings before ordering.

What does "HTD 8M" mean?

HTD stands for High Torque Drive. "8M" refers to the belt pitch — the distance between tooth centers — which is 8mm. This profile uses a curved tooth shape designed for higher torque transmission compared to standard trapezoidal tooth belts, making it well-suited for CNC routers and 3D printer drive systems.

How strong is this timing belt — what load can it handle?

HTD 8M belts with 15mm width are generally rated for moderate-to-high torque applications. Tensile strength typically depends on the cord material (fiberglass or steel). For precise load ratings, refer to your machine's engineering specs. These belts are generally suitable for CNC axis drives and motion systems in desktop and mid-size machines.

Can this belt be used outdoors or in humid environments?

The belt body is typically made from neoprene or polyurethane rubber, which offers reasonable resistance to moisture and mild temperature variation. However, prolonged exposure to UV, oils, or extreme heat may reduce belt life. For outdoor or harsh-environment use, confirm material compatibility with your specific application before ordering.

Is this belt compatible with standard HTD 8M pulleys?

Yes. This belt follows the HTD 8M tooth profile standard and is compatible with any HTD 8M pulley of matching width (15mm or wider). It works with common pulley tooth counts used in CNC machines and Reprap-style 3D printers. Always confirm the pulley groove width accommodates a 15mm belt.

How do I read the variant names to find the size I need?

Each variant name follows the format: [Inner Circumference]-8M-15mm Width. The first number is the belt's inner circumference in millimeters. To convert to inches, divide by 25.4 — for example, 400mm ÷ 25.4 ≈ 15.7". If you're replacing an existing belt, check the markings on the old belt or measure its inner circumference directly.

What 3D printer and CNC models is this belt commonly used with?

This HTD 8M closed loop timing belt is commonly used in Reprap Rostock delta-style 3D printers, DIY CNC routers, laser engravers, and other motion-control systems that specify an 8M pitch drive belt. Always verify your machine's belt specification — pitch, width, and inner circumference — before purchasing.

🛒 Select your belt length above, then add to cart — ships from our US warehouse.
