HTD 8M Closed-Loop Timing Belt — Precise Drive for CNC, 3D Printing & Industrial Systems

When a slipping V-belt or worn chain costs you accuracy on a CNC router, laser cutter, or 3D printer, the fix is a properly sized synchronous drive belt. Makers, machine builders, and maintenance technicians who need repeatable, zero-slip motion rely on the HTD-8M closed-loop timing belt as a drop-in upgrade or direct replacement for demanding drive systems.

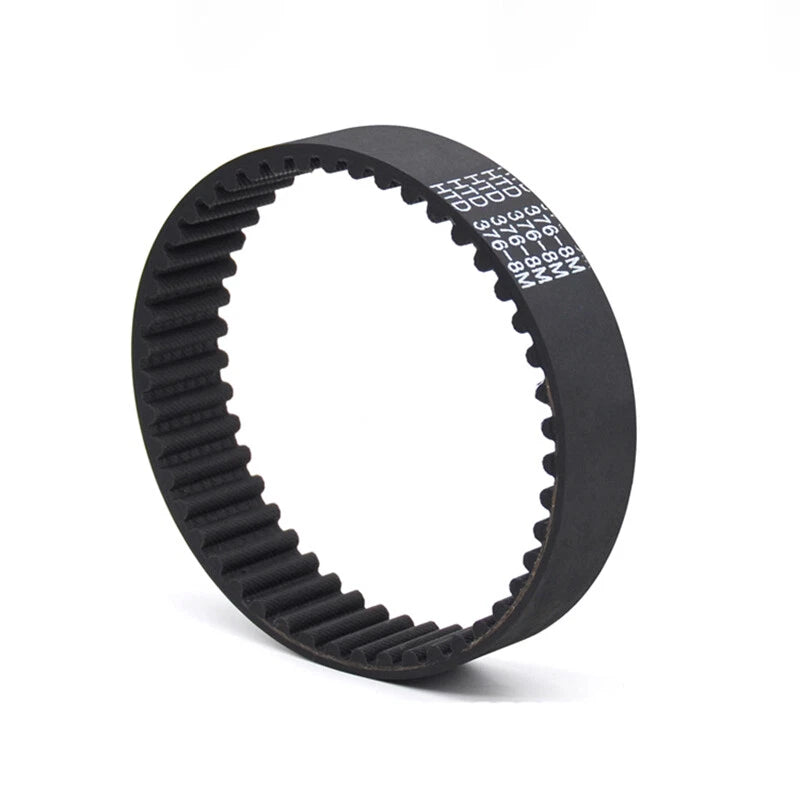

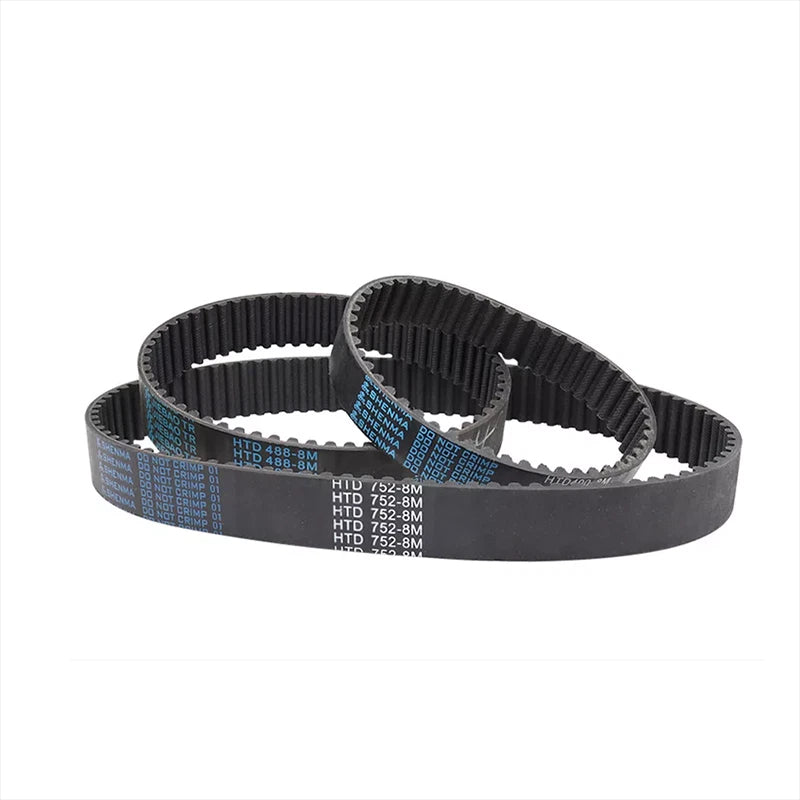

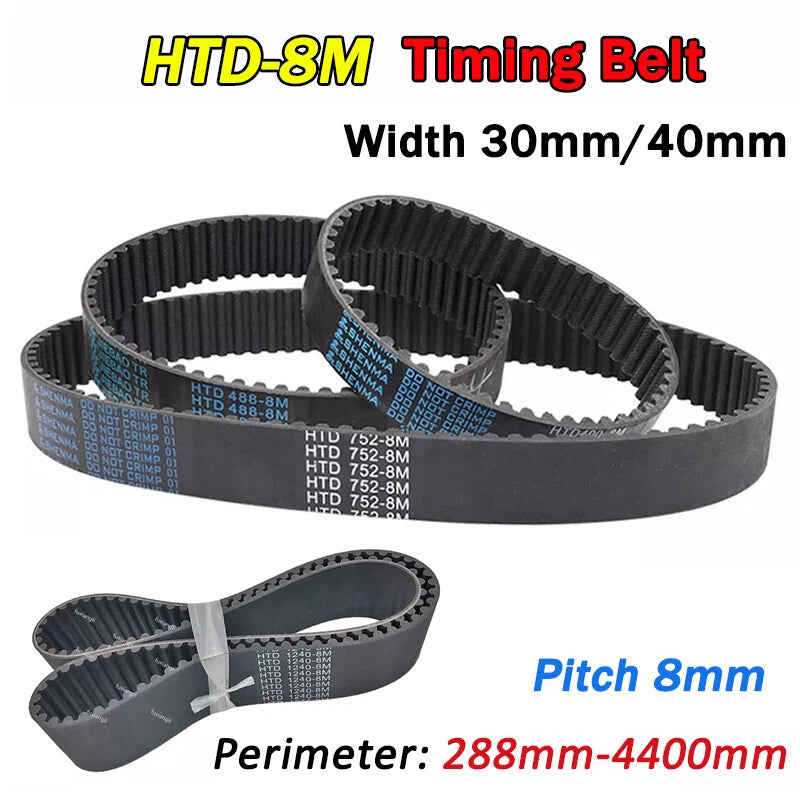

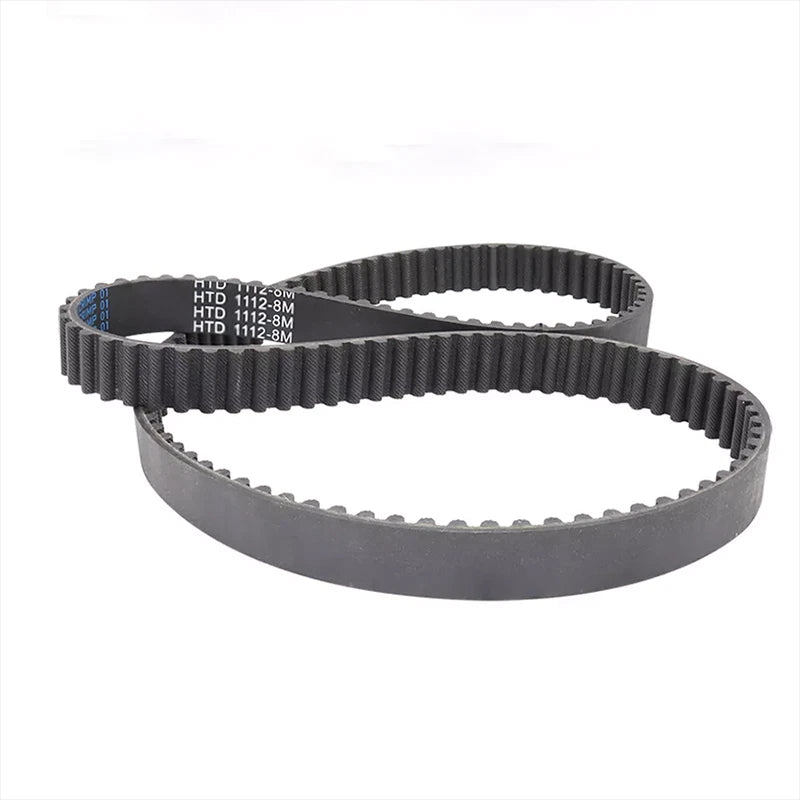

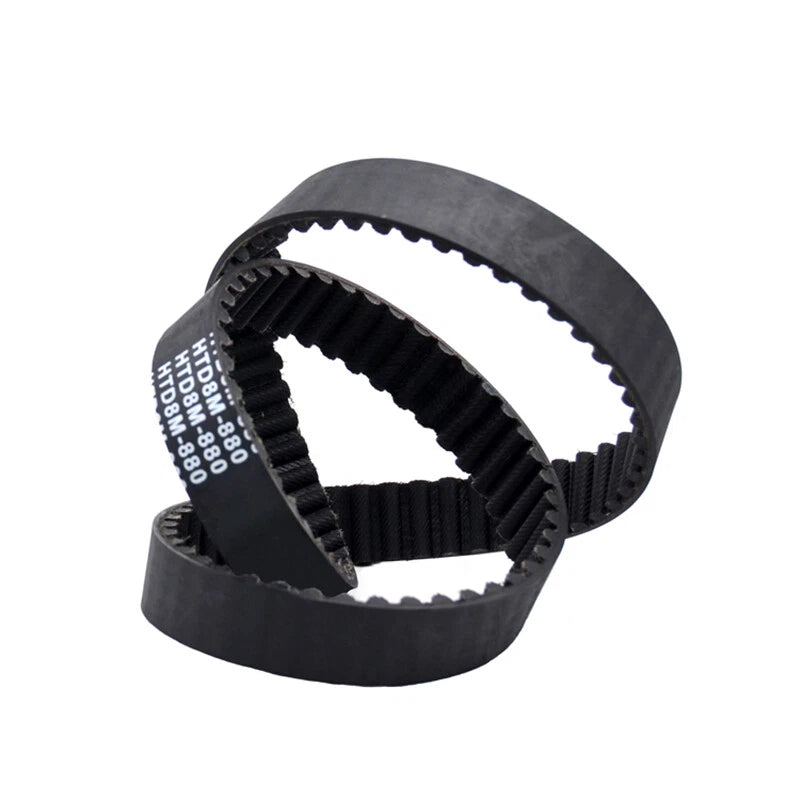

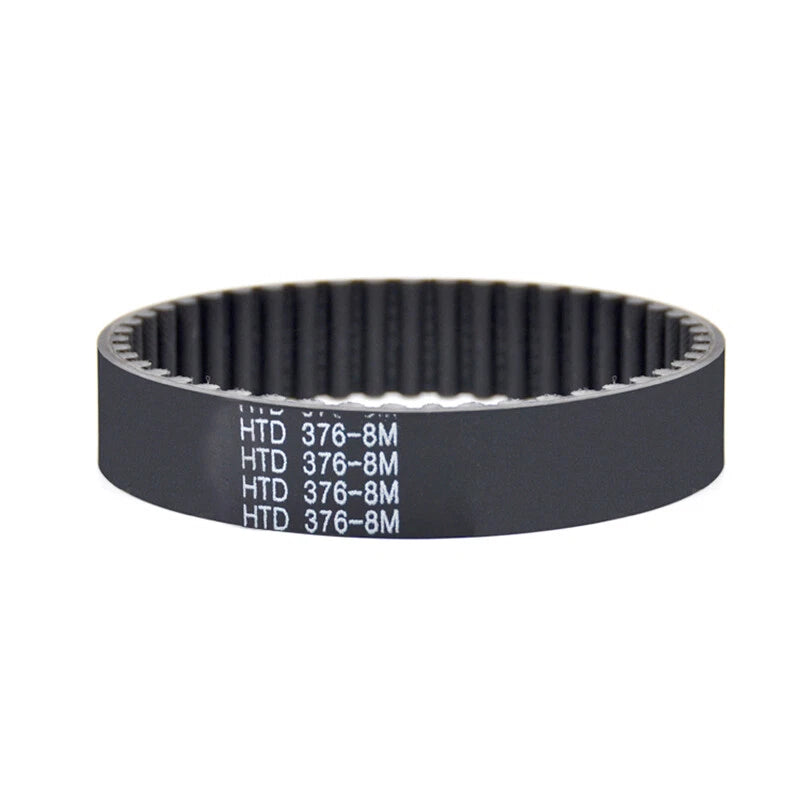

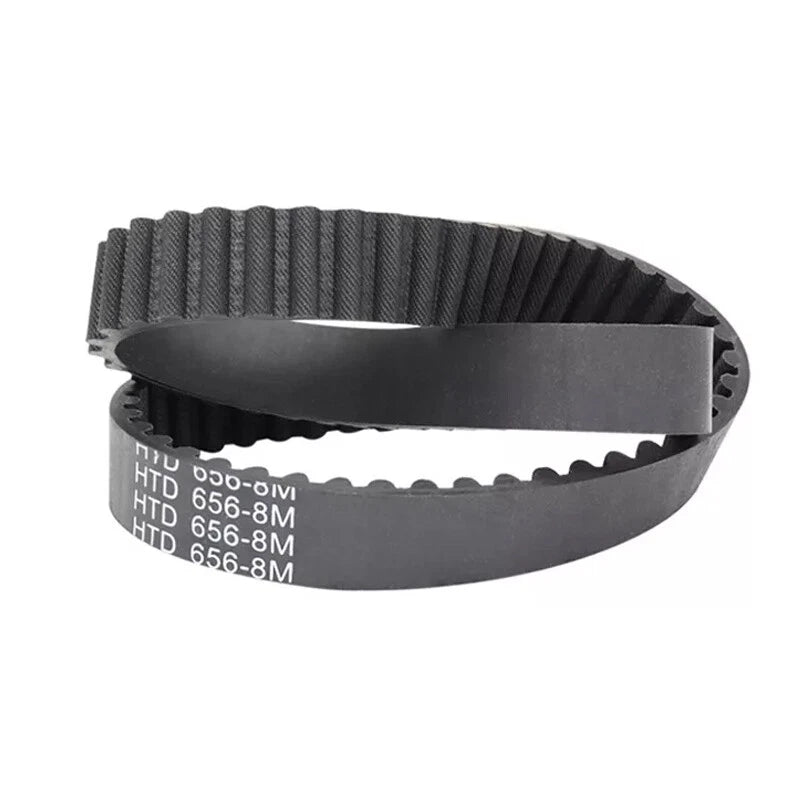

Each belt is a single closed loop of rubber reinforced with high-tensile cord, featuring the HTD-8M tooth profile — 8mm pitch, curved tooth flanks — available in 30mm (≈1.18") or 40mm (≈1.57") width and perimeter sizes ranging from 288mm (≈11.3") to 4400mm (≈173.2"). Select the width and perimeter that match your pulley specification; one belt per order unless a multi-piece quantity variant is chosen.

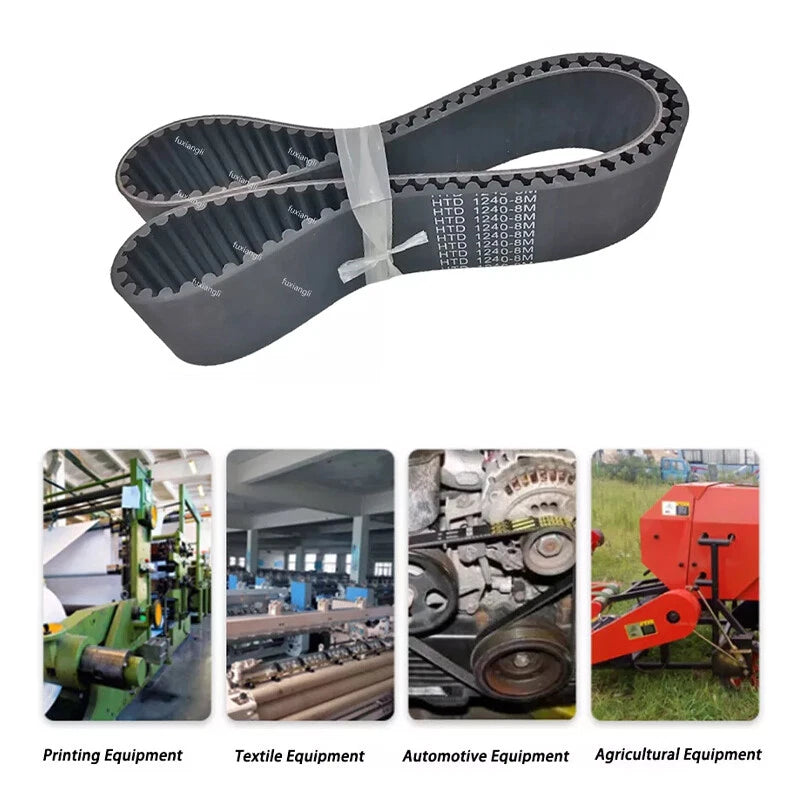

Typical applications include CNC router axis drives, large-format 3D printer motion systems, laser engraver gantries, conveyor indexing drives, and light industrial automation where the HTD-8M closed-loop timing belt delivers consistent tooth engagement and low backlash across the full perimeter range.

ℹ️ Compatibility: Designed for HTD-8M toothed pulleys only. Confirm your pulley pitch is 8mm (HTD profile) and that the pulley face width matches your chosen belt width (30mm or 40mm) before ordering.
⚠️ Size tip: Perimeter is the total outer loop length, not the center-to-center distance. Measure your existing belt or calculate from pulley geometry. If you are unsure, contact us to confirm before purchasing.

✅ Key Features of These HTD-8M Closed-Loop Timing Belts

  • ⚙️HTD-8M Tooth Profile — Curved tooth flanks distribute load across multiple teeth simultaneously, reducing stress concentration and enabling smooth, low-noise power transmission in CNC router drive systems.
  • 🔁Closed-Loop Construction — Seamless loop eliminates the splice failure point found in cut-to-length belts, providing consistent tension and reliable synchronous motion across the full perimeter range from 288mm to 4400mm.
  • 📐Two Width Options — Choose 30mm for lighter-duty or space-constrained drives, or 40mm for higher torque capacity and improved lateral tracking stability on wide-face HTD-8M pulleys.
  • 🧵Reinforced Rubber Compound — The rubber body is typically cord-reinforced (fiberglass or steel) to resist elongation under dynamic loads, maintaining tooth pitch accuracy over extended service life in 3D printer and industrial conveyor applications.

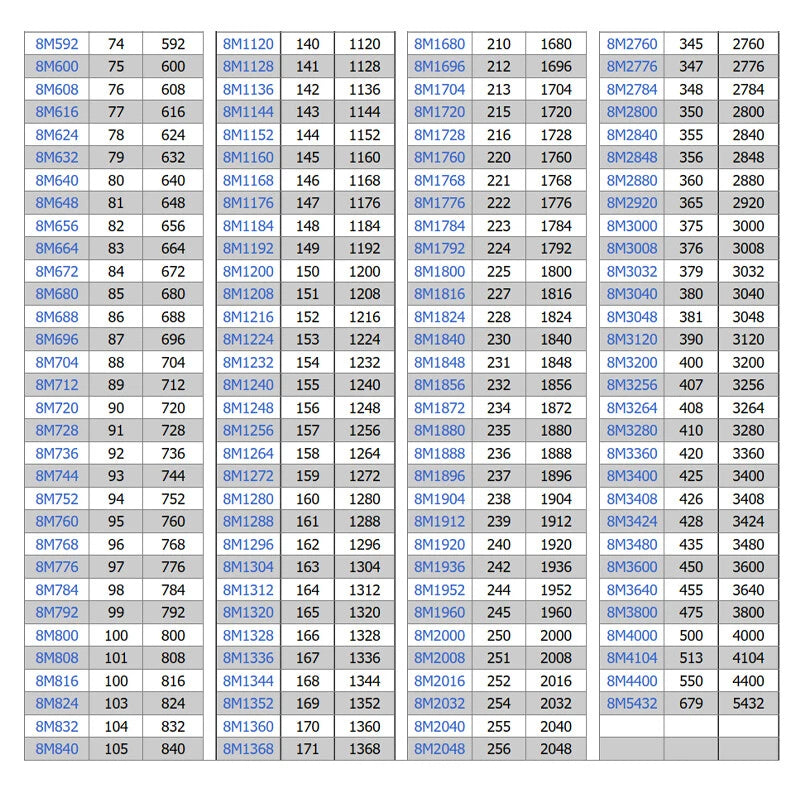

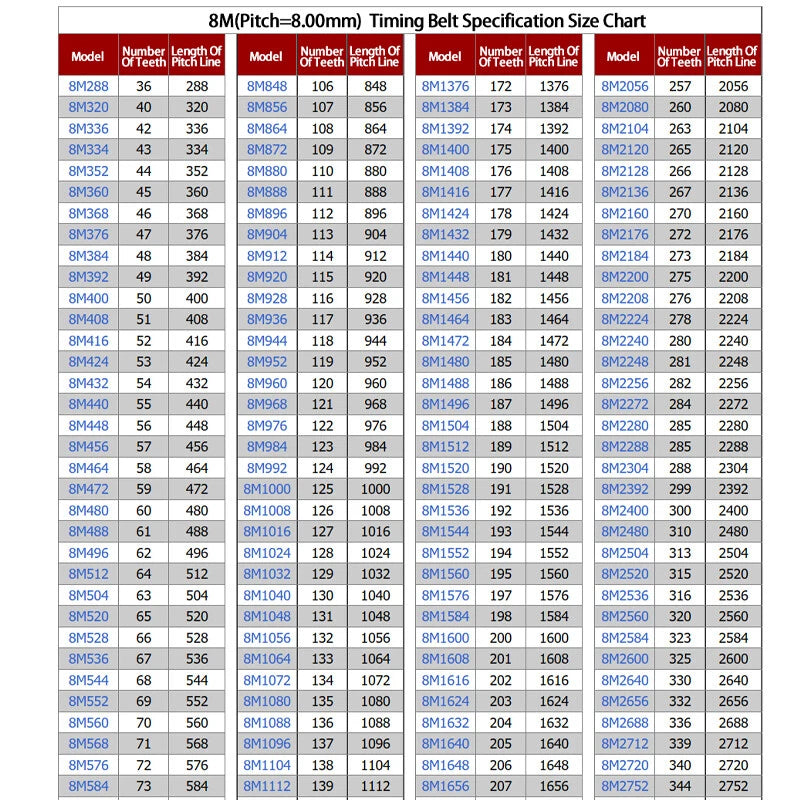

  • 📏Wide Perimeter Selection — Over 200 perimeter sizes from 288mm to 4400mm let you match the exact loop length required by your machine without custom fabrication or splicing.
  • 🏭Versatile Industrial Fit — The HTD-8M standard is widely adopted across CNC machining, laser cutting, additive manufacturing, and light conveyor indexing, making replacement sourcing straightforward when the belt eventually needs service.

📐 Technical Specifications — HTD-8M Rubber Timing Belt

Belt Type HTD-8M Synchronous Timing Belt, Closed Loop

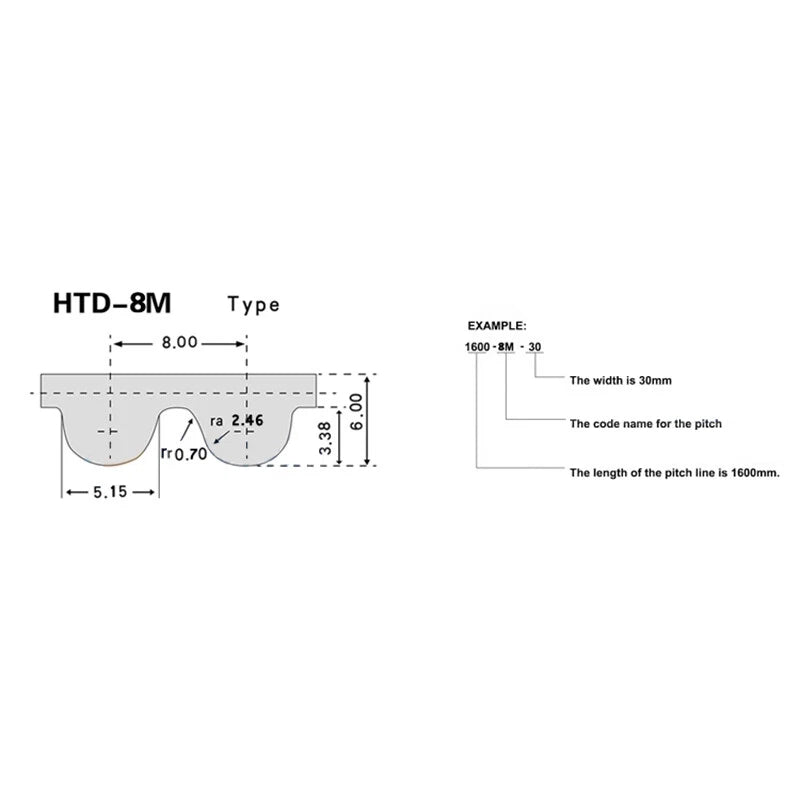

Tooth Pitch 8mm (HTD profile, curved tooth)
Width Options 30mm (≈1.18") / 40mm (≈1.57")
Perimeter Range 288mm (≈11.3") – 4400mm (≈173.2")
Material Rubber with cord reinforcement (typically fiberglass or steel)
Tooth Profile HTD (High Torque Drive), curved flank
Compatible Pulleys HTD-8M toothed pulleys, matching face width
Quantity per Order 1 piece (per variant selected)
Tensile Strength See variant options
Operating Temperature Contact us to confirm
Color / Finish Black rubber, natural tooth surface
Country of Origin See variant options

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD-8M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where D1 and D2 are the pulley pitch diameters. For example, a 500mm perimeter belt is typically 500mm (≈19.7") around the full loop. When in doubt, round up to the next available size and verify against your pulley tooth count.

What pitch does this timing belt use, and what pulleys are compatible?

This belt uses the HTD-8M pitch standard — 8mm between tooth centers. It is compatible with any HTD-8M toothed pulley of matching width (30mm or 40mm). HTD-8M pulleys are widely available for CNC routers, laser cutters, 3D printers, and industrial conveyor systems.

What load or torque can this HTD-8M belt handle?

HTD-8M belts are generally rated for moderate-to-high torque applications. The 40mm-wide variant typically carries higher load capacity than the 30mm version. Exact ratings depend on pulley diameter, speed, and operating temperature. Contact us to confirm suitability for your specific application.

Is this timing belt suitable for outdoor or high-humidity environments?

The rubber compound used in HTD-8M belts generally offers good resistance to oil mist and moderate humidity. However, prolonged exposure to UV radiation, ozone, or immersion in water can degrade rubber over time. For outdoor or washdown environments, we recommend verifying the belt material specification or contacting us for guidance.

Can I use this belt on my CNC router or 3D printer?

Yes — HTD-8M closed-loop timing belts are commonly used in CNC routers, laser engravers, and large-format 3D printers where precise, slip-free motion is required. Confirm your machine uses HTD-8M pulleys and select the perimeter that matches your axis travel distance.

What is the difference between the 30mm and 40mm width options?

Width affects load capacity and lateral stability. The 40mm belt generally handles higher torque and is less prone to tracking off narrow pulleys under heavy loads. The 30mm belt is lighter and suits applications where space is limited. Both share the same HTD-8M tooth profile and pitch.

Does the belt stretch over time, and how do I tension it correctly?

All rubber timing belts experience minor initial elongation during break-in. HTD-8M belts typically include fiberglass or steel cord reinforcement to minimize stretch. Tension by adjusting center distance until the belt deflects approximately 1–2% of the span under light finger pressure. Re-check tension after the first few hours of operation.

🛒 Select your width and perimeter above, then add to cart — ships from our US warehouse.
