HTD 8M Closed Loop Synchronous Timing Belt — Precise Power Transmission for Demanding Drives

When a slipping or mismatched drive belt causes positioning errors, unexpected downtime, or stripped pulleys, the real cost is far more than the belt itself. Engineers, makers, and machine builders who rely on repeatable motion — whether in a CNC router, robotic arm, conveyor system, or automated fixture — need a synchronous timing belt that holds its pitch under load and stays dimensionally stable over time. This HTD 8M closed loop timing belt is designed for exactly those applications.

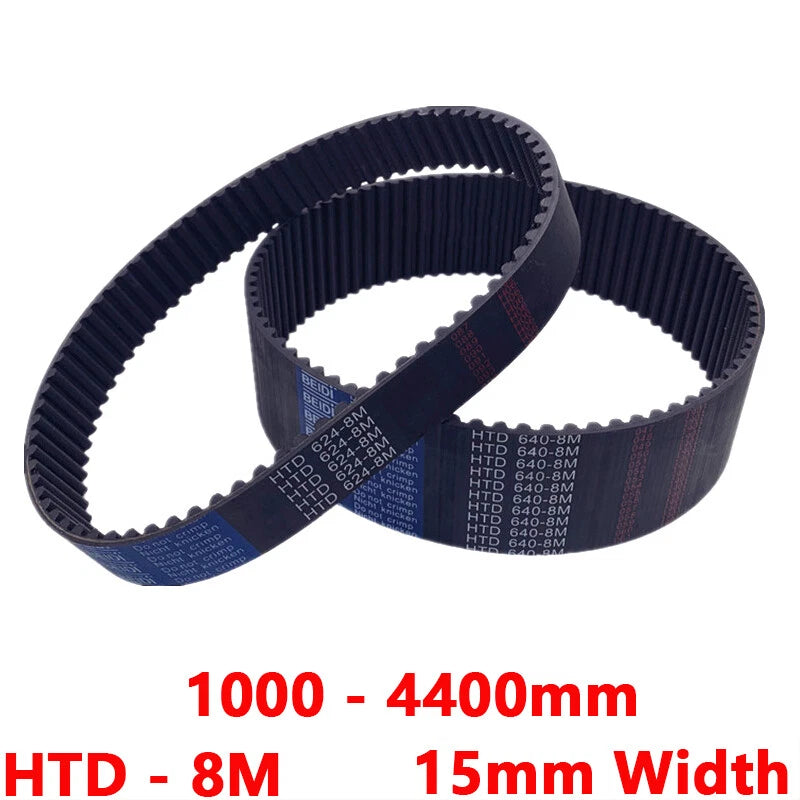

Each belt features an 8mm HTD tooth pitch and a 15mm (≈0.59") belt width, available in 183 closed-loop sizes ranging from 1000mm (≈39.4") to 4400mm (≈173.2") in length. The HTD (High Torque Drive) curvilinear tooth profile engages pulleys with a larger contact area than trapezoidal profiles, reducing tooth shear stress and backlash. Construction is typically neoprene rubber with fiberglass or steel tension cord reinforcement for dimensional stability under cyclic loading.

Typical use cases include CNC machine axis drives requiring repeatable positioning, conveyor and indexing table drives in light industrial automation, and robotics joint or actuator drives where synchronous motion is critical. The wide size selection also makes these belts a practical replacement part for existing HTD 8M drive systems across 3D printing gantries, laser cutters, and custom motion platforms.

🔗 Compatibility: Fits any HTD 8M pulley or sprocket with a 15mm belt groove. Tooth pitch is 8mm — confirm your pulley is labeled HTD-8M (not GT2, T8, or XL) before ordering.

⚠️ Sizing note: Belt length = number of teeth × 8mm. Verify your required closed-loop circumference before selecting a variant. Closed-loop belts cannot be shortened or spliced.

✅ Key Features of These HTD 8M Synchronous Timing Belts

⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth form distributes load across a larger pulley contact area than trapezoidal profiles, reducing tooth stress and minimizing backlash in precision synchronous drive systems.
📏183 Closed-Loop Sizes — Available from 1000mm to 4400mm in fine increments, covering a wide range of center-to-center distances for CNC axis drives, conveyor belts, and custom motion systems without custom fabrication.
🔩8mm Pitch for Higher Torque — The 8mm pitch spacing handles greater torque loads than finer-pitch belts (5M, 3M), making this belt well-suited for mid-size CNC routers, robotic actuators, and indexing conveyor drives.
📐15mm Consistent Belt Width — Uniform 15mm width across all size variants ensures compatibility with standard HTD 8M-15 pulleys and flanged sprockets without requiring width-specific hardware changes.
🧱Reinforced Tension Cord Construction — Fiberglass or steel cord reinforcement (typical for HTD belts) resists elongation under cyclic tension, maintaining consistent tooth pitch and positional accuracy over extended service life.
🔄Endless Closed-Loop Design — Seamless construction eliminates the weak point of a mechanical joint, providing smooth, vibration-reduced power transmission suitable for high-cycle automated equipment and precision positioning stages.

📐 Technical Specifications — HTD 8M Synchronous Timing Belt

Belt Type	HTD (High Torque Drive) Synchronous Closed Loop
Tooth Pitch	8mm
Belt Width	15mm (≈0.59")
Tooth Profile	HTD curvilinear (rounded)
Belt Length Range	1000mm (≈39.4") to 4400mm (≈173.2")
Tooth Count Range	125 teeth (1000mm) to 550 teeth (4400mm)
Construction (typical)	Neoprene rubber body with fiberglass or steel tension cord
Loop Type	Endless (closed loop) — no joint or splice
Compatible Pulley Standard	HTD 8M, 15mm groove width
Tooth Pitch Tolerance	See variant options
Operating Temperature	Contact us to confirm
Max Recommended Speed	Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right belt length?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Belt Length = 2 × C + π × (D1 + D2) / 2. Variants are listed in mm; to convert to inches, divide by 25.4 (e.g., 1000mm ≈ 39.4", 2000mm ≈ 78.7", 2400mm ≈ 94.5"). When in doubt, size up — a slightly longer belt can be tensioned; a short belt cannot be stretched.

What load can this timing belt handle?

HTD 8M belts are generally rated for moderate-to-high torque applications. The 8mm pitch and curvilinear tooth profile distribute load across multiple teeth simultaneously, making them suitable for drives that typically require more torque capacity than 5M or 3M belts. Exact load ratings depend on pulley diameter, speed, and operating conditions — consult your drive system specifications to confirm suitability.

Can this belt be used outdoors or in wet environments?

HTD timing belts are typically constructed from neoprene rubber with fiberglass or steel cord reinforcement, which offers reasonable resistance to moisture and mild chemicals. They are generally not recommended for prolonged submersion or exposure to oils, solvents, or extreme UV. For outdoor or harsh-environment use, verify the specific material composition and consider a belt with added protective coatings.

What pulleys are compatible with this belt?

This belt uses the HTD 8M tooth profile with an 8mm pitch. It is compatible with any HTD 8M pulley or sprocket with a 15mm belt groove. HTD 8M is a standardized profile — pulleys from most major manufacturers will fit as long as the pitch and groove width match. Do not use with GT2, T8, XL, or other non-HTD profiles, as tooth geometry differs.

How do I decide between HTD 8M and other belt pitches like 5M or 14M?

Choose based on torque and speed requirements. HTD 5M is typically used for lighter-duty, higher-speed applications (e.g., 3D printers, small CNC). HTD 8M handles higher torque at moderate speeds — common in robotics, conveyor systems, and mid-size CNC machines. HTD 14M is for heavy industrial drives. If your existing system specifies 8M, this belt is the correct replacement.

Is this a closed-loop (endless) belt or an open-ended belt?

This is a closed-loop (endless) synchronous belt — it has no seam or joint. It must be installed by sliding it over the pulleys before mounting the shaft, or by using a tensioner that allows the belt to be looped on. It cannot be cut and re-joined. All size variants listed are pre-formed closed loops.

What does the tooth count tell me, and how does it relate to belt length?

The tooth count is simply the belt length divided by the pitch. For HTD 8M: Teeth = Belt Length (mm) ÷ 8. For example, a 1000mm belt has 125 teeth; a 2000mm belt has 250 teeth. Both values are listed in each variant name for easy cross-reference when matching to pulley tooth counts.
