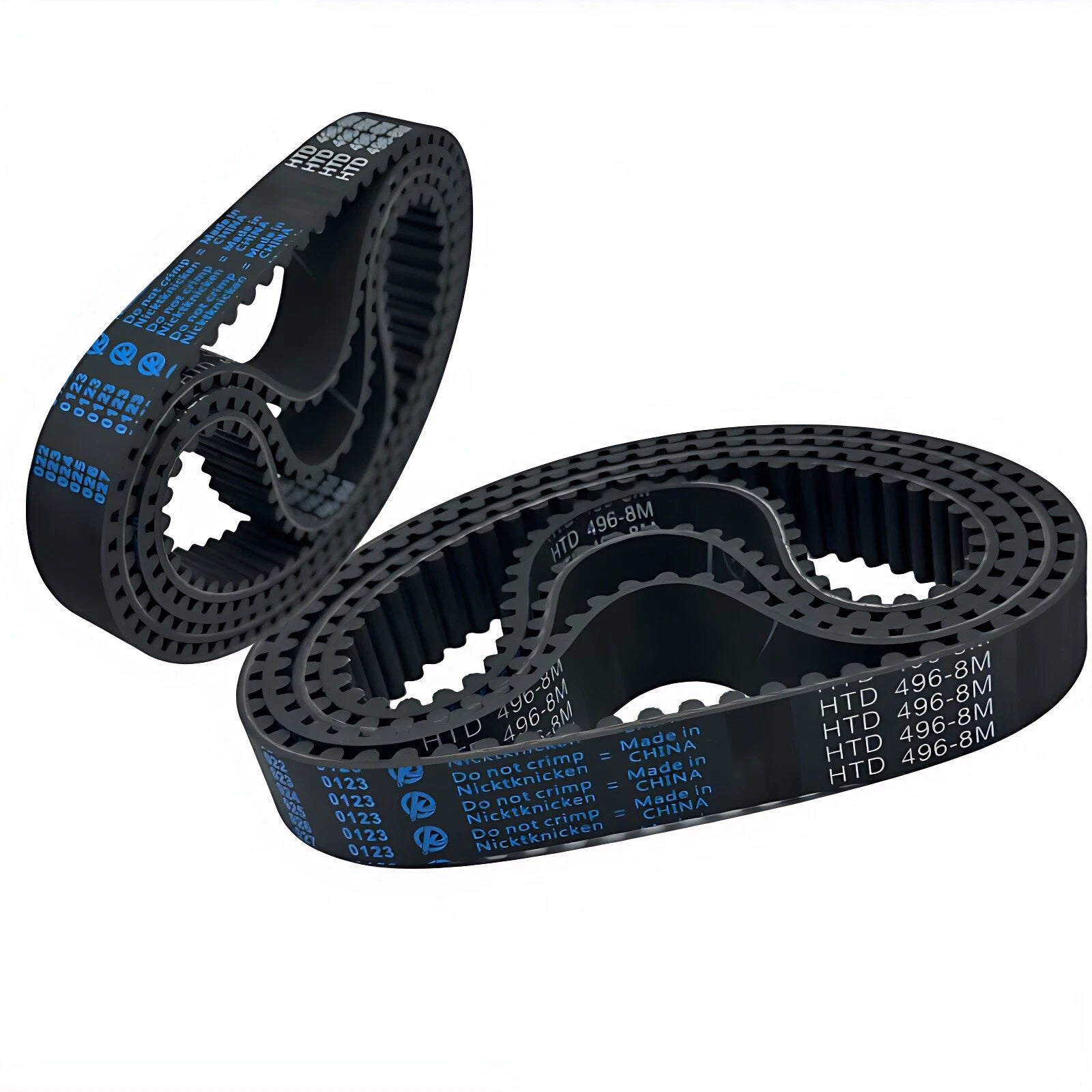

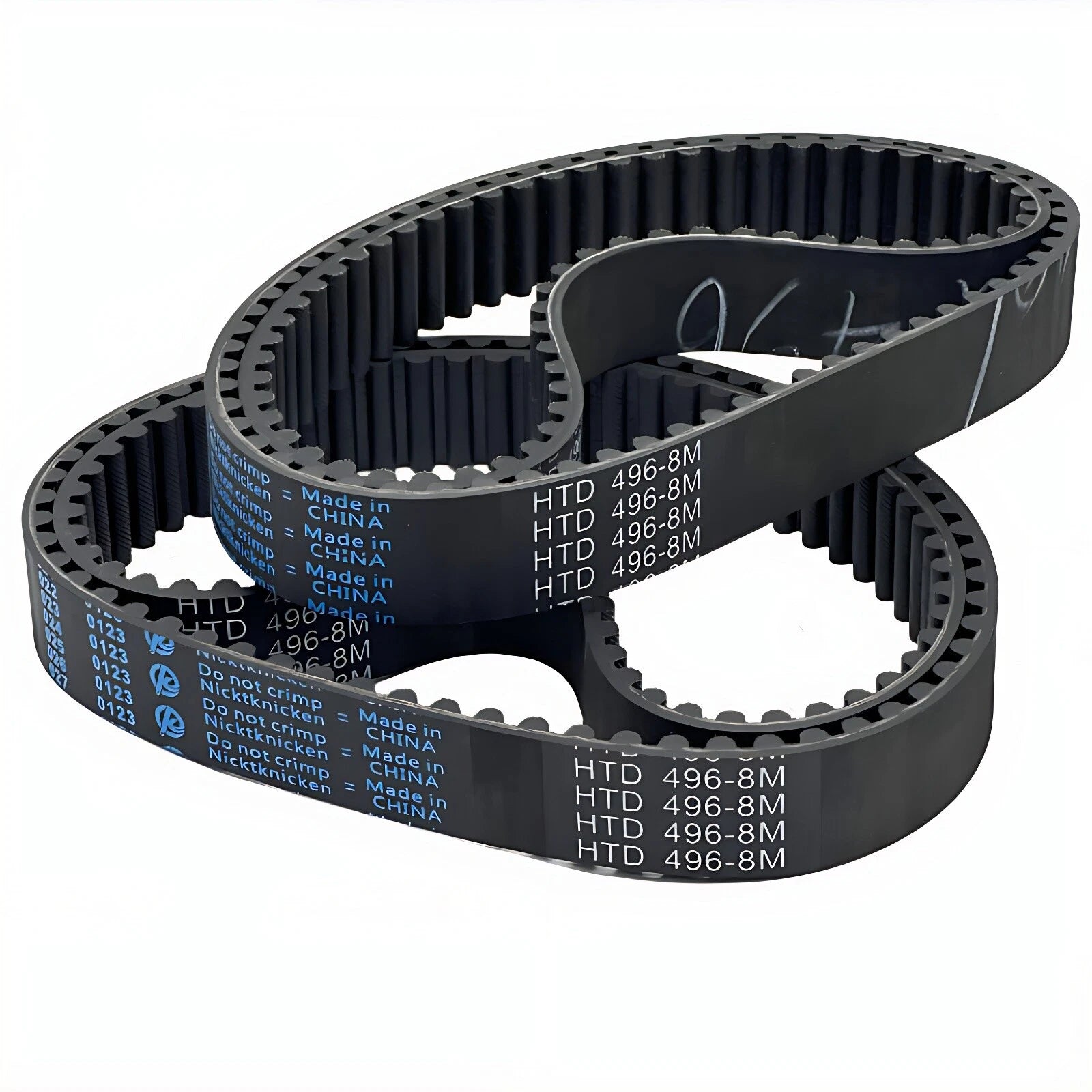

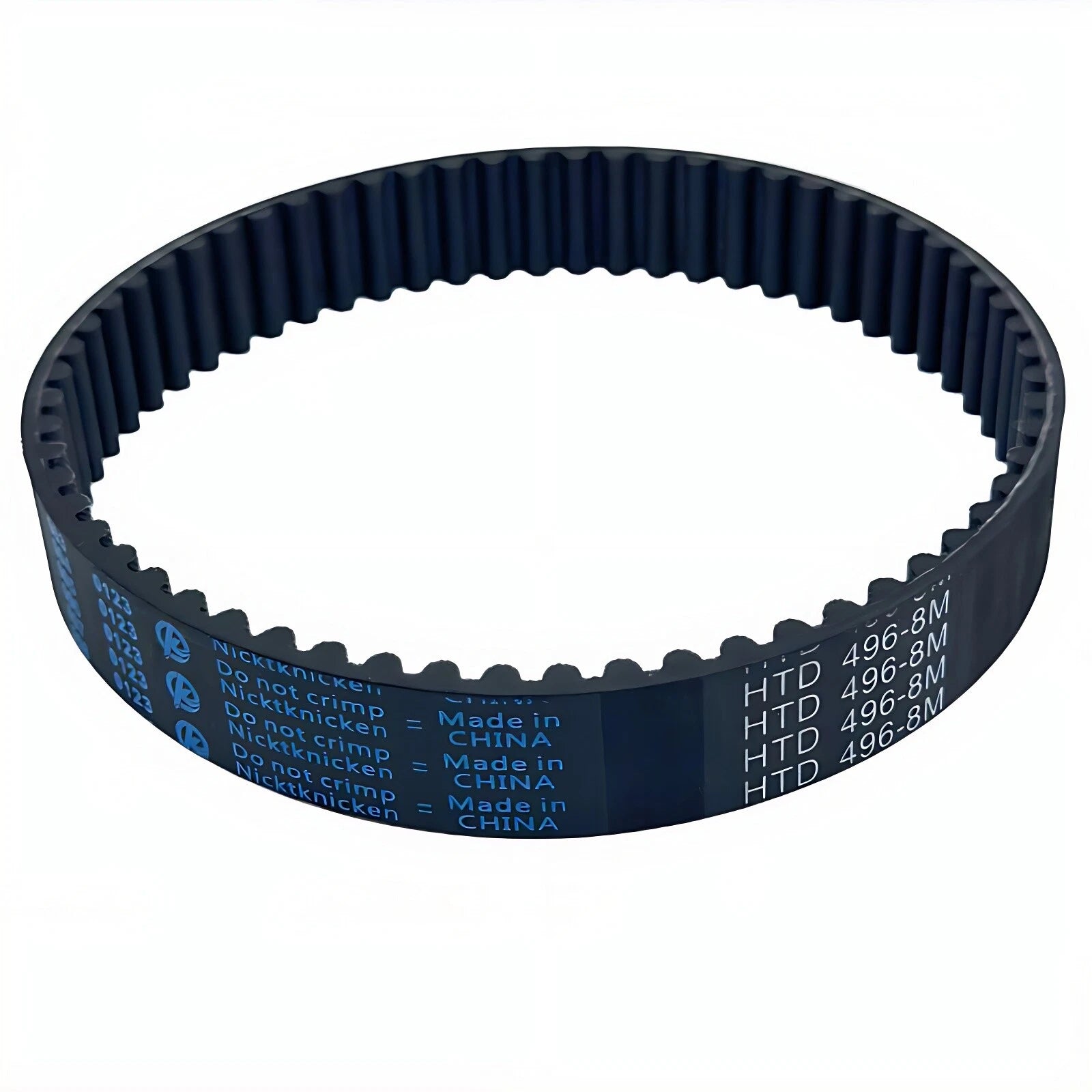

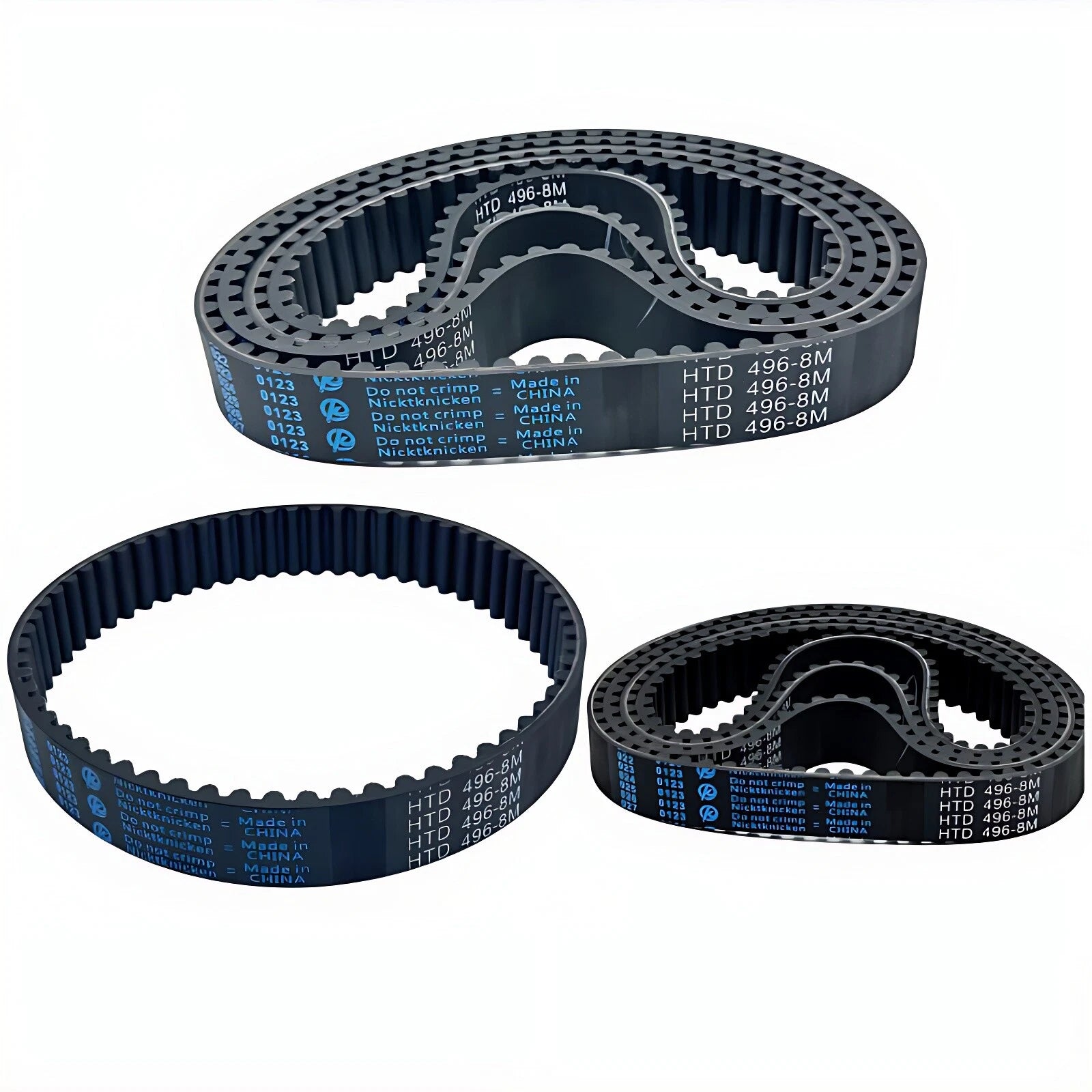

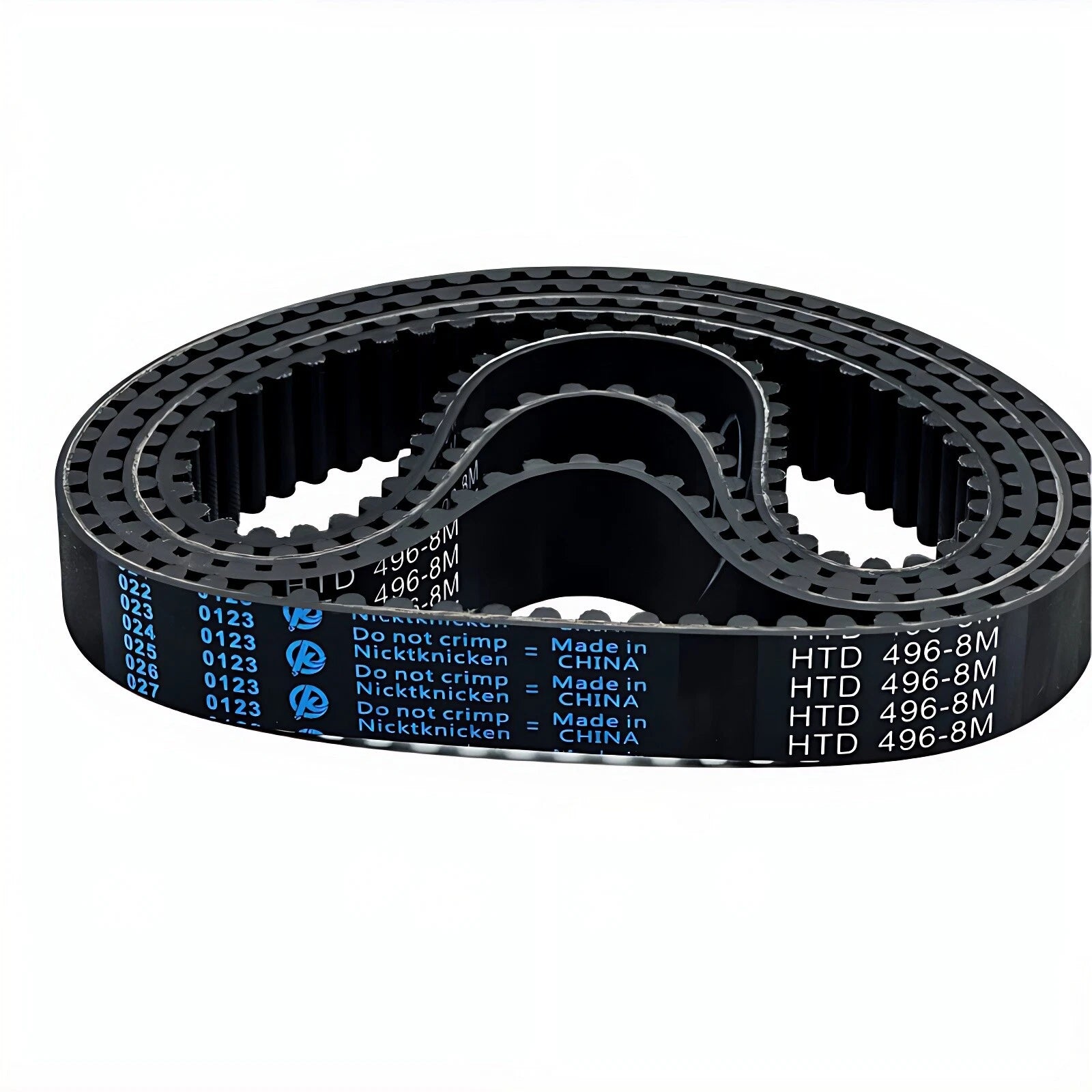

HTD 8M Closed-Loop Timing Belt — 15mm Width, 8mm Pitch for CNC and Power Transmission

When a slipping or mismatched drive belt brings your CNC router, laser cutter, or 3D printer to a halt, the cost isn't just the belt — it's lost time, ruined material, and missed deadlines. Machinists, fabricators, and motion-system builders who need a reliable HTD 8M timing belt in a specific closed-loop length know how frustrating it is to find only a handful of sizes in stock. This listing covers an extensive range of circumferences so you can get the exact fit your drive system requires.

Each belt follows the HTD 8M standard: 8mm pitch (center-to-center tooth spacing), 15mm width, and a closed-loop construction with a rounded curvilinear tooth profile. The reinforced rubber body — typically neoprene with fiberglass or steel tension cord — keeps the belt dimensionally stable under load. Available circumferences run from 264mm (≈10.4″) up to 2840mm (≈111.8″), with most increments at 8mm steps to match standard pulley tooth counts.

Typical use cases include CNC router X/Y axis drives, laser engraver gantry systems, 3D printer bed or extruder motion, conveyor and indexing table drives, and general power transmission where a synchronous closed-loop belt replaces chain or V-belt setups. The HTD 8M closed-loop synchronous belt format is a go-to choice wherever slip-free, timed motion is required.

✅ Compatibility: Fits any HTD 8M pulley with a 15mm or wider groove. Confirm your pulley's tooth count and groove width before ordering. Not interchangeable with GT2, GT3, or T8 profiles.

✅ Key Features of These HTD 8M Closed-Loop Timing Belts

⚙️HTD 8M Standard Profile — Rounded curvilinear tooth form with 8mm pitch distributes torque across multiple teeth, reducing tooth shear stress in CNC router drive and power transmission applications.

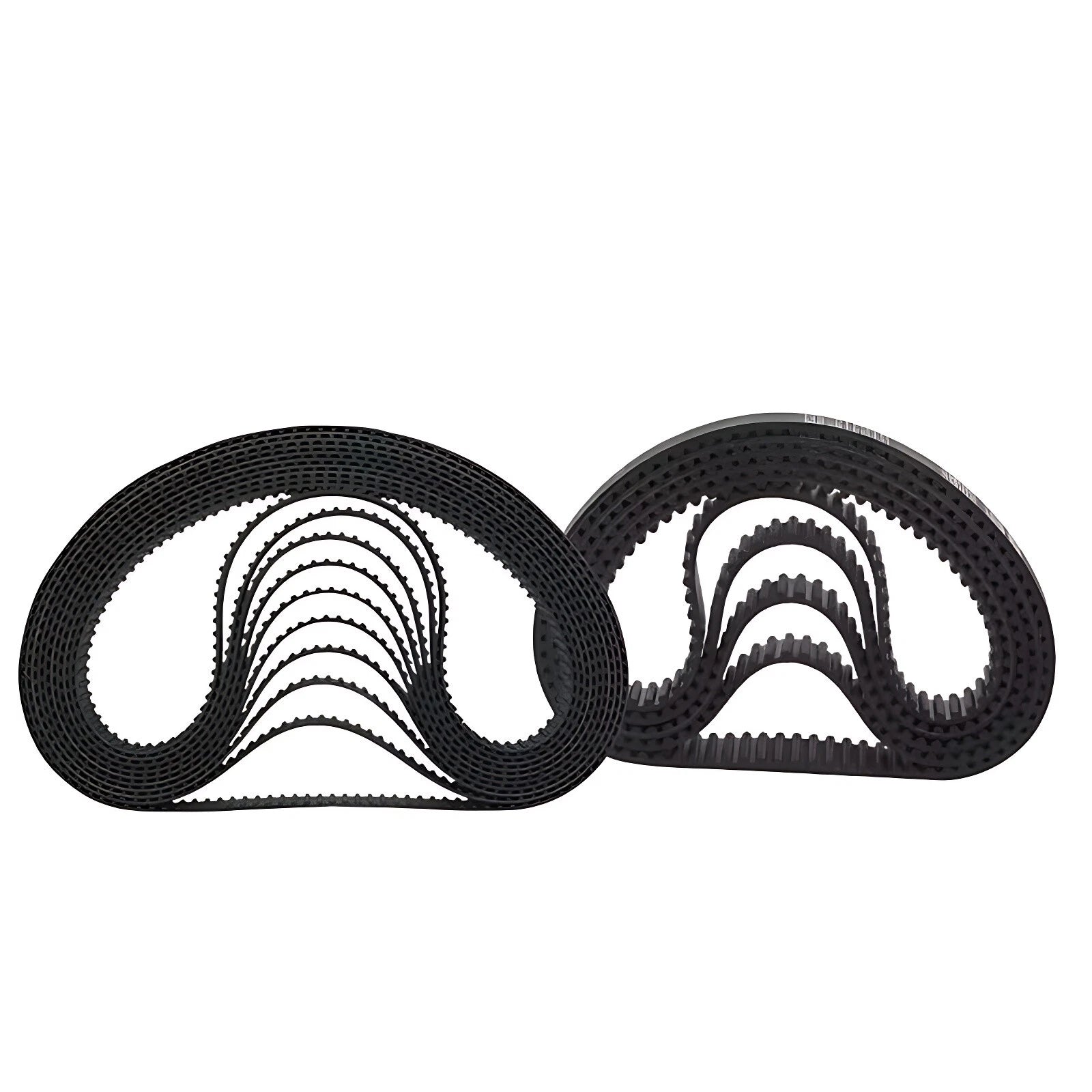

📏Wide Length Selection — Circumferences from 264mm (≈10.4″) to 2840mm (≈111.8″) in tight increments, so you can match your exact center-to-center distance without custom cutting or splicing.
🔩Closed-Loop Construction — Seamless loop eliminates the splice point that causes vibration and premature failure in joined belts, critical for smooth motion in 3D printer axis and laser gantry drives.
🛡️Reinforced Tension Cord — Fiberglass or steel cord reinforcement (typically) resists elongation under cyclic load, maintaining consistent pitch length and positional accuracy over time.
🌡️Neoprene Rubber Body — Neoprene construction generally offers resistance to oil, grease, and moderate temperature variation, making it suitable for workshop and light industrial synchronous belt drive environments.
🔄Slip-Free Synchronous Drive — Positive tooth engagement ensures the drive ratio stays constant — no creep, no slip — which is essential for indexed positioning in CNC and conveyor timing belt applications.

📐 Technical Specifications — HTD 8M Timing Belt

Belt Profile	HTD 8M (High Torque Drive, 8mm pitch)
Tooth Pitch	8mm (0.315″)
Belt Width	15mm (≈0.59″)
Loop Type	Closed loop (seamless)
Available Circumferences	264mm (≈10.4″) to 2840mm (≈111.8″) — see variant options
Tooth Form	Rounded curvilinear (HTD profile)
Body Material	Neoprene rubber (typically)
Reinforcement	Fiberglass or steel tension cord (typically)
Compatible Pulley Standard	HTD 8M pulleys with 15mm+ groove width
Tooth Count per Belt	See variant options (circumference ÷ 8mm)
Typical Applications	CNC router, laser engraver, 3D printer, conveyor, indexing drive
Color	Contact us to confirm
Operating Temperature	Contact us to confirm

⚠️ Note: Belt material and cord type may vary by production batch. If your application has specific temperature, chemical, or load requirements, contact us before ordering to confirm suitability.

❓ Frequently Asked Questions

How do I choose the right belt length?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Belt Length = 2 × C + π × (D1 + D2) / 2. The variant names show the belt's outer circumference in mm — for example, 264-8M-15MM means a 264mm (≈10.4″) closed loop. When in doubt, size up slightly and use a tensioner to take up slack.

What load or torque can these belts handle?

HTD 8M belts are generally rated for moderate-to-high torque applications. The 8mm pitch and rounded tooth profile distribute load across multiple teeth, making them suitable for CNC routers, 3D printer axes, and light industrial drives. Exact load ratings depend on pulley diameter, speed, and operating conditions — consult your drive system specs to confirm.

Can these belts be used outdoors or in wet environments?

These belts are typically made from neoprene rubber with fiberglass or steel cord reinforcement, which generally offers good resistance to oil, grease, and moderate moisture. However, prolonged exposure to UV, standing water, or harsh chemicals may reduce belt life. For outdoor or washdown environments, verify material compatibility before installation.

Are these compatible with standard HTD 8M pulleys?

Yes. These belts follow the HTD (High Torque Drive) 8M profile standard — 8mm pitch, rounded tooth form — and are compatible with any HTD 8M pulley with a 15mm or wider groove. Always confirm your pulley's tooth count and groove width before ordering.

How do I select between so many length options?

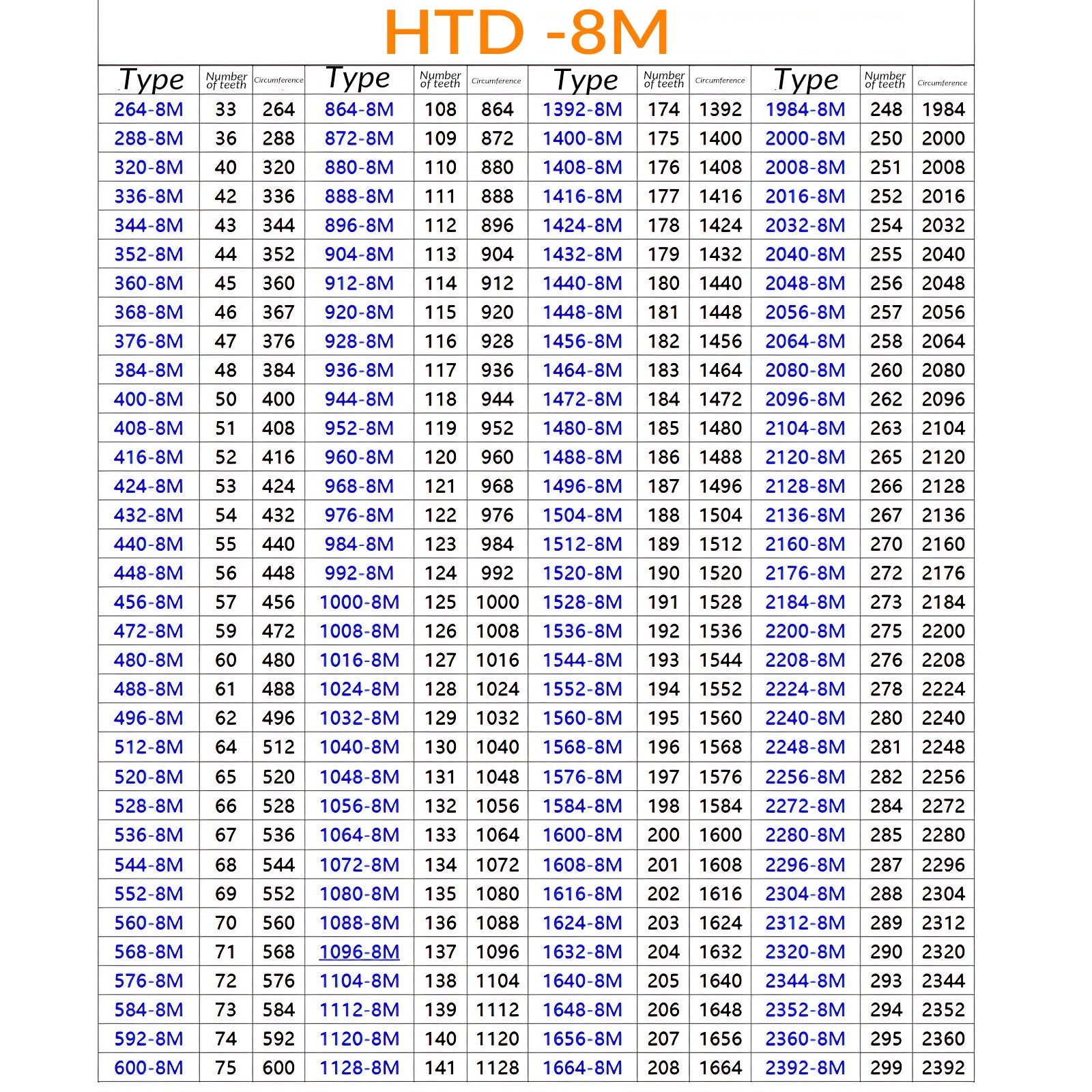

Each variant is labeled as [circumference]-8M-15MM. The first number is the belt's total closed-loop circumference in millimeters. Match this to your calculated belt path length. Available sizes run from 264mm (≈10.4″) up to 2840mm (≈111.8″) in 8mm increments, so you can typically find an exact or near-exact fit.

What is the difference between HTD and GT2/GT3 belt profiles?

HTD (High Torque Drive) belts have a rounded, curvilinear tooth profile optimized for high-torque, lower-speed applications. GT2/GT3 belts use a modified curvilinear profile with tighter tolerances, favored in precision motion systems like 3D printers. HTD 8M is generally chosen when torque capacity matters more than positioning accuracy at very high speeds.

Can I use a 15mm wide belt on a wider pulley?

In most cases, yes — a narrower belt can run on a wider pulley groove, but the belt must be at least as wide as the pulley's minimum recommended belt width. Running a 15mm belt on a significantly wider pulley without flanges may cause the belt to wander laterally. Use flanged pulleys or a tensioner guide for best results.

🛒 Select your belt length above, then add to cart — ships from our US warehouse.
