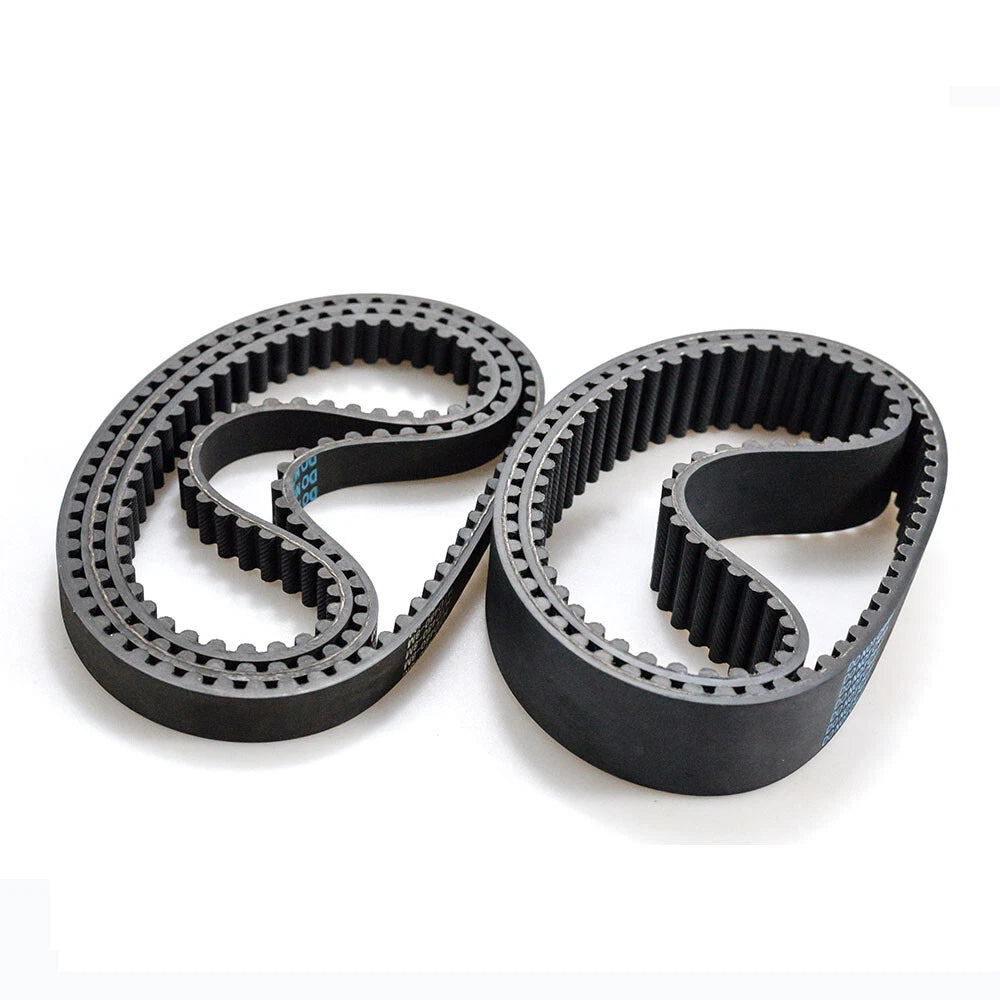

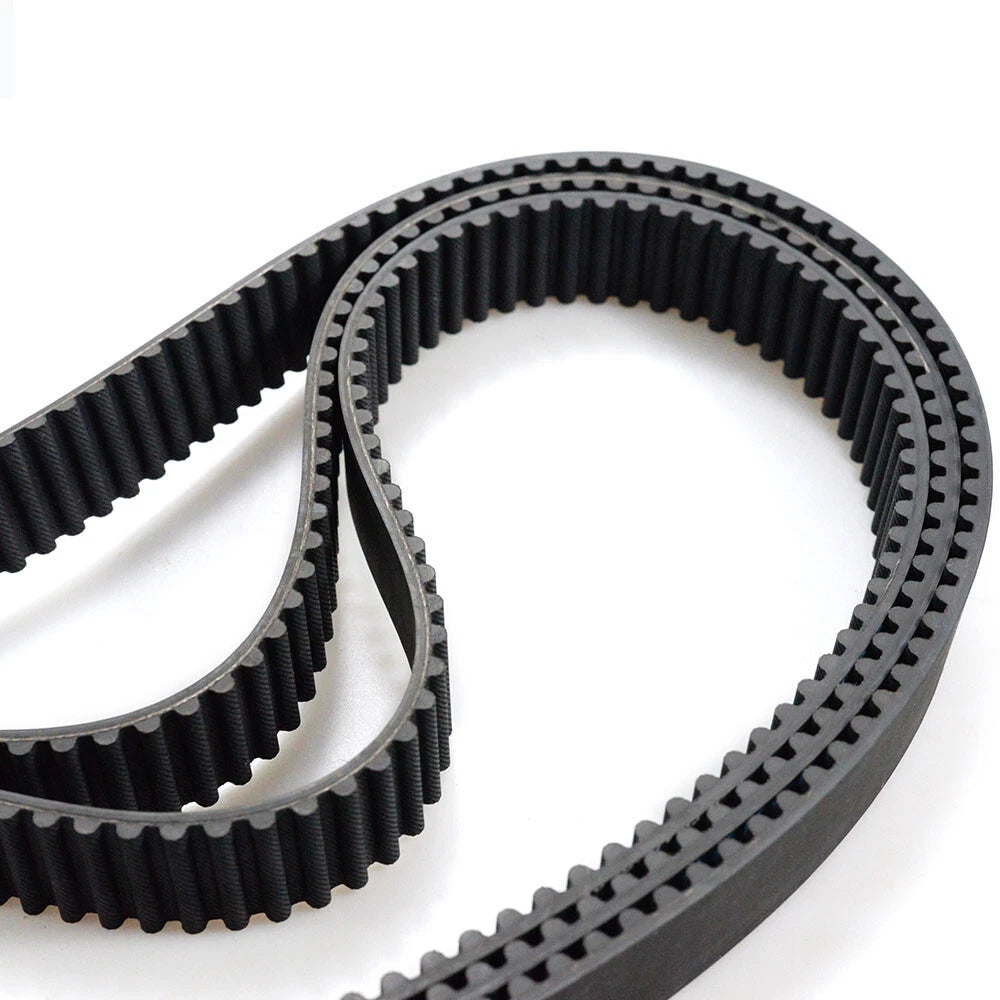

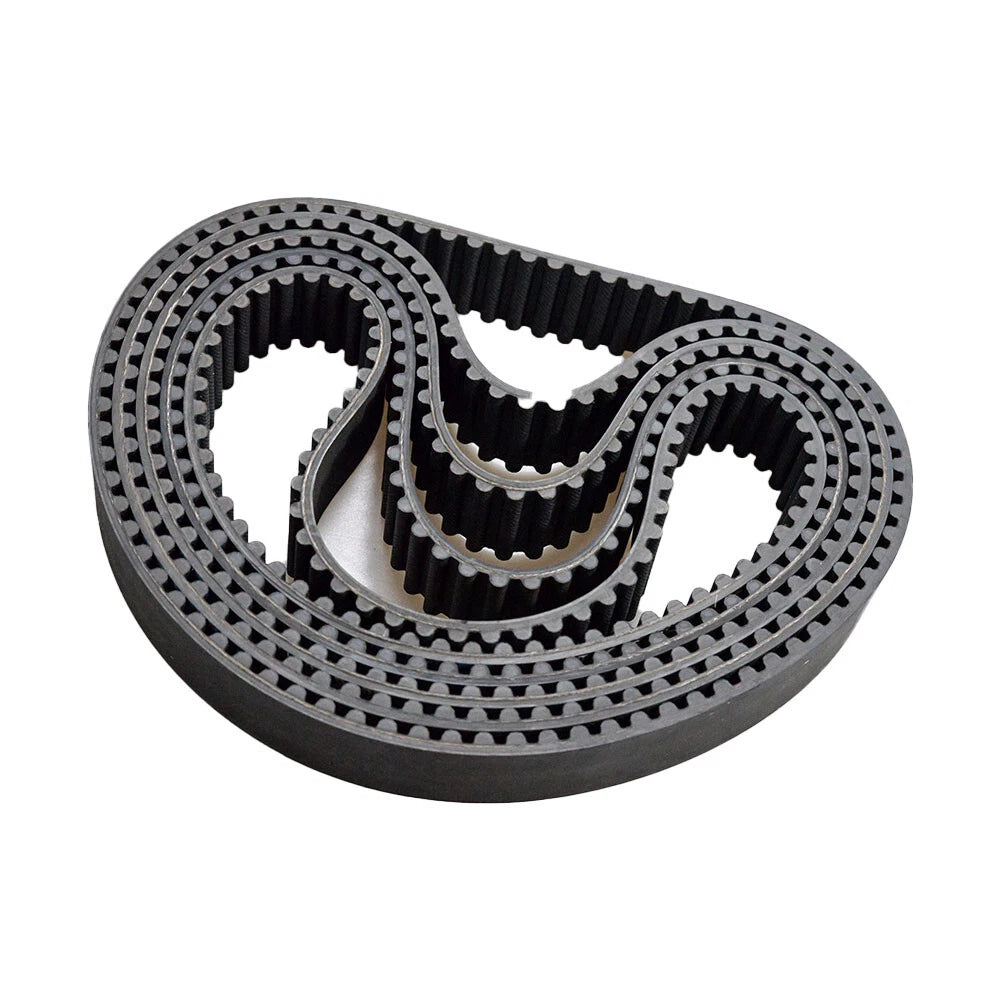

HTD 8M Timing Belt 30mm Wide – Closed Loop Rubber Drive Belt, 8mm Pitch

Zum Zoomen über das Bild scrollen Klicke zum Zoomen auf das Bild

HTD 8M Timing Belt 30mm Wide – Closed Loop Rubber Drive Belt, 8mm Pitch

Name: HTD 8M Timing Belt 30mm Wide – Closed Loop Rubber Drive Belt, 8mm Pitch
Brand: HomeDIYer
Price: 7.47 USD
Availability: InStock

HomeDIYer

Keine Bewertungen

By HomeDIYer®

Loop Circumference(mm): 264

Belt Width(mm): 30mm

Number of Teeth(T): 33

Preis:

$7.47 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

HTD 8M Closed Loop Timing Belt — Reliable 8mm Pitch Drive for CNC, Robotics & Industrial Machines

When a slipping or mismatched drive belt brings your CNC router, laser cutter, or conveyor to a halt, the cost isn't just the belt — it's the downtime, the ruined workpiece, and the frustration of tracking down an obscure size. Makers, machine builders, and maintenance technicians who rely on precise motion control need an HTD 8M timing belt that fits right the first time and holds up under real working loads.

This closed loop rubber timing belt features an 8mm pitch (HTD 8M profile) and a 30mm belt width. The belt body is constructed from neoprene (chloroprene) rubber with a fiberglass or steel tension cord core for dimensional stability under load. Loop circumferences are available from 264mm (≈10.4") to 1384mm (≈54.5"), with tooth counts ranging from 33T to 173T — each variant is labeled with both loop circumference and number of teeth for straightforward sizing.

Typical applications include CNC axis drives and gantry systems, 3D printer Z-axis or large-format motion stages, conveyor belt drives in light industrial settings, and custom robotics or automation builds where synchronous, slip-free power transmission is required.

ℹ️ Compatibility: Designed for HTD 8M profile pulleys with a 30mm groove width. Not compatible with trapezoidal (XL, L, H), GT2, or GT3 profile pulleys. Verify your pulley profile before ordering.

✅ Key Features of These HTD 8M Closed Loop Timing Belts

⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque CNC and robotics drive applications.
📏Wide Size Selection (264mm–1384mm) — With 133 loop circumference options in 8mm pitch increments, you can match your exact center-to-center pulley distance without custom cutting or splicing.
🔩30mm Belt Width for Higher Torque Capacity — A wider belt face increases the number of teeth in mesh simultaneously, improving load distribution and reducing the risk of tooth jump in demanding closed loop timing belt applications.
🧱Neoprene Rubber Construction — The chloroprene rubber body resists oil, moderate moisture, and temperature variation, making it suitable for workshop, light industrial, and indoor automation environments.
🔗Reinforced Tension Cord Core — An internal fiberglass or steel cord layer maintains belt length stability under cyclic loading, preventing elongation that would cause timing drift in precision motion systems.
🔄Slip-Free Synchronous Drive — Unlike V-belts or flat belts, the positive tooth engagement of this rubber timing pulley belt eliminates slip, ensuring consistent speed ratios and repeatable positioning in automated systems.

📐 Technical Specifications — HTD 8M Rubber Timing Belt

Belt Profile	HTD 8M (High Torque Drive, 8mm pitch)
Pitch	8mm (0.315")
Belt Width	30mm (≈1.18")
Loop Circumference Range	264mm (≈10.4") – 1384mm (≈54.5")
Number of Teeth Range	33T – 173T
Belt Type	Closed loop (endless)
Body Material	Neoprene (chloroprene) rubber
Tension Member	Fiberglass or steel cord (see variant options)
Tooth Profile	HTD curvilinear (rounded)
Compatible Pulley Profile	HTD 8M, 30mm groove width
Operating Temperature	See variant options / Contact us to confirm
Color/Finish	Black

⚠️ Sizing Note: Always verify loop circumference AND tooth count against your pulley specs before ordering. The number of teeth = Loop Circumference ÷ 8. If your application requires a specific tension cord material or operating temperature rating, contact us to confirm before purchase.

❓ Frequently Asked Questions

How do I choose the right loop circumference for my HTD 8M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the required belt length using the standard formula: L = 2C + π(D1+D2)/2. Match that value to the nearest available loop circumference in the variant selector. For reference, a 600mm loop circumference is approximately 23.6". When in doubt, size up slightly to avoid over-tensioning the belt.

What is the pitch of this timing belt and what does it mean?

This belt has an 8mm pitch (HTD 8M), meaning the center-to-center distance between adjacent teeth is 8mm. It must be paired with HTD 8M-compatible pulleys. Mixing pitch standards — for example, using an 8M belt on a 5M or GT2 pulley — will cause tooth skipping, accelerated wear, or belt failure.

How strong is this timing belt — what load can it handle?

HTD 8M belts are generally rated for moderate-to-heavy power transmission. The 30mm width typically supports higher torque loads than narrower 15mm or 20mm variants of the same pitch. Exact load ratings depend on pulley diameter, RPM, and application duty cycle. Contact us to confirm suitability for your specific machine.

Can this belt be used outdoors or in wet/oily environments?

The neoprene rubber construction offers good resistance to oil, moderate moisture, and temperature ranges typically encountered in workshop and light industrial settings. It is generally suitable for damp or lightly oiled environments. Prolonged UV exposure or contact with aggressive chemicals may reduce belt life. For harsh outdoor or chemical-exposure applications, contact us to confirm before ordering.

What pulleys are compatible with this HTD 8M belt?

This belt is designed for HTD 8M profile pulleys with a 30mm belt width groove. The HTD tooth profile is a rounded, curvilinear design — it is not interchangeable with trapezoidal profiles (MXL, XL, L, H) or GT2/GT3 profiles. Always verify your pulley's pitch and groove width before purchasing.

How do I count the number of teeth to verify my belt size?

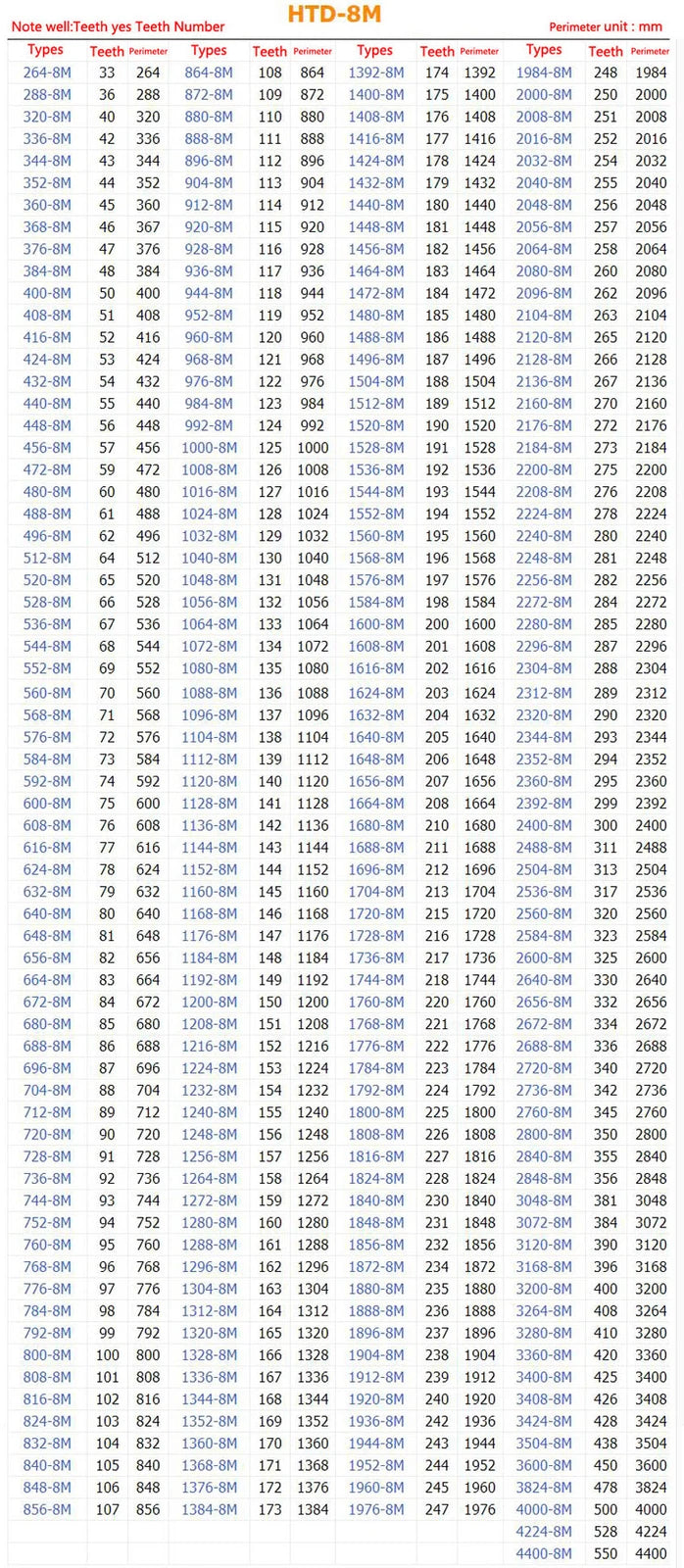

The tooth count is directly calculated from the loop circumference: Teeth = Loop Circumference (mm) ÷ 8mm. For example, a 264mm belt has 33 teeth; a 600mm belt has 75 teeth; a 1000mm belt has 125 teeth. Each variant in the selector shows both the loop circumference and the tooth count so you can cross-reference against your pulley or machine documentation.

Which machines and industries commonly use HTD 8M timing belts?

HTD 8M belts are commonly found in CNC routers, large-format 3D printers, laser cutters, conveyor systems, robotics, and industrial automation equipment. They are also used in fitness machines, woodworking machinery, and custom DIY drive systems where synchronous, slip-free power transmission is required.

🛒 Select your loop circumference and tooth count above, then add to cart — ships from our US warehouse.
