HTD 8M Timing Belt — Reliable Synchronous Drive for CNC, Robotics & Automation

When a slipping or worn drive belt causes positioning errors on your CNC router, robotic arm, or automated conveyor, every lost step costs time and accuracy. Engineers, makers, and machine builders who depend on precise motion control need a synchronous belt that holds tooth engagement under load — without stretching, skipping, or premature wear.

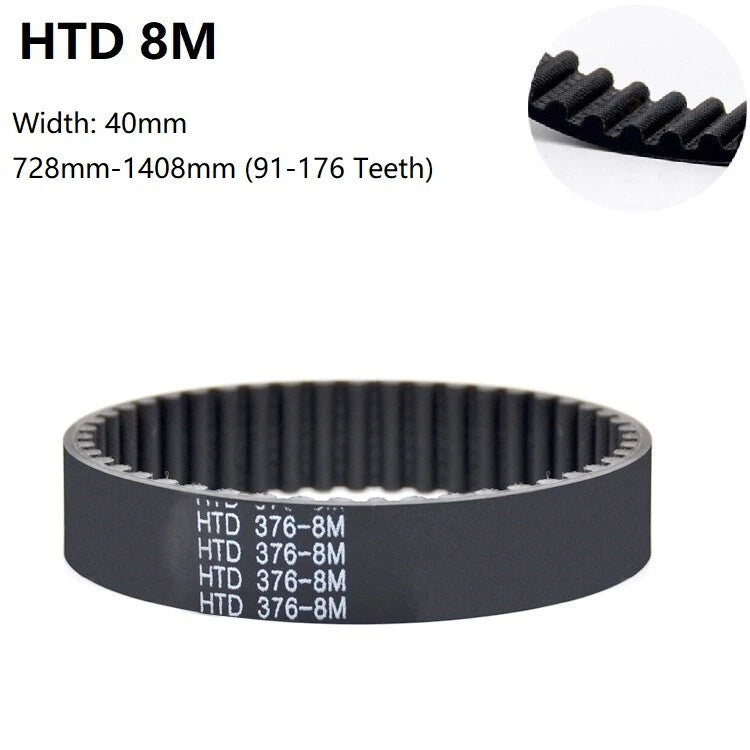

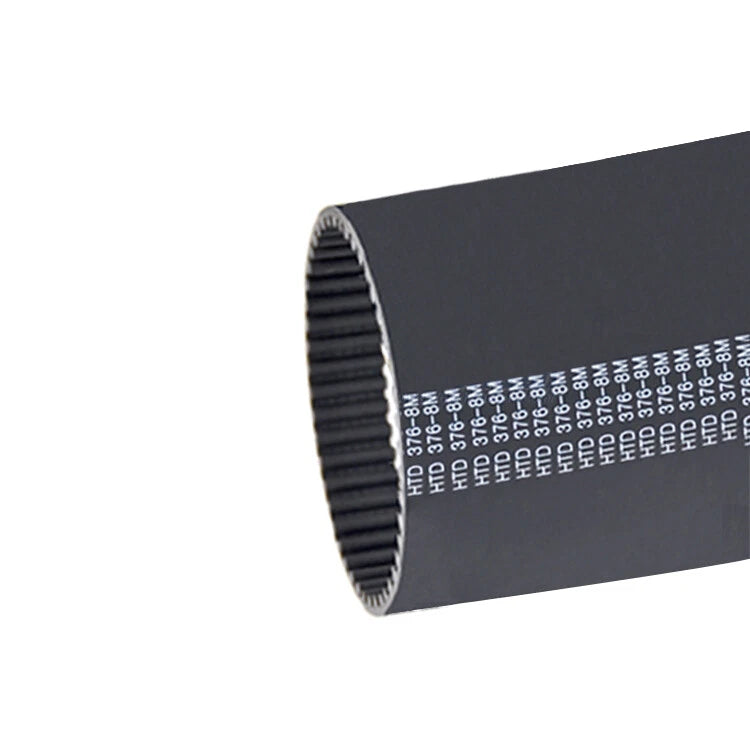

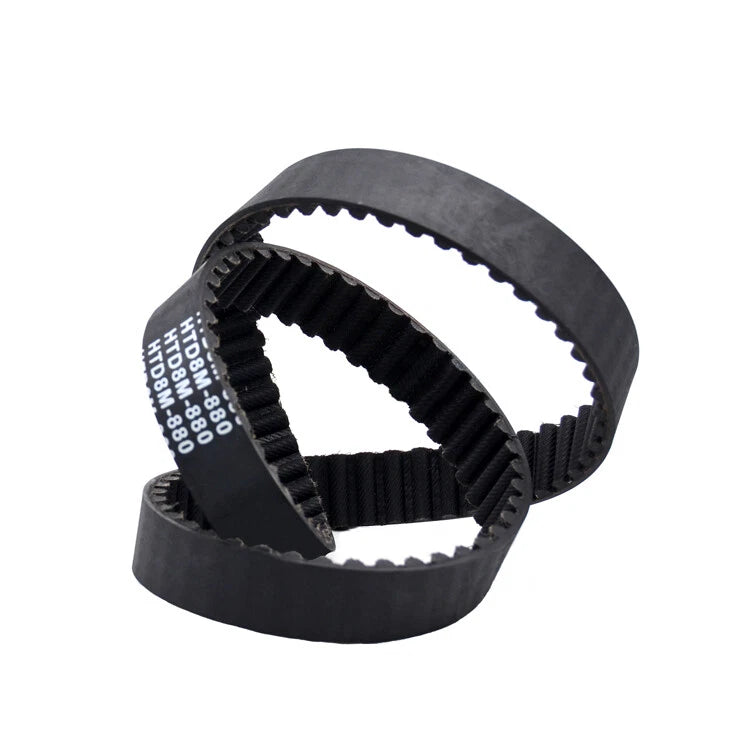

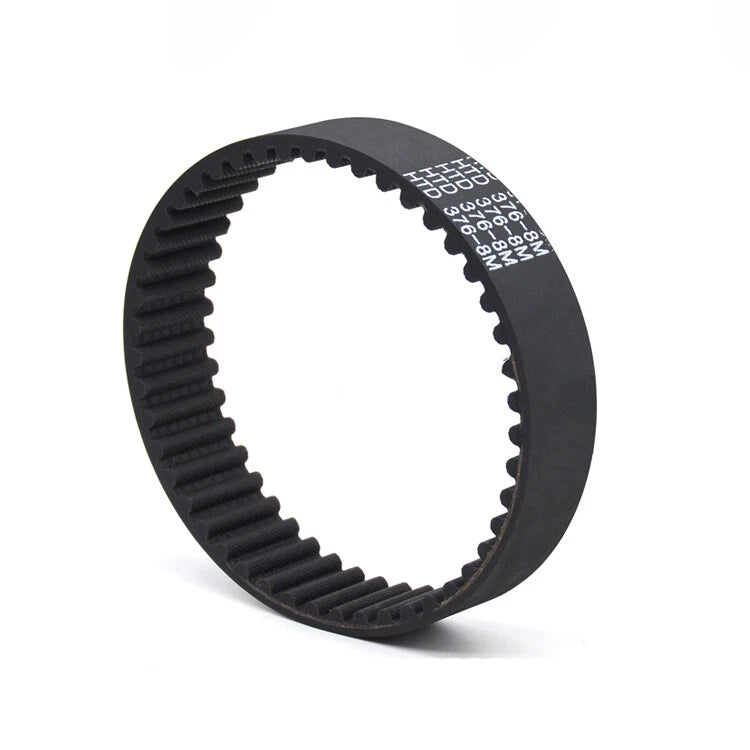

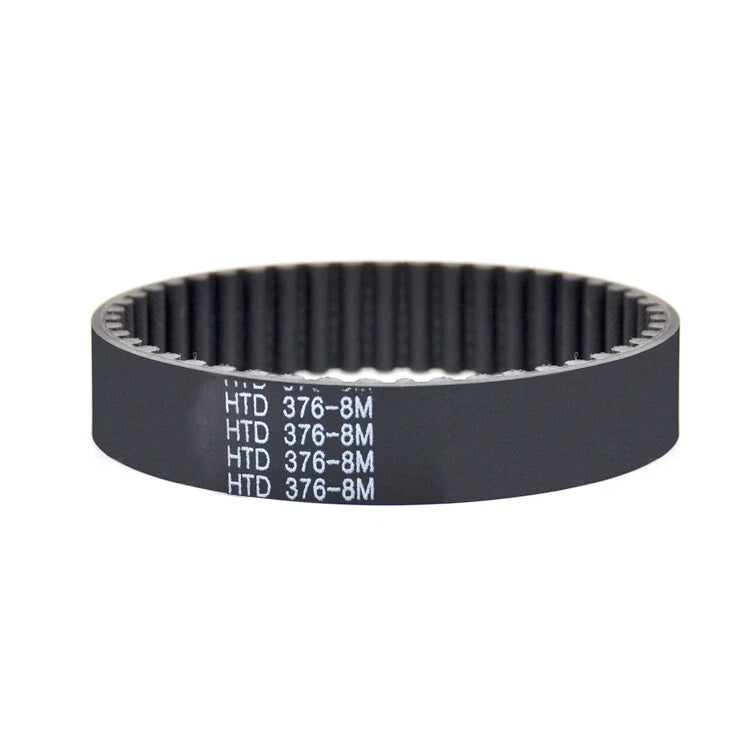

This HTD 8M timing belt features an 8mm pitch curvilinear tooth profile and a 40mm (≈1.57") belt width. Each belt is a closed-loop synchronous drive belt available in perimeter sizes from 728mm (≈28.7") to 1408mm (≈55.4"), spanning 91 to 176 teeth. The construction typically consists of a neoprene rubber body with tensile cord reinforcement (fiberglass or steel) for dimensional stability under cyclic loading.

Typical applications include CNC router X/Y axis drives, robotic joint actuators, automated pick-and-place systems, and industrial conveyor indexing — anywhere an HTD-8M synchronous timing belt for CNC machines is specified. The 40mm width also suits wide-span gantry systems where a narrow belt would flex laterally under side loads.

ℹ️ Compatibility: Designed for HTD-8M profile pulleys with a minimum flange width of 44mm. Not compatible with GT2, T8, or trapezoidal (MXL/XL/L) pulleys. Match belt perimeter to your pulley center distance before ordering.

✅ Key Features of These HTD 8M Timing Belts

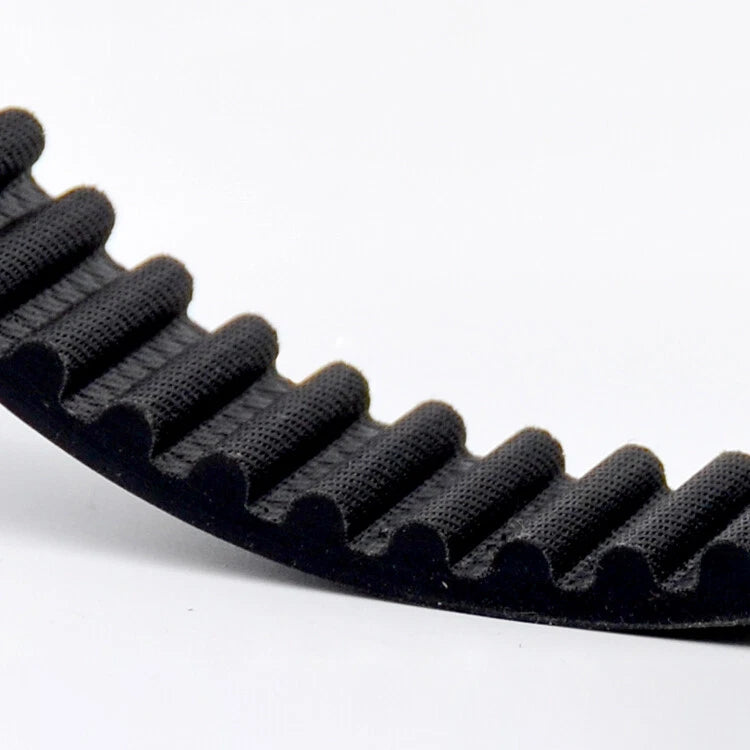

  • ⚙️Curvilinear HTD Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, generally reducing tooth shear stress in high-torque CNC drive systems.
  • 📏8mm Pitch Precision — Consistent 8mm tooth spacing ensures repeatable positioning in closed-loop and open-loop motion control applications, a key requirement for CNC router timing belt replacements.
  • ↔️40mm Wide Belt Body — The 40mm (≈1.57") width provides lateral stiffness suited for wide-span gantry drives and heavy-duty robotics belt drive systems where narrower belts would deflect under side loading.

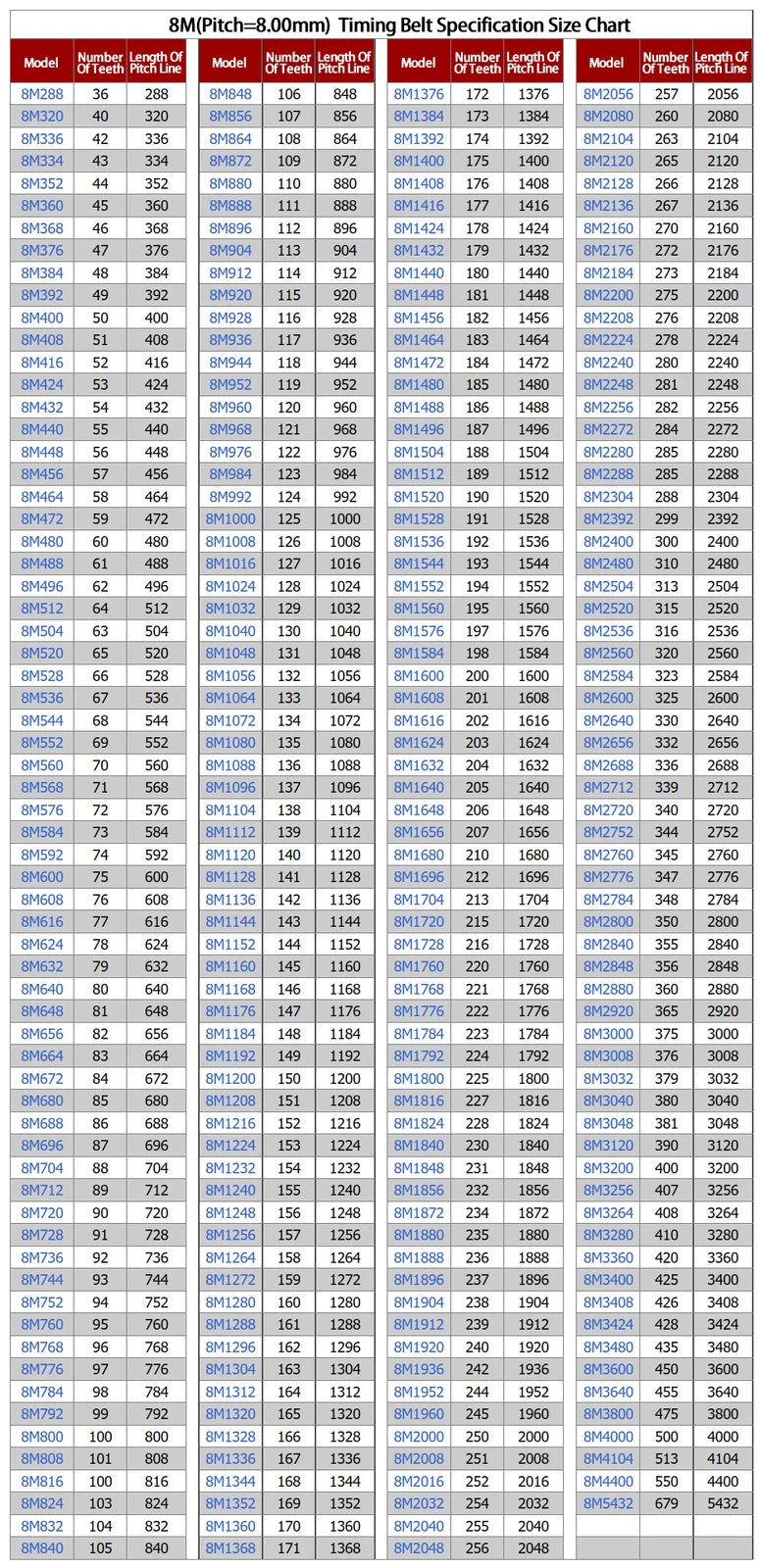

  • 🔁Wide Size Range — 728mm to 1408mm — Fifteen perimeter options from 728mm (91 teeth) to 1408mm (176 teeth) cover a broad range of center distances, reducing the need for custom belt fabrication in automation projects.
  • 🧱Reinforced Tensile Cord Construction — Internal cord reinforcement (typically fiberglass or steel) limits belt elongation under cyclic tension, maintaining consistent tooth pitch over the belt's service life.
  • 🔧Drop-In Replacement Fit — Manufactured to HTD-8M dimensional standards, making these belts a direct replacement for worn OEM synchronous drive belts in compatible CNC, robotics, and industrial automation equipment.
⚠️ Note: Specific tensile strength, operating temperature range, and cord material vary by production batch. If your application has strict load or environmental requirements, contact us to confirm specifications before ordering.

📐 Technical Specifications — HTD-8M Synchronous Timing Belt

Belt Profile HTD-8M (High Torque Drive, curvilinear tooth)
Pitch 8mm (0.315")
Belt Width 40mm (≈1.57")
Perimeter Range 728mm (≈28.7") — 1408mm (≈55.4")
Number of Teeth 91 teeth — 176 teeth (varies by perimeter)
Tooth Height Typically 3.6mm (per HTD-8M standard)
Body Material Neoprene rubber (typical); See variant options
Tensile Cord Fiberglass or steel (contact us to confirm)
Compatible Pulley Profile HTD-8M only
Minimum Pulley Flange Width 44mm (recommended)
Operating Temperature Contact us to confirm
Drive Type Synchronous (no-slip)
Loop Type Closed loop (endless)
Quantity per Order 1 belt

❓ Frequently Asked Questions

How do I choose the right perimeter size for my HTD 8M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the belt perimeter using the standard formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are the pulley pitch diameters.

Alternatively, count the teeth on your existing belt — each tooth on an 8M belt spans exactly 8mm of perimeter. Available sizes range from 728mm (91 teeth) to 1408mm (176 teeth). For reference: 800mm ÷ 25.4 ≈ 31.5" | 1000mm ÷ 25.4 ≈ 39.4" | 1200mm ÷ 25.4 ≈ 47.2".

What does HTD-8M mean, and how is it different from other timing belt profiles?

HTD stands for High Torque Drive. The 8M designation means the belt has an 8mm pitch (distance between tooth centers). The HTD tooth profile is curvilinear (rounded), which generally distributes load more evenly than trapezoidal profiles (MXL, XL, L) and typically reduces tooth jump under high-torque conditions. It is not interchangeable with GT2, T8, or trapezoidal pulleys.

What load or torque can this timing belt handle?

Actual load capacity depends on pulley diameter, belt speed, wrap angle, and system alignment. HTD-8M belts at 40mm width are generally suited for moderate-to-high torque applications in CNC and robotics. For precise load ratings specific to your application, contact us to confirm — or consult your machine's engineering documentation.

Can this belt be used outdoors or in humid environments?

Neoprene-body HTD timing belts generally offer reasonable resistance to moisture and moderate temperature ranges. They are typically not recommended for prolonged submersion, direct contact with oils or solvents, or extended UV exposure. For outdoor or harsh-environment installations, contact us to confirm the specific material composition before ordering.

What pulleys are compatible with this belt?

This belt requires HTD-8M profile pulleys with a minimum flange width of approximately 44mm to properly retain the 40mm wide belt. It is not compatible with GT2, T8, T10, or any trapezoidal tooth pulleys. Always verify that your pulley is specifically rated for HTD-8M before installation.

How do I convert the perimeter sizes from mm to inches?

Divide the millimeter value by 25.4. Quick reference for common sizes in this listing:

  • 728mm ÷ 25.4 ≈ 28.7"
  • 800mm ÷ 25.4 ≈ 31.5"
  • 1000mm ÷ 25.4 ≈ 39.4"
  • 1168mm ÷ 25.4 ≈ 46.0"
  • 1312mm ÷ 25.4 ≈ 51.7"
  • 1408mm ÷ 25.4 ≈ 55.4"
Is this belt suitable for 3D printers or laser cutters?

HTD-8M belts at 40mm width are generally used in heavier-duty CNC routers, robotic actuators, and industrial automation rather than desktop 3D printers (which typically use narrower GT2 6mm belts). For larger-format laser cutters or CNC machines that specifically call out an 8M belt, this is typically a direct fit — confirm your machine's belt specification before ordering.

🛒 Select your model and perimeter size above, then add to cart — ships from our US warehouse.
