HTD-8M Timing Belt — Reliable 8mm Pitch Drive for CNC, Robotics & Industrial Motion

When a slipping or mismatched drive belt causes positioning errors in your CNC router, laser cutter, or automated conveyor, the entire project stalls. Engineers, machine builders, and serious DIYers who need a dependable closed-loop synchronous belt turn to the HTD-8M profile for its deep tooth engagement and consistent power transfer.

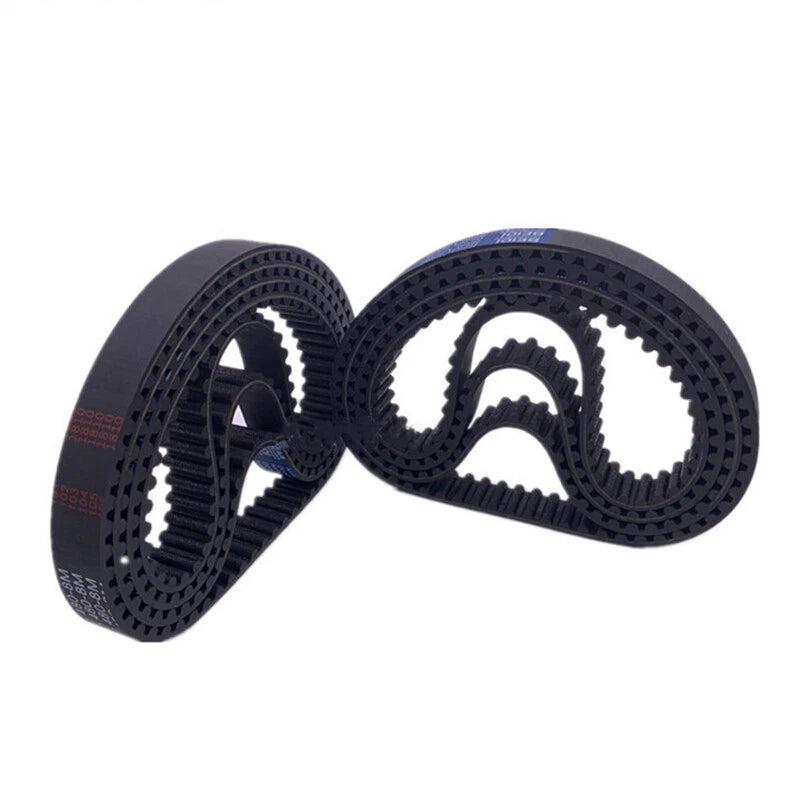

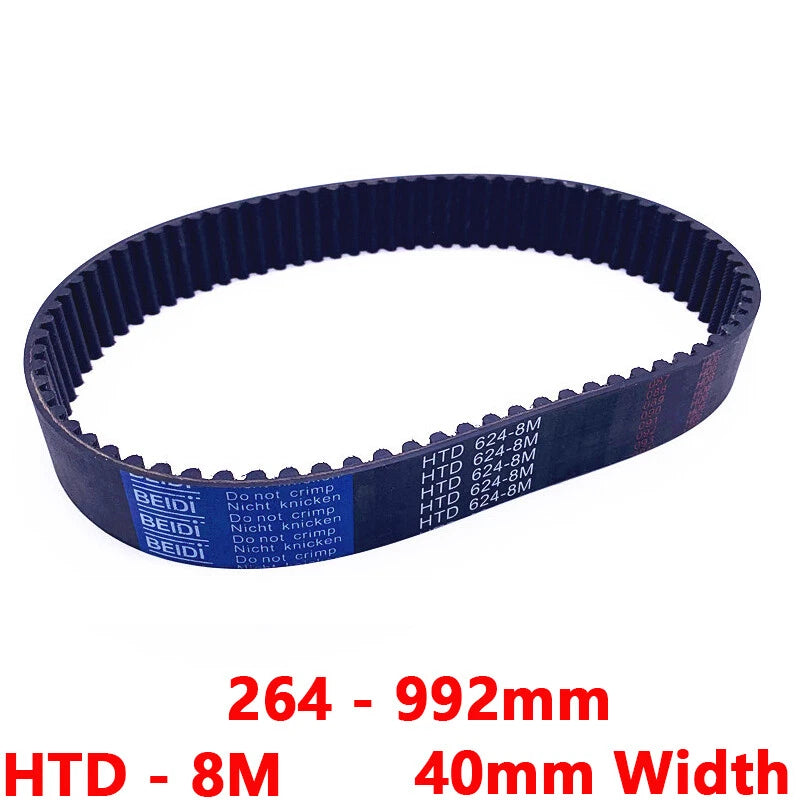

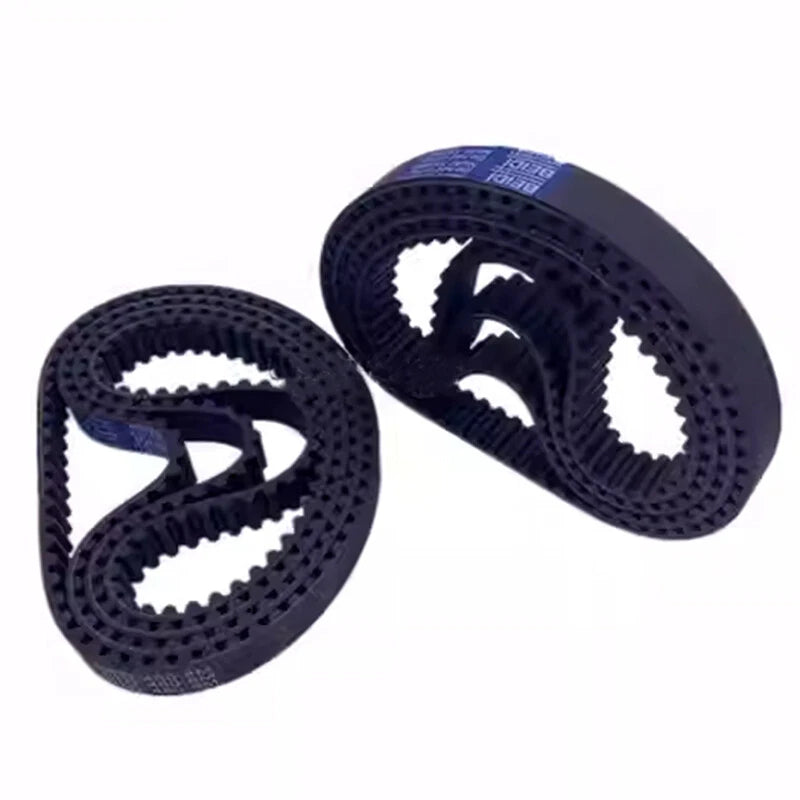

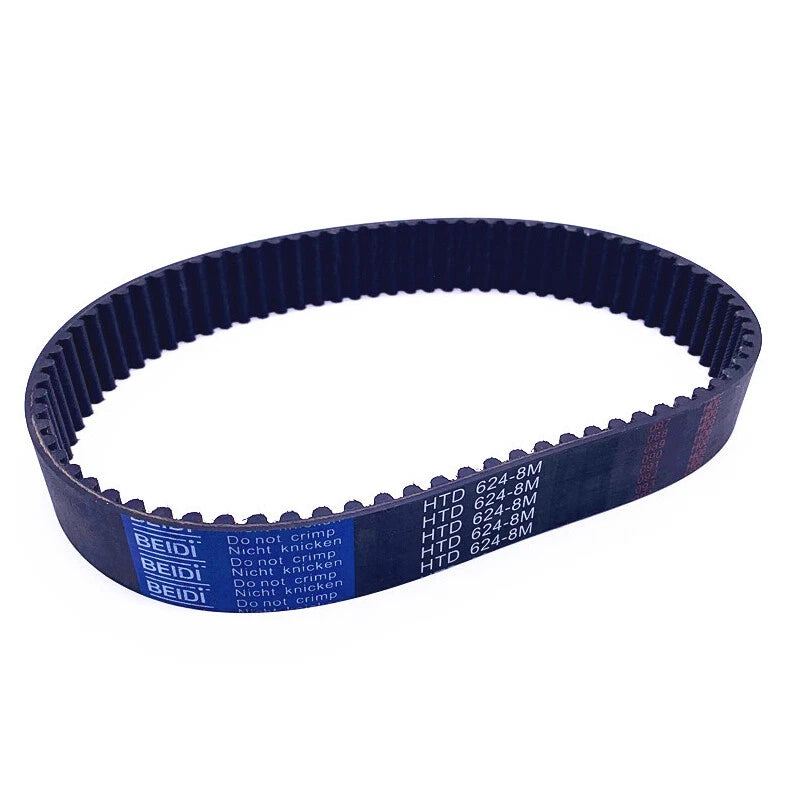

Each belt in this listing is a single closed-loop HTD-8M synchronous timing belt with an 8mm pitch and 40mm (≈1.57") width. Available in 85 sizes ranging from 264mm (≈10.4", 33 teeth) to 992mm (≈39.1", 124 teeth), the belt body is constructed from neoprene rubber with fiber cord reinforcement for dimensional stability under load. Select your exact tooth count and pitch circumference from the variant dropdown above.

Typical use cases include CNC gantry axis drives where backlash-free motion is critical, robotics joint actuators requiring repeatable positioning, and industrial conveyor or indexing systems that demand slip-free synchronous power transmission. The HTD-8M closed loop timing belt is also a common replacement part in large-format 3D printers and laser engravers.

ℹ️ Compatibility: Fits standard HTD-8M pulleys with 40mm belt width. Not compatible with GT2, T8, T10, or trapezoidal-profile pulleys. Verify your pulley profile before ordering.

✅ Key Features of These HTD-8M Closed Loop Timing Belts

  • ⚙️8mm HTD Curvilinear Tooth Profile — The rounded tooth geometry distributes load across the full tooth root, reducing stress concentration and enabling higher torque transmission than trapezoidal T-profile belts of the same pitch.
  • 📏85 Sizes in One Listing — Tooth counts from 33 to 124 (264mm to 992mm pitch circumference) let you find an exact match for your drive system without custom cutting or splicing.
  • 🔒Closed-Loop Construction — Seamless loop design eliminates the weak joint point found in cut-and-joined belts, maintaining consistent tension and tooth pitch around the full circumference.
  • 🧱Fiber Cord Reinforcement — Internal tensile cords resist elongation under dynamic loads, keeping center distance stable and preserving synchronization accuracy in CNC and robotics applications.
  • 📐40mm Uniform Belt Width — Consistent 40mm (≈1.57") width across all size variants ensures compatibility with standard 40mm HTD-8M flanged pulleys without shimming or spacers.
  • 🔄Slip-Free Synchronous Drive — Positive tooth engagement means no speed variation between driver and driven pulleys — essential for indexing tables, pick-and-place systems, and any application where positional accuracy matters.

📐 Technical Specifications — HTD-8M Synchronous Timing Belt

Belt Profile HTD-8M (High Torque Drive, curvilinear tooth)
Pitch 8mm (0.315")
Belt Width 40mm (≈1.57")
Available Lengths 264mm–992mm (≈10.4"–39.1") — 85 sizes
Tooth Count Range 33 teeth – 124 teeth
Loop Type Closed loop (seamless)
Belt Material Neoprene rubber with fiber cord reinforcement
Tooth Profile Compatibility HTD-8M pulleys only (not GT2, T8, or trapezoidal)
Quantity per Order 1 belt (select size from variant dropdown)
Recommended Pulley Width See variant options
Max Operating Temperature Contact us to confirm
Color/Finish See variant options
⚠️ Sizing note: Belt length listed is the pitch circumference (measured at the tooth pitch line), not the outer or inner circumference. Match this value to your pulley tooth count × 8mm, or to the label on your existing belt.

❓ Frequently Asked Questions

How do I choose the right belt length for my application?

Measure the center distance between your two pulleys, then calculate the belt length using the standard formula: L = 2C + π(D1+D2)/2 + (D2−D1)²/4C. Alternatively, count the teeth on your existing belt — each tooth on an 8M belt equals 8mm of pitch length. For example, a 40-tooth belt has a 320mm (≈12.6") pitch circumference. When in doubt, size up by one increment.

What load or torque can an HTD-8M belt handle?

HTD-8M belts are generally rated for moderate-to-high torque applications. The 8mm pitch profile provides deeper tooth engagement than 3M or 5M belts, making it suitable for drives that require more power transmission. Actual load capacity depends on belt width, pulley diameter, and operating speed — consult your drive system's engineering specs to confirm suitability.

Can this timing belt be used outdoors or in wet environments?

HTD timing belts are typically made from neoprene rubber with fiber cord reinforcement, which offers reasonable resistance to moisture and mild temperature variation. However, they are generally not recommended for prolonged submersion or exposure to oils, solvents, or extreme UV. For outdoor or harsh-environment use, confirm the belt material with us before ordering.

Is this belt compatible with standard HTD-8M pulleys?

Yes. This belt follows the HTD (High Torque Drive) 8M profile standard, with an 8mm pitch and a rounded tooth profile. It is compatible with any HTD-8M pulley of matching width (40mm) and tooth count. It is not interchangeable with GT2, T8, or other non-HTD profiles even if the pitch appears similar.

How do I convert belt length from mm to inches?

Divide the millimeter value by 25.4. For example: 264mm ÷ 25.4 ≈ 10.4", 480mm ÷ 25.4 ≈ 18.9", 800mm ÷ 25.4 ≈ 31.5". The variant names on this listing show both the tooth count and the pitch circumference in mm to help you match your existing belt.

What is the difference between HTD and standard trapezoidal timing belts?

HTD (High Torque Drive) belts use a curvilinear (rounded) tooth profile that distributes load more evenly across the tooth root, reducing stress concentration and allowing higher torque transmission compared to classic trapezoidal (T-profile) belts of the same pitch. HTD-8M is not compatible with T8 or XL pulleys.

Which applications commonly use HTD-8M timing belts?

HTD-8M belts are commonly found in CNC router axis drives, laser cutter gantries, industrial conveyor systems, robotics joints, large-format 3D printer motion systems, and general power transmission setups where precise, slip-free synchronous motion is required.

🛒 Select your size above, then add to cart — ships from our US warehouse.
