HTD3M Closed Loop Timing Belt — Precise, Low-Stretch Drive for CNC, 3D Printing & Robotics

When your CNC router skips steps or your 3D printer loses position mid-print, the culprit is often a stretchy or mismatched drive belt. Engineers, makers, and automation builders who need repeatable, backlash-free motion rely on a belt that holds its length under load — and that's exactly what this HTD3M closed loop timing belt is built to deliver.

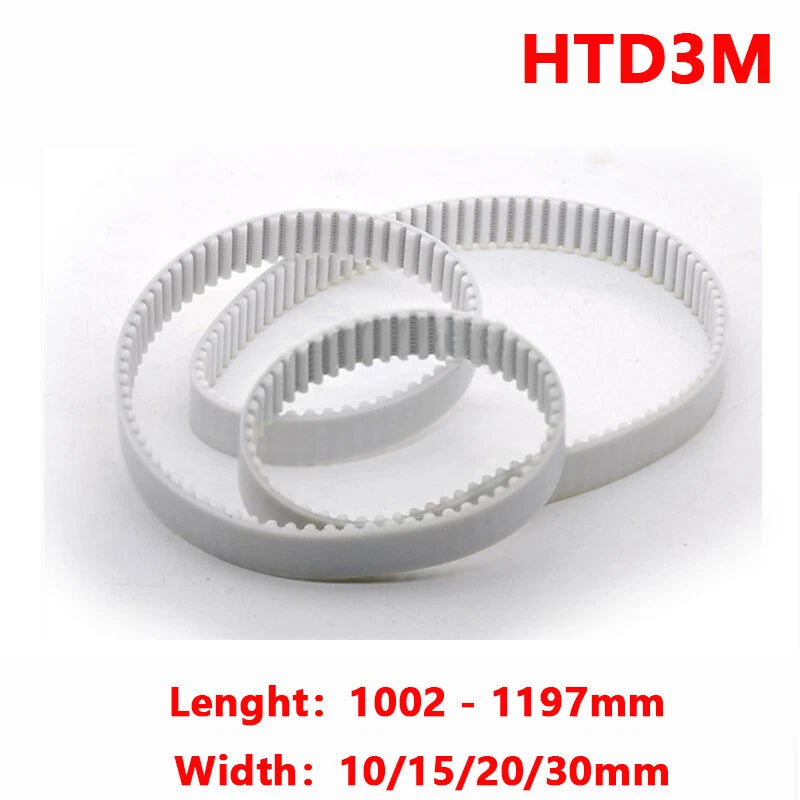

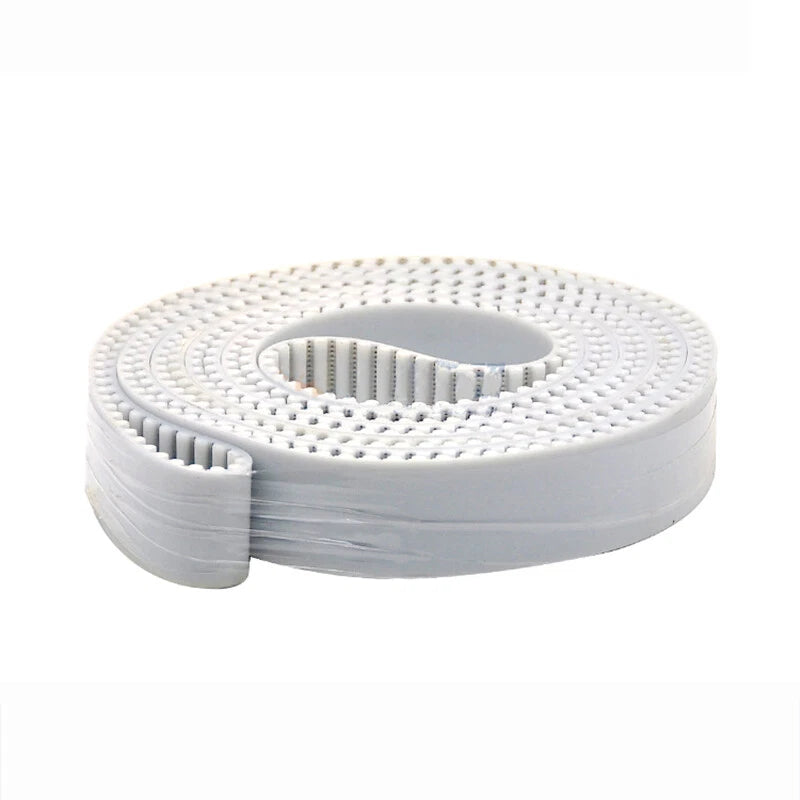

Each belt is made from polyurethane (PU) with a built-in steel wire tension cord. The closed-loop construction means no splicing or joining — it arrives ready to install. Perimeters range from 1002mm (≈39.4") to 1197mm (≈47.1"), with tooth counts from 334 to 399 teeth at a 3mm HTD pitch. Width options are 10mm, 15mm, 20mm, and 30mm to match your pulley groove.

Typical applications include CNC router X/Y axes, 3D printer drive systems, laser engraver carriages, conveyor indexing mechanisms, and light robotic joint drives — anywhere a closed loop HTD3M timing belt with low elongation is required for accurate, repeatable positioning.

ℹ️ Compatibility Notice: These belts use the HTD 3M tooth profile (3mm pitch, rounded curvilinear teeth). They are compatible with HTD3M pulleys only. Not interchangeable with GT2, T2.5, MXL, or other profiles. Verify your pulley spec before ordering.

✅ Key Features of These HTD3M Closed Loop Timing Belts

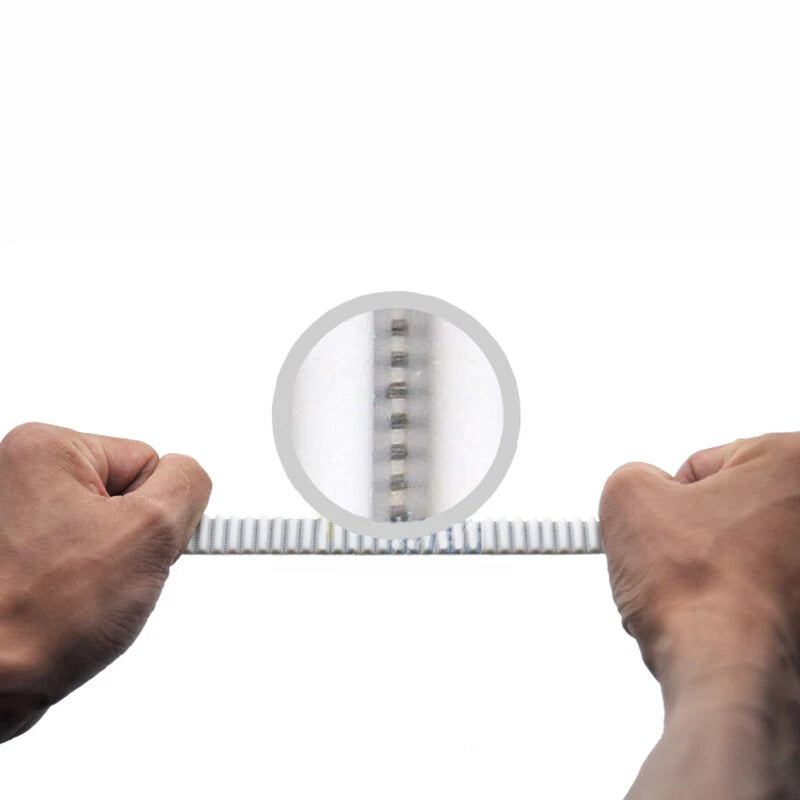

  • 🔩Steel Wire Tension Core — Built-in steel wire cord delivers significantly lower elongation than fiberglass alternatives, keeping your CNC axis or 3D printer drive belt tight and accurate over thousands of cycles.

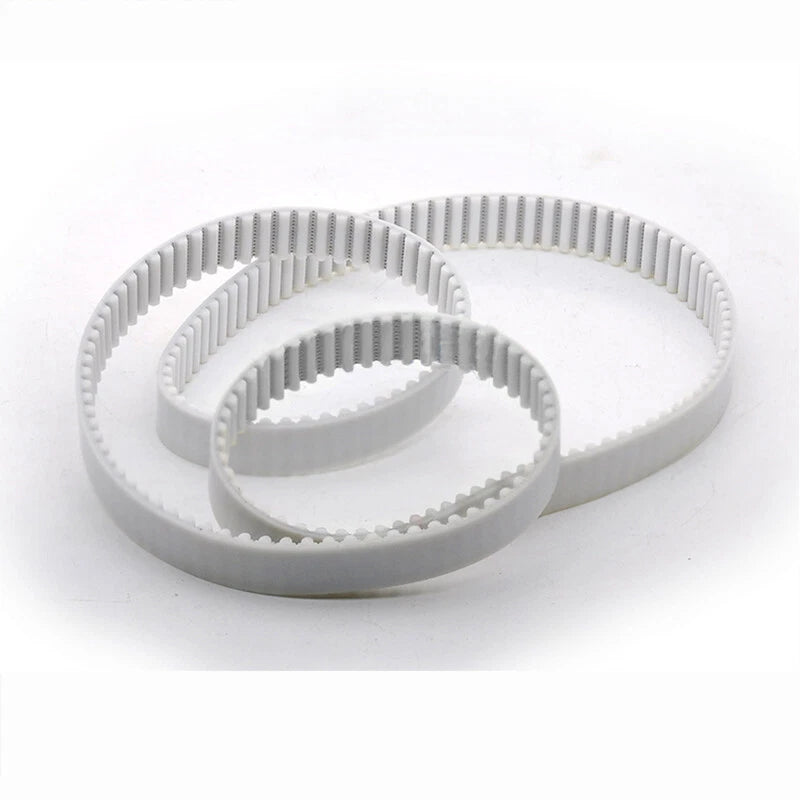

  • 🔄Closed Loop Construction — Factory-formed endless loop with no splice point, eliminating the weak spot and vibration that joined belts introduce into precision drive systems.
  • 🧱Polyurethane Body — PU resists oils, greases, and moderate moisture better than standard neoprene rubber, extending service life in workshop and light industrial environments.

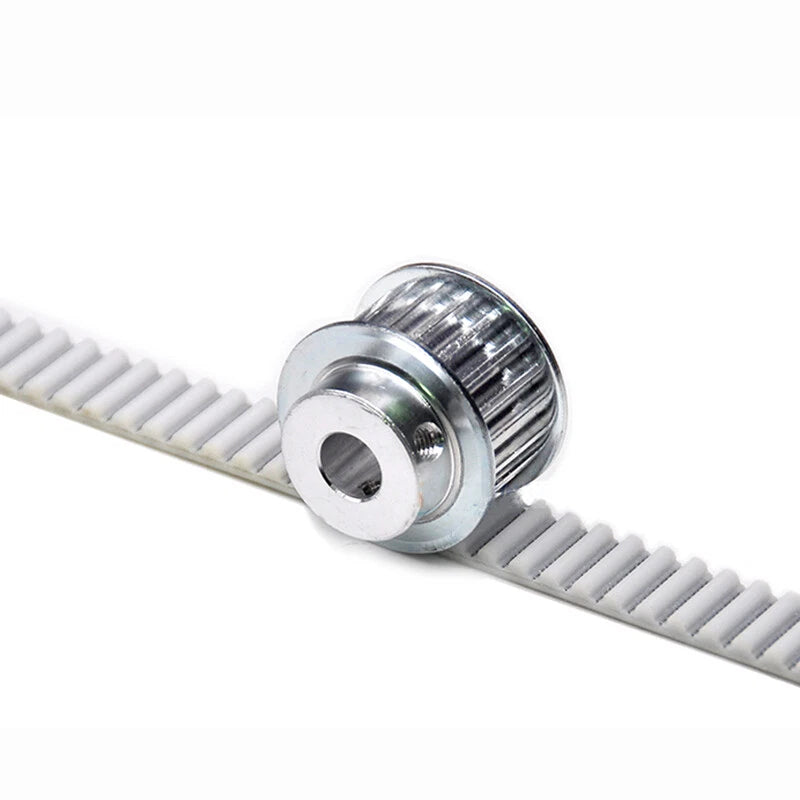

  • 📐HTD3M Tooth Profile — The 3mm pitch rounded tooth engages pulleys with high surface contact, reducing tooth shear stress and allowing smooth, quiet operation in closed loop timing belt drive applications.

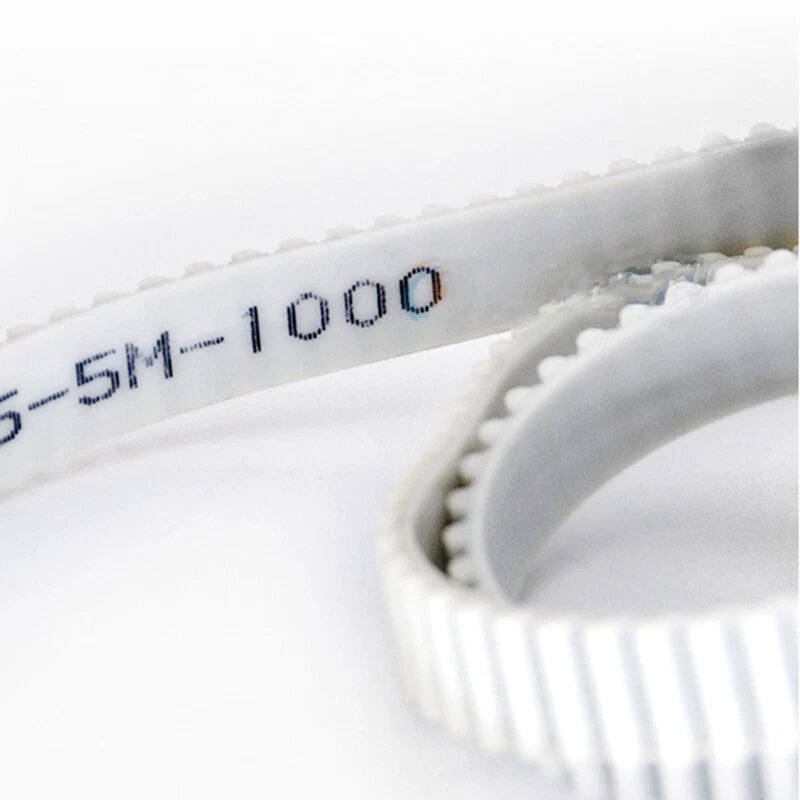

  • 📏Wide Size Selection — Perimeters from 1002mm to 1197mm in 3mm increments (334–399 teeth), with four width options (10 / 15 / 20 / 30mm) to match a broad range of pulley configurations without custom cutting.
  • ⚙️Drop-In Replacement Ready — Dimensionally consistent with standard HTD3M belt specifications, making these a straightforward replacement for worn or broken belts in existing CNC, 3D printer, and automation equipment.

📐 Technical Specifications — HTD3M Closed Loop Timing Belt

Belt Type Closed Loop (Endless) Timing Belt
Tooth Profile HTD 3M (3mm pitch, curvilinear)
Body Material Polyurethane (PU)
Tension Cord Built-in steel wire
Perimeter Range 1002mm–1197mm (≈39.4"–47.1")
Tooth Count Range 334–399 teeth
Pitch 3mm (HTD3M)
Available Widths 10mm / 15mm / 20mm / 30mm
Tooth Height See variant options
Max Operating Temperature Contact us to confirm
Color / Finish See variant options
Compatible Pulley Standard HTD3M only
⚠️ Sizing Tip: If your required perimeter falls between two listed sizes, select the next size up and adjust belt tension accordingly. Do not force a belt that is too short — it will damage the pulley flanges and reduce belt life.

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD3M timing belt?

Measure the center-to-center distance between your two pulleys, then use the formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2. Each tooth on an HTD3M belt is 3mm apart, so divide the perimeter by 3 to confirm tooth count. For example, a 1002mm belt has 334 teeth (1002 ÷ 3 = 334). When in doubt, size up — a slightly longer belt can be tensioned; a short one cannot be installed.

How do I convert the perimeter from mm to inches?

Divide the mm value by 25.4. Quick reference: 1002mm ÷ 25.4 ≈ 39.4"; 1050mm ÷ 25.4 ≈ 41.3"; 1100mm ÷ 25.4 ≈ 43.3"; 1150mm ÷ 25.4 ≈ 45.3"; 1197mm ÷ 25.4 ≈ 47.1". The full range in this listing spans approximately 39.4" to 47.1".

What load or torque can these HTD3M timing belts handle?

HTD3M belts are generally rated for light-to-medium duty applications. The steel wire core significantly increases tensile strength compared to fiberglass-reinforced belts. Wider belts (20mm, 30mm) carry proportionally more load than narrower ones (10mm, 15mm). For high-torque or safety-critical applications, contact us to confirm suitability before ordering.

Are these timing belts suitable for outdoor or humid environments?

Polyurethane (PU) typically offers better resistance to oils, greases, and moderate moisture compared to neoprene rubber belts. However, prolonged outdoor UV exposure or full water immersion is generally not recommended. For outdoor or washdown environments, contact us to confirm compatibility with your specific conditions.

What pulley standard is compatible with HTD3M belts?

These belts use the HTD (High Torque Drive) 3M tooth profile — a 3mm pitch with a rounded, curvilinear tooth shape. They are compatible with HTD3M pulleys only and are NOT interchangeable with GT2, MXL, T2.5, or other profiles. Always verify your pulley is labeled HTD3M before ordering.

Which width should I choose — 10mm, 15mm, 20mm, or 30mm?

Match the belt width to your pulley's groove width. As a general guide: 10mm suits light-duty 3D printers and small CNC routers; 15mm and 20mm are common for medium-duty CNC axes and automation equipment; 30mm is used in higher-torque or wider-span drive systems. When in doubt, check your pulley's groove width specification.

Why choose a steel wire core over a fiberglass core?

Steel wire cores provide lower elongation under load, meaning more precise positioning and less belt stretch over time. This is especially important in CNC and 3D printing applications where dimensional accuracy matters. Fiberglass cores are lighter but typically stretch more under sustained tension, which can cause positioning drift.

🛒 Select your perimeter and width above, then add to cart — ships from our US warehouse.
