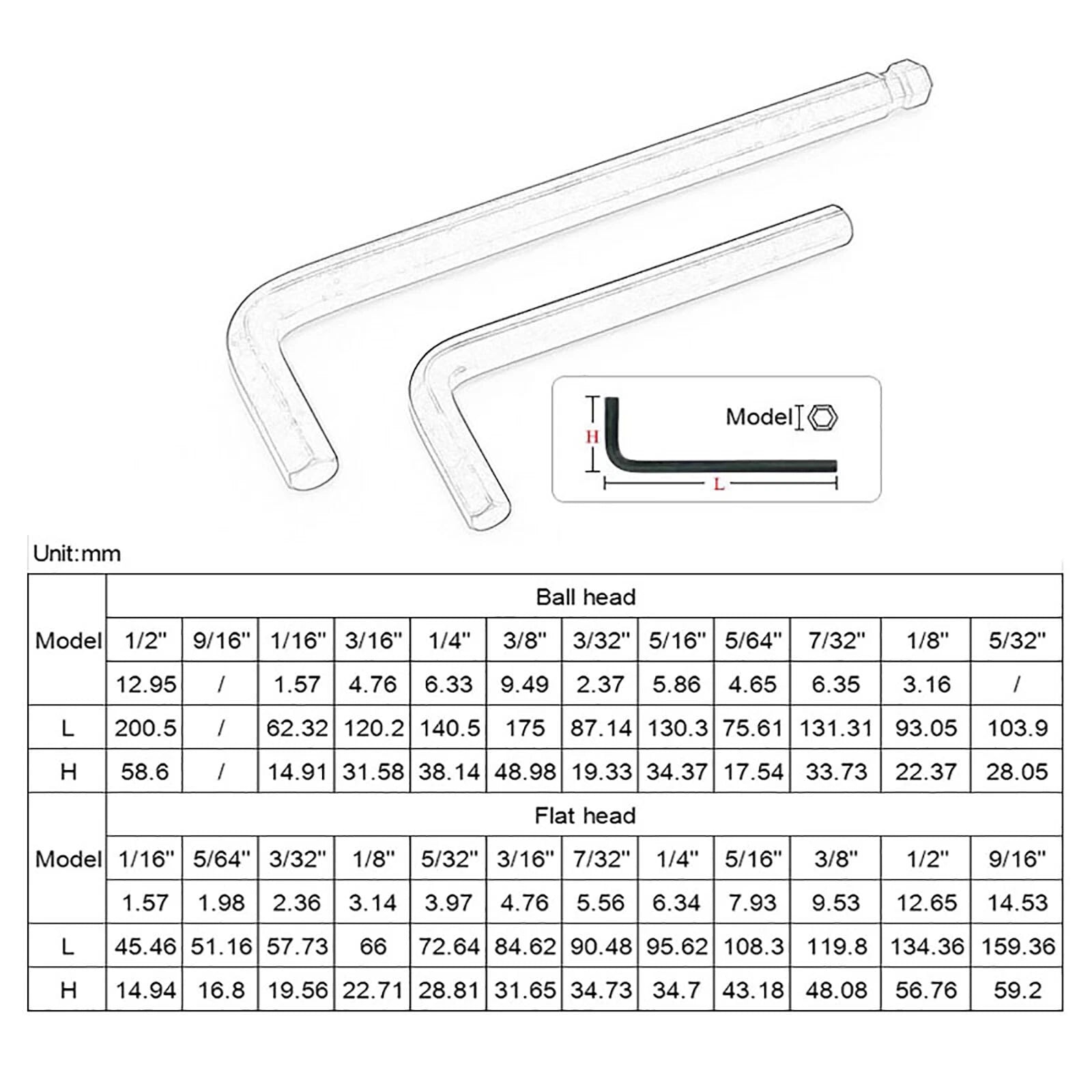

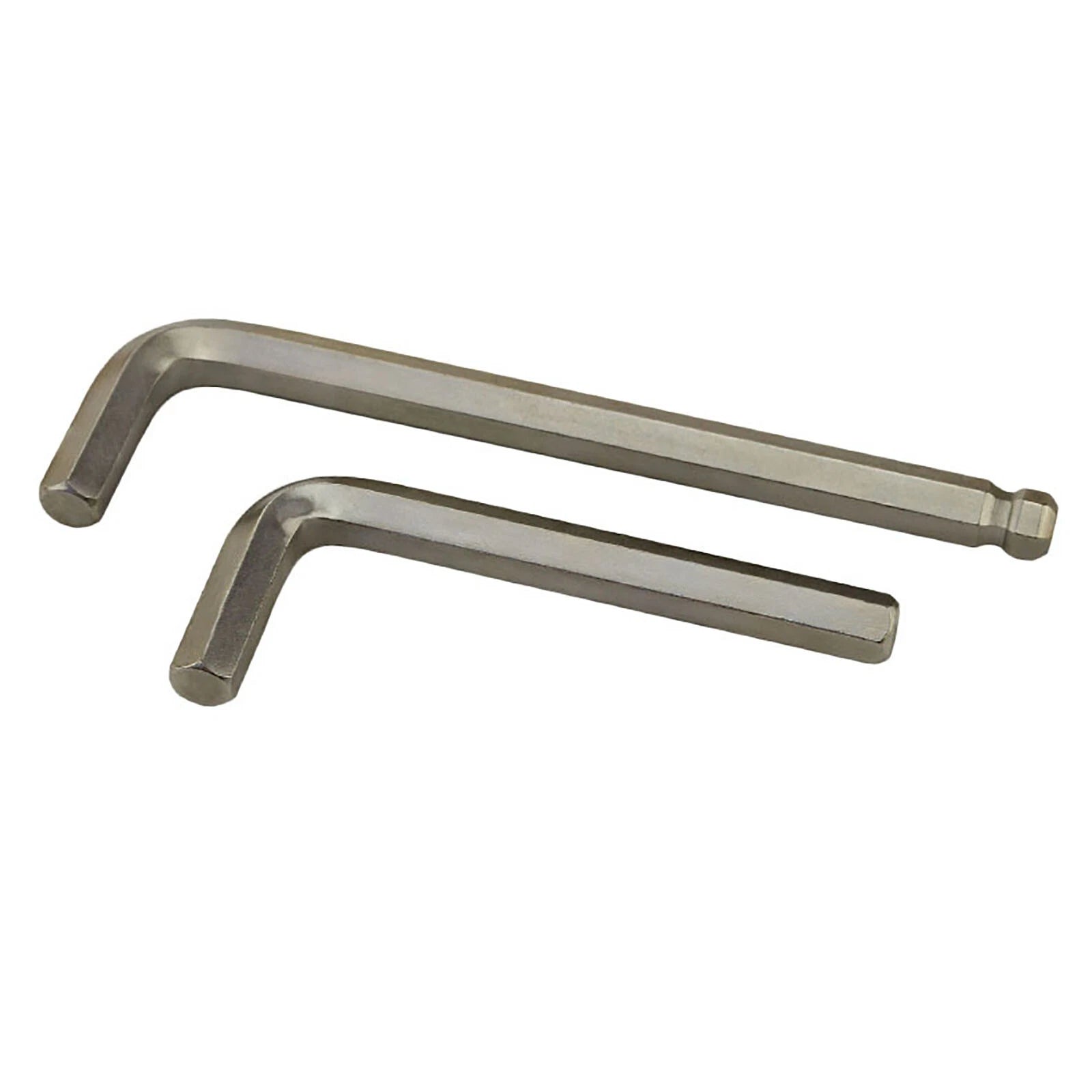

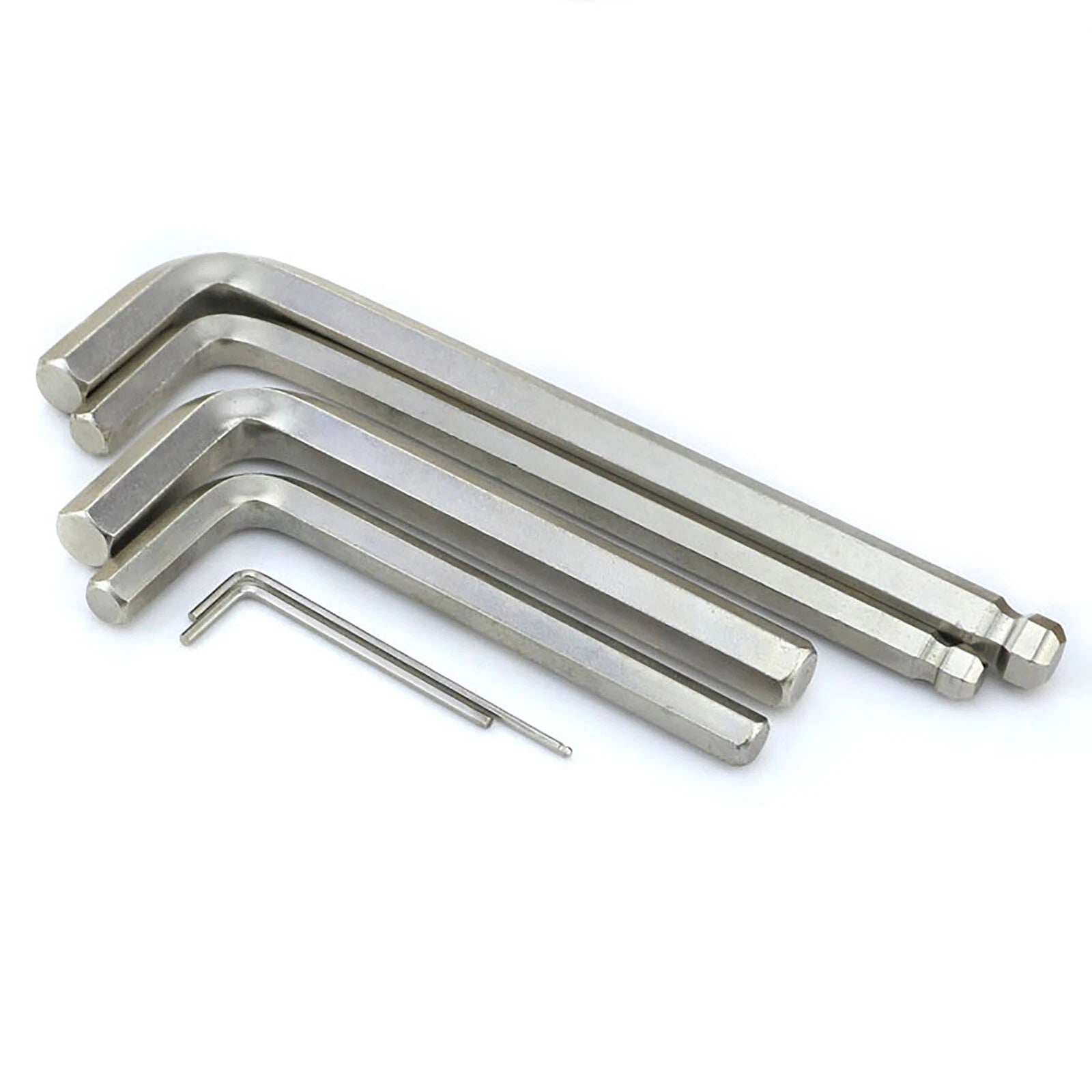

Imperial Allen Key-L-Shaped Hex Wrench 1/16 5/16 3/32 1/8 5/32 3/16 7/32 1/4

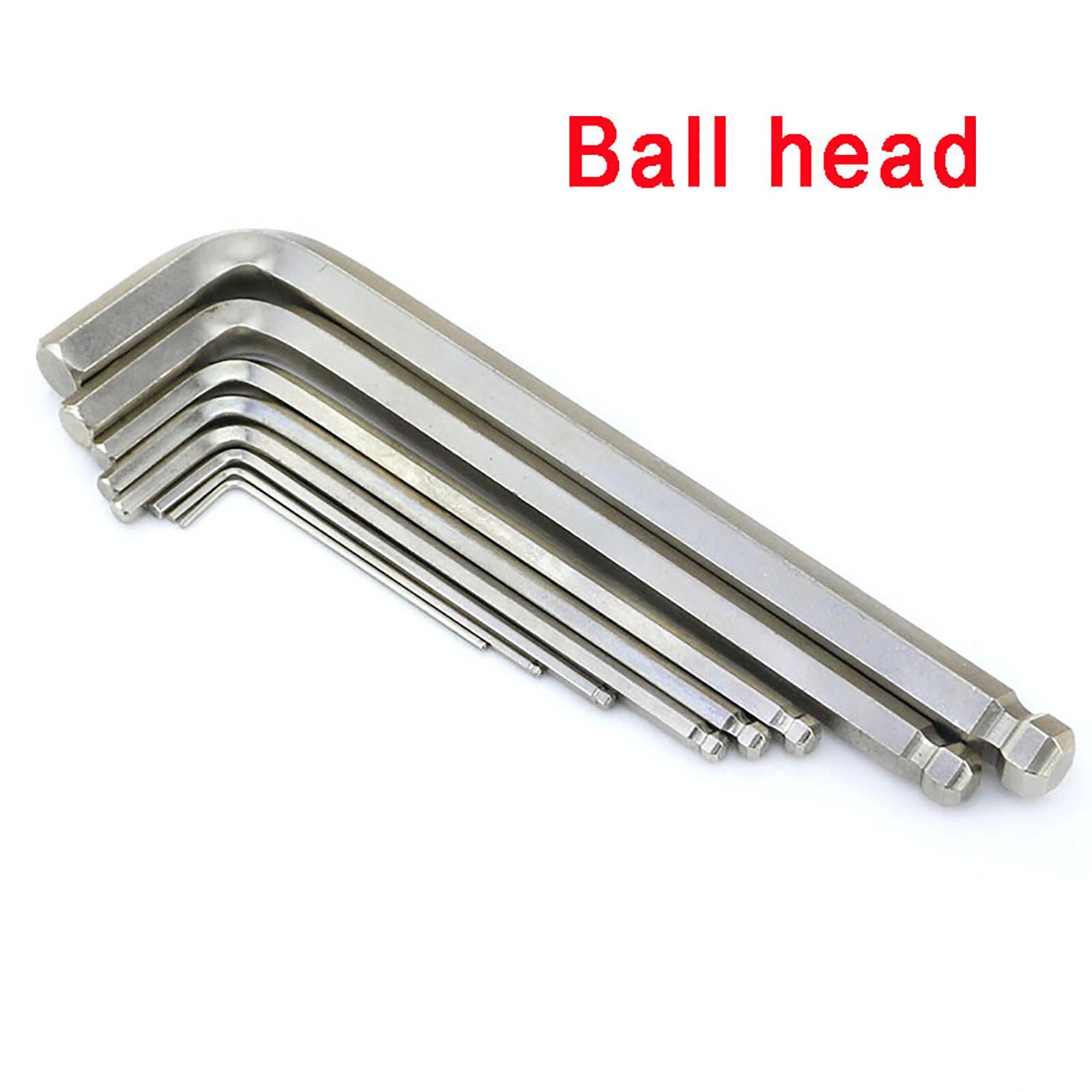

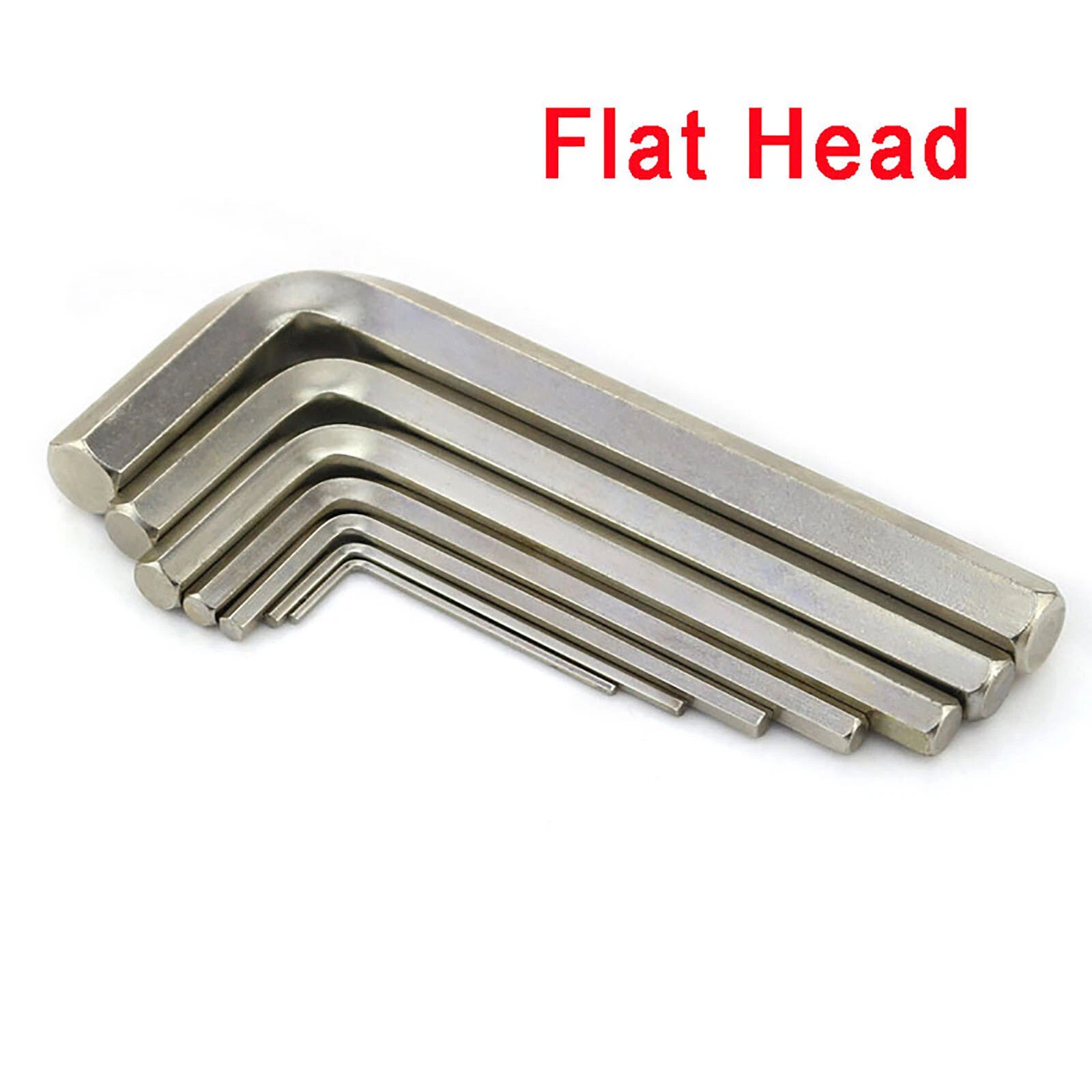

Choose flat head when you have direct, straight-on access to the fastener — it provides full contact across the hex faces for maximum torque transfer. Choose ball head when the fastener is recessed, angled, or surrounded by obstructions that prevent a straight approach. The ball tip allows engagement at angles up to approximately 25–30°, though torque capacity is slightly reduced compared to flat head at the same size.

Measure the width across the flats of the hex socket opening on your fastener — this is the hex key size you need. Common imperial sizes for furniture and machinery include 1/8", 3/16", 1/4", and 5/16". If you are unsure, a set of calipers or a hex key gauge can confirm the exact size. Attempting to use an undersized key risks rounding the socket.

These alloy steel L-shaped hex wrenches are appropriate for typical assembly and maintenance torque levels — furniture assembly, bicycle component adjustment, and general set screw tightening. For industrial-grade torque requirements (e.g., structural fasteners or high-clamping-force applications), consult the fastener manufacturer's torque specification and verify the wrench rating matches your requirement.

Black oxide provides a degree of corrosion resistance suitable for typical indoor workshop and storage environments. It is not a heavy-duty rust-proof coating like hot-dip galvanizing or stainless steel. To extend the finish life, store the wrenches in a dry location and wipe them lightly with a thin oil film if they will be stored long-term or used in humid conditions.

These are imperial-sized hex wrenches and are not interchangeable with metric hex fasteners. While some imperial and metric sizes are close in dimension (e.g., 3/16" ≈ 4.76 mm vs. metric 5 mm), using a slightly undersized key risks damaging the fastener socket. Always match the wrench to the fastener's specified drive size — imperial or metric.

The 1-piece option is suited for replacing a single lost or worn wrench in an existing set, or for applications where only one specific size is needed. The 2-piece option is useful for shared workspaces, tool kits that need a backup, or situations where one wrench stays at a workstation and another travels with a tool bag. Both packs contain the same wrench — the difference is quantity only.

Inspect the ball tip for visible flattening, chipping, or rounding of the hex faces. If the wrench slips or requires excessive force to seat in the fastener socket, the tip geometry may be compromised. A worn tip can damage fastener sockets, so replace the wrench before continuing use. Regular inspection is especially important for frequently used sizes like 1/8" and 1/4".
