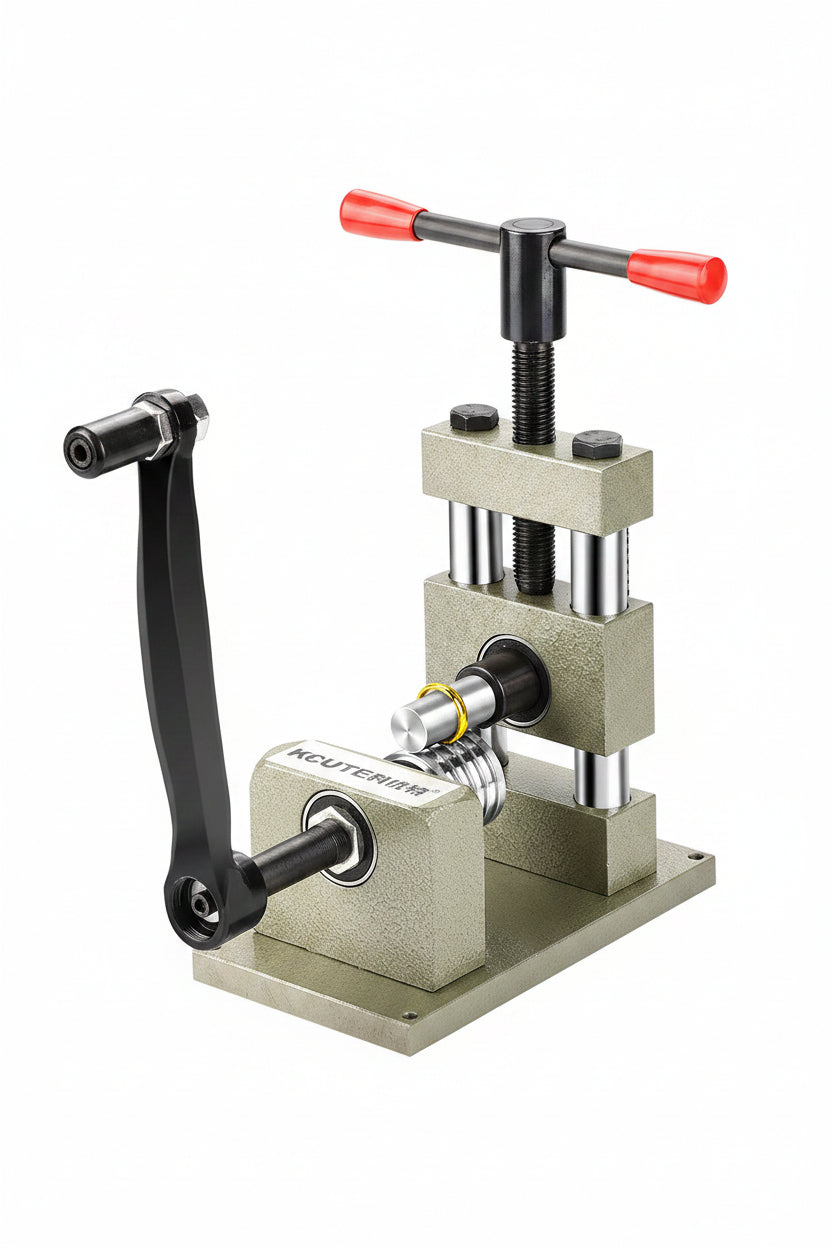

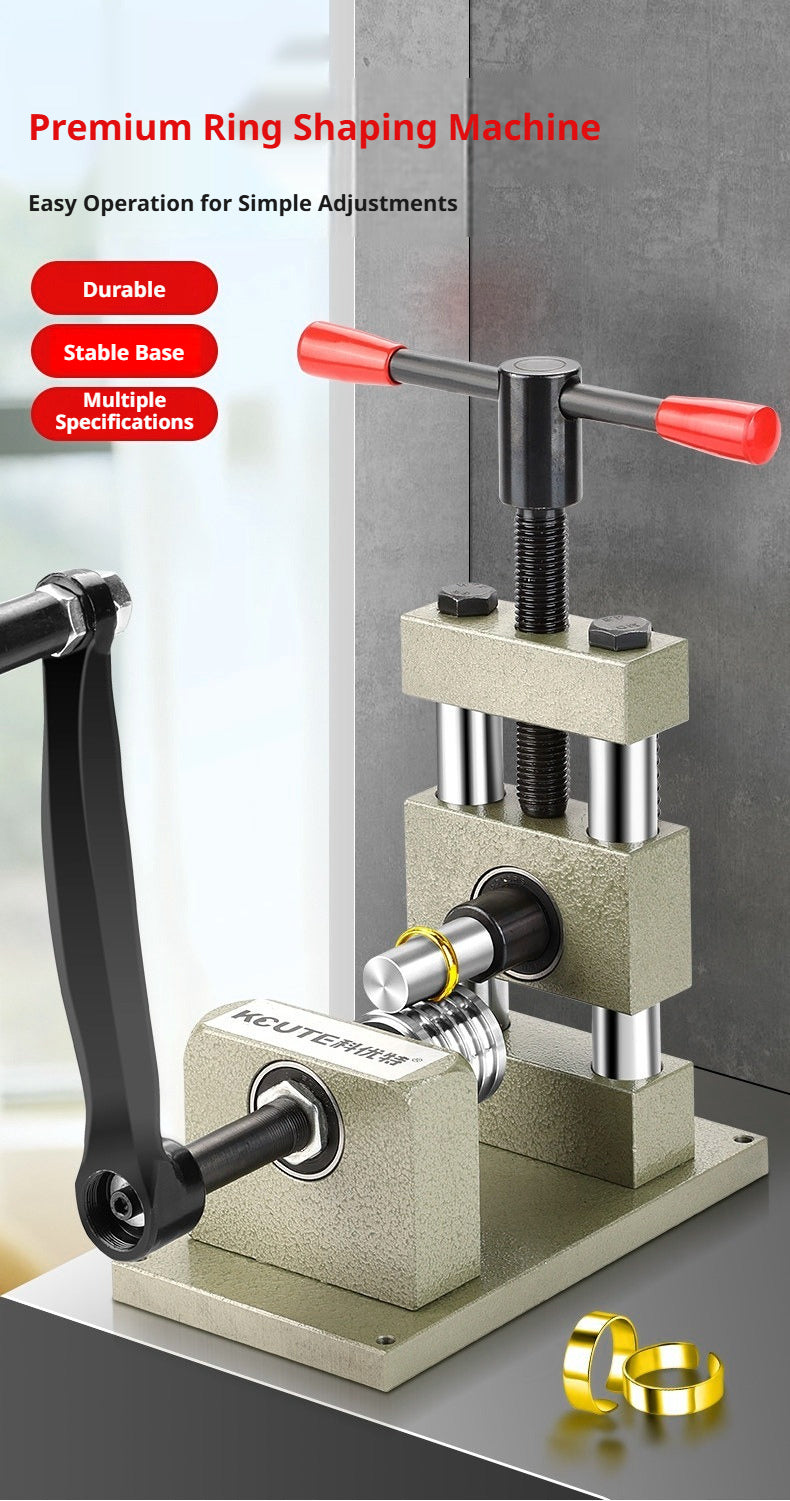

⚙️ Turn a bent, out‑of‑round ring back into a perfect circle – as if a master jeweler did it. Whether you’re a professional goldsmith or a dedicated hobbyist, shaping rings by hand is slow and inconsistent. Our KCUTE Manual Ring Shaping Machine gives you the power to round, size, and smooth gold, silver, or copper rings with effortless precision. The hand‑cranked mechanism and interchangeable shaping wheels (half‑round, quarter‑round, one‑third, one‑sixth, tire style, and glossy finish) let you tackle any profile – from delicate wedding bands to chunky signet rings. No electricity, no complex setup. Just solid steel construction, a stable base, and the quiet satisfaction of restoring jewelry to its original glory. Perfect for the home workshop, small studio, or as an upgrade to your jewelry repair bench. Your heirlooms deserve this level of care.
✨ Why the KCUTE Ring Shaping Machine is a Workshop Essential

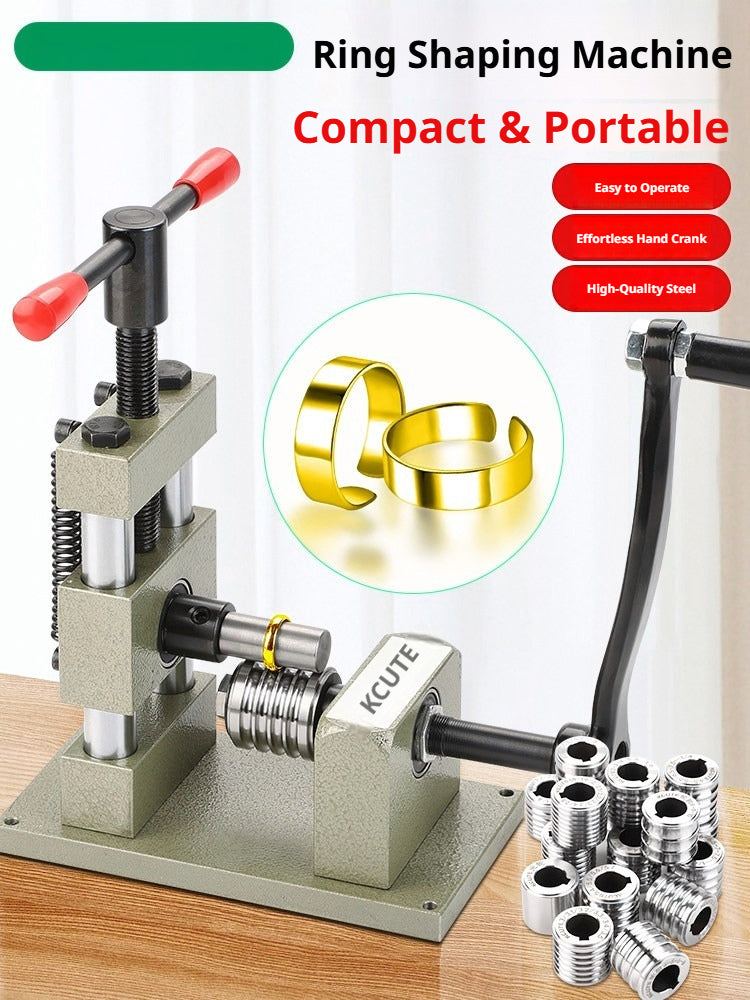

🔄 Restore out‑of‑round rings in seconds – Simply place the ring between two shaping wheels, turn the hand crank, and watch it become perfectly circular again. No more hammering on a mandrel and hoping for the best. A true ring rounding machine for professionals and serious hobbyists.

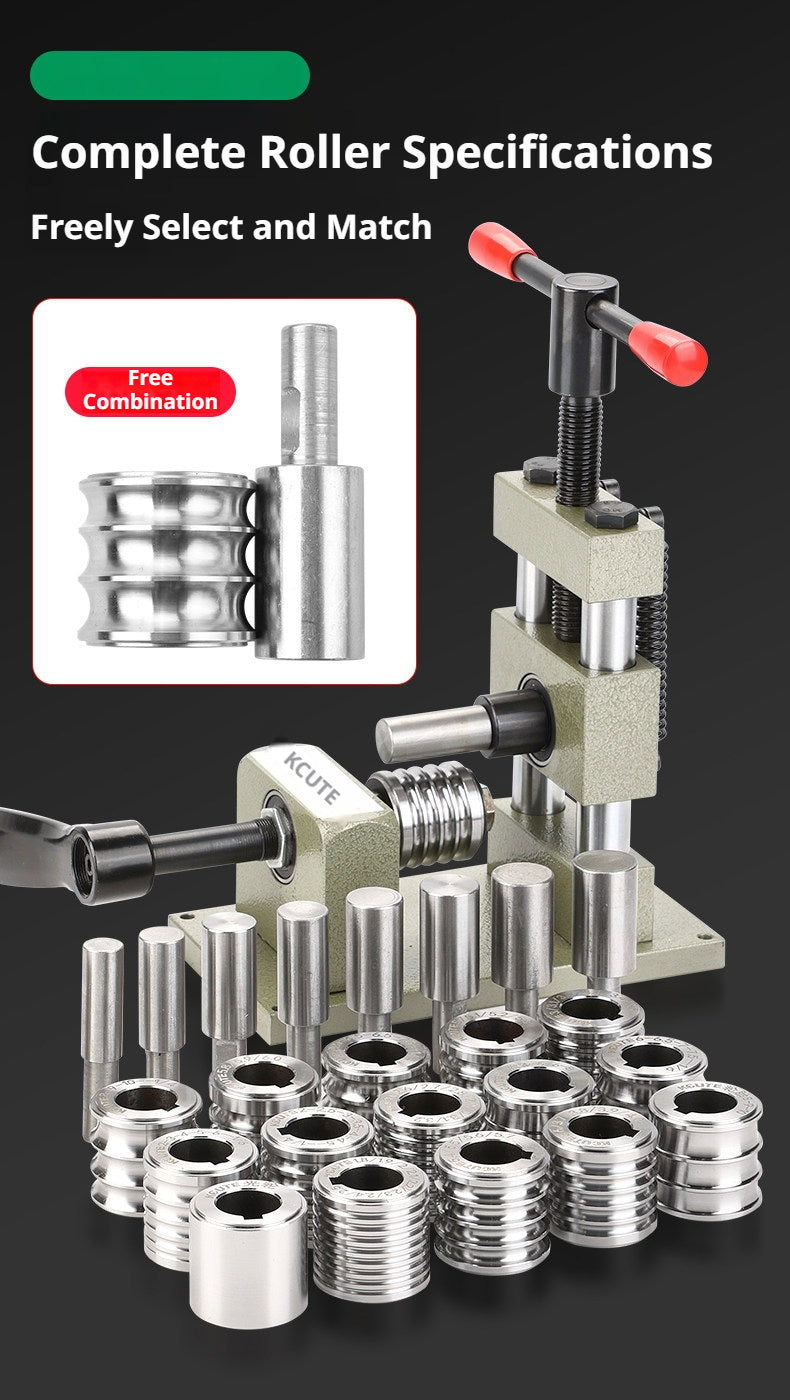

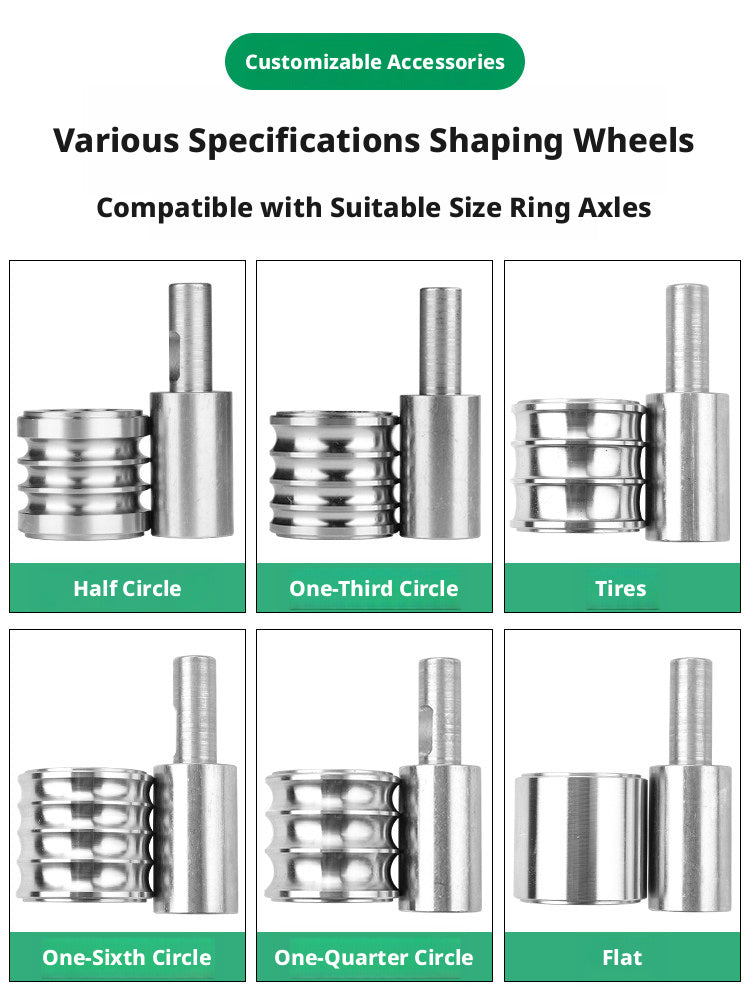

🎡 Interchangeable shaping wheels – infinite profiles – Choose from 40+ wheel sets: half‑circle (standard rounding), quarter‑circle, one‑third, one‑sixth, tire style (flat with shoulders), and glossy finishing wheels. Sizes from 1.8mm up to 24mm outer diameter, plus 33mm glossy wheel. The ultimate jewelry rolling mill alternative for ring work.

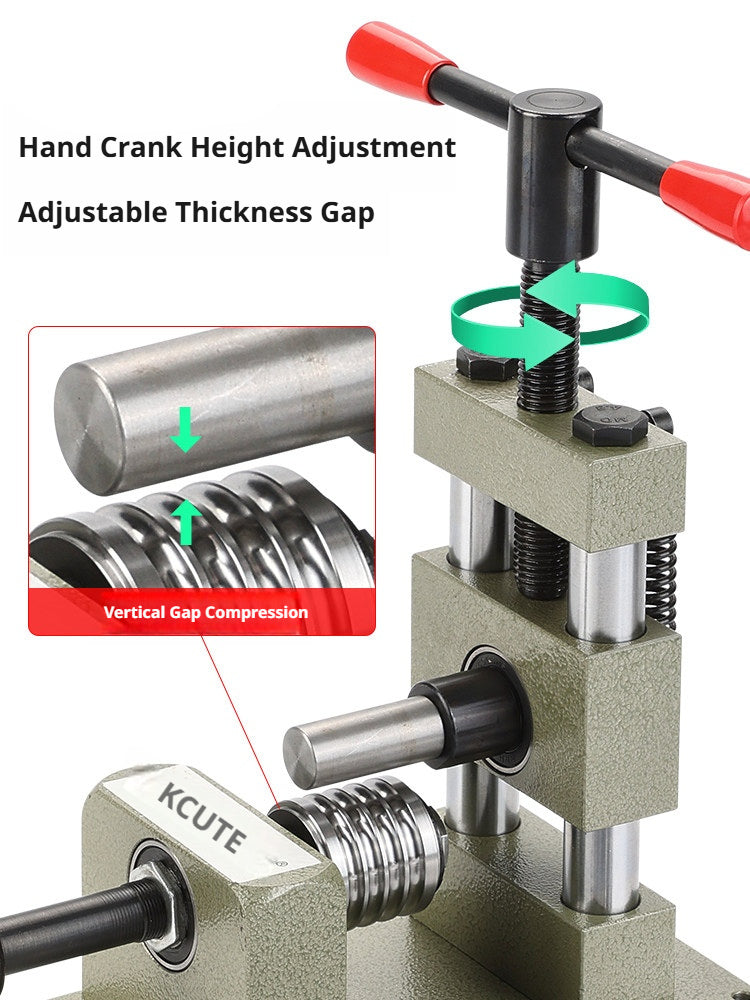

📏 Adjustable thickness gap & vertical compression – The hand crank height can be adjusted to accommodate different ring widths. You can also apply gentle downward pressure to correct oval shapes. Full control over the final dimension.

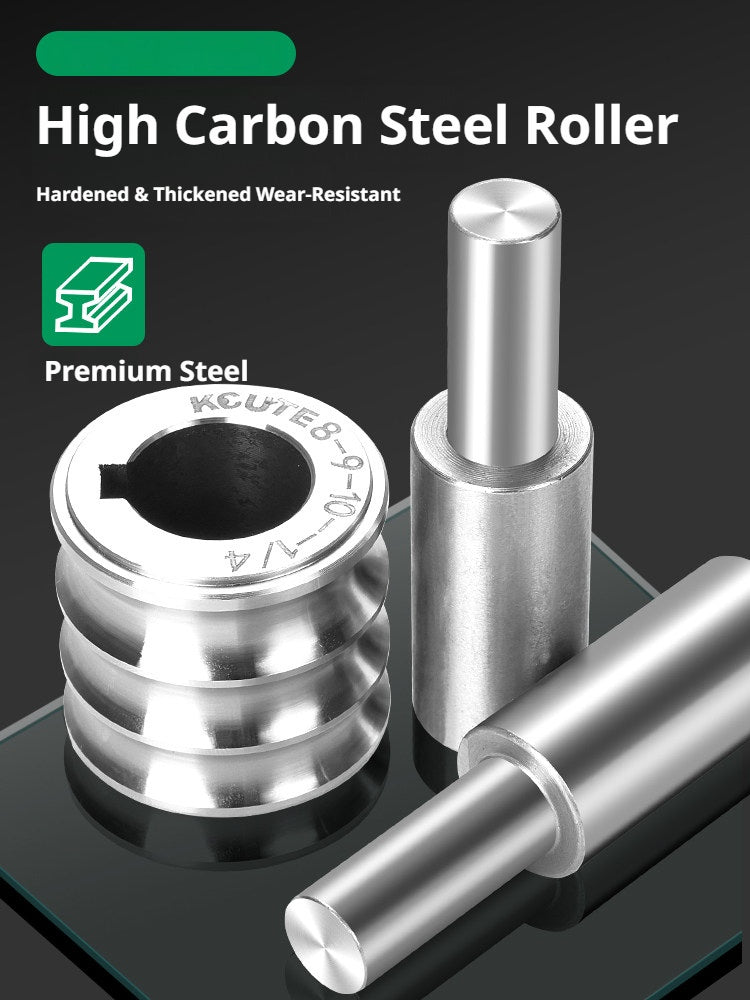

🔧 High‑carbon steel rollers – hardened & wear‑resistant – The shaping wheels are forged from premium steel, then heat‑treated for long‑lasting performance. Even after hundreds of rings, the grooves remain crisp and true. A durable metal ring shaper built for daily use.
🎨 Eco‑friendly paint finish – rust & stain resistant – The machine body features a spray‑painted surface that resists corrosion and looks beautiful on your bench. Wipes clean easily.

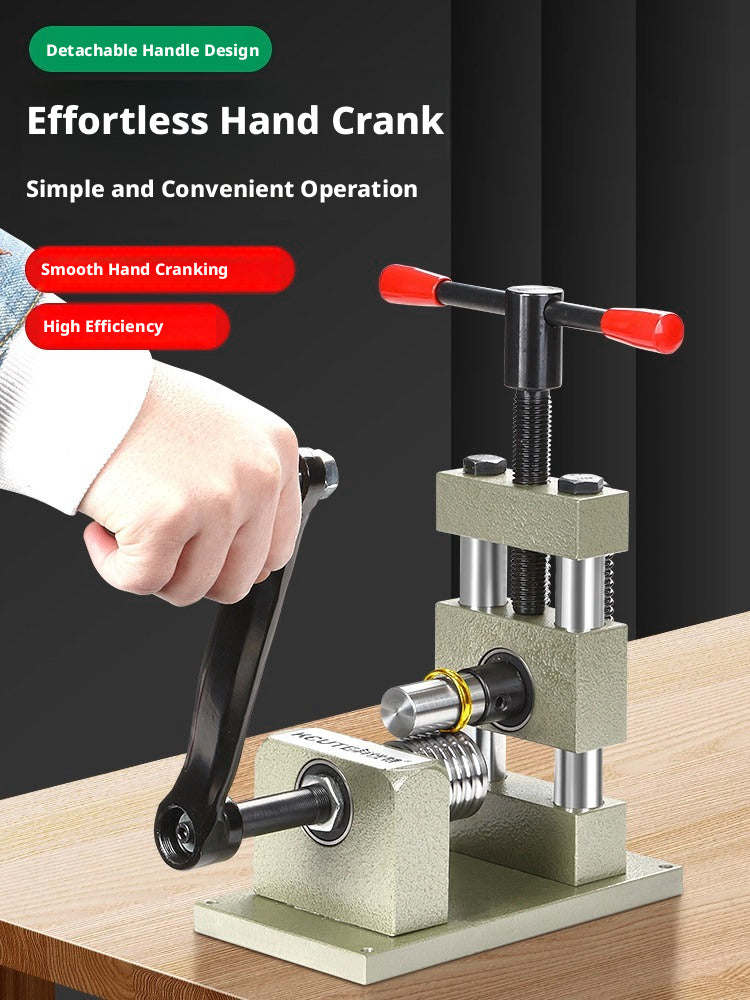

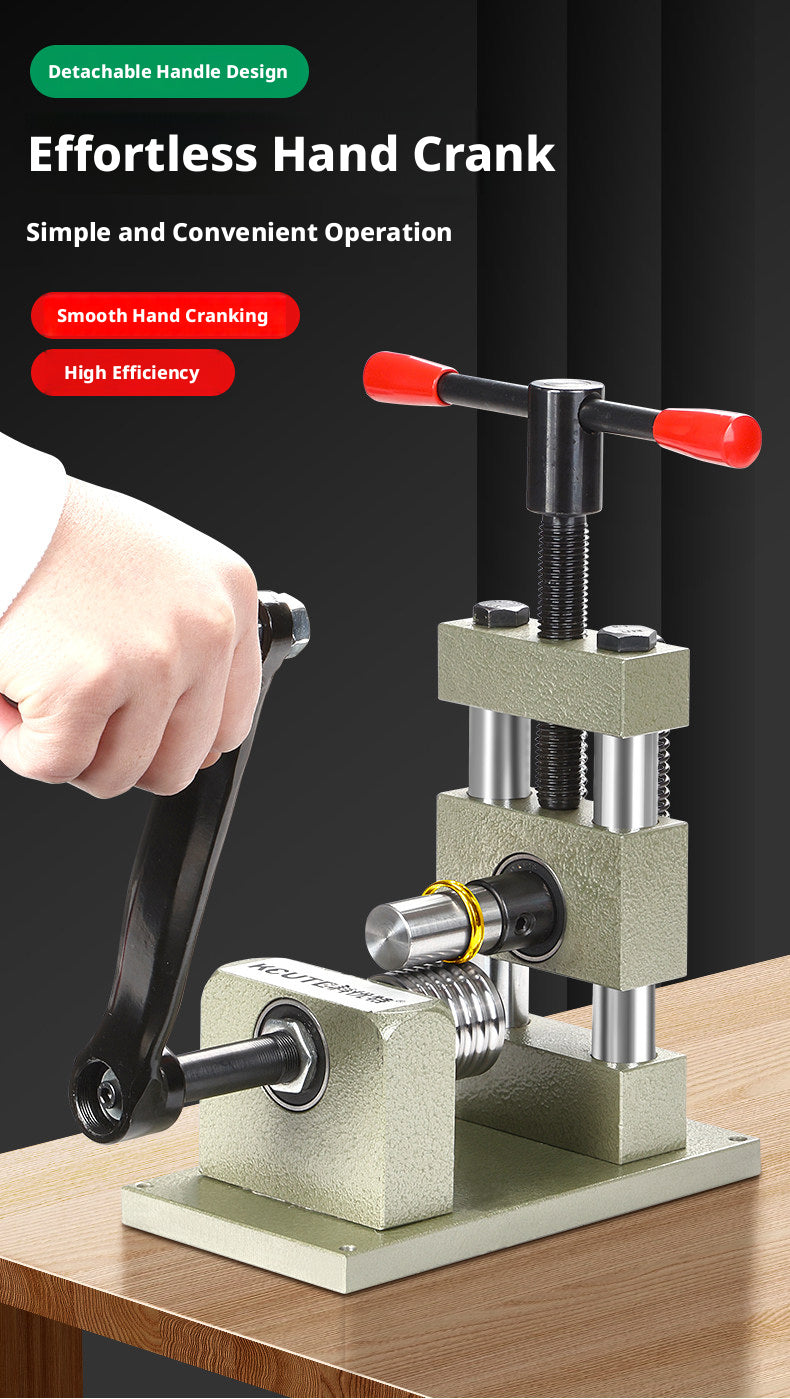

🖐️ Detachable hand crank – easy to store – The crank arm can be removed, making the machine compact for storage. The base is heavy and stable (6.3kg / 13.9 lbs) – no clamping needed for most operations.
🏠 Professional results at a fraction of the cost – A commercial electric ring rounding machine costs thousands. Our manual system delivers the same accuracy, costs less than a single trip to the jeweler, and gives you complete control. Perfect for home jewelry repair studio setups.
💛 Why This Machine Belongs in Your Jewelry Workshop
Consistency you can’t achieve with hand tools. Hammering a ring on a mandrel is fine for rough work, but it’s hard to keep the ring perfectly round and the thickness even. The ring roller applies uniform pressure around the entire circumference, giving you professional‑grade roundness every time.
Versatility to match any ring style. From flat comfort‑fit bands (tire wheels) to domed wedding rings (half‑circle wheels) to angular signet shapes (quarter‑circle), there’s a shaping wheel set for the job. You can even polish the final surface with the glossy wheel – no extra finishing needed.
A long‑term investment in your craft. Whether you’re a jewelry student, a metalsmith, or someone who loves to repair found pieces, this machine will save you hours of frustration. It’s a joy to use – the smooth crank action, the solid feel, the beautiful results. You’ll reach for it on every project.

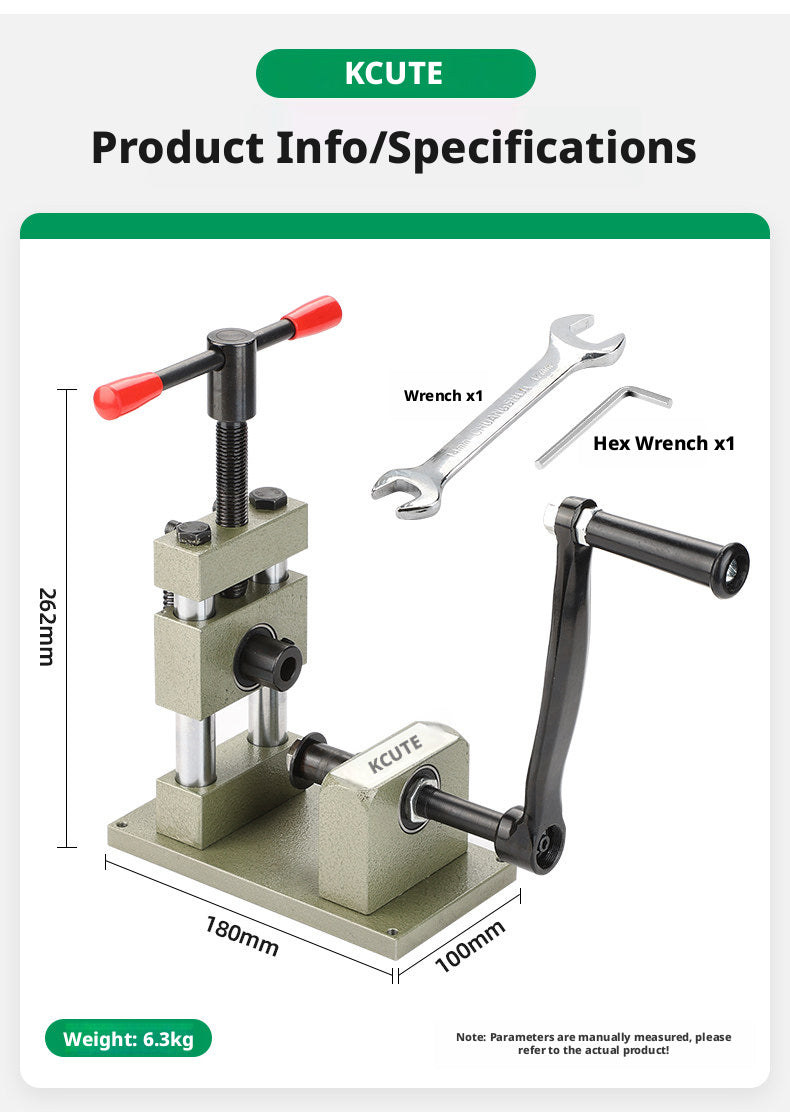

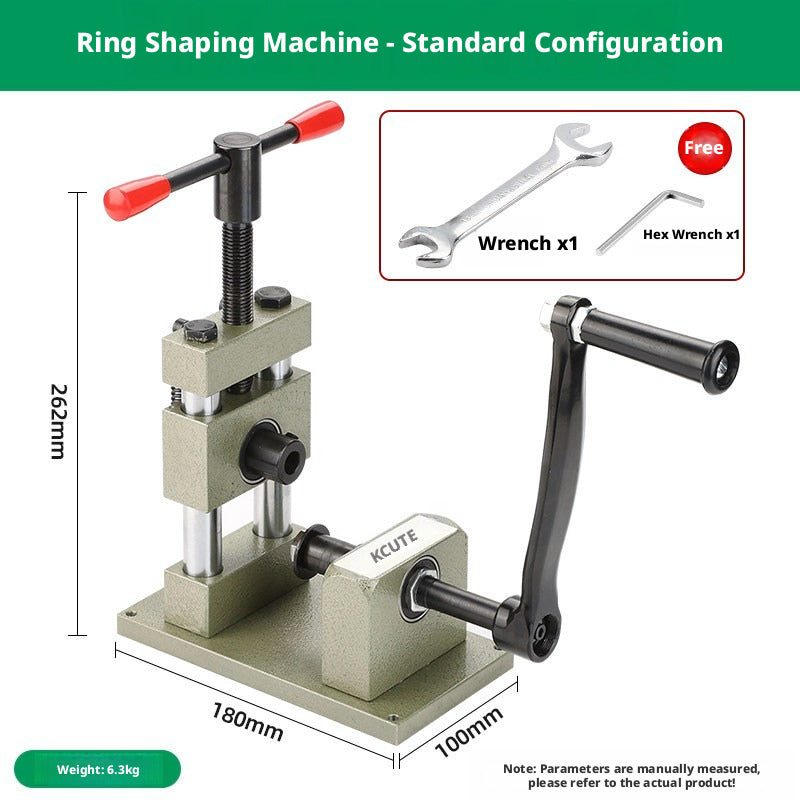

📏 Machine Specifications (Base Unit)
| Feature |
Details |
| Total Weight (machine only) |
6.3 kg (13.9 lbs) – heavy, stable base |
| Machine Length |
262 mm |
| Machine Width (base) |
100 mm |
| Machine Height (without crank) |
180 mm |
| Crank Length (removable) |
Approx. 180‑200 mm |

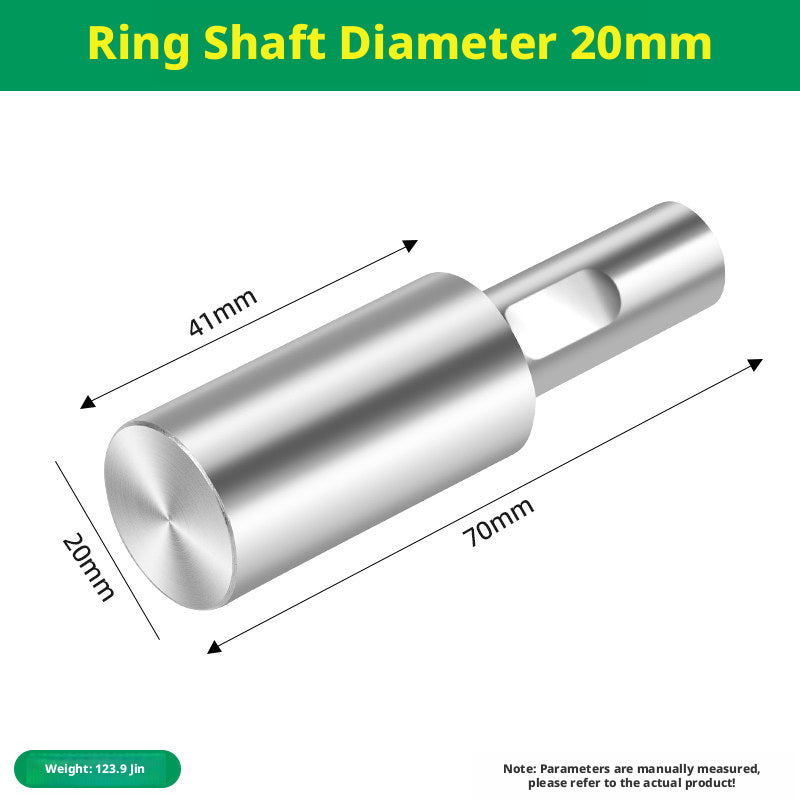

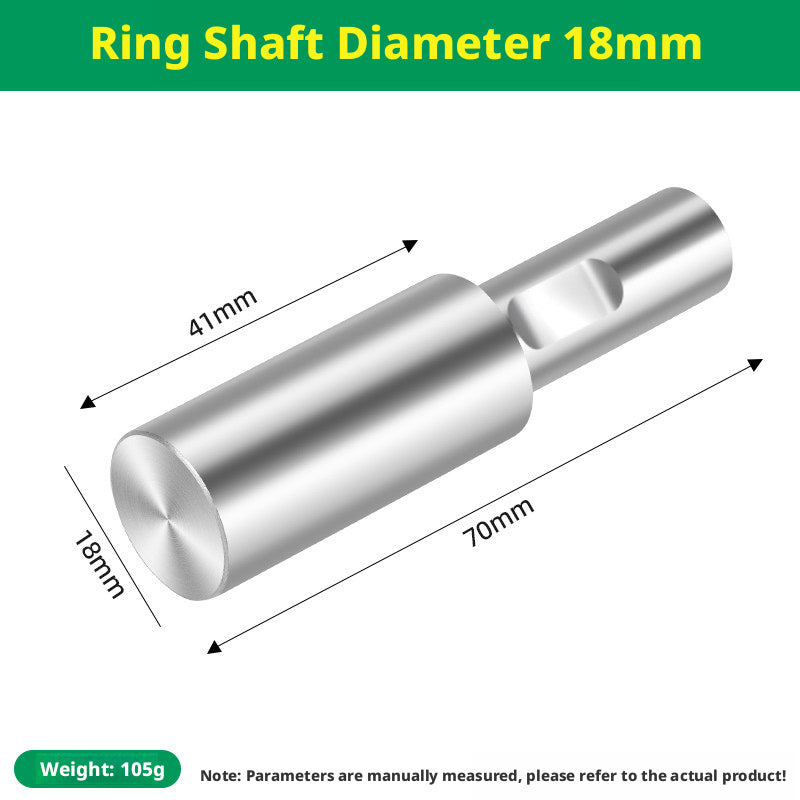

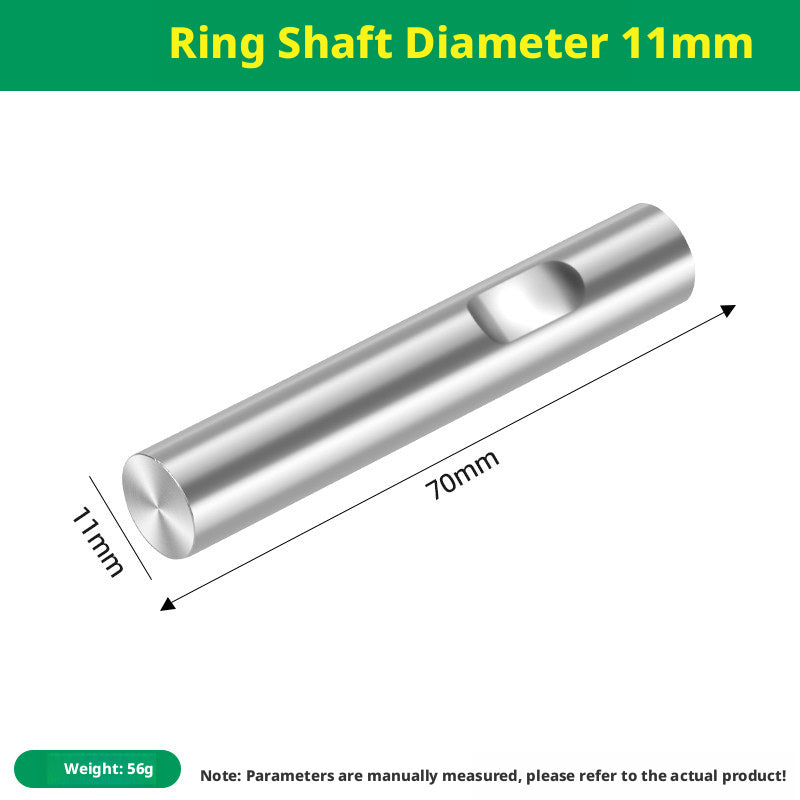

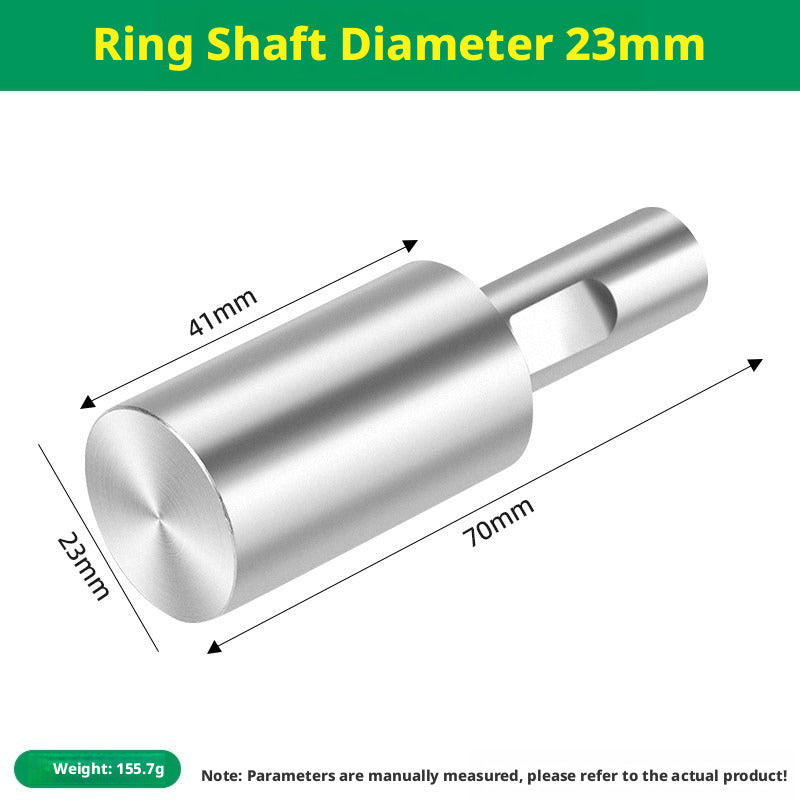

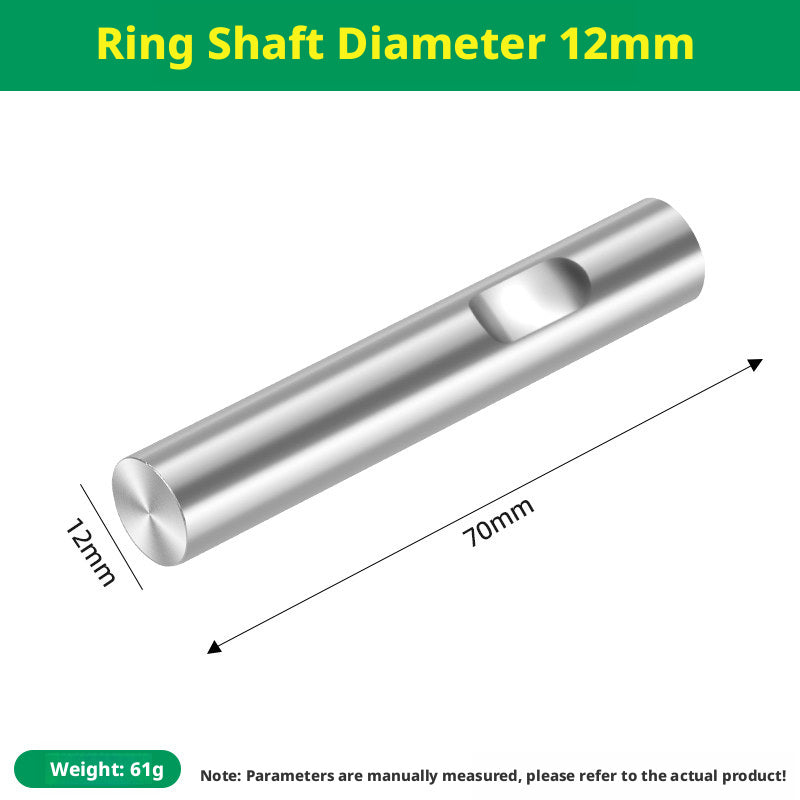

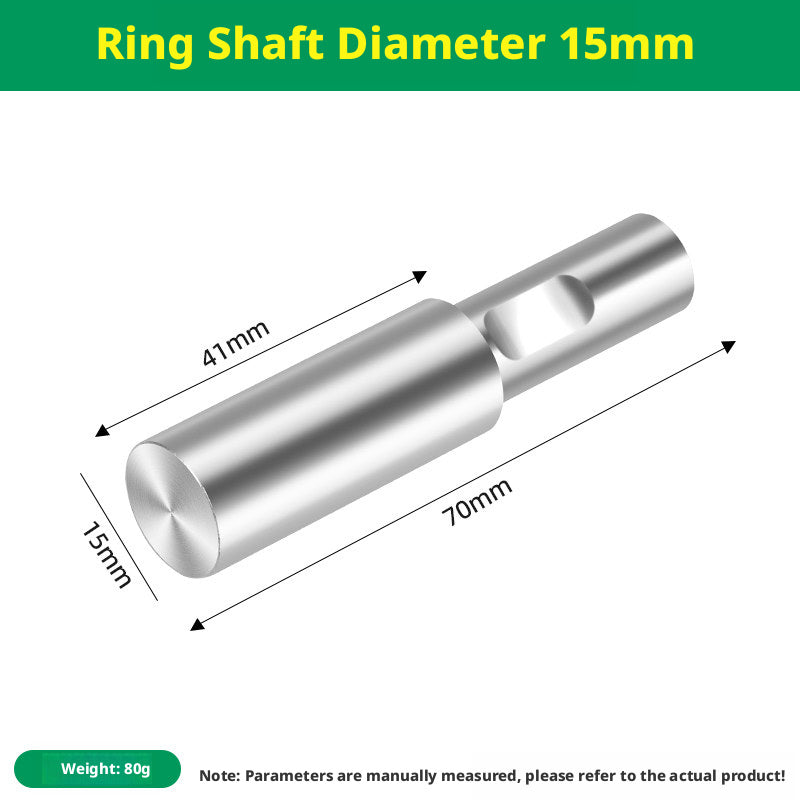

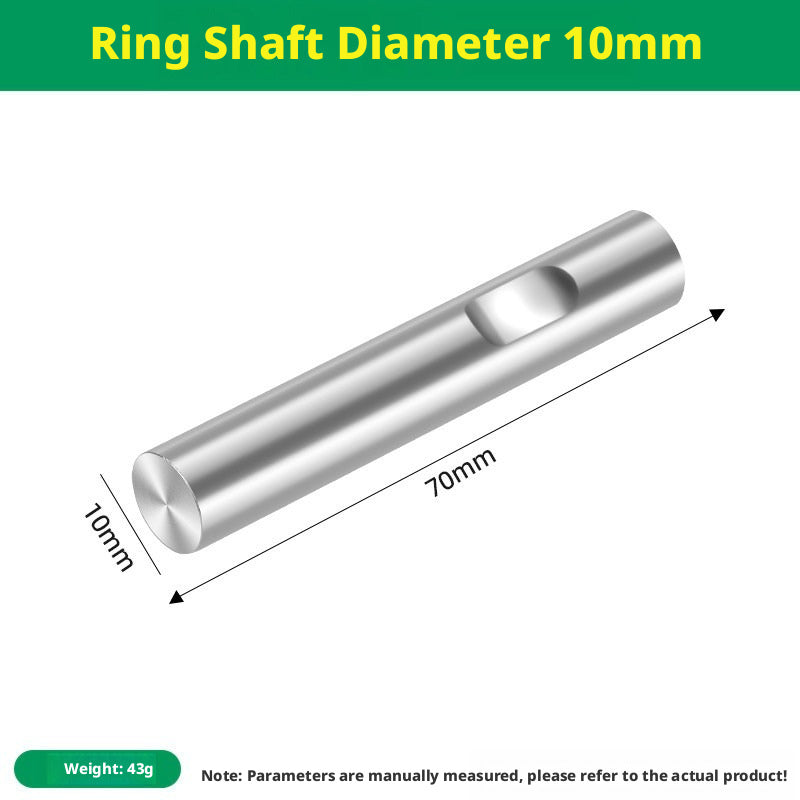

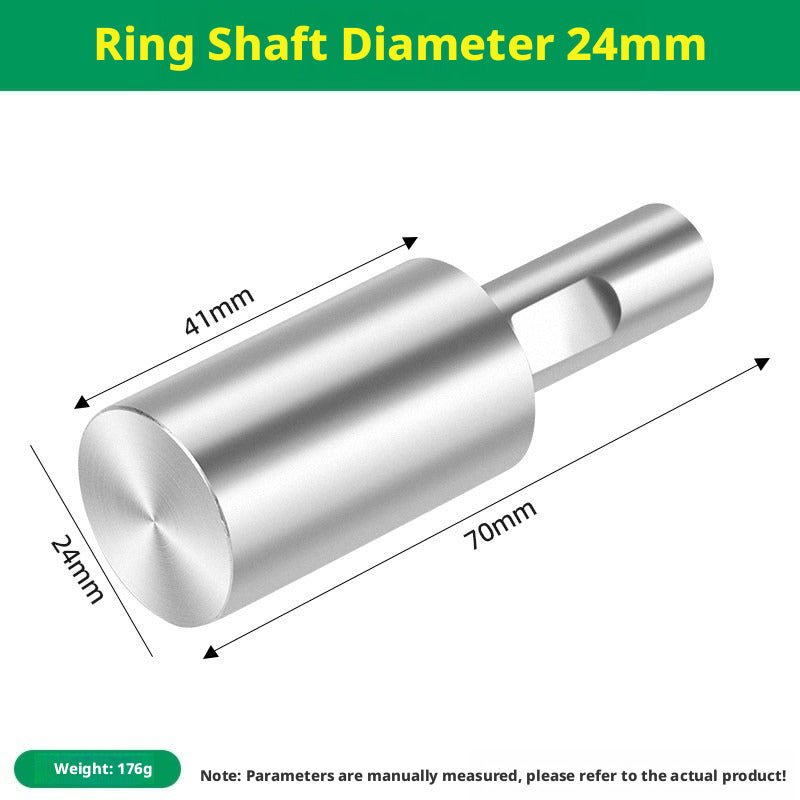

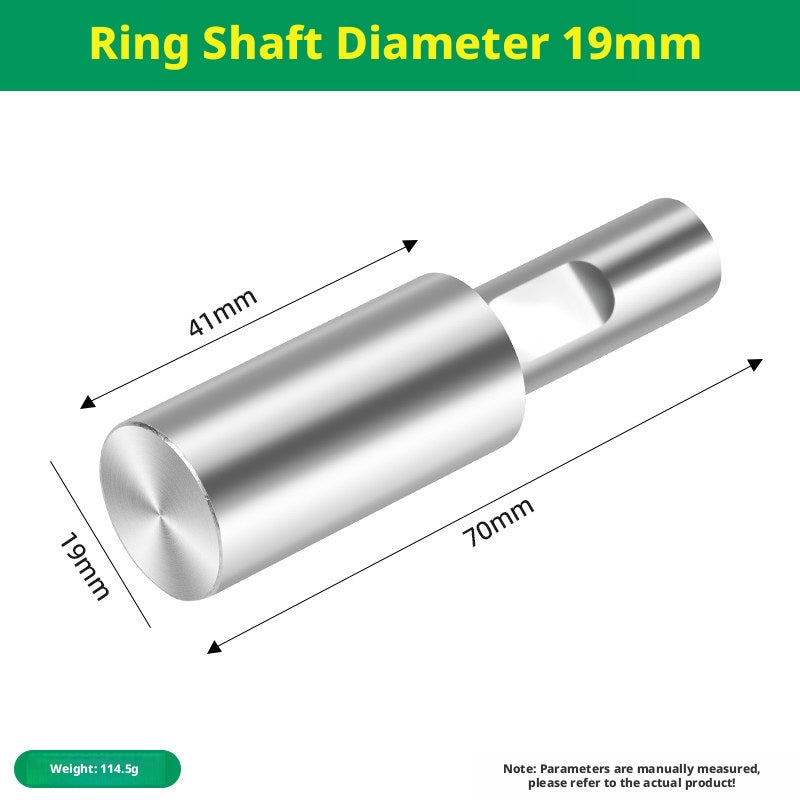

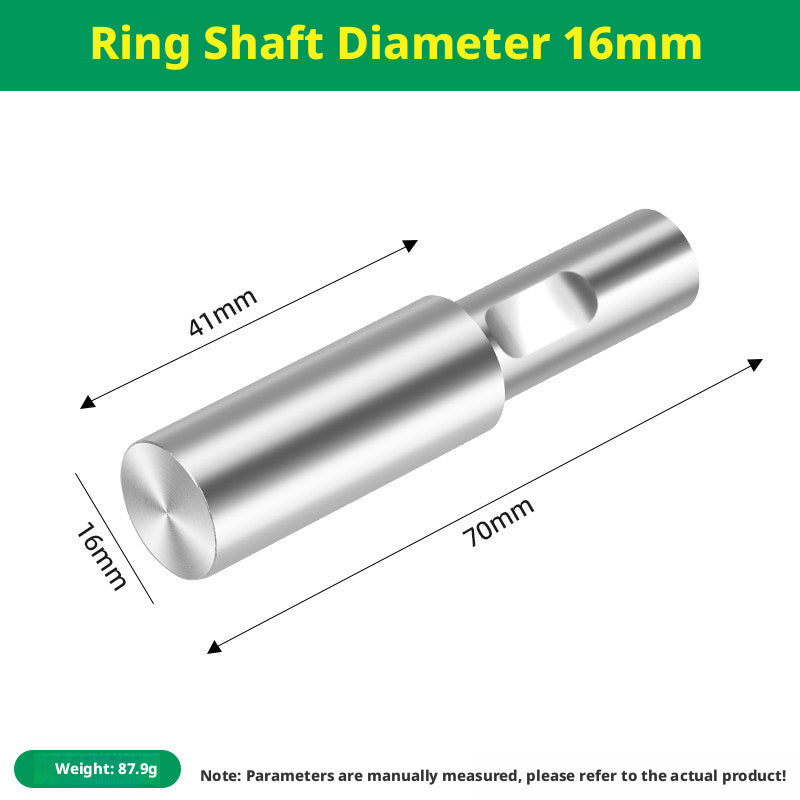

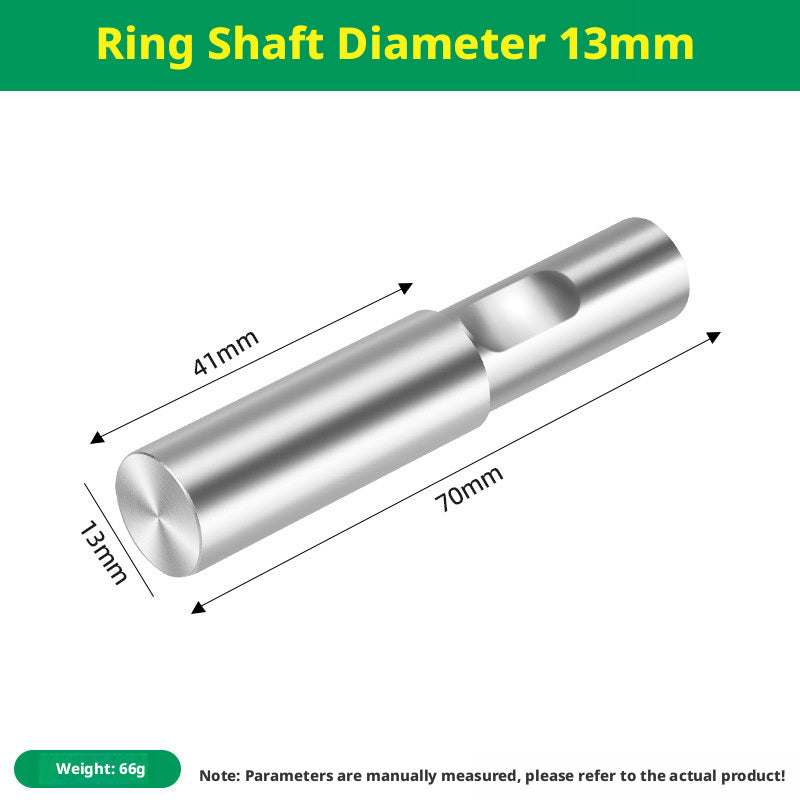

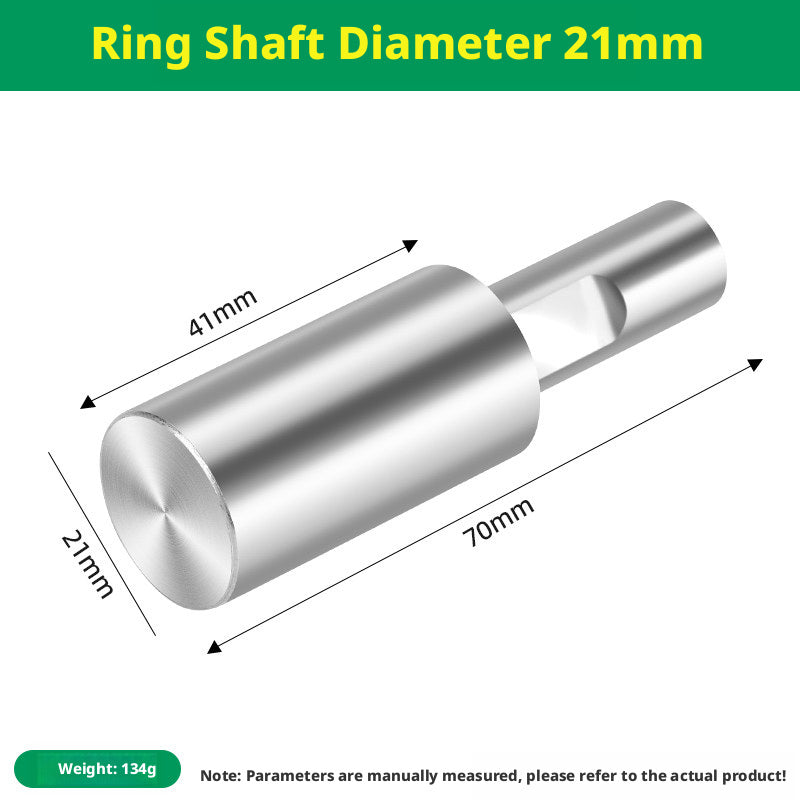

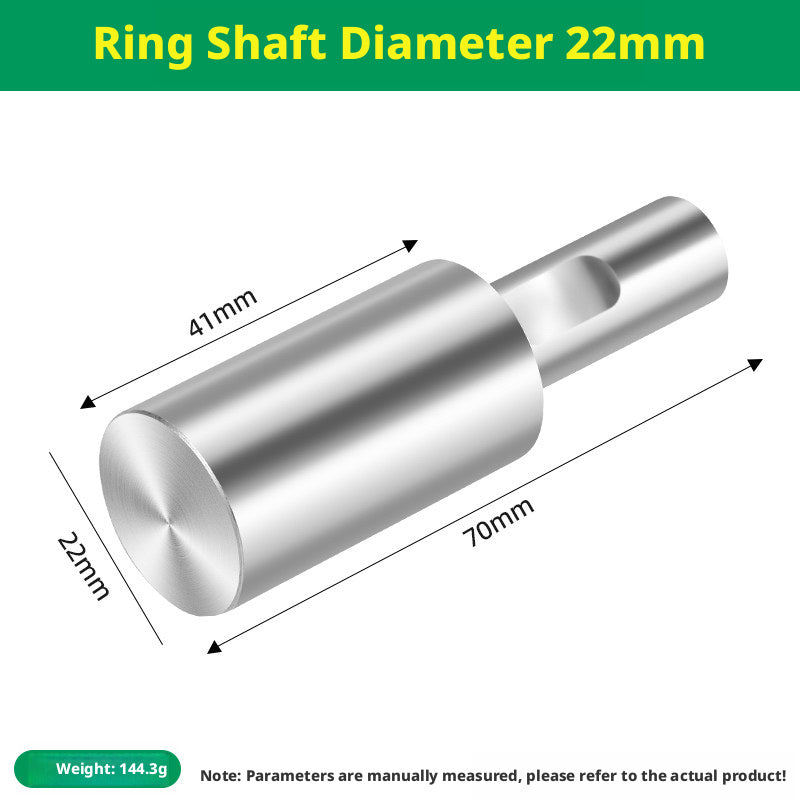

| Shaft Diameter Options (for wheels) |
12mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm, 21mm, 22mm, 23mm, 24mm |
| Roller Material |
High‑carbon steel, hardened & thickened |
| Finish |
Eco‑friendly spray paint (rust & stain resistant) |
| Included Accessories |
Wrench x1, Hex wrench x1 (for changing wheels) |
| *Shaping wheels sold separately – choose the profiles and sizes that match your work. Manual measurement tolerance ±1‑2mm. |

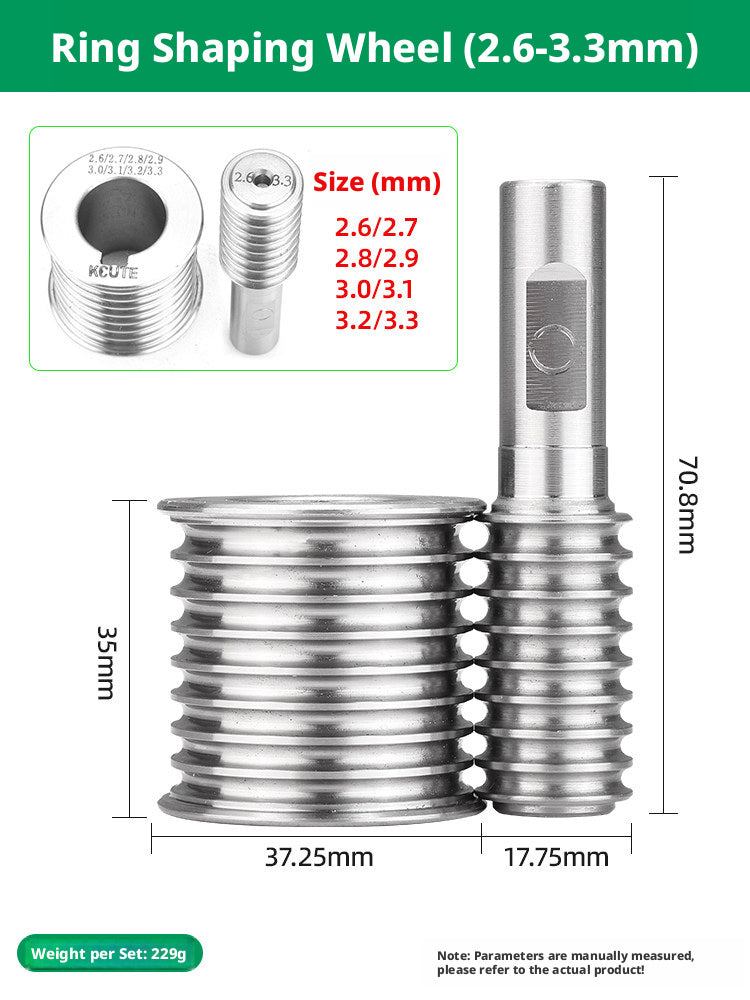

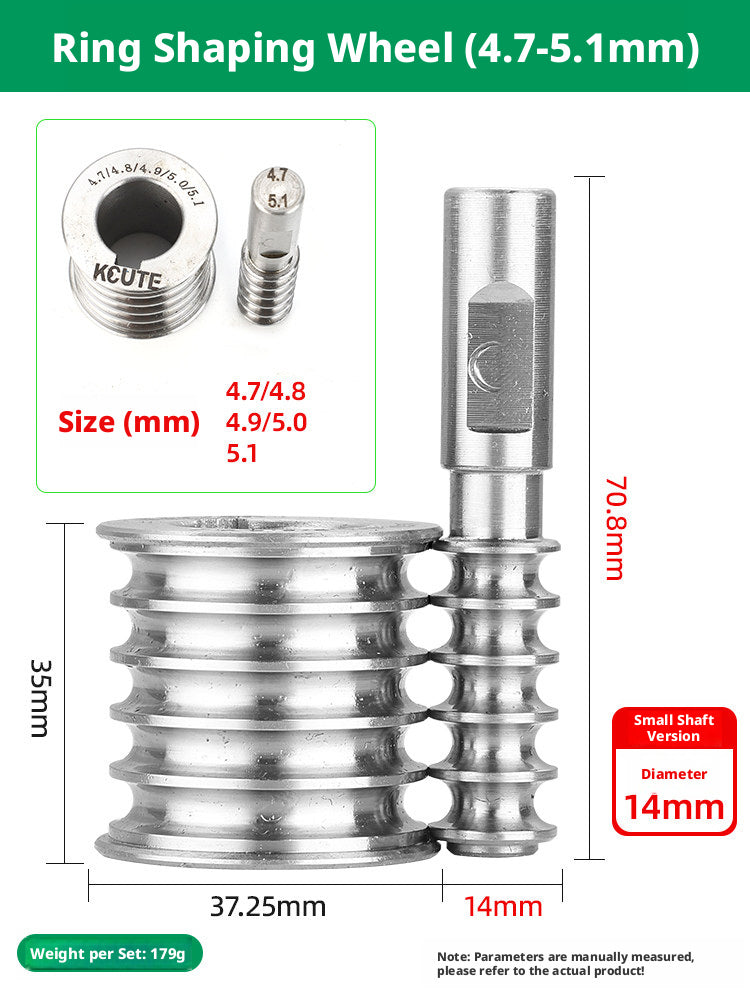

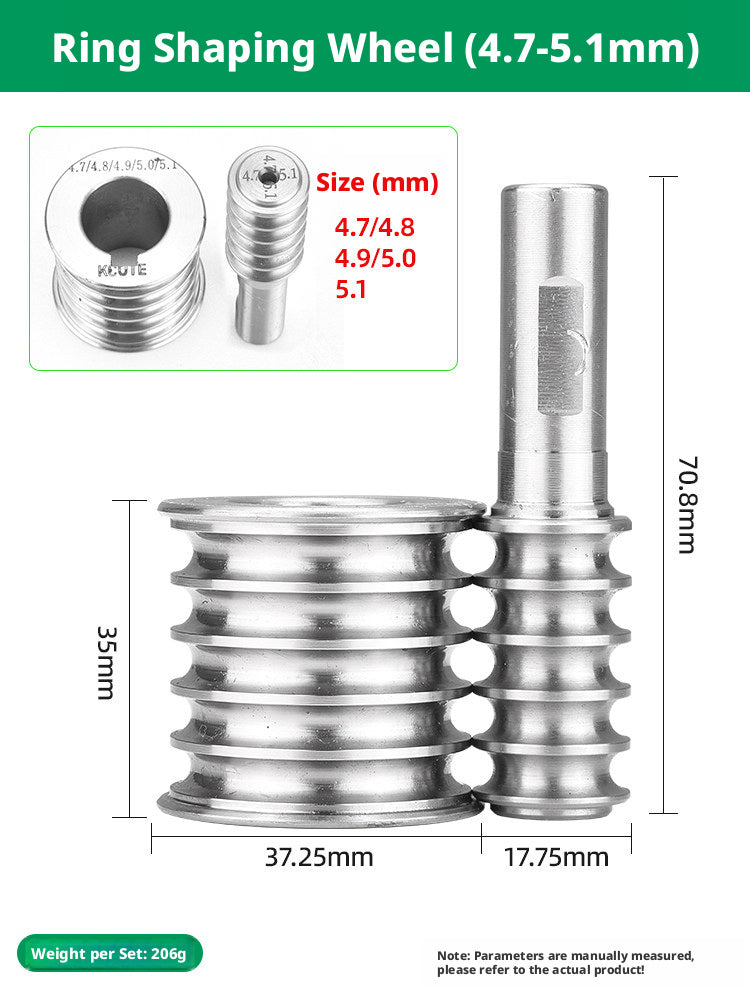

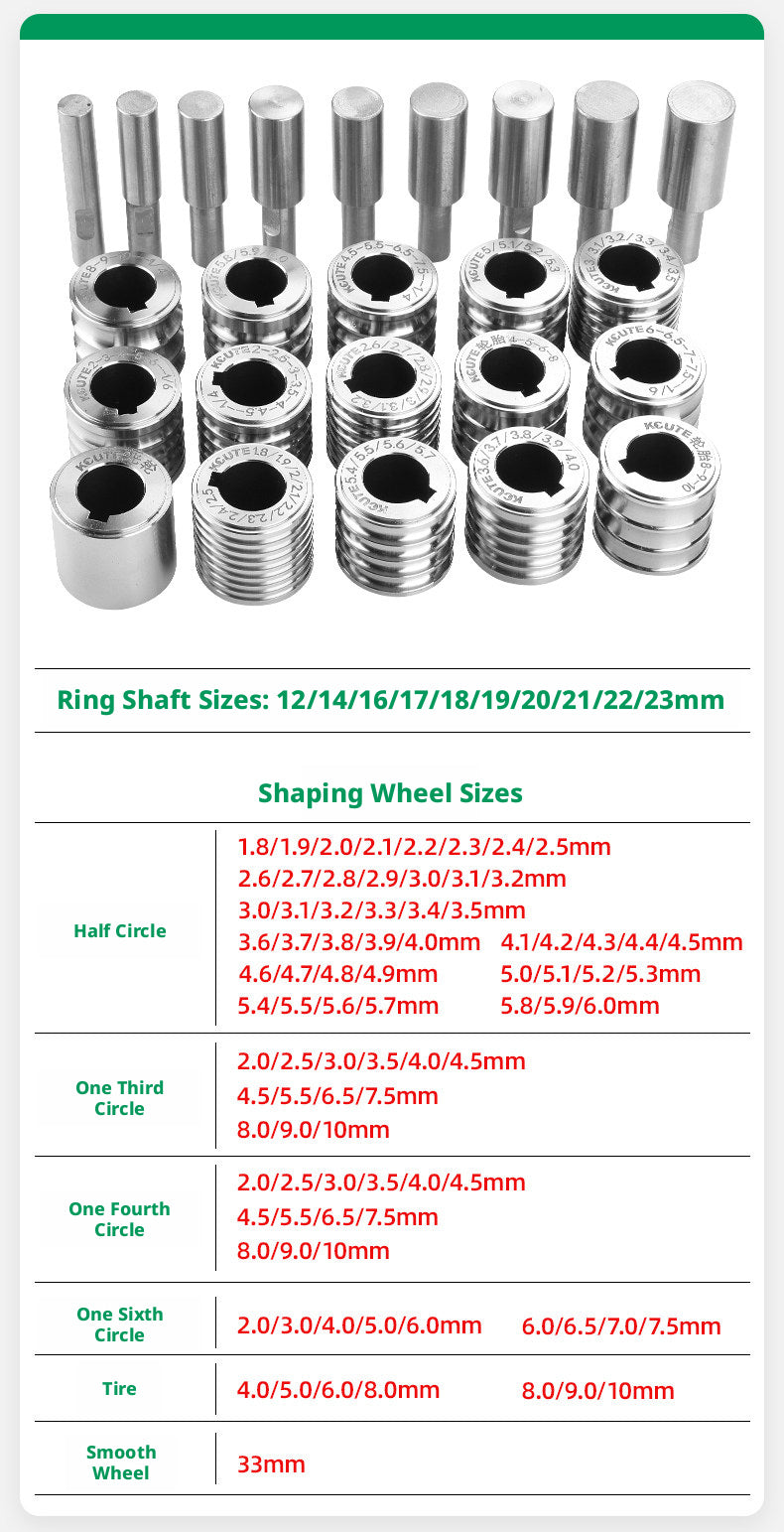

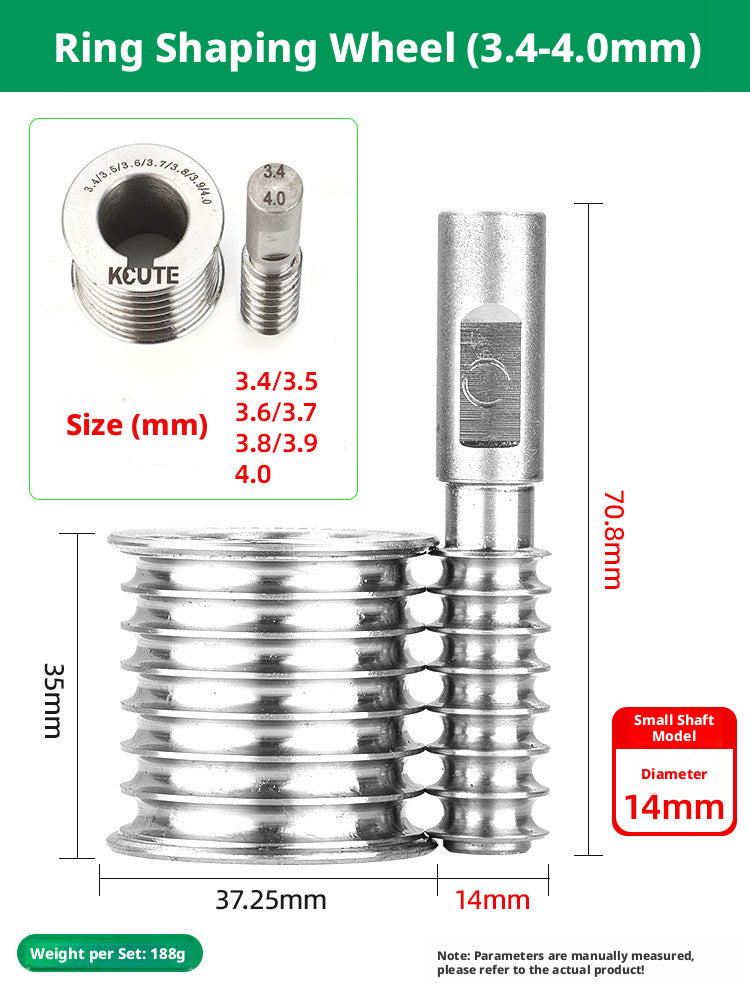

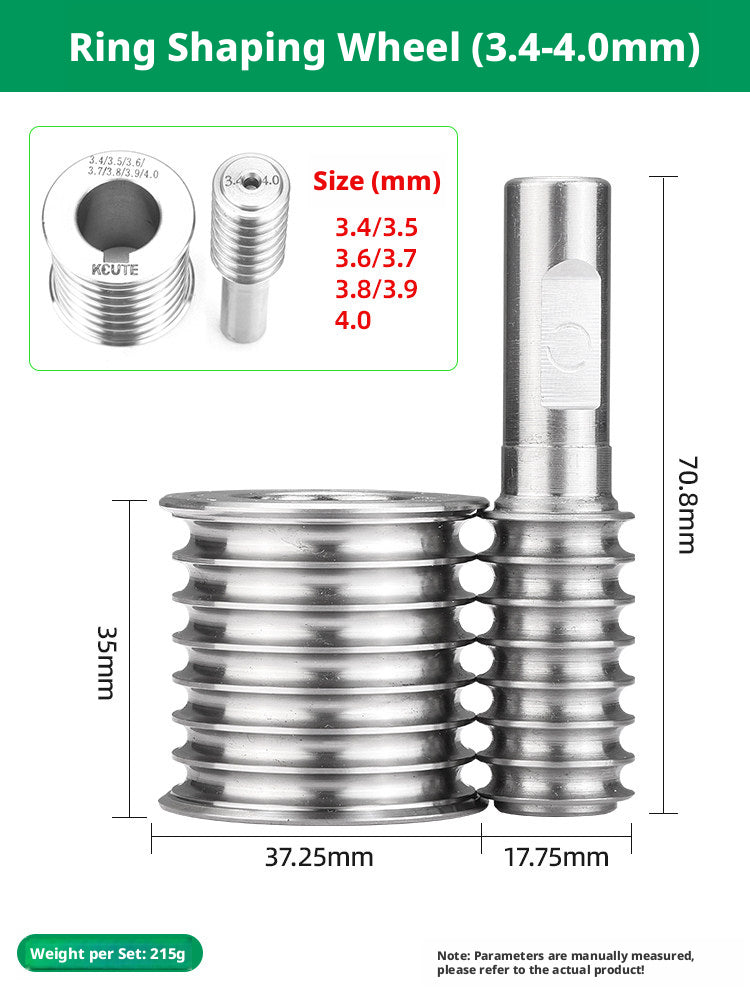

🔄 Available Shaping Wheels (Partial List – 40+ Options)
| Profile Type |
Sizes (mm outer diameter range) |
Shaft Diameter |
Typical Use |

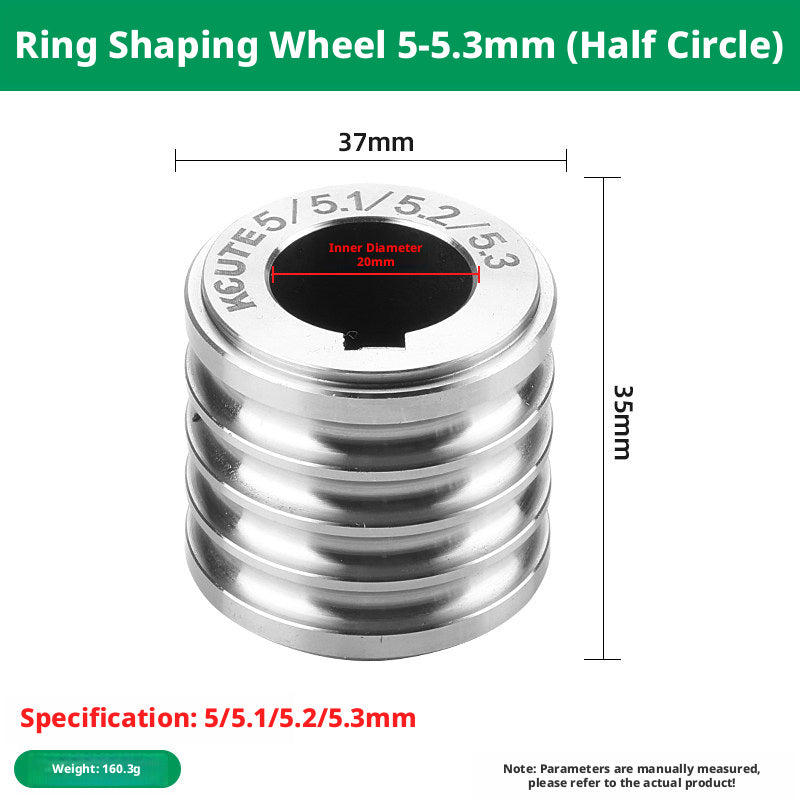

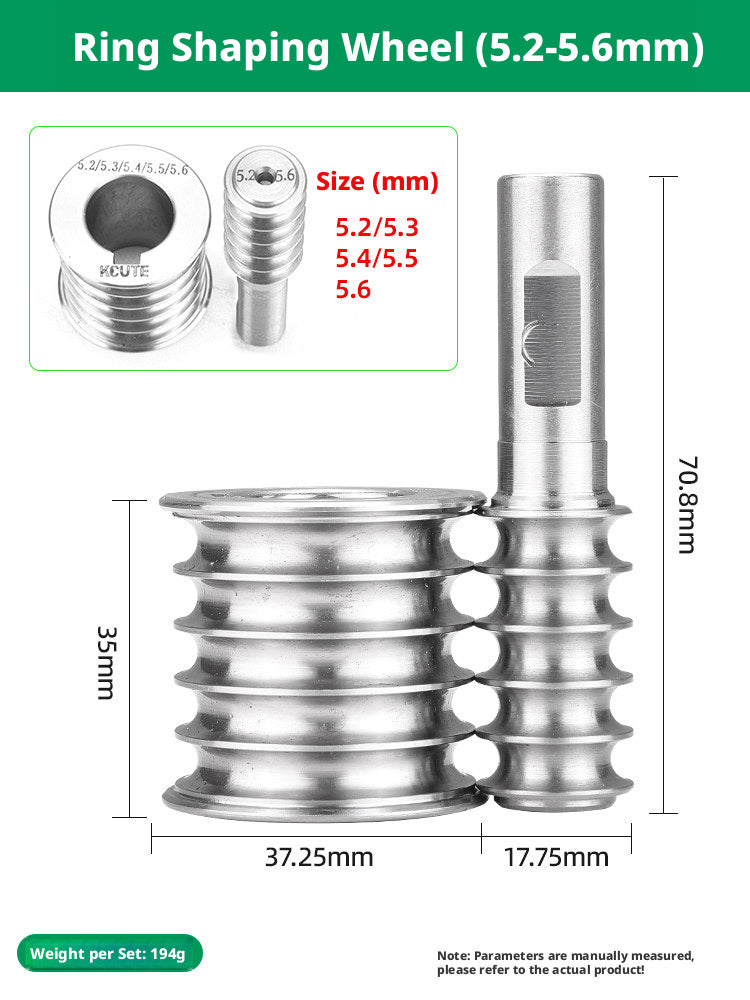

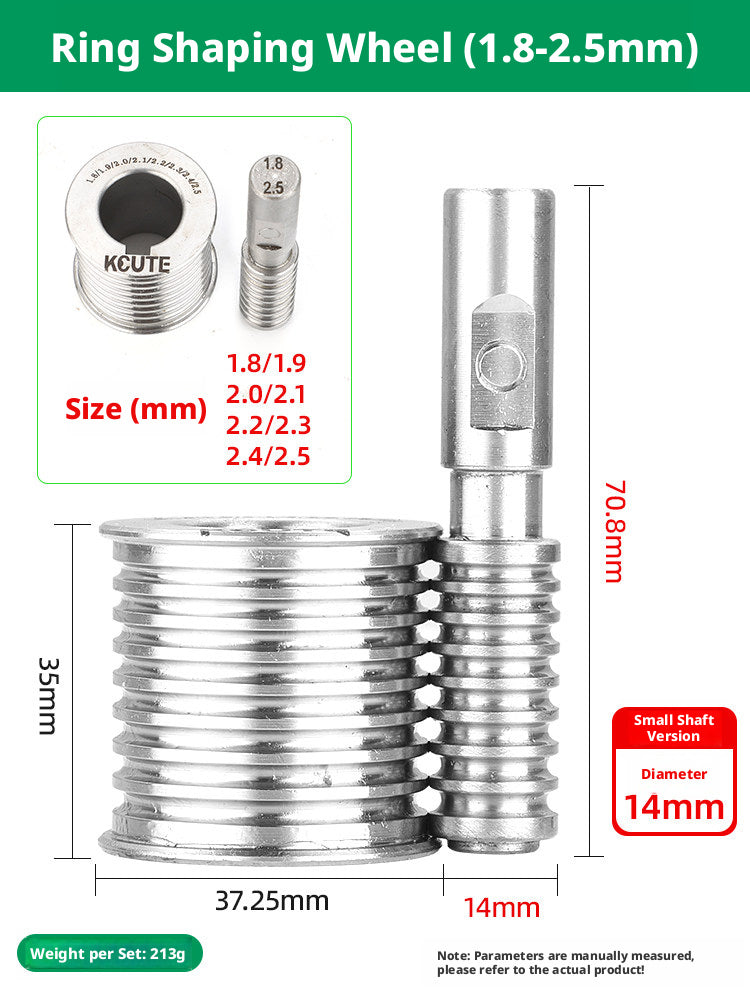

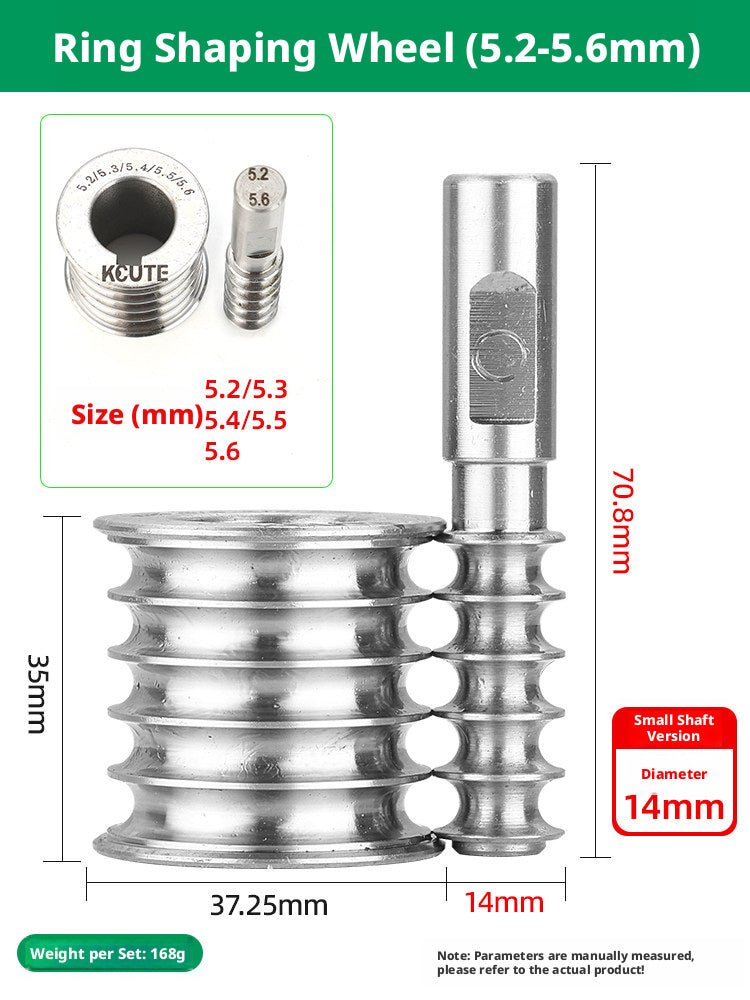

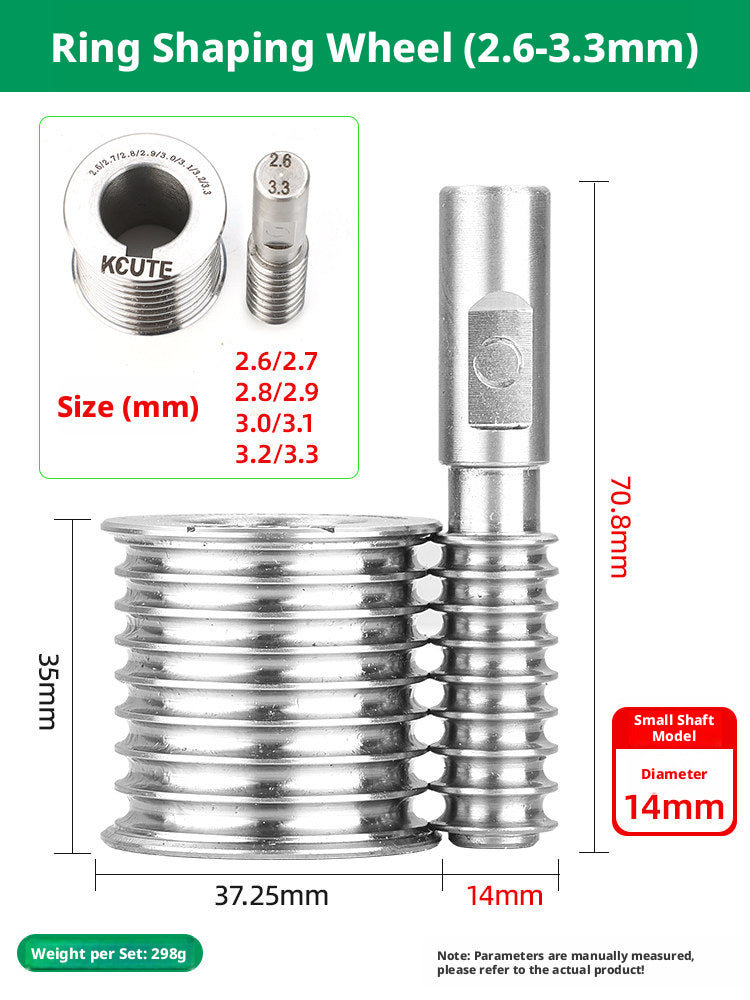

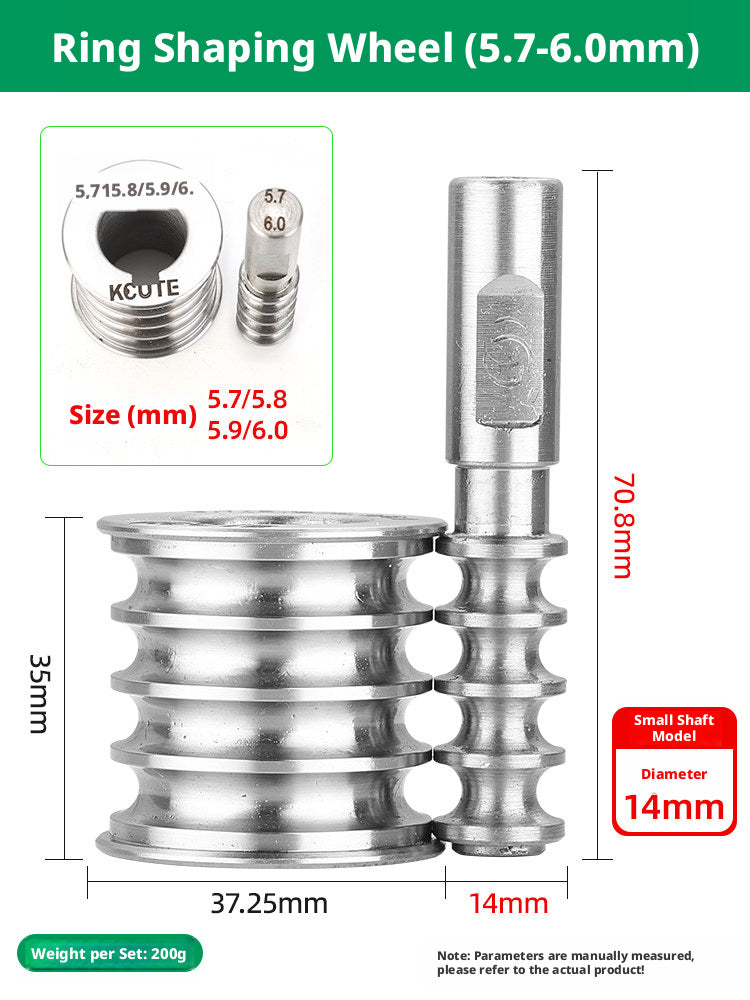

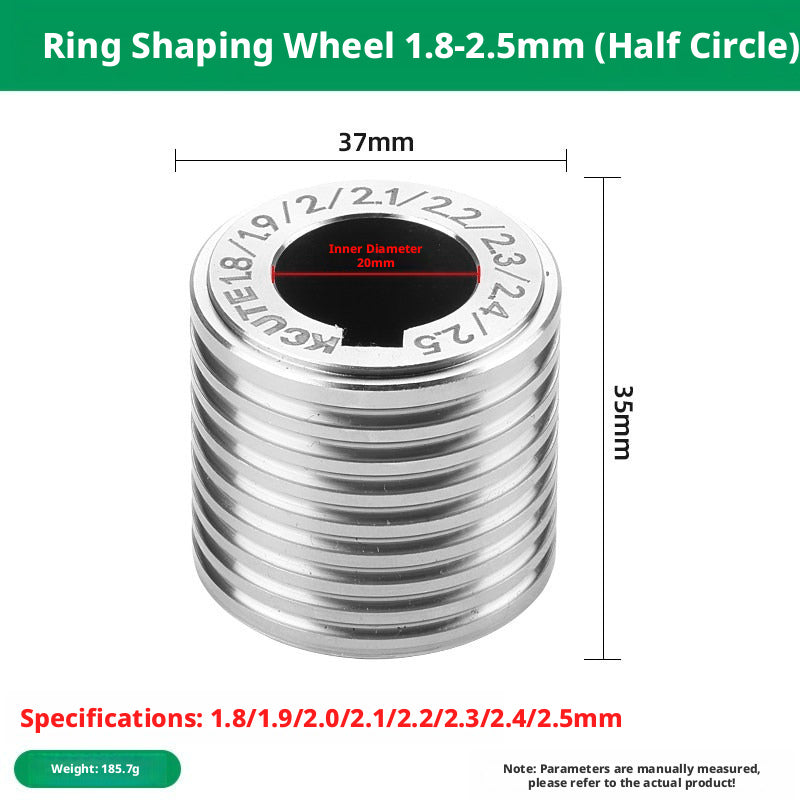

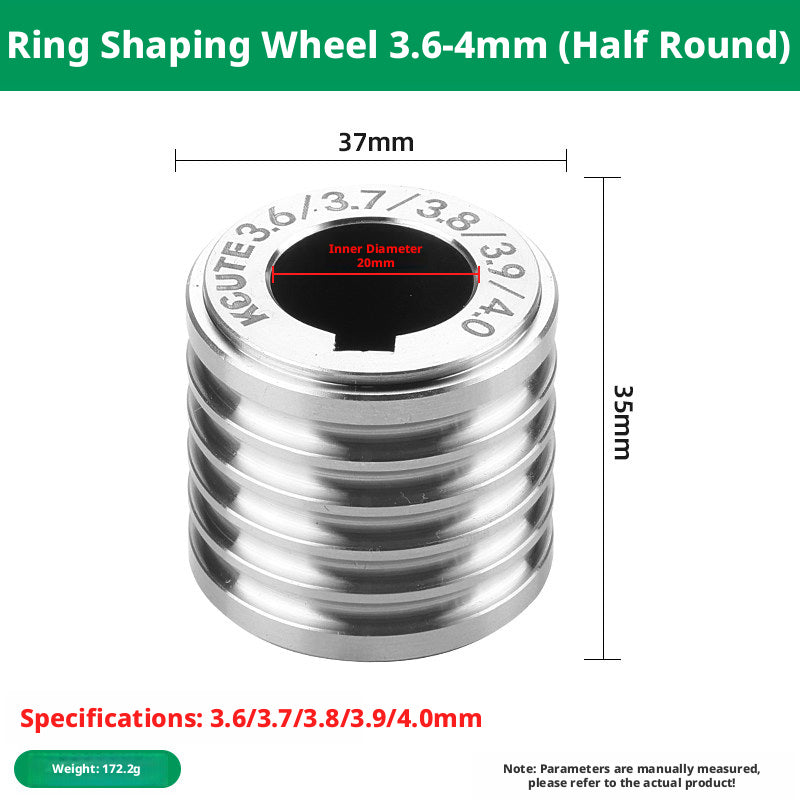

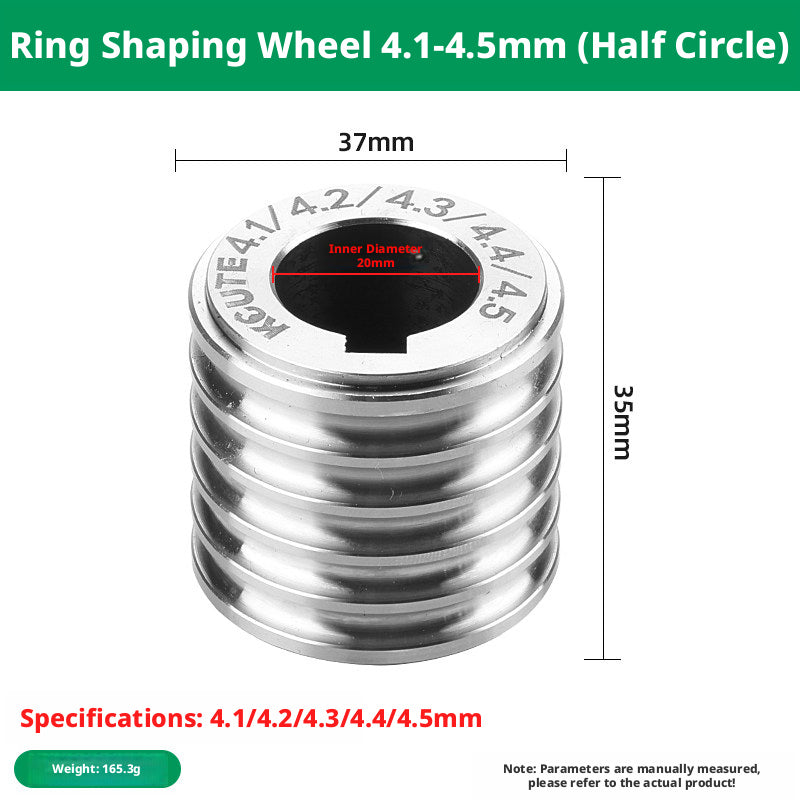

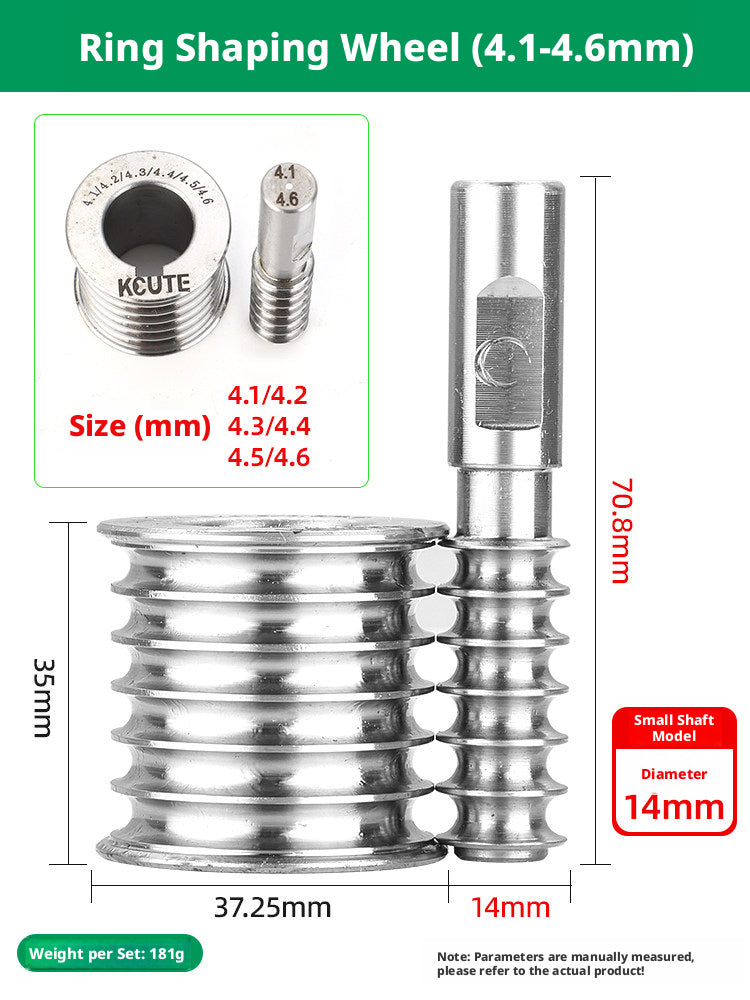

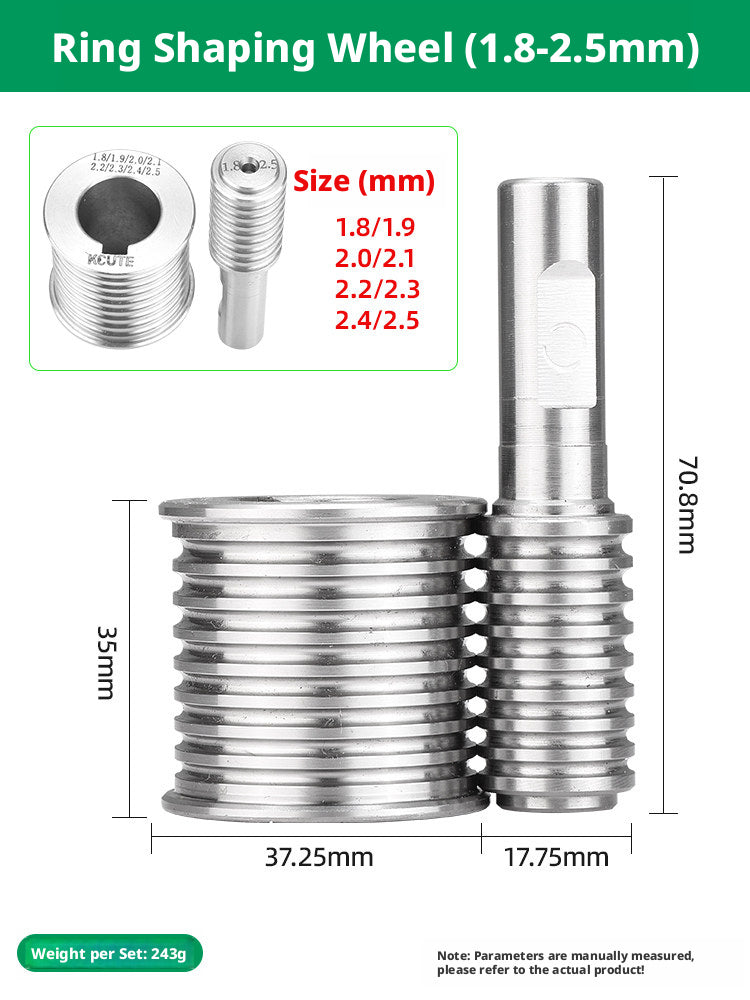

| Half‑Circle (Semicircle) |

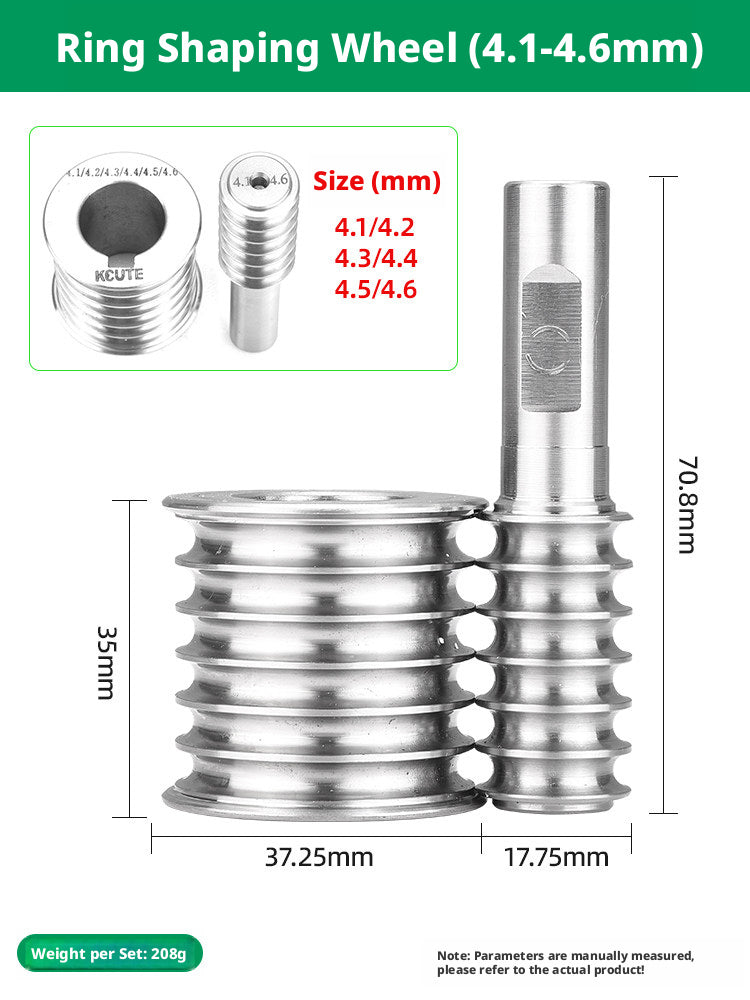

1.8‑2.5, 2.6‑3.2, 3‑3.5, 3.6‑4, 4.1‑4.5, 4.6‑4.9, 5‑5.3, 5.4‑5.7, 5.8‑6 |
14mm or 17mm |
Standard rounding for domed rings |
| One‑Third Circle |
2‑4.5mm |
14mm / 17mm |
Lower profile, wider contact area |
| 4.5‑7.5mm |
14mm / 17mm |
Medium to large rings |
| 8‑10mm |
14mm / 17mm |
Wide bands, chunky rings |

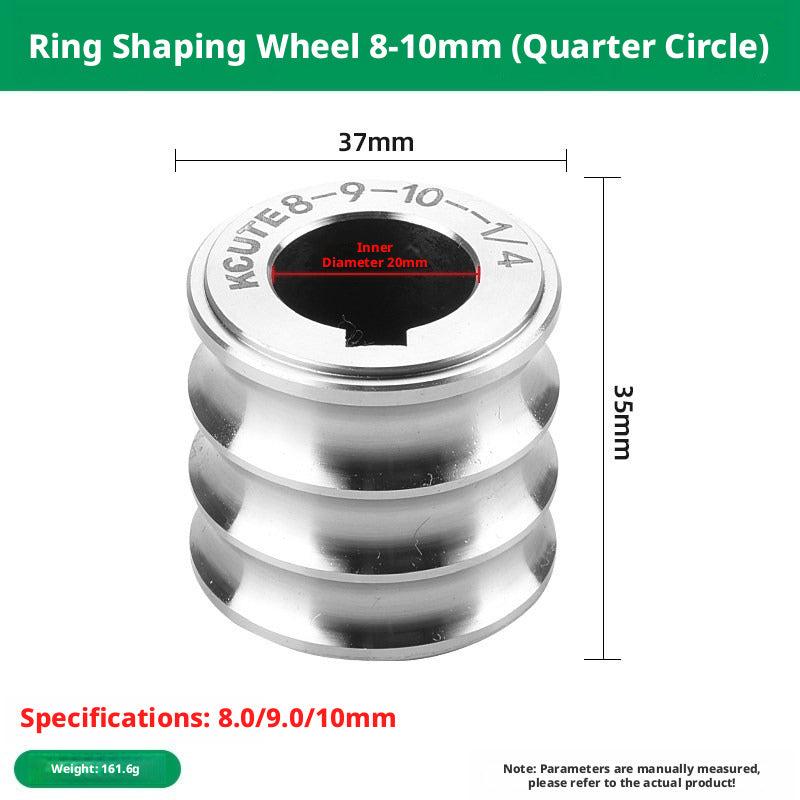

| Quarter Circle |
2‑4.5mm |
14mm / 17mm |
Angular, square‑shoulder profiles |
| 4.5‑7.5mm |
14mm / 17mm |
Signet style |
| 8‑10mm |
14mm / 17mm |
Large statement rings |

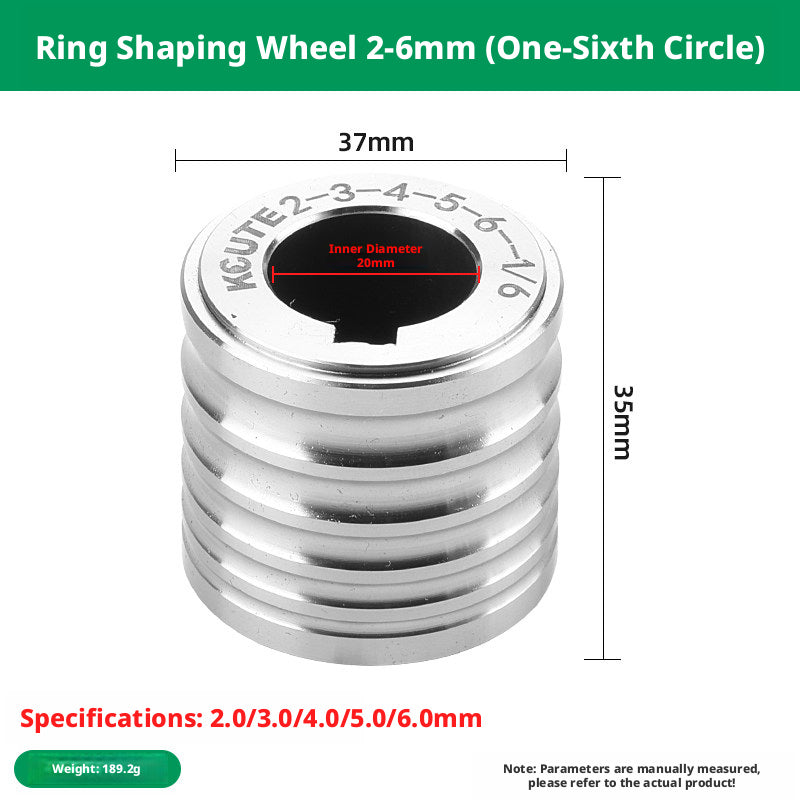

| One‑Sixth Circle |
2‑6mm |
14mm / 17mm |
Very shallow curve, almost flat |
| 6‑7.5mm |
14mm / 17mm |
Wide flat bands |

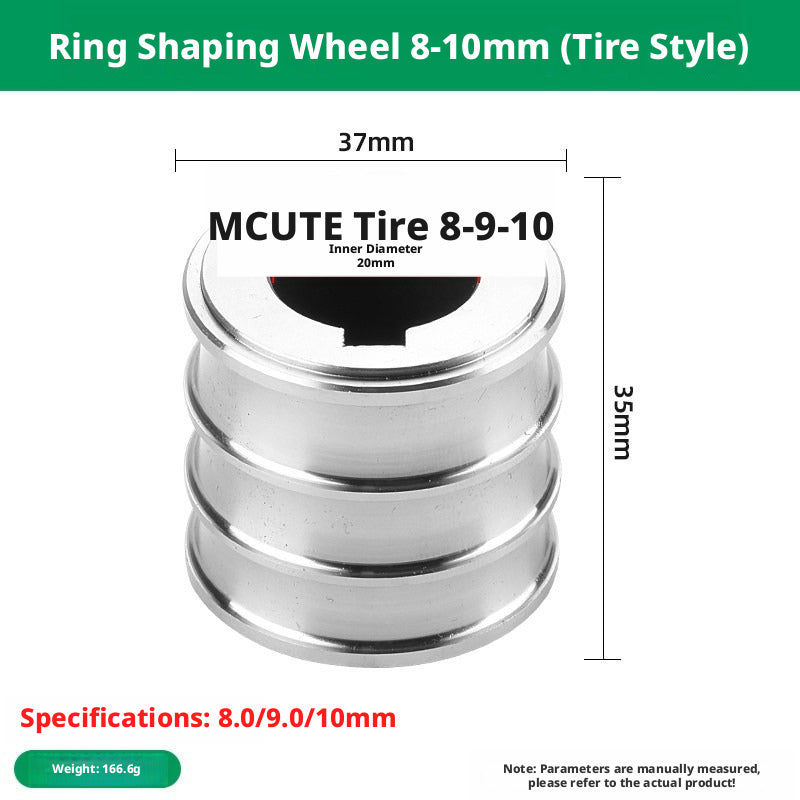

| Tire Style |
4‑8mm |
14mm / 17mm |
Flat with radiused shoulders (comfort fit) |
| 8‑10mm |
14mm / 17mm |
Wide comfort bands |

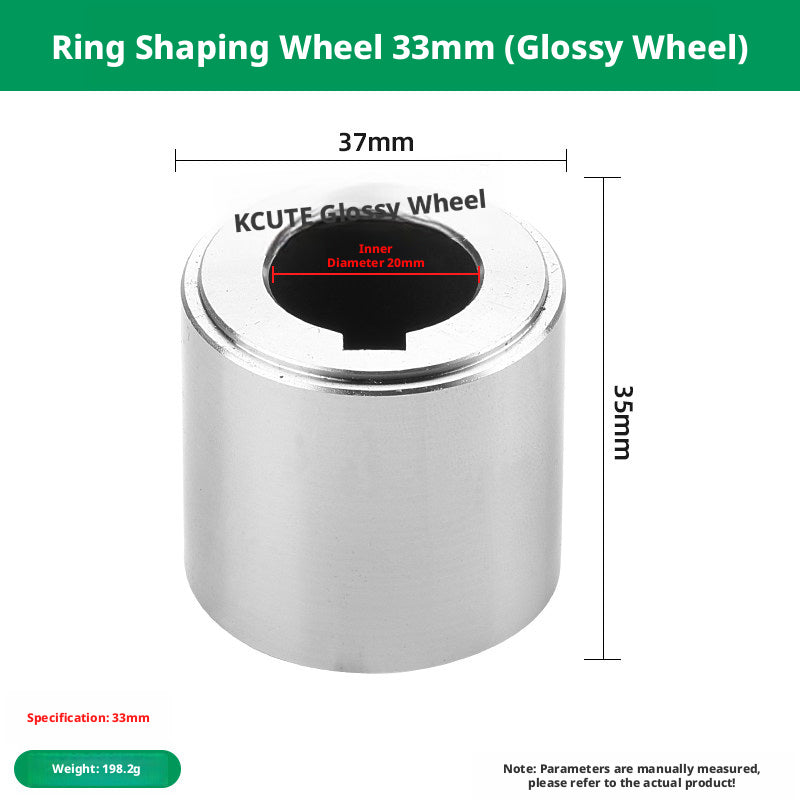

| Glossy / Smooth Wheel |
33mm (flat polishing wheel) |
20mm shaft |
Final surface burnishing |
*Full set of “full‑round shaping wheel sets” also available (multiple sizes per shaft). Contact us for complete catalog. Wheels sold individually or as sets.

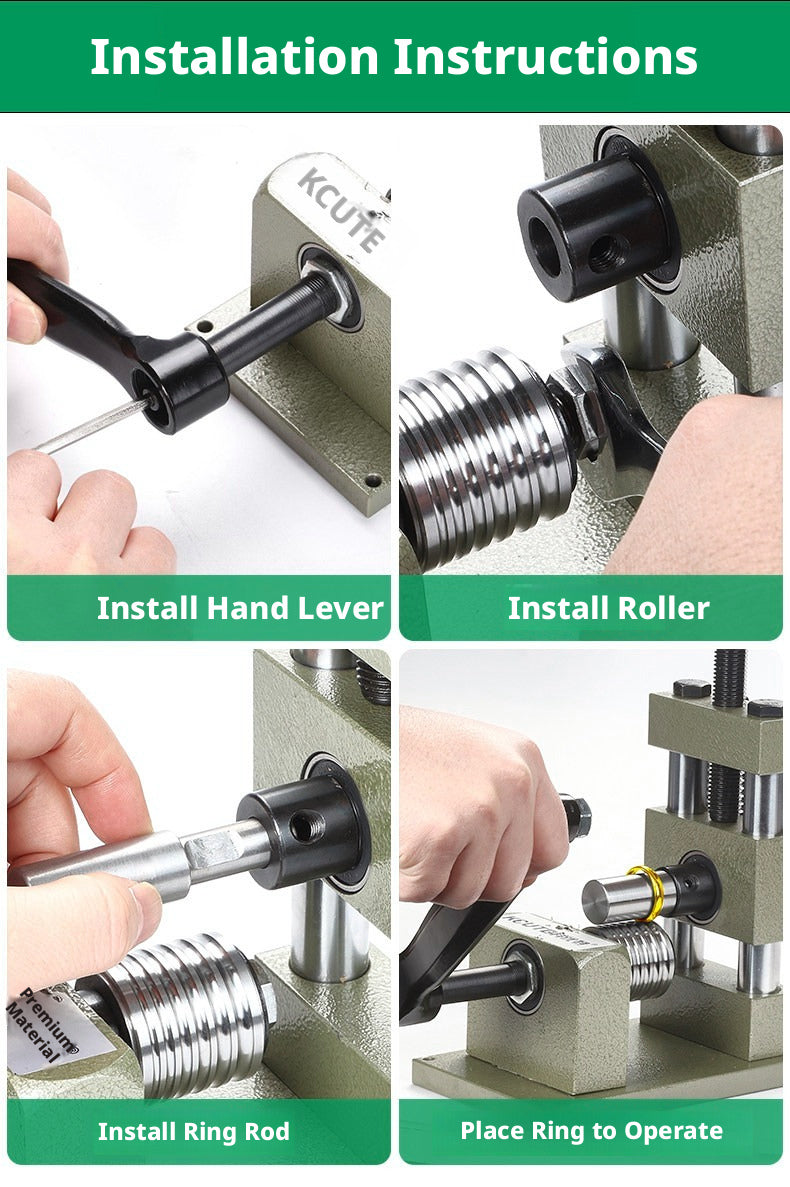

🖐️ How to Use the Ring Shaping Machine (5 simple steps)
-
Select the correct shaping wheels – Choose a wheel profile that matches your ring’s desired final shape (half‑circle for standard domed rings, quarter‑circle for angular, tire for comfort fit).
-
Mount the wheels on the machine shafts – Use the included wrenches to loosen the locking nuts. Slide the chosen wheels onto the two parallel shafts (one fixed, one movable). Tighten securely.
-
Adjust the gap between wheels – Turn the hand crank’s height adjustment to open or close the space between the two wheels. The ring should fit snugly but not be forced.
-
Crank the ring through – Place the ring (or ring blank) between the wheels. Turn the hand crank slowly. The ring will rotate and be compressed into a perfect circle. For badly deformed rings, make multiple passes with gradually tighter gaps.
-
Check and finish – Remove the ring and inspect. For a mirror finish, do a final pass with the glossy wheel (33mm). Polish with a cloth – done.
💡 Pro tip: Always start with a wider gap and make several light passes rather than one heavy one. This prevents work hardening the metal unevenly. For soft metals like silver or gold, the process is very forgiving.
❓ Frequently Asked Questions
Will this machine work on sterling silver, gold, and copper?
Yes, absolutely. The KCUTE ring shaper is designed specifically for soft precious metals: silver (sterling, fine), gold (10k‑24k), copper, brass, and bronze. It will also work on aluminum and soft steel wire, but avoid hardened steel or titanium – that would damage the rollers.
Can I size a ring up or down with this machine?
This machine is primarily for rounding (making a ring perfectly circular) and for shaping (creating the profile). For significant up‑sizing, you would still use a traditional ring mandrel and hammer. However, the adjustable gap allows you to slightly compress or expand the circumference by a fraction of a size – ideal for fine‑tuning fit after soldering.

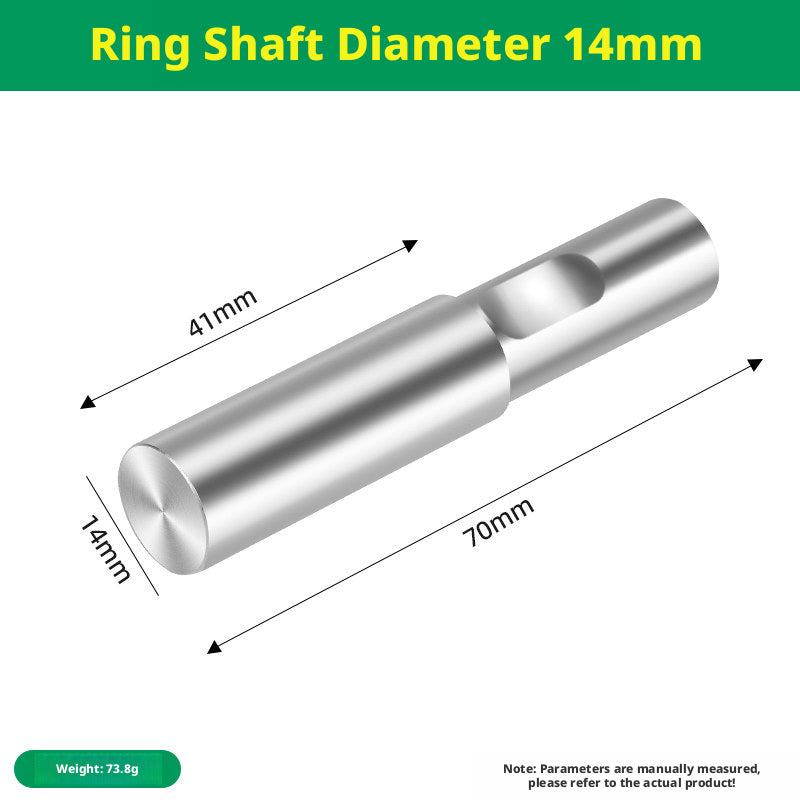

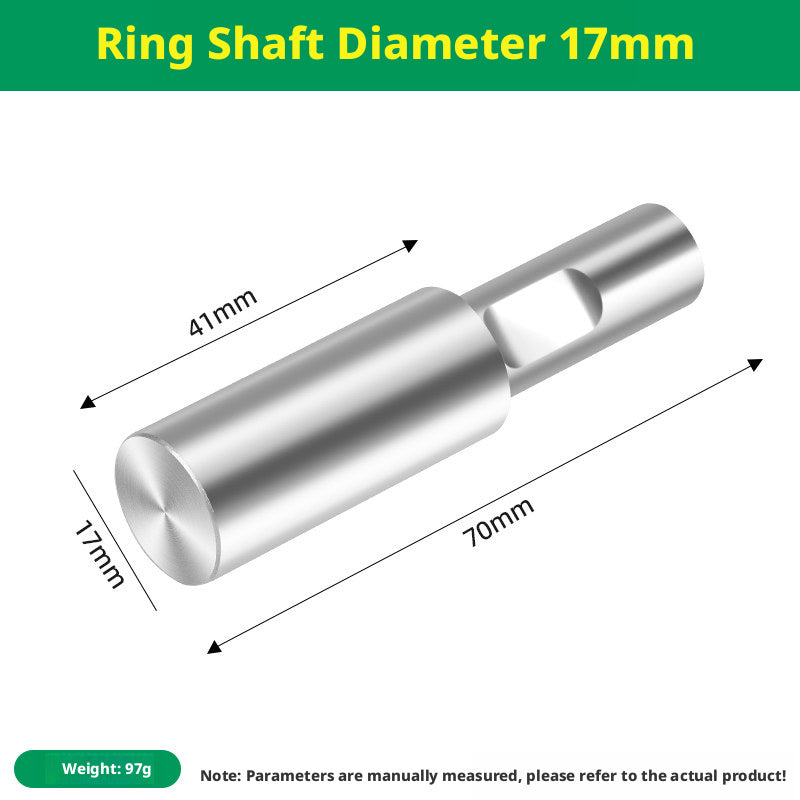

What is the difference between the 14mm and 17mm shaft versions?
The shaft diameter refers to the axle that holds the shaping wheels. Most standard wheels are available for both sizes. The 14mm shaft is common for smaller wheel sets (1.8‑6mm range). The 17mm shaft is often used for larger wheels (up to 10mm). Check your wheel’s specifications before ordering – we label each set clearly.
How do I change the shaping wheels?
Very easy. Use the included hex wrench to loosen the set screw on the wheel hub. Slide the wheel off, slide the new one on, and retighten. The wrench set is included free with the machine. Takes less than one minute.
Is the machine ready to use out of the box?
Yes. The base unit comes assembled. You will need to attach the hand crank (one bolt) and mount your chosen shaping wheels. We include a basic set of wrenches for both tasks. If you ordered wheels, they are separate – simply select the ones you need for your first project.
What is the weight and stability like? Do I need to bolt it down?
The machine weighs 6.3kg (about 14 lbs), which is heavy enough for most ring work without clamping. However, if you are working on very large or resistant pieces, or if you prefer extra stability, you can bolt it to a workbench (mounting holes are provided on the base).
What is your warranty?
We offer a 1‑year warranty against manufacturing defects. The steel rollers are guaranteed not to crack or deform under normal use. If any part fails, contact us for a free replacement. We stand behind KCUTE tools.
*All parameters manually measured, slight ±1‑2mm variations may exist. Please refer to actual product. Shaping wheels are sold separately from the main machine – build your custom set based on the ring sizes you work with most.
