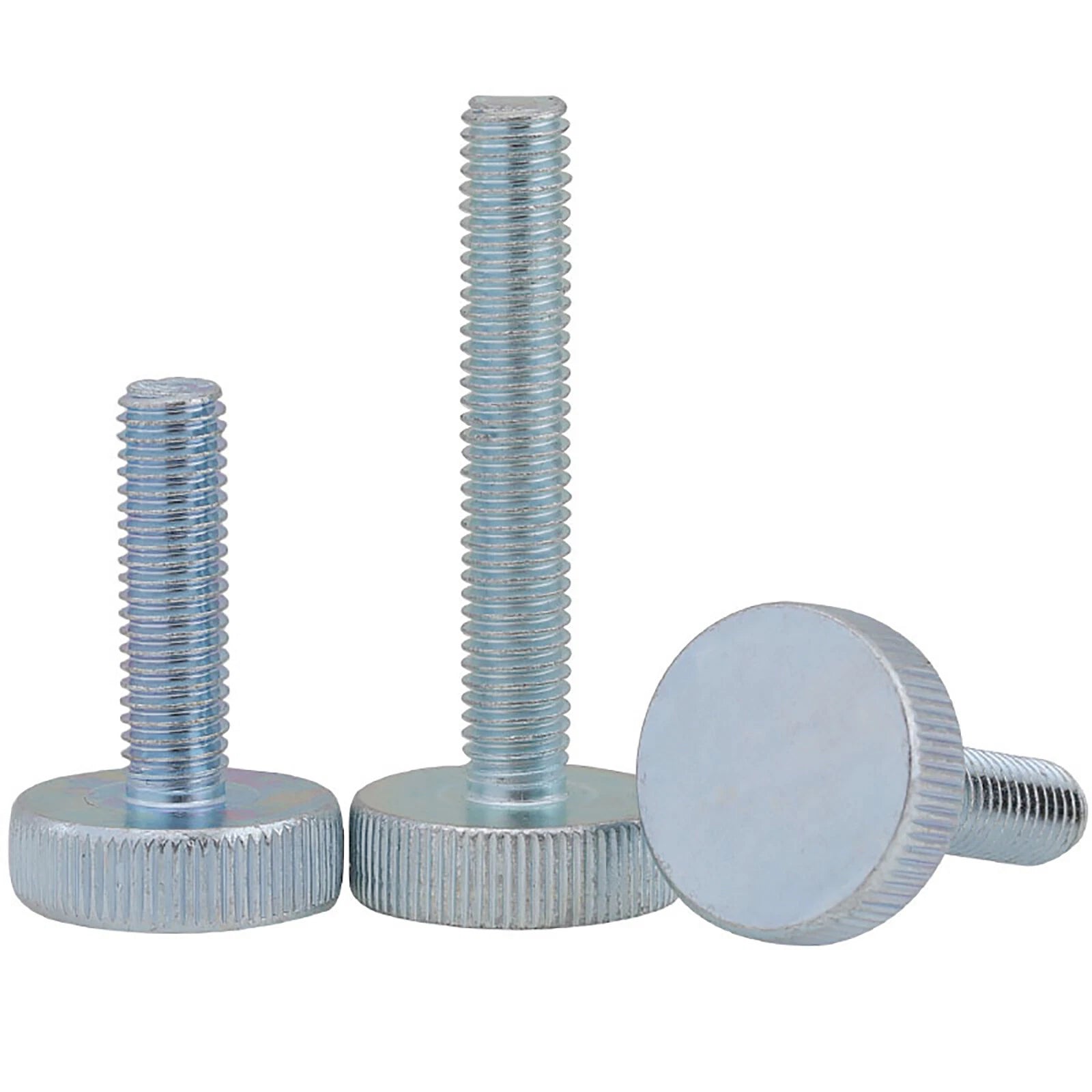

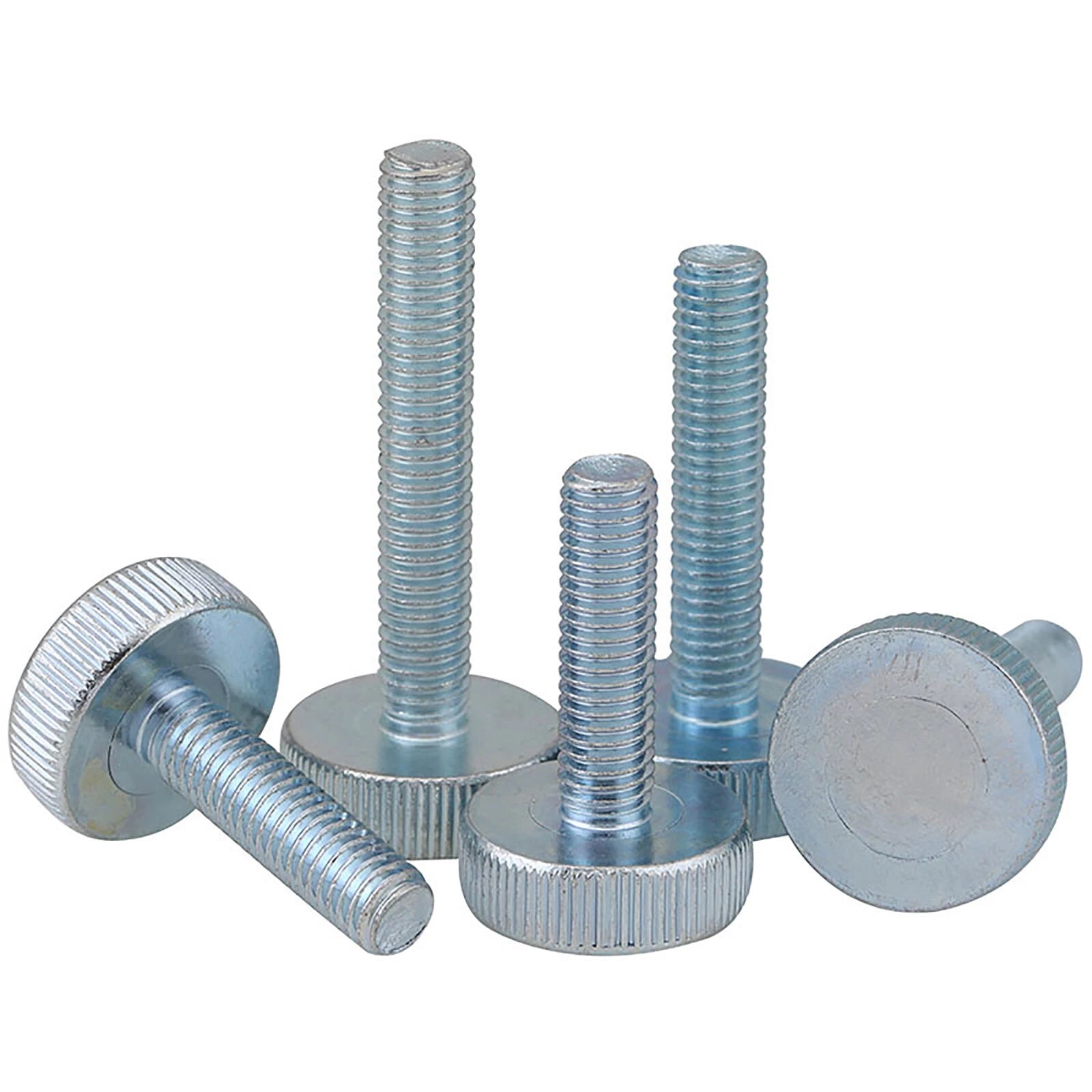

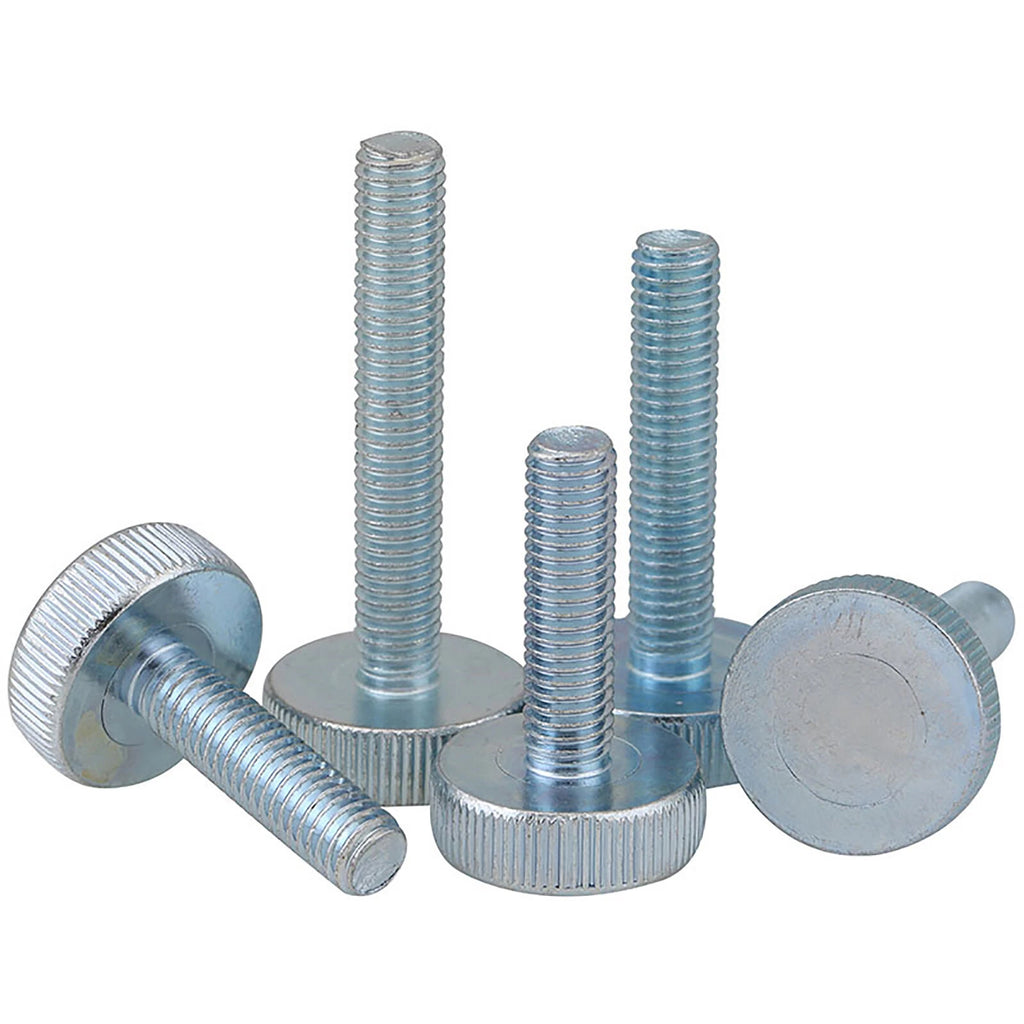

Knurled Steel Thumb Screws Flat Head Zinc-plated M3/4/5/6/8/10 Hand Turn GB835

Match the thread diameter to your tapped hole or threaded insert. M3 and M4 suit lightweight panels and electronics enclosures; M5 and M6 are common for medium-duty fixtures and 3D-printer frames; M8 and M10 handle heavier structural connections. When in doubt, check the thread gauge of your existing hardware or measure the hole diameter — a tapped M5 hole is approximately 5 mm across the thread crests.

The shank length should be at least equal to the thickness of the material being fastened plus enough thread engagement in the nut or tapped hole — typically 1× to 1.5× the thread diameter for steel. For example, fastening a 5 mm panel with an M5 screw into a nut requires at least 5 + 5 = 10 mm of shank. Add a few millimetres of clearance if using a washer.

Thumb screws are designed for hand-tightening, so clamping force is lower than a torqued hex bolt of the same diameter. They are suited for panel retention, cover plates, and adjustable fixtures where moderate clamping is sufficient and frequent removal is needed. For structural joints under significant shear or tensile load, a torqued fastener is more appropriate.

Zinc plating provides good corrosion resistance for indoor use and sheltered outdoor applications. In continuously wet, salt-spray, or chemically aggressive environments, the coating will degrade over time. For harsh outdoor or marine use, consider stainless steel alternatives. For typical workshop, laboratory, or indoor electronics use, the zinc finish is durable and long-lasting.

Yes. The screws use standard metric coarse thread pitches (e.g., M5×0.8, M6×1.0, M8×1.25), which are compatible with any metric hex nut, wing nut, threaded insert, or tapped hole of the matching diameter and pitch. Always verify the pitch of your mating component if you are working with fine-pitch variants.

Yes — this is one of the most common use cases. M3 and M4 sizes are widely used in 3D-printer frame panels, Raspberry Pi enclosures, and electronics chassis covers. The flat head sits flush with acrylic or aluminium panels, and the knurled grip allows quick panel removal without tools during maintenance or filament changes.

For prototyping or single-project use, the 1 or 3-piece packs keep costs low. If you are building multiple units, stocking a workshop, or running a small production run, the 30 or 50-piece packs offer a lower per-unit cost. Check the price-per-piece across pack sizes on the variant selector to find the most economical option for your volume.
