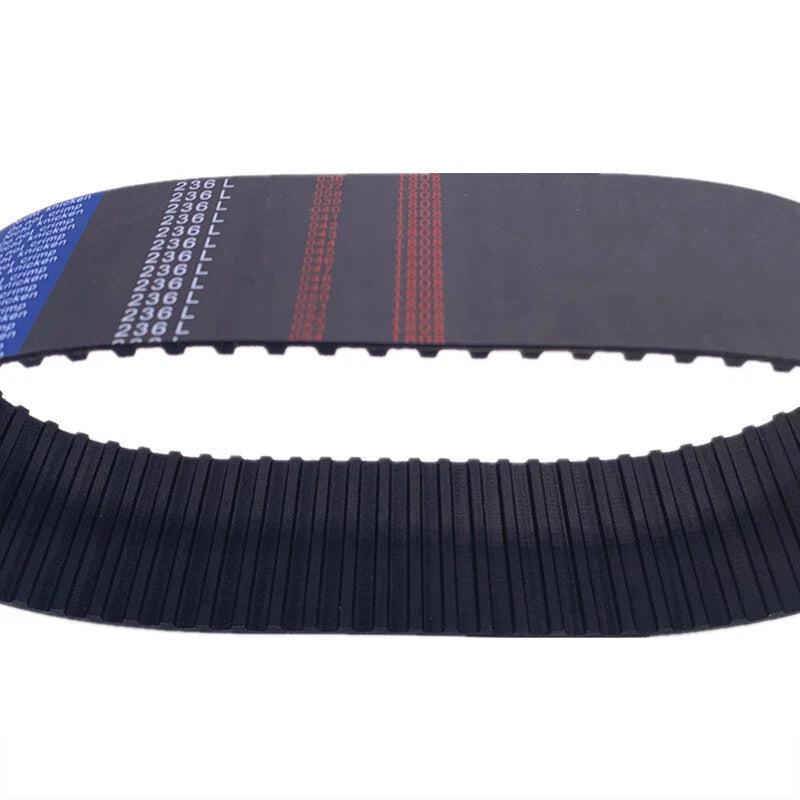

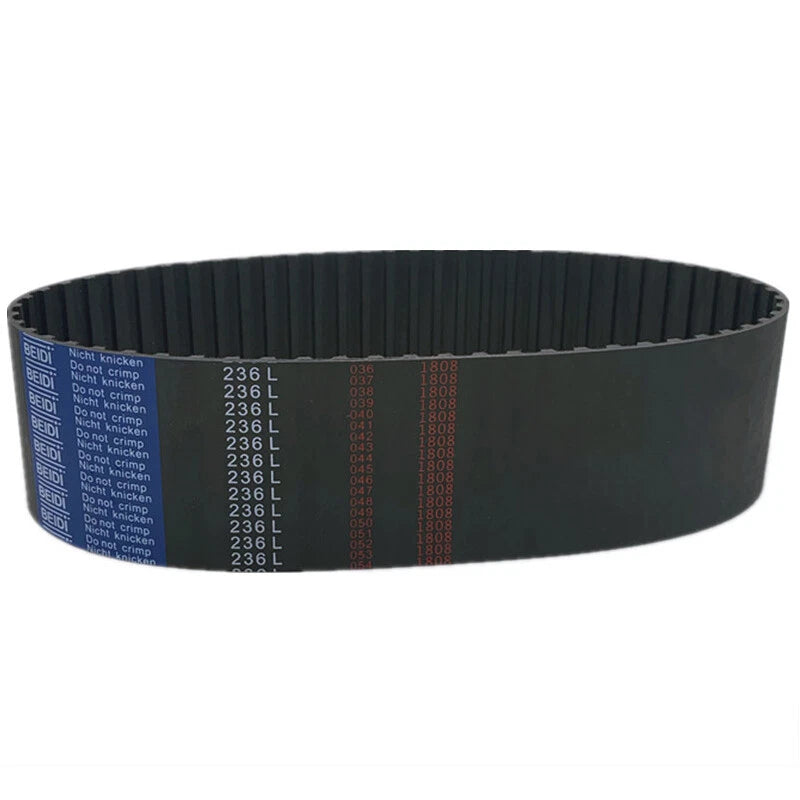

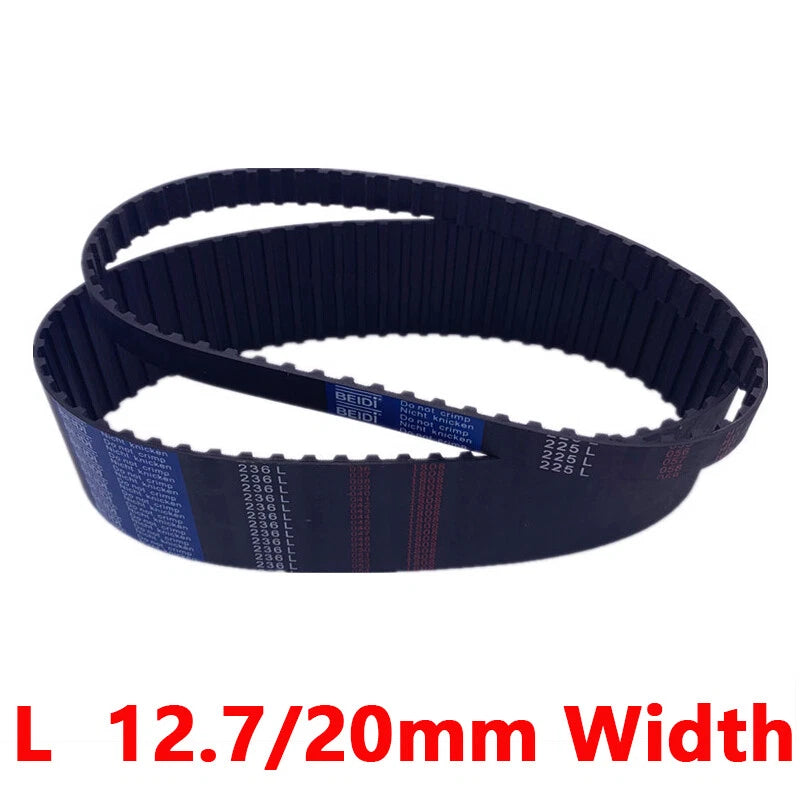

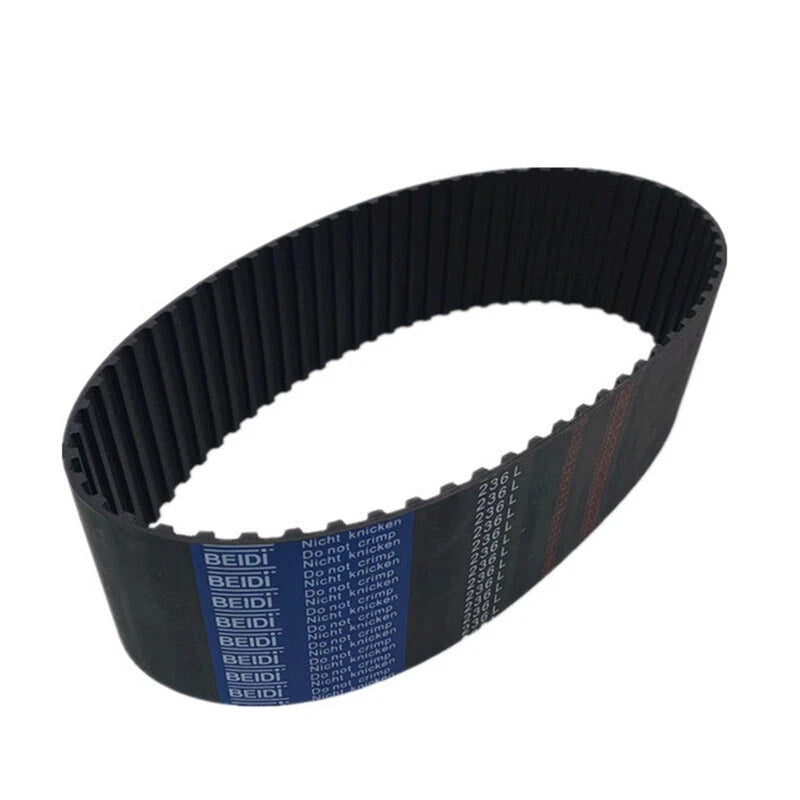

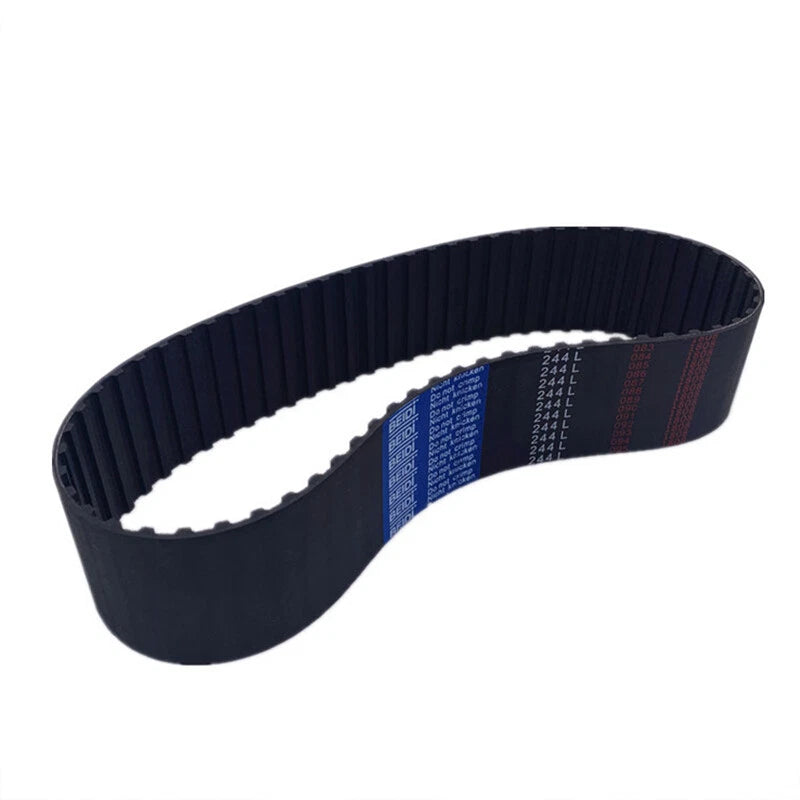

L 9.525mm Pitch Closed Loop Synchronous Timing Belt – 12.7mm & 20mm Width, 23–250 Teeth

Measure the center-to-center distance between your two pulleys, then calculate the required belt length using the standard formula: Belt Length ≈ 2 × Center Distance + π × (D1 + D2) / 2. For L-pitch belts, each tooth spans 9.525mm (3/8"). For example, a 40-tooth belt is 381mm (≈15.0"). Always verify against your pulley tooth count to ensure proper mesh. When in doubt, size up by one or two teeth to allow for tensioner adjustment.

L-pitch timing belts are generally rated for moderate to medium-high torque applications. The 20mm wide version typically handles higher loads than the 12.7mm version due to the greater contact area. Exact load ratings depend on belt material, pulley diameter, speed, and wrap angle — consult your drive system specifications or contact us to confirm suitability for your application.

These closed-loop timing belts are typically constructed from neoprene rubber with fiberglass or steel cord reinforcement, which provides good resistance to moisture and moderate temperature ranges. For prolonged outdoor exposure, UV radiation, or chemically aggressive environments, contact us to confirm material compatibility before ordering.

These belts follow the L-type synchronous belt standard with a 9.525mm (3/8") pitch. They are compatible with standard L-series timing pulleys available from most industrial and motion-control suppliers. Always match the belt pitch and width to your pulley specifications for proper tooth engagement and to avoid premature wear.

Choose 12.7mm (1/2") for lighter-duty applications such as desktop 3D printers, small CNC routers, laser engravers, and hobby automation projects. Choose 20mm (3/4") for higher-torque drives, industrial machinery, or applications where belt slip or stretch under load is a concern. Always match the belt width to your pulley flange width to prevent the belt from riding off the pulley.

Yes — L-pitch closed-loop timing belts are widely used in CNC routers, 3D printers, laser engravers, and similar motion-control systems. Select the tooth count that matches your axis travel and pulley configuration. The 12.7mm width is most common for desktop-scale machines, while the 20mm width suits larger-format or higher-force gantry systems.

Divide the length in mm by 25.4 to get inches. For example, 381mm ÷ 25.4 = 15.0". Alternatively, multiply the tooth count by 0.375" (the L-pitch in inches) to get the belt circumference in inches directly. All variant listings on this page show both mm and the calculated belt length for easy reference.

For synchronous timing belts, the pitch length (measured at the pitch line, which runs through the tensile cord) is the standard reference dimension. The pitch length equals tooth count × pitch (9.525mm). This is the value shown in the variant names on this page. The outside circumference will be slightly larger depending on tooth height, but pitch length is what matters for pulley matching.
