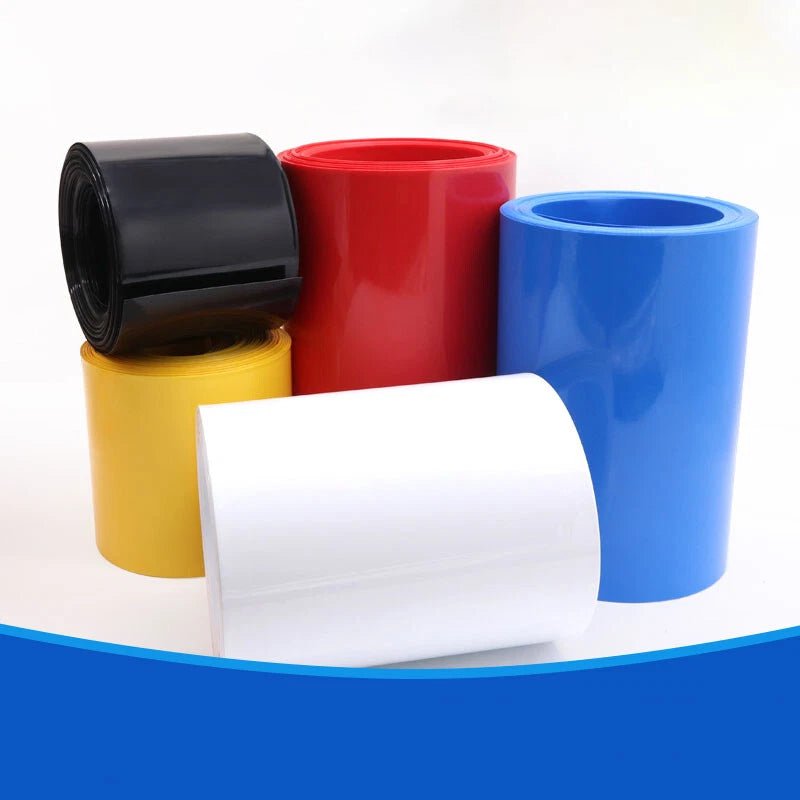

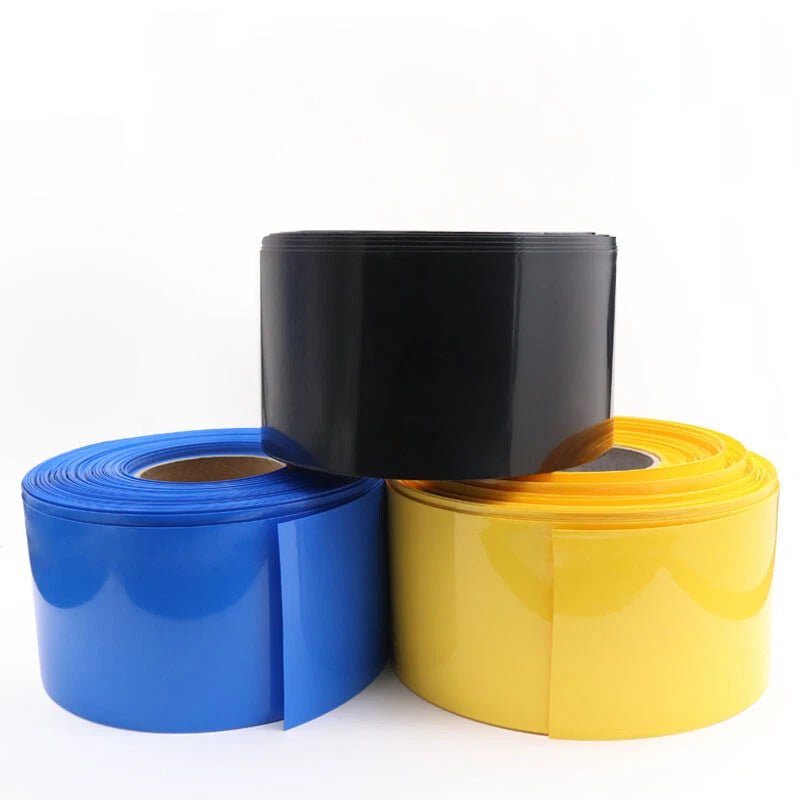

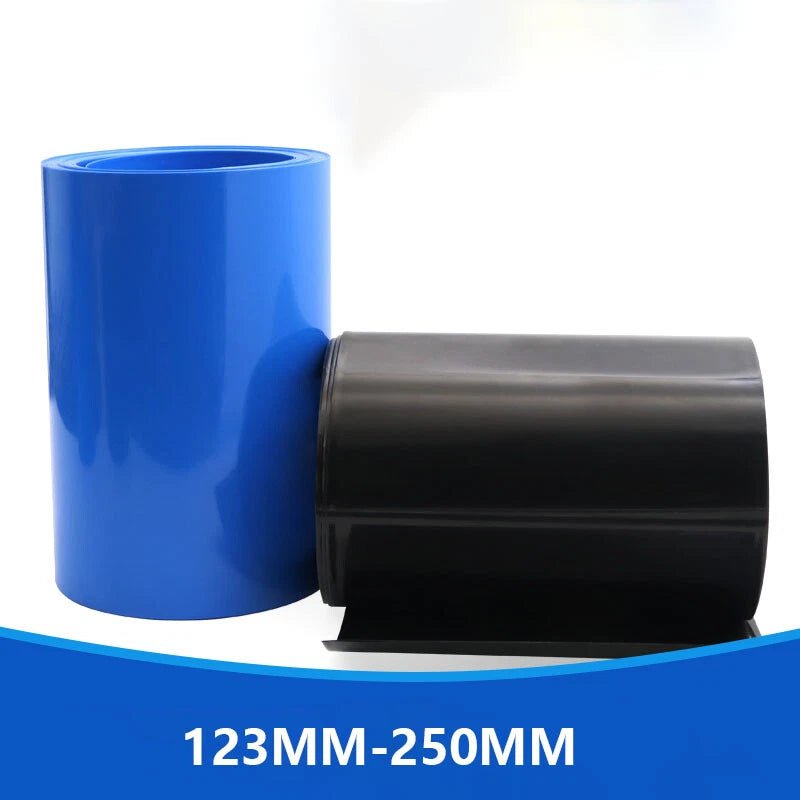

Large Diameter PVC Heat Shrink Tubing 123mm–250mm | Battery Pack & Cable Wrap

Measure the outer circumference of your bundle or battery pack, then divide by 2 to get the minimum flat width you need. For example, a battery pack with a 180mm circumference would need at least a 90mm flat width — but in practice you should choose a size with some extra room so the tubing slides on easily before shrinking. For a 180mm circumference bundle, a 123mm (≈4.8") flat width would generally be too tight; a 150mm (≈5.9") or 160mm (≈6.3") flat width is typically a better starting point. When in doubt, size up — you can always apply more heat to get a tighter fit, but you cannot stretch tubing that is already too small.

This tubing has a 2:1 shrink ratio, meaning it will generally shrink to approximately half its original flat width when fully heated. For example, a 200mm flat width piece will typically recover to around 100mm flat width (≈100mm diameter) after shrinking. Actual recovered dimensions may vary slightly depending on the color, wall thickness variant, and the heat application method used.

PVC heat shrink tubing generally provides good moisture resistance and is commonly used in marine wiring, outdoor enclosures, and other damp environments. However, it is not typically rated for continuous submersion or prolonged UV exposure. For harsh outdoor or fully waterproof applications, we recommend confirming the specific rating with us before purchasing. Thickened variants offer additional protection in mechanically demanding environments.

A standard heat gun set to approximately 90–120°C (194–248°F) is typically sufficient to shrink PVC tubing. Keep the heat gun moving to avoid scorching the tubing or the underlying component. An oven can also be used for uniform shrinking on large battery packs — set it to a low temperature (typically around 90°C / 194°F) and monitor closely. Avoid open flames, as they can cause uneven shrinking and may damage the tubing.

Yes, large diameter PVC heat shrink tubing is widely used for wrapping lithium battery packs, 18650 cell groups, and EV battery modules. The wide flat width range (123mm–250mm) accommodates most common battery pack sizes. For high-voltage or high-current applications, we recommend confirming the voltage rating with us before use, as specific electrical ratings depend on wall thickness and the exact variant selected.

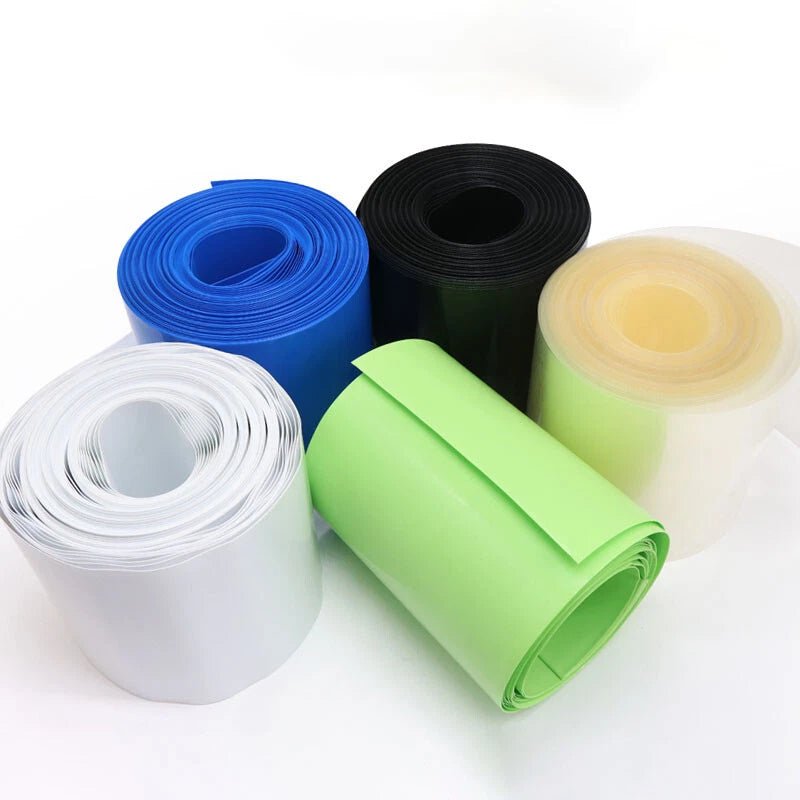

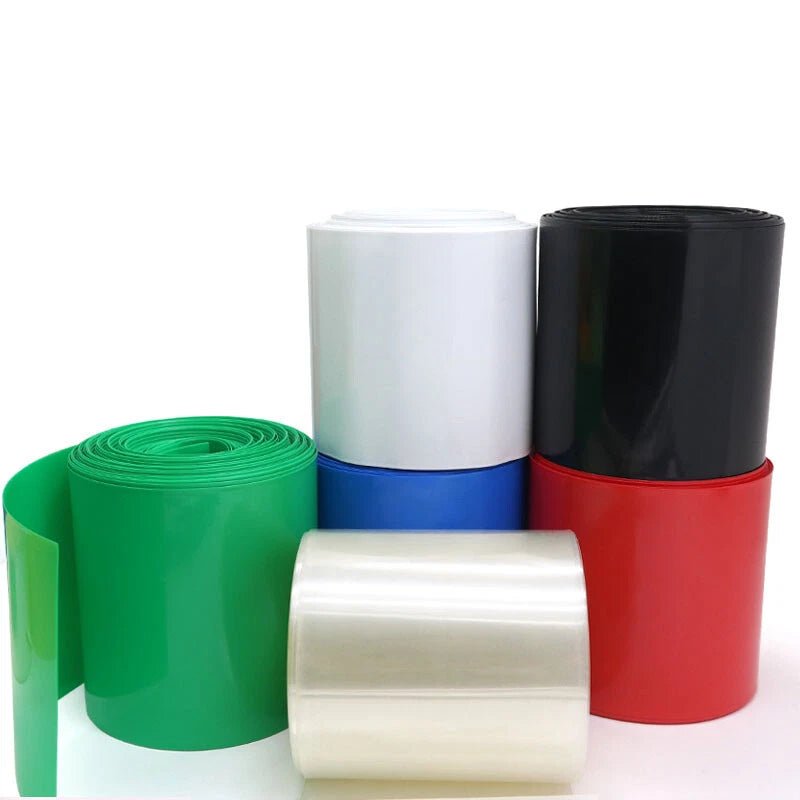

The standard variants (Black, Blue, White, Red, Transparent, Fruit Green, Silver Gray, Green, Yellow) have a typical PVC wall thickness suitable for general insulation and bundling. The thickened variants — Blue Thickened and Transparent Thickening — have a greater wall thickness, which provides improved abrasion resistance, better mechanical protection, and generally higher dielectric strength. Thickened variants are recommended for applications where the tubing may be exposed to physical wear, sharp edges, or where extra insulation margin is desired.

Yes. Both the 1m and 5m lengths can be cut to any custom length using scissors or a utility knife before shrinking. Cut the tubing slightly longer than your target coverage area to account for any longitudinal shrinkage that may occur during the heat application process — PVC tubing typically shrinks a small amount in length as well as diameter when heated.

If you are working on a single project — such as wrapping one battery pack or one cable bundle — the 1m length is generally sufficient and more economical for one-off use. If you are working on multiple projects, building several battery packs, or want to keep stock on hand for future repairs, the 5m length offers a lower per-meter cost. The 5m rolls are also convenient for production runs or workshop use where you cut pieces to length as needed.
