M Section Imperial V-Belt 9.5x6mm — Reliable Transmission for Light-to-Medium Duty Drives

When a worn or snapped drive belt brings your equipment to a halt — whether it's a bench grinder, lawn tractor, compressor, or workshop machine — finding the right replacement fast matters. These M section imperial V-belts are sized for the full range of common M-series drives, covering outside perimeters from 16 inch (≈406mm) to 60 inch (≈1524mm), so you can get back up and running without hunting through multiple suppliers.

Each belt features a 9.5mm (3/8") top width and 6mm height cross-section, conforming to the Imperial M section (3L equivalent) standard. The rubber construction incorporates a reinforced cord layer for tensile strength, with a wrapped fabric cover that resists heat buildup during continuous operation. Available in 45 individual sizes from M-16 through M-60, with outside perimeter clearly labeled in both inches and millimeters for easy identification.

Typical applications include fractional horsepower drives on woodworking machinery, garden equipment, HVAC blower assemblies, and light industrial conveyors — anywhere a standard M section pulley is used. The consistent cross-section profile also makes these belts a practical choice for replacement V-belt for lawn mower deck drives and small compressor pulleys where the original M-series belt has worn out.

ℹ️ Compatibility Note: These belts fit standard Imperial M section (3L) grooved pulleys and sheaves. Confirm your pulley groove profile matches the M section spec (9.5mm top width) before ordering. If replacing an existing belt, match the M-number to the outside perimeter marked on your old belt.

✅ Key Features of These M Section Imperial V-Belts

  • 📐Standardized M Section Profile — 9.5mm (3/8") top width × 6mm height matches Imperial M section and 3L equivalent pulleys for drop-in replacement without modification.
  • 🔩Wide Size Range in One Listing — M-16 through M-60 covers outside perimeters from 16 inch (≈406mm) to 60 inch (≈1524mm), reducing the need to source from multiple suppliers for different machines.
  • ⚙️Reinforced Cord Construction — Internal tensile cord layer resists stretching under load, helping maintain consistent belt tension across the drive cycle and reducing re-tensioning frequency.
  • 🌡️Heat-Resistant Wrapped Cover — Fabric-wrapped outer surface dissipates heat generated during continuous operation, extending service life on drives that run for extended periods.
  • 🔄Smooth Power Transfer — Consistent cross-section geometry ensures even contact with pulley grooves, reducing vibration and noise on fractional horsepower transmission belt applications.
  • 🏷️Dual-Unit Size Labeling — Each variant is clearly identified in both inches and millimeters, making it straightforward to cross-reference against OEM specs or worn belt markings.

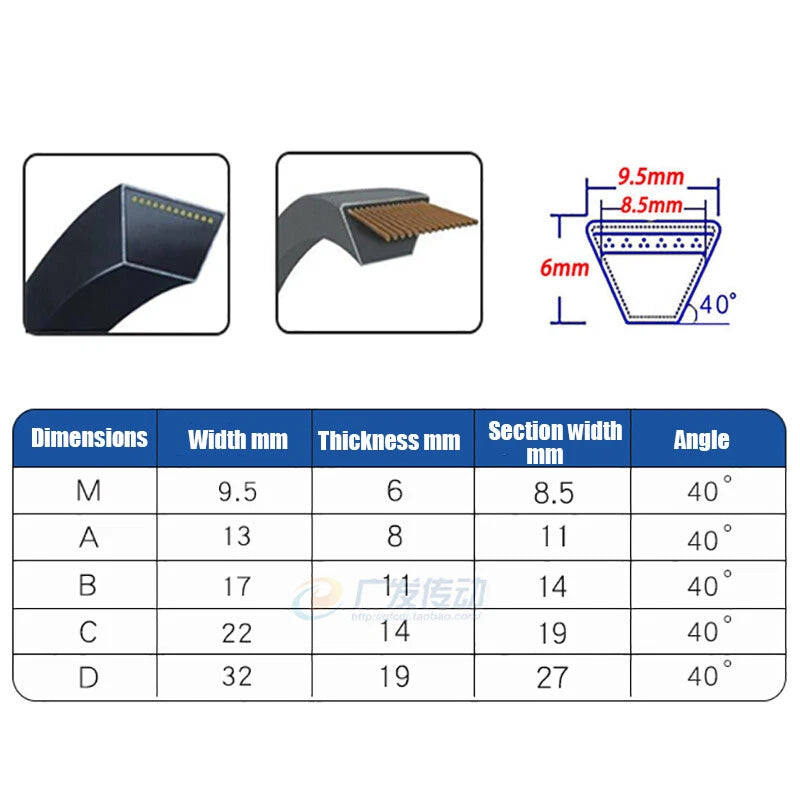

📐 Technical Specifications — M Section Imperial V-Belt

Belt Standard Imperial M Section (3L equivalent)
Top Width 9.5mm (3/8")
Belt Height 6mm
Outside Perimeter Range 16 inch (≈406mm) — 60 inch (≈1524mm)
Available Models M-16 through M-60 (45 sizes)
Construction Rubber body with reinforced tensile cord and wrapped fabric cover
Drive Type Classical V-belt, open-end (non-joined)
Pulley Compatibility Standard M section / 3L grooved sheaves
Typical Application Light-to-medium duty fractional horsepower drives
Temperature Range See variant options / Contact us to confirm for specific environments
Country of Origin Contact us to confirm
⚠️ Size Selection Tip: The M-number (e.g., M-30) generally corresponds to the outside circumference in inches. If your old belt is marked "M30" or "3L300", select M-30 (30 inch / ≈762mm). When in doubt, measure the perimeter of your old belt or the pulley path before ordering.

❓ Frequently Asked Questions

How do I choose the right V-belt size?

Measure the outside circumference (perimeter) of your existing belt or trace the pulley path with a flexible tape. The M-number in the model designation typically corresponds to the belt's outside perimeter in inches — for example, M-30 is generally 30 inches (≈762mm) in outside circumference. Always cross-reference against your equipment manual or the size markings on your worn belt before ordering.

What does the 9.5 x 6mm cross-section mean?

The 9.5mm dimension is the top width of the belt (approximately 3/8"), and 6mm is the belt height. Together these define the M section profile, which must match the groove dimensions of your pulley or sheave. This profile is also sometimes listed as the 3L section in older catalogs — the two designations are generally interchangeable for standard drives.

What load or power can these V-belts handle?

M section V-belts are generally suited for light-to-medium duty, fractional horsepower applications. Actual power capacity depends on belt speed, pulley diameter, and drive center distance. In most cases, M section belts are used on drives up to approximately 1–2 HP at typical operating speeds. Consult your equipment's specification sheet to confirm the required power rating for your application.

Can these belts be used outdoors or in wet conditions?

These V-belts are typically constructed from rubber compounds that offer reasonable resistance to moisture and moderate temperature variation. They are generally suitable for outdoor equipment such as lawn tractors and garden machinery. However, prolonged exposure to oils, fuels, or harsh solvents can accelerate degradation. Where possible, shield the belt from direct chemical contact and inspect regularly for cracking or glazing.

Are these belts compatible with standard M-section pulleys and sheaves?

Yes. These belts are designed to the Imperial M section standard (9.5mm top width, 6mm height) and are intended to fit standard M-section grooved pulleys and sheaves. If your pulley is marked for M section or 3L belts, these should be a direct fit. Always confirm the groove profile of your specific pulley before installation.

How do I know when it's time to replace my V-belt?

Common indicators include visible cracking, fraying, or glazing on the belt surface; slipping or squealing under load; increased vibration from the drive; or reduced output efficiency from the driven equipment. In most cases, it's advisable to replace the belt before complete failure to prevent damage to pulleys or driven components. Regular visual inspection during routine maintenance is recommended.

Can I use one of these belts to replace a metric-sized belt?

The M section Imperial profile (9.5 x 6mm) is dimensionally similar to some metric profiles, but direct interchangeability is not guaranteed. Metric V-belt standards such as SPZ have slightly different cross-section angles and dimensions. If your equipment specifies a metric belt, check whether the M section profile is listed as an acceptable substitute in your equipment manual. If uncertain, contact us to confirm compatibility before ordering.

🛒 Select your model and perimeter size above, then add to cart — ships from our US warehouse.
