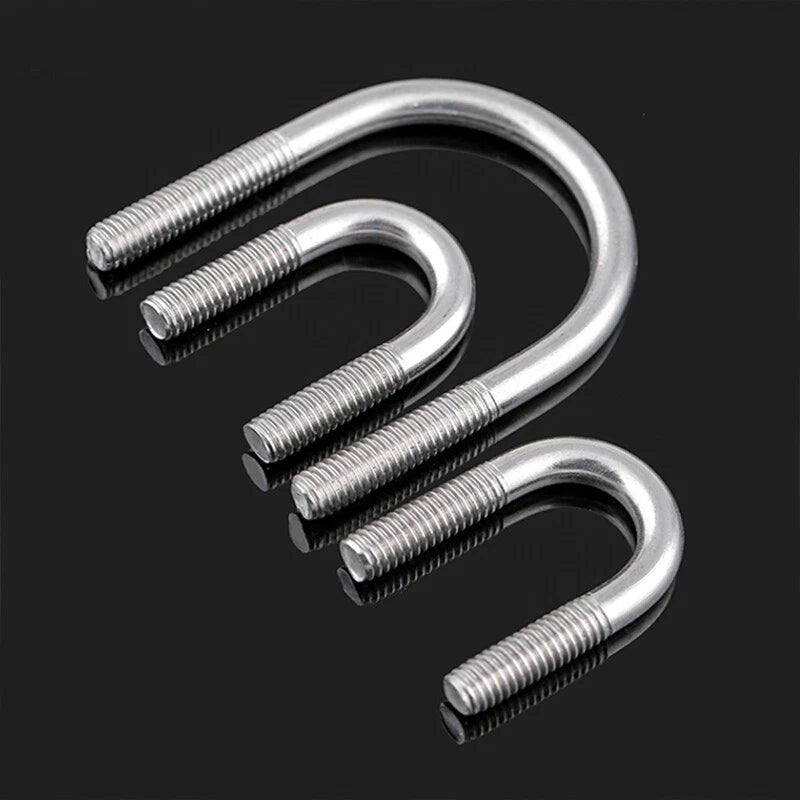

M12 Round Bend U-Bolt – A2 Stainless Steel, 42mm to 328mm

Measure the outer diameter of the pipe or tube you need to clamp, then add roughly twice the thread engagement length you need for your mounting plate or bracket. For example, a 42mm (≈1-5/8") leg is typically suited for smaller-diameter pipes, while a 328mm (≈12-15/16") leg accommodates larger spans or thicker mounting assemblies. When in doubt, size up — you can always adjust clamping depth with the nut position.

A2 stainless steel is the ISO designation for AISI 304 stainless — an austenitic grade with a tensile strength of typically 500–700 MPa (A2-70 property class). It offers solid mechanical strength for most structural and pipe-clamping applications and is significantly more corrosion-resistant than plain carbon steel or zinc-plated hardware in outdoor and damp environments.

A2 stainless steel provides good corrosion resistance for outdoor, coastal, and mildly marine environments — generally suitable for above-waterline marine hardware, outdoor pipe supports, and agricultural equipment. For fully submerged saltwater service or highly aggressive chemical exposure, A4 (316) stainless is generally recommended. Contact us to confirm suitability for your specific environment.

These U-bolts use M12 metric coarse thread per ISO 261/262 (pitch typically 1.75mm). They are compatible with standard M12 hex nuts, flange nuts, and flat washers. They are not compatible with 1/2" UNC or UNF imperial threads — the thread pitch and diameter are different even though the nominal sizes are close.

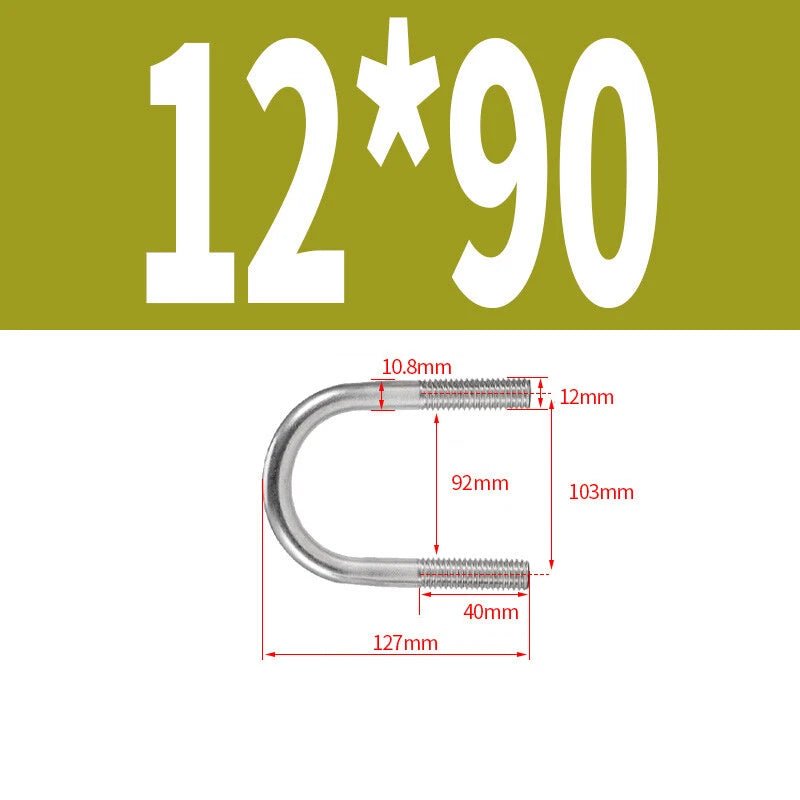

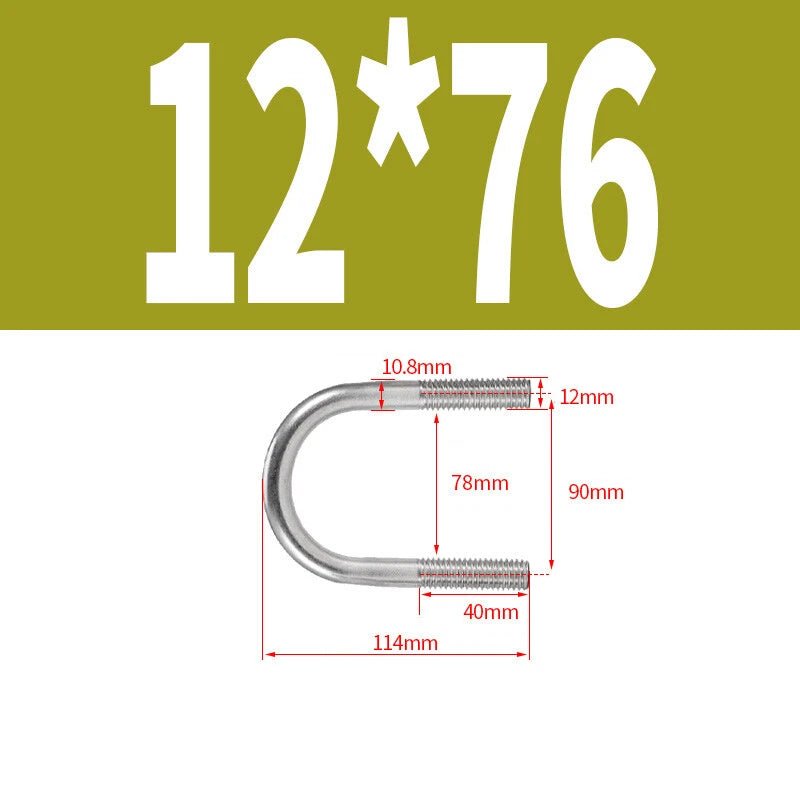

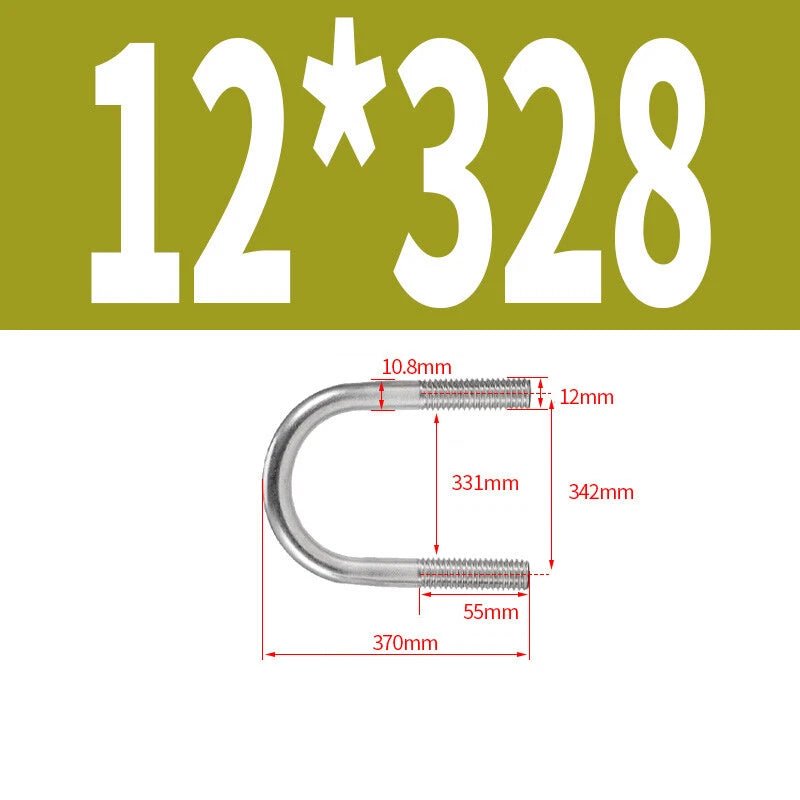

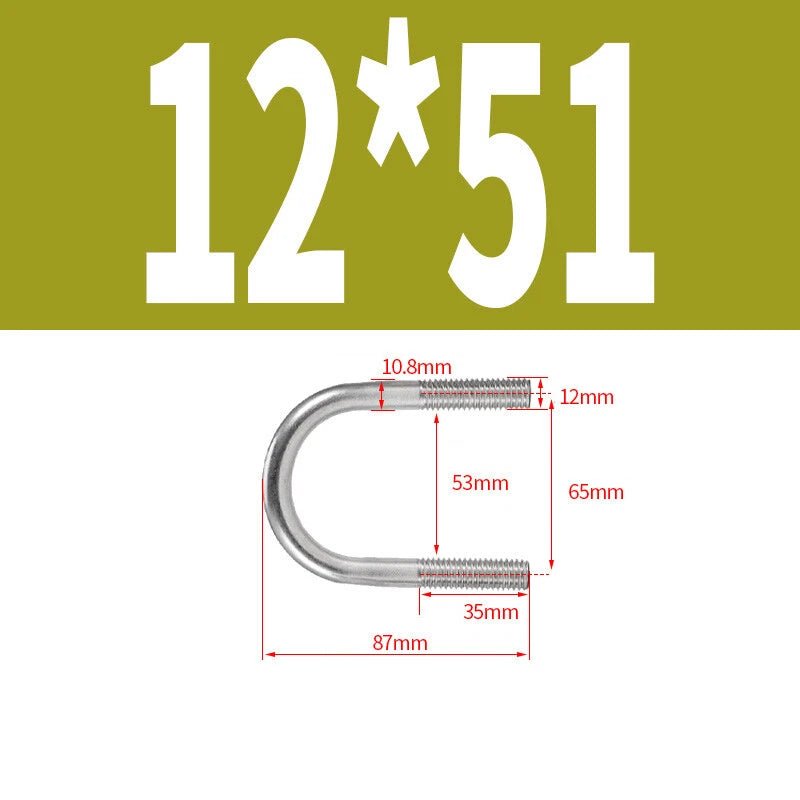

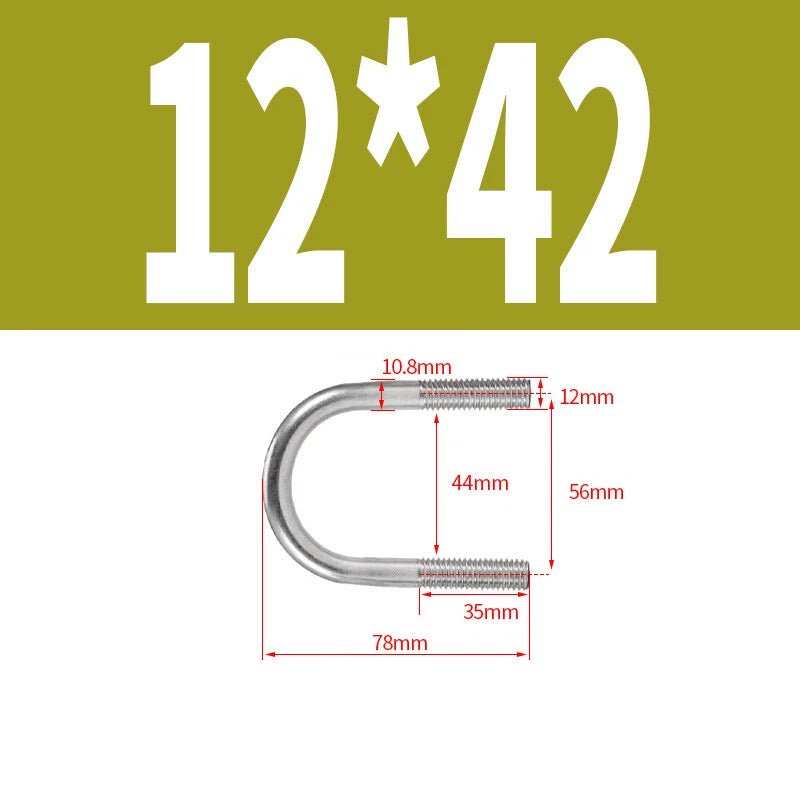

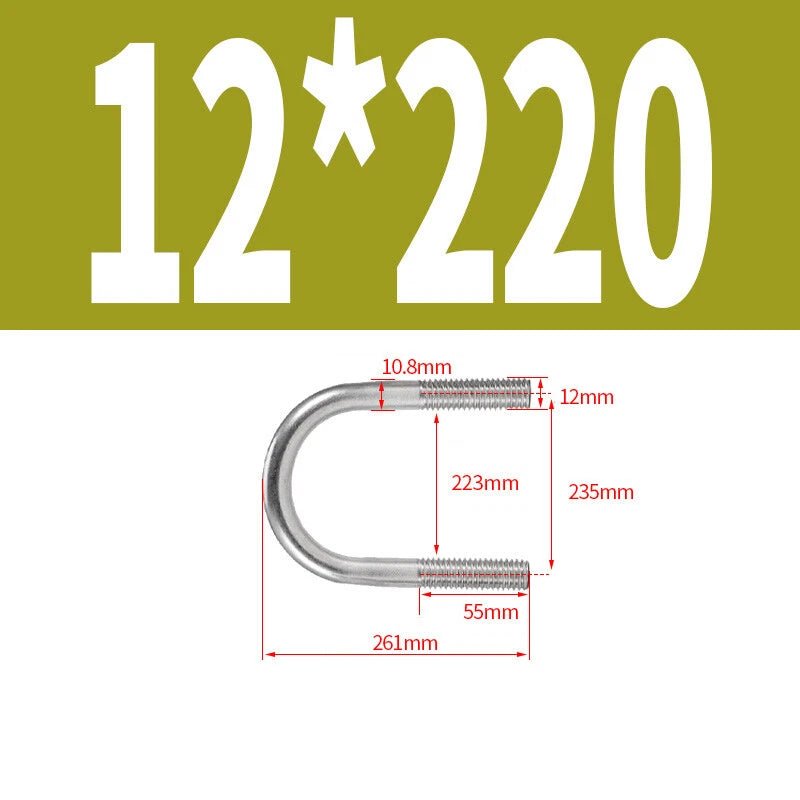

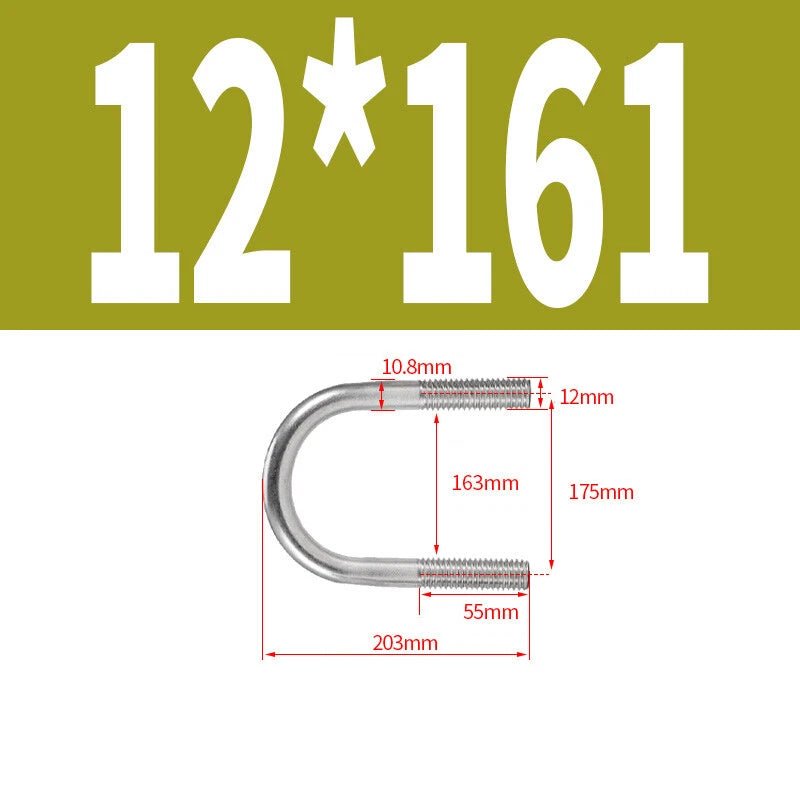

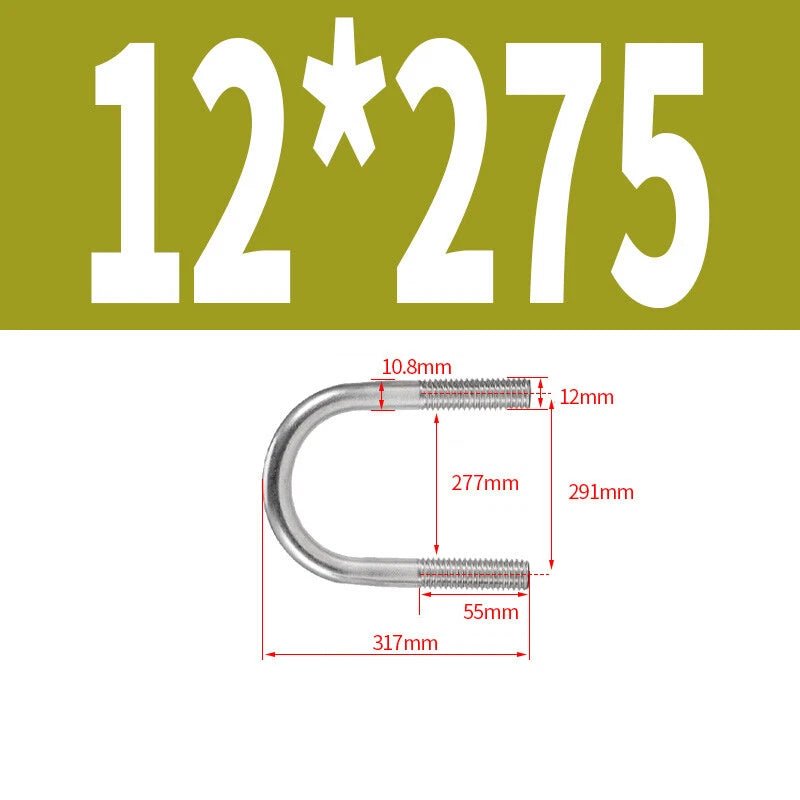

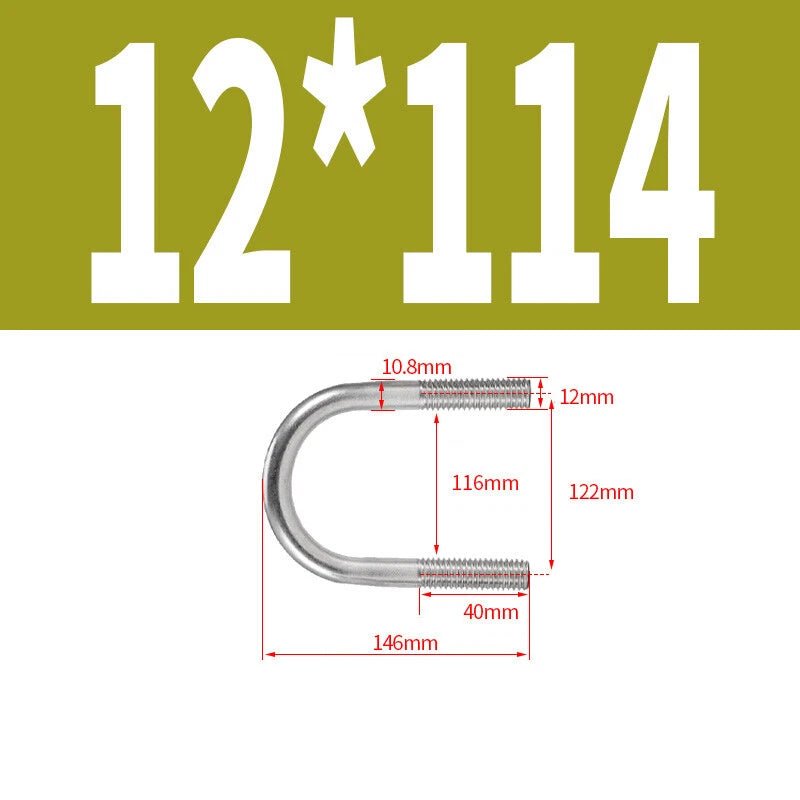

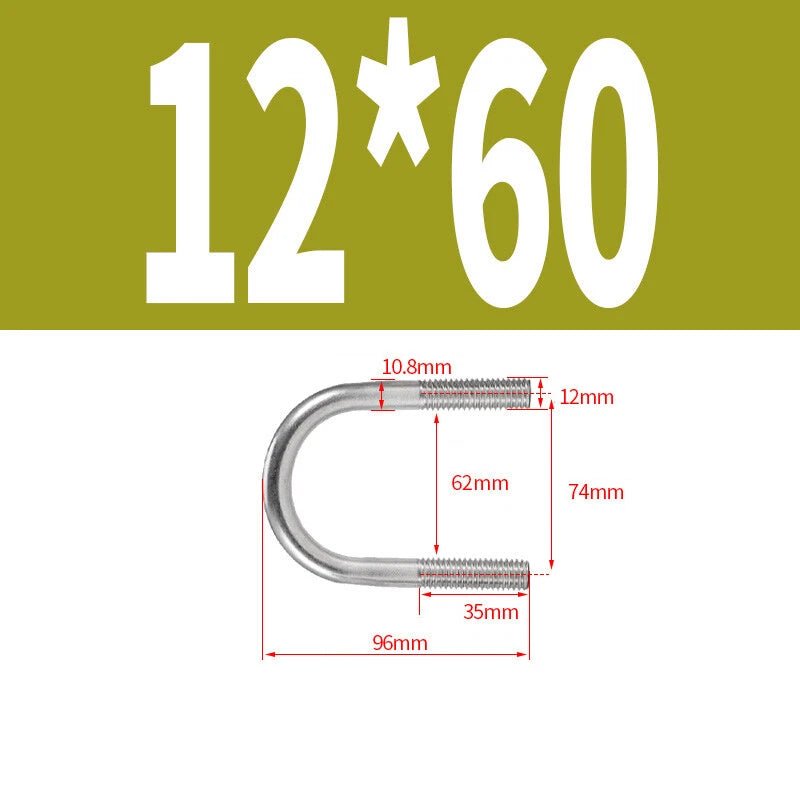

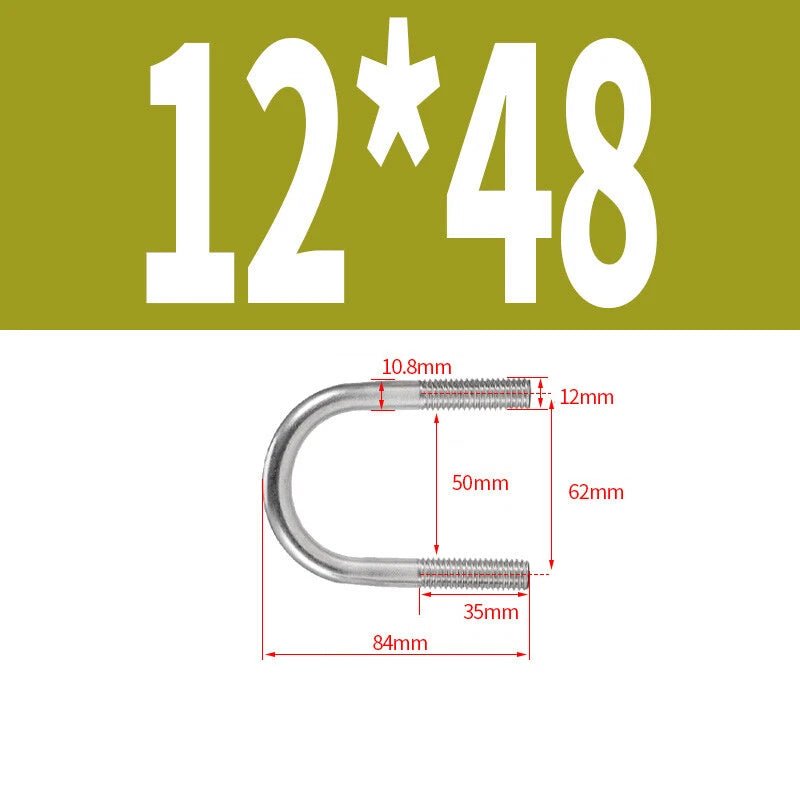

The inside bend width of the U-bolt saddle determines the pipe OD it wraps around. This dimension varies by leg-length variant and is not the same as the leg length listed in the size option. Please contact us or check the variant detail page to confirm the inside bend width for your chosen length before ordering.

Each listing is for the U-bolt fastener itself. Whether matching M12 hex nuts and flat washers are included depends on the specific variant — please check the variant description or contact us to confirm what is included with your order before purchasing.

Round bend U-bolts distribute clamping load evenly around cylindrical surfaces such as pipes, tubes, and round bars, making them the preferred choice for pipe clamps, exhaust hangers, conduit supports, and suspension components. Square bend U-bolts are typically used for flat or rectangular cross-sections like leaf springs or square tubing. If your application involves a round pipe or tube, a round bend U-bolt is generally the correct choice.
