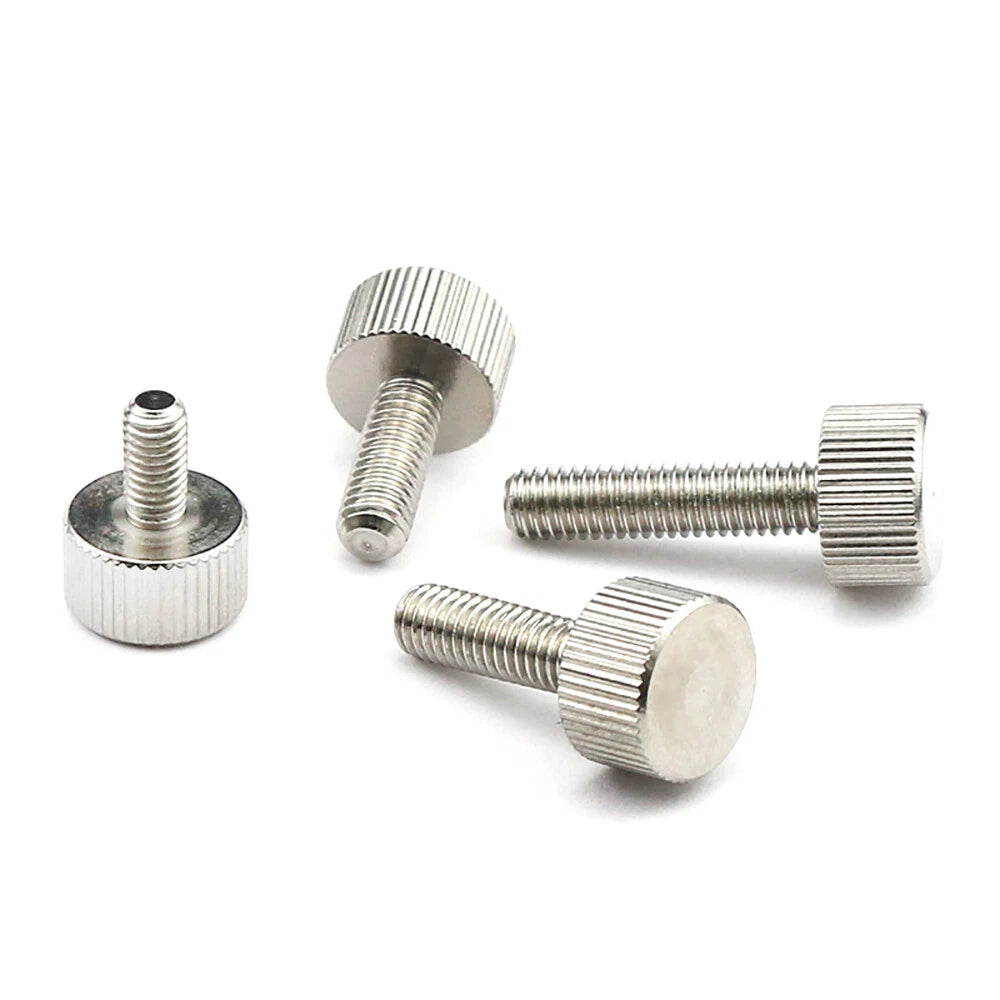

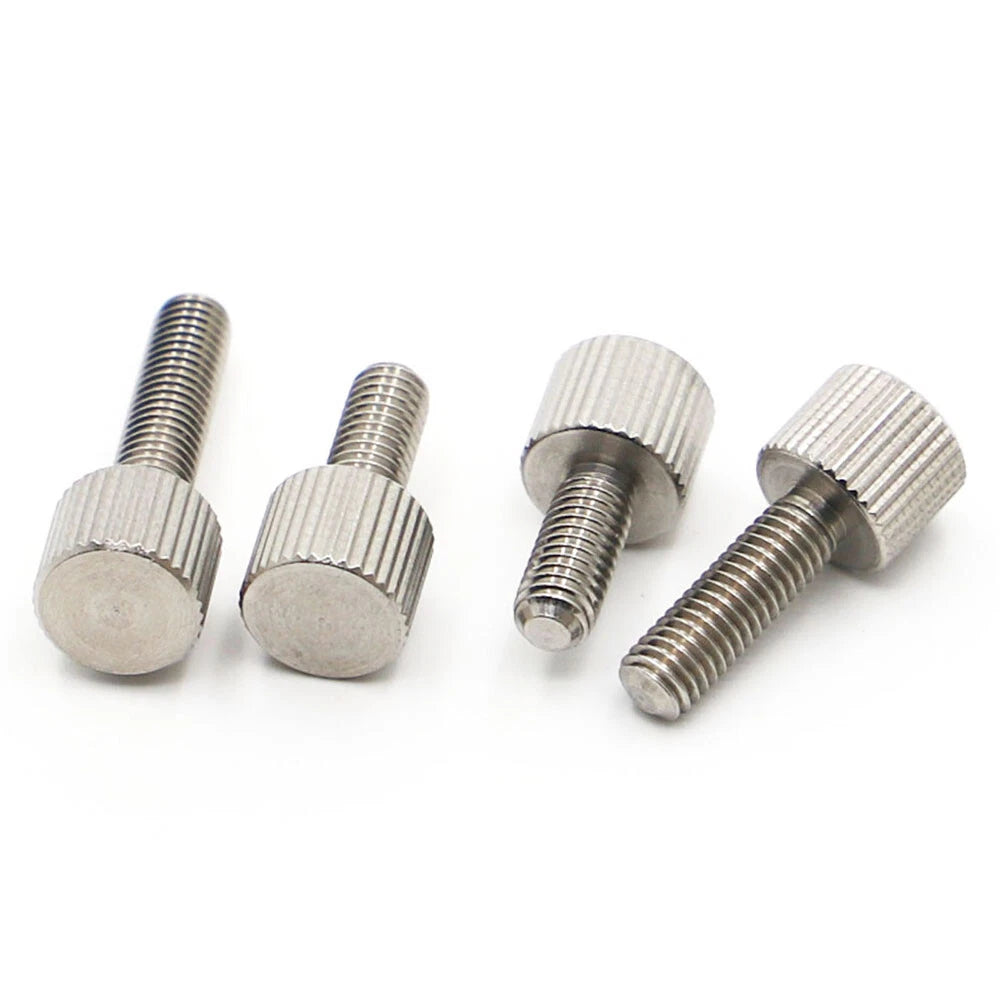

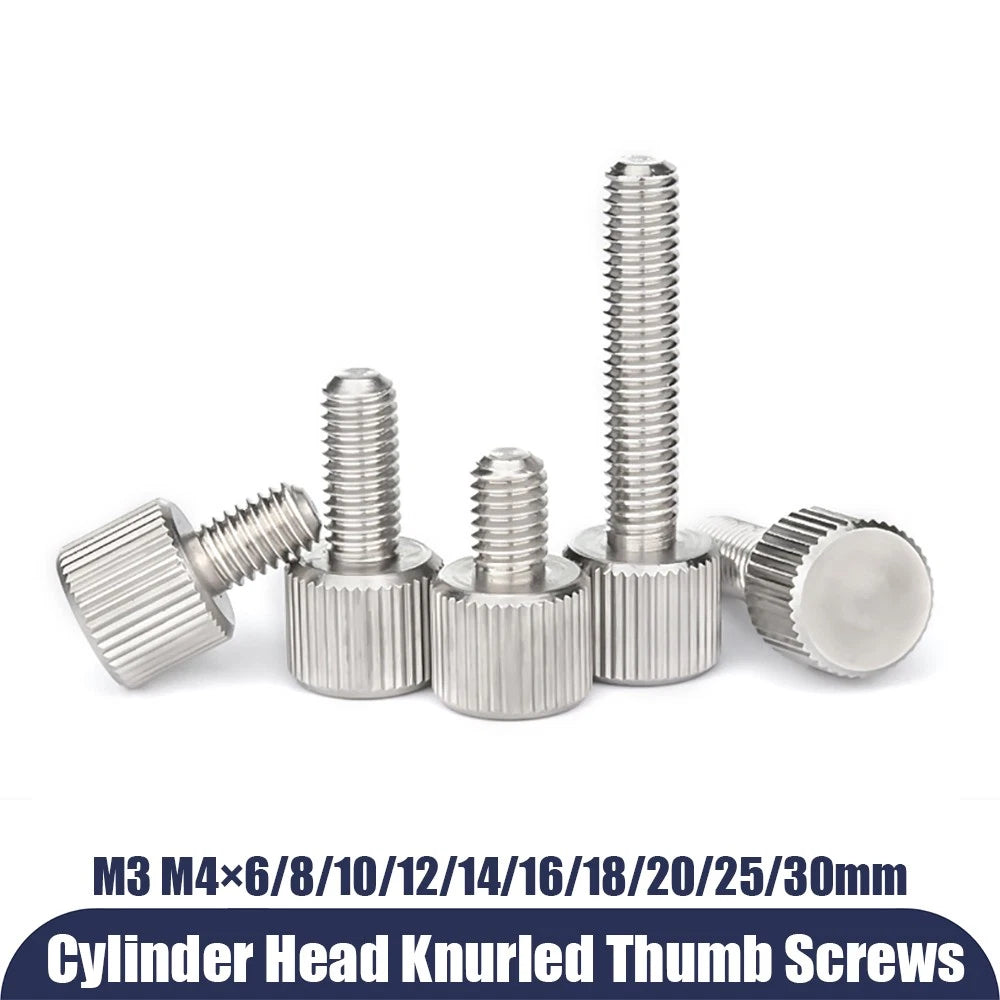

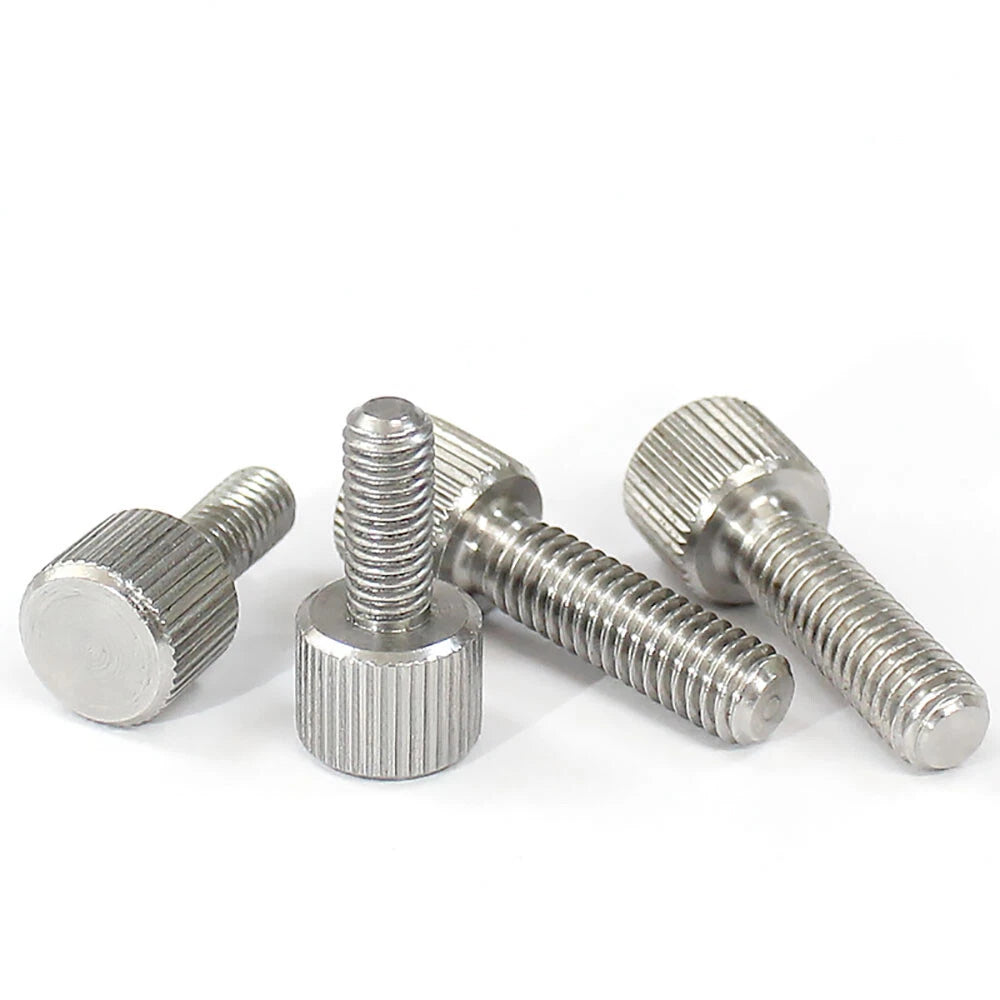

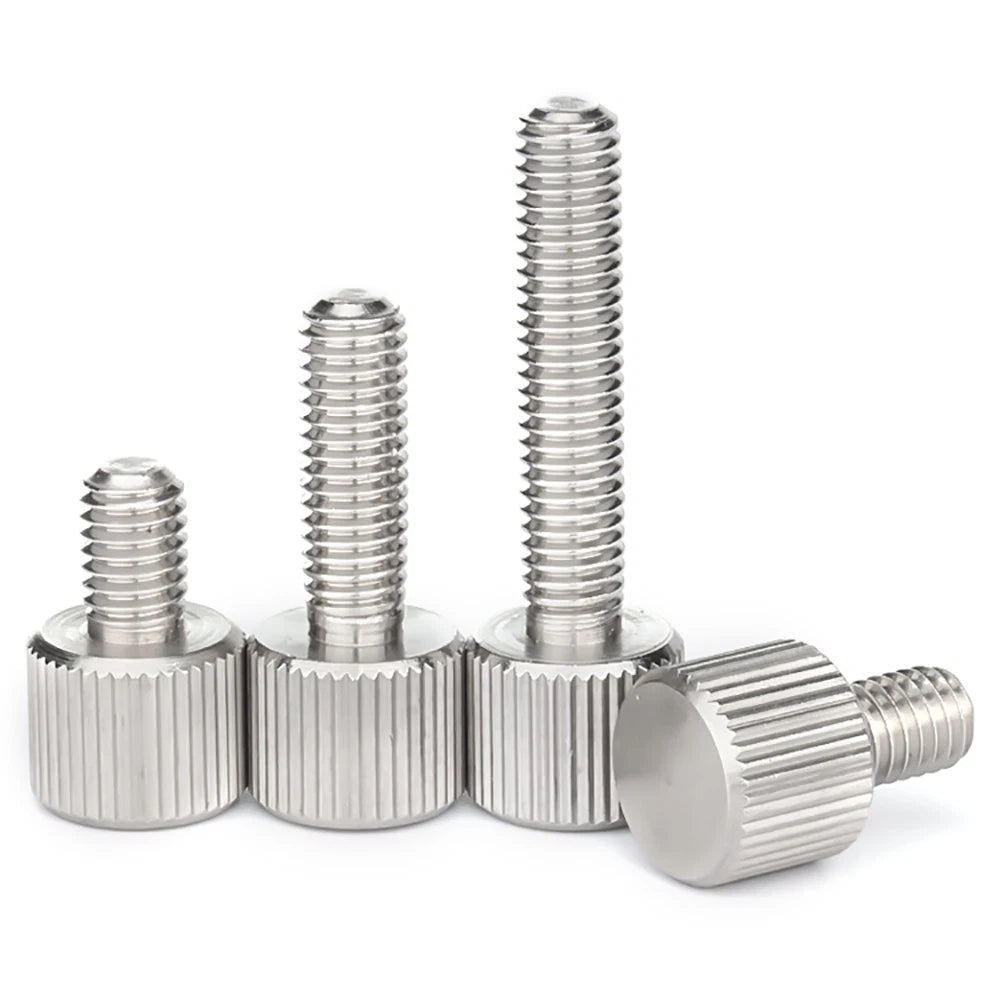

M3 M4 303 Stainless Steel Thumb Screws Knurled Head Manual Adjustment Screw Bolt

303 stainless steel is a free-machining grade that contains added sulfur to improve machinability, resulting in a smoother surface finish and tighter dimensional tolerances compared to 304. Both grades offer similar corrosion resistance for indoor and light-humidity environments. 303 is the preferred choice for precision-machined fasteners like knurled thumb screws where surface quality and dimensional accuracy matter.

M3 screws (3mm thread diameter) are suited for lightweight panels, small enclosures, optical mounts, and electronics where space is limited. M4 screws (4mm thread diameter) provide greater clamping force and are better suited for heavier panels, structural adjustment points, and applications where the fastener will be tightened and released frequently under moderate load. Check your tapped hole or insert size before ordering.

The thread length should be at least 1.5× the thread diameter for adequate engagement — so M3 needs at least 4.5mm of thread engagement, and M4 needs at least 6mm. Measure the depth of your tapped hole or the thickness of the material being fastened, then select a length that achieves full thread engagement without bottoming out. For through-hole applications, add the material thickness plus nut height to determine the required length.

303 stainless steel offers good corrosion resistance for indoor and sheltered environments, including light humidity and occasional moisture contact. It is not recommended for continuous outdoor exposure, salt spray, or marine environments. For outdoor or harsh-environment applications, 316 stainless steel is a more appropriate choice. These screws are best suited for laboratory, workshop, and indoor instrument use.

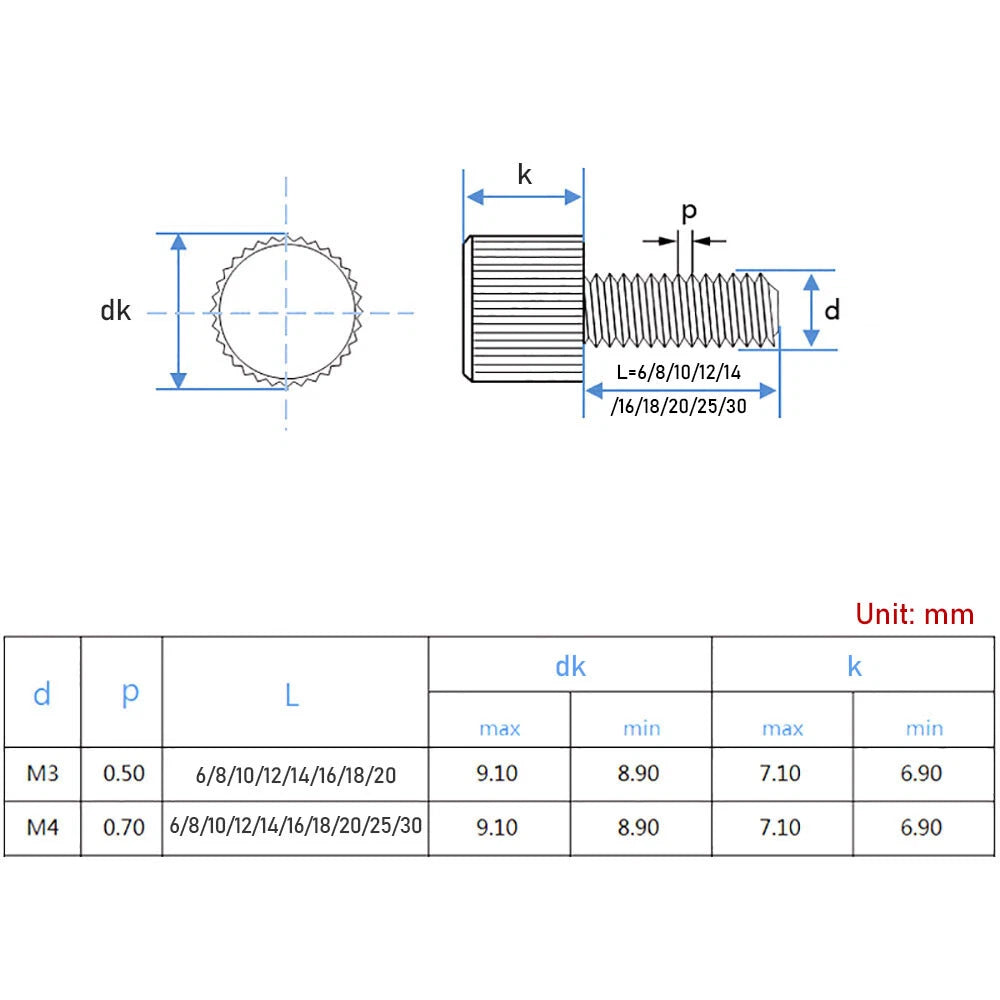

Yes. These screws use standard metric coarse threads (M3×0.5 and M4×0.7), which are compatible with all standard metric coarse nuts, threaded inserts, and tapped holes of the same size. They will not fit fine-pitch (M3×0.35 or M4×0.5) threaded holes — confirm your hardware uses coarse pitch before ordering.

The 2-piece pack is ideal for testing a size before committing to a larger quantity. The 5-piece pack suits most single-panel or small enclosure builds. The 20-piece pack is recommended for full instrument builds or projects requiring multiple adjustment points. The 50-piece pack offers the best per-unit value and is suited for workshop stock, small-batch production, or projects with many fastener positions.

The knurled pattern on the cylindrical head is designed to provide sufficient friction for hand-tightening to the torque levels typical of panel retention and instrument adjustment — generally light to moderate clamping force. These screws are not intended for high-torque structural joints. If your application requires significant clamping force, consider using a tool-driven fastener for initial assembly and these thumb screws only for access panels or adjustment points.
