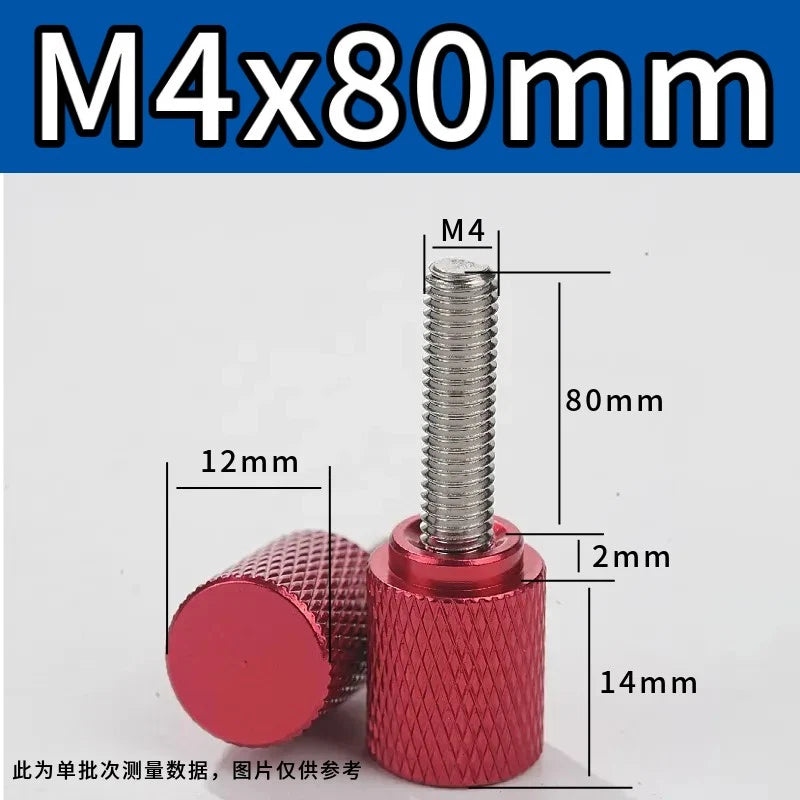

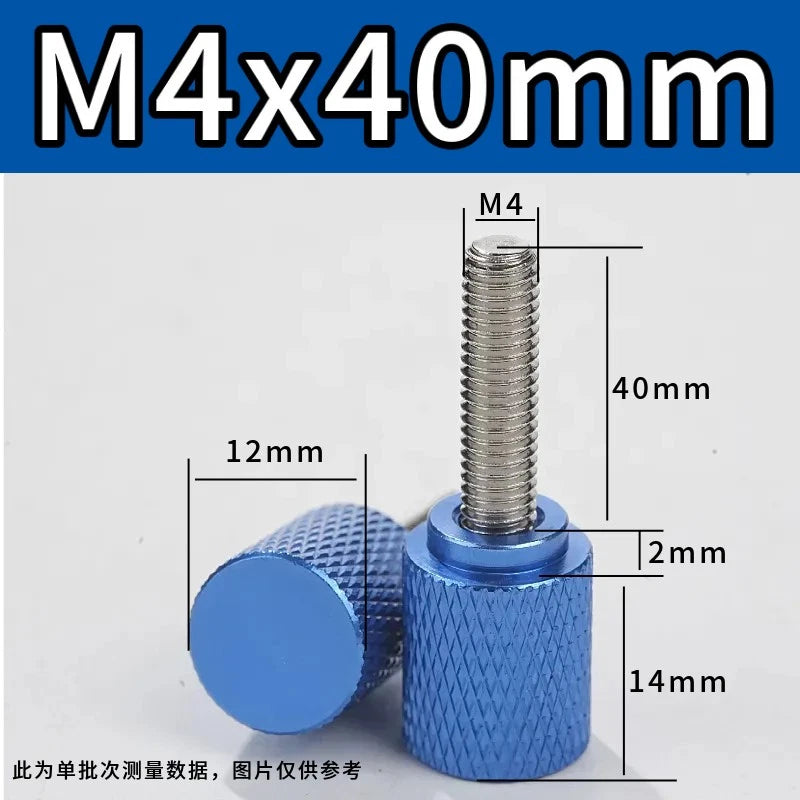

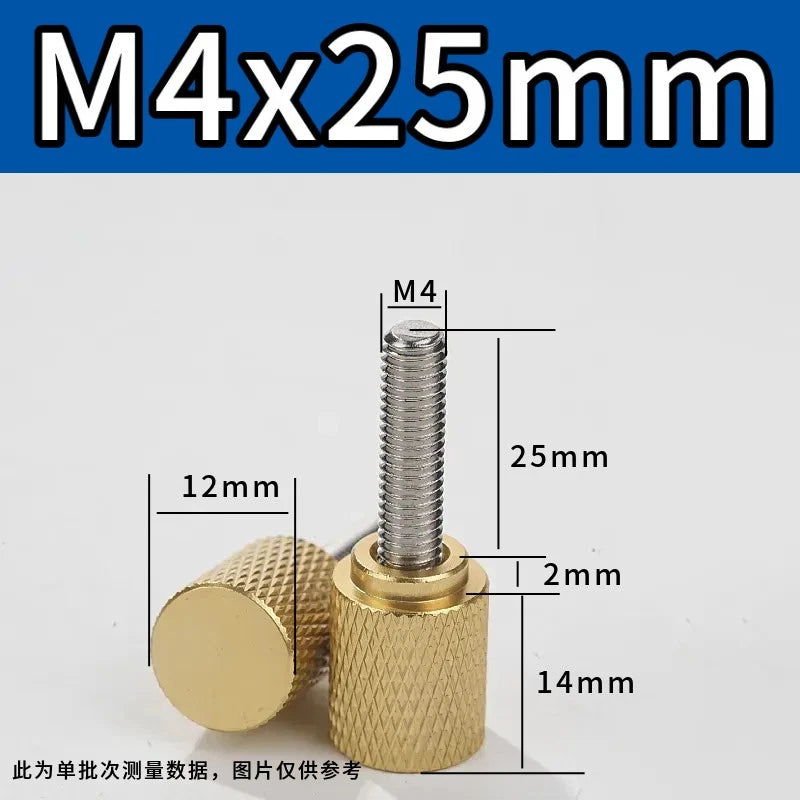

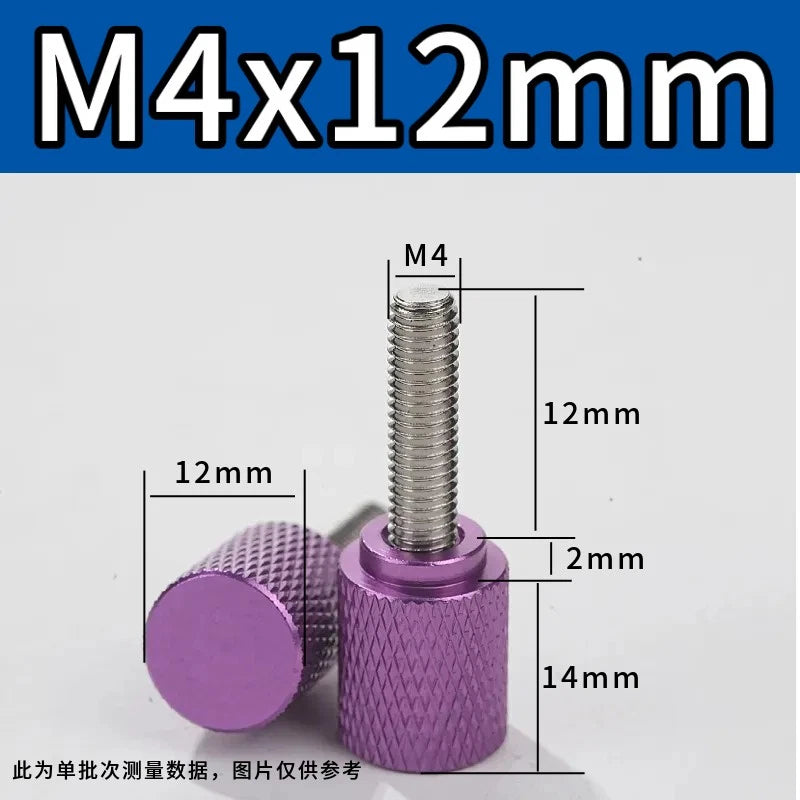

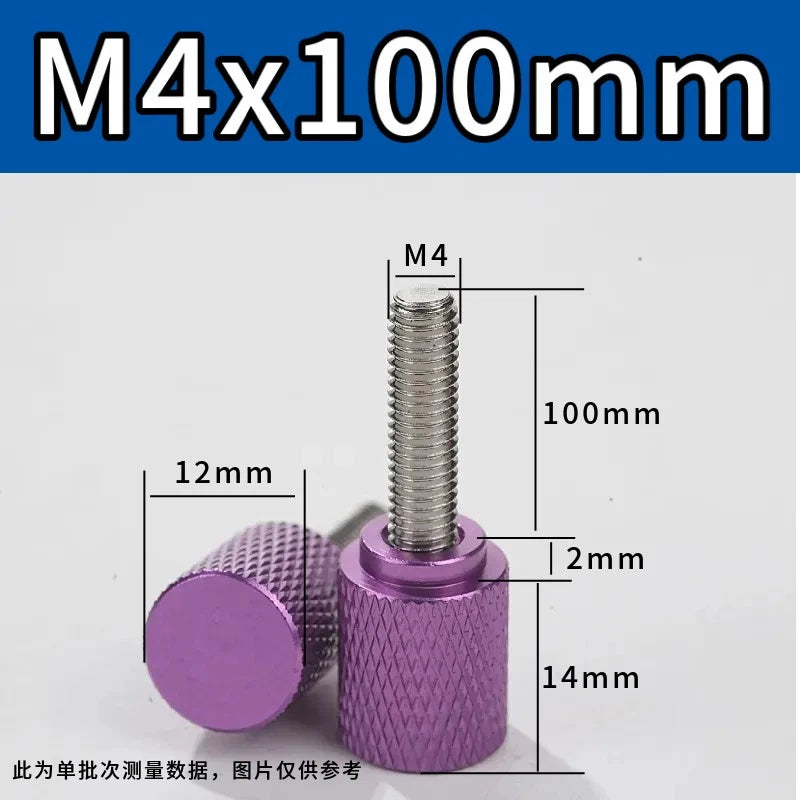

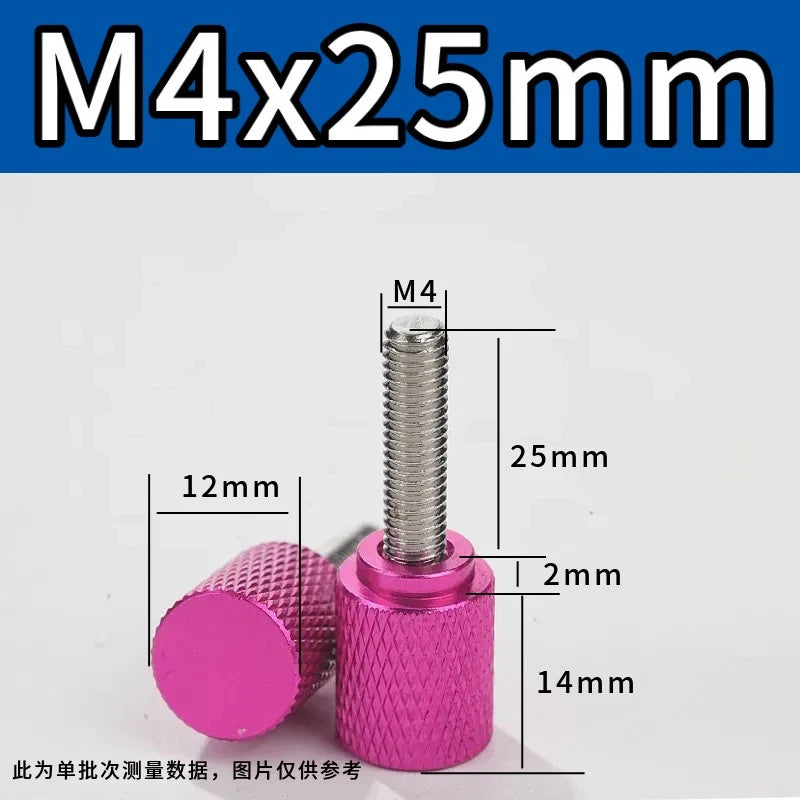

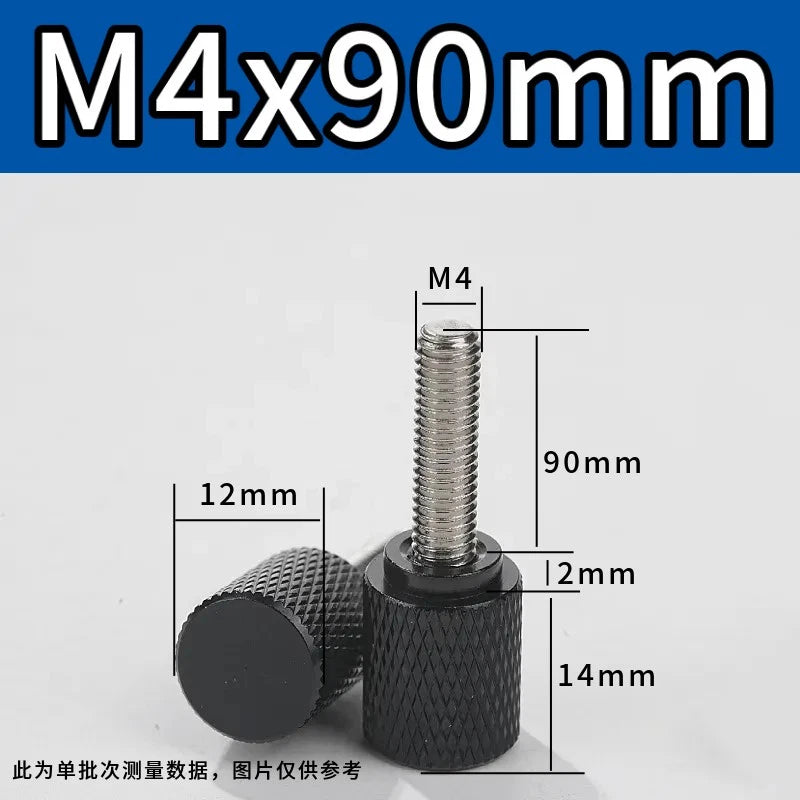

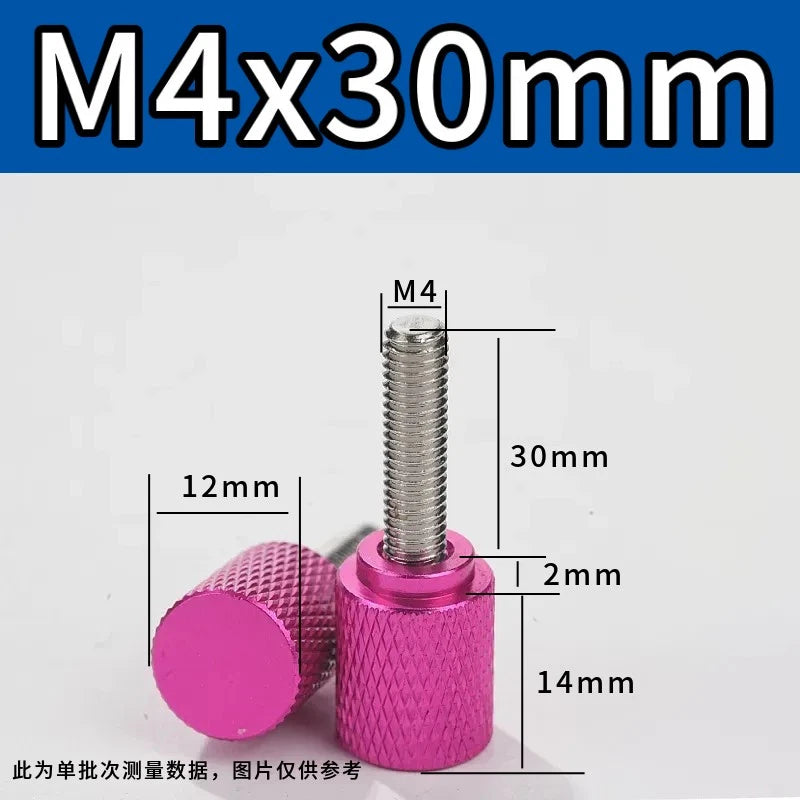

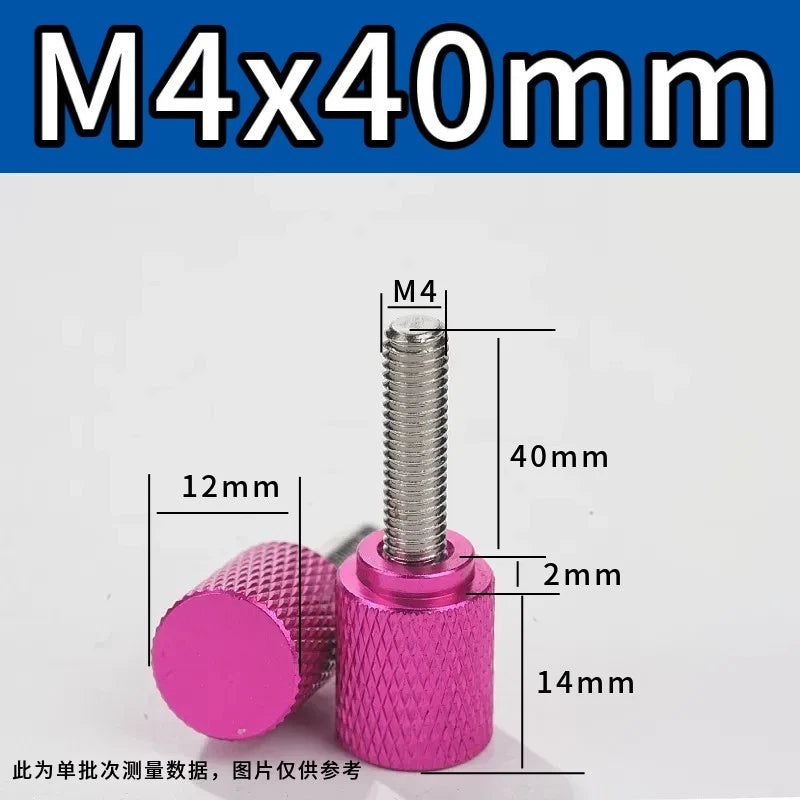

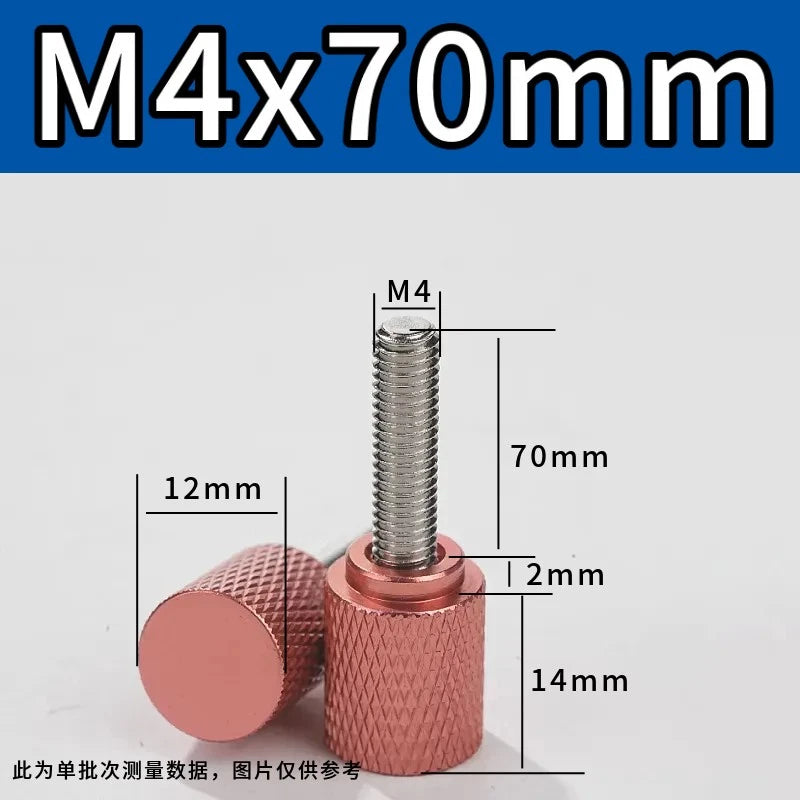

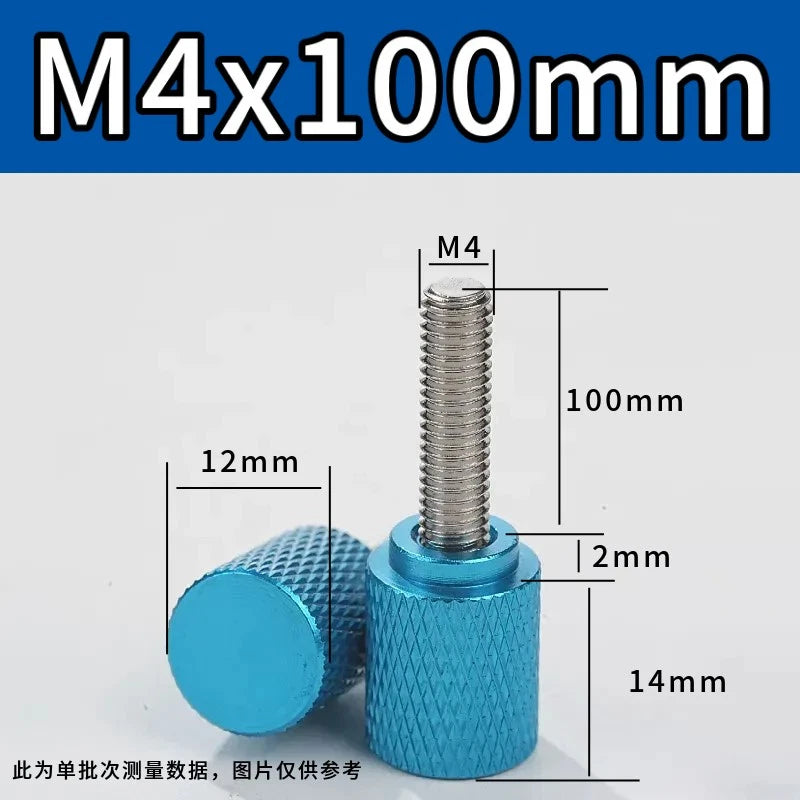

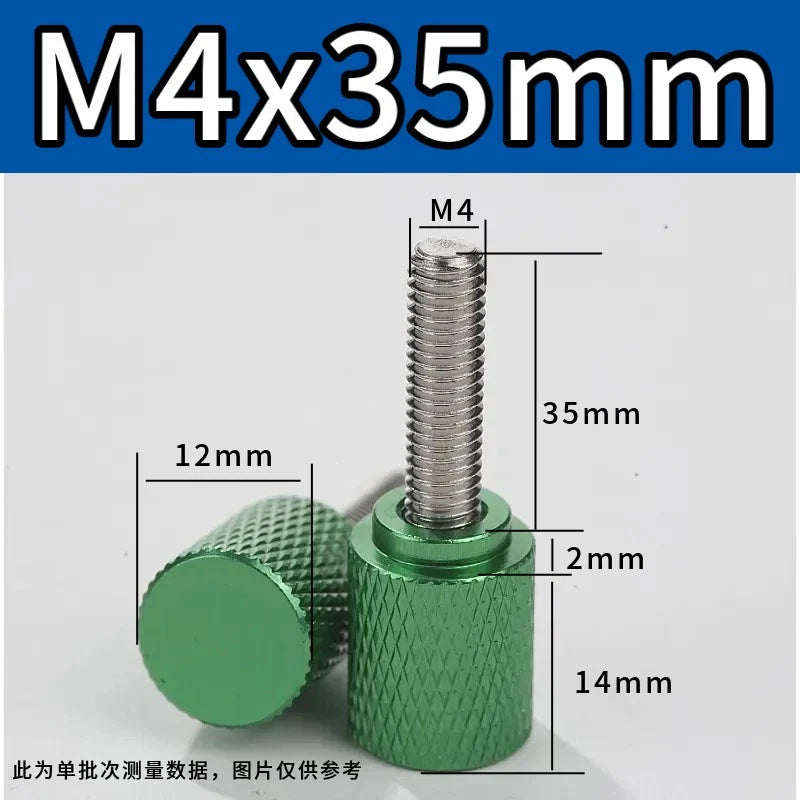

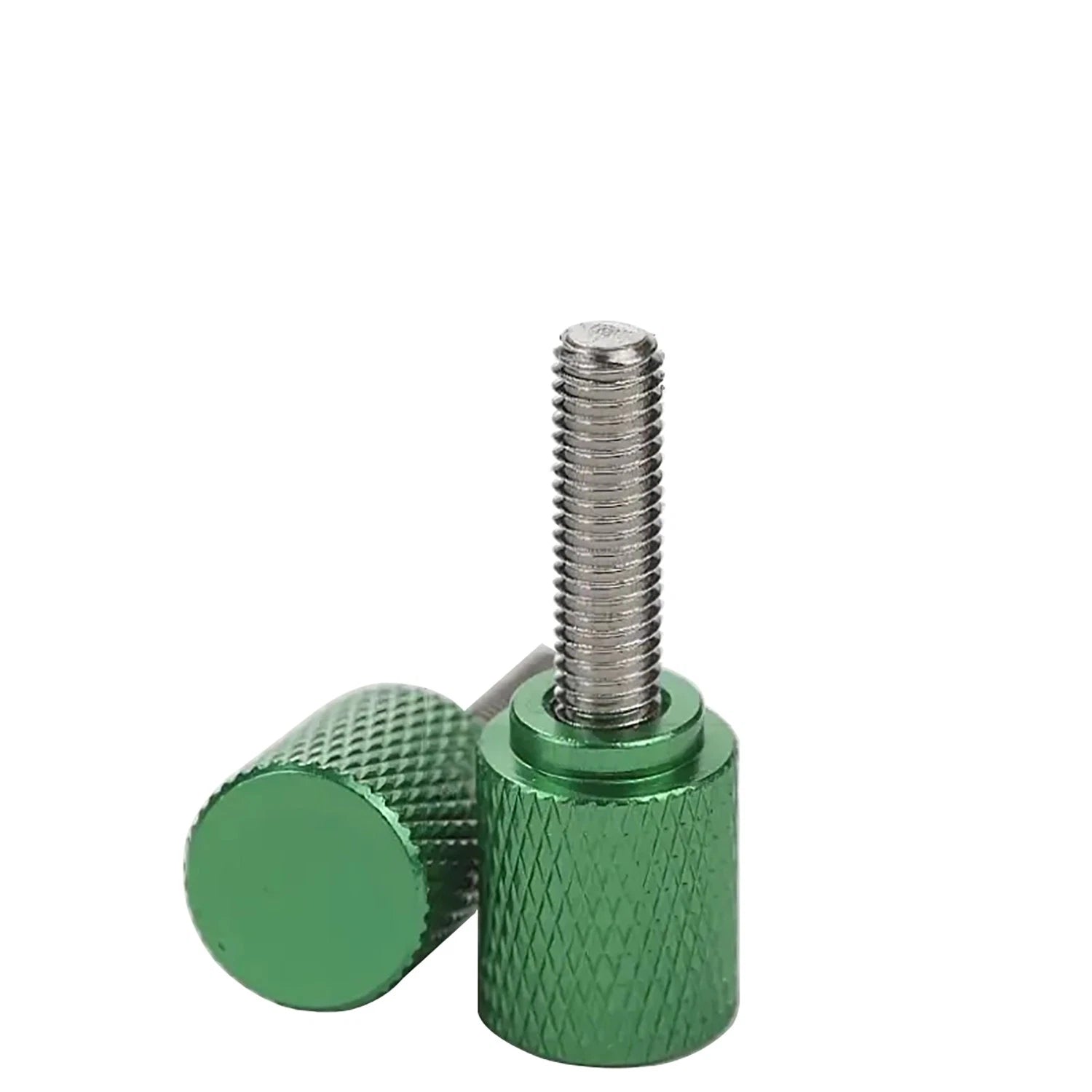

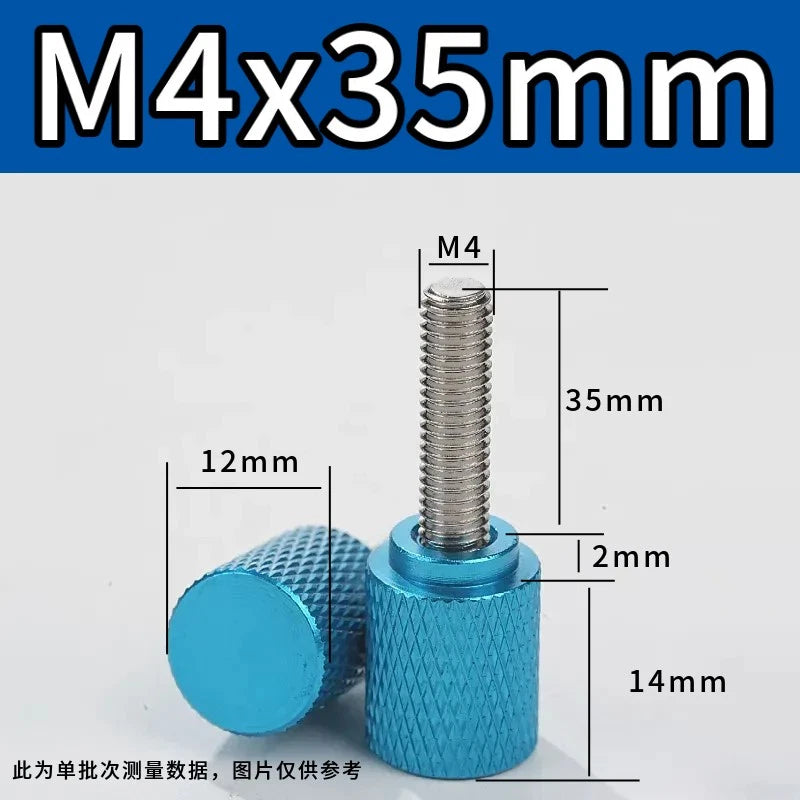

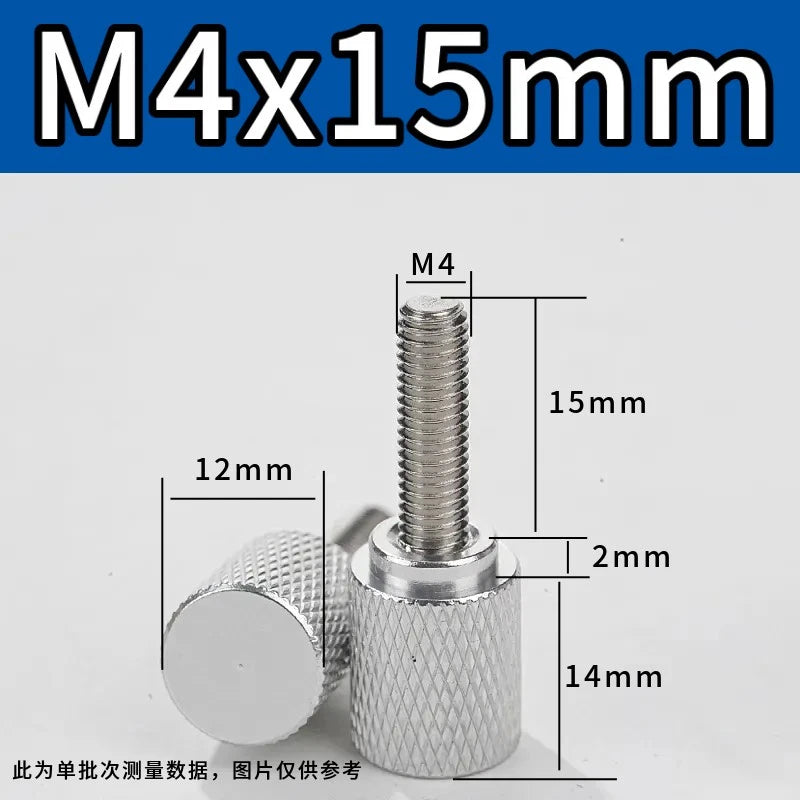

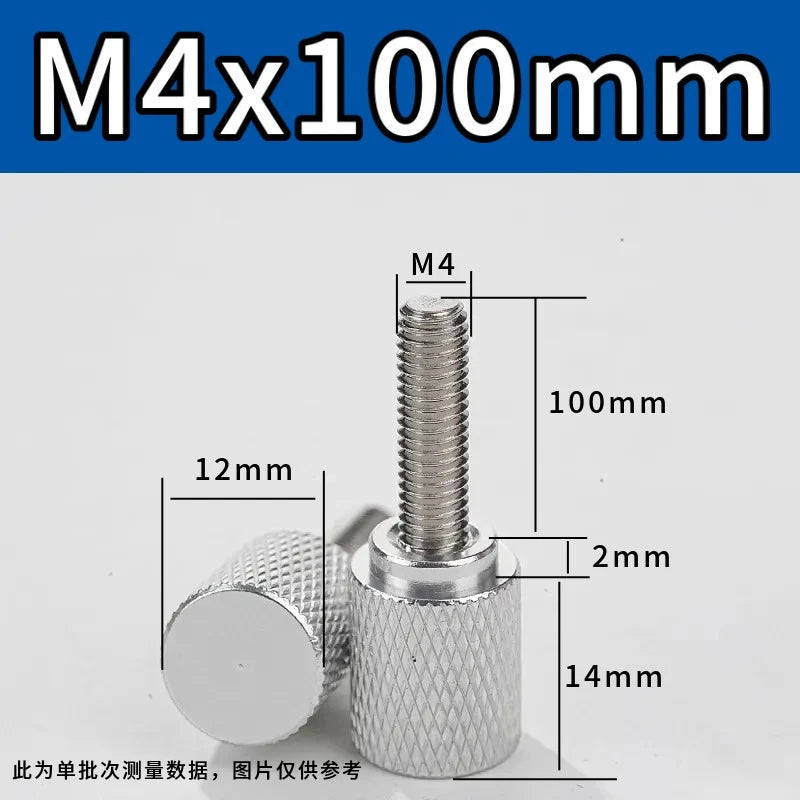

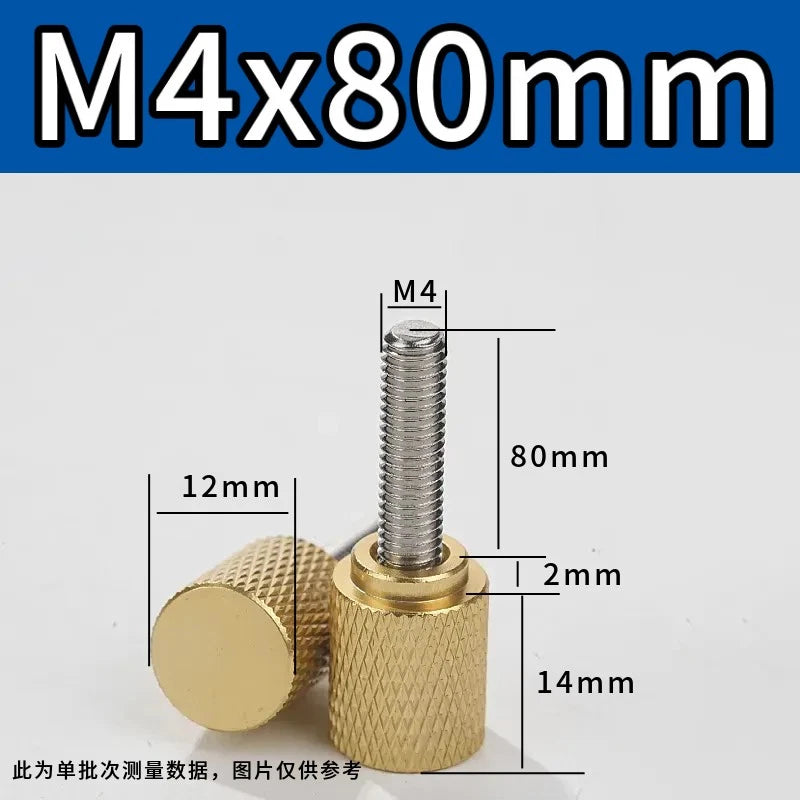

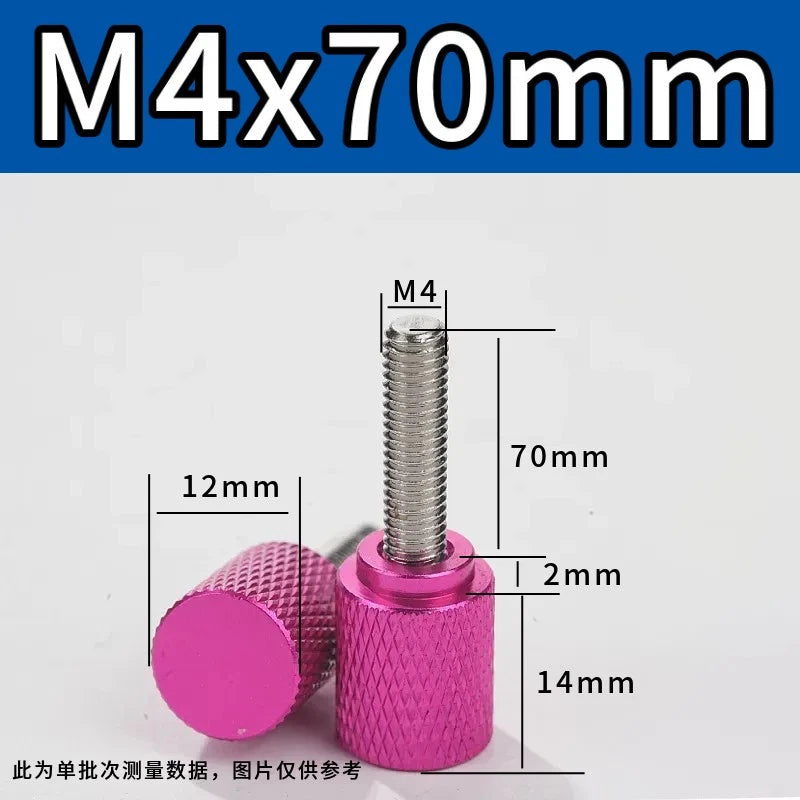

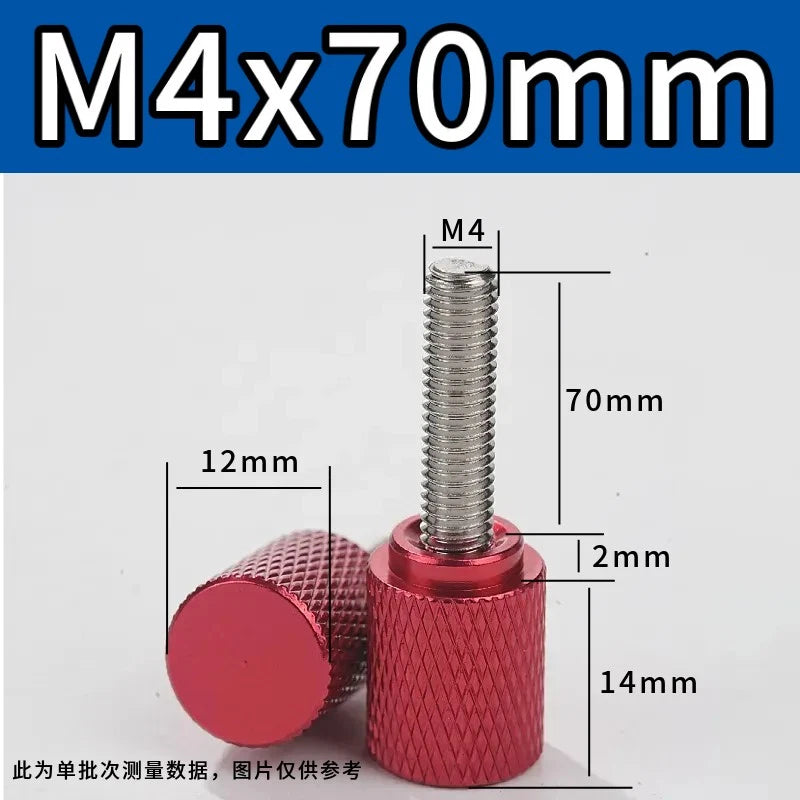

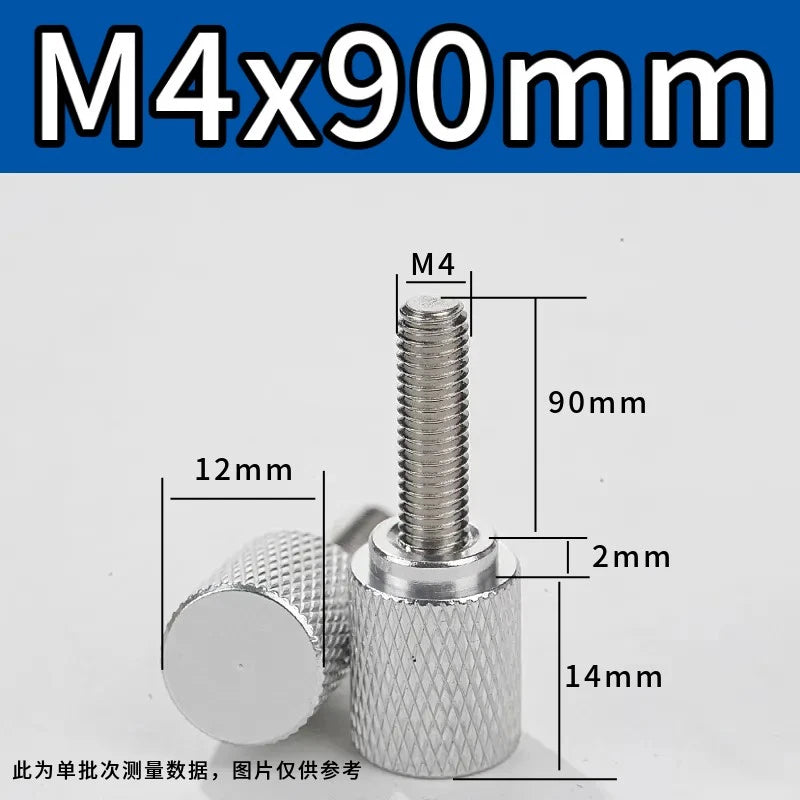

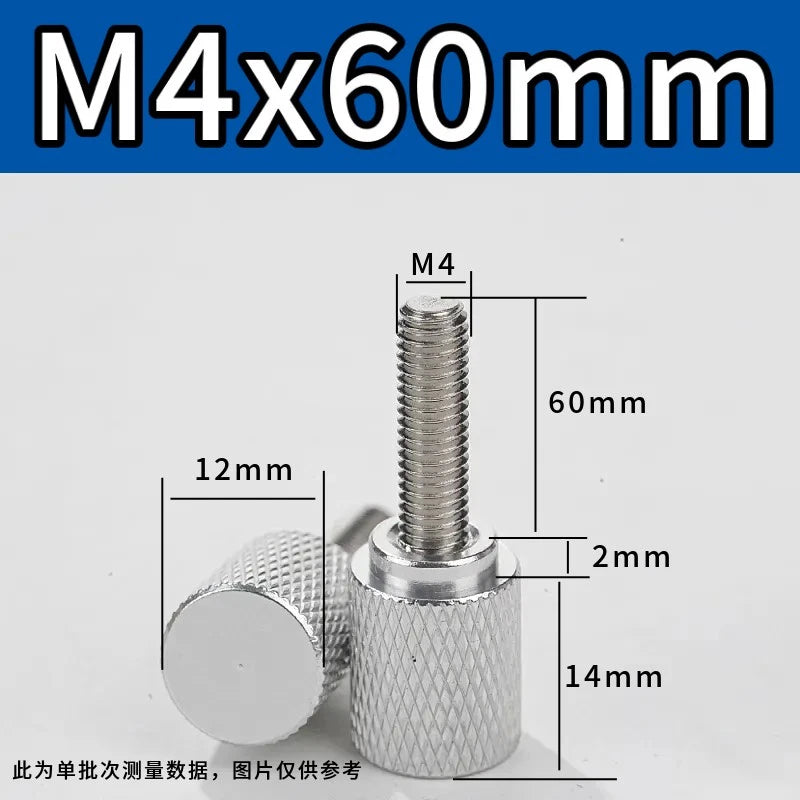

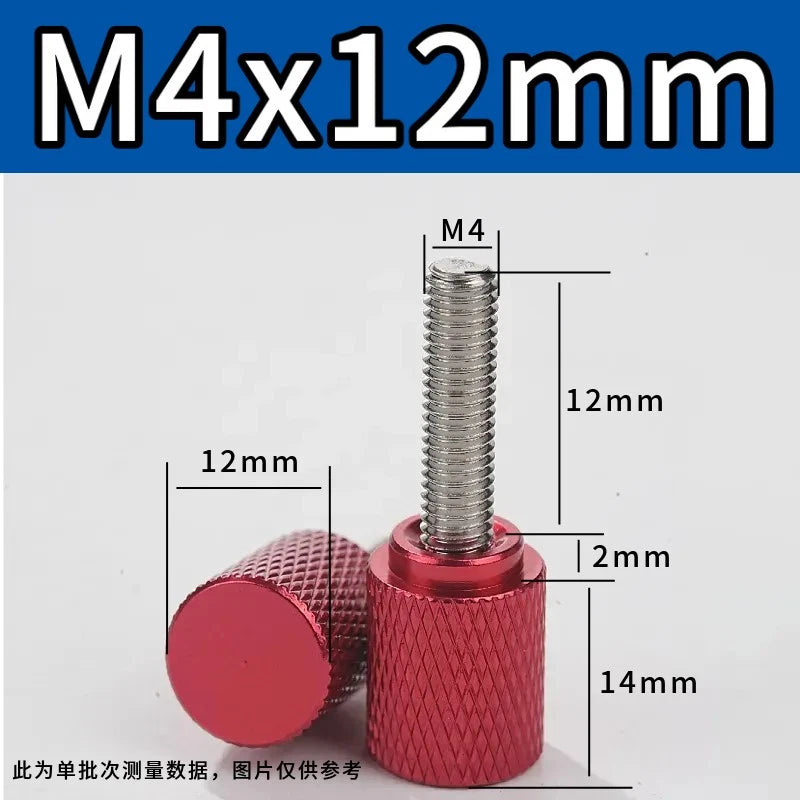

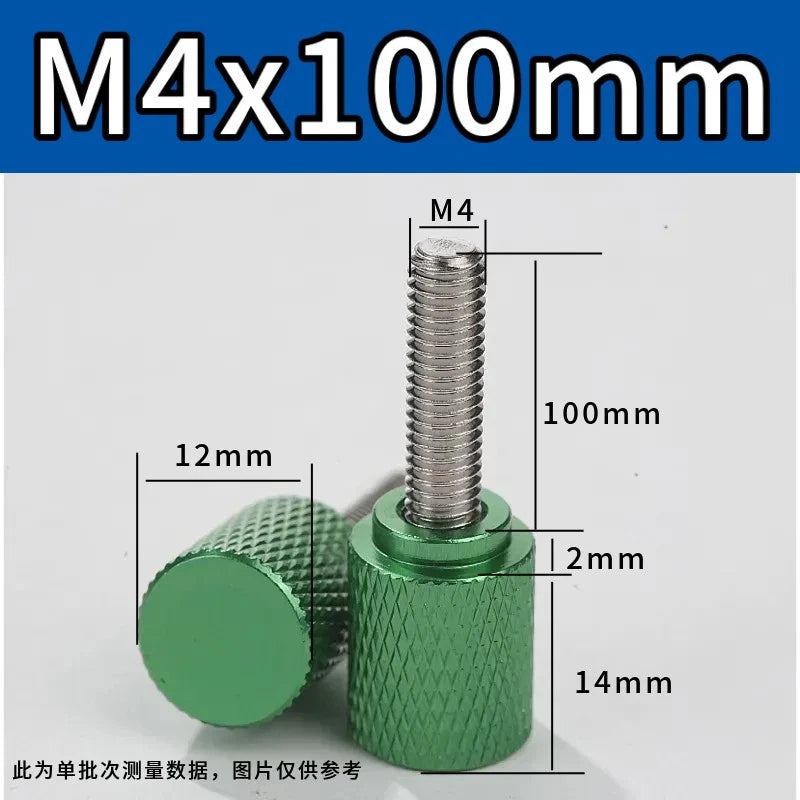

M4 Knurled Thumb Screws,Aluminium Alloy Head & Stainless Steel Stud,6-100mm Bolt

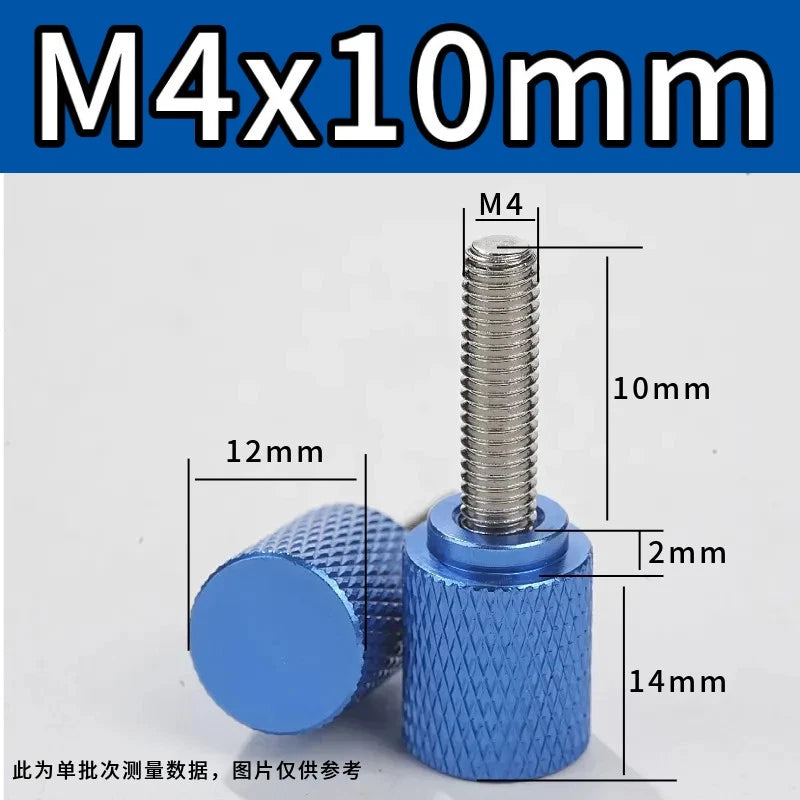

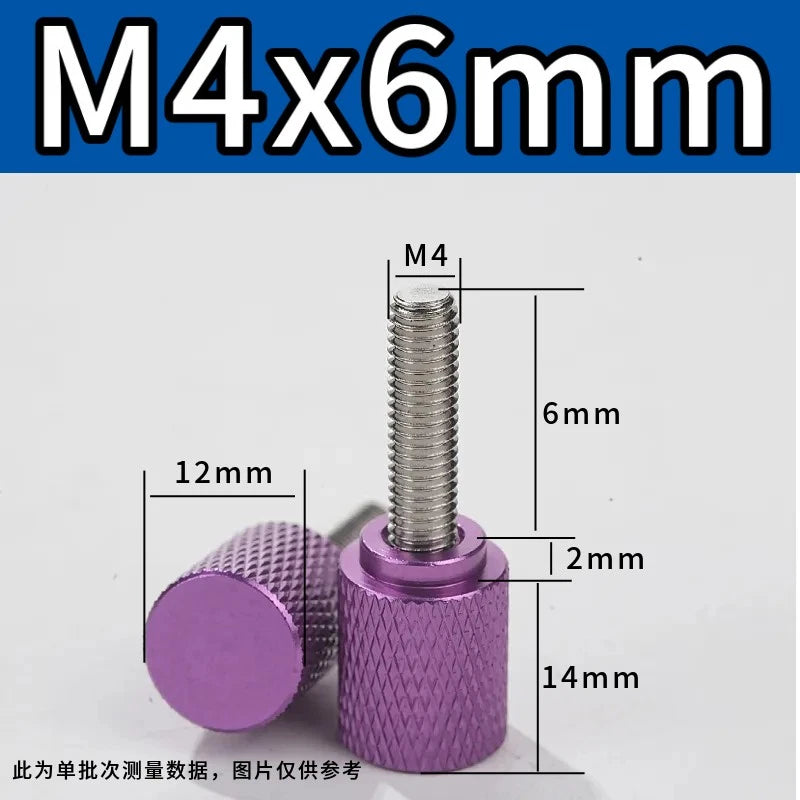

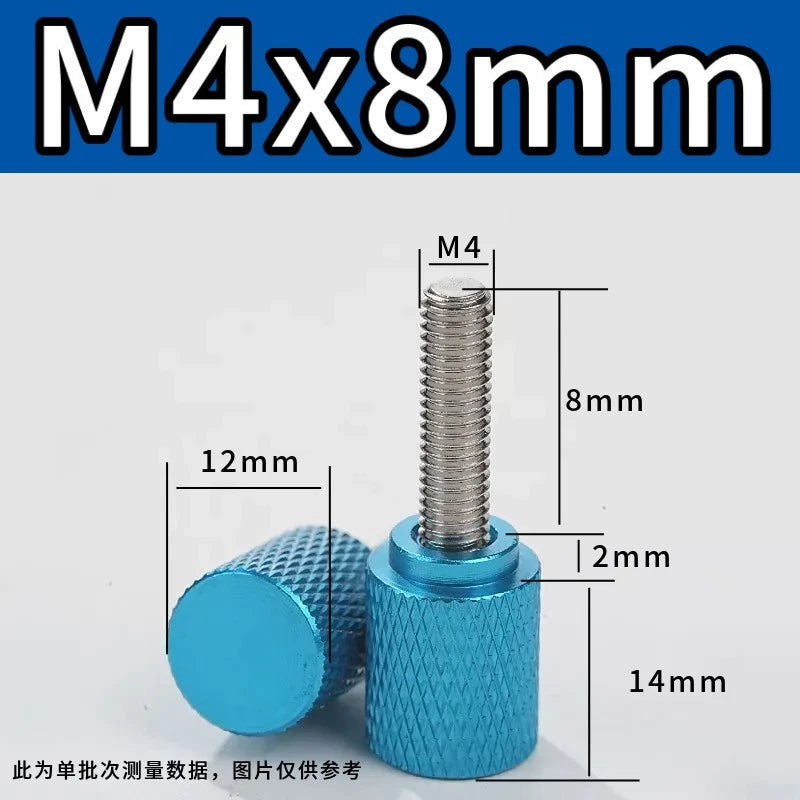

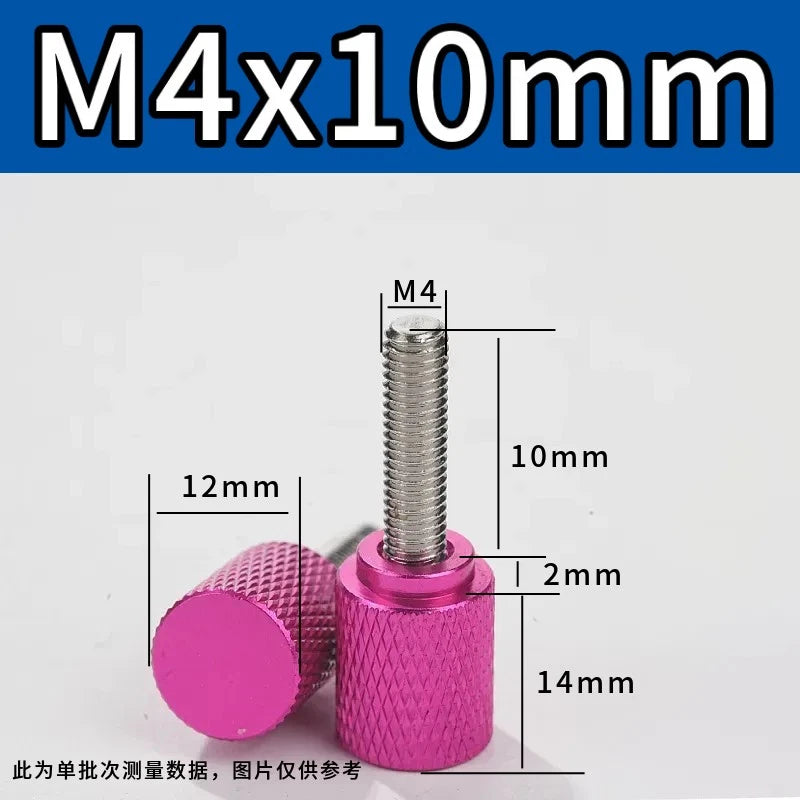

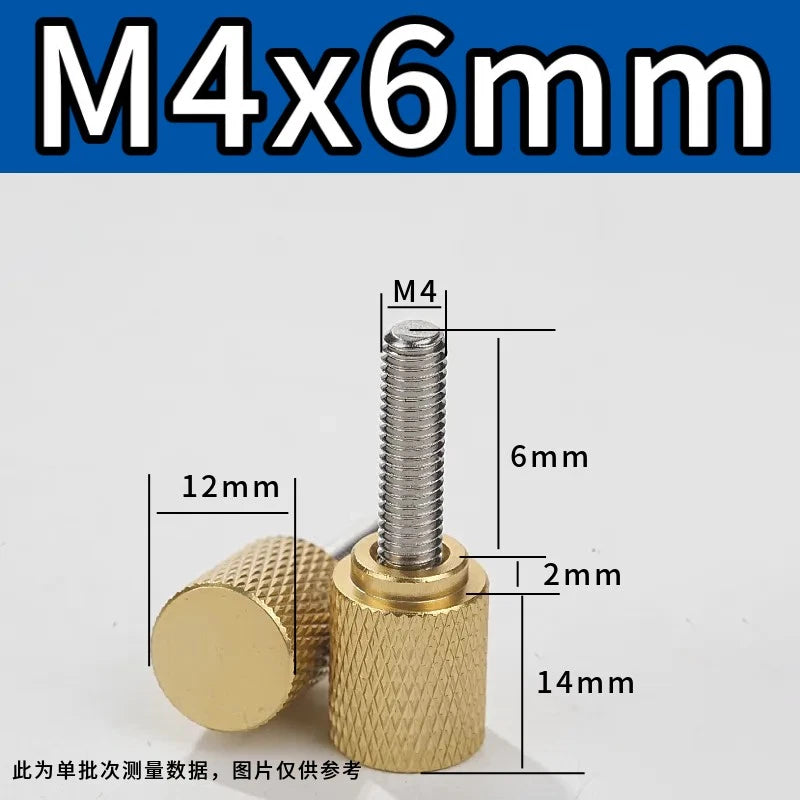

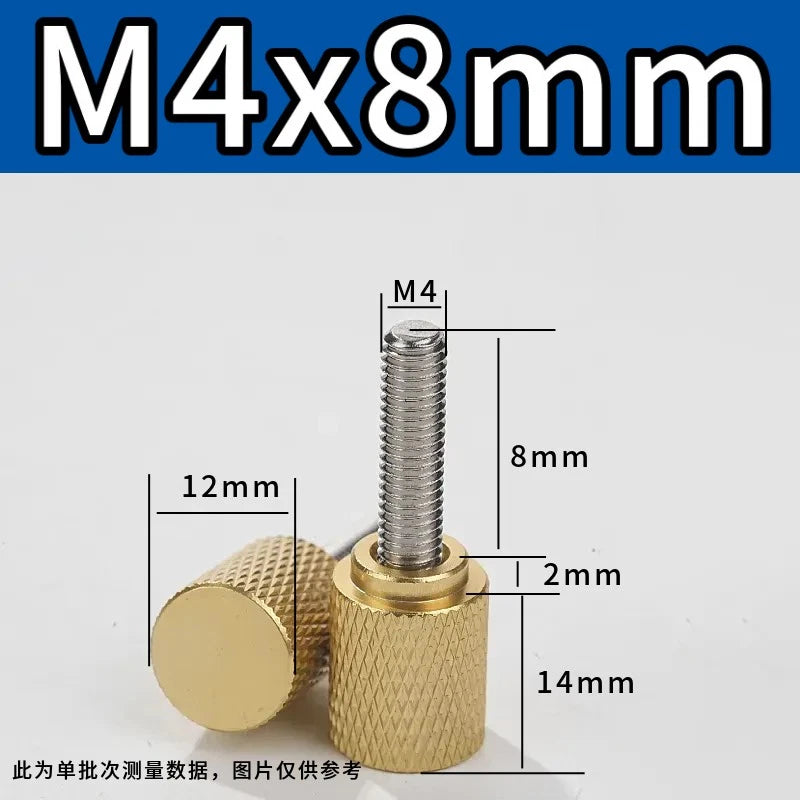

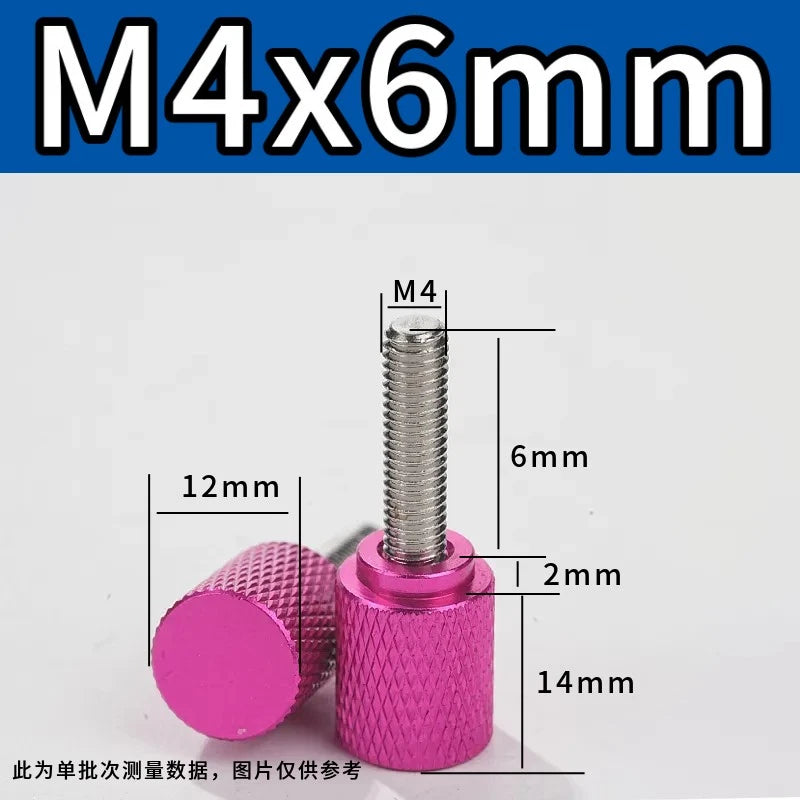

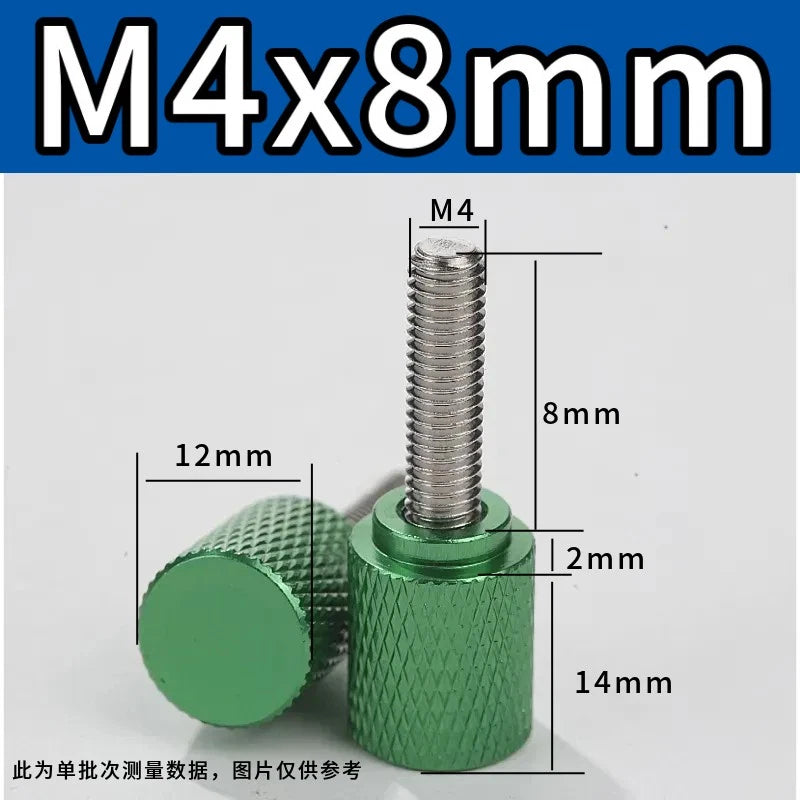

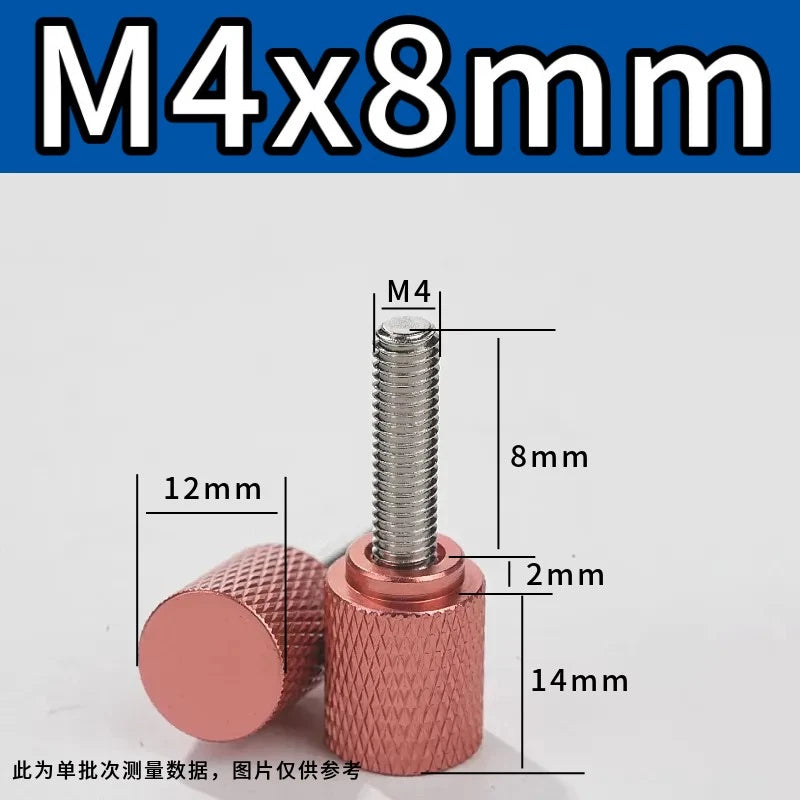

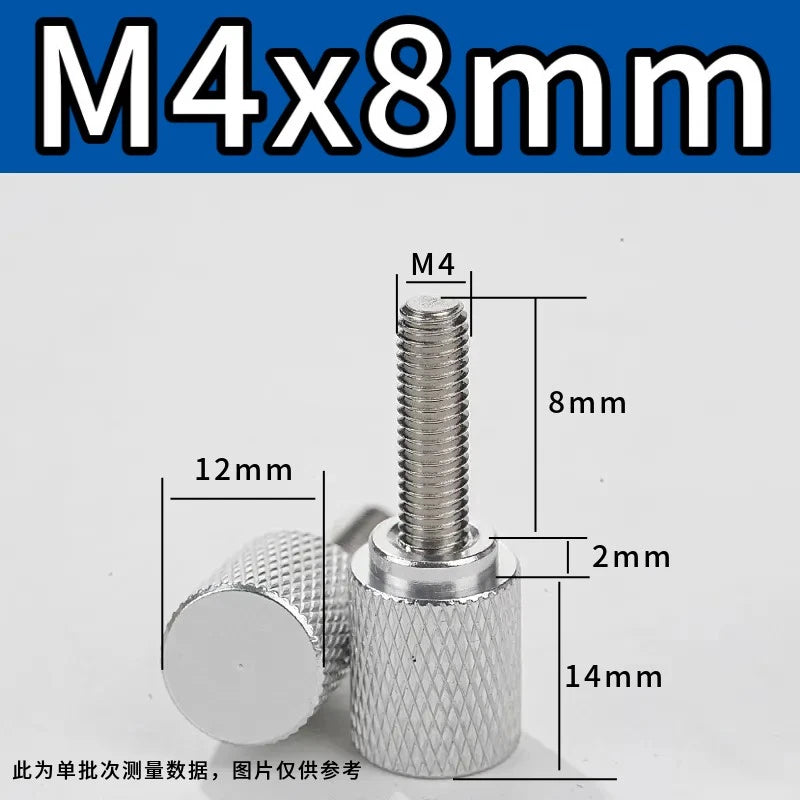

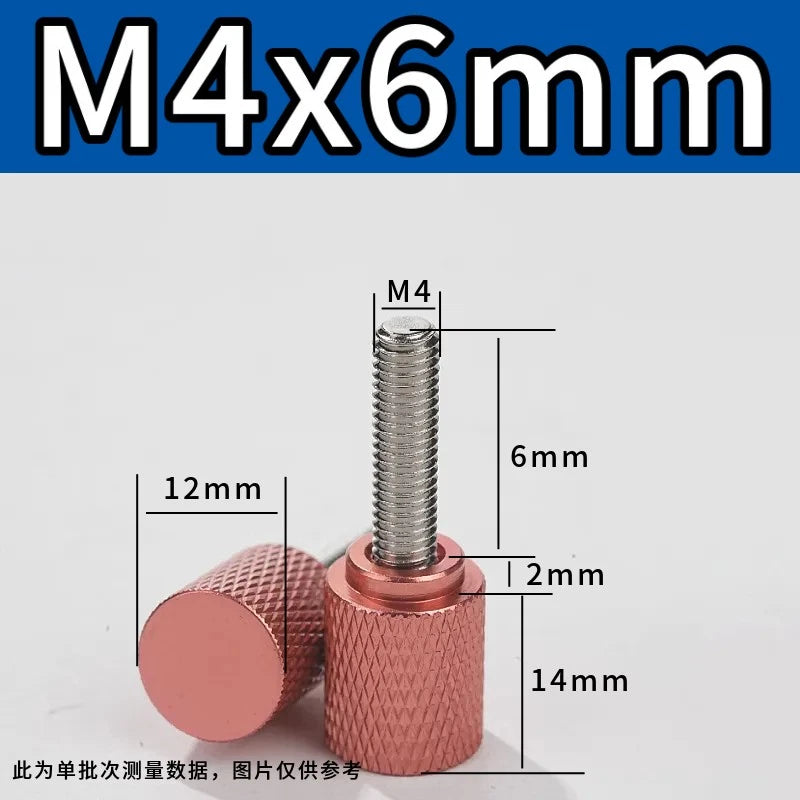

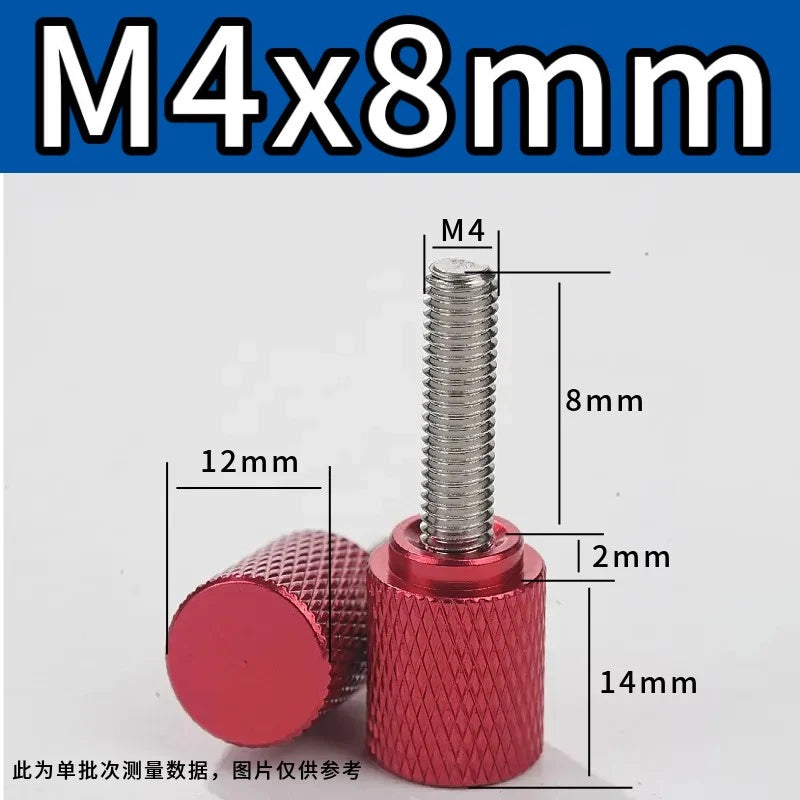

Measure the total thickness of all panels and spacers the stud must pass through, then add 3–5 mm for thread engagement in the nut or insert. For example, a 3 mm panel with a 3 mm insert requires at least 6 mm of stud — the M4 × 6 mm variant is the minimum; the M4 × 8 mm or 10 mm gives more engagement margin. For blind tapped holes, aim for at least 1× the thread diameter (4 mm) of engagement; 1.5× (6 mm) is preferred for aluminium.

Thumb screws are designed for hand-applied torque, which is typically 0.3–0.8 N·m for an M4 fastener tightened by finger. This is significantly lower than a hex bolt torqued with a tool (typically 2–3 N·m for M4 stainless). Thumb screws are appropriate for non-structural panel retention, access covers, and jig fixtures — not for load-bearing joints or vibration-heavy machinery without a locking insert.

The stainless steel stud offers good resistance to surface oxidation in light-moisture and indoor-humid environments. For prolonged outdoor exposure, salt spray, or immersion, consider adding a stainless M4 nyloc nut and applying a thin film of anti-seize compound to the threads. The anodised aluminium head is also corrosion-resistant but should not be used in strongly acidic or alkaline environments.

The M4 stud is compatible with M4 T-nuts designed for 20-series and 30-series aluminium extrusion (e.g., 2020, 2040, 3030 profiles). Confirm the T-nut slot width accepts an M4 T-nut before ordering. The knurled head sits proud of the extrusion surface, so verify there is sufficient clearance for the head diameter (typically 14–16 mm) in your assembly.

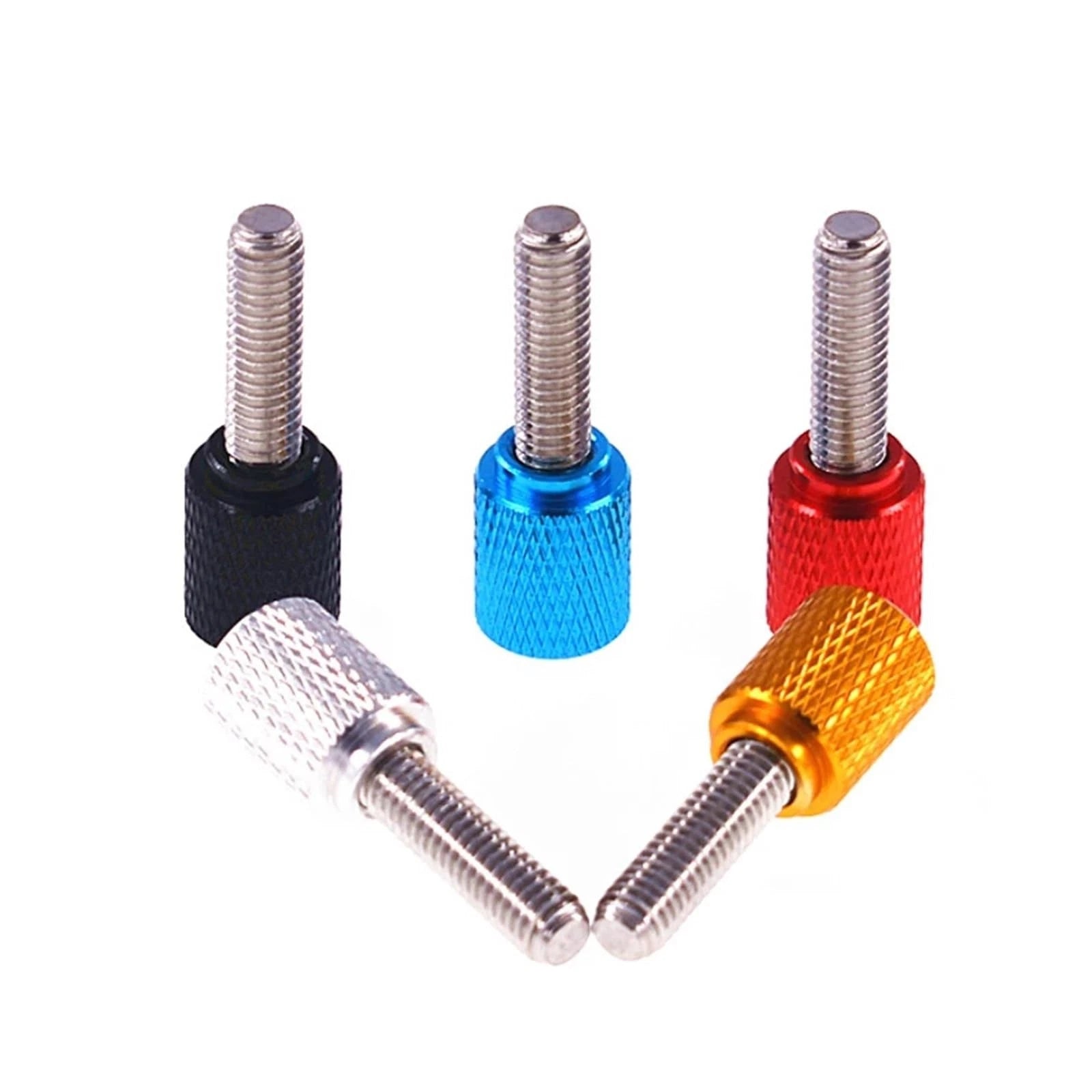

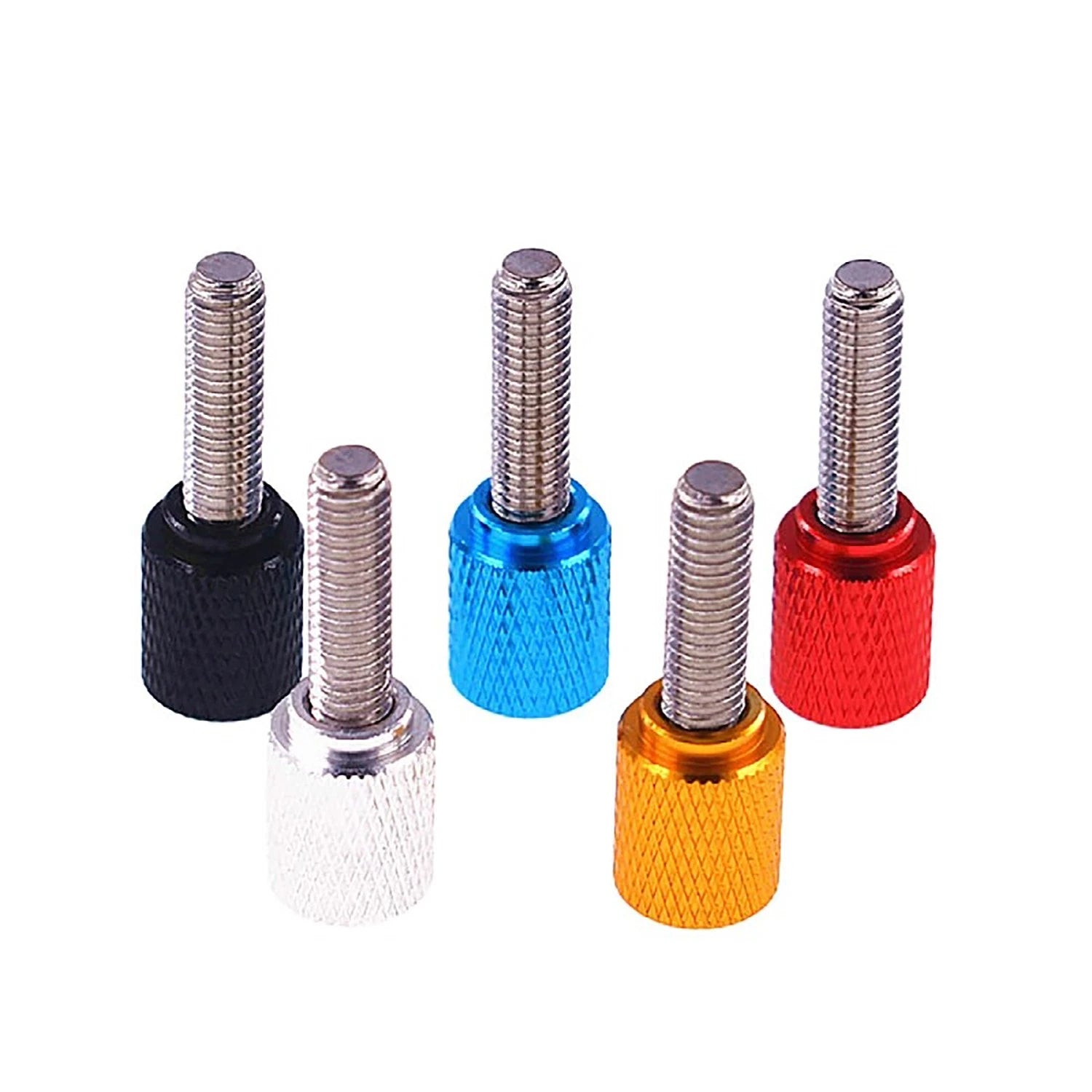

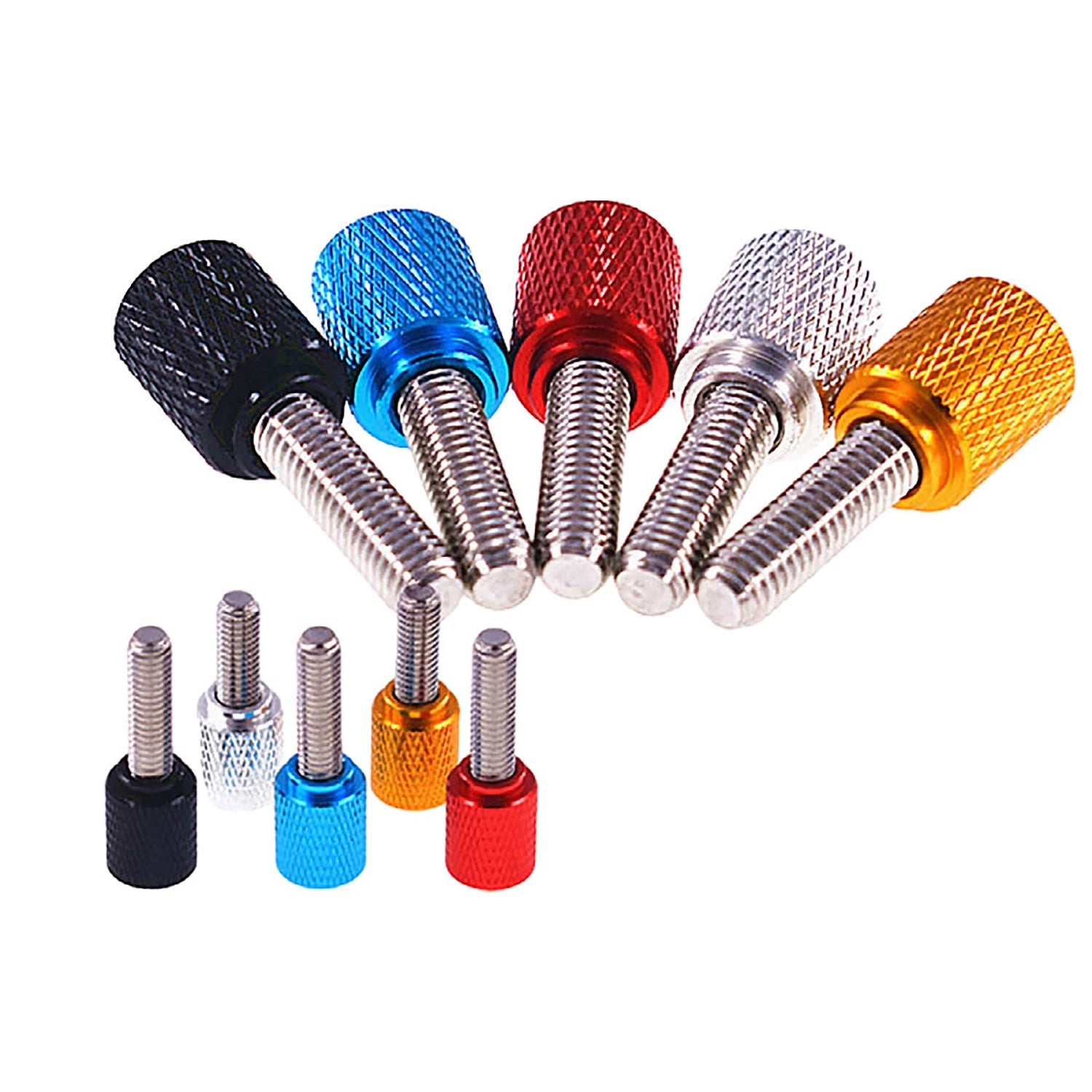

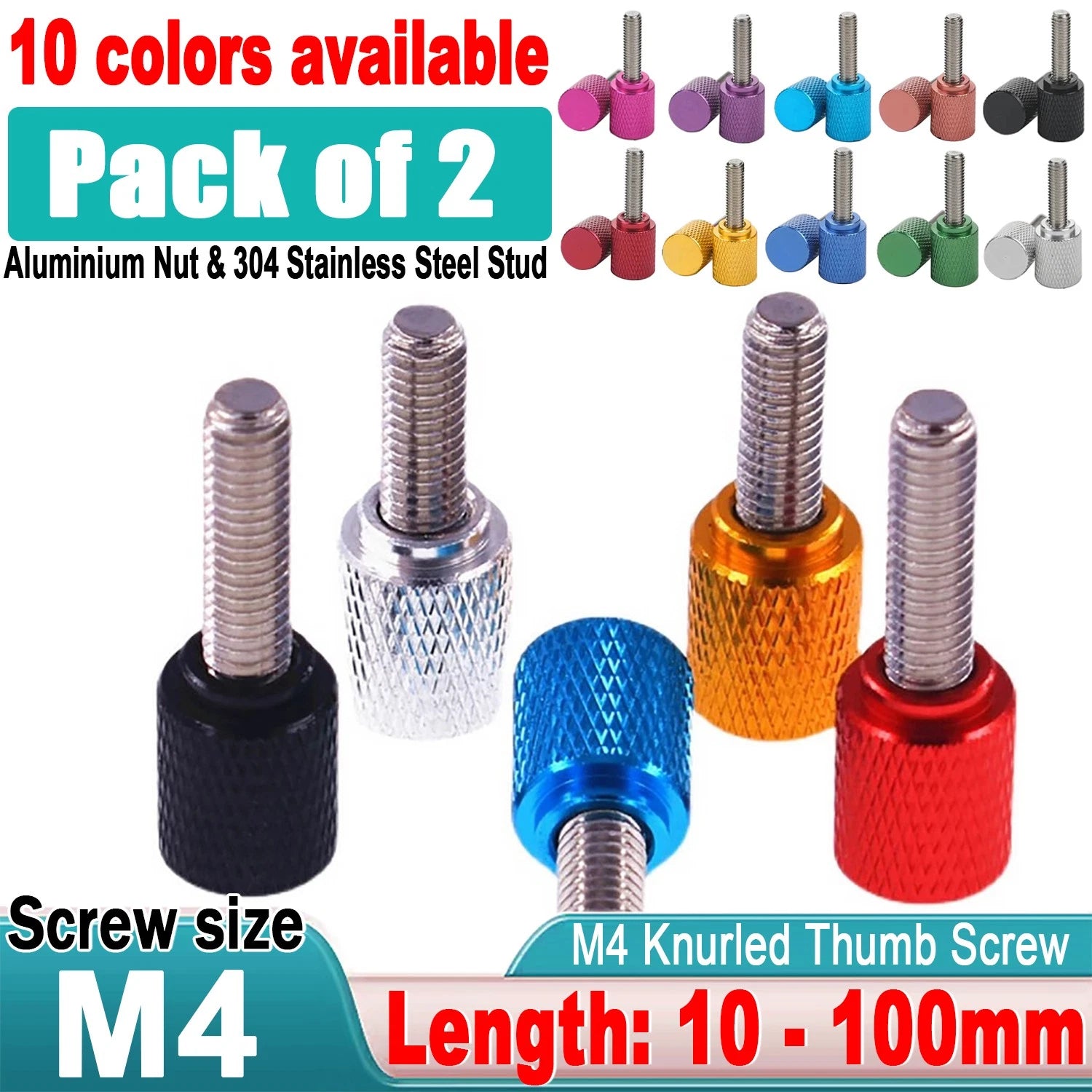

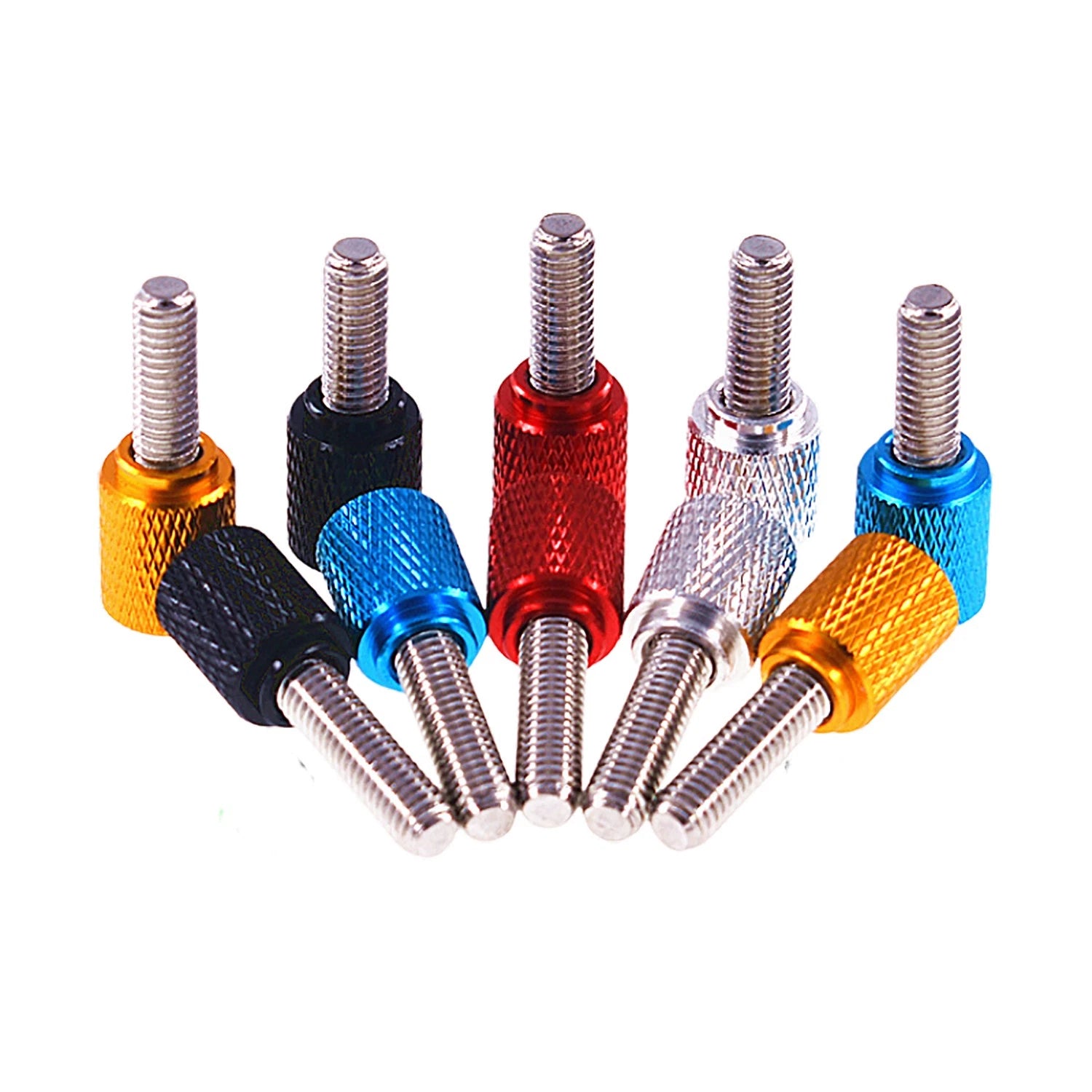

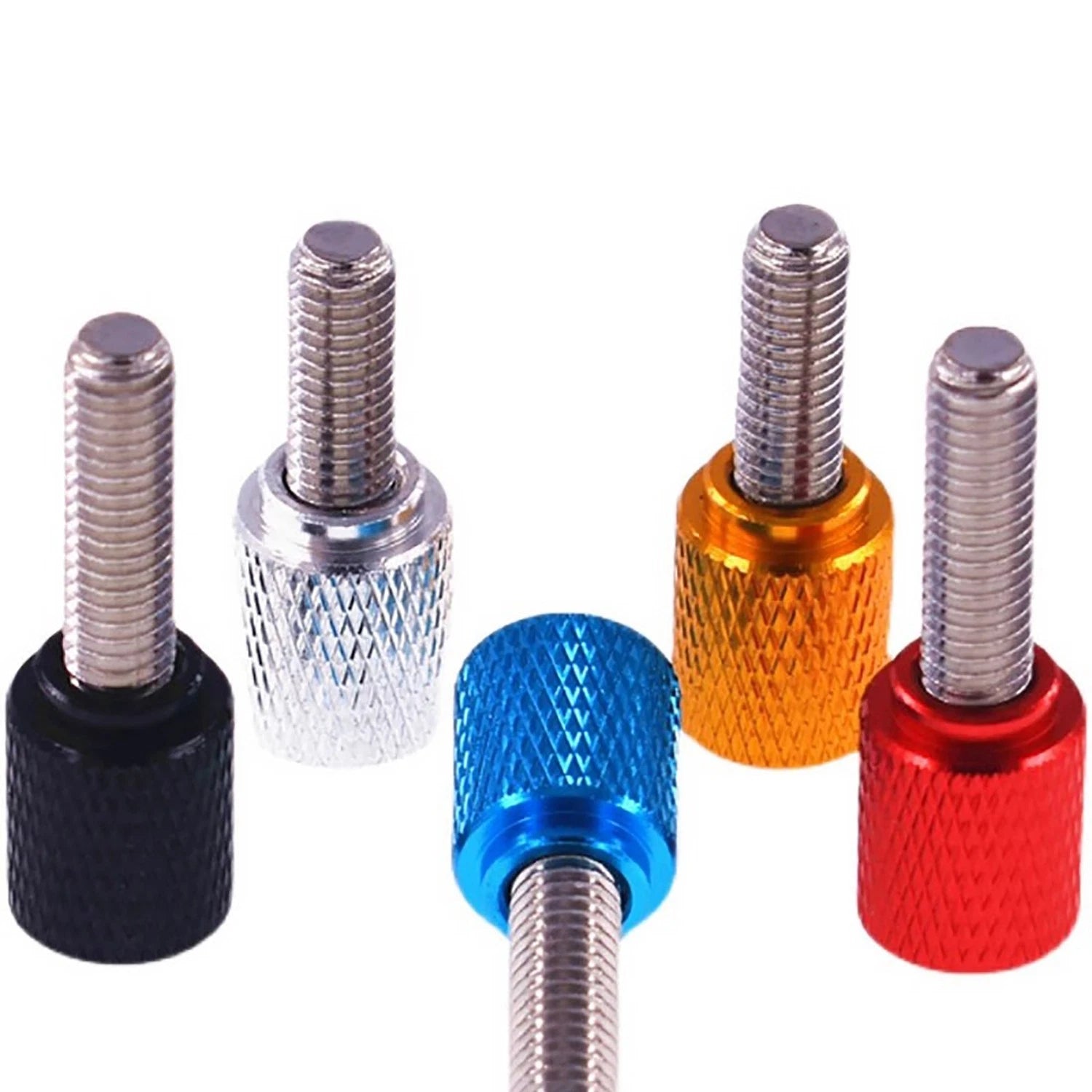

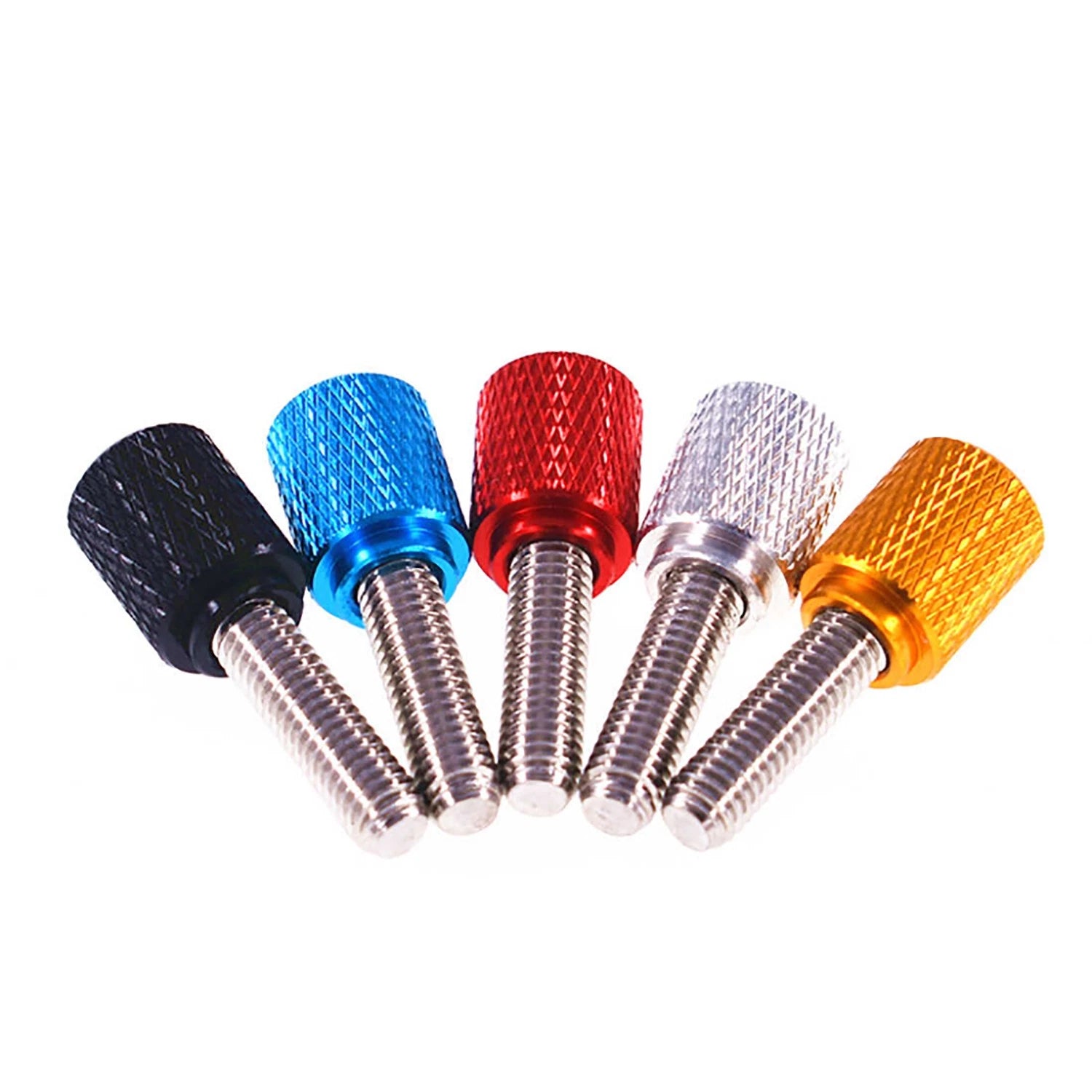

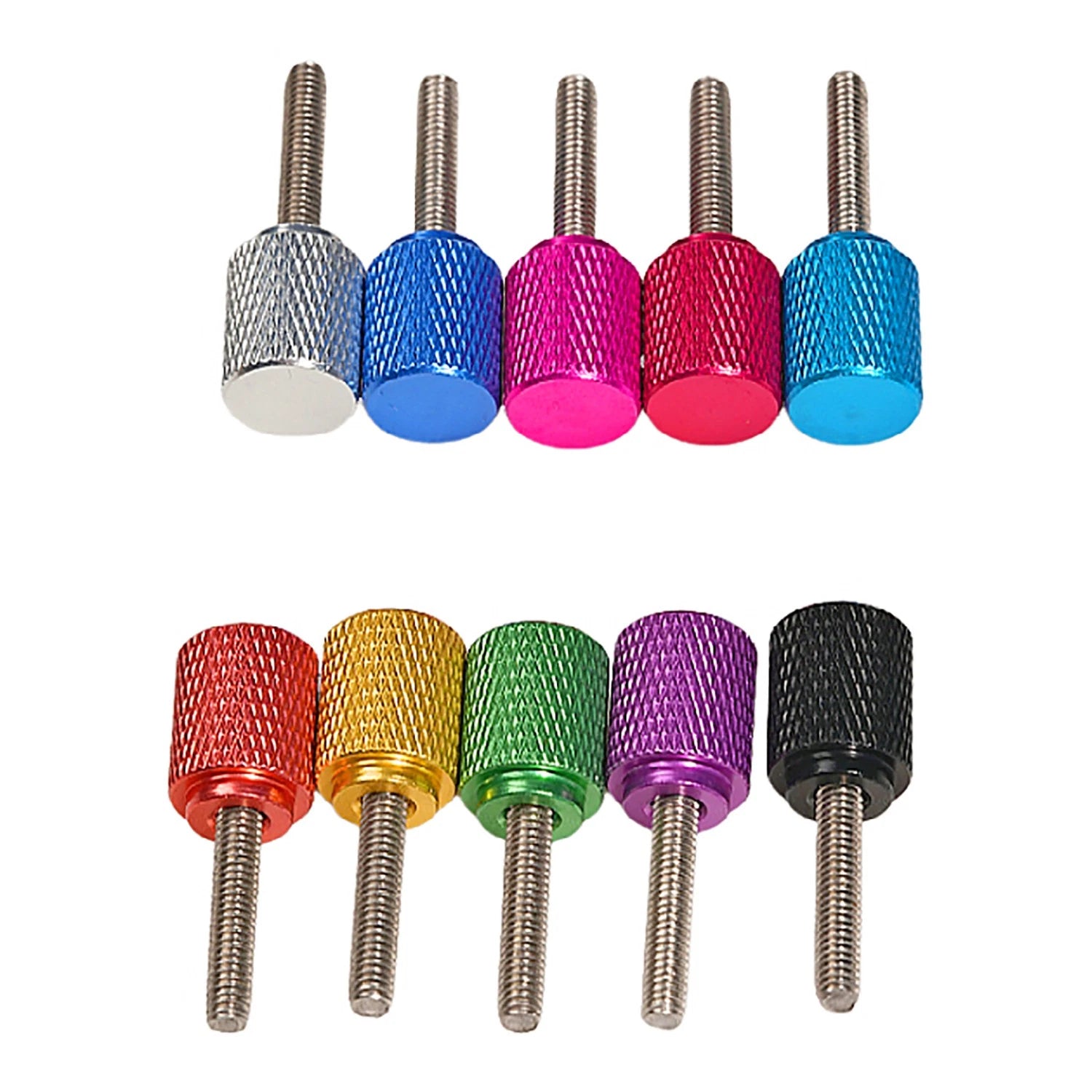

Yes — M4 knurled thumb screws are widely used in 3D printer frame panels (e.g., Voron, RatRig, and similar enclosed printers) and in rack-mount or desktop electronics enclosures where frequent access is needed. The colour options allow you to mark specific panels (e.g., all power-supply access points in black, all filament-path panels in a contrasting colour) for faster identification during maintenance.

Anodising adds a very thin oxide layer (typically 5–25 µm) to the aluminium head surface. This does not meaningfully affect the knurl grip pattern or the M4 thread dimensions on the stainless stud. All colour variants share the same mechanical dimensions; colour selection is purely aesthetic and functional for identification purposes.

Each pack contains 2 pieces. For a four-corner panel, order 2 packs of the same length and colour. For a six-point panel (common on larger enclosure lids), order 3 packs. If you are mixing lengths — for example, shorter screws on a thin top panel and longer screws on a thicker side panel — order each length separately to ensure the correct stud engagement at each location.
