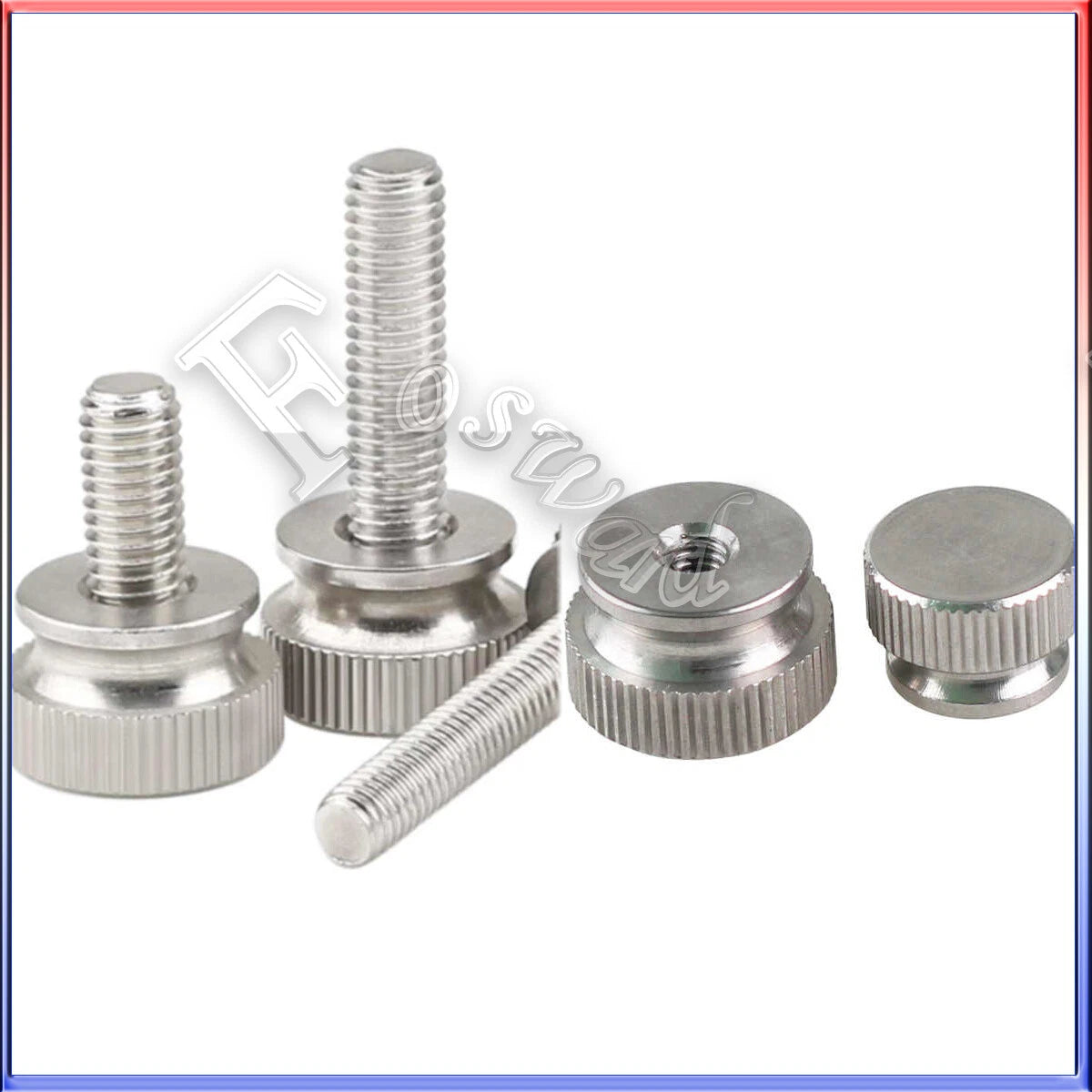

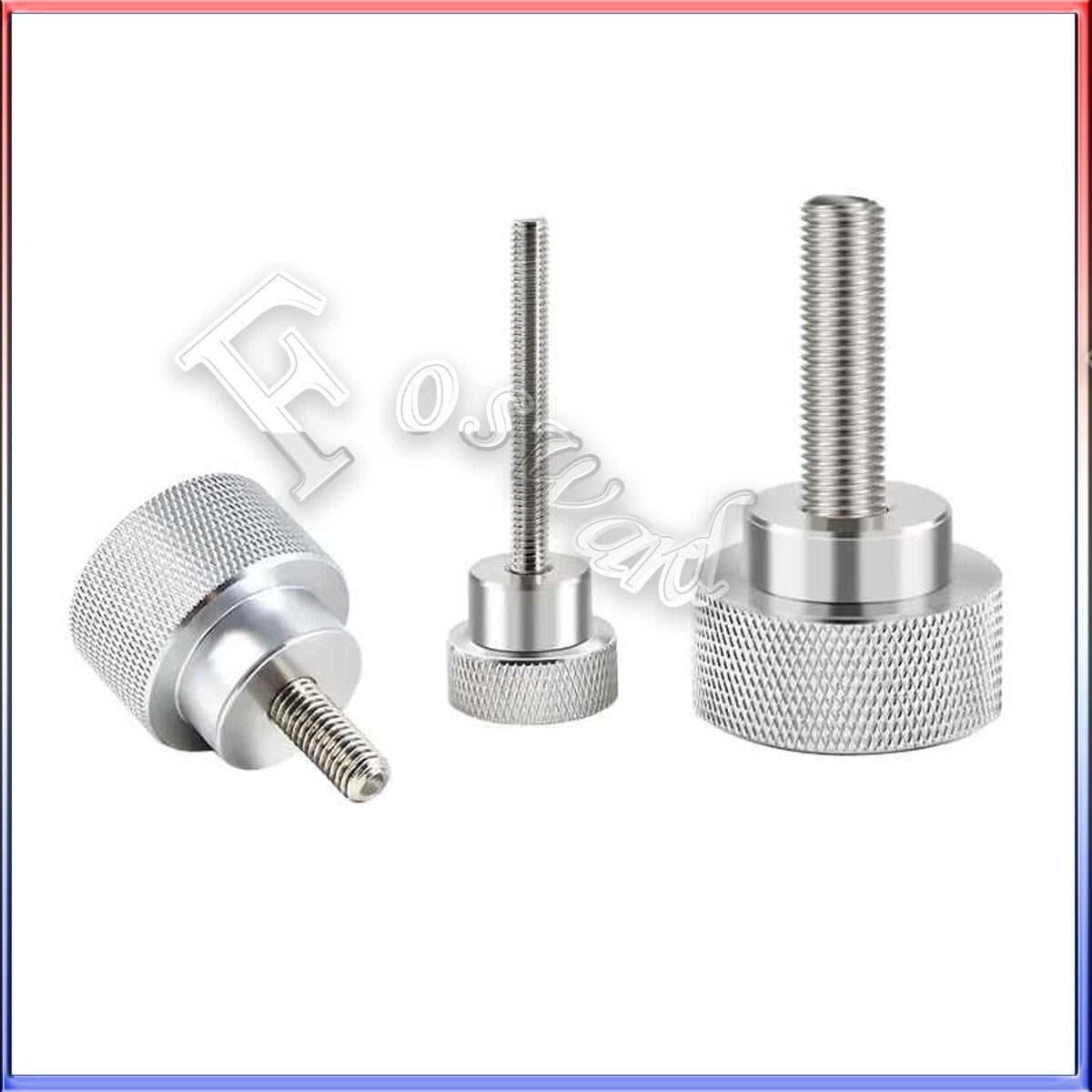

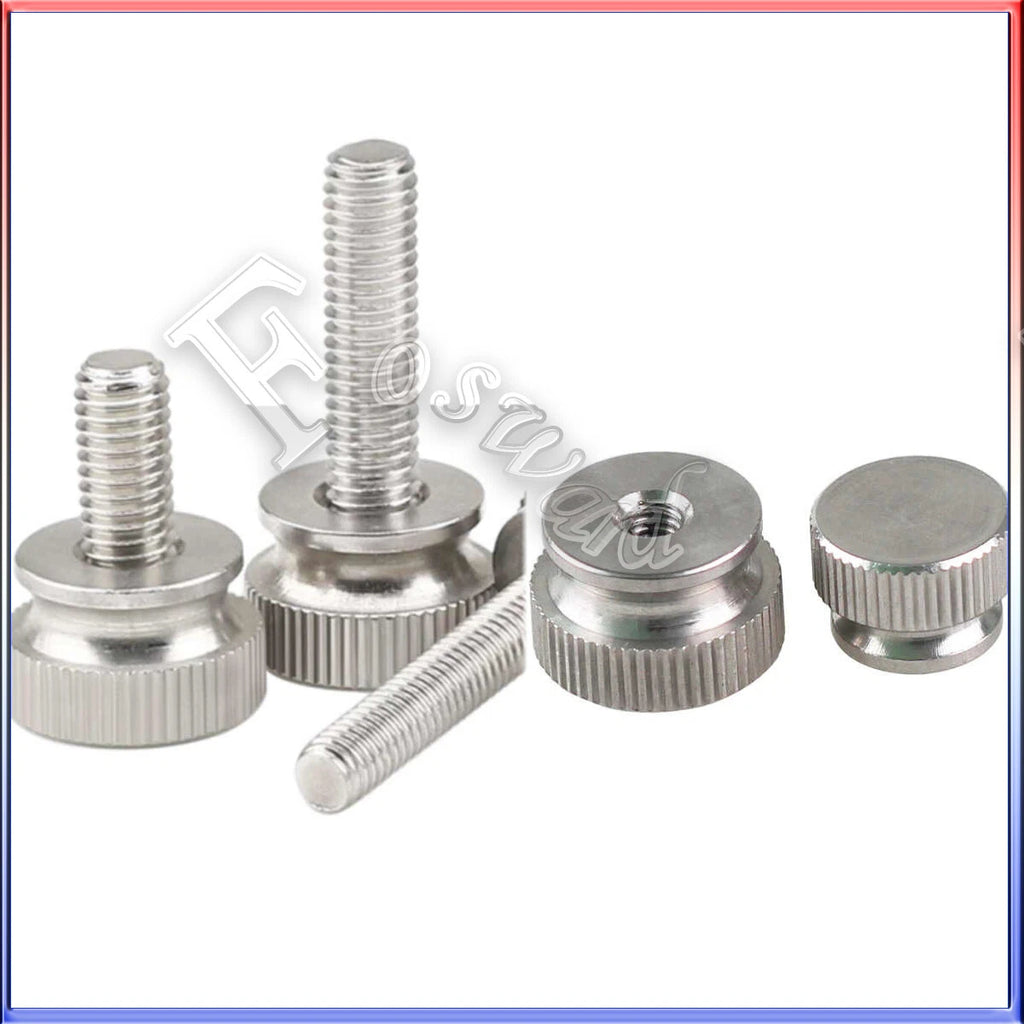

M6/8/10 Knurled Thumb Screws/ Nut Aluminum Hand Grip Knob Bolt For Camera Tripod

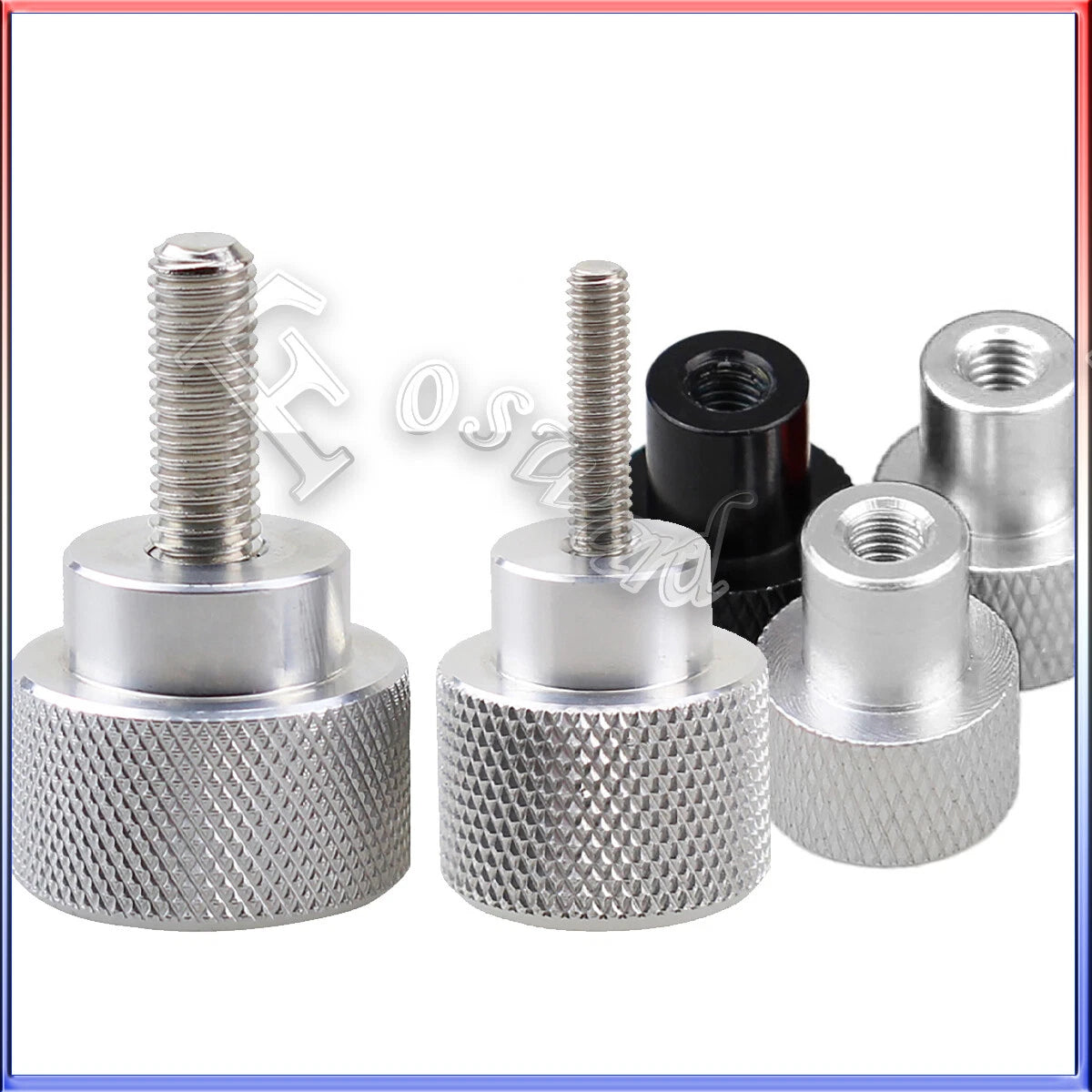

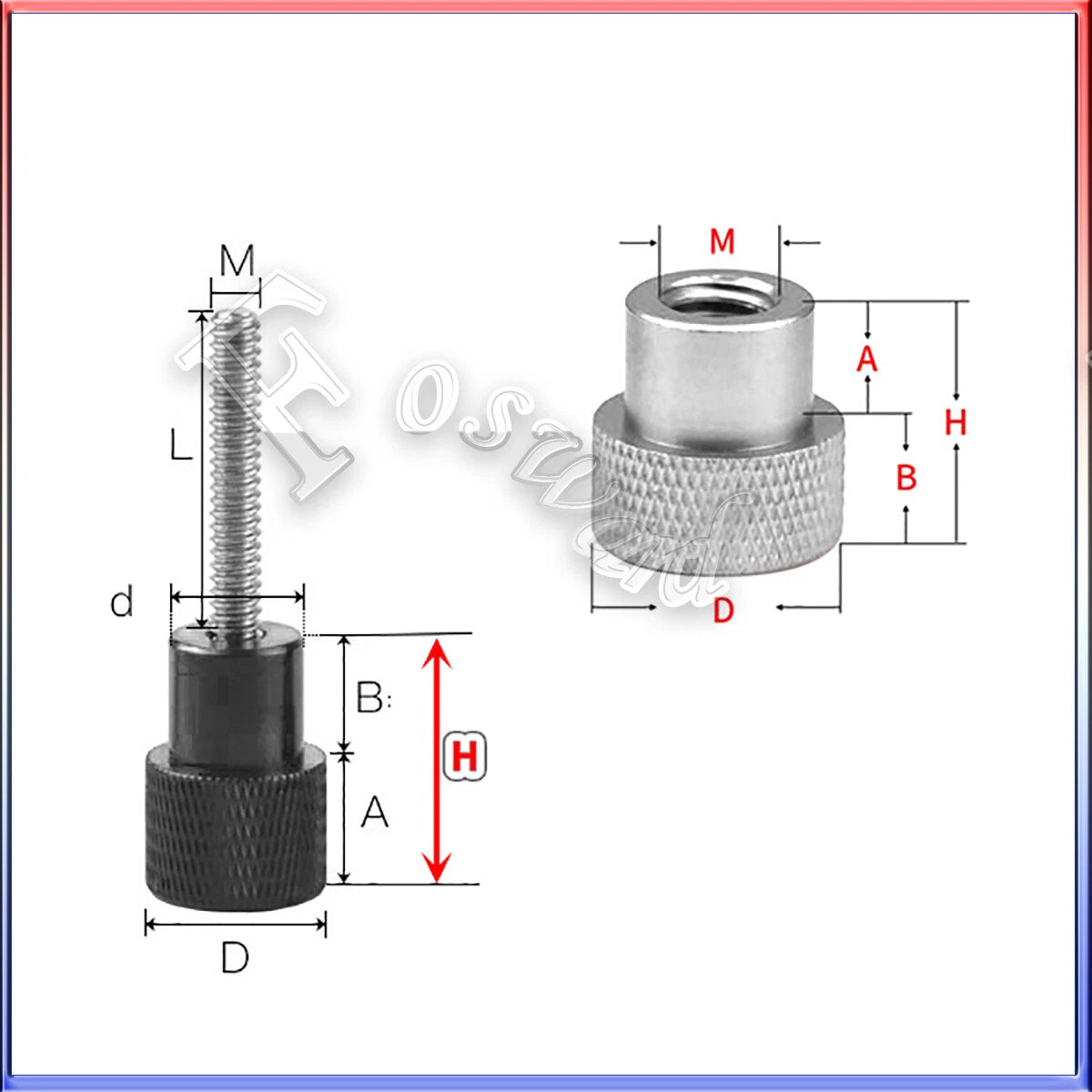

The D12 knob (12 mm / ~0.47 in outer diameter) is more compact and suits tight spaces such as 15 mm rod clamps or small camera accessories. The D20 knob (20 mm / ~0.79 in outer diameter) provides a larger grip surface, making it easier to apply more torque by hand — ideal for heavier fixtures, CNC clamping knobs, or any application where you need a more secure hand-tight connection.

The Screw variant has a fully threaded shank that passes through a clearance hole and mates with a separate nut or tapped hole. The Nut (Blind hole) variant has an internal threaded pocket that does not pass all the way through the knob body — it is designed to receive a bolt or stud from one side, giving a clean, flush appearance on the opposite face. Choose the nut variant when you want to cap the end of a threaded rod or stud without a protruding thread.

Yes. Aluminum alloy knurled thumb screws are the standard fastener type used on camera tripod quick-release plates, ball heads, and accessory rails. They are designed for hand-tight clamping loads typical of photographic and video equipment. They are not intended for high-torque structural applications where steel fasteners would be required. For heavy-duty industrial clamping, contact us to confirm suitability.

The silver-white anodized finish provides a protective oxide layer that resists surface corrosion in typical outdoor conditions such as light rain, humidity, and UV exposure. Anodized aluminum performs well in most photography and maker environments. For prolonged exposure to salt spray or harsh chemicals, additional protective measures would be advisable.

Measure the total thickness of the material(s) you are clamping, then add the engagement depth of your tapped hole or nut (typically 1× to 1.5× the thread diameter for aluminum). For example, clamping two 10 mm aluminum plates with an M6 thread would typically require a screw length of at least 20–29 mm. Available lengths range from 10 mm to 135 mm — select the variant that gives you adequate thread engagement without excessive protrusion.

No. Thread sizes are not interchangeable. M6, M8, and M10 refer to the nominal thread diameter and each has a distinct pitch and thread form. Always match the screw thread size to the tapped hole or mating nut thread size. Mixing sizes will damage threads and result in an insecure connection.

For a single camera rig or prototype, the 1-piece or 3-piece pack is typically sufficient. For a small production run or workshop stock, the 5-piece or 10-piece pack offers a lower per-unit cost. All pack sizes ship the same fastener — only the quantity differs.
