Male NPT Hose Barb Adapter — Leak-Free 316L Stainless Steel Fittings for Demanding Lines

When a leaking hose connection shuts down a pump, corrodes a panel, or contaminates a fluid system, the fitting is almost always to blame. Contractors, marine technicians, industrial maintenance crews, and serious DIYers who work with water, fuel, or chemical lines need a male NPT hose barb adapter that holds tight under pressure and resists corrosion for the long haul — not a zinc or brass fitting that pits out in a season.

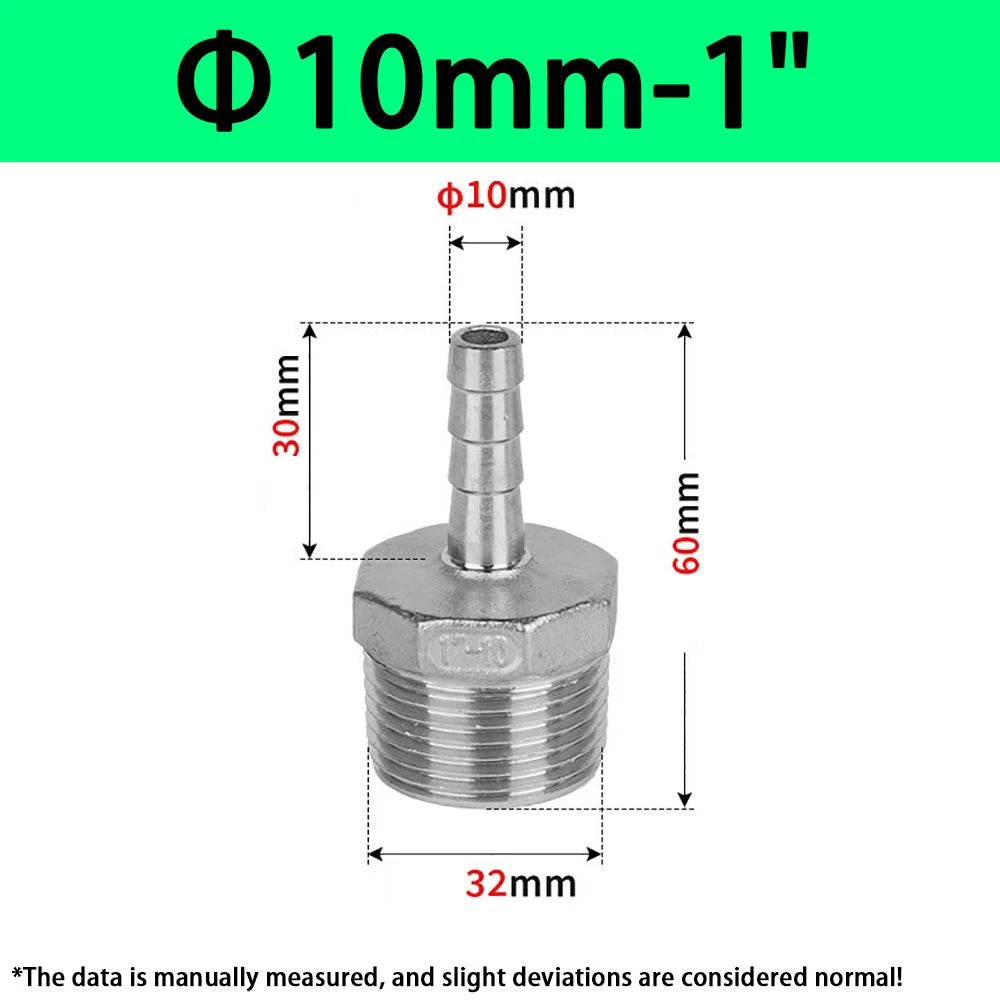

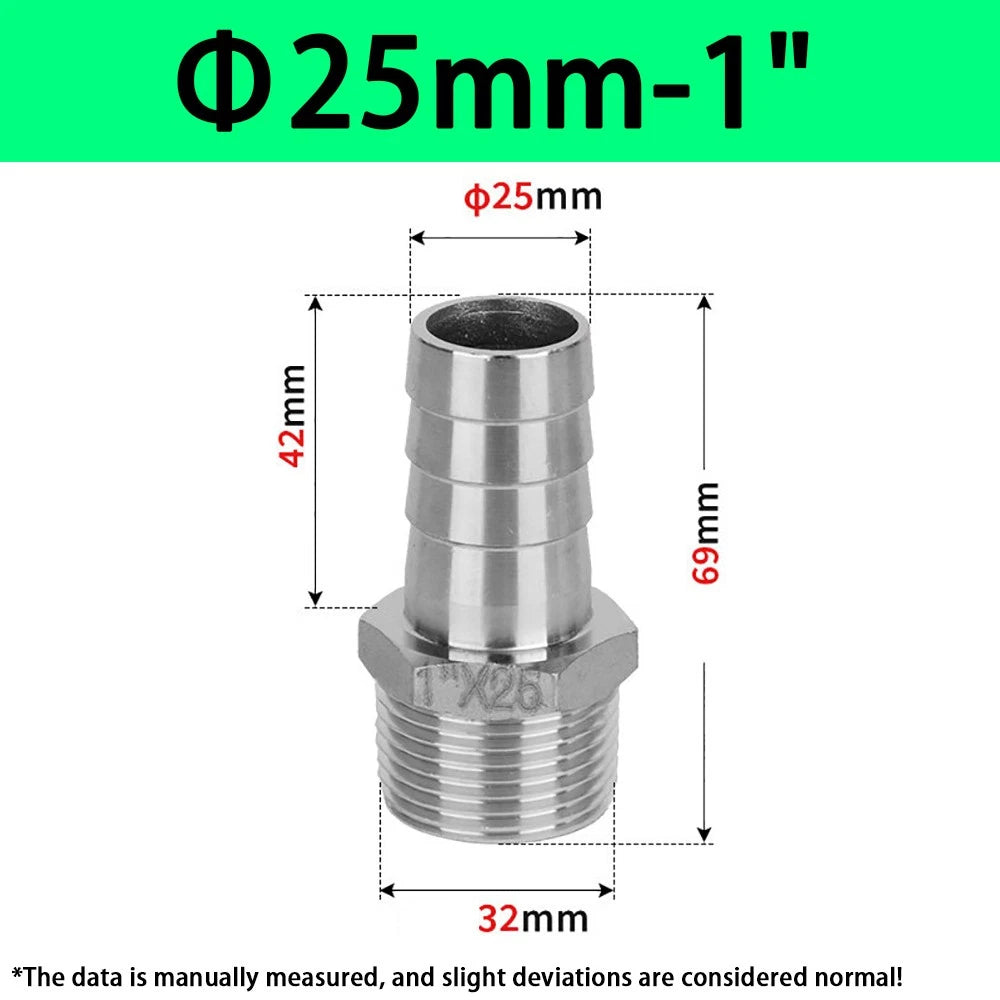

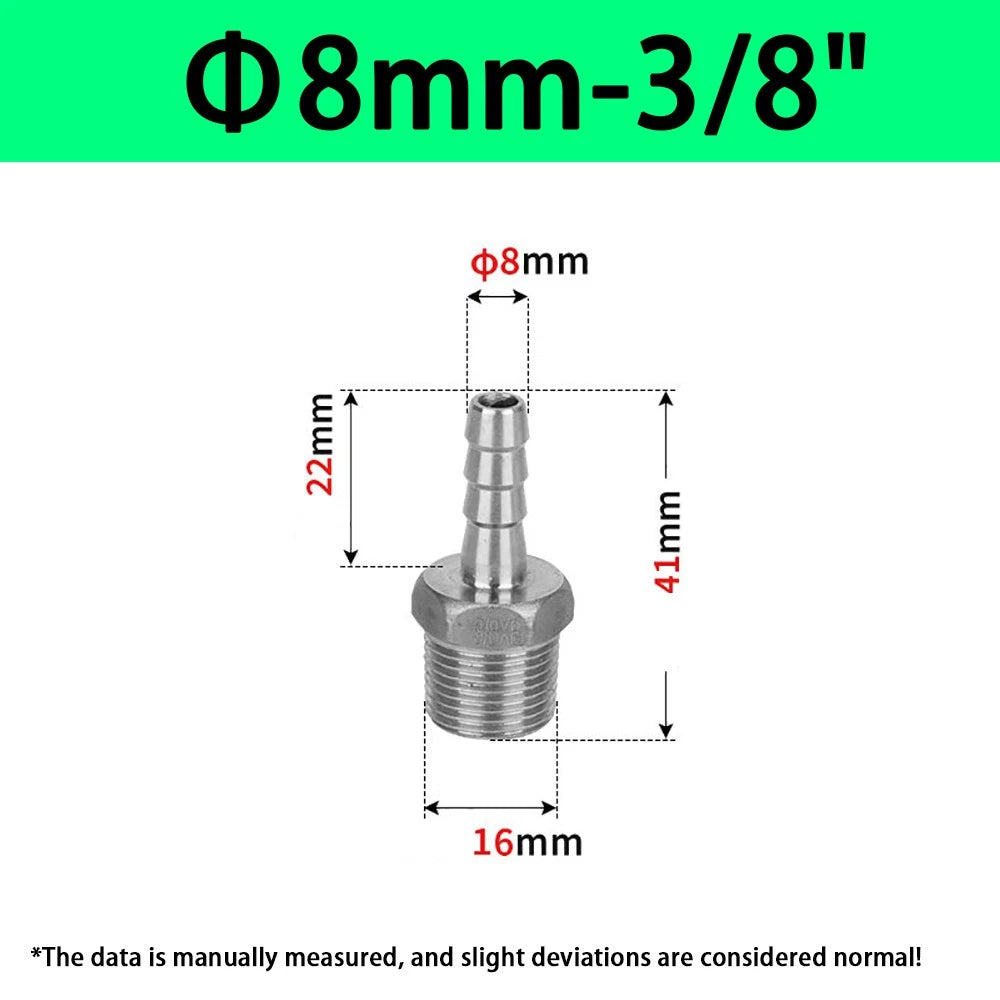

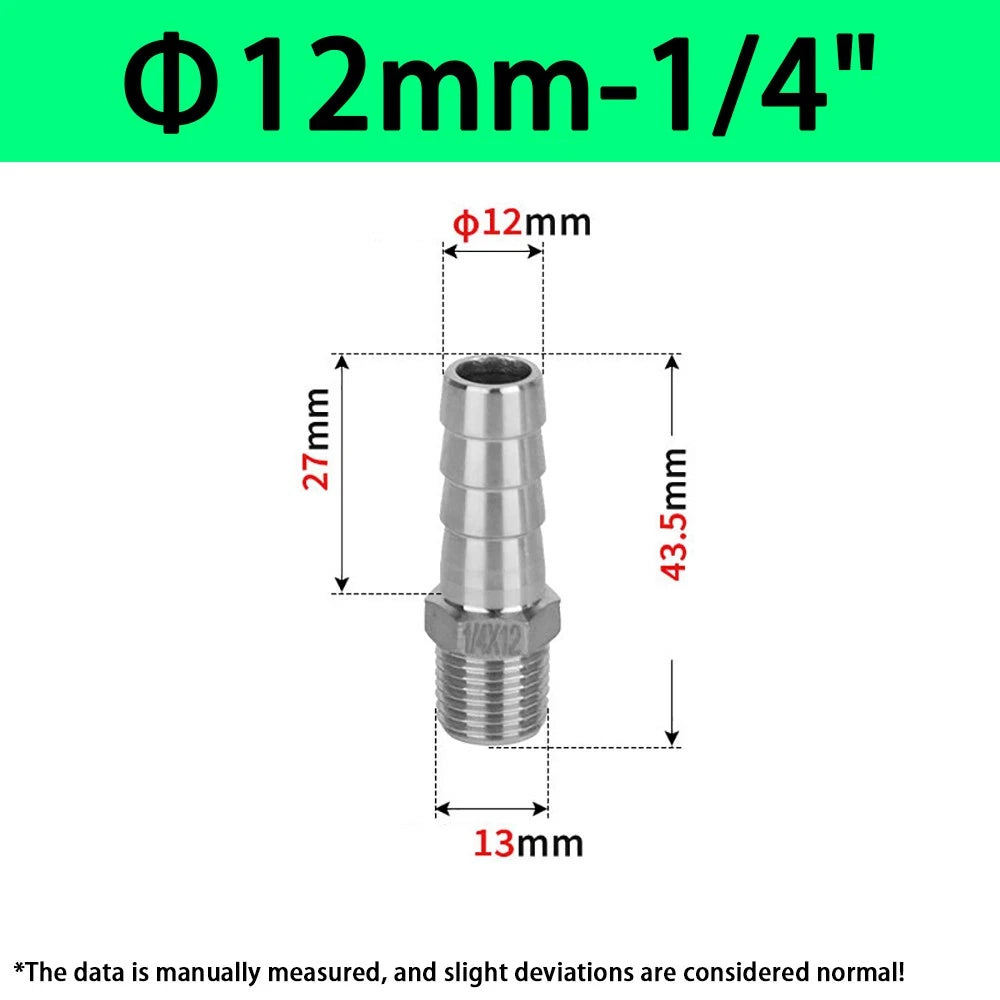

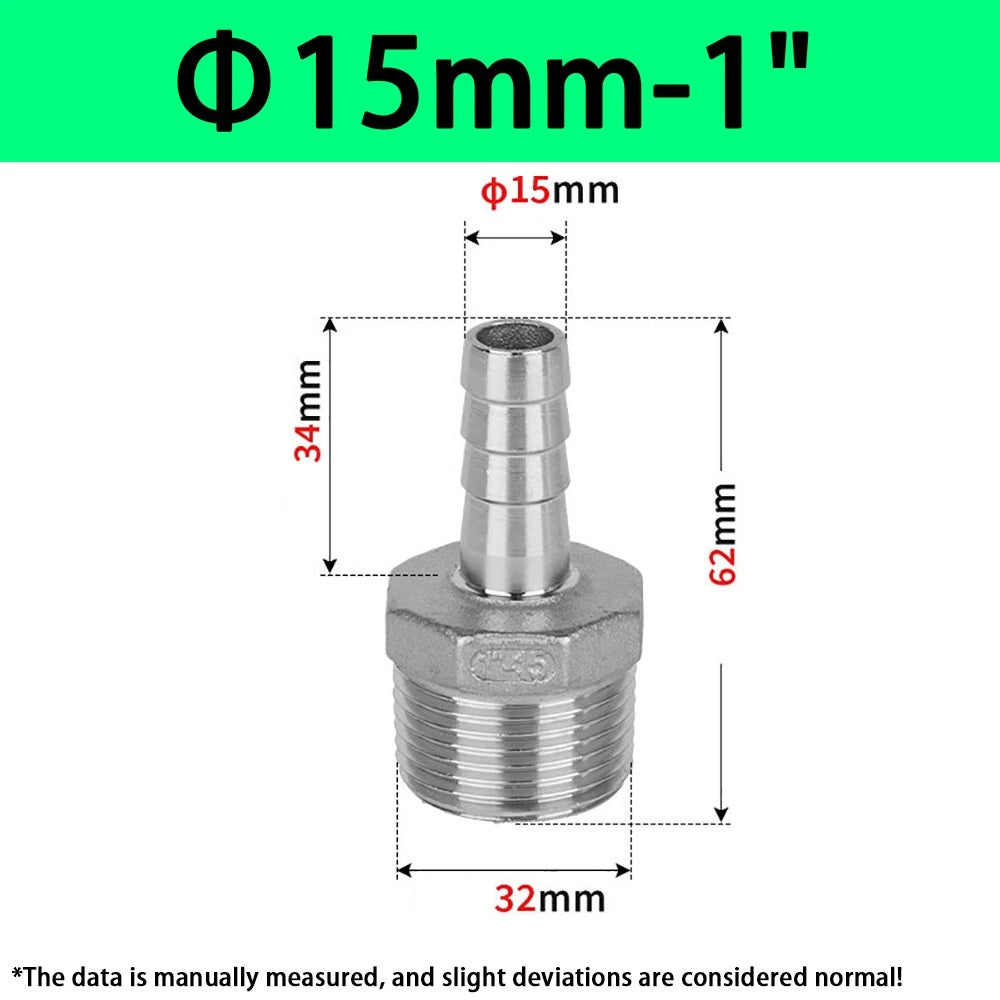

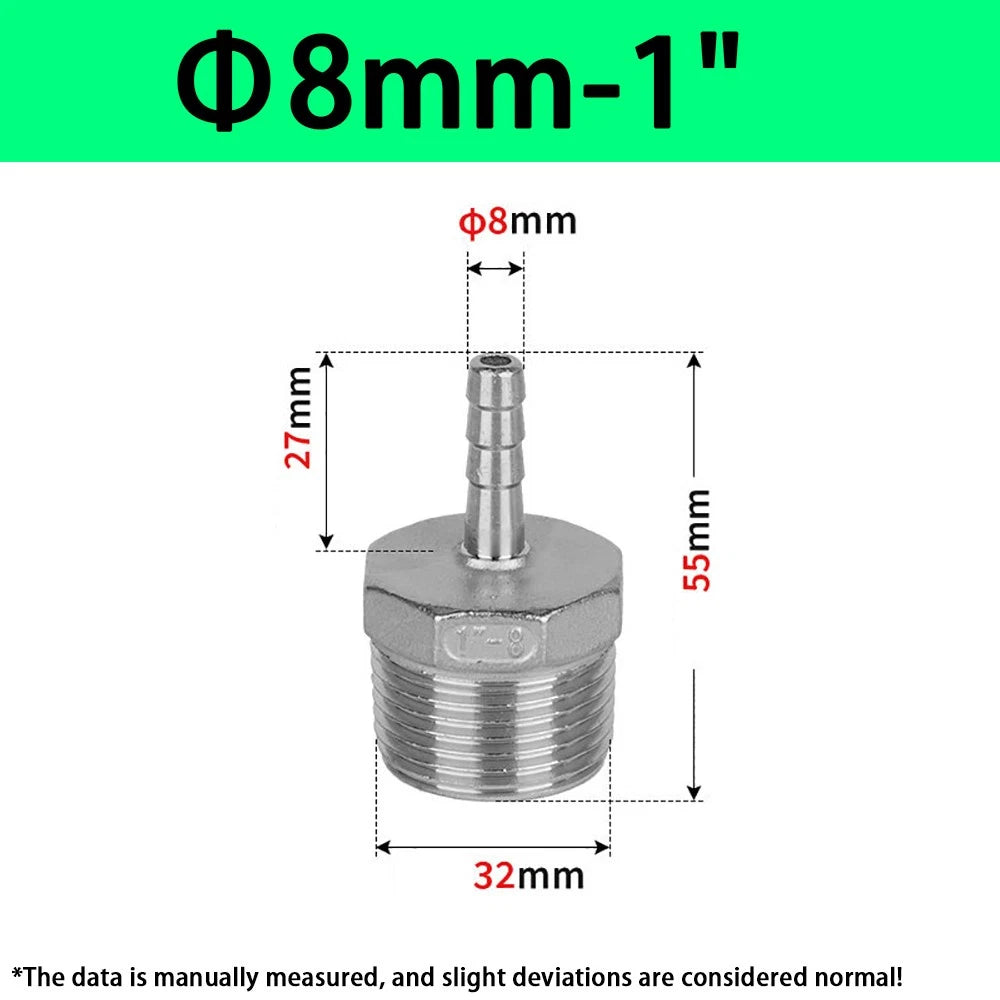

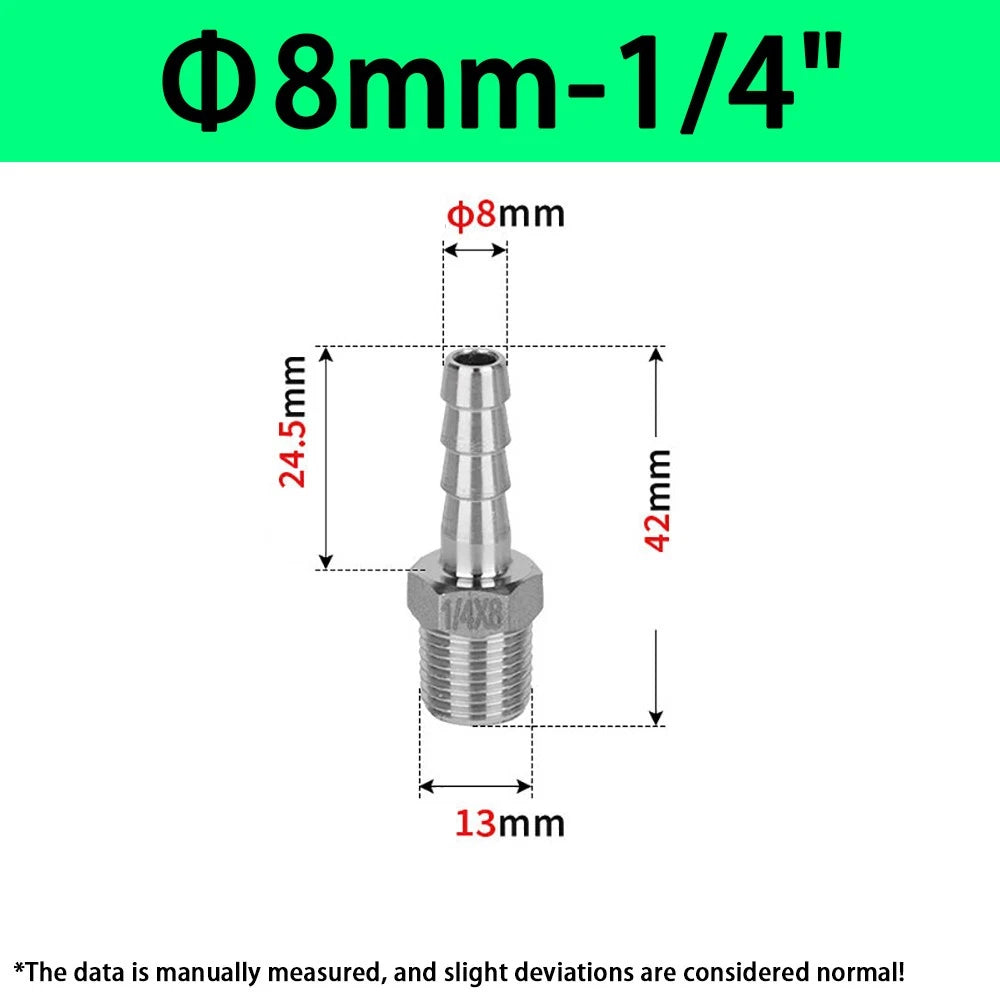

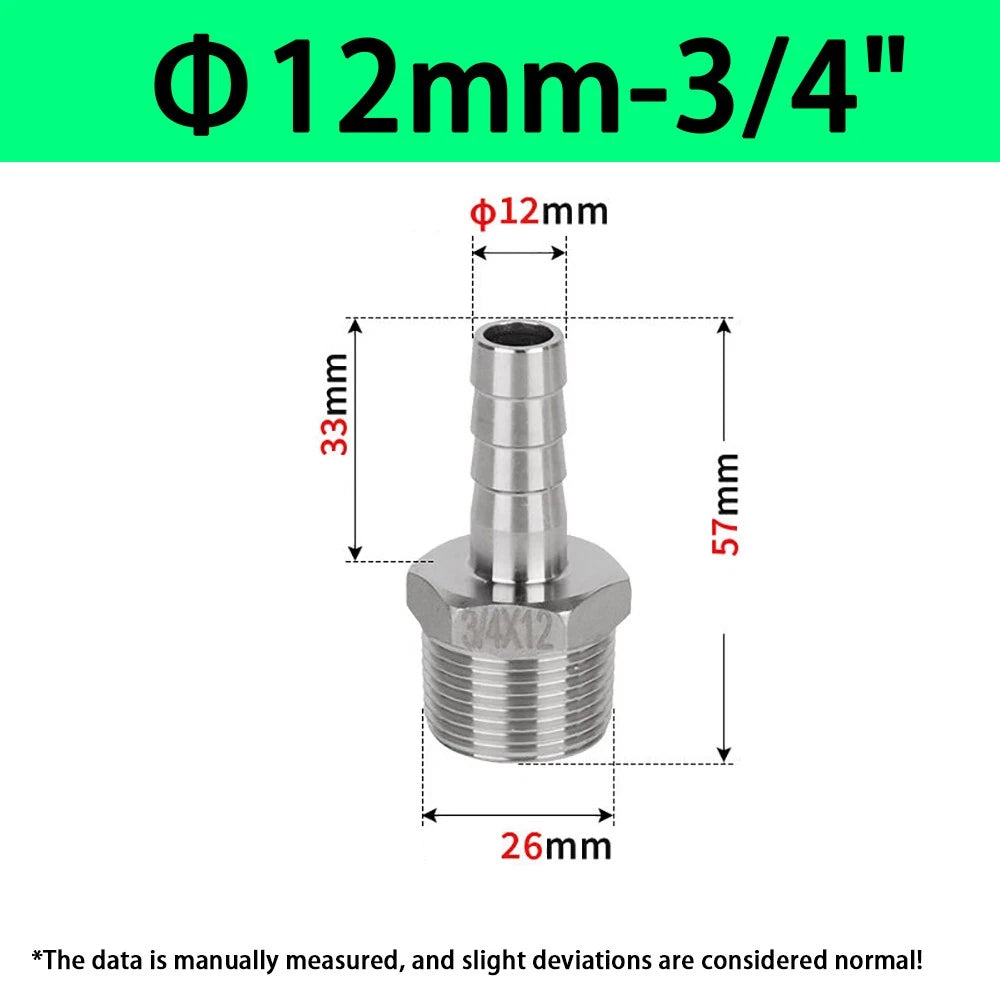

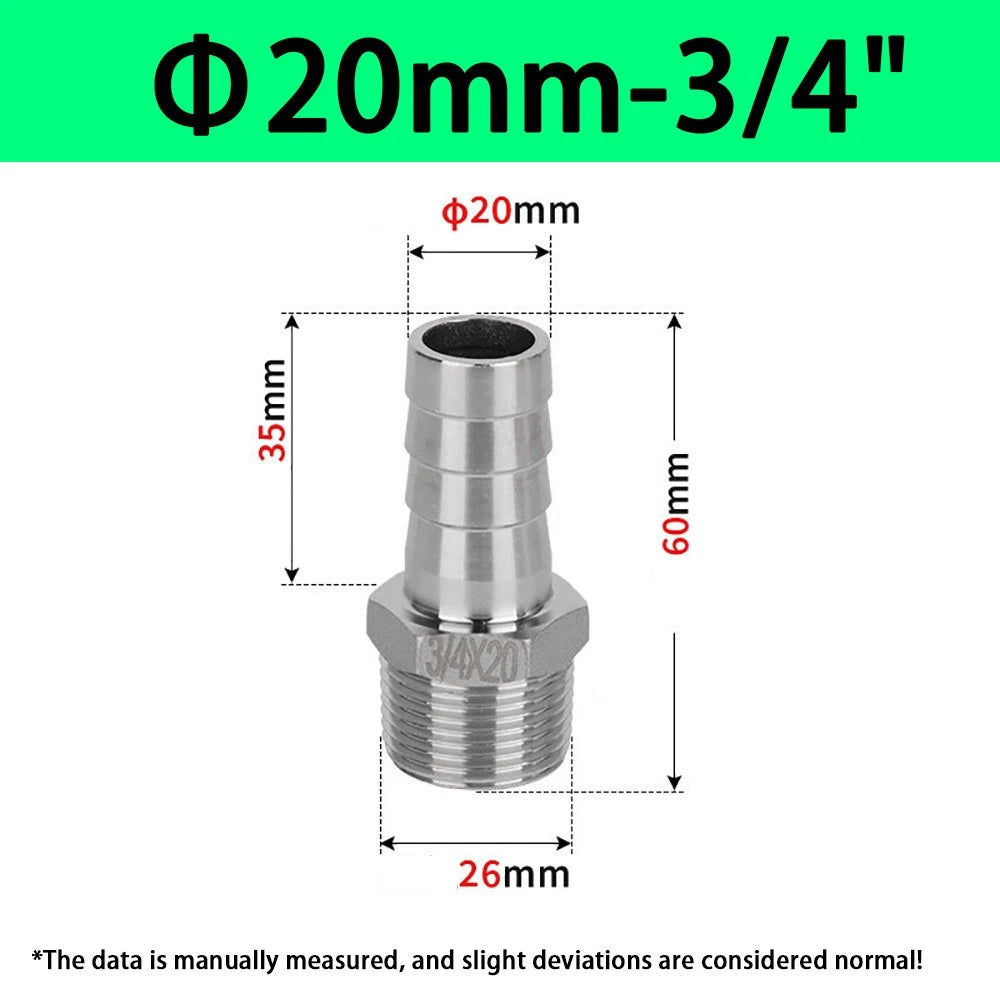

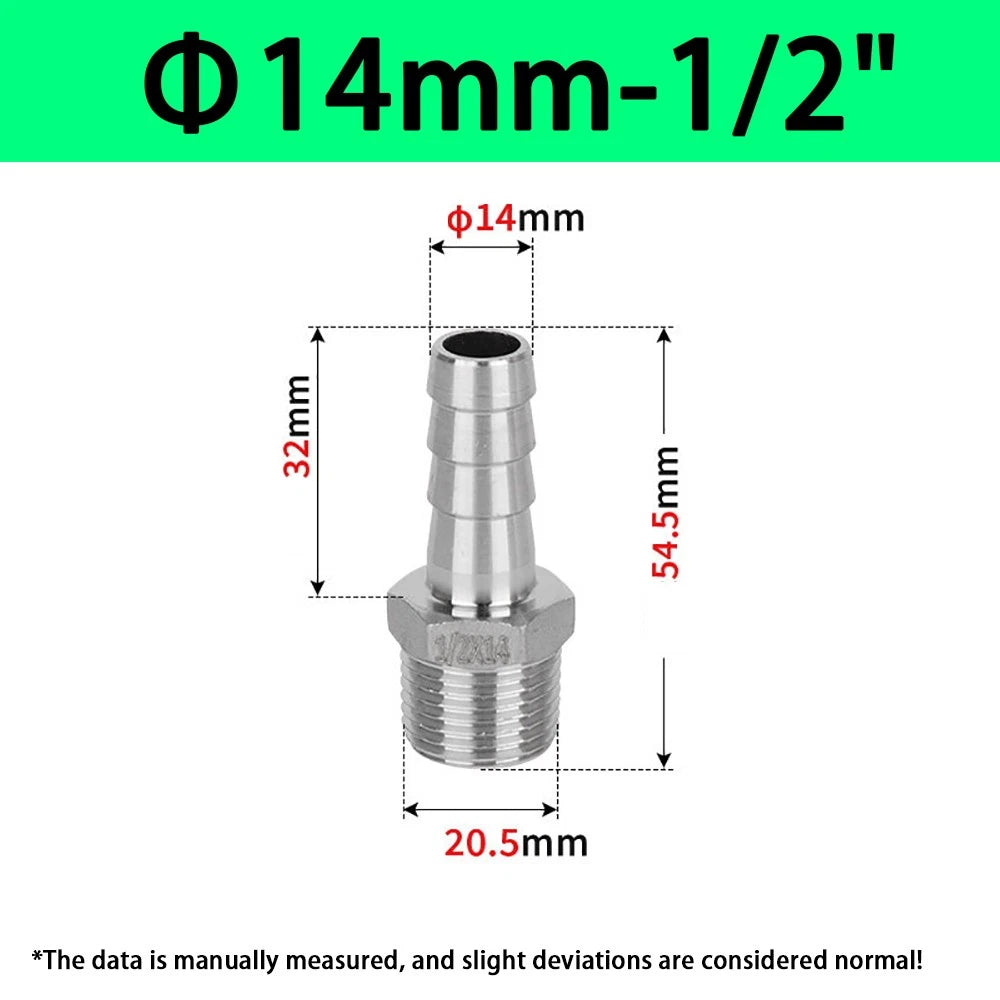

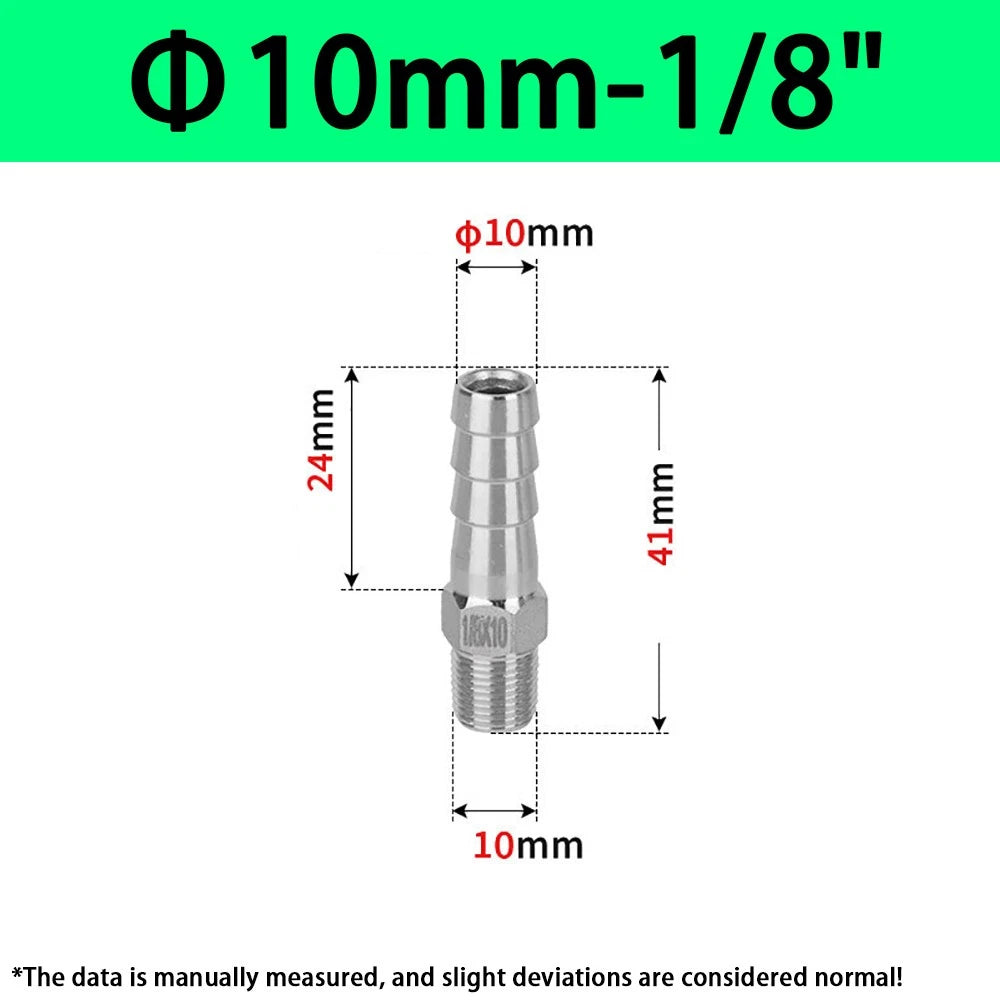

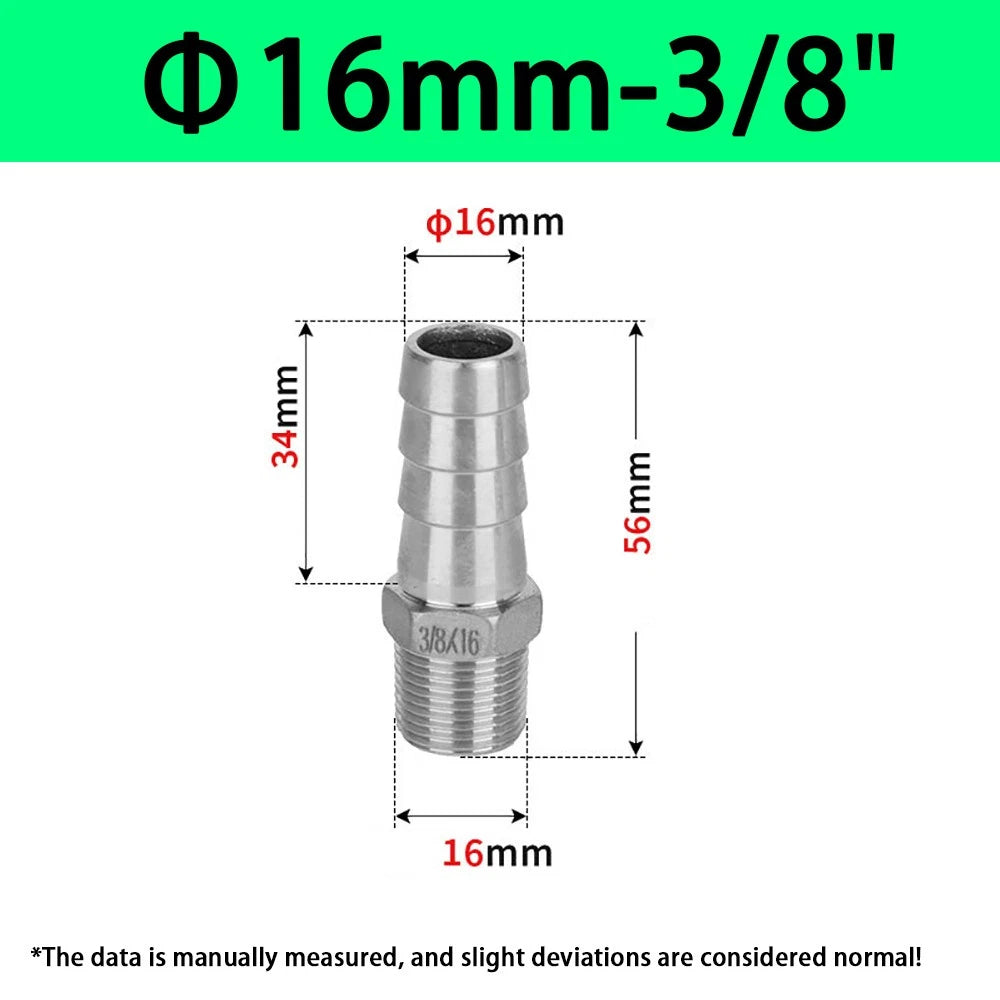

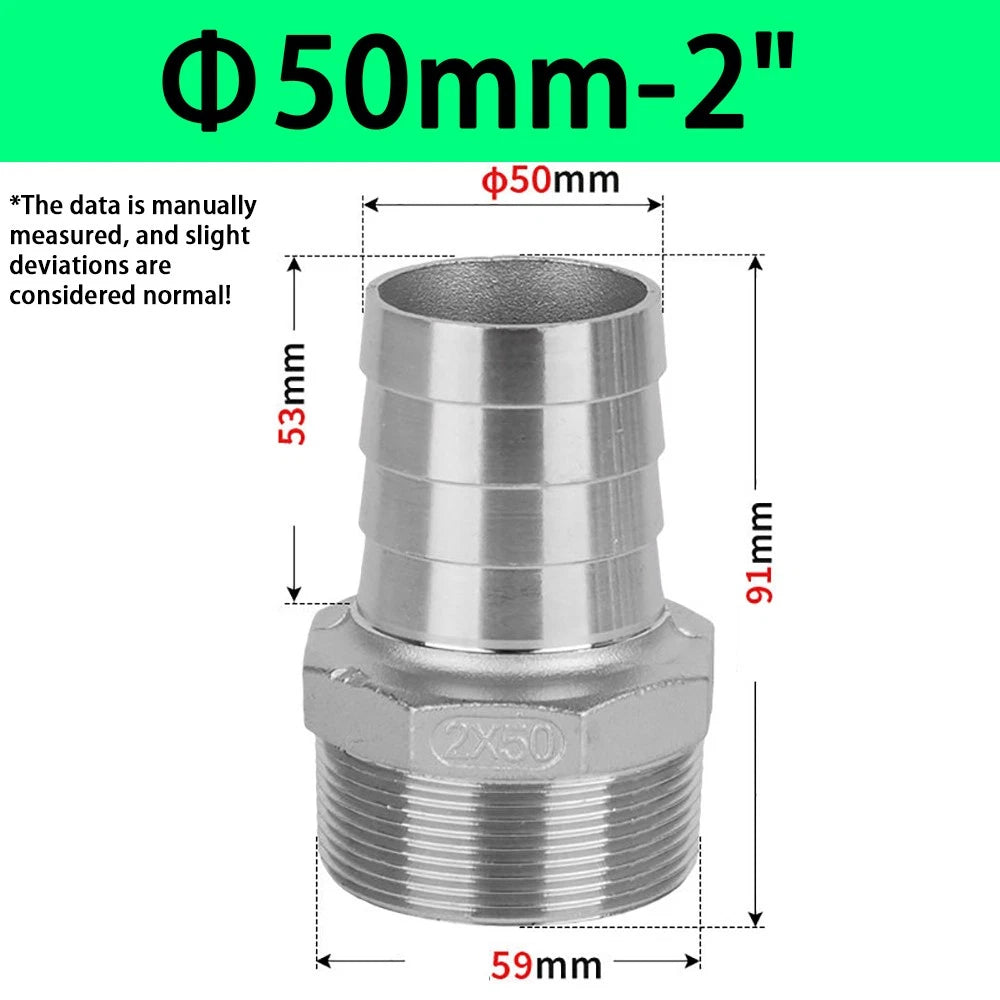

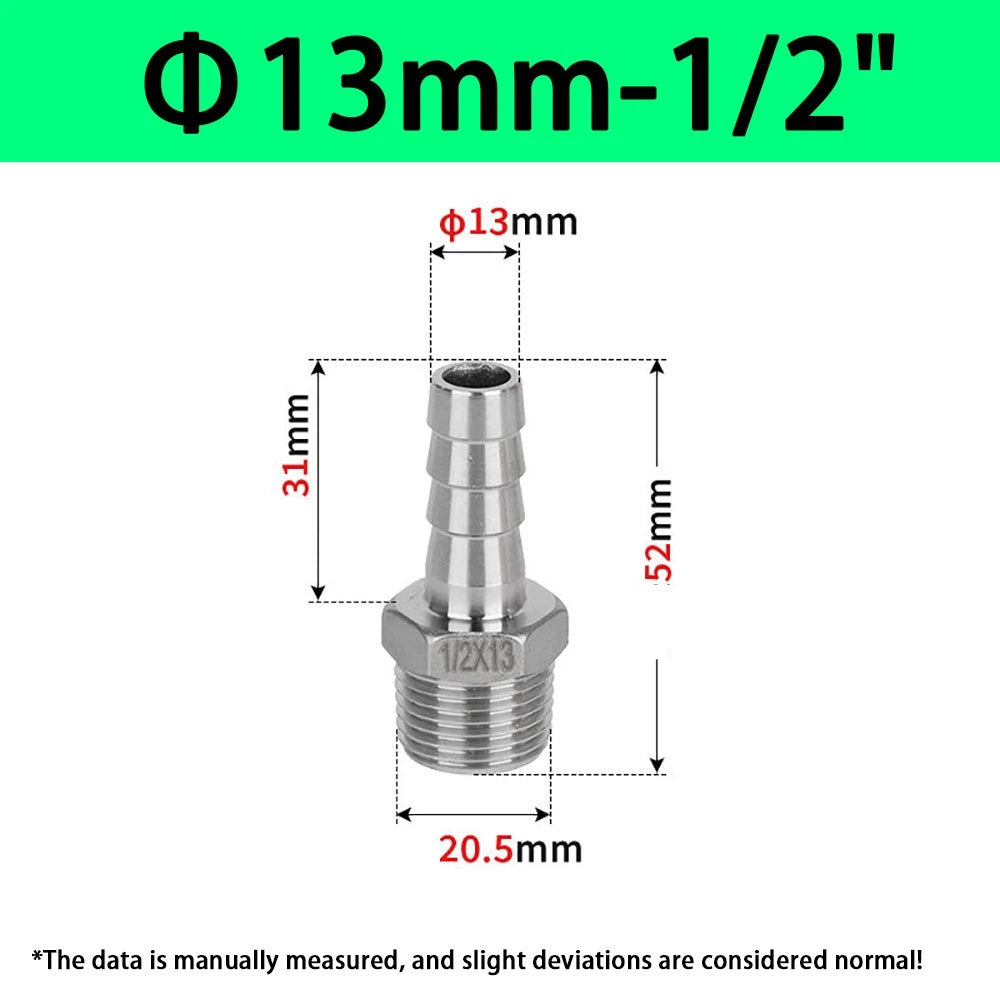

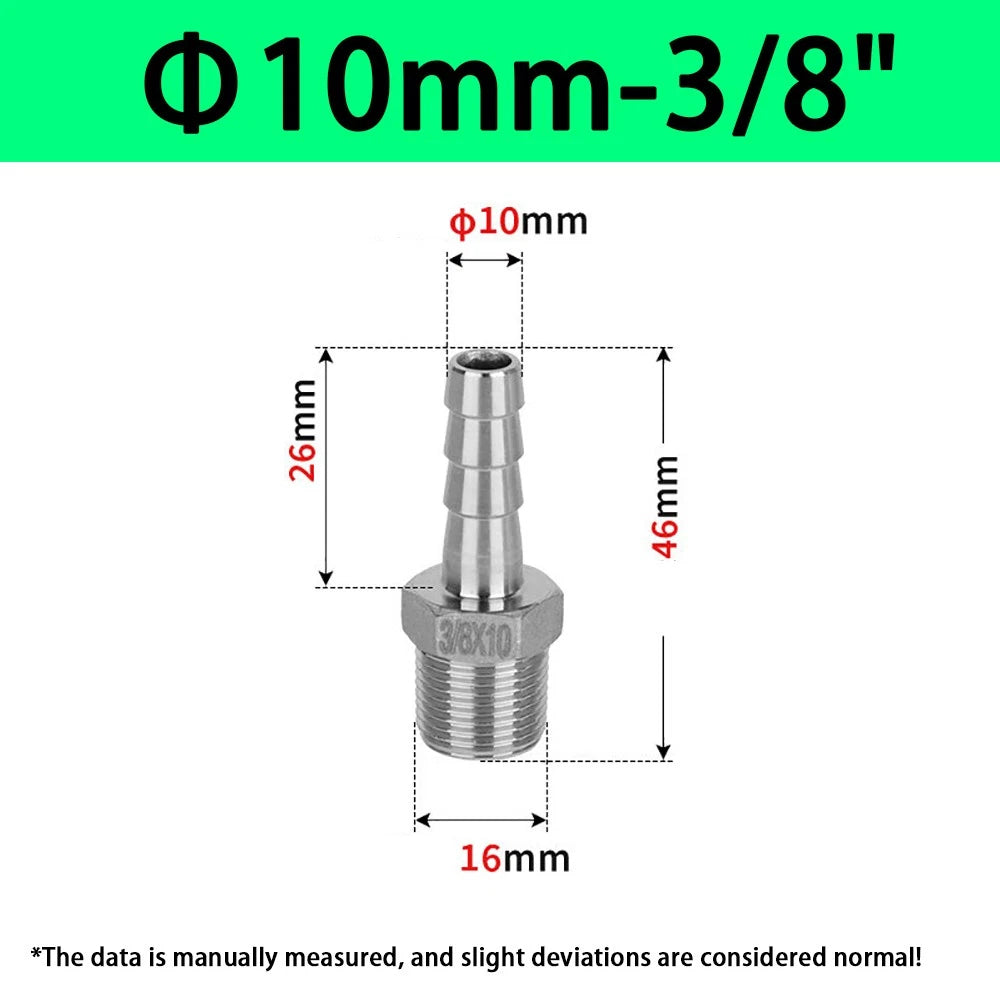

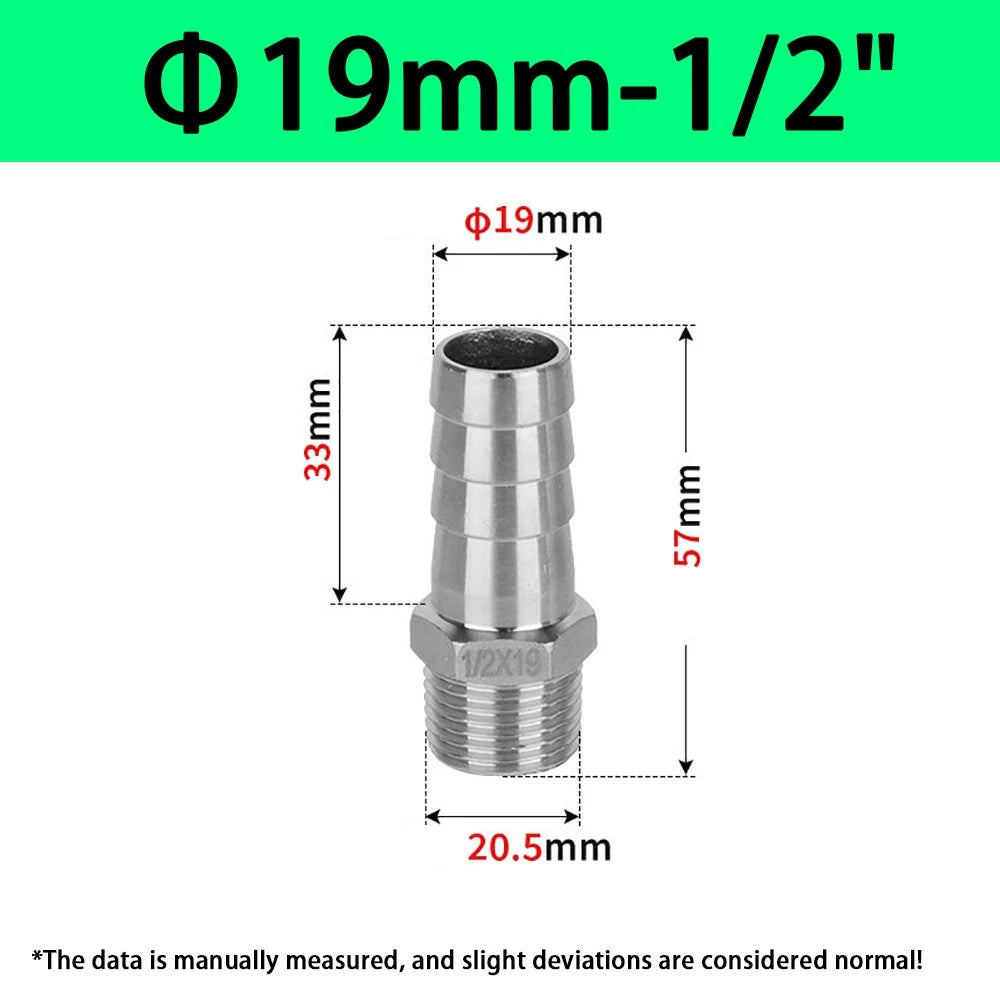

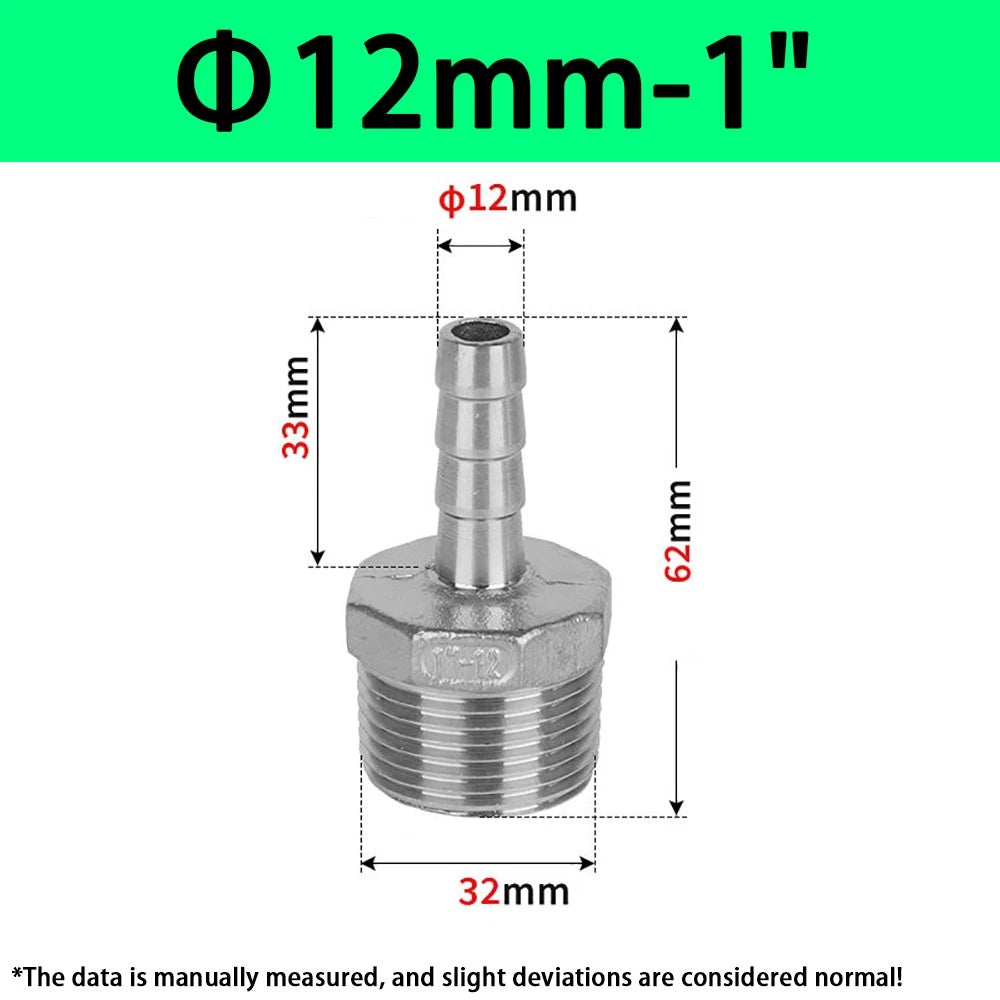

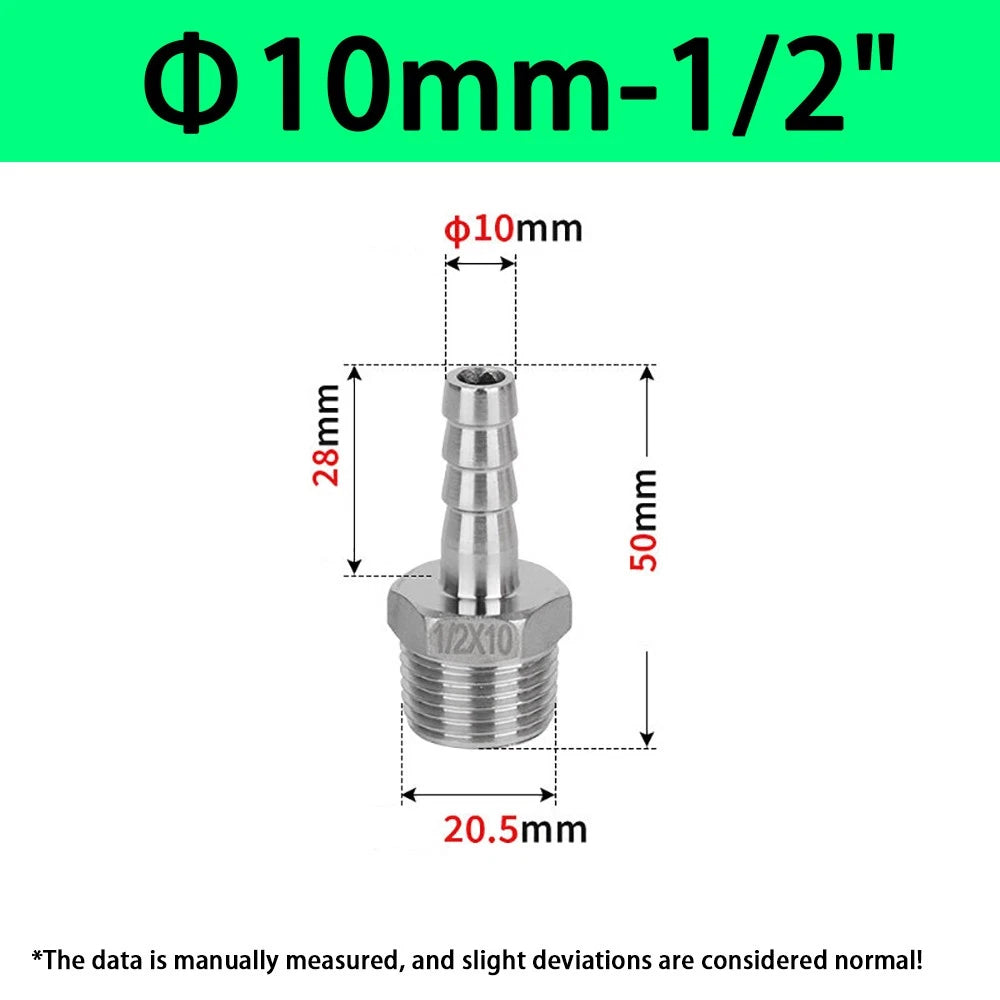

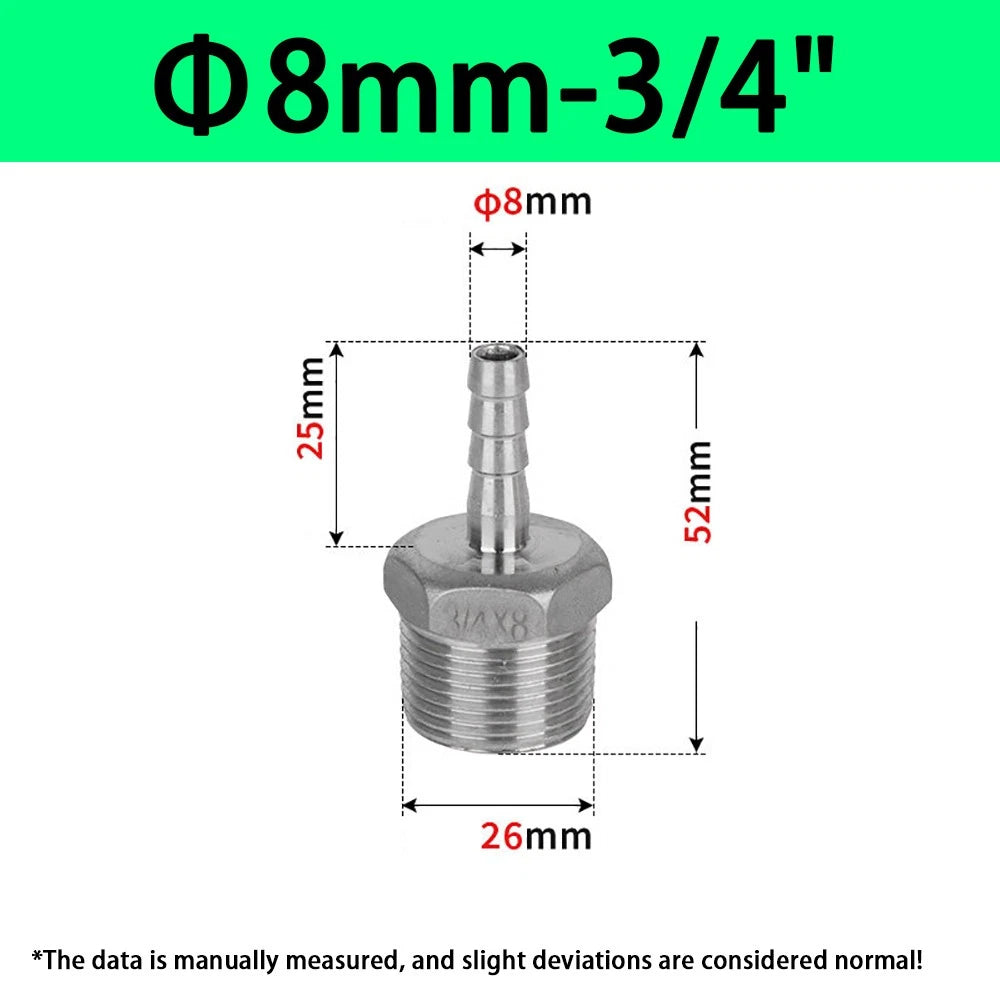

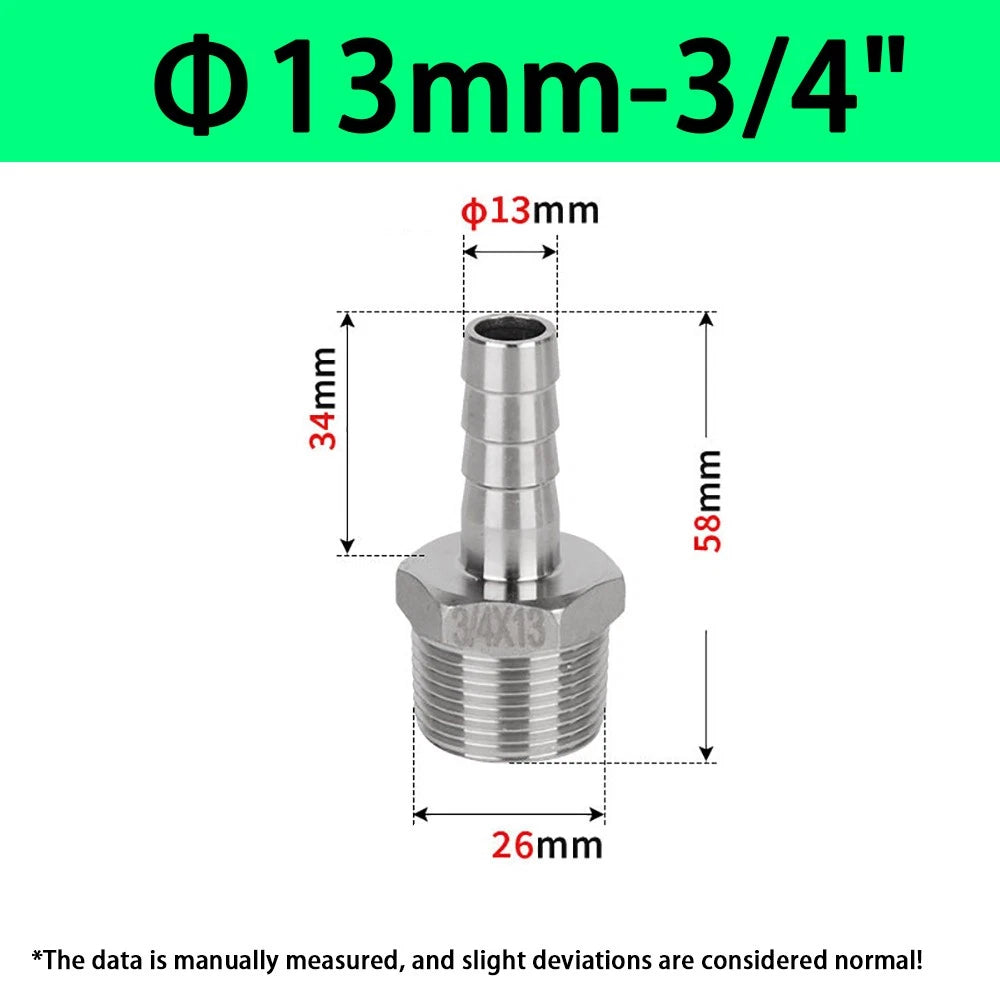

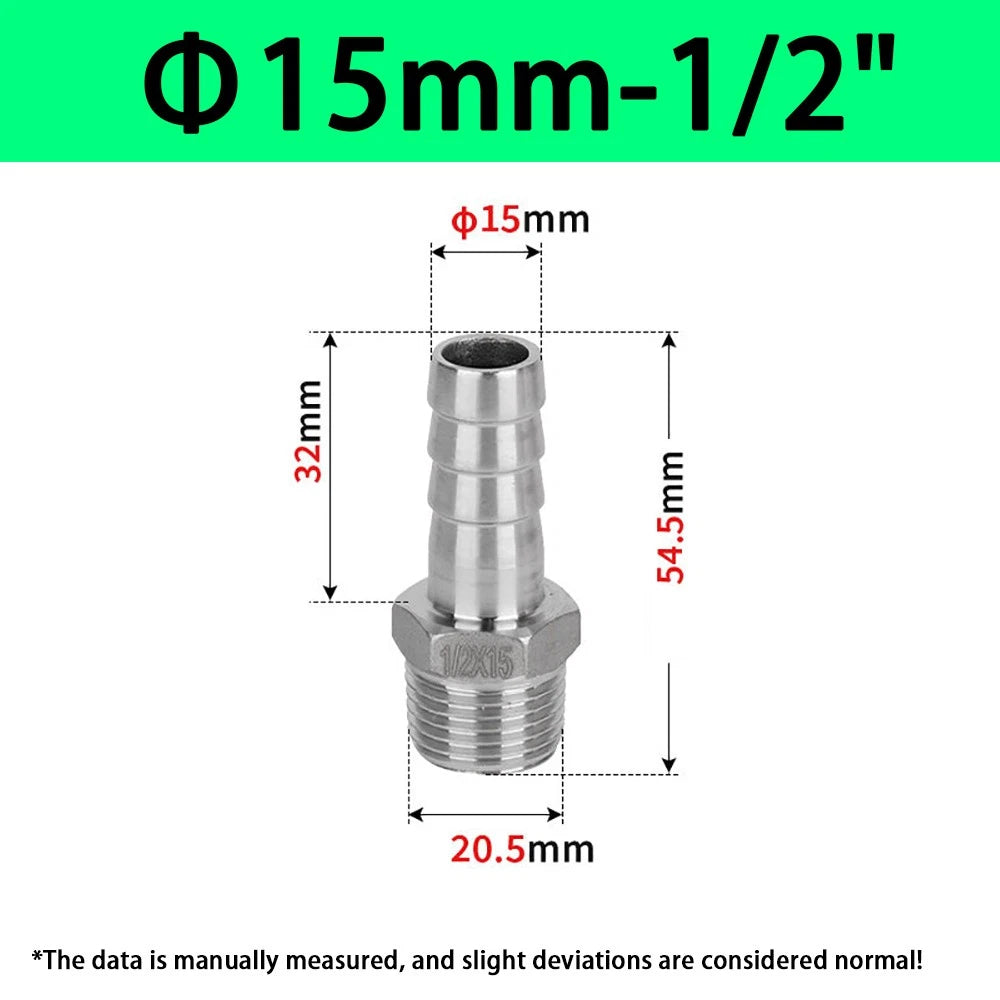

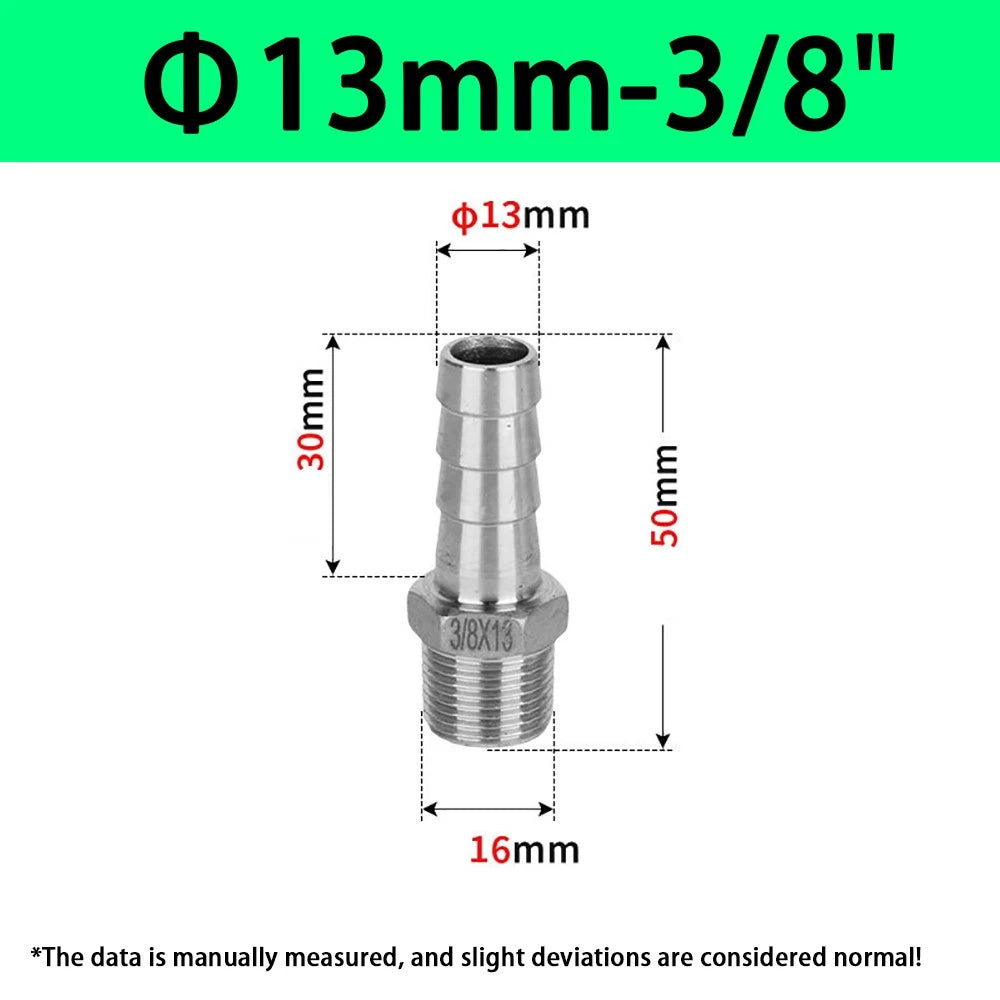

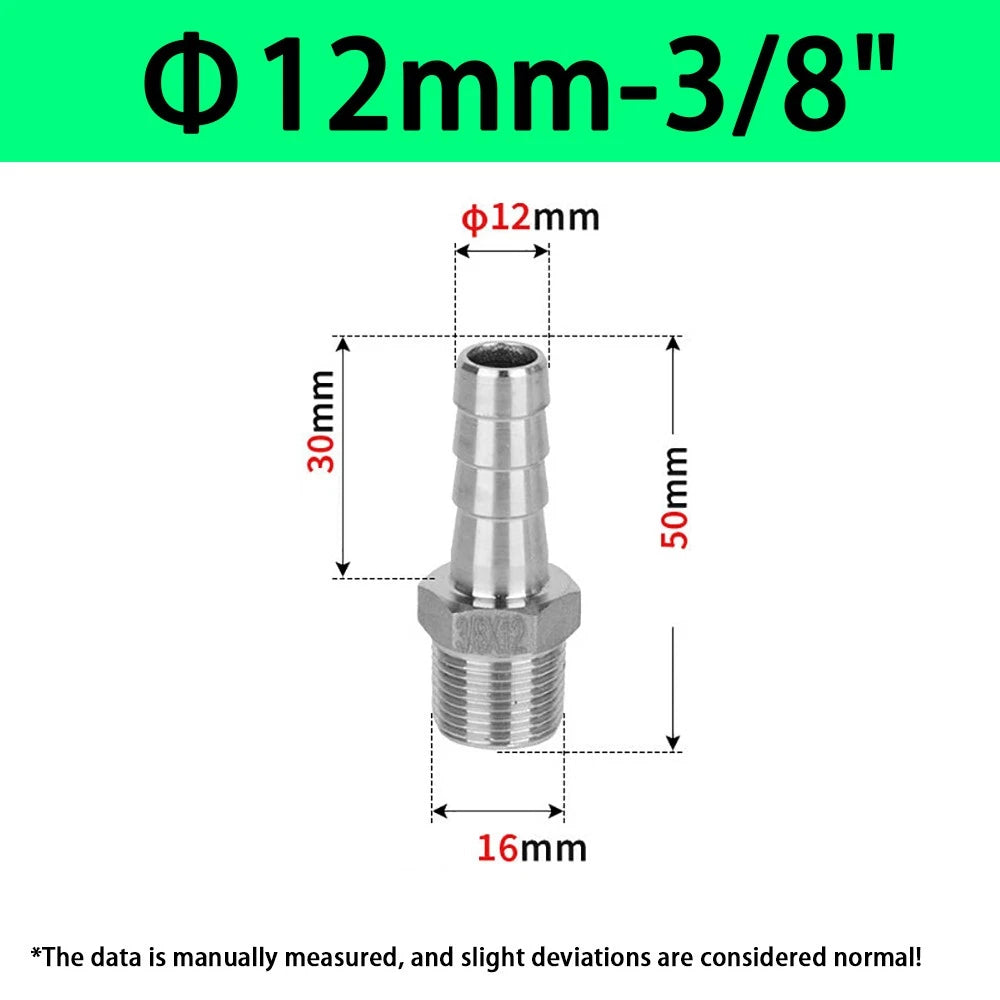

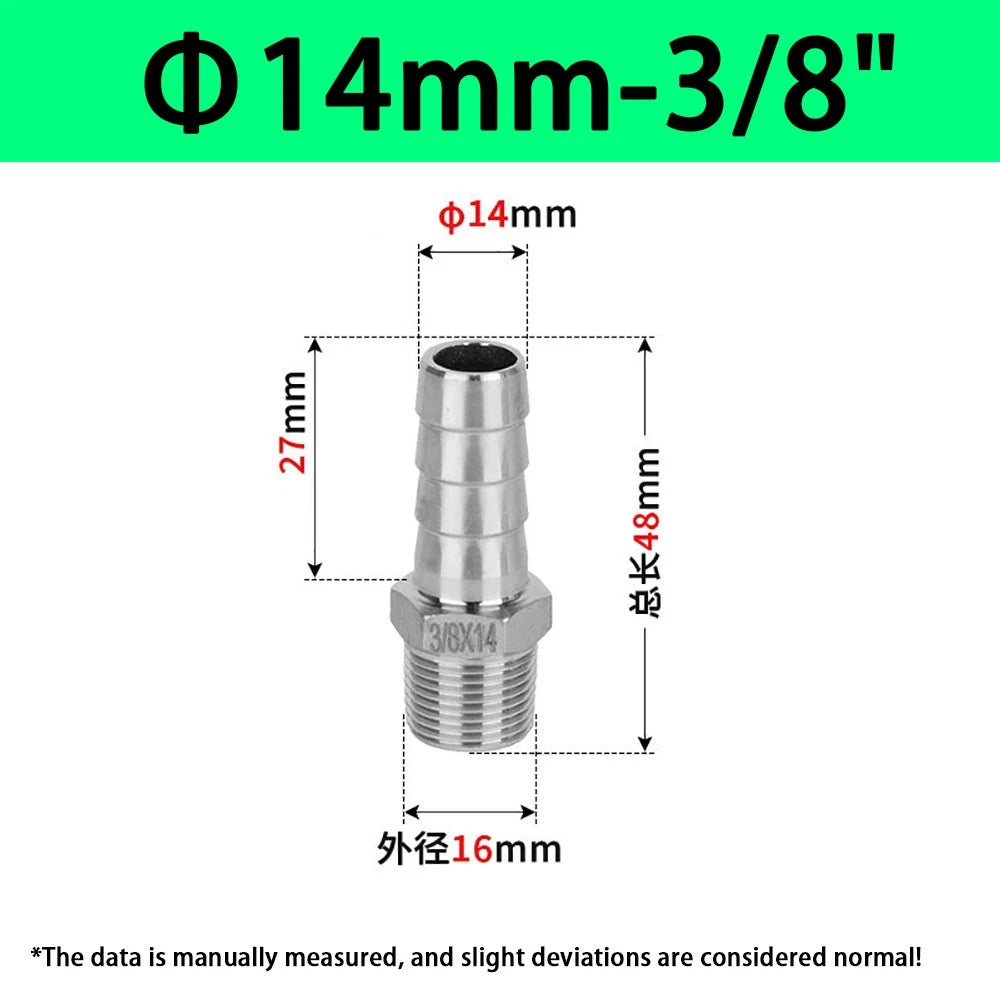

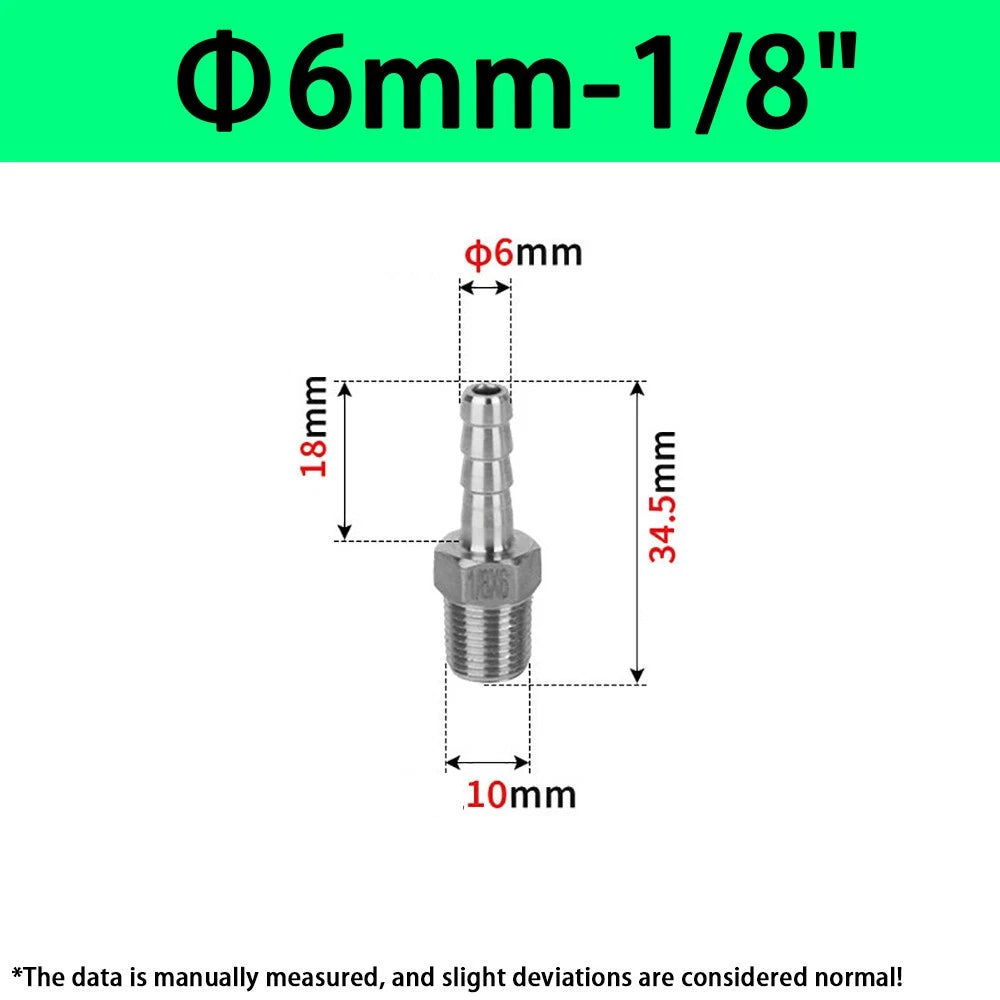

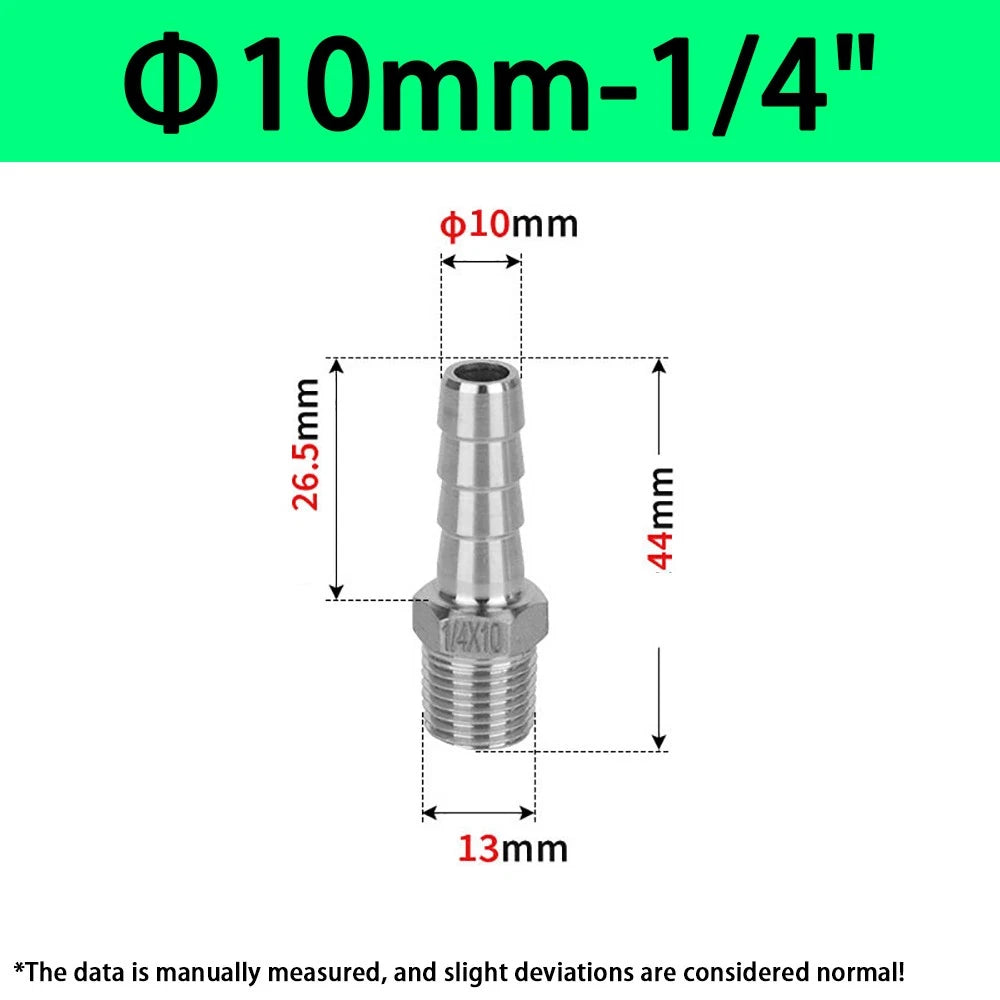

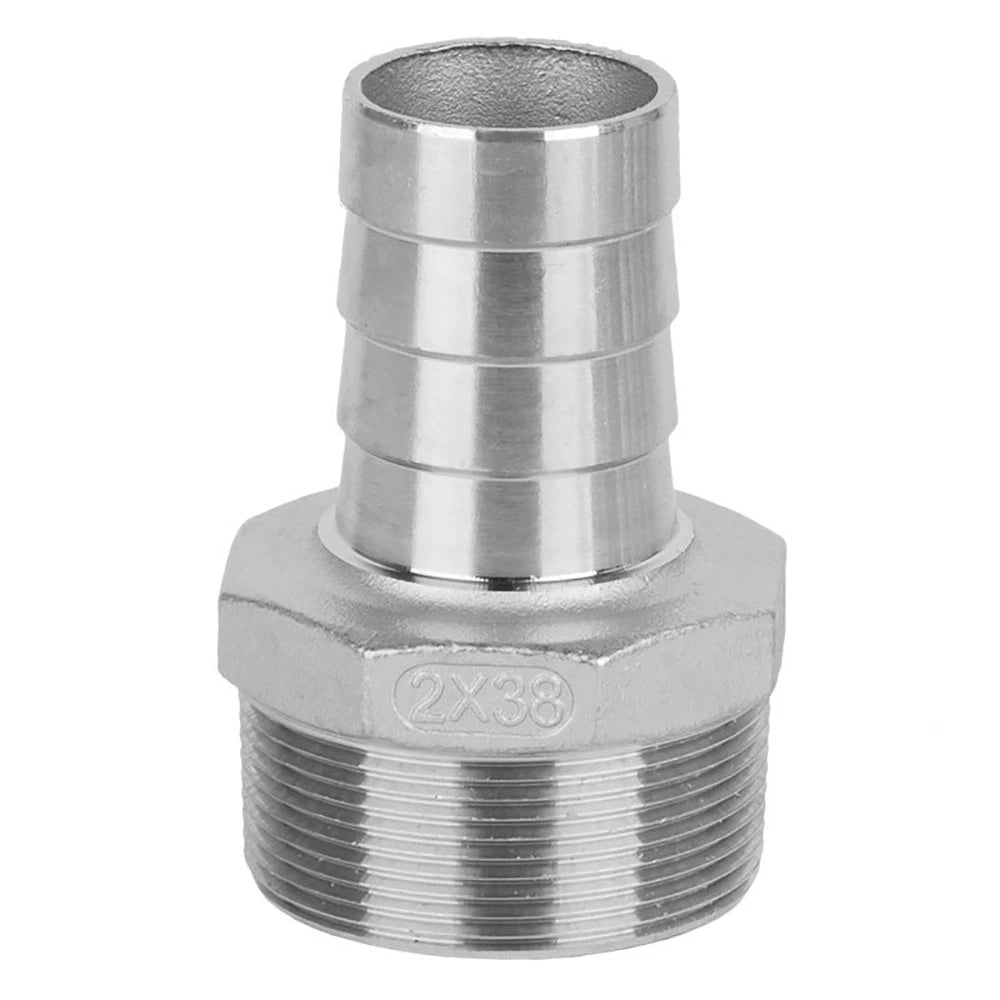

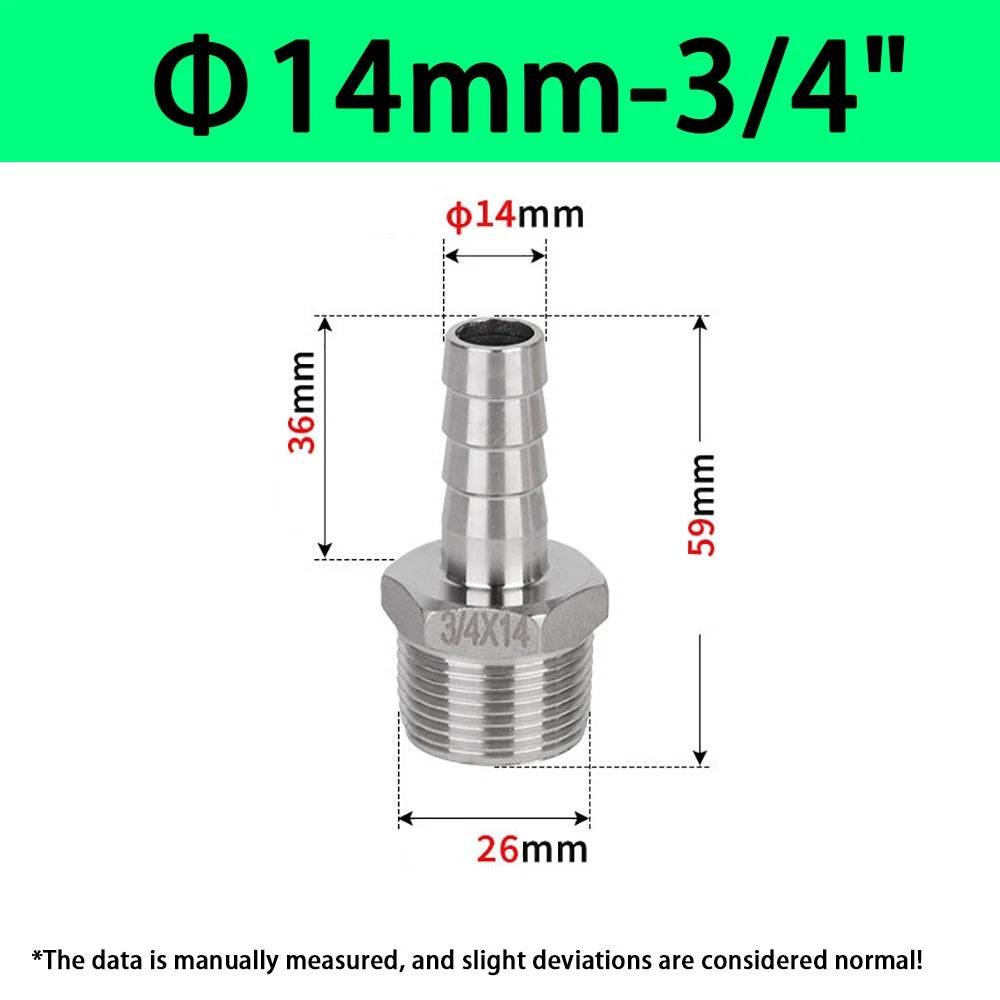

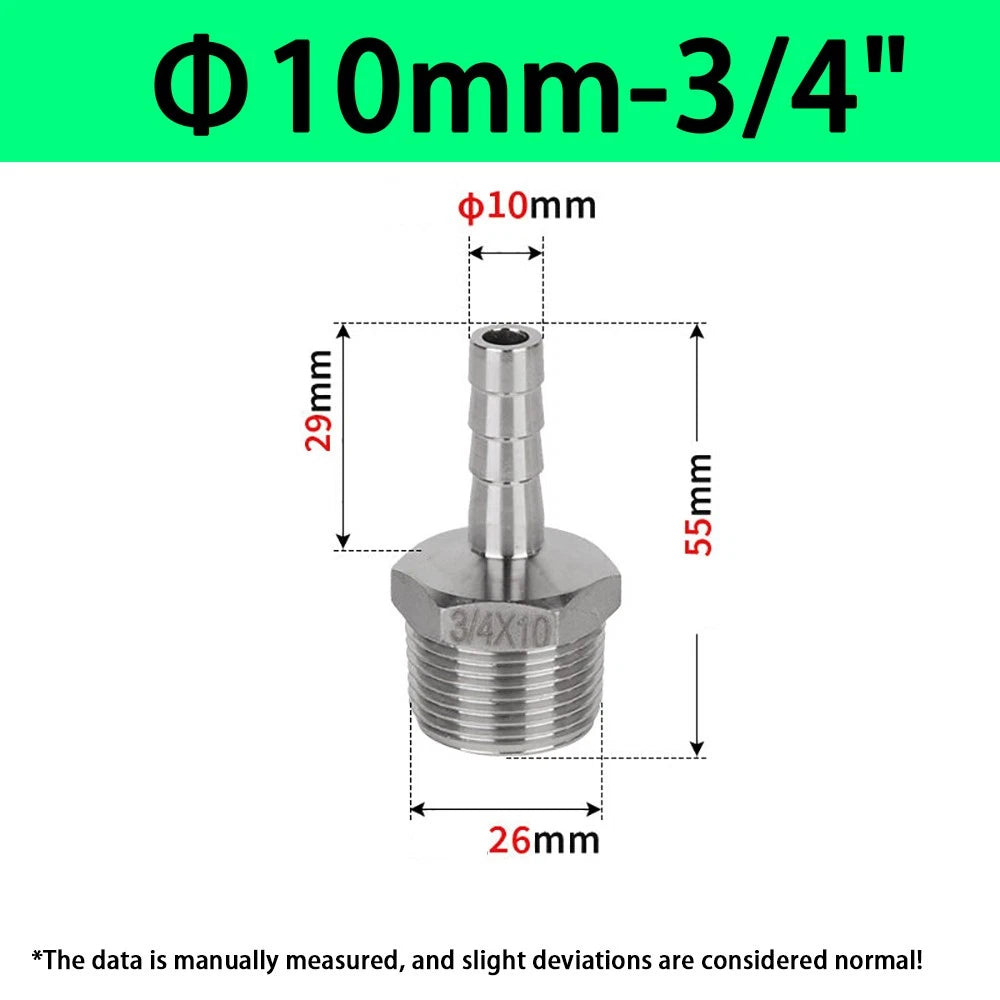

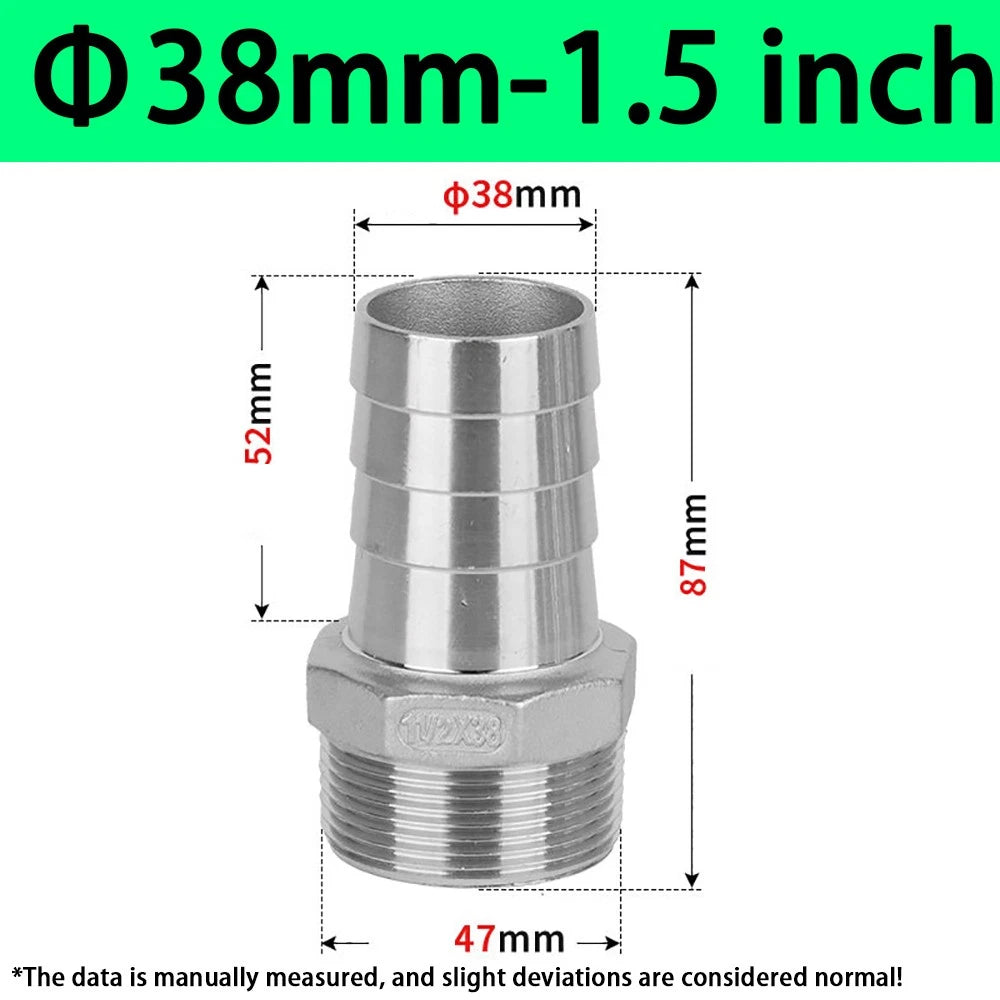

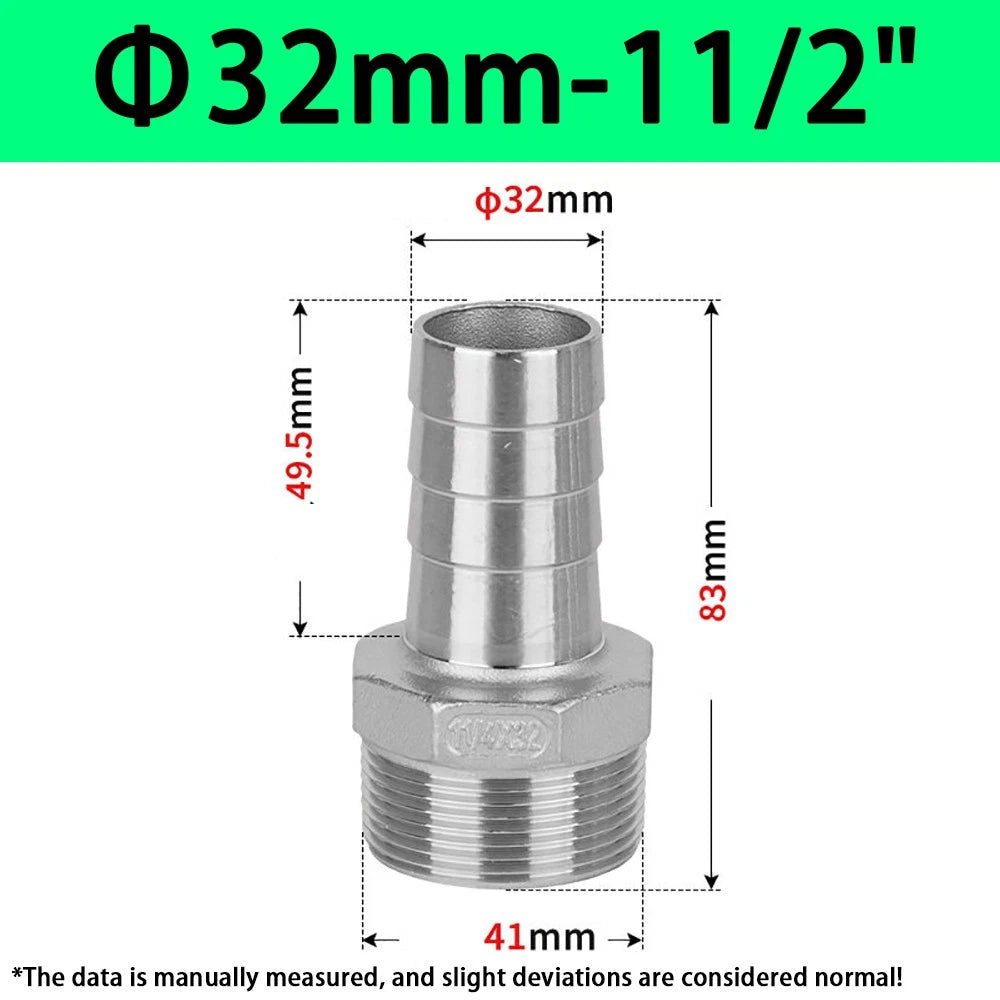

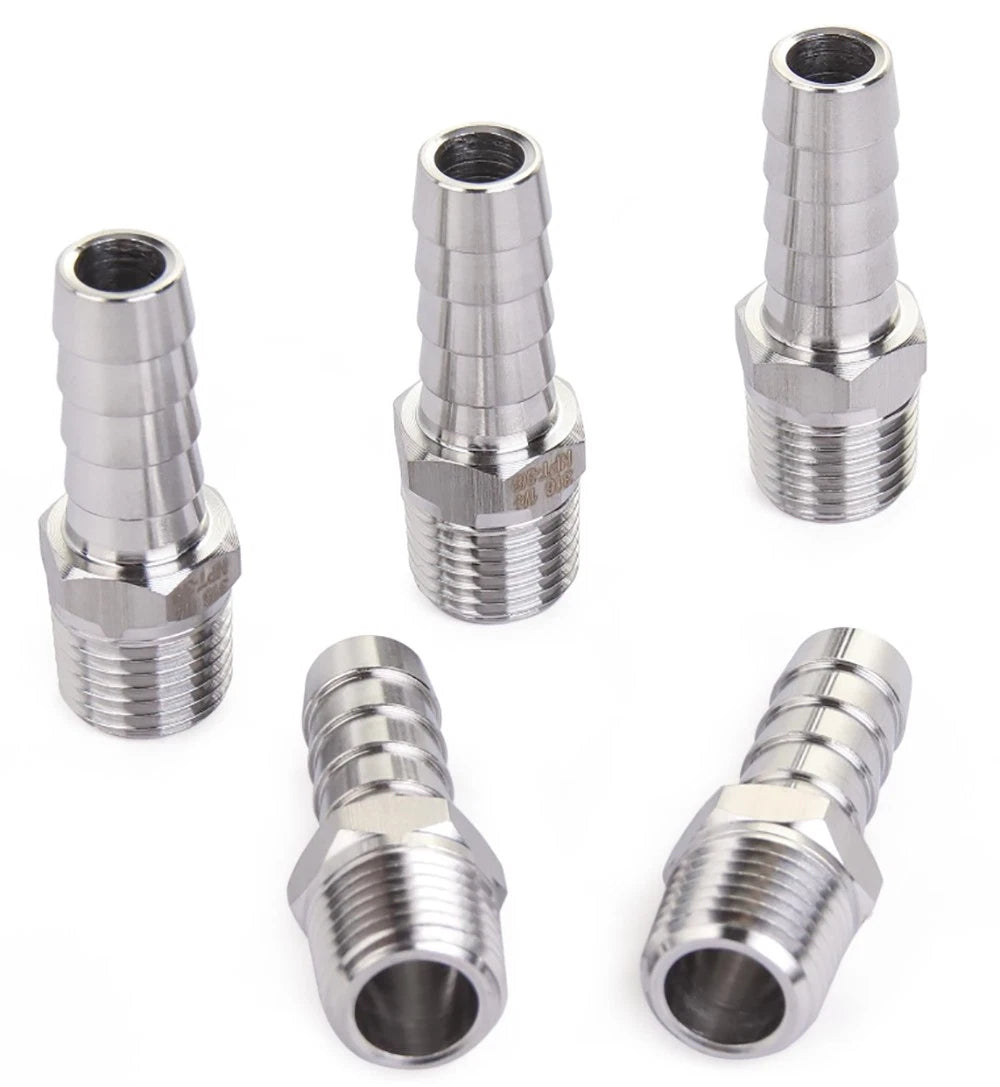

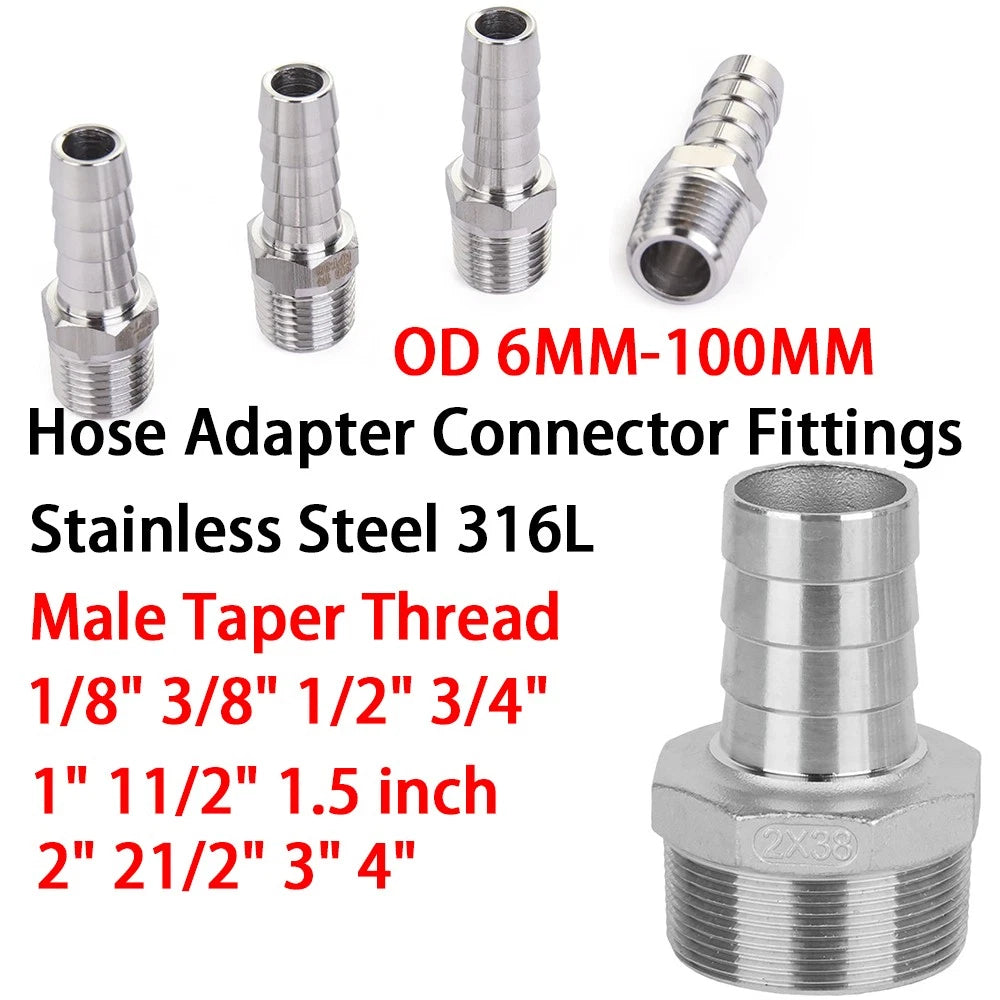

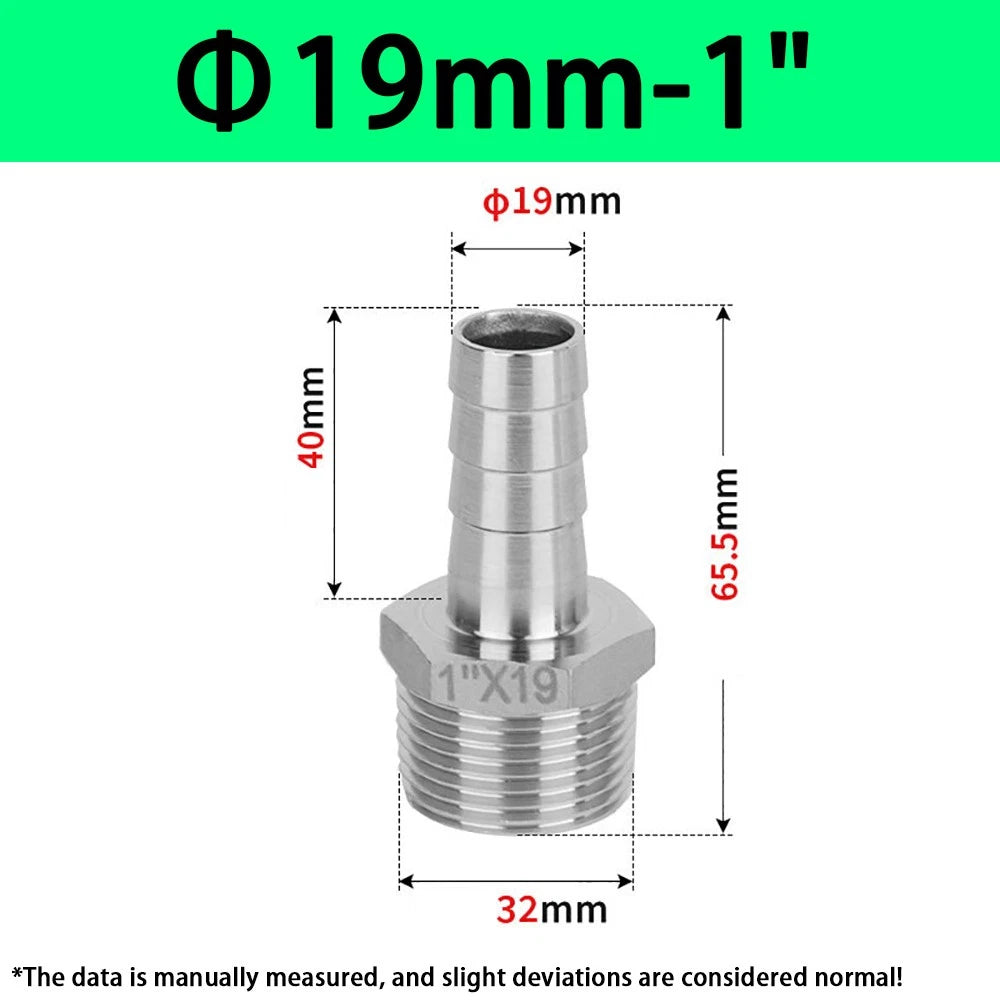

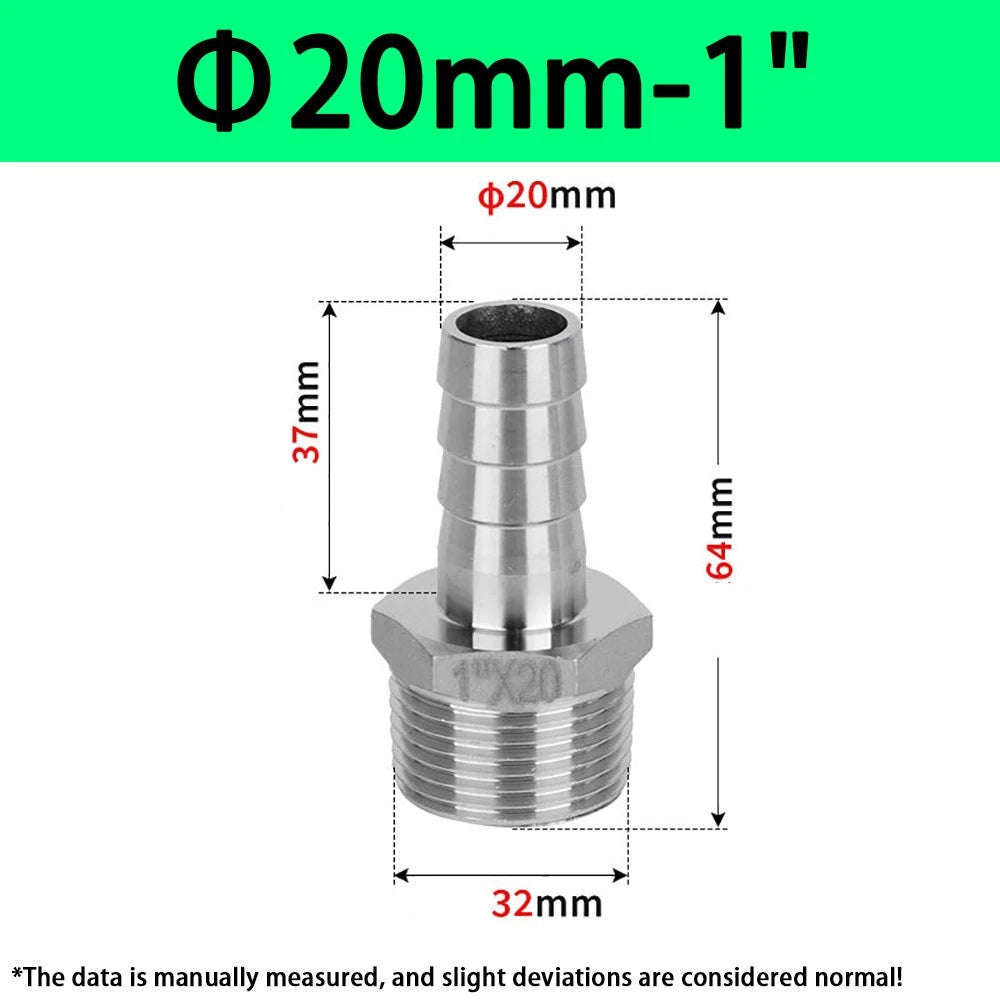

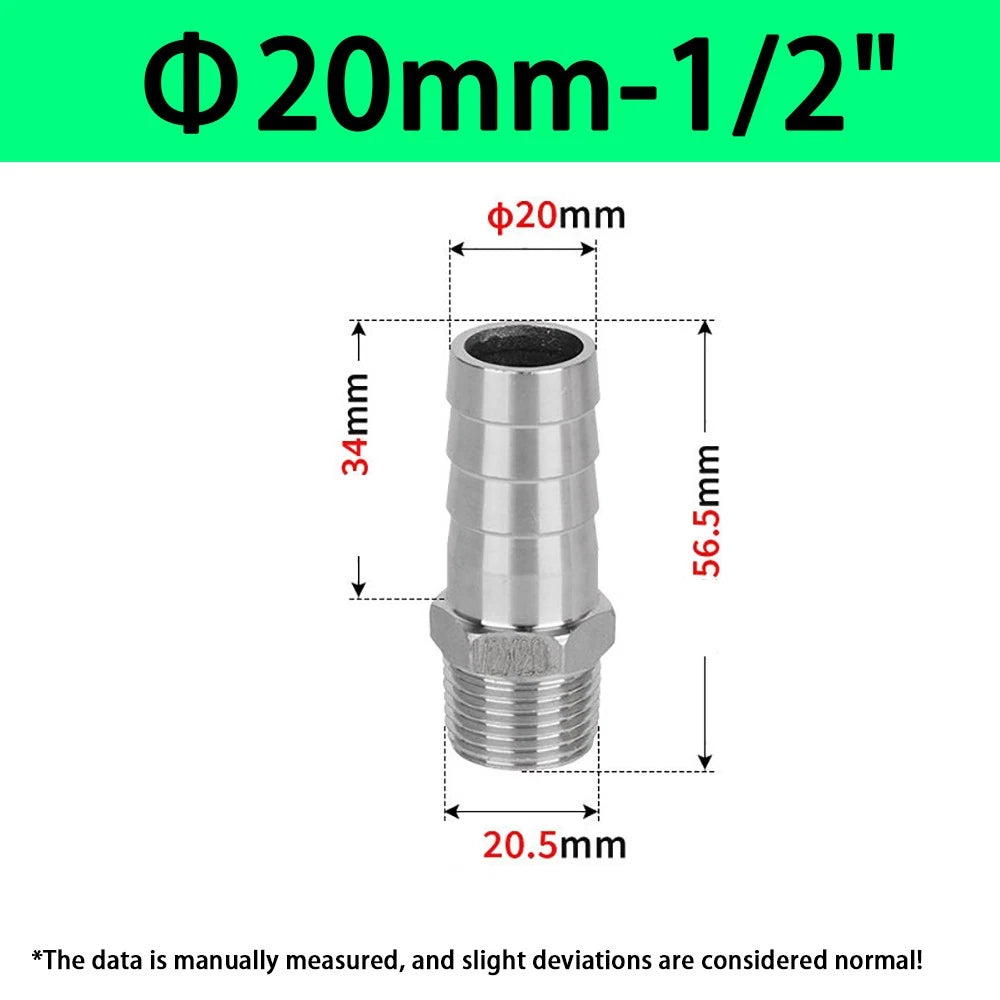

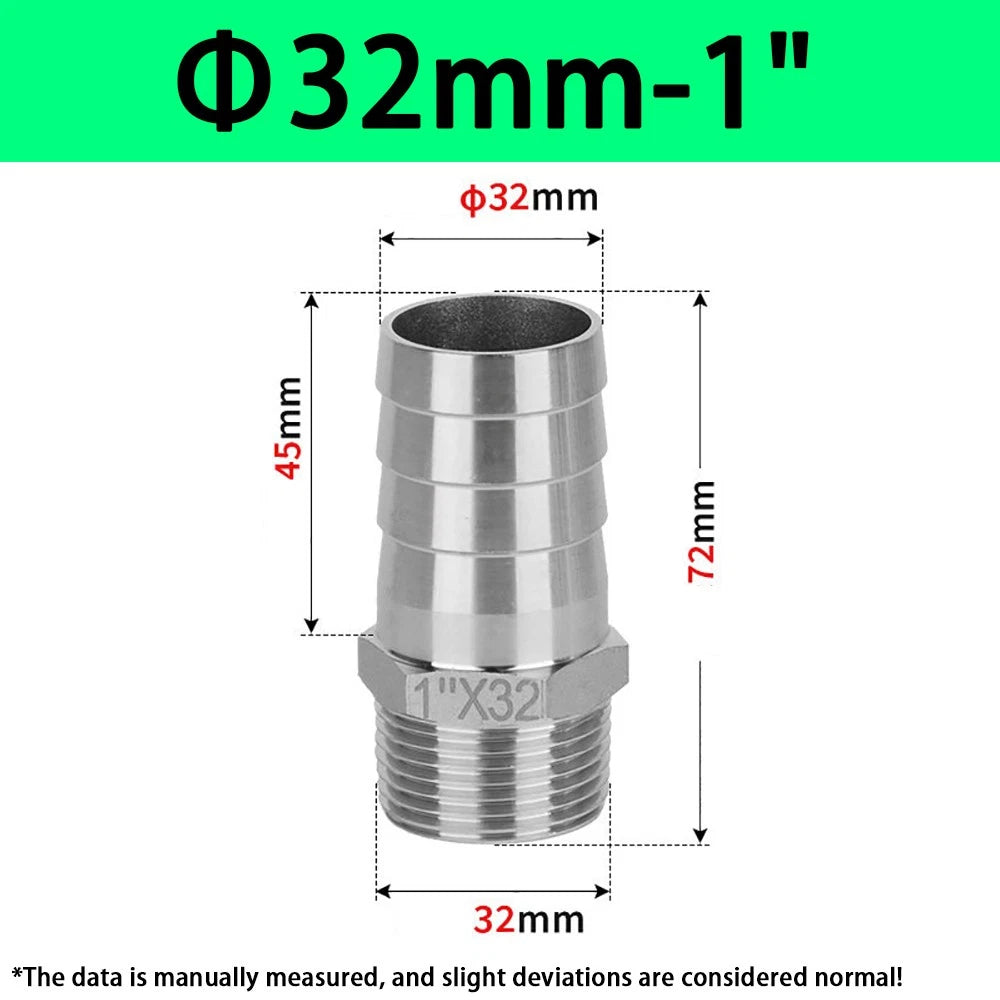

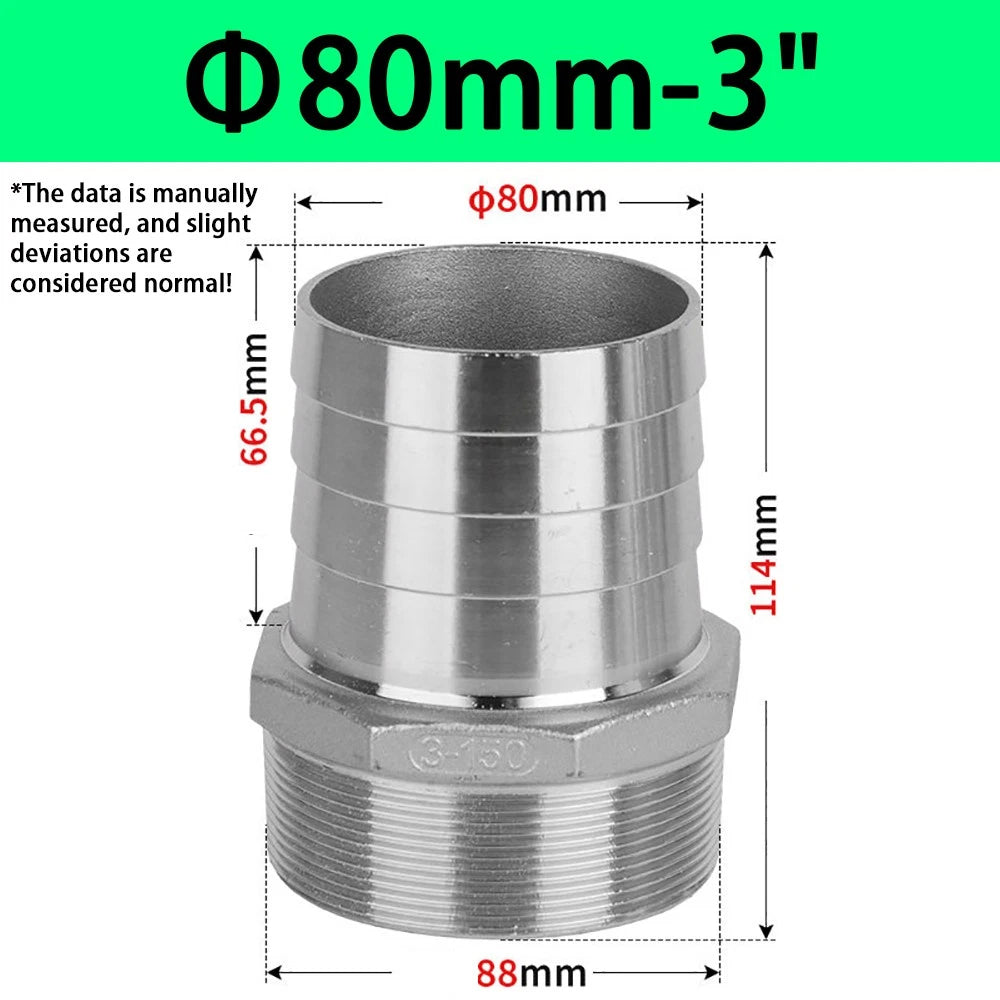

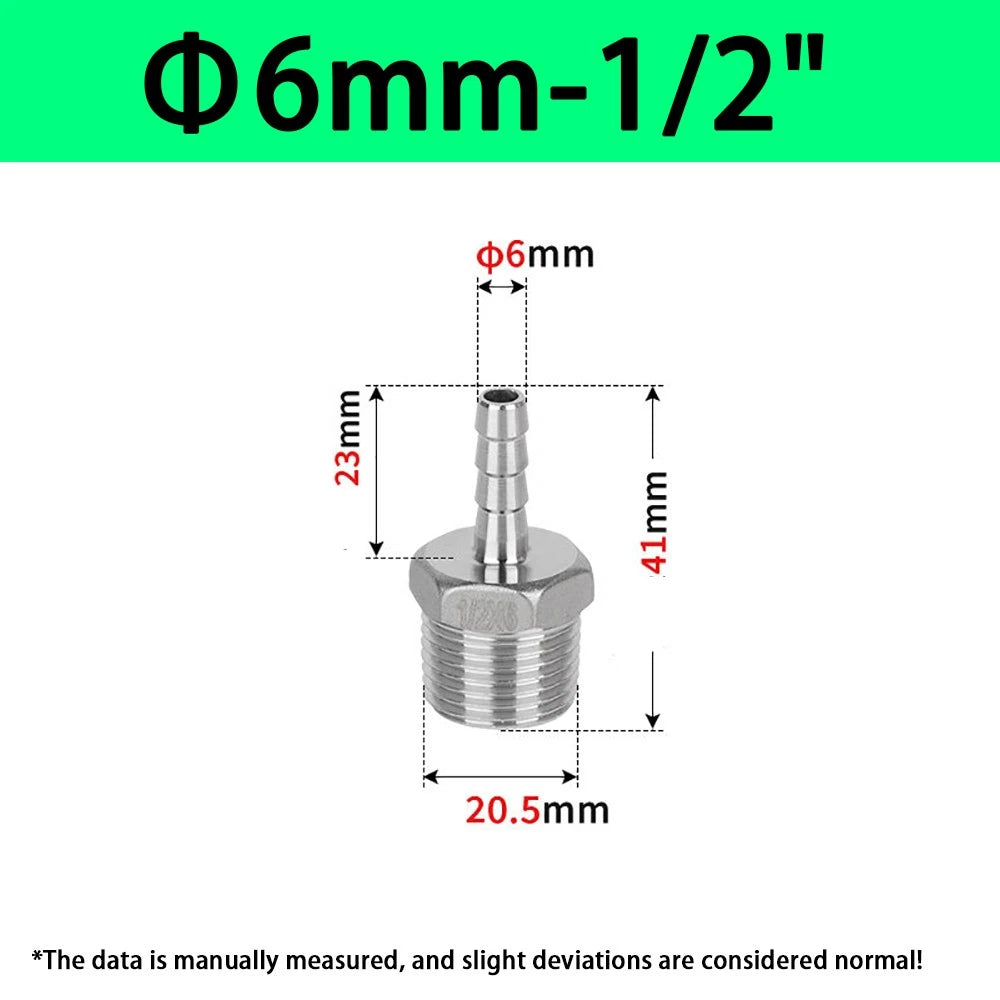

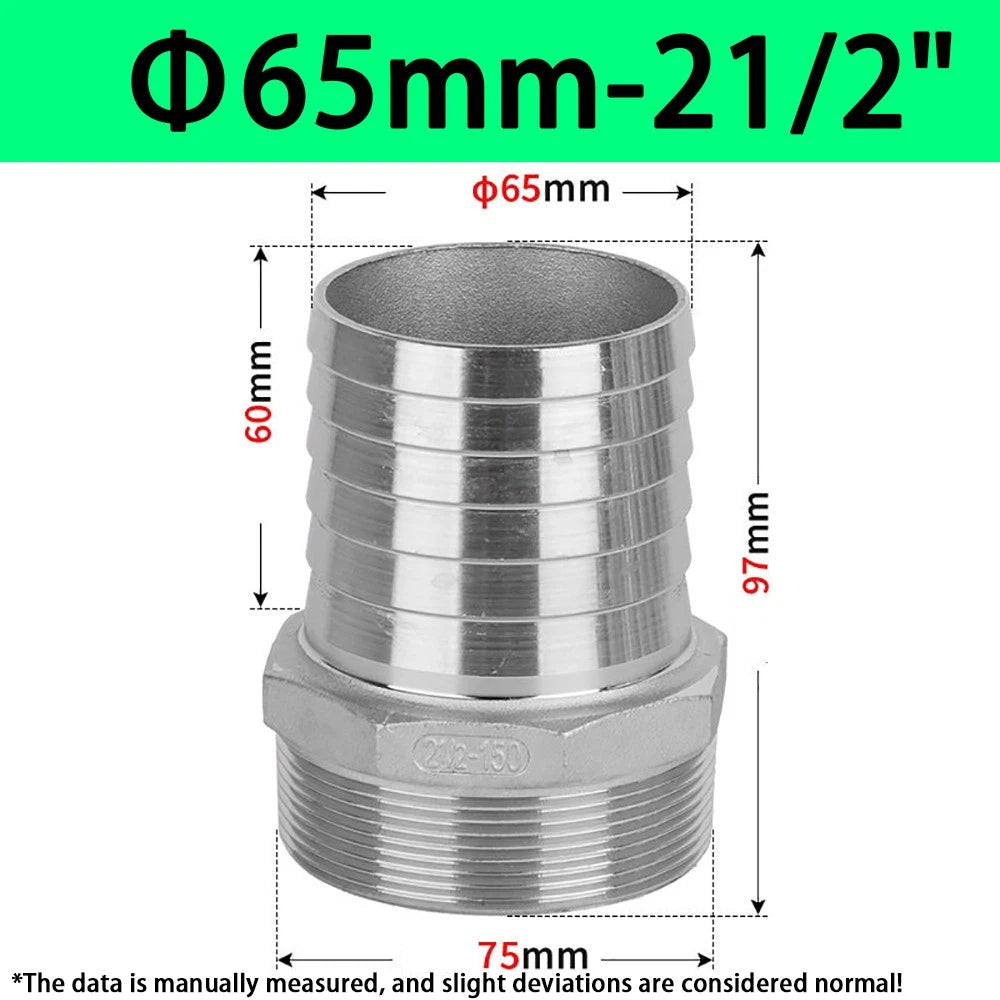

Each fitting is machined from solid 316L stainless steel — the molybdenum-bearing alloy chosen for its superior chloride resistance. One end features a male NPT taper thread (available in 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", and 4"); the other end is a ridged hose barb sized to match your hose inner diameter, ranging from Ф6mm (≈1/4") up to Ф100mm (≈4"). Sold individually — select the exact diameter and thread combination you need from the variant options above.

Typical use cases include connecting flexible hose to threaded pump ports on bilge and irrigation systems, building custom fuel or coolant lines in automotive and marine applications, and assembling chemical transfer lines in food-processing or industrial facilities where stainless steel hose barb fittings are required by code or specification.

🔗 Compatibility: Fits standard NPT-threaded ports (ANSI/ASME B1.20.1). Barb OD matches hose inner diameter — confirm your hose ID before ordering. Use with flexible PVC, rubber, silicone, or polyurethane hose. PTFE tape or pipe thread sealant required for a leak-free seal (not included).

✅ Key Features of These Male NPT Hose Barb Adapter Fittings

🦾316L Stainless Steel Construction — Contains molybdenum for resistance to pitting and crevice corrosion in chloride-rich environments like marine, coastal, and chemical service — where standard 304 SS falls short.
📐Wide Size Matrix — Barb diameters from Ф6mm to Ф100mm paired with NPT thread sizes from 1/8" to 4", covering the broadest range of hose-to-pipe connections in a single product line.
🔒Tapered NPT Thread Seal — Male NPT taper threads conform to ANSI/ASME B1.20.1, creating a mechanically tight, pressure-holding connection when assembled with PTFE tape or thread sealant.
🌊Ridged Barb Profile — The stepped barb geometry grips the hose ID and resists pull-off under pressure, especially when secured with a stainless steel hose clamp — a critical feature for fuel and coolant line applications.
⚗️Broad Chemical Compatibility — Suitable for water, seawater, many acids, alkalis, fuels, and industrial chemicals — making these stainless steel hose barb fittings a reliable choice for chemical transfer and process piping.
🚚Ships from US Warehouse — In-stock inventory with fast domestic fulfillment, so your project or repair doesn't wait weeks for an overseas shipment.

📐 Technical Specifications — Male NPT Hose Barb Adapter Fittings

Product Type	Male NPT × Hose Barb Adapter (Hose Tail Fitting)
Material	316L Stainless Steel (UNS S31603)
Thread Type	Male NPT (National Pipe Taper) — ANSI/ASME B1.20.1
Available NPT Thread Sizes	1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4"

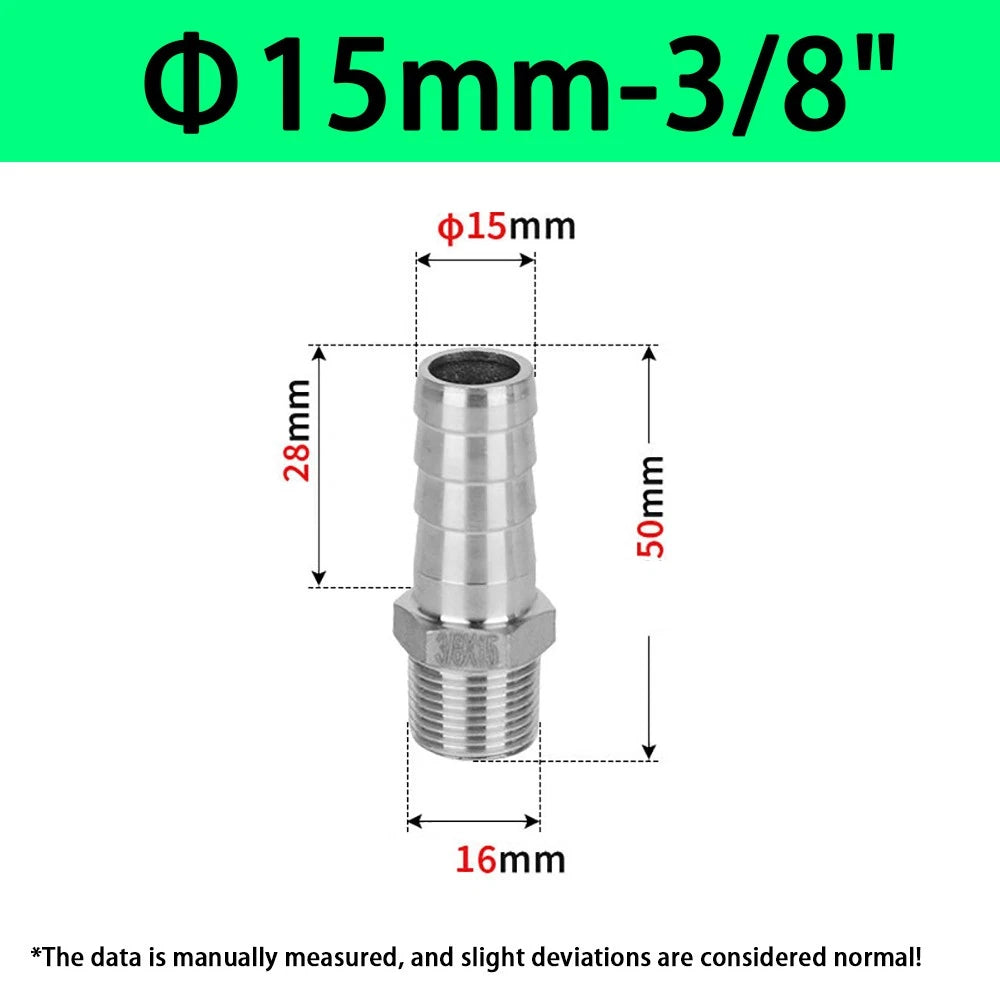

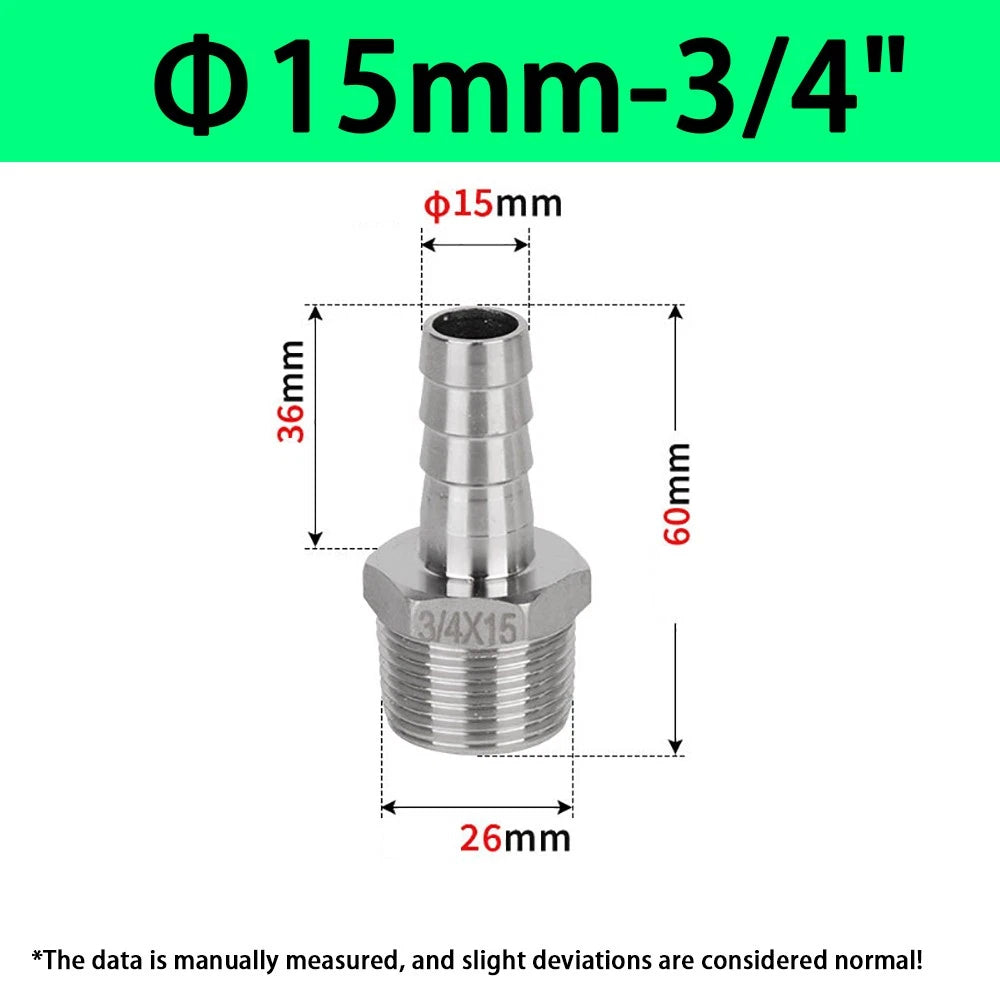

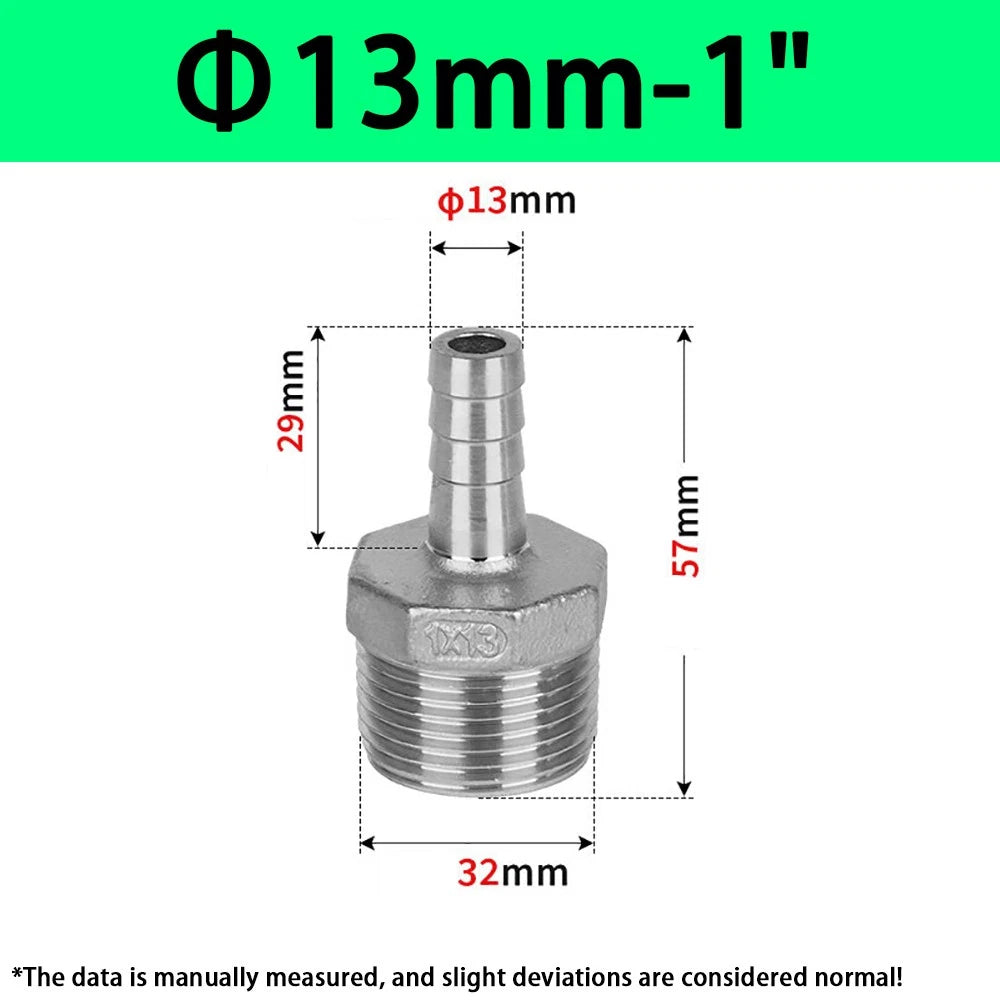

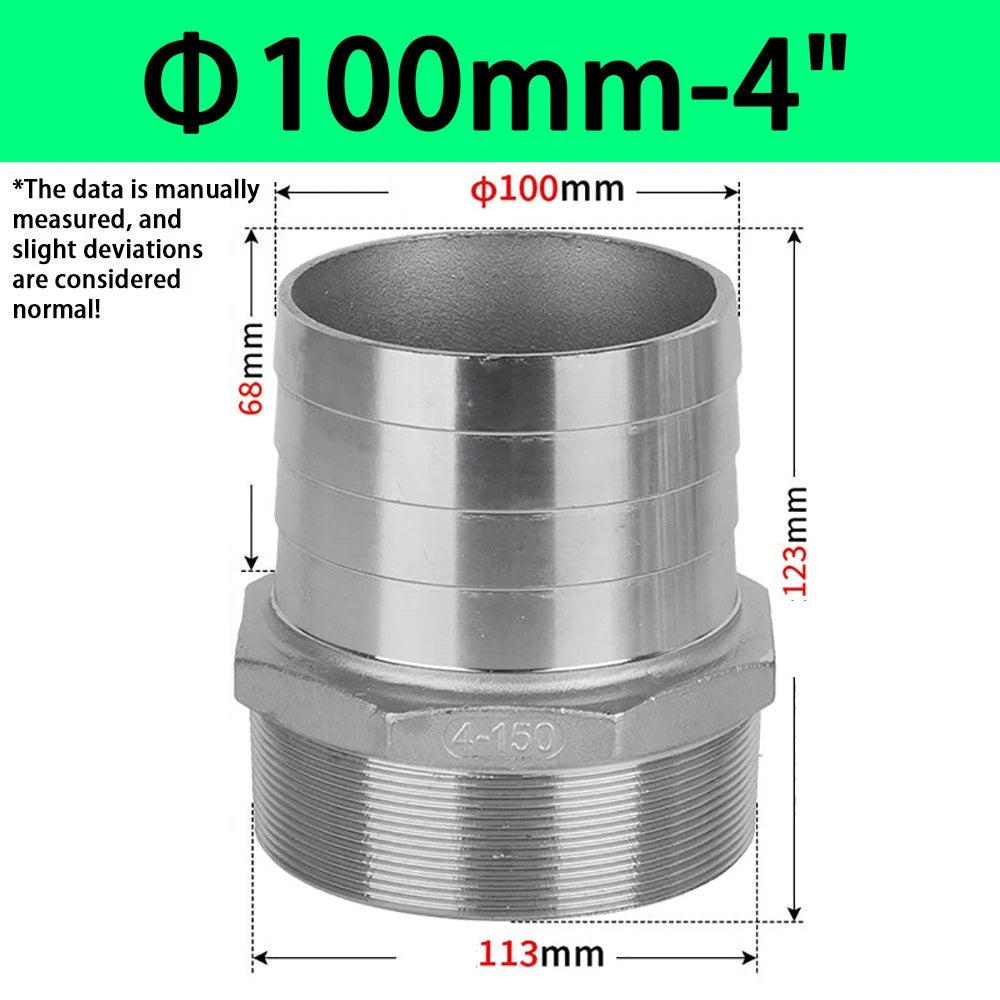

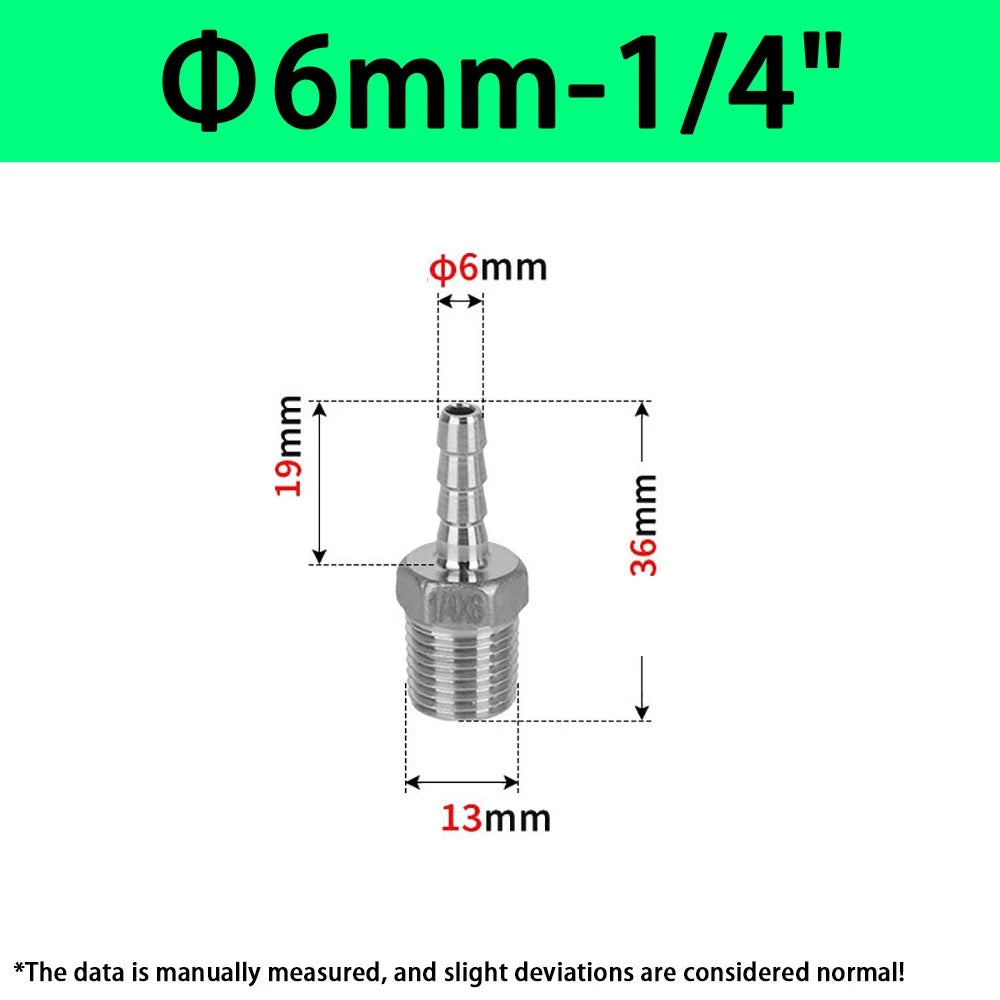

Barb Diameter (Ф) Range	6mm (≈1/4") to 100mm (≈4") — see variant options
Hose Inner Diameter Match	Barb Ф = Hose ID (confirm before ordering)
Surface Finish	See variant options
Working Pressure	Typically up to 150–300 PSI (varies by hose, clamp, and temperature — confirm for your application)
Temperature Range	Generally –50°C to +300°C (–58°F to +572°F) for 316L SS; limited by hose material
Chemical Compatibility	Water, seawater, fuels, many acids & alkalis — contact us to confirm for specific chemicals
Sold As	Individual fitting (1 pc per order)
Country of Origin	Contact us to confirm

⚠️ Before You Order: The barb diameter (Ф) must match your hose's inner diameter, not the outer diameter. If you are unsure of your hose ID or NPT port size, measure with a caliper or thread gauge before selecting a variant.

❓ Frequently Asked Questions

How do I choose the right hose barb diameter and NPT thread size?

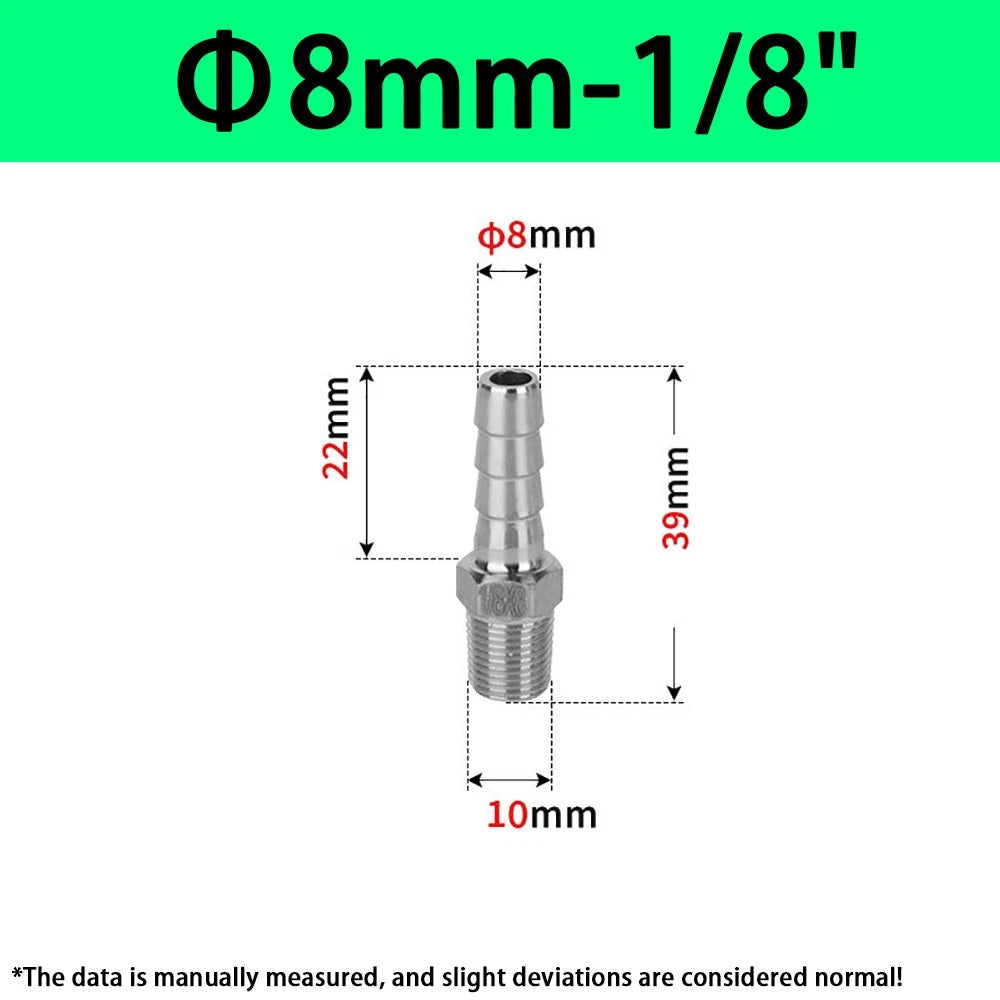

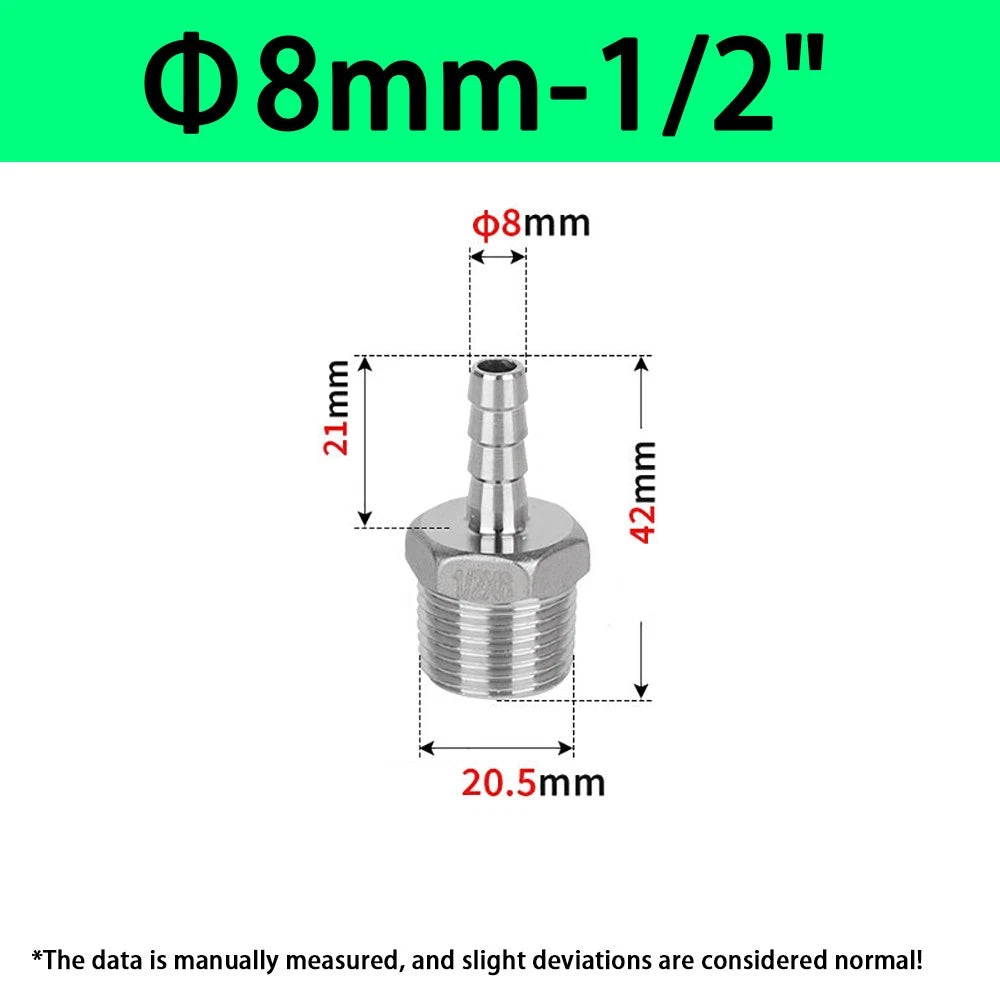

Match the barb diameter (Ф) to your hose's inner diameter (ID). For example, a Ф8mm barb fits a hose with an 8mm (≈5/16") ID. Then match the NPT thread size to your port — 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", or 4". When in doubt, measure your port threads with a thread gauge or caliper before ordering.

What is the pressure rating of these hose barb fittings?

316L stainless steel hose barb fittings generally handle working pressures up to 150–300 PSI depending on hose type, clamp style, and fluid temperature. For high-pressure or safety-critical applications, always verify with your system engineer and use appropriate hose clamps or crimp ferrules.

Are these fittings suitable for outdoor or marine use?

Yes. 316L stainless steel contains molybdenum, which provides superior resistance to chloride-induced pitting and crevice corrosion compared to 304 SS. These fittings are well-suited for marine environments, saltwater exposure, coastal installations, and outdoor plumbing applications where long-term corrosion resistance is required.

What thread standard do these fittings use — NPT or BSP?

These fittings use NPT (National Pipe Taper) threads per ANSI/ASME B1.20.1 — the standard tapered thread used in the US for pipe fittings. NPT threads are not interchangeable with BSP (British Standard Pipe) threads. If your equipment uses BSP ports, please contact us before ordering to confirm compatibility.

Do I need a hose clamp with these barb fittings?

For most pressurized applications, yes — a stainless steel hose clamp or crimp ring is recommended to secure the hose over the barb and prevent pull-off under pressure. For low-pressure or gravity-fed systems, a clamp may not be strictly required, but it is generally best practice and adds a meaningful safety margin.

What fluids are compatible with 316L stainless steel hose barb fittings?

316L SS is typically compatible with water, seawater, many acids, alkalis, fuels, and a wide range of industrial chemicals. It is generally not recommended for highly concentrated hydrochloric acid or certain chlorinated solvents. Always verify chemical compatibility for your specific fluid and concentration before installation.

How many turns of PTFE tape should I use on the NPT threads?

Typically 2–3 wraps of PTFE tape applied clockwise (when viewed from the thread end) is sufficient for most NPT connections. For higher-pressure or chemical applications, a liquid pipe thread sealant compatible with your fluid is also a reliable option. Do not over-tighten — NPT threads seal through taper interference, and over-torquing can crack fittings or ports.

🛒 Select your barb diameter and NPT thread size above, then add to cart — ships from our US warehouse.
