Male x Male Stainless Steel Pipe Fittings Straight Connector — Equal & Reducing, 3/8" to 1-1/4"

Leaking joints, mismatched pipe diameters, and corroded brass fittings are some of the most frustrating problems for plumbers, HVAC technicians, and serious DIYers. Whether you're building a water supply line, a compressed-air manifold, or a fluid transfer system, you need a male x male stainless steel pipe fittings straight connector that threads in cleanly, holds pressure, and won't rust out in a year.

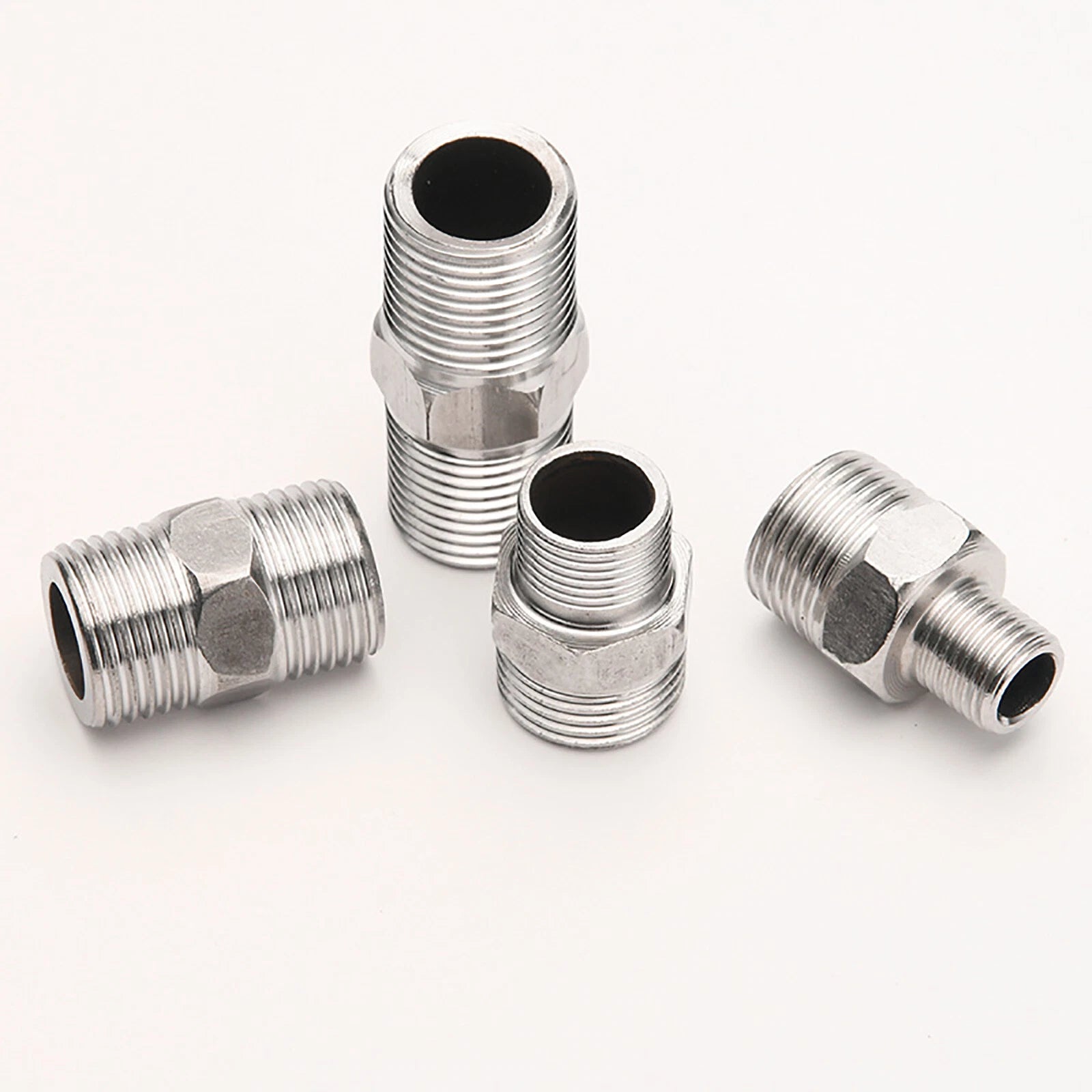

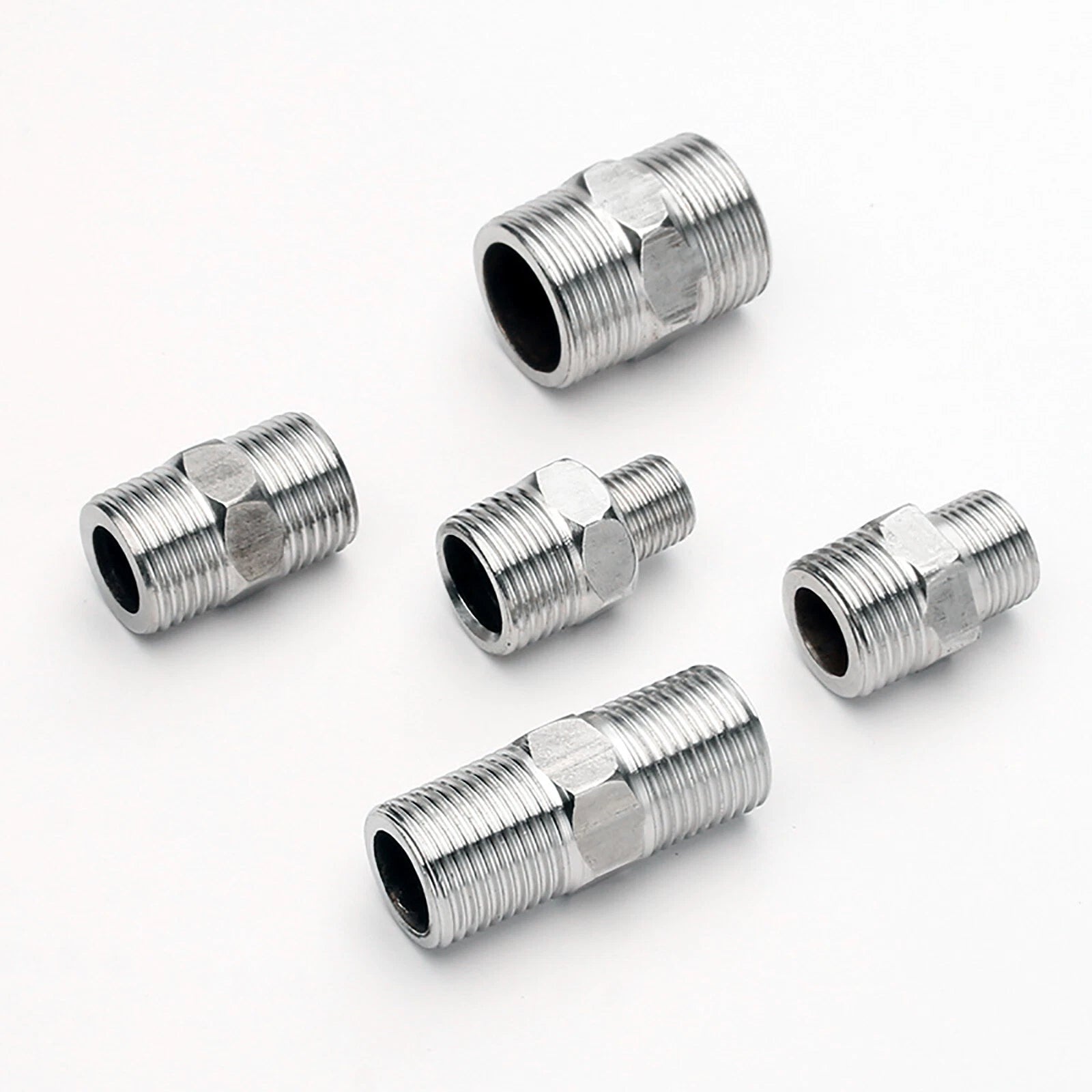

Each fitting is machined from 304 stainless steel with NPT-compatible tapered male threads on both ends. Available in equal (same-diameter) and reducing configurations — straight or eccentric — covering sizes from 3/8" (≈9.5 mm) up to 1-1/4" (≈31.8 mm). Sold individually or in value packs of 2 or 5 pieces so you can stock the sizes you use most.

Typical applications include residential and commercial plumbing repairs, compressed-air line assembly, irrigation system connections, and industrial fluid-transfer piping where a corrosion-resistant inline straight connector is required. The eccentric reducer variant is especially useful in pump inlet piping to eliminate air pockets and maintain a flat pipe bottom.

🔗 Compatibility: Designed for NPT (National Pipe Taper) threaded systems standard in the US and Canada. Sizes available: 3/8", 1/2", 3/4", 1", and 1-1/4". If your system uses BSP or metric threads, please contact us to confirm fit before ordering.

✅ Key Features of These Male x Male Stainless Steel Pipe Fittings

🔩Dual Male NPT Threads — Both ends carry tapered male threads for direct connection into female-threaded ports, unions, or valves without adapters.
🛡️304 Stainless Steel Construction — Resists rust, oxidation, and mild chemical exposure — a reliable choice for outdoor plumbing, humid environments, and corrosion-prone installations.

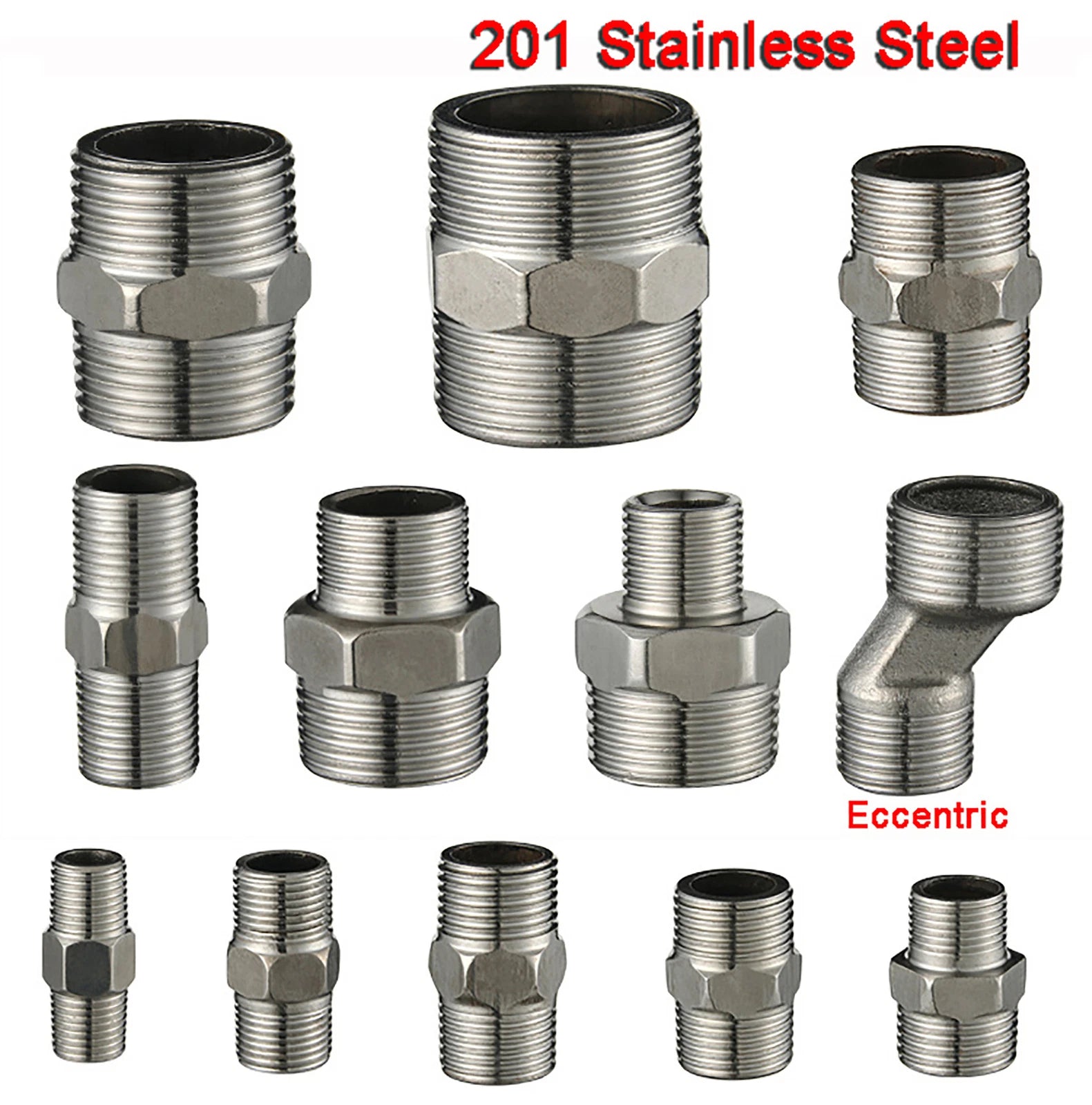

↔️Three Connector Types in One Listing — Choose Equal (Straight) for same-size joins, Reducer (Straight) for concentric diameter changes, or Reducer (Eccentric) for flat-bottom pump inlet piping.
📐Wide Size Range — Covers 3/8" through 1-1/4" nominal pipe sizes, including common reducing combinations like 1/2" to 3/4", 3/4" to 1", and 1/4" to 1/2", reducing the need for multiple SKUs.
📦Flexible Pack Quantities — Order 1, 2, or 5 pieces per variant so you can grab a single replacement fitting or stock up for a larger job without overpaying.
⚙️Machined for Consistent Thread Engagement — Uniform thread pitch and finish allow proper PTFE tape sealing and reduce the risk of cross-threading during installation in tight spaces.

📐 Technical Specifications — Stainless Steel Male x Male Straight Pipe Connector

Material	304 Stainless Steel
Connection Type	Male x Male (both ends)
Thread Standard	NPT (National Pipe Taper) — confirm BSP/metric needs before ordering
Connector Types	Equal (Straight) / Reducer (Straight) / Reducer (Eccentric)

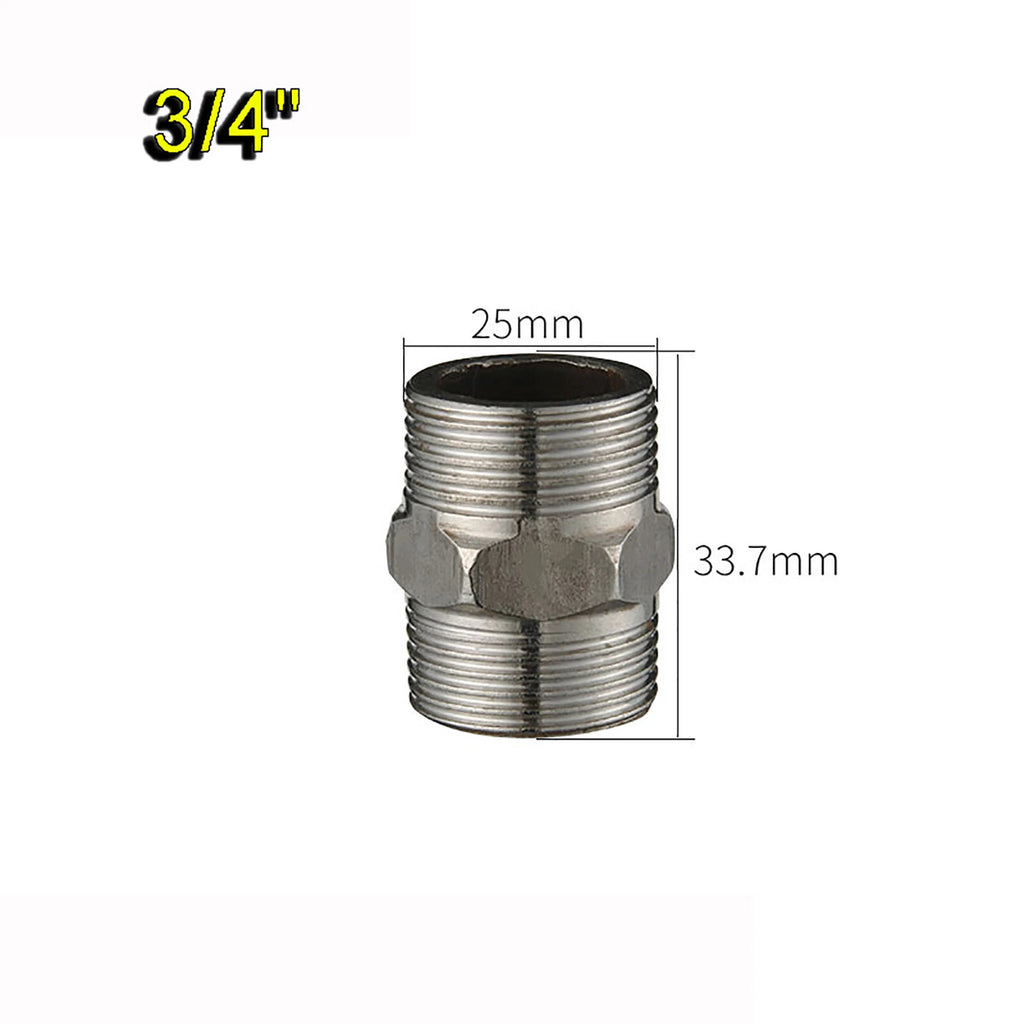

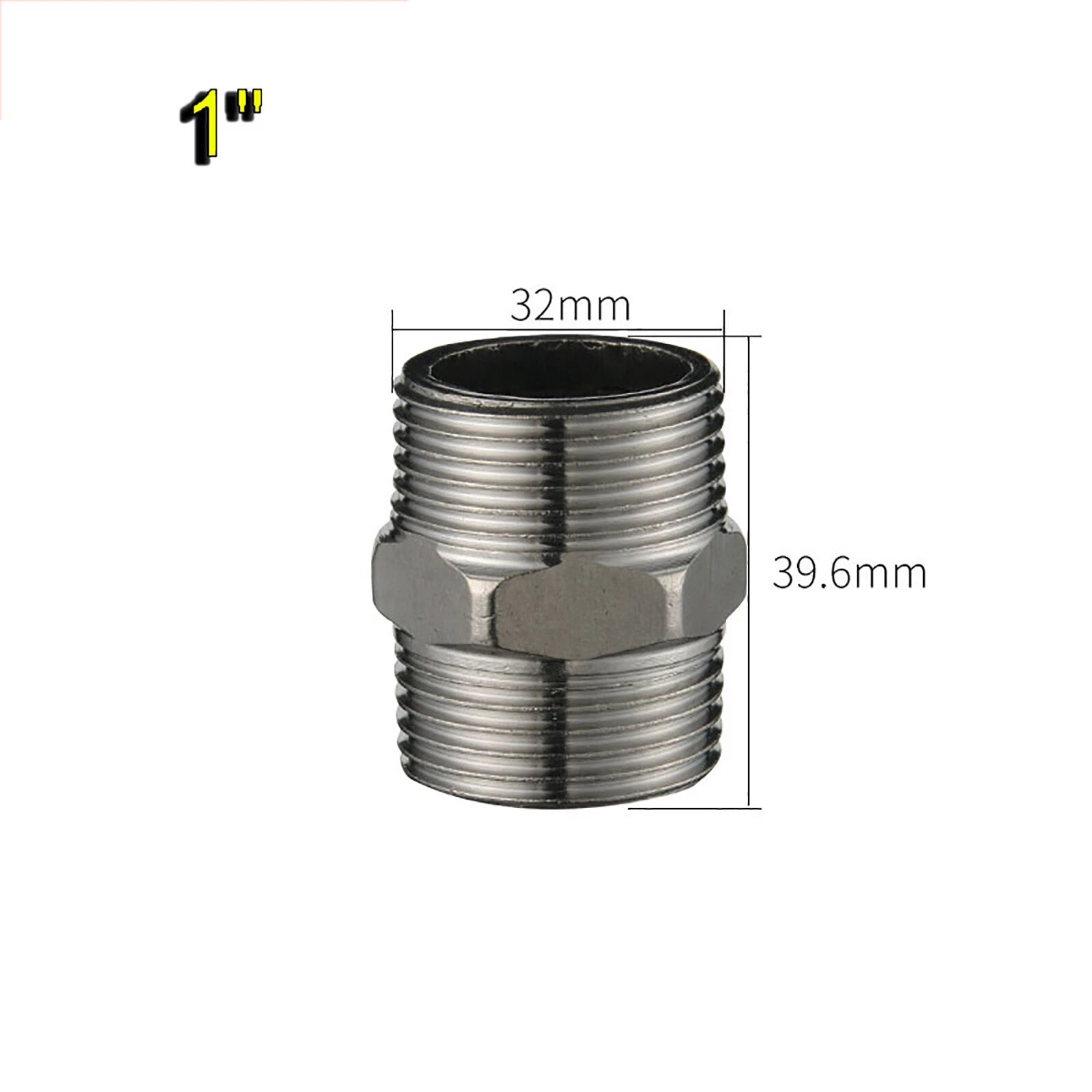

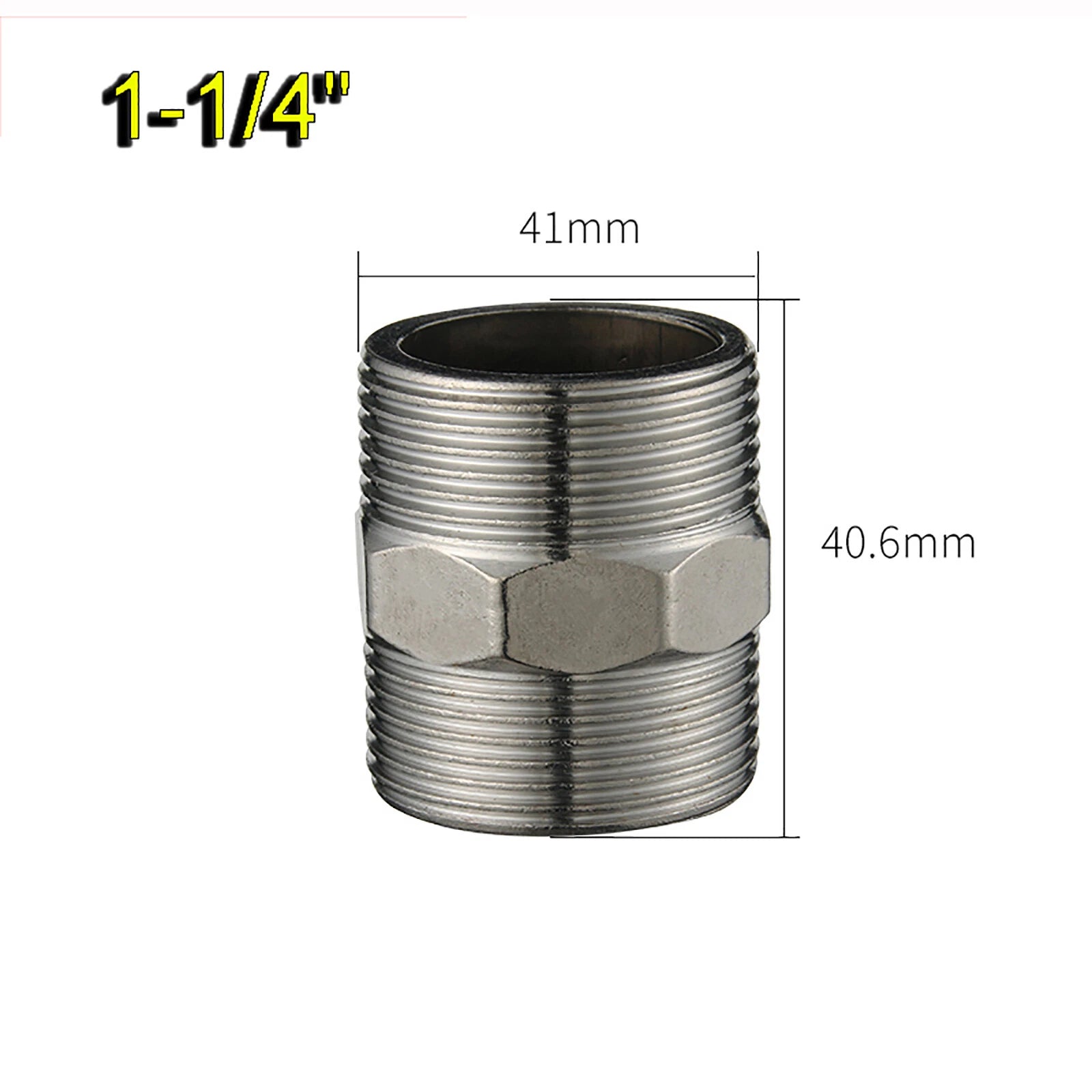

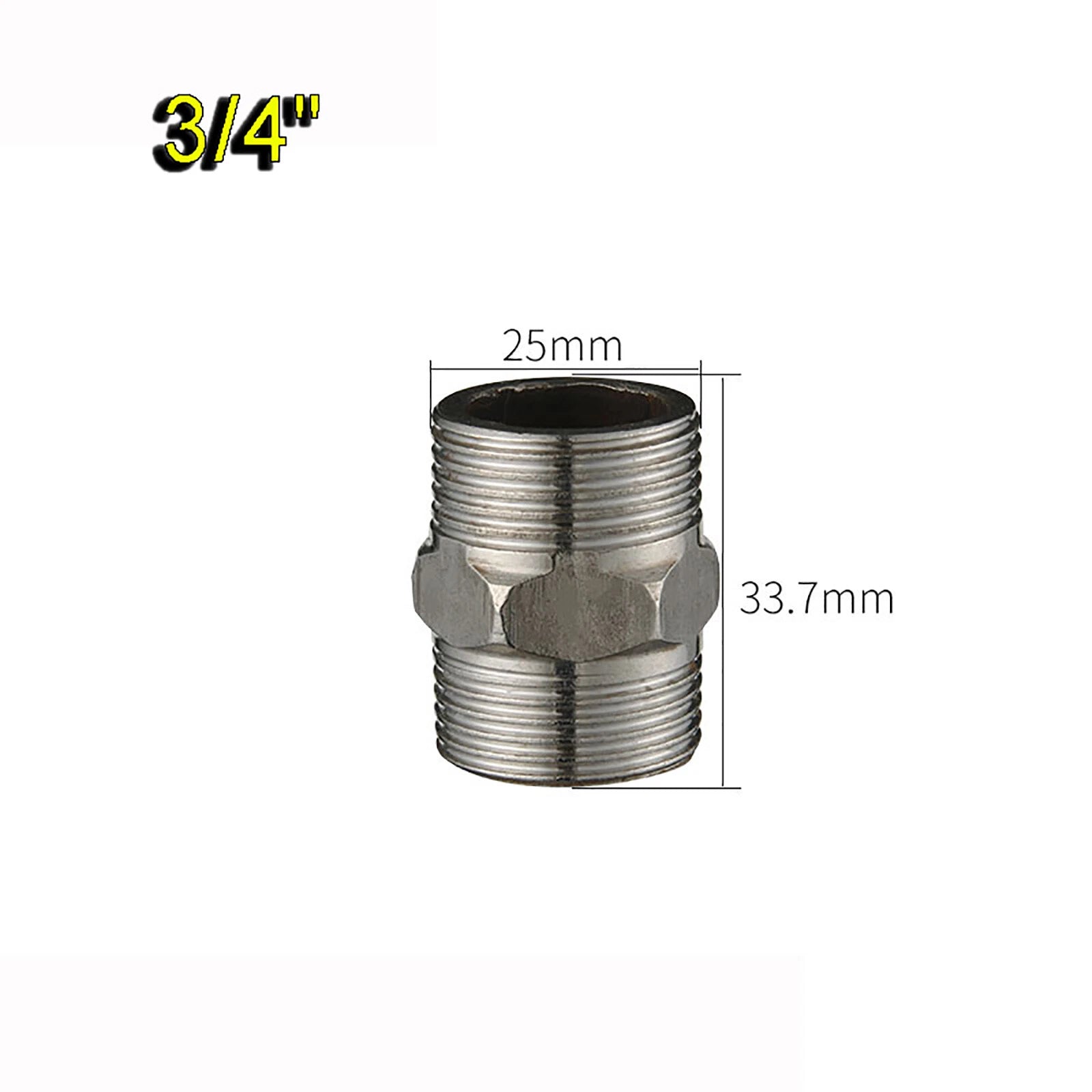

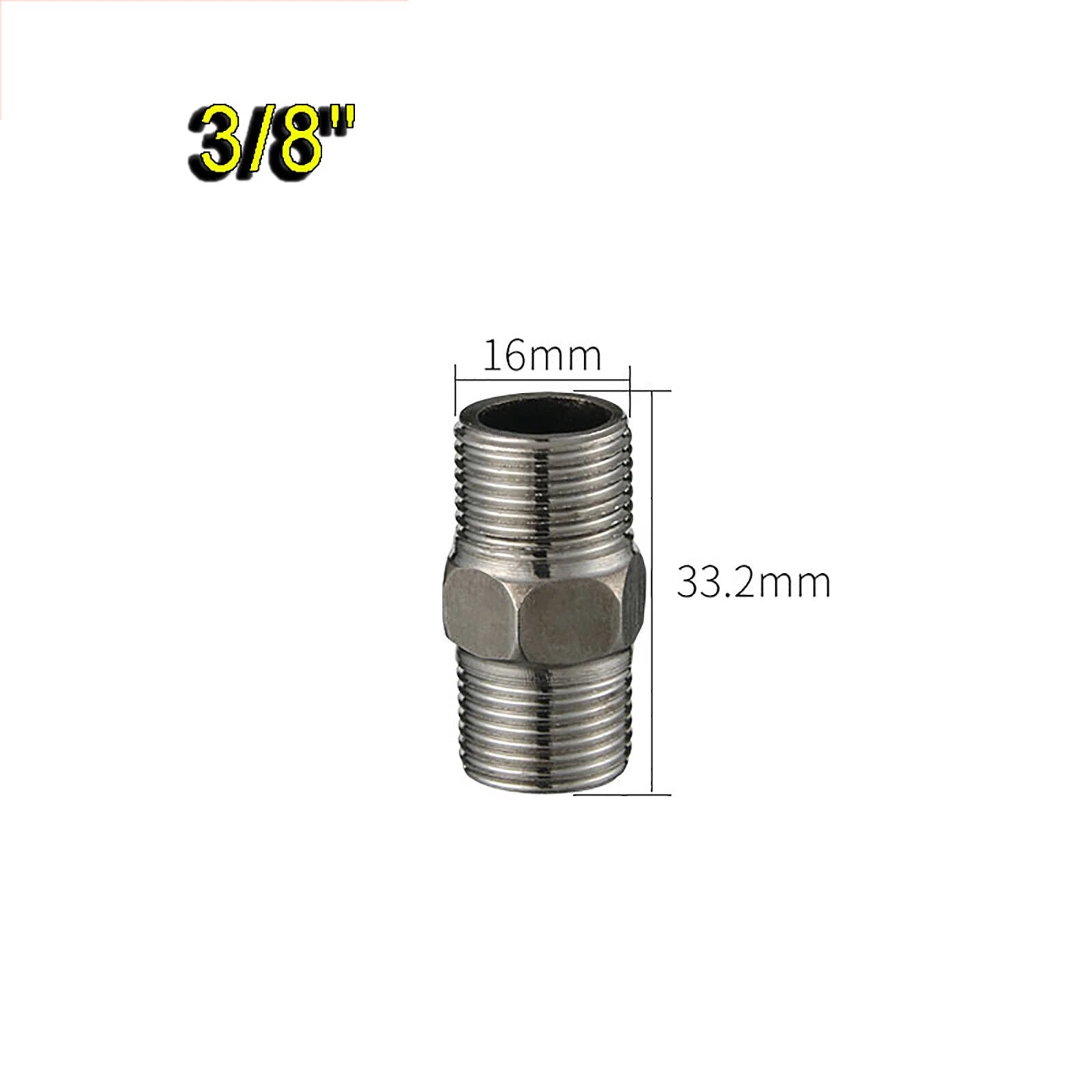

Available Sizes (Equal)	3/8", 1/2", 3/4", 1", 1-1/4" (nominal pipe size)

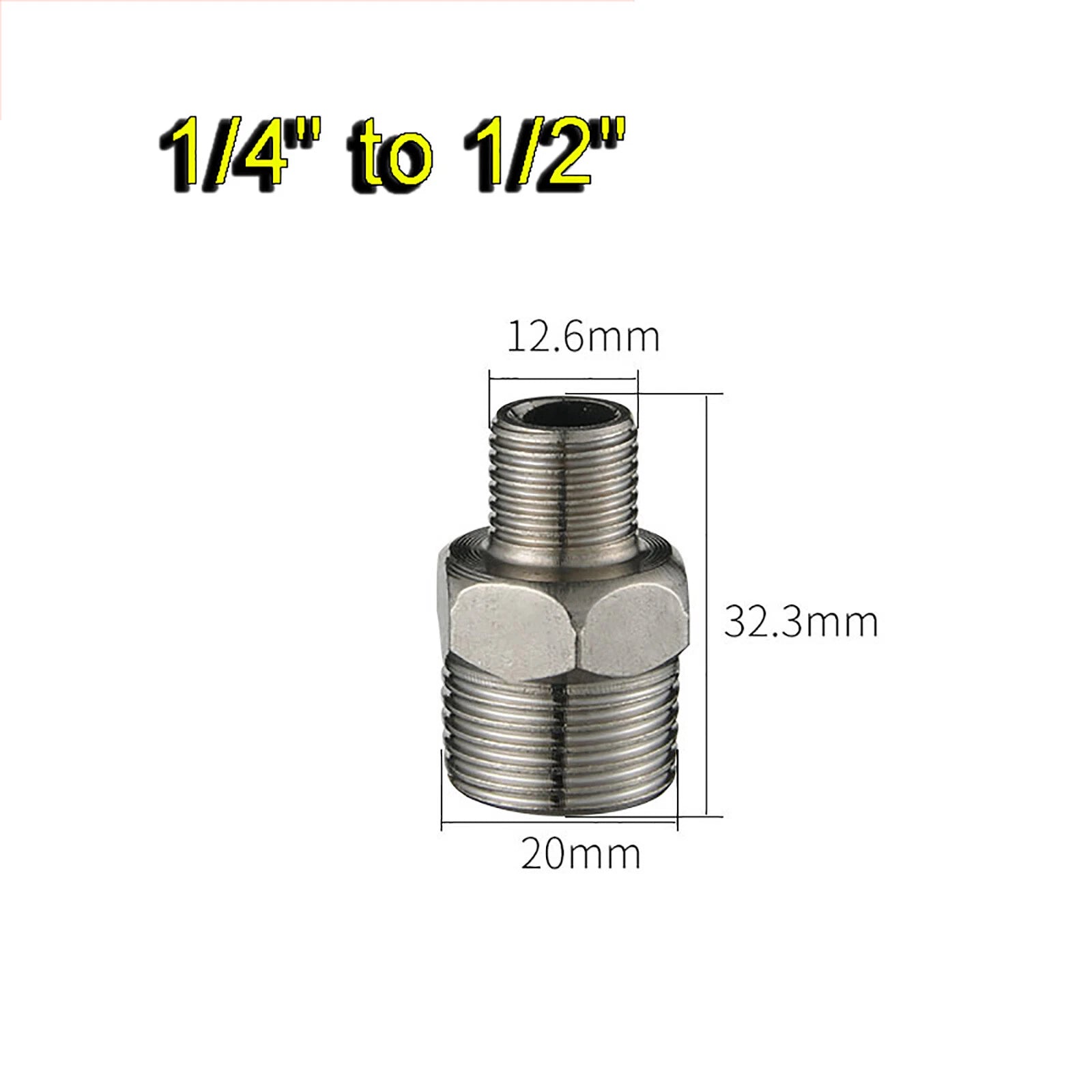

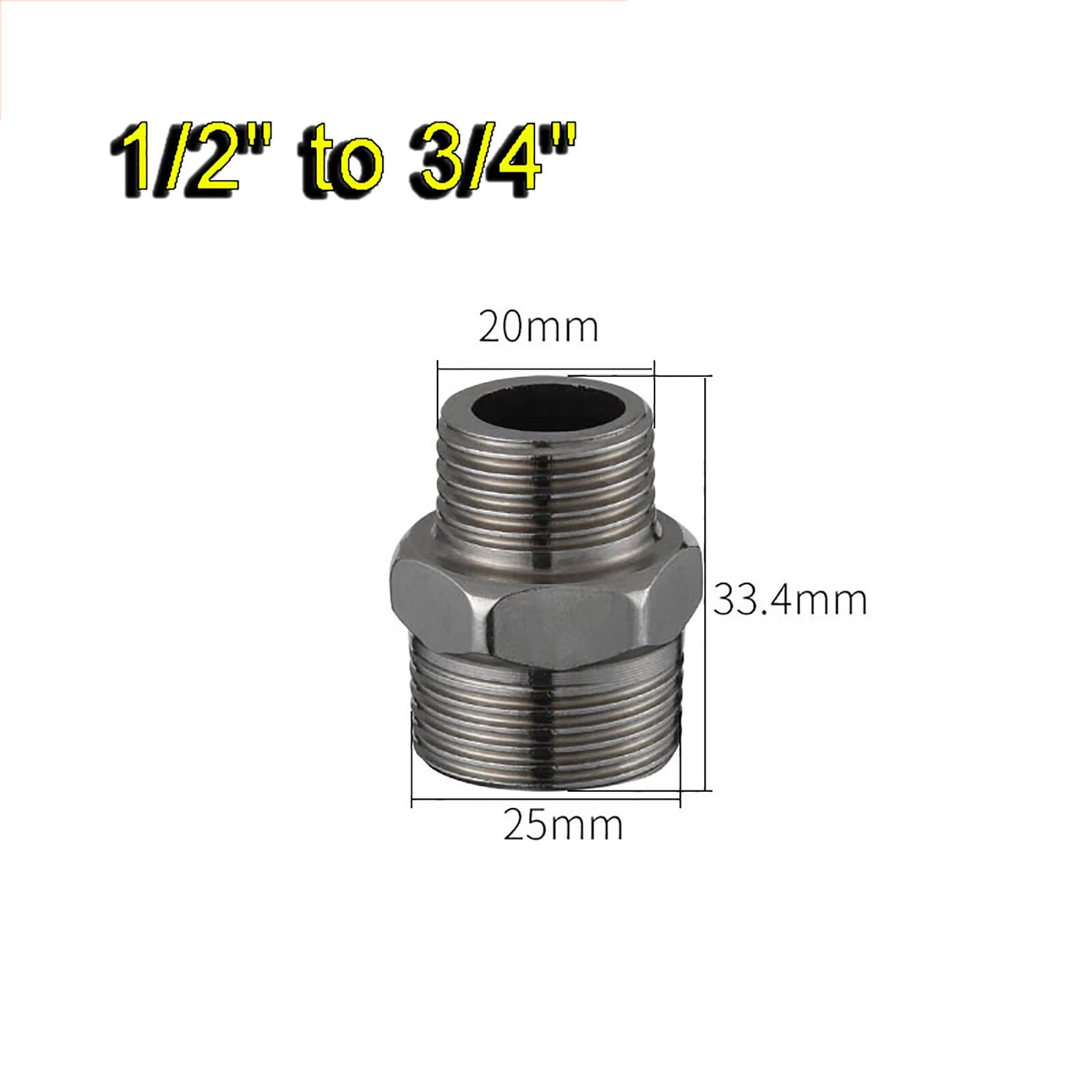

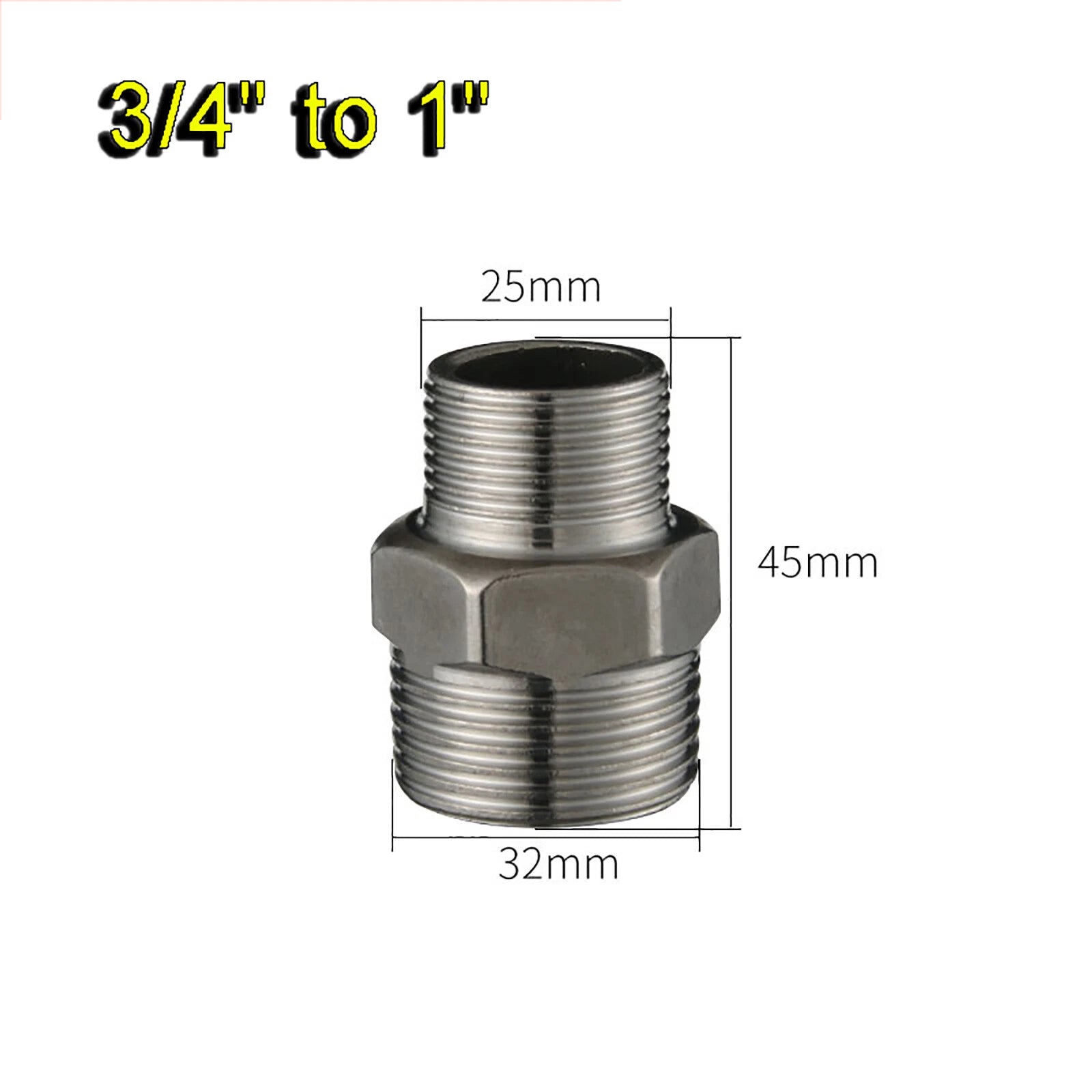

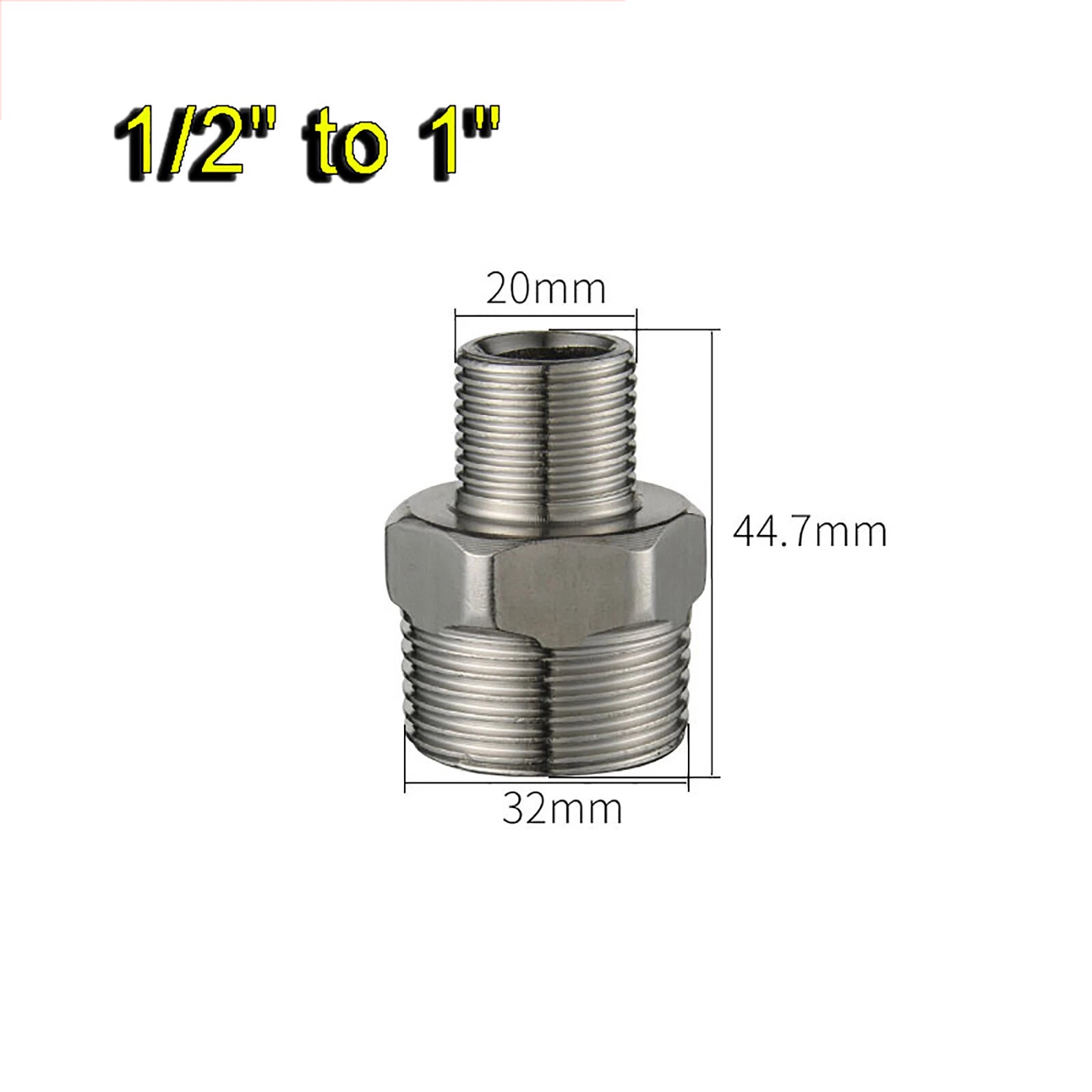

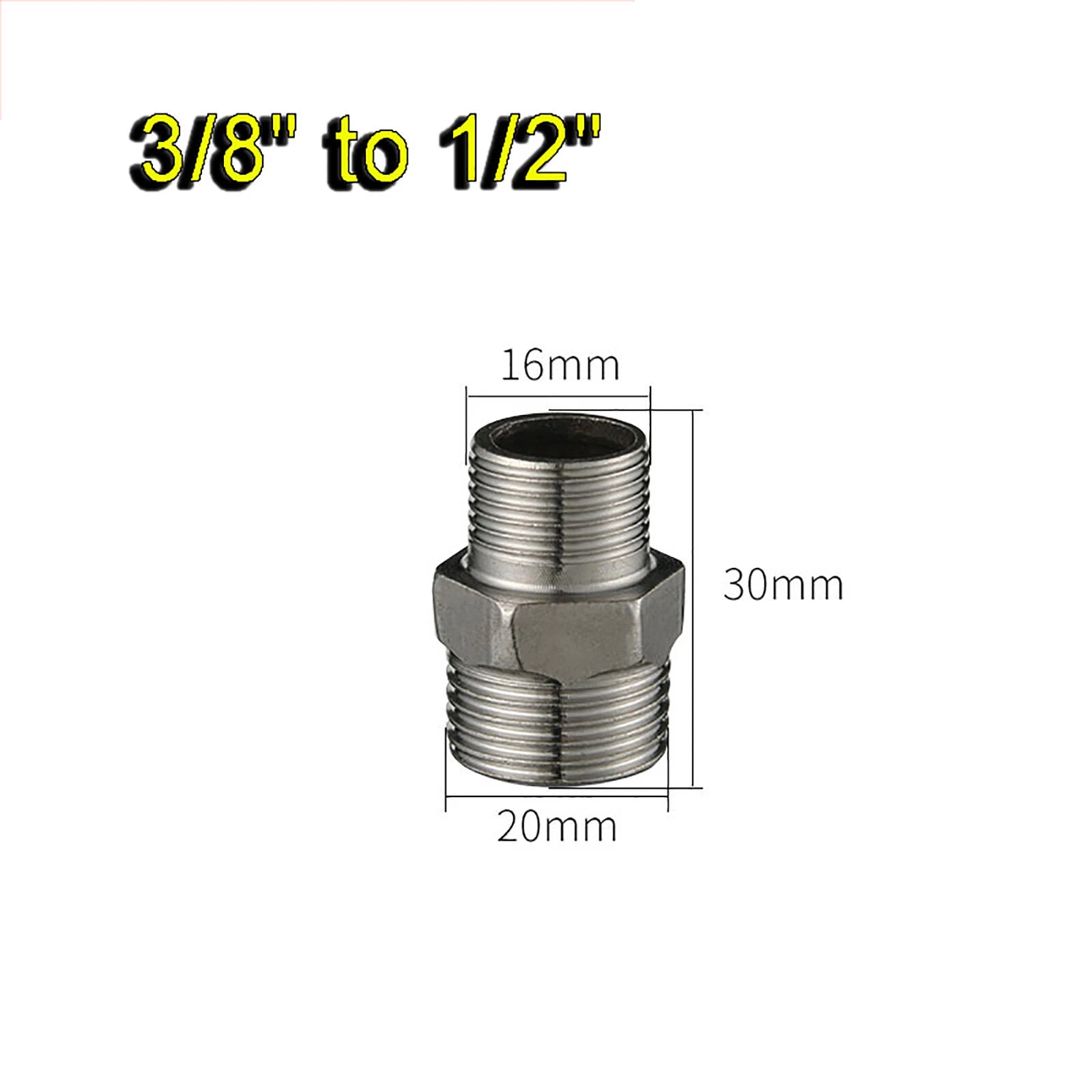

Available Sizes (Reducer)	1/4"→1/2", 3/8"→1/2", 1/2"→3/4", 1/2"→1", 3/4"→1" (larger port listed first)

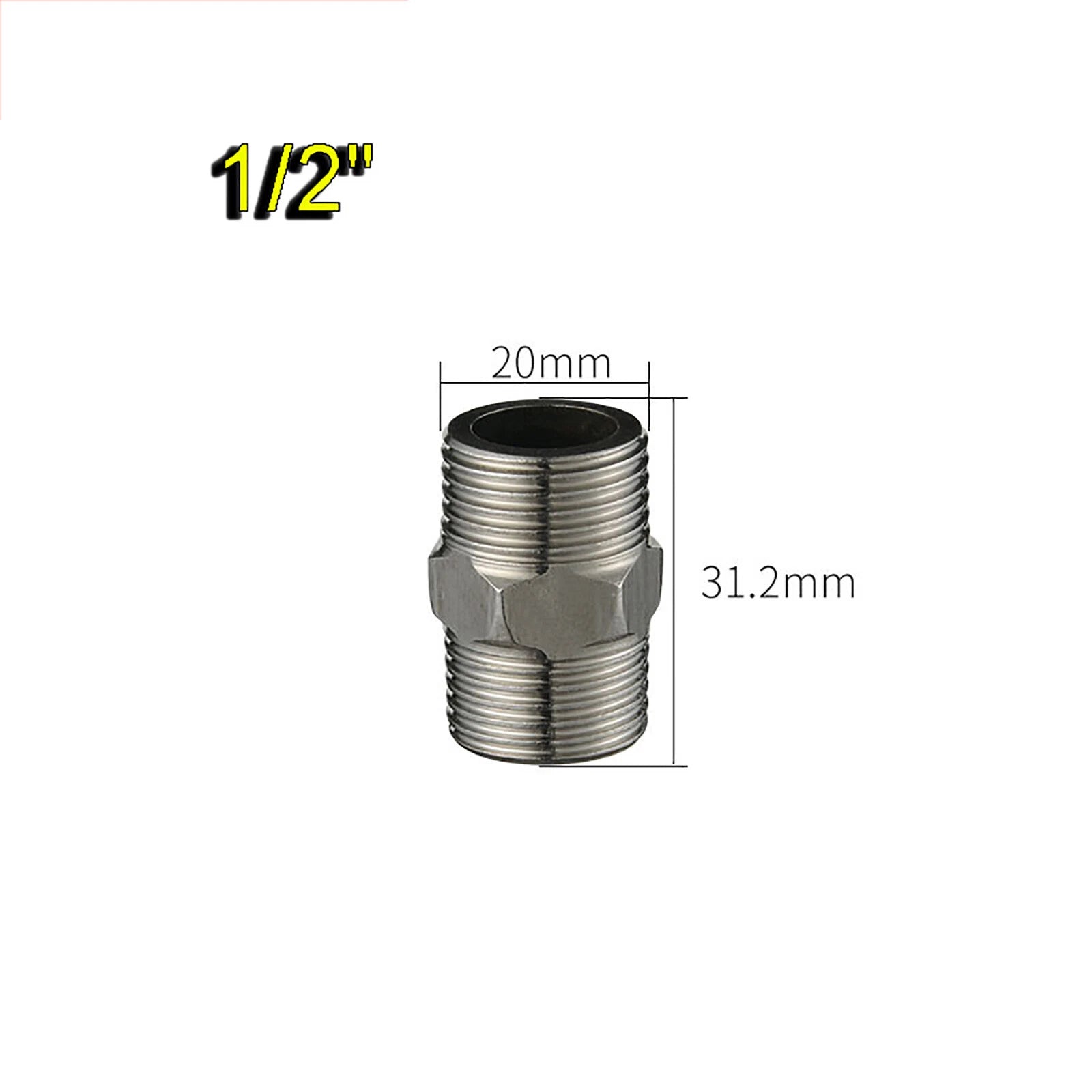

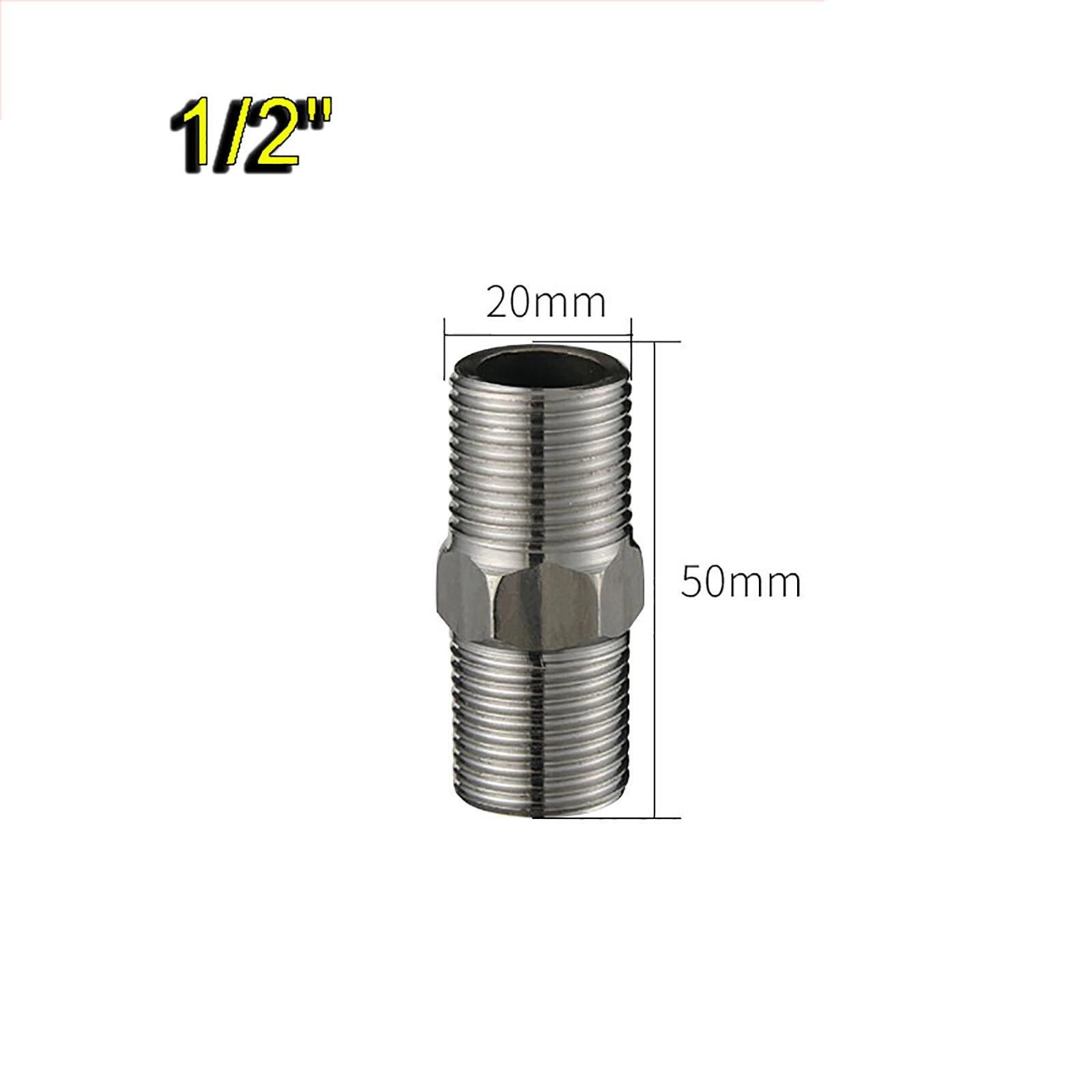

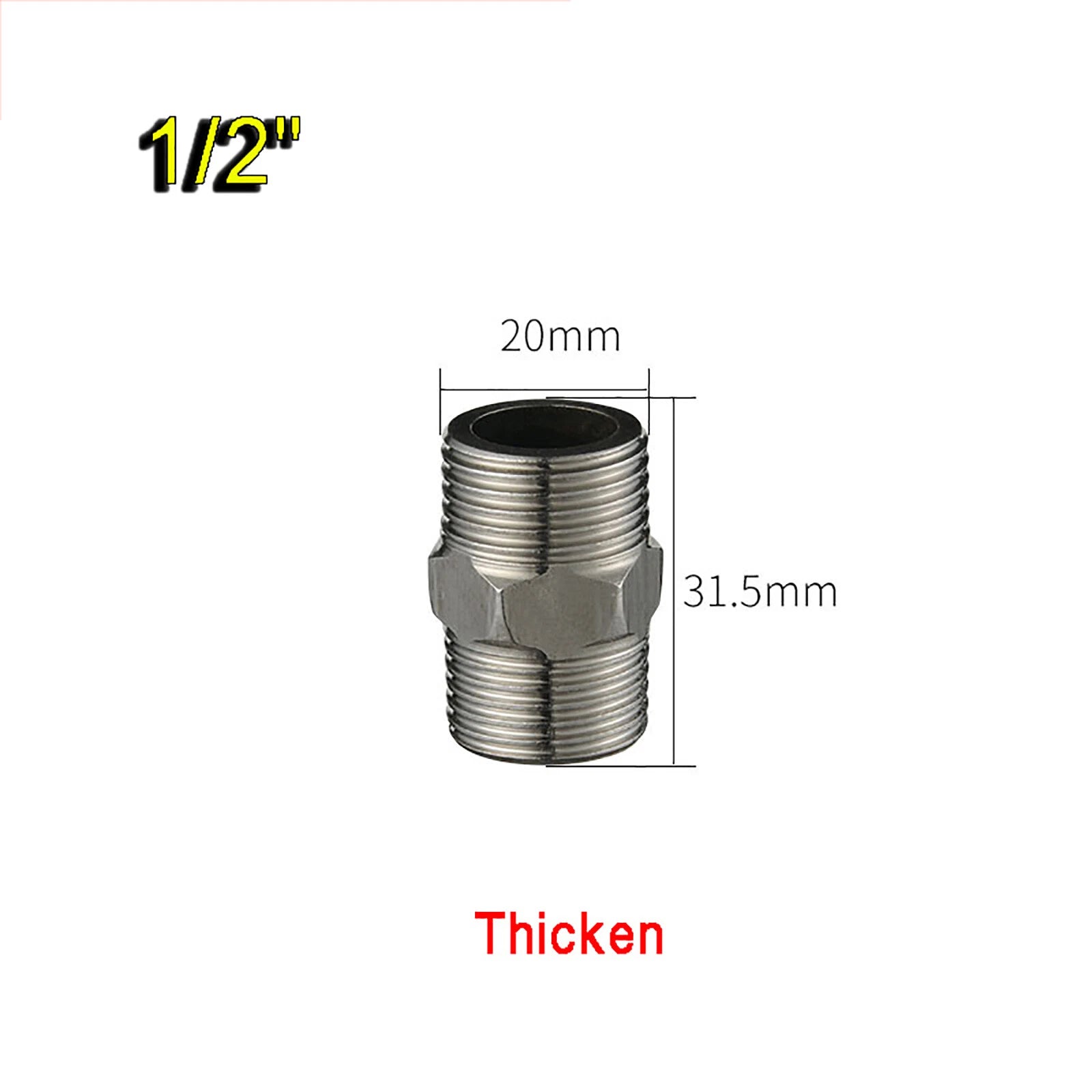

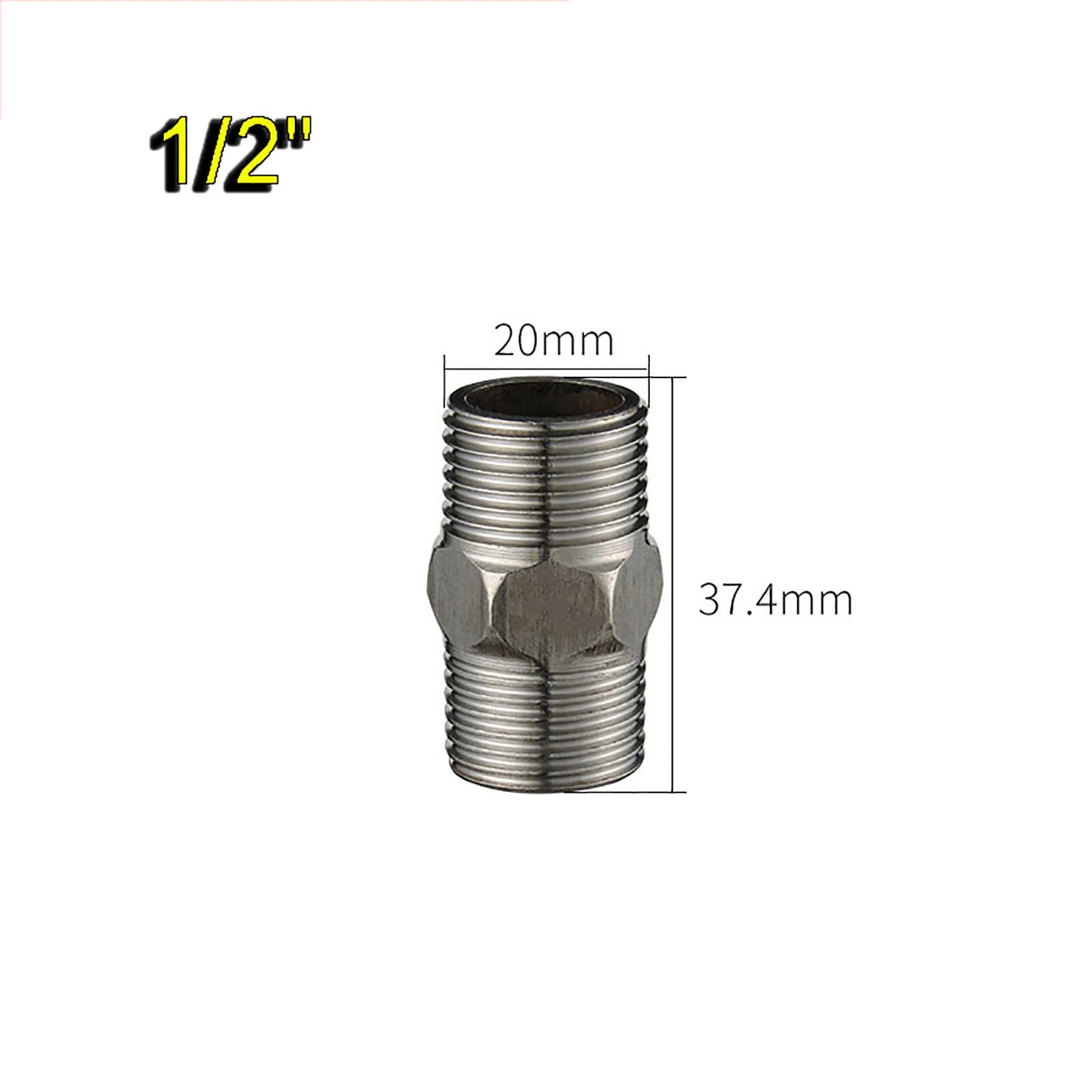

Body Length (Equal 1/2")	Standard: approx. 25 mm (≈1"); Thicken: heavier wall; Long 37 mm (≈1.46"); Long 50 mm (≈1.97")
Working Pressure	Typically up to 150 PSI (≈10 bar) for water/air at ambient temp — see variant options
Surface Finish	Brushed / natural stainless
Pack Quantities	1 pc / 2 pcs / 5 pcs
Country of Origin	Contact us to confirm
Certifications	See variant options

⚠️ Before You Order: Verify your existing pipe thread standard (NPT vs. BSP) and measure the nominal pipe size — not the thread OD — to select the correct variant. When in doubt, contact us with your pipe OD measurement and we'll help you choose.

❓ Frequently Asked Questions

How do I choose the right size for my pipe fitting?

Measure the outer diameter of your existing pipe threads and match it to the nominal pipe size. For example, a 1/2" NPT fitting typically has an outer thread diameter of approximately 0.840" (21.3 mm). When in doubt, measure both the male thread OD and the female port ID before ordering. Reducer variants list the larger port first, then the smaller — e.g., "1/2\" to 3/4\"" means the inlet is 1/2\" and the outlet is 3/4\".

What thread standard do these fittings use?

These fittings are generally manufactured to NPT (National Pipe Taper) standards, which is the most common thread standard for plumbing and fluid systems in the United States. If you need BSP or metric thread compatibility, please contact us to confirm before ordering.

Are these fittings suitable for outdoor or corrosive environments?

Yes. The 304 stainless steel construction provides strong resistance to rust, oxidation, and mild chemical exposure, making these fittings well-suited for outdoor plumbing, marine-adjacent installations, and humid environments. For highly aggressive chemical or saltwater immersion applications, 316 stainless steel is generally recommended — contact us to confirm suitability.

What is the pressure rating for these pipe fittings?

Stainless steel male-to-male straight connectors of this type are typically rated for working pressures up to 150 PSI (approximately 10 bar) for water and air service at ambient temperatures. Actual ratings depend on size, installation quality, and the fluid being conveyed. Always verify with your system's pressure requirements before installation.

What is the difference between Equal (Straight), Reducer (Straight), and Reducer (Eccentric)?

Equal (Straight) connectors join two pipes of the same diameter in a straight line. Reducer (Straight) connectors join two pipes of different diameters with both centerlines aligned — ideal for most inline reductions. Reducer (Eccentric) connectors offset one centerline to the side, which is useful when you need the bottom of the pipe to remain flat (common in pump inlet piping to prevent air pockets).

Do I need thread sealant (Teflon tape) when installing these fittings?

Yes. For NPT tapered threads, applying PTFE (Teflon) tape or a compatible thread sealant compound is strongly recommended to achieve a leak-free seal. Wrap the tape clockwise around the male threads (2–3 wraps) before assembly. Do not overtighten — hand-tight plus 1–2 turns with a wrench is generally sufficient for most pipe sizes.

Can these fittings be used for gas lines?

These fittings are constructed from stainless steel and are mechanically compatible with many gas applications. However, gas line installations are subject to local building codes and safety regulations. Always consult a licensed plumber or gas fitter and verify local code compliance before using any fitting in a gas system.

🛒 Select your type, size, and pack quantity above, then add to cart — ships from our US warehouse.
