🔧 Product Overview

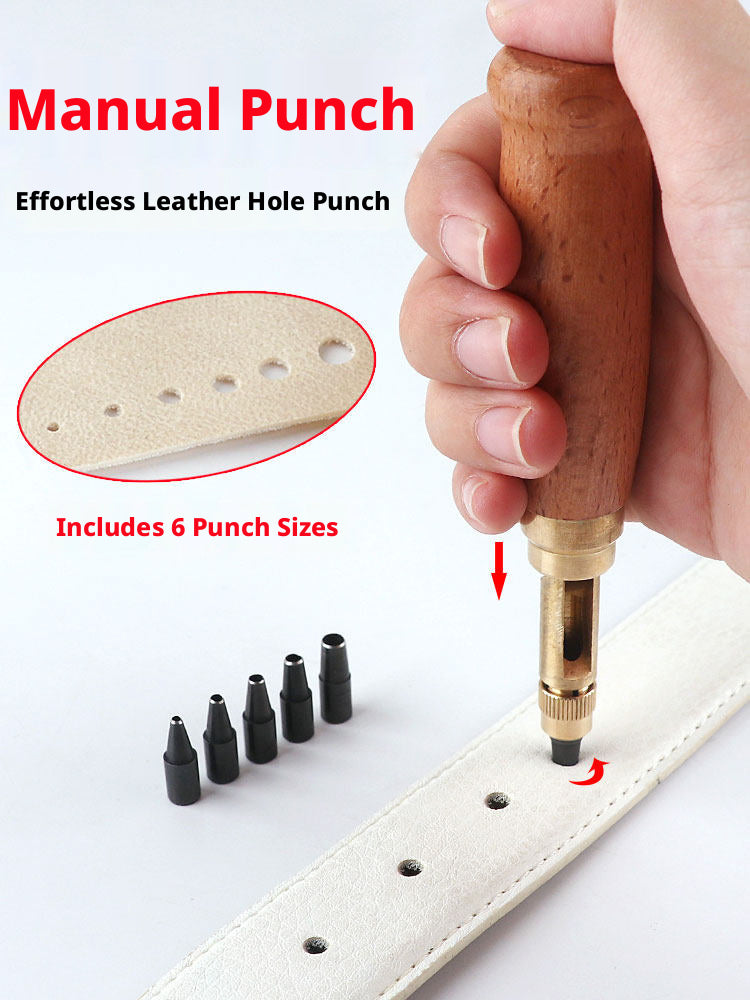

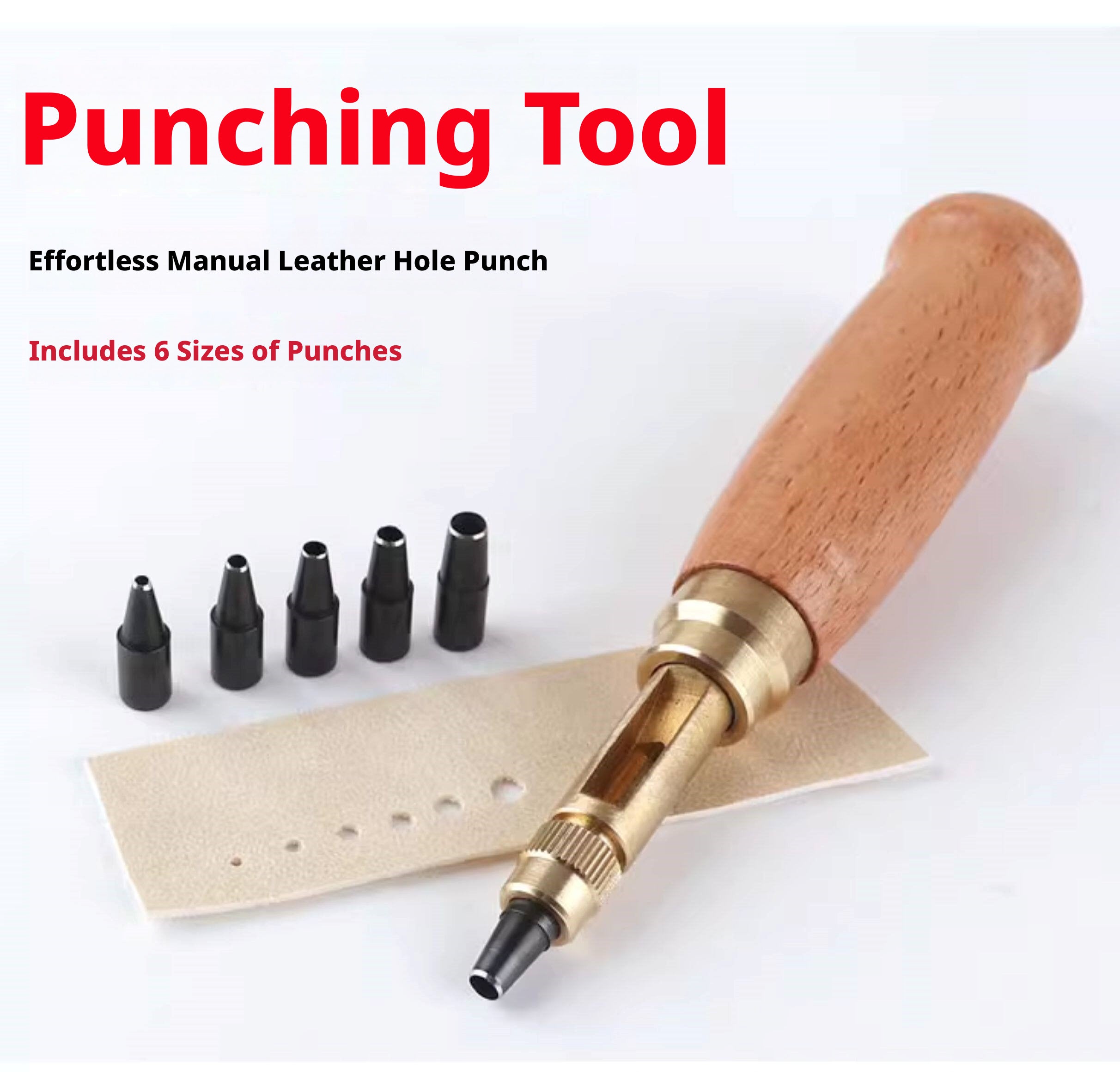

The Manual Rotary Leather Hole Punch is a handheld tool designed to create clean, round holes in leather, belts, shoes, canvas, and other soft materials. Unlike hammer‑driven punches, this tool uses a rotating mechanism: as you press down on the handle, an internal threaded rod rotates the punch head, cutting through the material with a smooth twisting motion. This design requires less force and produces quieter operation than traditional punch pliers or mallet‑and‑die sets.

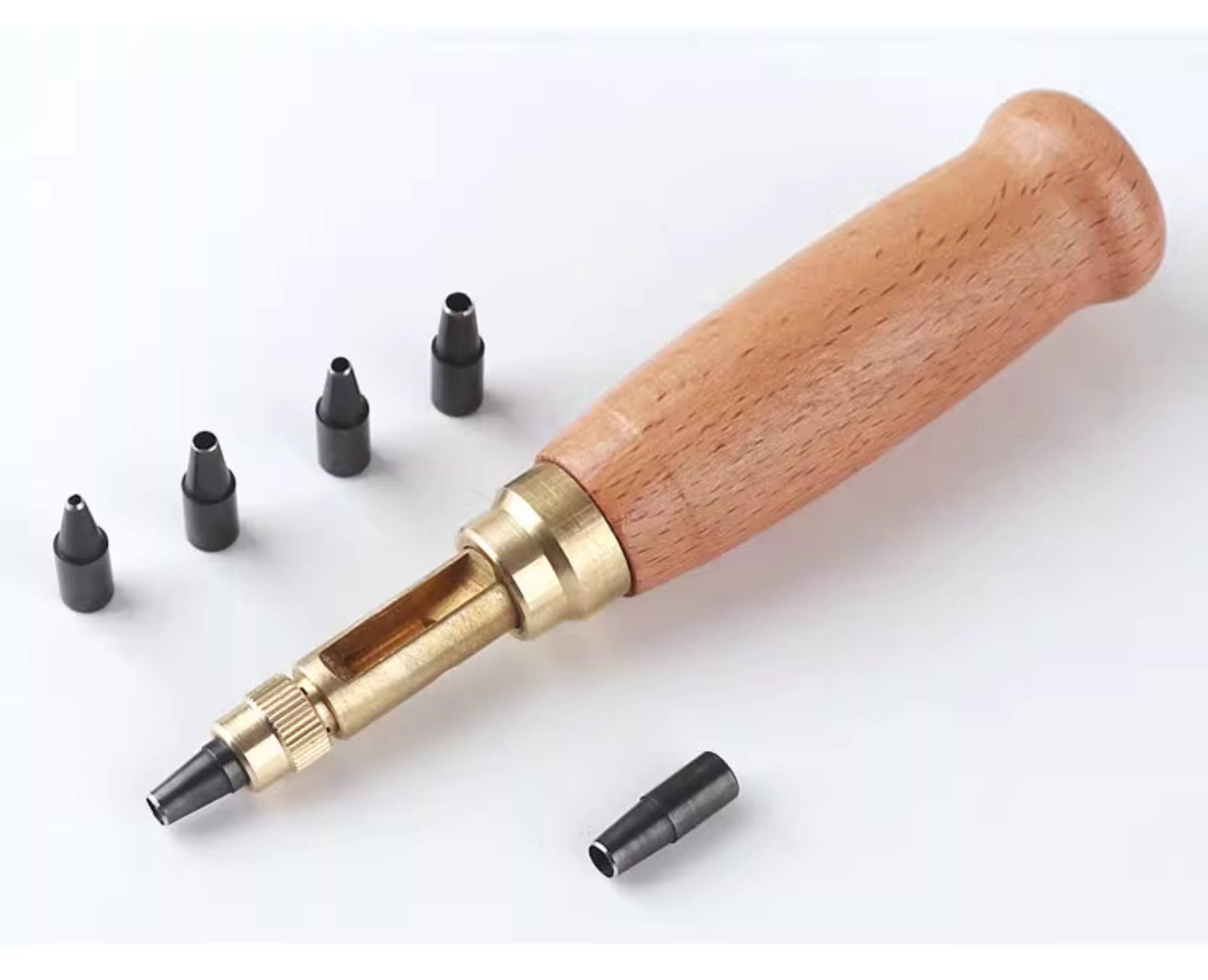

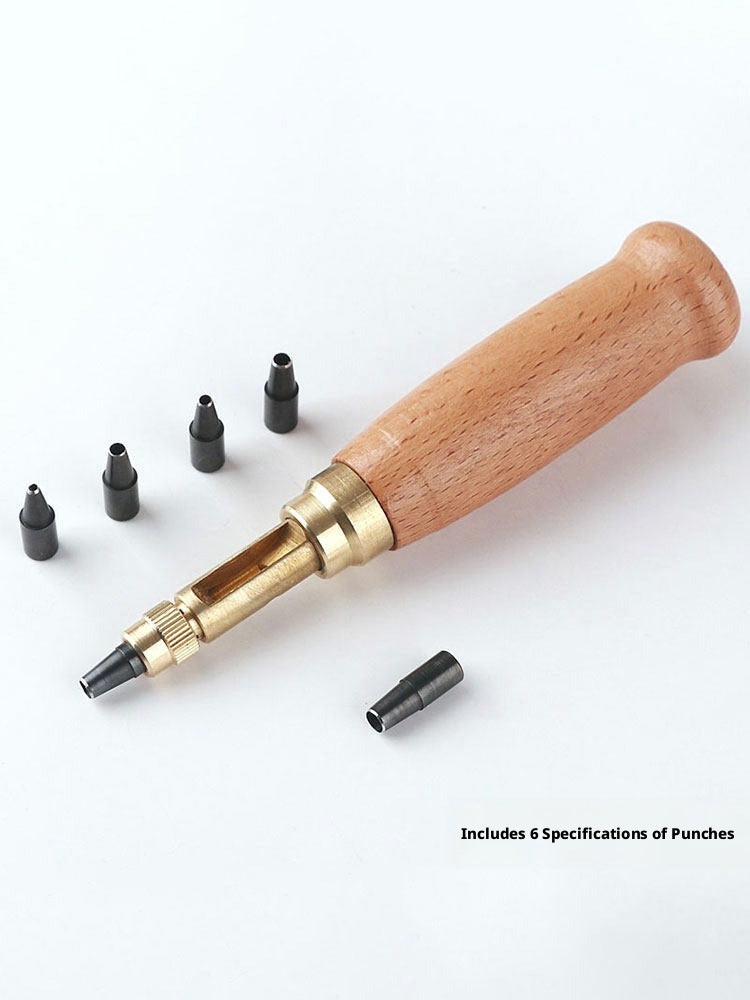

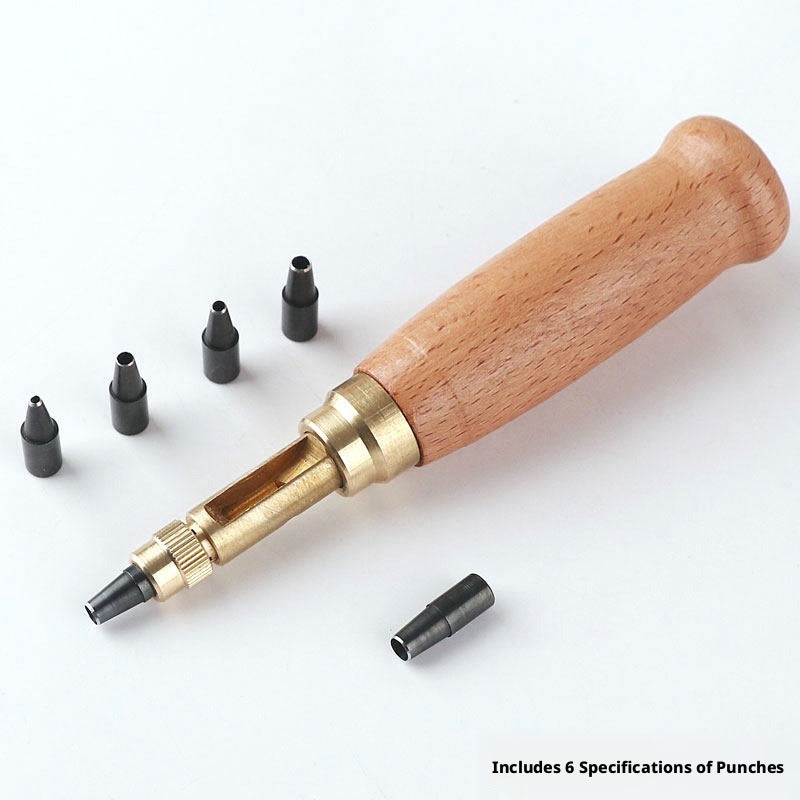

The punch features a solid wood handle (approx. 2.5cm diameter) and a brass body, with interchangeable punch heads made of 45# steel that has been blackened and hardened for sharpness and durability. The set includes six punch sizes: 1.5mm, 2mm, 2.5mm, 3mm, 4mm, and 5mm – covering common needs for belt holes, watch strap adjustments, bag hardware, and shoe repairs. Total tool length is 13cm, making it easy to grip and store. Ideal for DIY leathercrafters, cobblers, and home repair enthusiasts.
✨ Key Features & Benefits
- ✔️ Rotary Cutting Action – Effortless Operation – Instead of striking with a mallet, you simply press down. The internal thread rotates the punch, shearing through leather smoothly. Requires less hand strength and reduces noise.
- ✔️ 6 Interchangeable Punch Sizes (1.5‑5mm) – Includes 1.5mm, 2mm, 2.5mm, 3mm, 4mm, and 5mm. Common sizes for belt prongs (3‑4mm), watch pins (1.5‑2mm), rivets (3‑5mm), and eyelets. One tool for multiple projects.

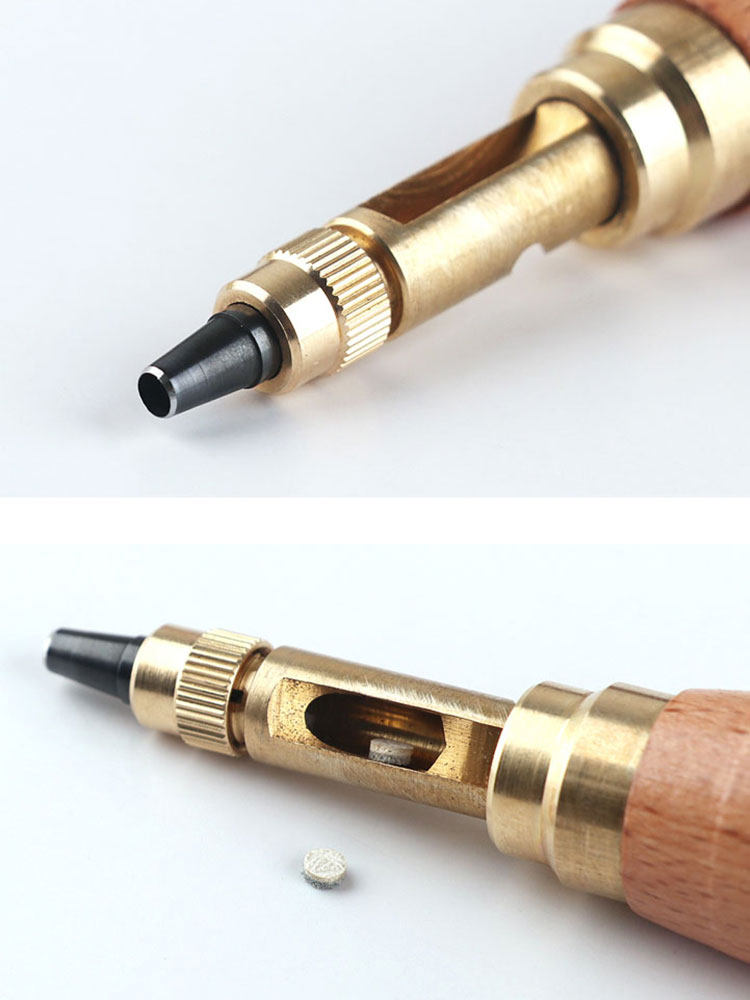

- ✔️ Solid Wood Handle + Brass Construction – The handle is made of natural solid wood (approx. 2.5cm diameter) for a comfortable, non‑slip grip. The body is brass for corrosion resistance and smooth operation.
- ✔️ 45# Steel Punches – Blackened & Hardened – The punches are made from 45# carbon steel, heat‑treated for hardness, and blackened to resist rust. Sharp and durable for hundreds of holes.
- ✔️ Easy Punch Change – Screw‑Secure System – Loosen the screw at the top of the connecting rod, insert the desired punch, then retighten. No special tools required.
- ✔️ Compact & Portable (13cm total length) – Small enough to keep in a drawer, toolbox, or apron pocket. Ideal for on‑site repairs or workshop use.
🧵 Ideal For These Leather Projects
Belt Hole Punching (Extra Holes) Watch Strap Resizing Leather Bag Strap Adjustment Shoe & Sandal Repair Key Fob & Keychain Holes Wallet Card Slot Piercing Rivet & Eyelet Hole Preparation Canvas or Fabric Grommet Holes Leather Journal Cover Lacing DIY Leather Craft Projects
🔧 Compatibility Guide
✔ Compatible With:
- ✔️ Vegetable Tanned Leather (up to ~4mm thickness)
- ✔️ Chrome Tanned & Genuine Leather
- ✔️ Faux Leather / PU (softer – easy punch)
- ✔️ Canvas, nylon webbing, heavy fabric
- ✔️ Thin rubber or foam sheets
✘ Not Recommended For:
- ✘ Metal, hard plastic, wood
- ✘ Leather thicker than 5mm (may require multiple presses)
- ✘ Wet or oil‑soaked leather (punch may tear)
- ✘ Use without a cutting mat (protect the punch tip)

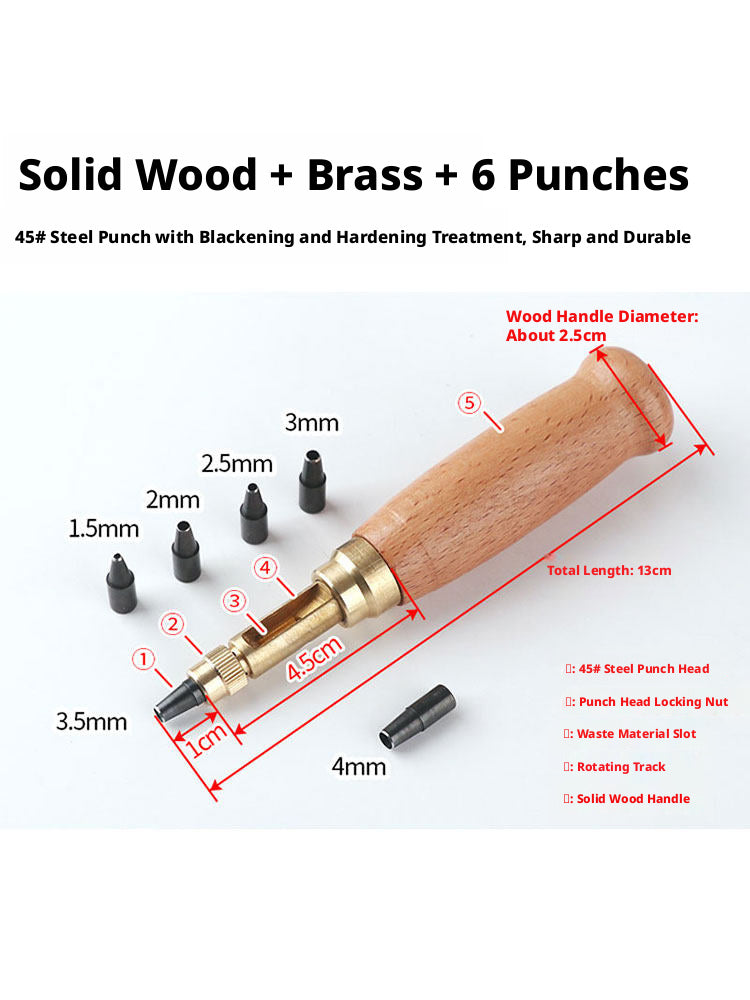

| Product Name |
Manual Rotary Leather Hole Punch |
| Material |
Solid wood handle, brass body, 45# steel punches (blackened & hardened) |
| Total Length |
Approx. 13 cm (5.1 inches) |
| Handle Diameter |
Approx. 2.5 cm (1 inch) |
| Punch Sizes Included |
1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm (6 pieces) |
| Punch Material |
45# carbon steel, heat‑treated, blackened finish |
| Operation |
Press down – rotary cutting action (threaded rod mechanism) |
| Max Recommended Leather Thickness |
~4mm (softer leather up to 5mm with multiple presses) |
| Package Contents |
1x punch body (with handle), 6x interchangeable punch heads (1.5‑5mm), 1x screw (secures punch) |
Note: Manual measurements may have a ±0.5mm error. Use a protective cutting mat to prevent dulling the punch tips.

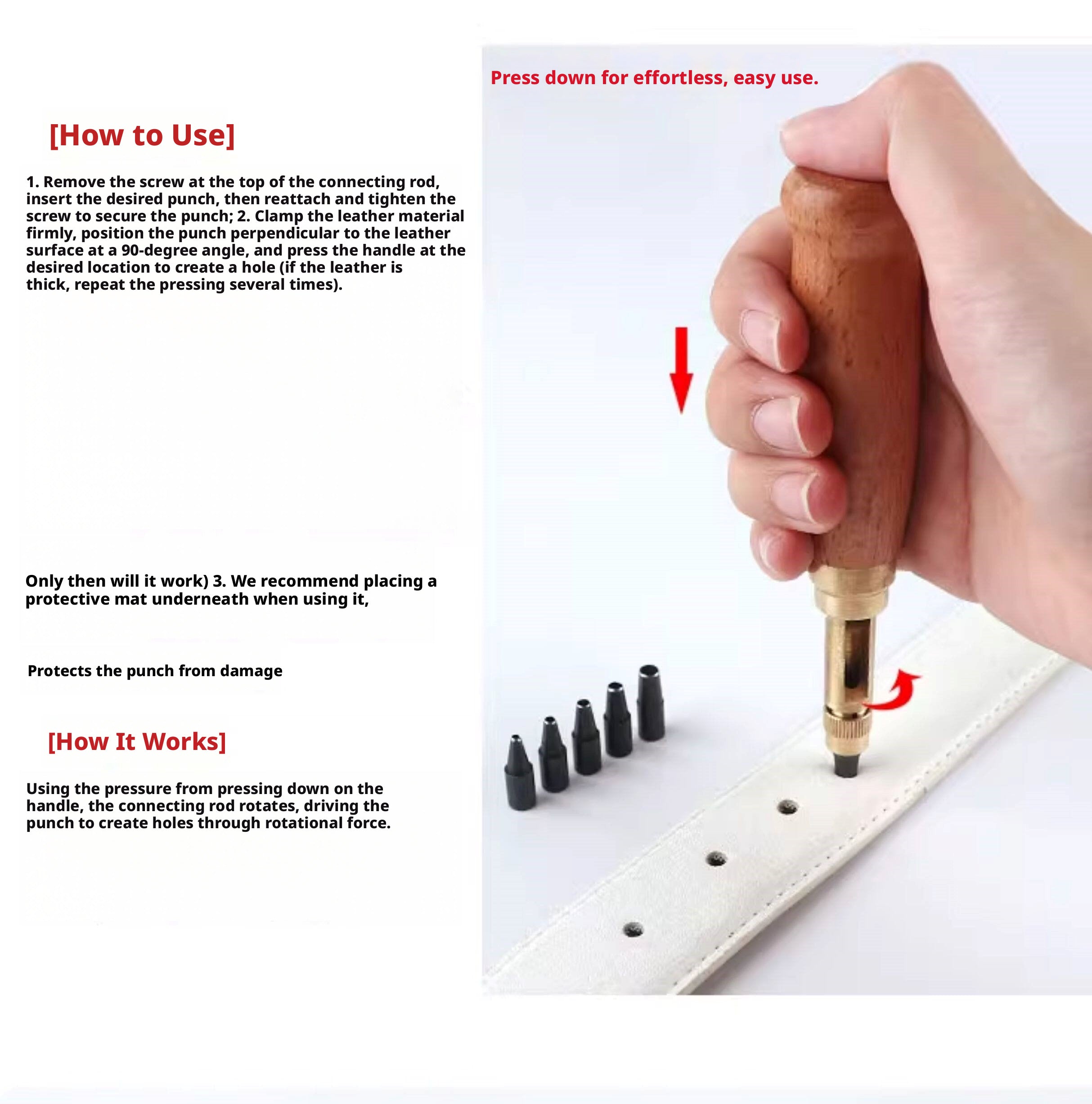

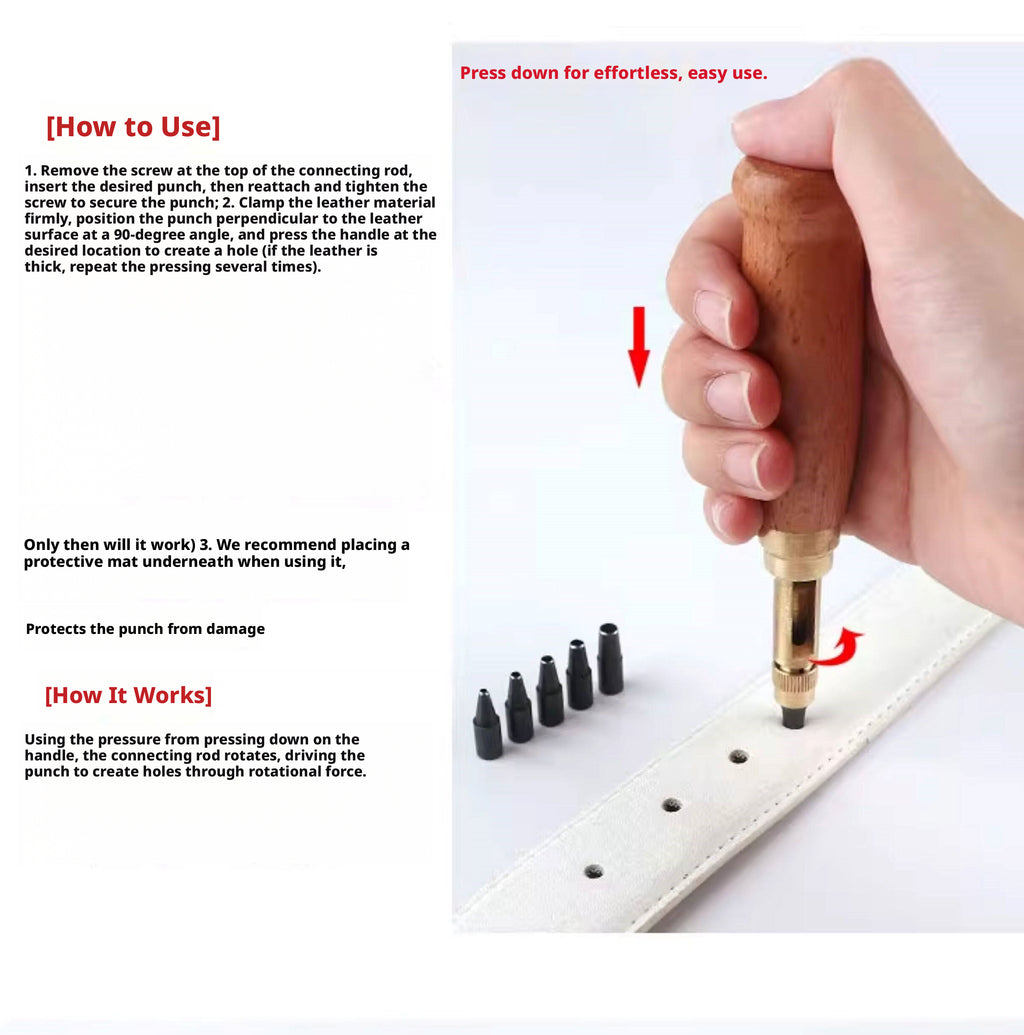

✍️ How to Use – Simple 4‑Step Operation
-
Select the correct punch size – Loosen the screw at the top of the connecting rod. Insert the desired punch (e.g., 3.5mm for a standard belt prong) into the opening, then tighten the screw securely.
-
Prepare your leather – Place the leather on a soft cutting mat (e.g., self‑healing mat or a piece of scrap wood). Mark the desired hole location with a pencil or awl.
-
Position the punch vertically – Hold the tool perpendicular to the leather surface (90° angle). Align the punch tip directly over your mark.
-
Press down firmly – Apply steady downward pressure on the handle. The internal mechanism will rotate the punch, cutting a clean hole. For thick leather (3‑5mm), you may need to press multiple times – release and re‑press until the hole is complete.
💡 Tip: Always use a protective mat underneath – this preserves the sharpness of the punch. If the punch becomes stuck, do not force it; gently rock the handle side to side while pulling up.
❓ Frequently Asked Questions
Q: How is this different from a standard belt punch pliers?
A: Standard plier‑style punches use a straight clamping action – they squeeze the punch through the leather. This tool uses a rotating mechanism that twists the punch as it descends, requiring less force and producing a cleaner hole, especially on thicker or denser leather.
Q: Can I use this punch on thick leather belts (5mm)?
A: Yes, but you may need to press down multiple times. The rotary action will gradually cut through. For best results, ensure the leather is not too dry or stiff – conditioning beforehand helps. For very thick leather (over 5mm), a heavier‑duty press punch is recommended.
Q: How do I change the punch head?
A: Locate the small screw at the top of the brass rod (near the handle). Use a screwdriver or a coin to loosen it. Pull out the current punch, insert a new one, and retighten the screw. Do not overtighten.
Q: Which punch size should I use for a standard belt?
A: Most men’s belt prongs fit a 3.5‑4.0mm hole. Women’s belts often use 3.0mm. The set includes 3mm, 4mm, and 5mm – test with the buckle prong: the hole should be just slightly larger than the prong diameter.
Q: Does the tool work on canvas or fabric?
A: Yes, it works well on heavy canvas, denim, and webbing. For thin fabric, place a piece of scrap leather or thick paper underneath to help the punch cut cleanly.
Q: Why is my punch dull or not cutting cleanly?
A: The punch may have become dull after extensive use, or you may be using it on a hard surface (metal or wood) which dulls the tip. Always use a soft cutting mat. Punches can be sharpened with a fine file or replaced (contact us for replacements).
Q: Is the wood handle comfortable for extended use?
A: Yes. The solid wood handle is ergonomically shaped (approx. 2.5cm diameter) and fits naturally in the hand. The smooth finish reduces friction and fatigue during repeated pressing.
⭐ Why Leather Crafters Choose This Manual Rotary Punch
DIY Friendly – No hammer, no noise, no special skills. Press and punch.
Reliable Quality – Solid wood handle, brass body, hardened steel punches.
6 Sizes Included – Covers 1.5‑5mm – from watch straps to heavy belts.
Portable & Compact – 13cm length fits in any tool kit.
Effortless Rotary Action – Less hand strain than plier‑style punches.
